SKU: KM660MAJE

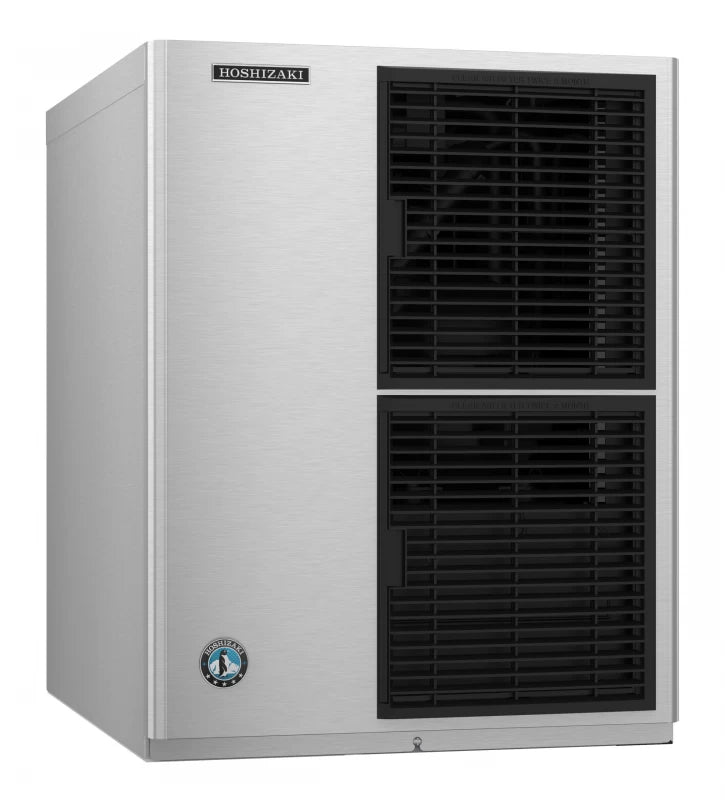

Hoshizaki KM660MAJE Crescent® Cuber Icemaker, Air-cooled, 50Hz Electrical Stainless Steel

Quick Specification More details

Width:
22"
Depth:
27.375"
Height:
28"
Type:
Ice Makers

About this product

Up to 280 kg of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces crescent shaped ice cubes
Dimensions: 559 mm W x 695 mm D x 711 mm H

Summer Sale

Clearance

SKU: KM660MAJE

Hoshizaki KM660MAJE Crescent® Cuber Icemaker, Air-cooled, 50Hz Electrical Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
22"
Depth:
27.375"
Height:
28"
Type:
Ice Makers

About this product

Up to 280 kg of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces crescent shaped ice cubes
Dimensions: 559 mm W x 695 mm D x 711 mm H

Product Details for HOSHIZAKI KM660MAJE

Technical Details

Product details

Plumbing Specs	12.7 mm FPT Inlet, Minimum 6 mm Nominal OD Copper Water Tubing or Equivalent, 19.05 mm FPT Outlet, Minimum 18 mm Nominal OD Hard Pipe or Equivalent
Electrical Specs	50Hz electrical, 220-240v/50/1, 3000 mm long cord with Type G plug, Amperage: 8.4, Max Fuse/HACR Breaker: 15 A
Utility Consumption	4.85 kWh per 100 lbs @ 90/70, 52 gal of Potable Water per 100 lbs @ 90/70
Operating Limits	Ambient Temp Range: 7 – 38°C, Water Temp Range: 7 – 32°C, Water Pressure: 69 – 779kpa, Voltage Range: 198 – 254V, Heat Rejection: 7300 BTU/hr, Refrigerant Charge: R-404A, (1 lbs. 10.8 oz. / 7
Shipping Weight	185
Warranty	Warranty: Contact factory for warranty information.

Dimensions & weight

Weight	185 lbs.
Width	22 in.
Depth	27.375 in.
Height	28 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	225 lbs.
Total of Shipping Weight	225 lbs.
Source	Calculation

Description

The KM-660MAJ-E is capable of producing approximately 280 kg of crescent cubed ice. Our efficient double-sided KMEdge™ stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Air-cooled, Slim Line Modular, 50Hz Electrical icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-660MAJ-E has a 50Hz electrical, 220-240v/50/1, 3000 mm long cord with Type G plug. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B. Please consult the Specification Sheet for additional details.

Product Features

Up to 280 kg of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces crescent shaped ice cubes
Dimensions: 559 mm W x 695 mm D x 711 mm H
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B
R-404A refrigerant (760 g)
8.4 amps (15 Amp Max fuse)
4.85 kwh/100 lbs.@ 90/70
50Hz electrical, 220-240v/50/1, 3000 mm long cord with Type G plug
Clean ice and easy maintenance lead to longer unit life span
EverCheck™ alert system
CycleSaver™ design
“-E”: 50Hz Electrical Model
Heat Rejection: 7300 BTU/hr
Warranty: Contact factory for warranty information
