SKU: KM2600SRJZ3

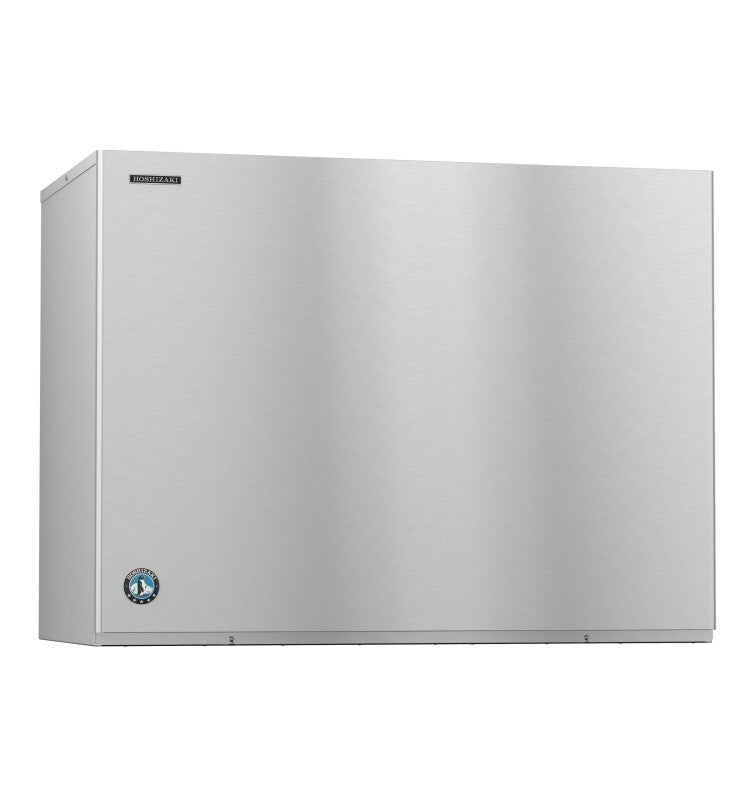

Hoshizaki KM2600SRJZ3 Crescent® Cuber Icemaker, Remote-cooled, 3 Phase Stainless Steel

Quick Specification More details

Width:
48"
Depth:
27.375"
Height:
36.438"
Type:
Ice Makers

About this product

Up to 2617 lbs of ice produced per 24 hours
Stack 2 units for 2x the ice production
Produces crescent shaped ice cubes
Durable stainless steel exterior

Summer Sale

Clearance

SKU: KM2600SRJZ3

Hoshizaki KM2600SRJZ3 Crescent® Cuber Icemaker, Remote-cooled, 3 Phase Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
48"
Depth:
27.375"
Height:
36.438"
Type:
Ice Makers

About this product

Up to 2617 lbs of ice produced per 24 hours
Stack 2 units for 2x the ice production
Produces crescent shaped ice cubes
Durable stainless steel exterior

Product Details for HOSHIZAKI KM2600SRJZ3

Technical Details

Product details

Electrical Specs	Three phase, 208-230v/60/3 4 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 20.6, Max Fuse/HACR Breaker: 30 A
Utility Consumption	3.61 kWh per 100 lbs @ 90/70, 16 gal of Potable Water per 100 lbs @ 90/70
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: 36000 BTU/hr, Refrigerant Charge: R-404A, (19 lbs. 13.5 o
Plumbing Specs	1/2″ FPT Inlet, Minimum 3/8″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Drain Hard Pipe or Equivalent
Shipping Weight	440

Dimensions & weight

Weight	440 lbs.
Width	48 in.
Depth	27.375 in.
Height	36.438 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	480 lbs.
Total of Shipping Weight	480 lbs.
Source	Calculation

Warranty

Parts	3 Years
Labor	3 Years
Parts (Compressor)	5 Years

Description

The KM-2600SRJZ3 is capable of producing approximately 2617 lbs of Crescent Cube style ice cubes per day, and the built-in dispensing system holds up to lbs of insulated storage to ensure you always have enough ice on hand! This commercial Remote-cooled icemaker is the only one-piece dispenser design on the market! This makes it easy to install and service, and a quiet operating system makes it ideal for use in hotels and similar applications. EverCheck™ alert system. This sanitary icemaker/dispenser features a user-friendly dispensing mechanism that allows clean, individual, crescent ice cubes to be dispensed with a simple push of a button. This model features CycleSaver™ design and is ENERGY STAR® qualified. The KM-2600SRJZ3 requires a Single phase, 208-230v/60/1, 4 wire, including ground. If neutral is not available transformer kit (HS-5030) is required electrical connection and comes with a cord and plug.

Product Features

Up to 2617 lbs of ice produced per 24 hours
Stack 2 units for 2x the ice production
Produces crescent shaped ice cubes
Durable stainless steel exterior

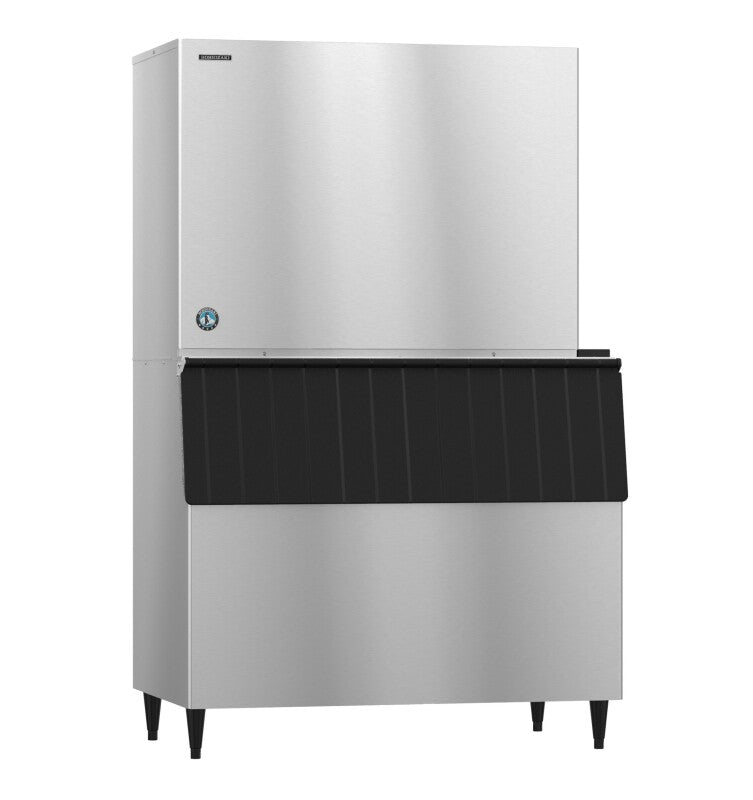

Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650
R-404A refrigerant (19 lbs. 13.5 oz. / 9000 g)
20.6 amps (30 Amp Max fuse)
3.61 kwh/100 lbs.@ 90/70
Three phase, 208-230v/60/3 4 wire, including ground. Must be hardwired at site, no cord/plug included
EverCheck™ alert system
CycleSaver™ design
ENERGY STAR® qualified
Integrated ultrasonic bin control
Simple, one-hour cleaning and assisted cleaning process with CleanAssist
Heat Rejection: 36000 BTU/hr
Three Years: Parts & Labor warranty on entire machine
Five Years: Parts & Labor warranty on evaporator
