SKU: KM2200SRJZ3

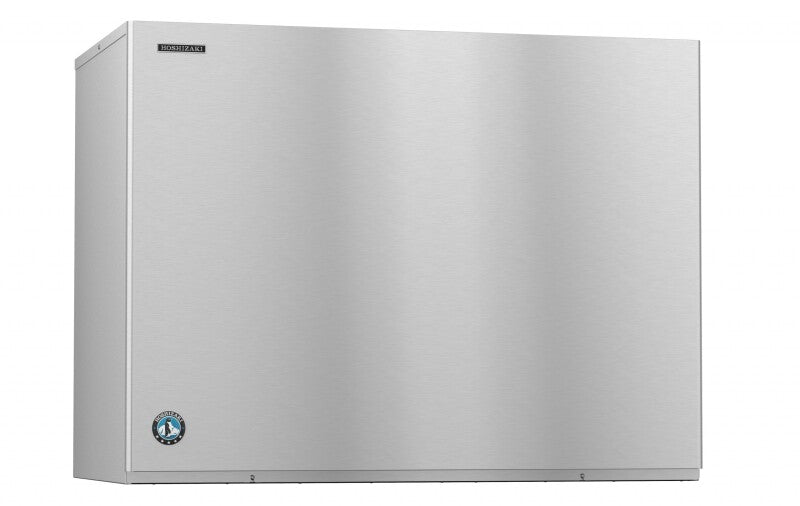

Hoshizaki KM2200SRJZ3 Crescent® Cuber Icemaker, Remote-cooled, 3 Phase Stainless Steel

Quick Specification More details

Width:
48"
Depth:
27.375"
Height:
36.438"
Type:
Ice Makers

About this product

Stack 2 units for 2x the ice production
Produces crescent shaped ice cubes
Up to 2206 lbs of ice produced per 24 hours
Durable stainless steel exterior

Summer Sale

Clearance

SKU: KM2200SRJZ3

Hoshizaki KM2200SRJZ3 Crescent® Cuber Icemaker, Remote-cooled, 3 Phase Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
48"
Depth:
27.375"
Height:
36.438"
Type:
Ice Makers

About this product

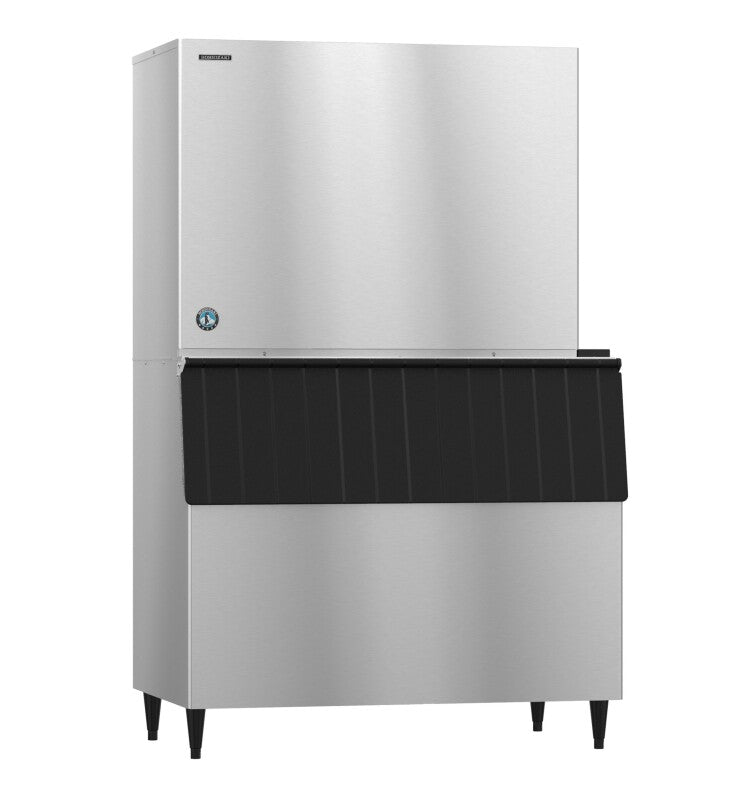

Stack 2 units for 2x the ice production
Produces crescent shaped ice cubes
Up to 2206 lbs of ice produced per 24 hours
Durable stainless steel exterior

Product Details for HOSHIZAKI KM2200SRJZ3

Technical Details

Product details

Electrical Specs	Three phase, 208-230v/60/3 4 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 15.9, Max Fuse/HACR Breaker: 20 A
Utility Consumption	3.75 kWh per 100 lbs @ 90/70, 15 gal of Potable Water per 100 lbs @ 90/70
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: 26700 BTU/hr, Refrigerant Charge: R-404A, (8 lbs. 6 oz. /
Plumbing Specs	1/2″ FPT Inlet, Minimum 3/8″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Drain Hard Pipe or Equivalent
Shipping Weight	400

Dimensions & weight

Weight	400 lbs.
Width	48 in.
Depth	27.375 in.
Height	36.438 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	440 lbs.
Total of Shipping Weight	440 lbs.
Source	Calculation

Warranty

Parts	3 Years
Labor	3 Years
Parts (Compressor)	5 Years

Description

The KM-2200SRJZ3 is capable of producing approximately 2206 lbs of crescent cubed ice, Stack 2 units for 2x the ice production in the same floor space! Our efficient double-sided KMEdge™ stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. The KM-2200SRJZ3 icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-2200SRJZ3 requires a Three phase, 208-230v/60/3 4 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. ENERGY STAR® qualified. Please consult the Specification Sheet for additional details.

Product Features

Stack 2 units for 2x the ice production
Produces crescent shaped ice cubes
Up to 2206 lbs of ice produced per 24 hours
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650
R-404A refrigerant (8 lbs. 6 oz. / 3800 g)
15.9 amps (20 Amp Max fuse)
3.75 kwh/100 lbs.@ 90/70
Three phase, 208-230v/60/3 4 wire, including ground. Must be hardwired at site, no cord/plug included
EverCheck™ alert system
CycleSaver™ design
ENERGY STAR® qualified
Dimensions: 48″ W x 27-3/8″ D x 36-7/16″ H
Integrated ultrasonic bin control
Simple, one-hour cleaning and assisted cleaning process with CleanAssist
Heat Rejection: 26700 BTU/hr
Three Years: Parts & Labor warranty on entire machine
Five Years: Parts & Labor warranty on evaporator
