SKU: KM1900SWJ3

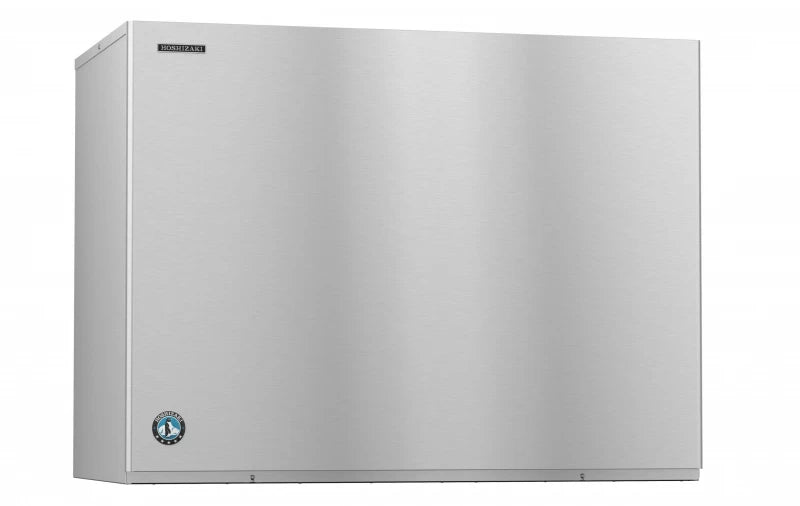

Hoshizaki KM1900SWJ3 Crescent® Cuber Icemaker, Water-cooled, 3 Phase Stainless Steel

Quick Specification More details

Width:
48"
Depth:
27.375"
Height:
36.438"
Type:
Ice Makers

About this product

Up to 1880 lbs of ice produced per 24 hours
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650

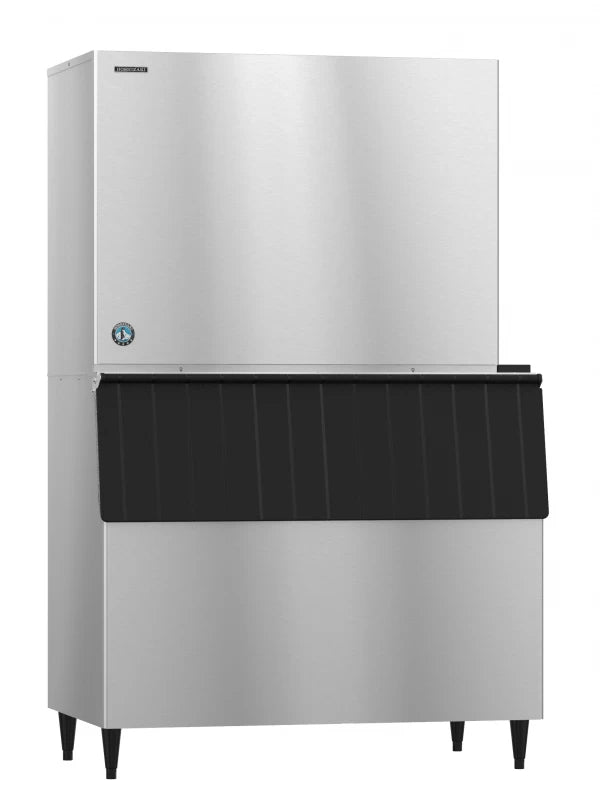

Stack 2 units for 2x the ice production

Summer Sale

Clearance

SKU: KM1900SWJ3

Hoshizaki KM1900SWJ3 Crescent® Cuber Icemaker, Water-cooled, 3 Phase Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
48"
Depth:
27.375"
Height:
36.438"
Type:
Ice Makers

About this product

Up to 1880 lbs of ice produced per 24 hours
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650
Stack 2 units for 2x the ice production

Product Details for HOSHIZAKI KM1900SWJ3

Technical Details

Product details

Electrical Specs	Three phase, 208-230v/60/3, 4 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 8.9, Max Fuse/HACR Breaker: 20 A
Utility Consumption	3.1 kWh per 100 lbs @ 90/70, 17.4 gal of Potable Water per 100 lbs @ 90/70
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: 21900 BTU/hr, Refrigerant Charge: R-404A, (3 lbs. 1.4 oz.
Plumbing Specs	1/2″ FPT Inlet, Minimum 3/8″ Nominal ID Copper Water Tubing or Equivalent, 3/8″ FPT Outlet, Minimum 3/8″ Nominal ID Hard Pipe or Equivalent, Minimum 3/8″ Nominal ID Copper Water Tubing or Equ
Shipping Weight	410

Dimensions & weight

Weight	410 lbs.
Width	48 in.
Depth	27.375 in.
Height	36.438 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	450 lbs.
Total of Shipping Weight	450 lbs.
Source	Calculation

Warranty

Parts	3 Years
Labor	3 Years
Parts (Compressor)	5 Years

Description

The KM-1900SWJ3 is capable of producing approximately 1880 lbs of crescent cubed ice, Stack 2 units for 2x the ice production in the same floor space! Our efficient double-sided KMEdge™ stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Water-cooled, Stackable, 3 Phase icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-1900SWJ3 requires a Three phase, 208-230v/60/3, 4 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details.

Product Features

Up to 1880 lbs of ice produced per 24 hours
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650
Stack 2 units for 2x the ice production
Produces crescent shaped ice cubes
R-404A refrigerant (3 lbs. 1.4 oz. / 1400 g)
8.9 amps (20 Amp Max fuse)
3.1 kwh/100 lbs.@ 90/70
Three phase, 208-230v/60/3, 4 wire, including ground. Must be hardwired at site, no cord/plug included
Clean ice and easy maintenance lead to longer unit life span
EverCheck™ alert system
CycleSaver™ design
Integrated ultrasonic bin control
Simple, one-hour cleaning and assisted cleaning process with CleanAssist
Heat Rejection: 21900 BTU/hr
Three Years: Parts & Labor warranty on entire machine
Five Years: Parts & Labor warranty on evaporator
