SKU: KM161BWJ

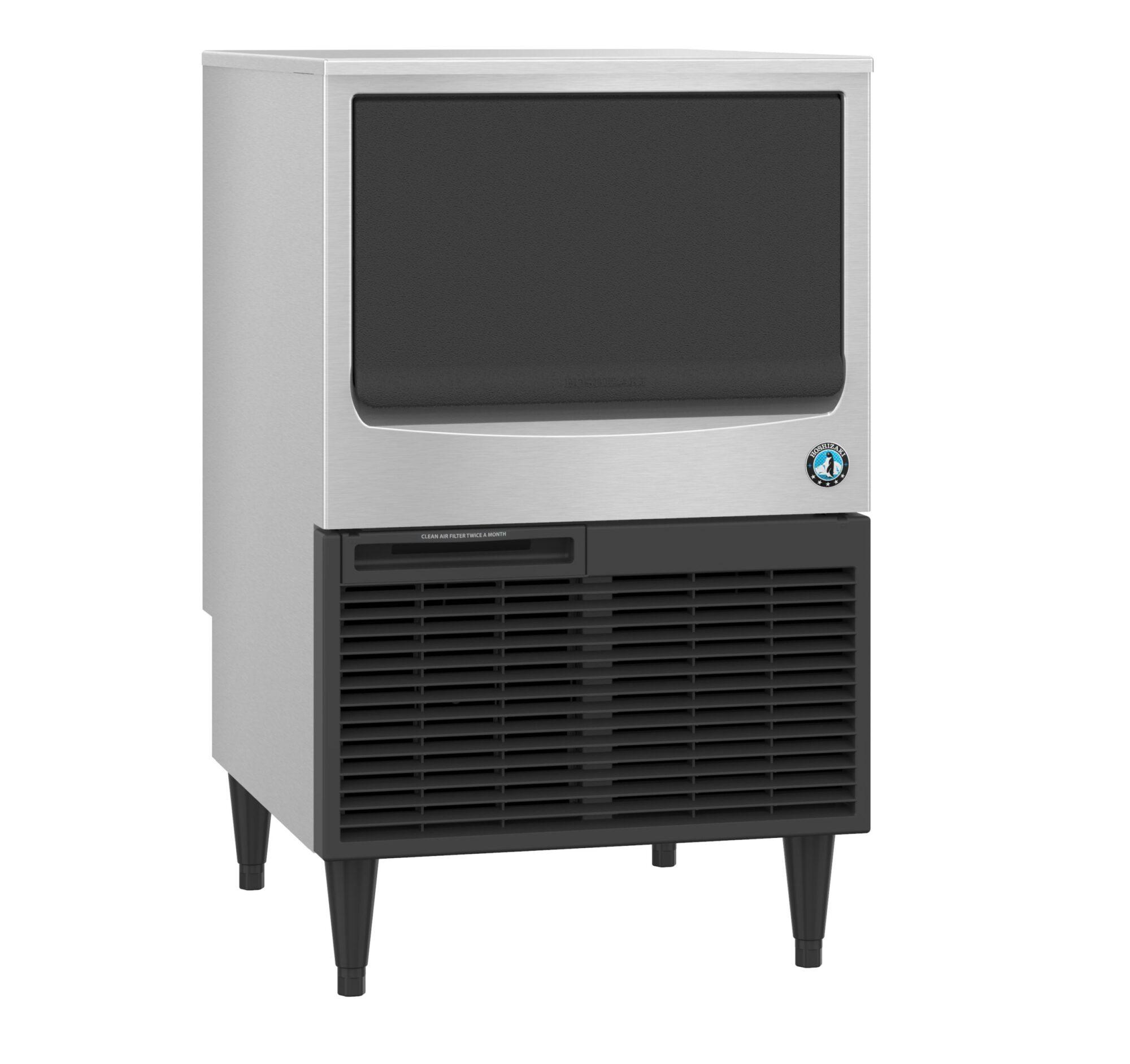

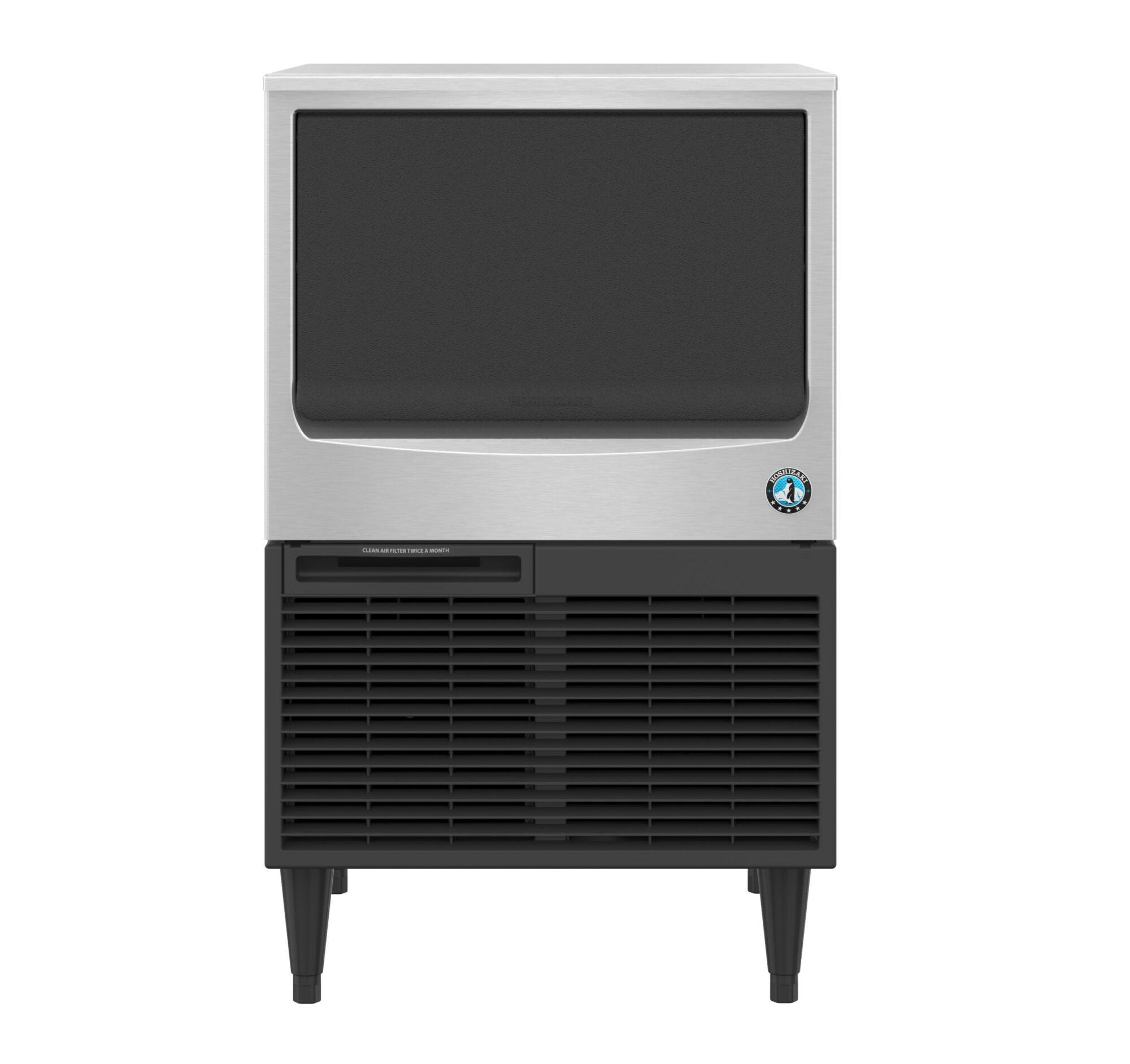

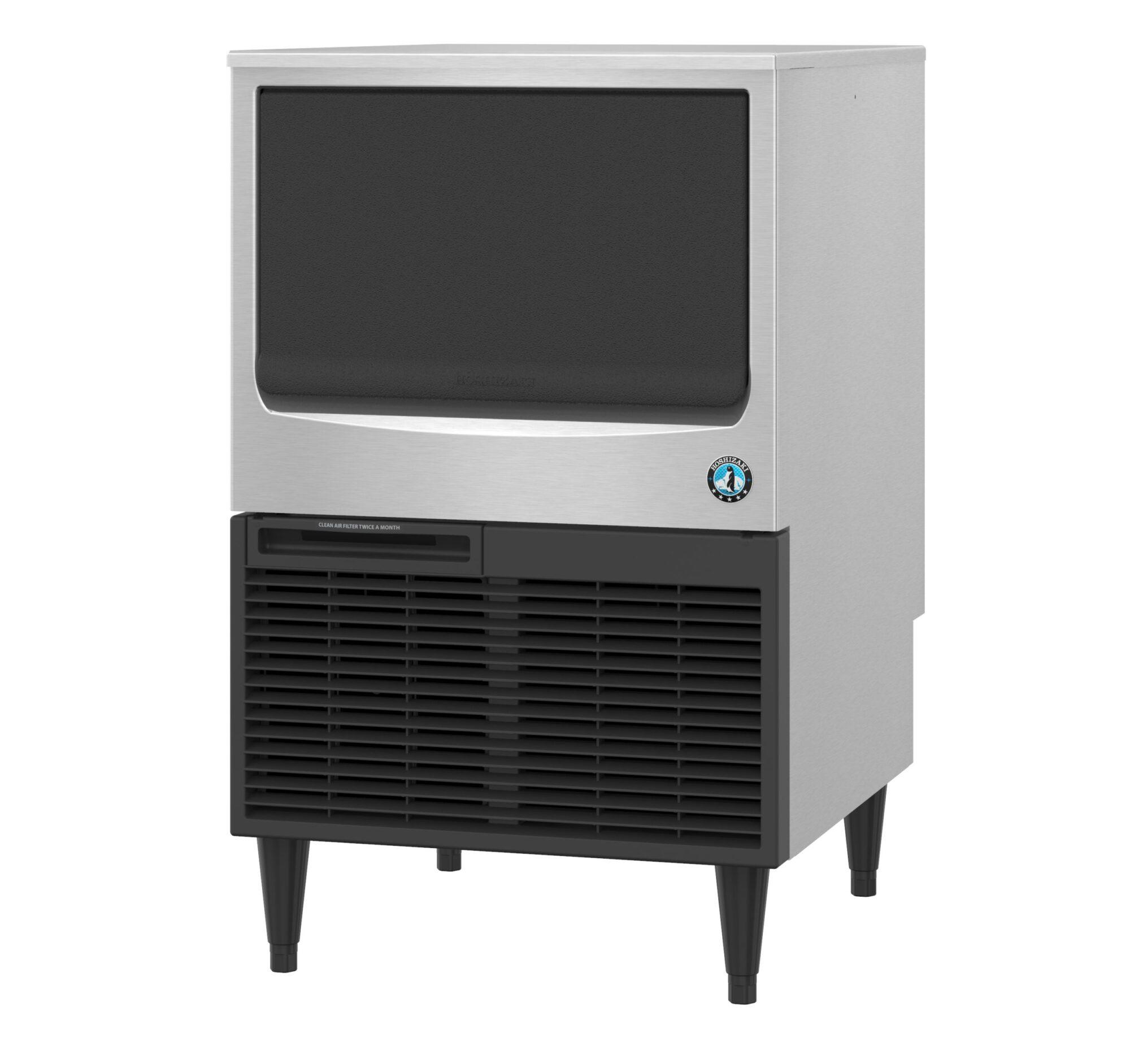

HOSHIZAKI KM161BWJ KM-161BWJ Crescent Cuber Icemaker, Water-cooled, Built in Storage Bin

Quick Specification More details

Width:
23.75 Inch
Height:
39.0 Inch
Type:
Ice Makers

About this product

Dimensions: 23-3/4" W x 28" D x 39" H
Up to 157 lbs of ice produced per 24 hours
Up to 78 lbs of built-in storage capacity (2.6ft3)
Produces crescent shaped ice cubes

SKU: KM161BWJ

HOSHIZAKI KM161BWJ KM-161BWJ Crescent Cuber Icemaker, Water-cooled, Built in Storage Bin

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
23.75 Inch
Height:
39.0 Inch
Type:
Ice Makers

About this product

Dimensions: 23-3/4" W x 28" D x 39" H
Up to 157 lbs of ice produced per 24 hours
Up to 78 lbs of built-in storage capacity (2.6ft3)
Produces crescent shaped ice cubes

Product Details for HOSHIZAKI KM161BWJ

Technical Details

Features

Dimensions: 23-3/4" W x 28" D x 39" H	Yes
Up to 157 lbs of ice produced per 24 hours	Yes
Up to 78 lbs of built-in storage capacity (2.6ft3)	Yes
Produces crescent shaped ice cubes	Yes
Durable stainless steel exterior	Yes
Front in, front out airflow	Yes
EverCheck(TM) alert system	Yes
CycleSaver(TM) design	Yes
Slide in door, ice bin opening is ADA compliant	Yes
R-134a refrigerant (10.6 oz. / 301 g)	Yes
Heat Rejection:2900 BTU/hr	Yes
Ambient temperature range: 45 - 100(degree)F	Yes
Water temperature range: 45 - 90(degree)F	Yes
Water pressure: 10 - 113psig	Yes
Voltage range: 104 - 127V	Yes
6.4 amps (15 Amp Max fuse)	Yes
6.23 kwh/100 lbs.@ 90/70	Yes
Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug	Yes
Clean ice and easy maintenance lead to longer unit life span	Yes
Three Years: Parts & Labor warranty on entire machine.	Yes
Five Years: Parts & Labor warranty on evaporator.	Yes

Product details

Category	Ice Makers
Product Type	Appliances
Energy Star Certified	Yes
ADA Compliant	Yes
Smart Device	No

Dimensions & weight

Product Dimensions	23.75 in x 39 in x 28 in
Shipping Dimensions	0 in x 0 in x 0 in
Product Weight	160 lb
Shipping Weight	200 lb

Features

Dimensions: 23-3/4" W x 28" D x 39" H
Up to 157 lbs of ice produced per 24 hours
Up to 78 lbs of built-in storage capacity (2.6ft3)
Produces crescent shaped ice cubes
Durable stainless steel exterior
Front in, front out airflow
EverCheck(TM) alert system
CycleSaver(TM) design
Slide in door, ice bin opening is ADA compliant
R-134a refrigerant (10.6 oz. / 301 g)
Heat Rejection:2900 BTU/hr
Heat Rejection: 2900 BTU/hr
Ambient temperature range: 45 - 100(degree)F
Water temperature range: 45 - 90(degree)F
Water pressure: 10 - 113psig
Voltage range: 104 - 127V
6.4 amps (15 Amp Max fuse)
6.23 kwh/100 lbs.@ 90/70
Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug
Clean ice and easy maintenance lead to longer unit life span
Three Years: Parts & Labor warranty on entire machine.
Three Years: Parts & Labor warranty on entire machine
Five Years: Parts & Labor warranty on evaporator.
Five Years: Parts & Labor warranty on evaporator

Description

The KM-161BWJ is capable of producing approximately 157 lbs of crescent cubed ice. This Undercounter Water-cooled, Built in Storage Bin icemaker stores up to 78 lbs of ice*, which makes it ideal for small bars, hotel lobbies, and office break rooms. It features the CycleSaver(TM) design and includes the EverCheck(TM) alert system making the unit simple to maintain. The KM-161BWJ requires a Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug electrical connection. Front in, front out airflow. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice. KMD-16116BWJ.
