SKU: KM1301SAJE

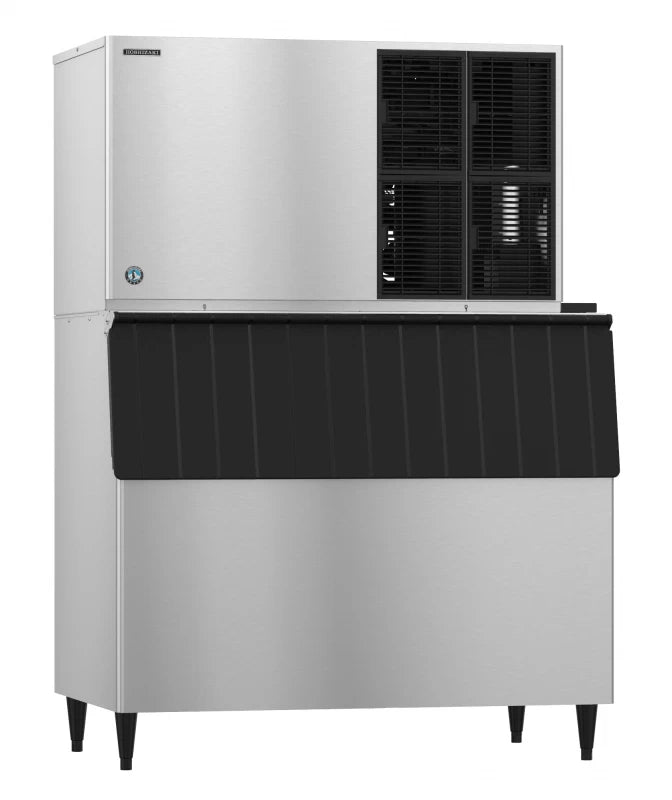

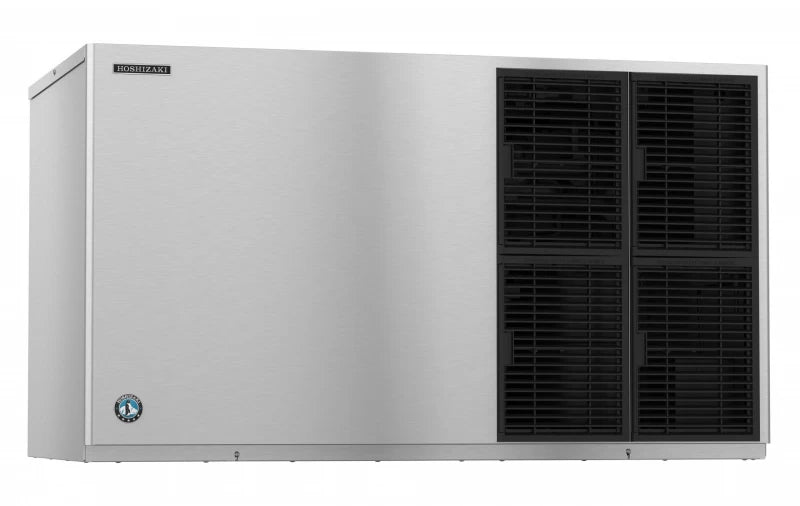

Hoshizaki KM1301SAJE Crescent® Cuber Icemaker, Air-cooled, 50Hz Electrical Stainless Steel

Quick Specification More details

Width:
48"
Depth:
27.375"
Height:
27.375"
Type:
Ice Makers

About this product

Dimensions: 1219mm W x 695mm D x 695mm H
Up to 624 kg of ice produced per 24 hours
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650

Summer Sale

Clearance

SKU: KM1301SAJE

Hoshizaki KM1301SAJE Crescent® Cuber Icemaker, Air-cooled, 50Hz Electrical Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
48"
Depth:
27.375"
Height:
27.375"
Type:
Ice Makers

About this product

Dimensions: 1219mm W x 695mm D x 695mm H
Up to 624 kg of ice produced per 24 hours
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650

Product Details for HOSHIZAKI KM1301SAJE

Technical Details

Product details

Electrical Specs	50Hz electrical, 220-240v/50/1 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 11.35, Max Fuse/HACR Breaker: 20 A
Utility Consumption	4.52 kWh per 100 lbs @ 90/70, 34.9 gal of Potable Water per 100 lbs @ 90/70
Operating Limits	Ambient Temp Range: 7 – 38°C, Water Temp Range: 7 – 32°C, Water Pressure: 70 – 779kpa, Voltage Range: 198 – 254V, Heat Rejection: 16100 BTU/hr, Refrigerant Charge: R-404A, (4 lbs. 3 oz. / 190
Plumbing Specs	1/2″ FPT Inlet, Minimum 10 mm Nominal OD Copper Water Tubing or Equivalent, 19.05 mm FPT Outlet, Minimum 18 mm Nominal OD Hard Pipe or Equivalent
Shipping Weight	340
Warranty	Warranty: Contact factory for warranty information.

Dimensions & weight

Weight	340 lbs.
Width	48 in.
Depth	27.375 in.
Height	27.375 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	380 lbs.
Total of Shipping Weight	380 lbs.
Source	Calculation

Description

The KM-1301SAJ-E is capable of producing approximately 624 kg of crescent cubed ice. Our efficient double-sided KMEdge™ stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Air-cooled, Stackable, 50Hz Electrical icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-1301SAJ-E has a 50Hz electrical, 220-240v/50/1 3 wire, including ground. Must be hardwired at site, no cord/plug included. Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details.

Product Features

Dimensions: 1219mm W x 695mm D x 695mm H
Up to 624 kg of ice produced per 24 hours
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650
Stack 2 units for 2x the ice production
Produces crescent shaped ice cubes
R-404A refrigerant (1900 g)
4.52 kwh/100 lbs.@ 90/70
50Hz electrical, 220-240v/50/1 3 wire, including ground. Must be hardwired at site, no cord/plug included
Clean ice and easy maintenance lead to longer unit life span
11.35 amps (20 Amp Max fuse)
EverCheck™ alert system
CycleSaver™ design
“-E”: 50Hz Electrical Model
Heat Rejection: 16100 BTU/hr
Warranty: Contact factory for warranty information
