SKU: KM1301SAJ

Hoshizaki KM1301SAJ Crescent® Cuber Icemaker, Air-cooled Stainless Steel

Quick Specification More details

Width:
48"
Depth:
27.375"
Height:
27.375"
Type:
Ice Machines

About this product

Up to 1365 lbs of ice produced per 24 hours

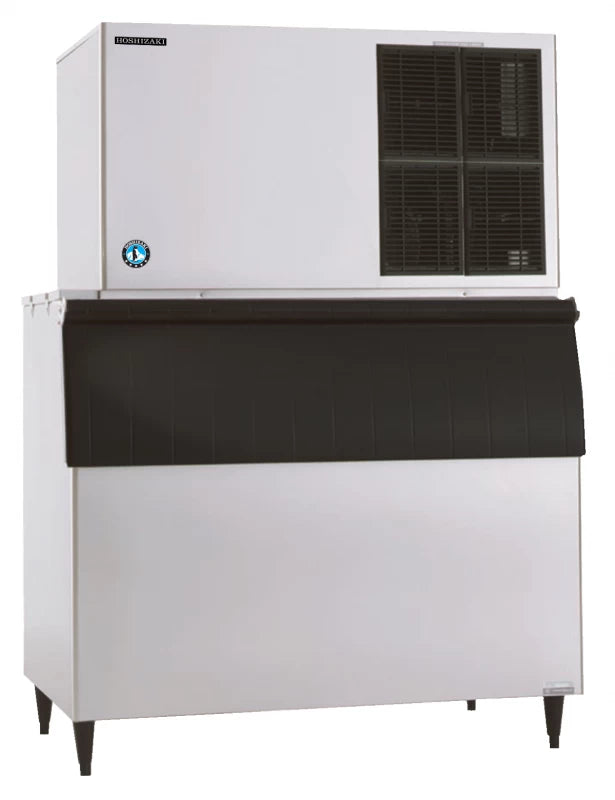

Stack 2 units for 2x the ice production
Produces crescent shaped ice cubes
Durable stainless steel exterior

Summer Sale

Clearance

SKU: KM1301SAJ

Hoshizaki KM1301SAJ Crescent® Cuber Icemaker, Air-cooled Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
48"
Depth:
27.375"
Height:
27.375"
Type:
Ice Machines

About this product

Up to 1365 lbs of ice produced per 24 hours
Stack 2 units for 2x the ice production
Produces crescent shaped ice cubes
Durable stainless steel exterior

Product Details for Hoshizaki KM1301SAJ

Technical Details

Product details

Electrical Specs	Single phase, 208-230v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 12.4, Max Fuse/HACR Breaker: 20 A
Utility Consumption	4.27 kWh per 100 lbs @ 90/70, 21 gal of Potable Water per 100 lbs @ 90/70
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: 19400 BTU/hr, Refrigerant Charge: R-404A, (3 lbs. 15.5 oz
Plumbing Specs	1/2″ FPT Inlet, Minimum 3/8″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight	340

Dimensions & weight

Weight	340 lbs.
Width	48 in.
Depth	27.375 in.
Height	27.375 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	380 lbs.
Total of Shipping Weight	380 lbs.
Source	Calculation

Warranty

Parts	3 Years
Labor	3 Years
Parts (Compressor)	5 Years

Description

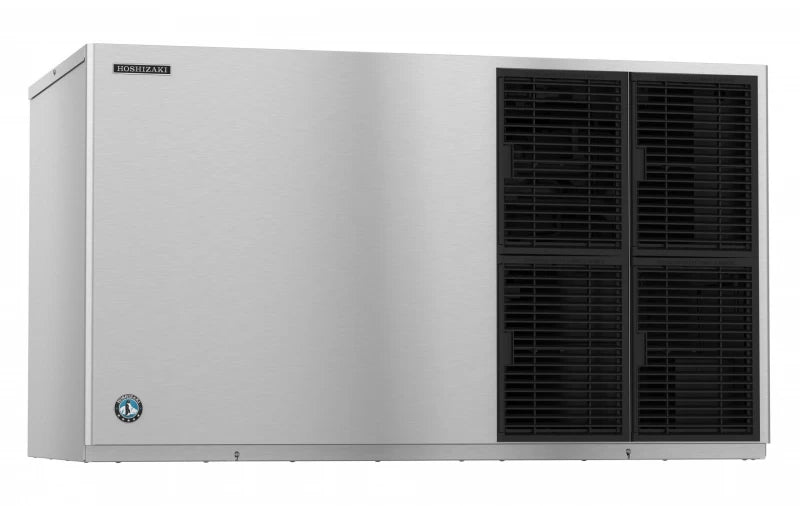

The KM-1301SAJ is capable of producing approximately 1365 lbs of crescent cubed ice, Stack 2 units for 2x the ice production in the same floor space! Our efficient double-sided KMEdge™ stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Air-cooled, Stackable icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-1301SAJ requires a Single phase, 208-230v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details.

Product Features

Up to 1365 lbs of ice produced per 24 hours
Stack 2 units for 2x the ice production
Produces crescent shaped ice cubes
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650
R-404A refrigerant (3 lbs. 15.5 oz / 1800 g)
12.4 amps (20 Amp Max fuse)
Single phase, 208-230v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
Clean ice and easy maintenance lead to longer unit life span
4.27 kwh/100 lbs.@ 90/70
EverCheck™ alert system
CycleSaver™ design
Integrated ultrasonic bin control
Simple, one-hour cleaning and assisted cleaning process with CleanAssist
Heat Rejection: 19400 BTU/hr
Three Years: Parts & Labor warranty on entire machine
Five Years: Parts & Labor warranty on evaporator
