SKU: KM1100MAJ50

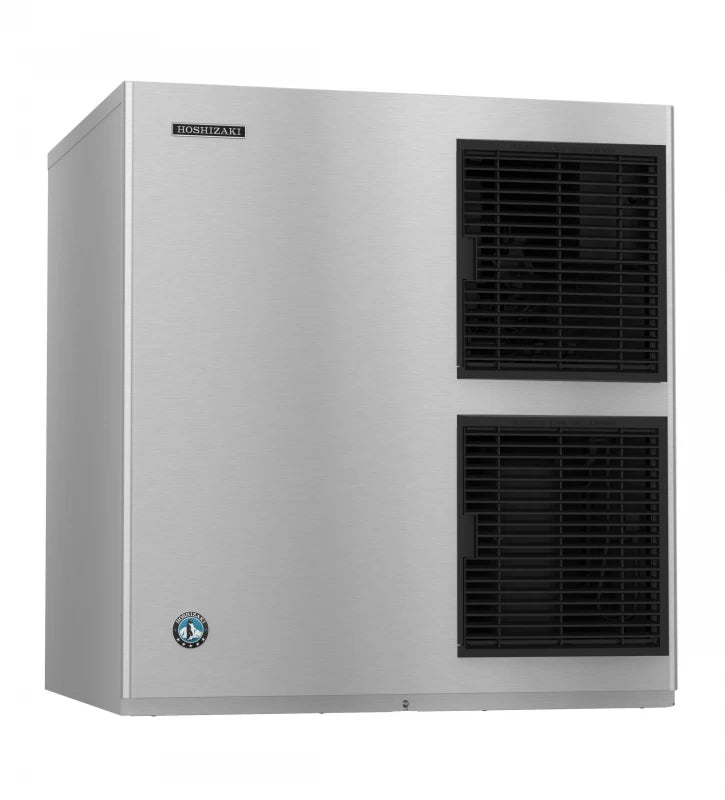

Hoshizaki KM1100MAJ50 Crescent® Cuber Icemaker, Air-cooled, 50Hz Electrical Stainless Steel

Quick Specification More details

Width:
30"
Depth:
27.375"
Height:
32.5"
Type:
Ice Makers

About this product

Dimensions: 762mm W x 695mm D x 825mm H
Up to 464 kg of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces crescent shaped ice cubes

Summer Sale

Clearance

SKU: KM1100MAJ50

Hoshizaki KM1100MAJ50 Crescent® Cuber Icemaker, Air-cooled, 50Hz Electrical Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
30"
Depth:
27.375"
Height:
32.5"
Type:
Ice Makers

About this product

Dimensions: 762mm W x 695mm D x 825mm H
Up to 464 kg of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces crescent shaped ice cubes

Product Details for HOSHIZAKI KM1100MAJ50

Technical Details

Product details

Electrical Specs	50Hz electrical, 220-240v/50/1 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 11.2, Max Fuse/HACR Breaker: 20 A
Utility Consumption	5.65 kWh per 100 lbs @ 90/70, 19 gal of Potable Water per 100 lbs @ 90/70
Operating Limits	Ambient Temp Range: 7 – 38°C, Water Temp Range: 7 – 32°C, Water Pressure: 0.7 – 8 kg/cm3, Voltage Range: 198 – 254V, Heat Rejection: 12600 BTU/hr, Refrigerant Charge: R-404A, (3 lbs. 1.3 oz.
Plumbing Specs	1/2″ FPT Inlet, Minimum 6 mm Nominal OD Copper Water Tubing or Equivalent, 19.05 mm FPT Outlet, Minimum 18 mm Nominal OD Hard Pipe or Equivalent
Shipping Weight	290
Warranty	Warranty: Contact factory for warranty information.

Dimensions & weight

Weight	290 lbs.
Width	30 in.
Depth	27.375 in.
Height	32.5 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	330 lbs.
Total of Shipping Weight	330 lbs.
Source	Calculation

Description

The KM-1100MAJ50 is capable of producing approximately 464 kg of crescent cubed ice. Our efficient double-sided KMEdge™ stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Air-cooled, Modular, 50Hz Electrical icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-1100MAJ50 has a 50Hz electrical, 220-240v/50/1 3 wire, including ground. Must be hardwired at site, no cord/plug included. Compatible bins & dispensers, sold separately: B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details.

Product Features

Dimensions: 762mm W x 695mm D x 825mm H
Up to 464 kg of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces crescent shaped ice cubes
Durable stainless steel exterior

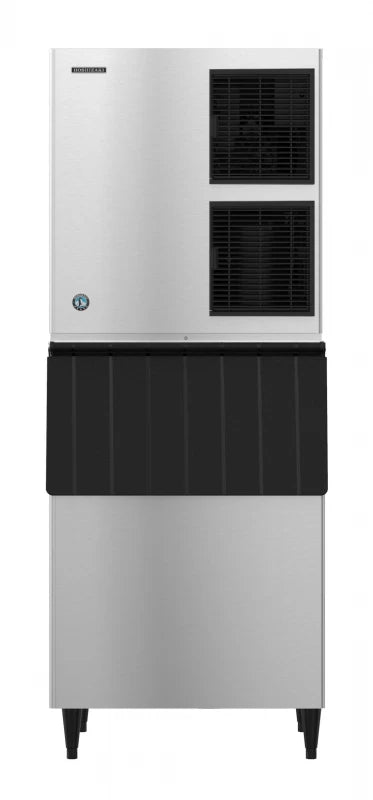

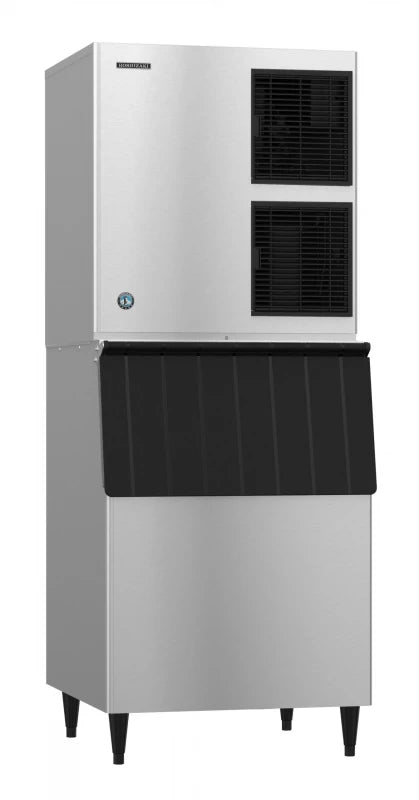

Compatible bins & dispensers, sold separately: B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650
R-404A refrigerant (1400 g)
11.2 amps (20 Amp Max fuse)
5.65 kwh/100 lbs.@ 90/70
50Hz electrical, 220-240v/50/1 3 wire, including ground. Must be hardwired at site, no cord/plug included
Clean ice and easy maintenance lead to longer unit life span
EverCheck™ alert system
CycleSaver™ design
“-50”: 50Hz Electrical Model
Heat Rejection: 12600 BTU/hr
Warranty: Contact factory for warranty information
