SKU: FD650MRJZC

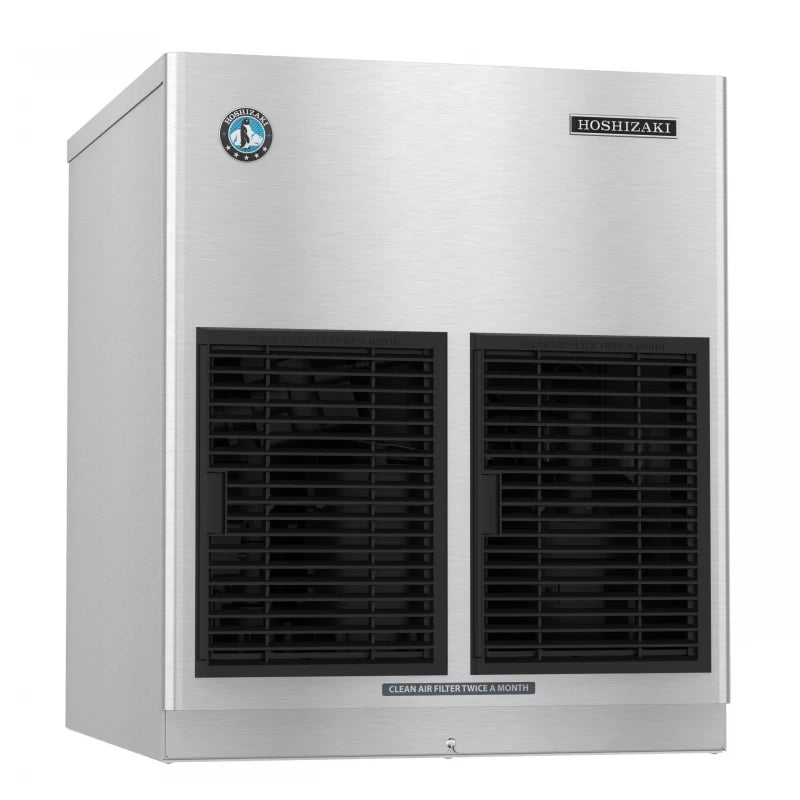

Hoshizaki FD650MRJZC Cubelet Icemaker, Remote-cooled Stainless Steel

Quick Specification More details

Width:
22"
Depth:
24"
Height:
26"
Type:
Ice Makers

About this product

Up to 588 lbs of ice produced per 24 hours
Durable stainless steel exterior
Mount 2 units side-by-side for 2x the ice production
Produces small cubelet nugget-style ice

Summer Sale

Clearance

SKU: FD650MRJZC

Hoshizaki FD650MRJZC Cubelet Icemaker, Remote-cooled Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
22"
Depth:
24"
Height:
26"
Type:
Ice Makers

About this product

Up to 588 lbs of ice produced per 24 hours
Durable stainless steel exterior
Mount 2 units side-by-side for 2x the ice production
Produces small cubelet nugget-style ice

Product Details for HOSHIZAKI FD650MRJZC

Technical Details

Product details

Electrical Specs	Single phase, 115v/60/1, 3 wire, including ground, Amperage: 10.9, Max Fuse/HACR Breaker: 20 A
Utility Consumption	4.95 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 5900 BTU/hr, Refrigerant Charge: R-404A, (2 lbs. 3.3 oz.
Plumbing Specs	1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight	205

Dimensions & weight

Weight	205 lbs.
Width	22 in.
Depth	24 in.
Height	26 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	245 lbs.
Total of Shipping Weight	245 lbs.
Source	Calculation

Warranty

Parts	3 Years
Labor	3 Years

Description

The FD-650MRJZ-C is capable of producing approximately 588 lbs of cubelet (nugget-style) ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat. This Remote-cooled icemaker features an Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The FD-650MRJZ-C requires a Single phase, 115v/60/1, 3 wire, including ground electrical connection. ENERGY STAR® qualified. Please consult the Specification Sheet for additional details.

Product Features

Up to 588 lbs of ice produced per 24 hours
Durable stainless steel exterior
Mount 2 units side-by-side for 2x the ice production
Produces small cubelet nugget-style ice
Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900
2 second rinse every hour to remove sediment
R-404A refrigerant (2 lbs. 3.3 oz. oz. / 1001 g)
10.9 amps (20 Amp Max fuse)
4.95 kwh/100 lbs.@ 90/70
Single phase, 115v/60/1, 3 wire, including ground
Advanced CleanCycle24™ design
ENERGY STAR® qualified
Heat Rejection: 5900 BTU/hr
Three Years: Parts & Labor warranty on entire machine (Serial numbers VxxxxxJ and after)
Five Years: Parts warranty on Compressor, air-cooled condenser coil
