SKU: FD1002MAJC

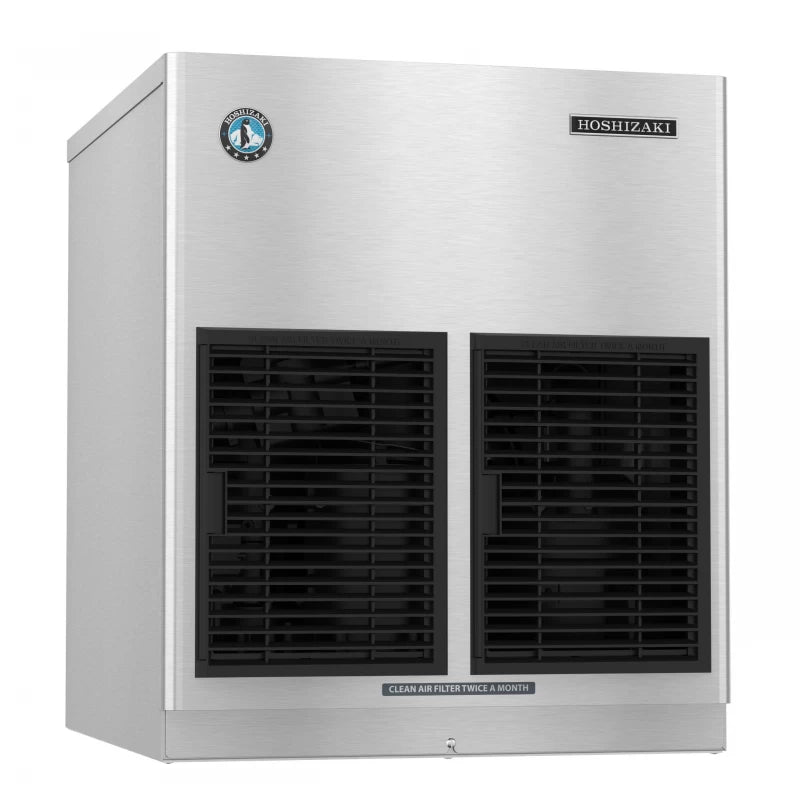

Hoshizaki FD1002MAJC Cubelet Icemaker, Air-cooled Stainless Steel

Quick Specification More details

Width:
22"
Depth:
24"
Height:
26"
Type:
Ice Makers

About this product

Up to 890 lbs of ice produced per 24 hours
Produces small cubelet nugget-style ice
Durable stainless steel exterior

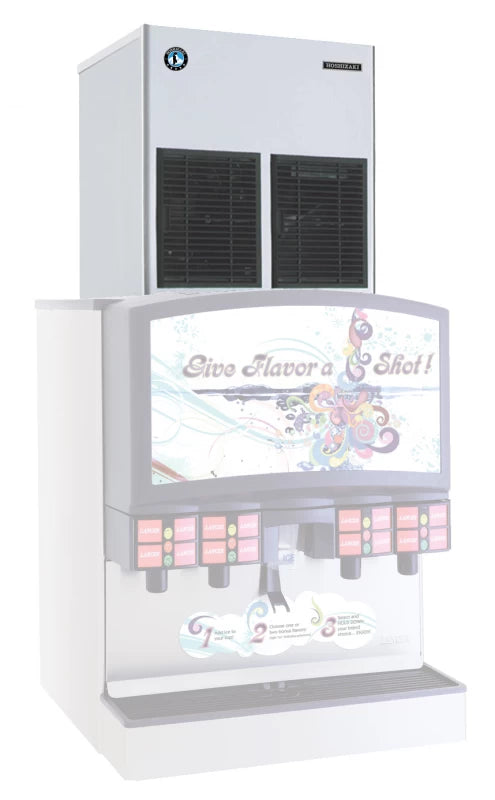

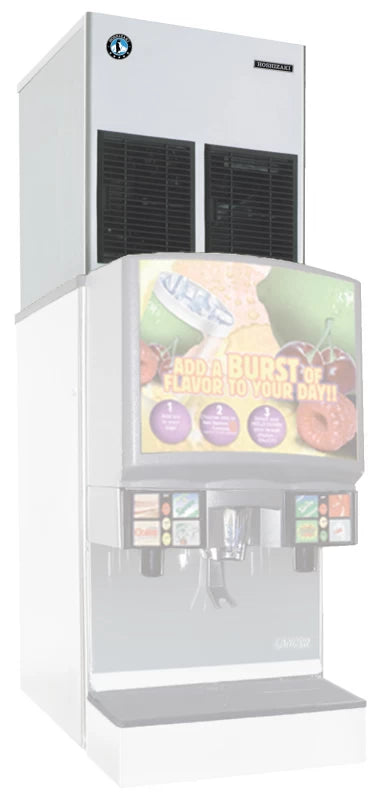

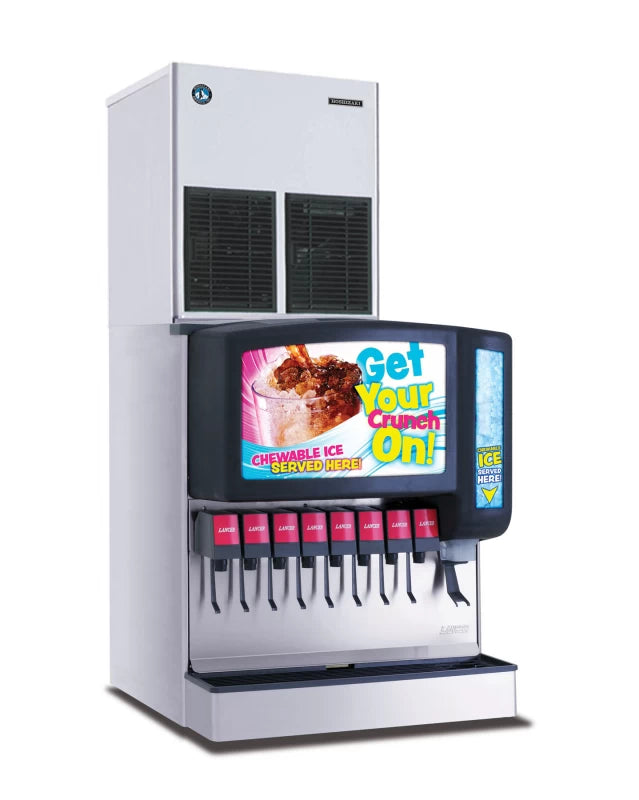

Compatible bins & dispensers, sold separately: B-250, BD-300, B-500, B-700, B-800, B-900

Summer Sale

Clearance

SKU: FD1002MAJC

Hoshizaki FD1002MAJC Cubelet Icemaker, Air-cooled Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
22"
Depth:
24"
Height:
26"
Type:
Ice Makers

About this product

Up to 890 lbs of ice produced per 24 hours
Produces small cubelet nugget-style ice
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-250, BD-300, B-500, B-700, B-800, B-900

Related Products

Cubelet Icemaker, Air-cooled, Hands Free Dispenser, Built in Storage Bin

Hoshizaki DCM271BAHOS Cubelet Icemaker, Air-cooled, Hands Free Dispenser, Built in Storage Bin Stainless Steel

Summer Sale

Clearance

Hoshizaki B500SF 30″ W Ice Storage Bin with 500 lbs Capacity – Stainless Steel Exterior

Summer Sale

Clearance

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for HOSHIZAKI FD1002MAJC

Technical Details

Product details

Utility Consumption	4.57 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Electrical Specs	Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included., Amperage: 15.2, Max Fuse/HACR Breaker: 20 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 8700 BTU/hr, Refrigerant Charge: R-404A, (2 lbs. 3.3 oz.
Plumbing Specs	1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight	205

Dimensions & weight

Weight	205 lbs.
Width	22 in.
Depth	24 in.
Height	26 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	245 lbs.
Total of Shipping Weight	245 lbs.
Source	Calculation

Warranty

Parts	3 Years
Labor	3 Years

Description

The FD-1002MAJ-C is capable of producing approximately 890 lbs of cubelet (nugget-style) ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat. This Air-cooled, Slim Line Dispenser icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The FD-1002MAJ-C requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, BD-300, B-500, B-700, B-800, B-900. Please consult the Specification Sheet for additional details.

Product Features

Up to 890 lbs of ice produced per 24 hours
Produces small cubelet nugget-style ice
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-250, BD-300, B-500, B-700, B-800, B-900
2 second rinse every hour to remove sediment
R-404A refrigerant (2 lbs. 3.3 oz. / 1000 g)
15.2 amps (20 Amp Max fuse)
4.57 kwh/100 lbs.@ 90/70
Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
Clean ice and easy maintenance lead to longer unit life span
Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
Five Years: Parts warranty on Compressor, air-cooled condenser coil.
Advanced CleanCycle24™ design
Heat Rejection:8700 BTU/hr
