SKU: F801MWJ

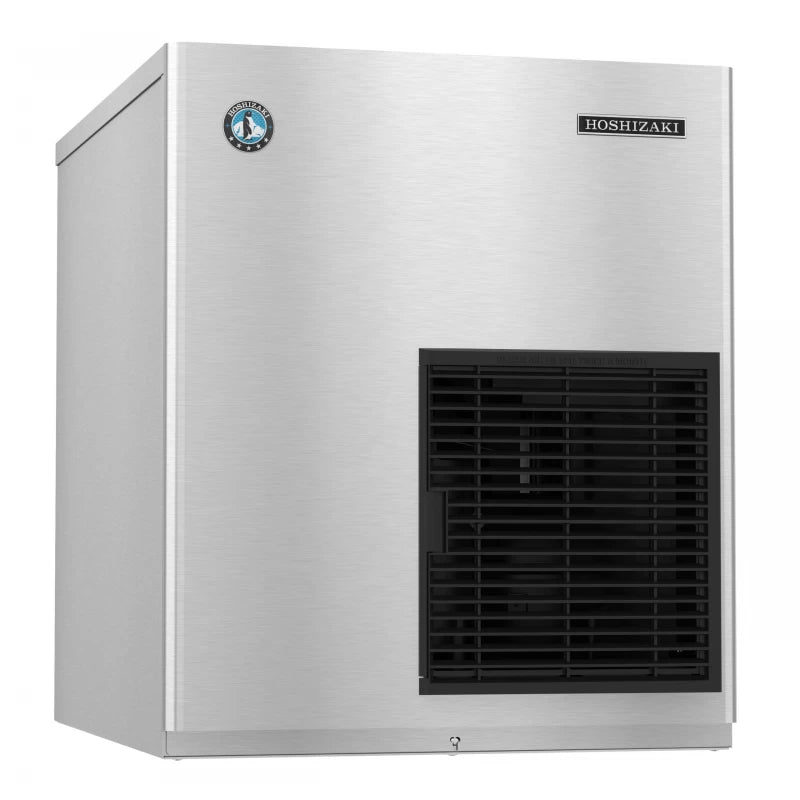

Hoshizaki F801MWJ Flaker Icemaker, Water-cooled Stainless Steel

Quick Specification More details

Width:
22"
Depth:
27.375"
Height:
26"
Type:
Ice Makers

About this product

Up to 680 lbs of ice produced per 24 hours

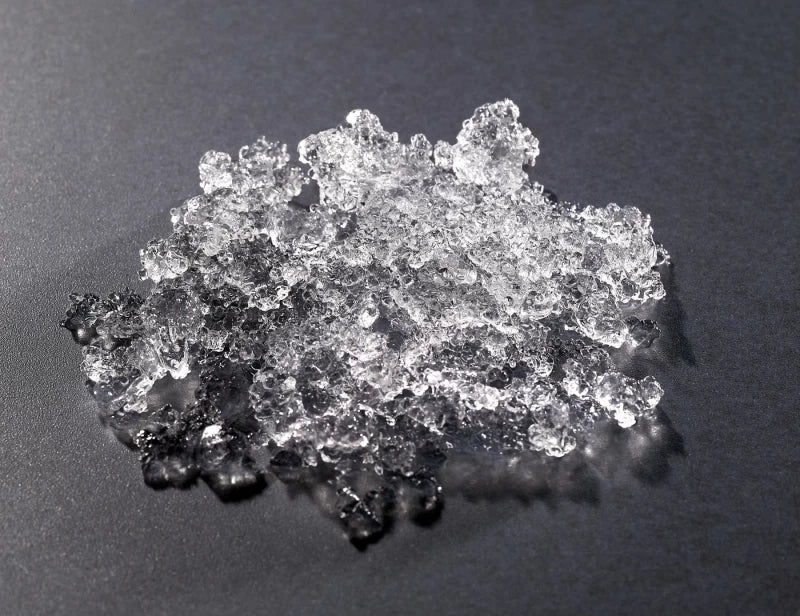

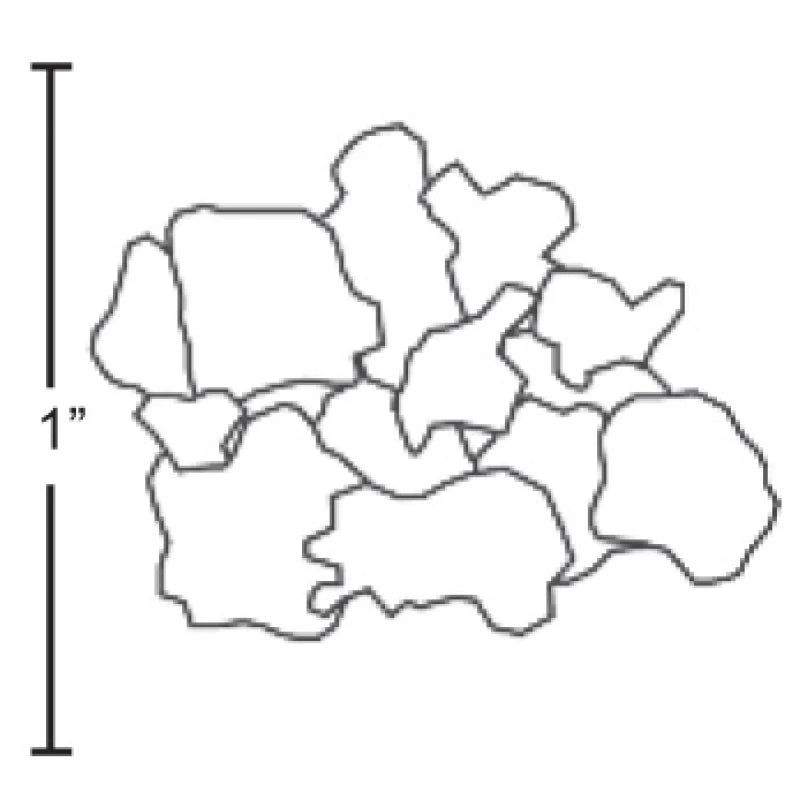

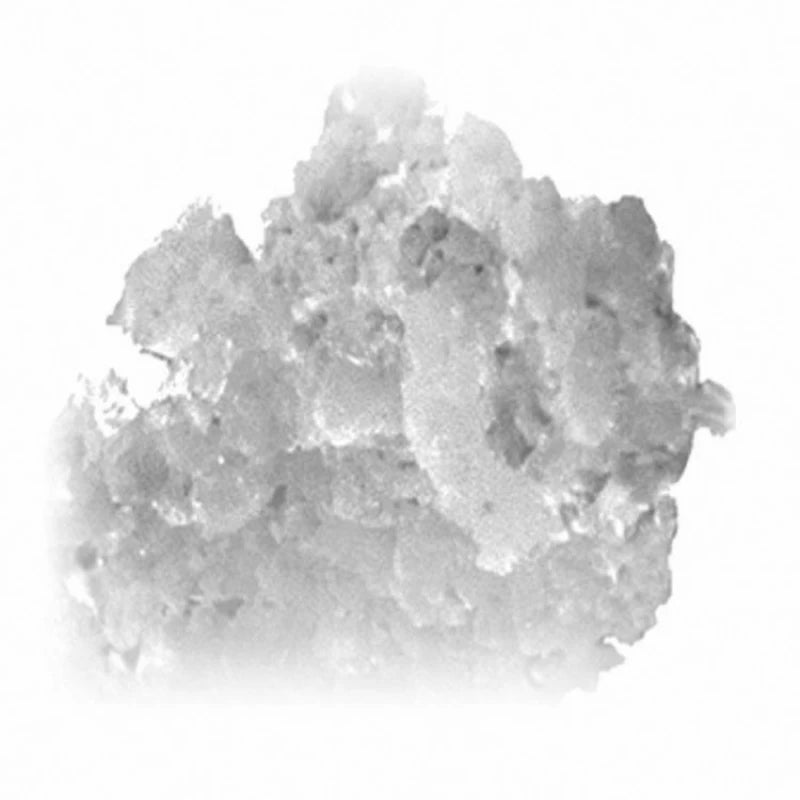

Produces flaked ice
Mount 2 units side-by-side for 2x the ice production
Durable stainless steel exterior

Summer Sale

Clearance

SKU: F801MWJ

Hoshizaki F801MWJ Flaker Icemaker, Water-cooled Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
22"
Depth:
27.375"
Height:
26"
Type:
Ice Makers

About this product

Up to 680 lbs of ice produced per 24 hours
Produces flaked ice
Mount 2 units side-by-side for 2x the ice production
Durable stainless steel exterior

Product Details for HOSHIZAKI F801MWJ

Technical Details

Product details

Electrical Specs	Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 11.8, Max Fuse/HACR Breaker: 15 A
Utility Consumption	3.9 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: BTU/hr, Refrigerant Charge: R-404A, (10.6 oz. / 300 g)
Plumbing Specs	1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/8″ FPT Outlet, Minimum 1/4″ Nominal ID Hard Pipe or Equivalent, Minimum 1/4″ Nominal ID Copper Water Tubing or Equ
Shipping Weight	200

Dimensions & weight

Weight	200 lbs.
Width	22 in.
Depth	27.375 in.
Height	26 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	240 lbs.
Total of Shipping Weight	240 lbs.
Source	Calculation

Warranty

Parts	3 Years
Labor	3 Years

Description

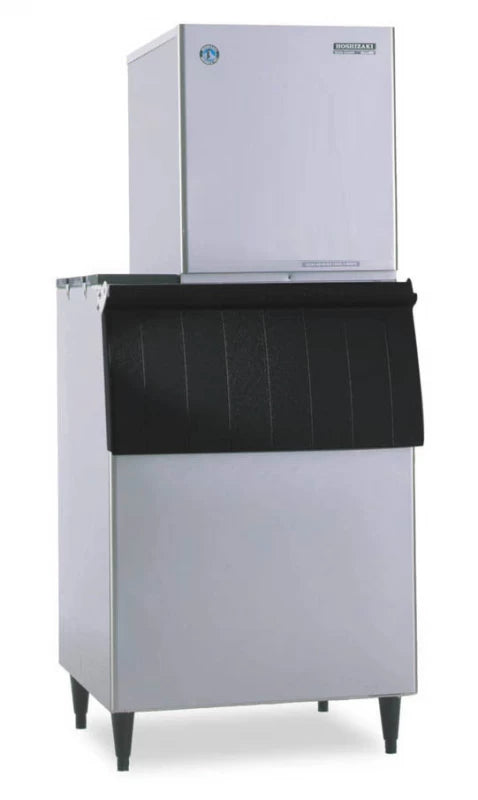

The F-801MWJ is capable of producing approximately 680 lbs of flaked ice per day. Flaked ice is perfect for salad bars, seafood counters, and other food displays that require long lasting sanitary ice. This Water-cooled, Slim Line Modular icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-801MWJ requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details.

Product Features

Up to 680 lbs of ice produced per 24 hours
Produces flaked ice
Mount 2 units side-by-side for 2x the ice production
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1150, B-1300, B-1500, B-1650
2 second rinse every hour to remove sediment for cleaner ice
Infrared bin control for easy cleaning and reliability
R-404A refrigerant (10.6 oz. / 300 g)
11.8 amps (15 Amp Max fuse)
3.9 kwh/100 lbs.@ 90/70
Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
Three Years: Parts & Labor warranty on entire machine.
Five Years: Parts warranty on Compressor, air-cooled condenser coil.
Advanced CleanCycle24™ design
Heat Rejection: BTU/hr
