SKU: F500BAJ

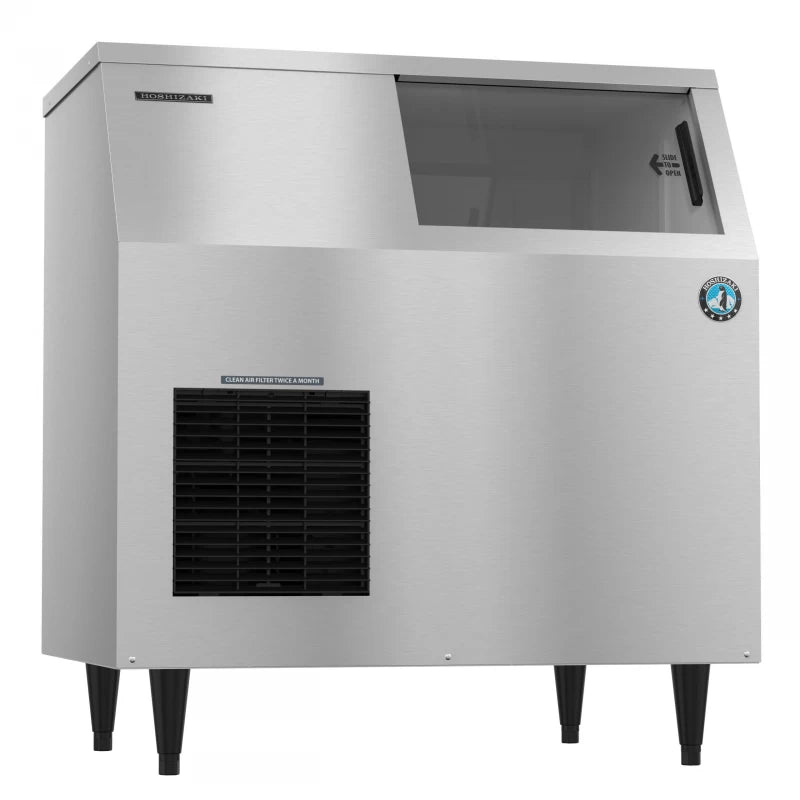

Hoshizaki F500BAJ Flaker Icemaker, Air-cooled, Built in Storage Bin Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
38.125"
Depth:
29.125"
Height:
42"
Type:
Ice Makers

About this product

Up to 536 lbs of ice produced per 24 hours
Up to 170 lbs of built-in storage capacity (5.7ft3)
Durable stainless steel exterior
Front in, front out airflow

Product Details for HOSHIZAKI F500BAJ

Technical Details

Product details

Electrical Specs	Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 13.8, Max Fuse/HACR Breaker: 20 A
Utility Consumption	5.05 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 2500 BTU/hr, Refrigerant Charge: R-404A, (1 lbs. 0.6 oz.
Plumbing Specs	1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight	265

Dimensions & weight

Weight	265 lbs.
Width	38.125 in.
Depth	29.125 in.
Height	42 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	305 lbs.
Total of Shipping Weight	305 lbs.
Source	Calculation

Warranty

Parts	3 Years
Labor	3 Years

Description

The F-500BAJ is capable of producing approximately 536 lbs of flaked ice per day. Flaked ice is perfect for salad bars, seafood counters, and other food displays that require long lasting sanitary ice. This Air-cooled, Self Contained, Built in Storage Bin icemaker stores up to 170 lbs of ice*. It features an Automatic system flush when bin control is activated plus a greaseless bearing auger construction making it simple to maintain. The F-500BAJ requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection. Front in, front out airflow. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.

Product Features

Up to 536 lbs of ice produced per 24 hours
Up to 170 lbs of built-in storage capacity (5.7ft3)
Durable stainless steel exterior
Front in, front out airflow
Automatic system flush when bin control is activated
Produces flaked ice
Designed for long life dependability
R-404A refrigerant (1 lbs. 0.6 oz. / 470 g)
Gear motor protected from overload
5.05 kwh/100 lbs.@ 90/70
Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
Clean ice and easy maintenance lead to longer unit life span
Three Years: Parts & Labor warranty on entire machine.
13.8 amps (20 Amp Max fuse)
Five Years: Parts warranty on Compressor, air-cooled condenser coil.
Heat Rejection:2500 BTU/hr
