SKU: F3AHS

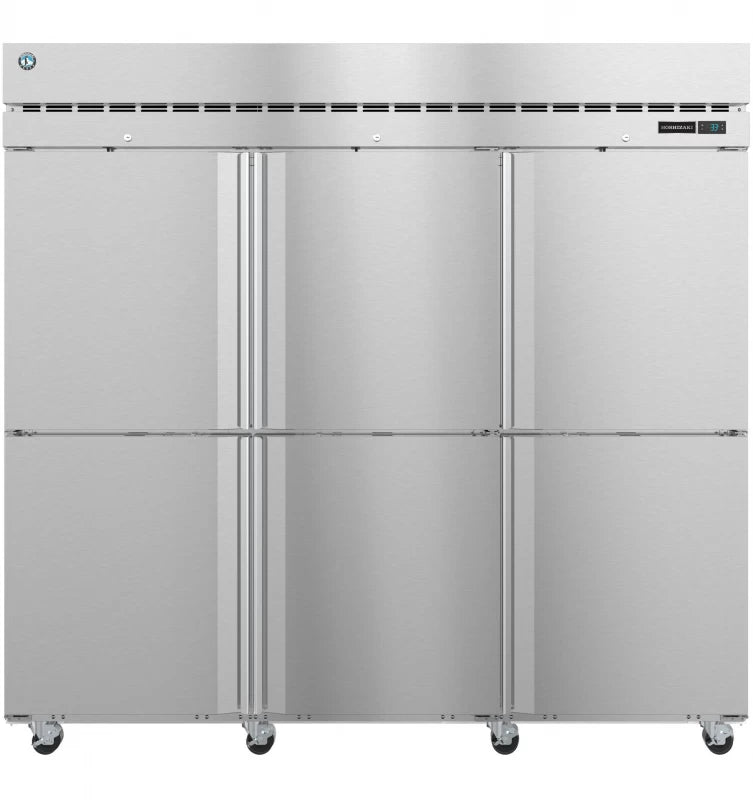

Hoshizaki F3AHS Freezer, Three Section Upright, Half Stainless Doors with Lock Stainless Steel

Quick Specification More details

Width:
82.5"
Depth:
33.5"
Height:
79.5"
Type:
Upright Freezers

About this product

Net capacity of 79.03 cubic feet
One piece, full door length, extruded aluminum flush mount door handle
Stainless steel exterior (front, sides, top) and a stainless steel interior
Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life

Summer Sale

Clearance

SKU: F3AHS

Hoshizaki F3AHS Freezer, Three Section Upright, Half Stainless Doors with Lock Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
82.5"
Depth:
33.5"
Height:
79.5"
Type:
Upright Freezers

About this product

Net capacity of 79.03 cubic feet
One piece, full door length, extruded aluminum flush mount door handle
Stainless steel exterior (front, sides, top) and a stainless steel interior
Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life

Product Details for HOSHIZAKI F3AHS

Technical Details

Dimensions & weight

Weight	845 lbs.
Width	82.5 in.
Depth	33.5 in.
Height	79.5 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	885 lbs.
Total of Shipping Weight	885 lbs.
Source	Calculation

Product details

Electrical Specs	Electrical Connection: 5 – 20P NEMA, 230v/60/1, 10 ft. cord and plug, Energy Consumption: kwh/day, Amperage: 9, Max Fuse/HACR Breaker: 15 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: -10 – +12°F, Refrigerant: R290
Refrigeration Data	Nominal Compres. of 3000 BTU/hr at 5/8 HP(left), BTU/hr at (right), Heat Rejection: 3128 BTU/hr
Shipping Weight	845
Storage Specs	Nominal storage capacity: 80.71 ft3, Interior storage capacity: 79.03 ft3, Door opening: 21.75″ W x 27.25″ H, Depth with door fully extended: 59.25″ D, Shelves included: 9

Warranty

Parts	7 Years
Labor	7 Years
Compressor	7 Years

Description

The F3A-HS Steelheart Series Upright three section freezer with half stainless doors is a space saving workhorse. Solid state control system with temperature alarms and LED display (°F or °C). With a net capacity of 79.03 cubic feet this efficient upright freezer and front air flow design is perfect for hot/tight kitchens. The F3A-HS is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.

Product Features

Net capacity of 79.03 cubic feet
One piece, full door length, extruded aluminum flush mount door handle
Stainless steel exterior (front, sides, top) and a stainless steel interior
Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
Lockable Half Stainless Doors
Interior LED light bar is mounted horizontally on the ceiling
R290 refrigerant
230v/60/1, 10 ft. cord and plug
Top mounted energy efficient non-electric evaporation system
Unique “ducted” air distribution system
Nominal Compres. of 3000 BTU/hr at 5/8 HP(left), BTU/hr at (right)
7-7-7 Warranty (seven years labor, seven years parts, seven years compressor)
