SKU: F330BAJC

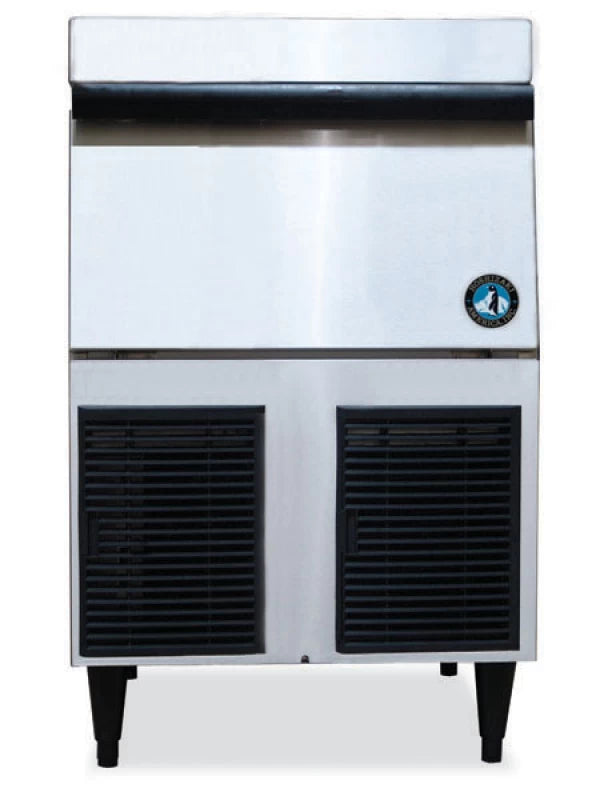

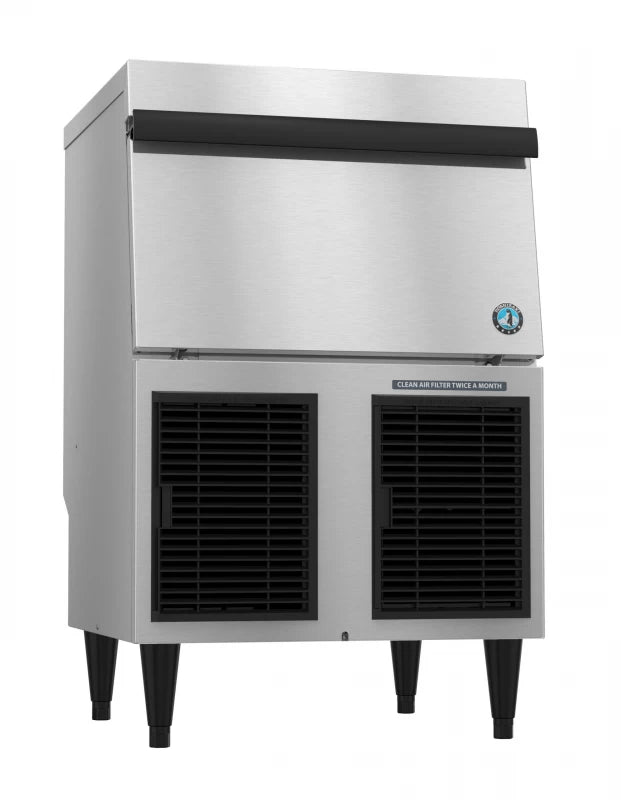

Hoshizaki F330BAJC Cubelet Icemaker, Air-cooled, Built in Storage Bin Stainless Steel

Cubelet Icemaker, Air-cooled, Built in Storage Bin
Cubelet Icemaker, Air-cooled, Built in Storage Bin
Cubelet Icemaker, Air-cooled, Built in Storage Bin
Cubelet Icemaker, Air-cooled, Built in Storage Bin
Cubelet Icemaker, Air-cooled, Built in Storage Bin
Cubelet Icemaker, Air-cooled, Built in Storage Bin
Cubelet Icemaker, Air-cooled, Built in Storage Bin
Cubelet Icemaker, Air-cooled, Built in Storage Bin
Cubelet Icemaker, Air-cooled, Built in Storage Bin
Cubelet Icemaker, Air-cooled, Built in Storage Bin

Quick Specification More details

  • Width:
    24"
  • Depth:
    26"
  • Height:
    39"
  • Type:
    Ice Makers

About this product

  • Up to 80 lbs of built-in storage capacity (2.7ft3)
  • Up to 288 lbs of ice produced per 24 hours
  • Durable stainless steel exterior
  • Front in, front out airflow
Summer Sale
Clearance

SKU: F330BAJC

Hoshizaki F330BAJC Cubelet Icemaker, Air-cooled, Built in Storage Bin Stainless Steel

Active Rebates

KT Appliance

We’ll confirm fit, specs & delivery before you order.

  •  Chat  • Email  • Call Us

Quick Specification More details

  • Width:
    24"
  • Depth:
    26"
  • Height:
    39"
  • Type:
    Ice Makers

About this product

  • Up to 80 lbs of built-in storage capacity (2.7ft3)
  • Up to 288 lbs of ice produced per 24 hours
  • Durable stainless steel exterior
  • Front in, front out airflow

Related Products

  • Product Details
  • Manuals & Guides
  • From The Manufacturer
  • Reviews
Contact us for Pricing

Product Details for HOSHIZAKI F330BAJC

Technical Details

Product details
Utility Consumption 7.3 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Electrical Specs Single phase, 115v/60/1 8 ft cord with NEMA 5-15 Plug, Amperage: 7.1, Max Fuse/HACR Breaker: 15 A
Operating Limits Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 3400 BTU/hr, Refrigerant Charge: R-404A, (7.1 oz. / 200 g
Plumbing Specs 1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight 178

Dimensions & weight
Weight 178 lbs.
Width 24 in.
Depth 26 in.
Height 39 in.

Number of boxes, shipping dimensions, & shipping weight
Number of Boxes 1
Shipping Weight 218 lbs.
Total of Shipping Weight 218 lbs.
Source Calculation

Warranty
Parts 3 Years
Labor 3 Years

Description

The F-330BAJ-C is capable of producing approximately 288 lbs of cubelet (nugget-style) ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat. This Air-cooled, Self Contained, Built in Storage Bin icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-330BAJ-C requires a Single phase, 115v/60/1, 8 ft cord with NEMA 5-15 plug electrical connection that is hard-wired at the installation site. Front in, front out airflow. Please consult the Specification Sheet for additional details.


Product Features

  • Up to 80 lbs of built-in storage capacity (2.7ft3)
  • Up to 288 lbs of ice produced per 24 hours
  • Durable stainless steel exterior
  • Front in, front out airflow
  • 2 second rinse every hour to remove sediment
  • Produces small cubelet nugget-style ice
  • R-404A refrigerant (7.1 oz. / 200 g)
  • 7.1 amps (15 Amp Max fuse)
  • 7.3 kwh/100 lbs.@ 90/70
  • Single phase, 115v/60/1, 8 ft cord with NEMA 5-15 plug
  • Clean ice and easy maintenance lead to longer unit life span
  • Three Years: Parts & Labor warranty on entire machine.
  • Five Years: Parts warranty on Compressor, air-cooled condenser coil.
  • Advanced CleanCycle24™ design
  • Heat Rejection:3400 BTU/hr
  • Discontinued – Replaced by F-330BAK-C
