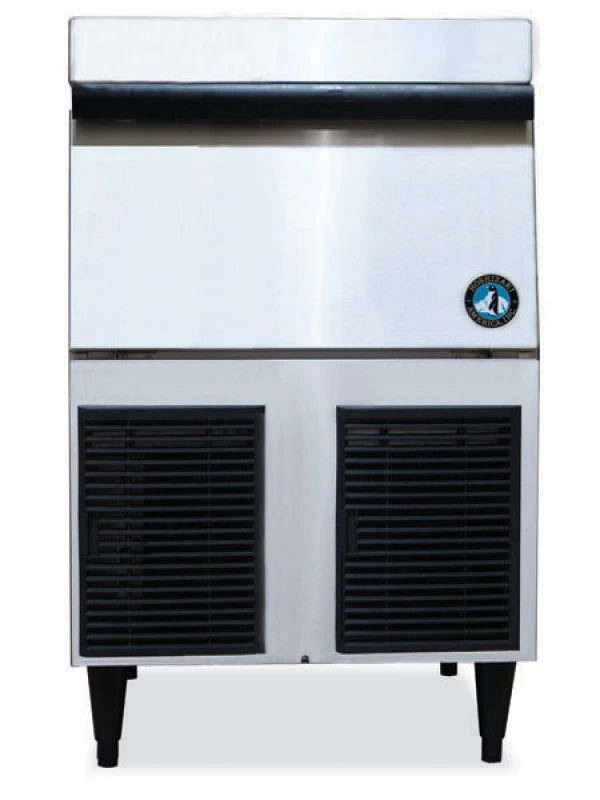

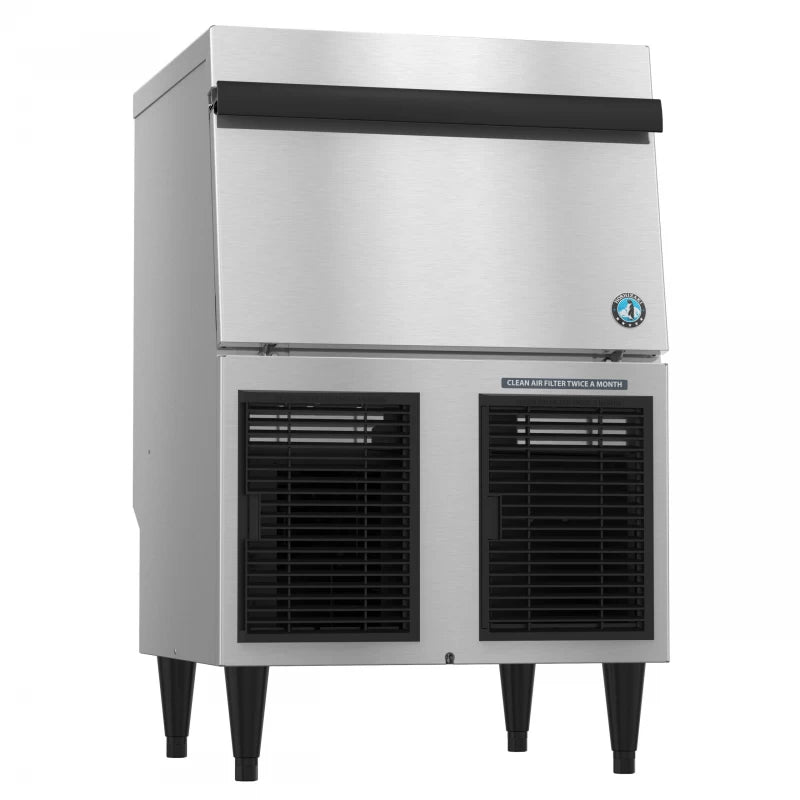

Hoshizaki F330BAJ Flaker Icemaker, Air-cooled, Built in Storage Bin Stainless Steel
Active Rebates
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Related Products
Sale price
Contact us for Pricing
Product Details for Hoshizaki F330BAJ
Technical Details
Product details
| Utility Consumption | 5.91 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70 |
| Electrical Specs | Single phase, 115v/60/1 8 ft cord with NEMA 5-15 Plug, Amperage: 6.9, Max Fuse/HACR Breaker: 15 A |
| Operating Limits | Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 3400 BTU/hr, Refrigerant Charge: R-404A, (7.1 oz. / 200 g |
| Plumbing Specs | 1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent |
| Shipping Weight | 178 |
Dimensions & weight
| Weight | 178 lbs. |
| Width | 24 in. |
| Depth | 26 in. |
| Height | 39 in. |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Weight | 218 lbs. |
| Total of Shipping Weight | 218 lbs. |
| Source | Calculation |
Warranty
| Parts | 3 Years |
| Labor | 3 Years |
Description
The F-330BAJ is capable of producing approximately 332 lbs of flaked ice per day. Flaked ice is perfect for salad bars, seafood counters, and other food displays that require long lasting sanitary ice. This Air-cooled, Self Contained, Built in Storage Bin icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-330BAJ requires a Single phase, 115v/60/1, 8 ft cord with NEMA 5-15 plug electrical connection that is hard-wired at the installation site. Front in, front out airflow. Please consult the Specification Sheet for additional details.
Product Features
- Up to 332 lbs of ice produced per 24 hours
- Up to 80 lbs of built-in storage capacity (2.7ft3)
- Produces flaked ice
- Durable stainless steel exterior
- Front in, front out airflow
- 2 second rinse every hour to remove sediment
- R-404A refrigerant (7.1 oz. / 200 g)
- 6.9 amps (15 Amp Max fuse)
- 5.91 kwh/100 lbs.@ 90/70
- Single phase, 115v/60/1, 8 ft cord with NEMA 5-15 plug
- Clean ice and easy maintenance lead to longer unit life span
- Three Years: Parts & Labor warranty on entire machine.
- Five Years: Parts warranty on Compressor, air-cooled condenser coil.
- Advanced CleanCycle24™ design
- Heat Rejection:3400 BTU/hr
- Discontinued – Replaced by F-330BAK
