SKU: F1501MWJ

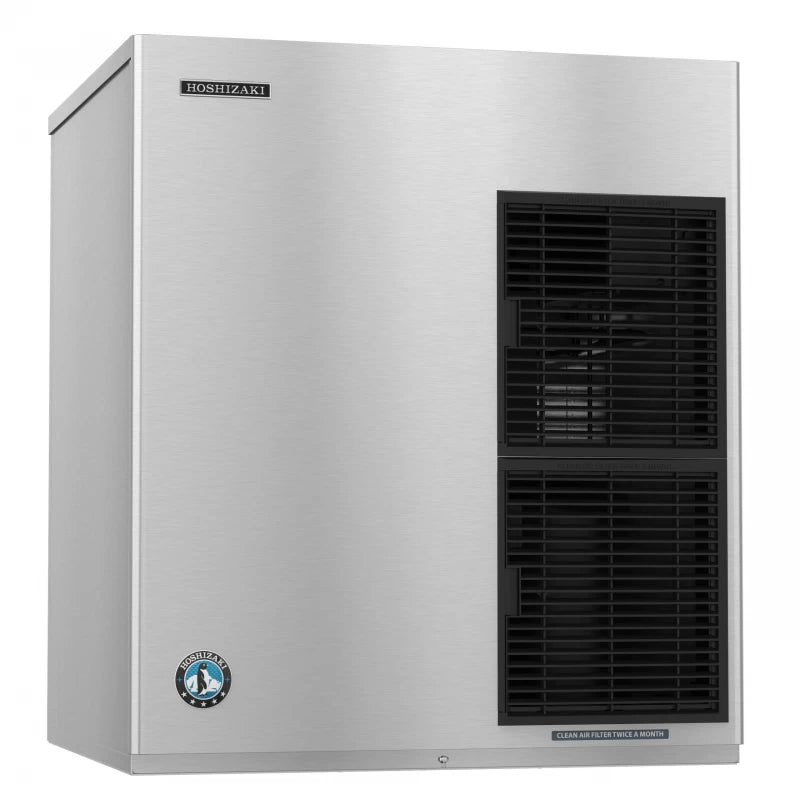

Hoshizaki F1501MWJ Flaker Icemaker, Water-cooled Stainless Steel

Quick Specification More details

Width:
30"
Depth:
27.375"
Height:
34.438"
Type:
Ice Makers

About this product

Up to 1624 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces flaked ice
Durable stainless steel exterior

Summer Sale

Clearance

SKU: F1501MWJ

Hoshizaki F1501MWJ Flaker Icemaker, Water-cooled Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
30"
Depth:
27.375"
Height:
34.438"
Type:
Ice Makers

About this product

Up to 1624 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces flaked ice
Durable stainless steel exterior

Product Details for HOSHIZAKI F1501MWJ

Technical Details

Product details

Utility Consumption	3.2 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Electrical Specs	Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 15.4, Max Fuse/HACR Breaker: 20 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: 12900 BTU/hr, Refrigerant Charge: R-404A, (1 lbs. 4.5 oz.
Plumbing Specs	1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/8″ FPT Outlet, Minimum 1/4″ Nominal ID Hard Pipe or Equivalent, Minimum 1/4″ Nominal ID Copper Water Tubing or Equ
Shipping Weight	350

Dimensions & weight

Weight	350 lbs.
Width	30 in.
Depth	27.375 in.
Height	34.438 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	390 lbs.
Total of Shipping Weight	390 lbs.
Source	Calculation

Warranty

Parts	3 Years
Labor	3 Years

Description

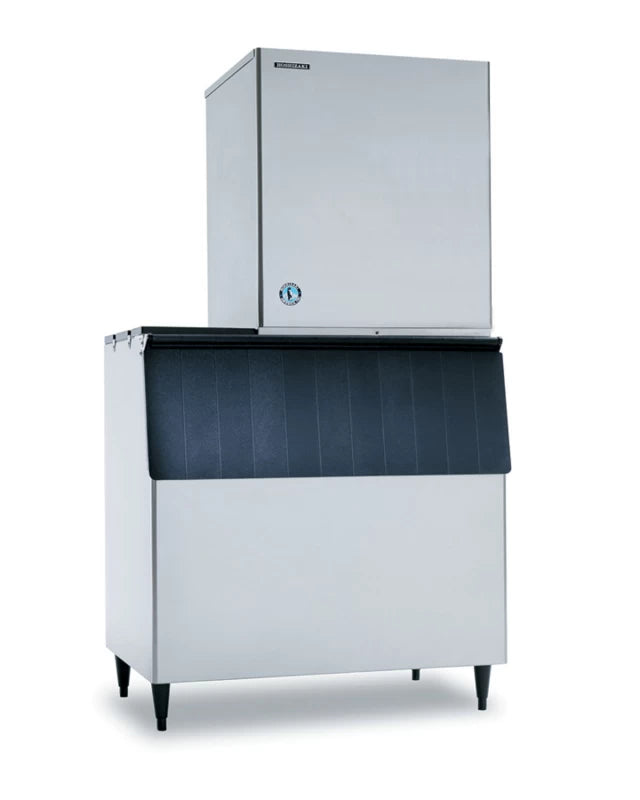

The F-1501MWJ is capable of producing approximately 1624 lbs of flaked ice per day. Flaked ice is perfect for salad bars, seafood counters, and other food displays that require long lasting sanitary ice. This Water-cooled, Modular icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-1501MWJ requires a Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details.

Product Features

Up to 1624 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces flaked ice
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1300, B-1500, B-1650
2 second rinse every hour to remove sediment
Infrared bin control for easy cleaning and reliability
R-404A refrigerant (1 lbs. 4.5 oz. / 580 g)
15.4 amps (20 Amp Max fuse)
3.2 kwh/100 lbs.@ 90/70
Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
Clean ice and easy maintenance lead to longer unit life span
Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included
Five Years: Parts warranty on Compressor, air-cooled condenser coil.
Advanced CleanCycle24™ design
Heat Rejection:12900 BTU/hr
