SKU: F1501MRJZ

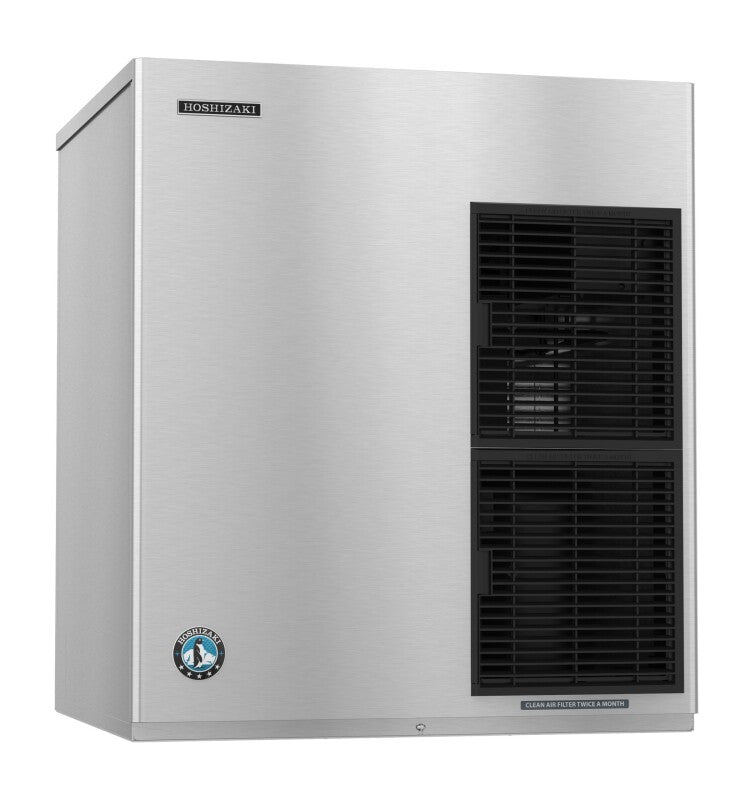

Hoshizaki F1501MRJZ Flaker Icemaker, Remote-cooled Stainless Steel

Quick Specification More details

Width:
30"
Depth:
27.375"
Height:
34.625"
Type:
Ice Machines

About this product

Up to 1532 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces flaked ice
Durable stainless steel exterior

Summer Sale

Clearance

SKU: F1501MRJZ

Hoshizaki F1501MRJZ Flaker Icemaker, Remote-cooled Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
30"
Depth:
27.375"
Height:
34.625"
Type:
Ice Machines

About this product

Up to 1532 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces flaked ice
Durable stainless steel exterior

Product Details for Hoshizaki F1501MRJZ

Technical Details

Product details

Electrical Specs	Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 15.3, Max Fuse/HACR Breaker: 20 A
Utility Consumption	4 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: 13800 BTU/hr, Refrigerant Charge: R-404A, (5 lbs. 2.5 oz.
Plumbing Specs	1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight	325

Dimensions & weight

Weight	325 lbs.
Width	30 in.
Depth	27.375 in.
Height	34.625 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	365 lbs.
Total of Shipping Weight	365 lbs.
Source	Calculation

Warranty

Parts	3 Years
Labor	3 Years

Description

The F-1501MRJZ is capable of producing approximately 1532 lbs of flaked ice per day. Flaked ice is perfect for salad bars, seafood counters, and other food displays that require long lasting sanitary ice. This Remote-cooled icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-1501MRJZ requires a Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Please consult the Specification Sheet for additional details.

Product Features

Up to 1532 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces flaked ice
Durable stainless steel exterior
2 second rinse every hour to remove sediment
R-404A refrigerant (5 lbs. 2.5 oz. / 2340 g)
Infrared bin control for easy cleaning and reliability
4 kwh/100 lbs.@ 90/70
15.3 amps (20 Amp Max fuse)
Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included
Clean ice and easy maintenance lead to longer unit life span
Advanced CleanCycle24™ design
Dimensions: 30″ W x 27-3/8″ D x 34-5/8″ H
Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650
Heat Rejection: 13800 BTU/hr
Three Years: Parts & Labor warranty on entire machine (Serial numbers VxxxxxJ and after)
Five Years: Parts warranty on Compressor, air-cooled condenser coil
