SKU: F1501MAJC

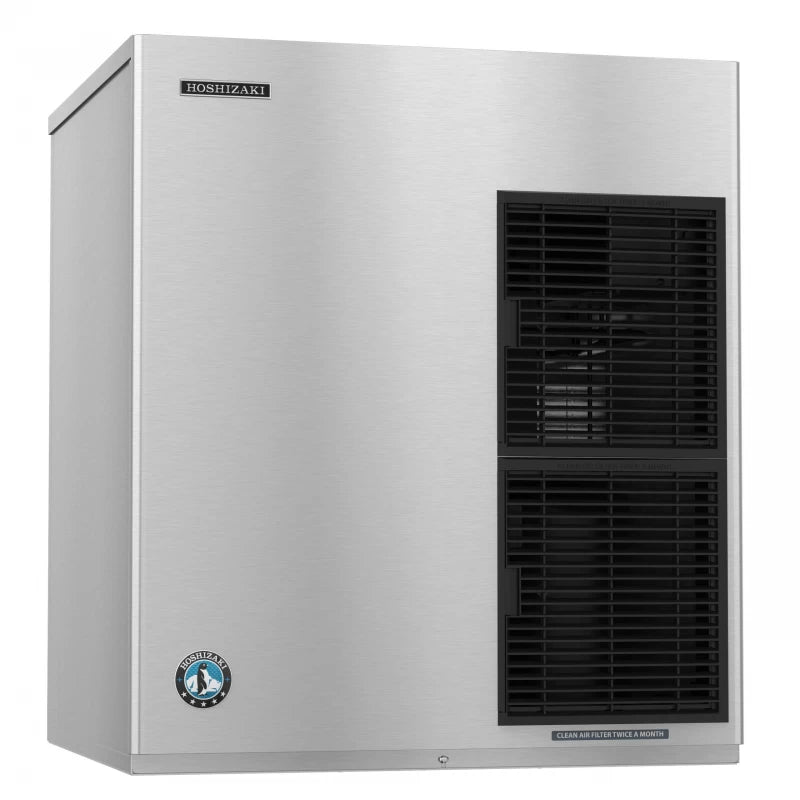

Hoshizaki F1501MAJC Cubelet Icemaker, Air-cooled Stainless Steel

Quick Specification More details

Width:
30"
Depth:
27.375"
Height:
34.438"
Type:
Ice Machines

About this product

Up to 1327 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces medium cubelet nugget-style ice
Durable stainless steel exterior

Summer Sale

Clearance

SKU: F1501MAJC

Hoshizaki F1501MAJC Cubelet Icemaker, Air-cooled Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
30"
Depth:
27.375"
Height:
34.438"
Type:
Ice Machines

About this product

Up to 1327 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces medium cubelet nugget-style ice
Durable stainless steel exterior

Product Details for Hoshizaki F1501MAJC

Technical Details

Product details

Electrical Specs	Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 15.9, Max Fuse/HACR Breaker: 20 A
Utility Consumption	4.61 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: 12300 BTU/hr, Refrigerant Charge: R-404A, (2 lbs. 5 oz. /
Plumbing Specs	1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight	325

Dimensions & weight

Weight	325 lbs.
Width	30 in.
Depth	27.375 in.
Height	34.438 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	365 lbs.
Total of Shipping Weight	365 lbs.
Source	Calculation

Warranty

Parts	3 Years
Labor	3 Years

Description

The F-1501MAJ-C is capable of producing approximately 1327 lbs of cubelet (nugget-style) ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat. This Air-cooled, Modular icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-1501MAJ-C requires a Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details.

Product Features

Up to 1327 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces medium cubelet nugget-style ice
Durable stainless steel exterior

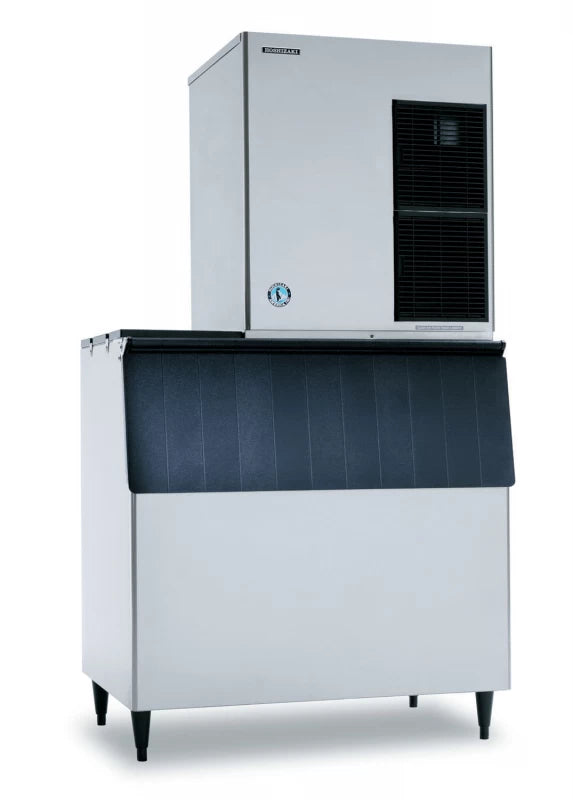

Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1300, B-1500, B-1650
2 second rinse every hour to remove sediment
Infrared bin control for easy cleaning and reliability
R-404A refrigerant (2 lbs. 5 oz. / 1050 g)
15.9 amps (20 Amp Max fuse)
4.61 kwh/100 lbs.@ 90/70
Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included
Clean ice and easy maintenance lead to longer unit life span
Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
Five Years: Parts warranty on Compressor, air-cooled condenser coil.
Advanced CleanCycle24™ design
Heat Rejection:12300 BTU/hr
