SKU: F1002MWJ

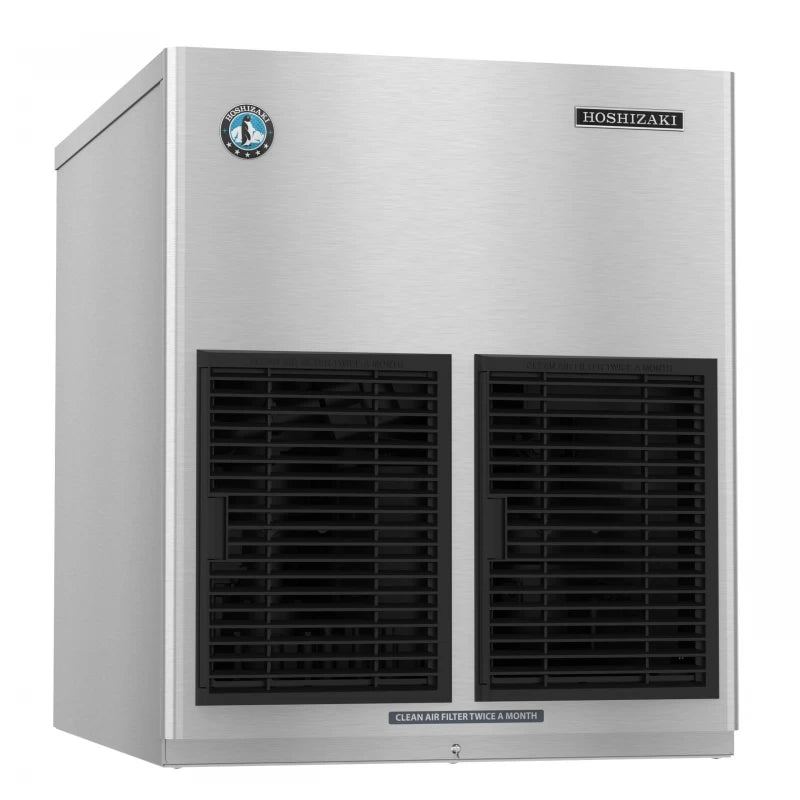

Hoshizaki F1002MWJ Flaker Icemaker, Water-cooled Stainless Steel

Quick Specification More details

Width:
22"
Depth:
27.375"
Height:
25.938"
Type:
Ice Machines

About this product

Mount 2 units side-by-side for 2x the ice production
Up to 955 lbs of ice produced per 24 hours
Durable stainless steel exterior

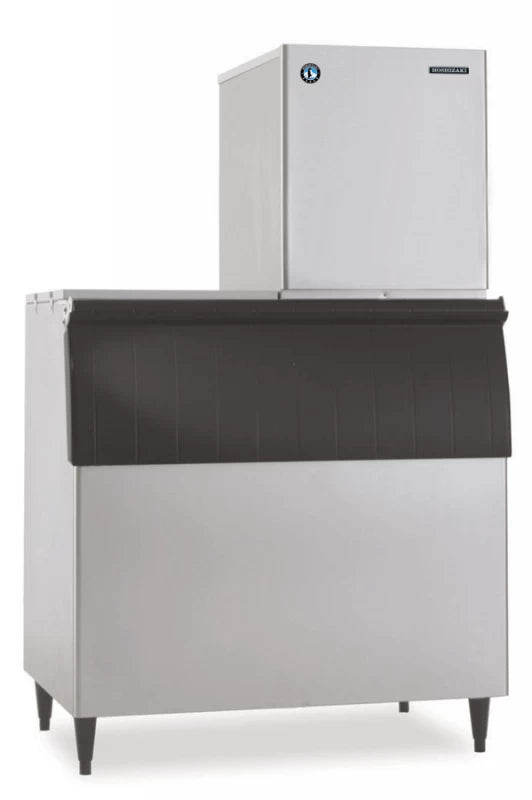

Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500SS, B-1650SS, B-1150, B-1300, B-1500SS, B-1650SS

Summer Sale

Clearance

SKU: F1002MWJ

Hoshizaki F1002MWJ Flaker Icemaker, Water-cooled Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
22"
Depth:
27.375"
Height:
25.938"
Type:
Ice Machines

About this product

Mount 2 units side-by-side for 2x the ice production
Up to 955 lbs of ice produced per 24 hours
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500SS, B-1650SS, B-1150, B-1300, B-1500SS, B-1650SS

Product Details for Hoshizaki F1002MWJ

Technical Details

Product details

Utility Consumption	3.57 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Electrical Specs	Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 13.73, Max Fuse/HACR Breaker: 20 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 8200 BTU/hr, Refrigerant Charge: R-404A, (12.3 oz. / 350
Plumbing Specs	1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/8″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent, Minimum 1/4″ Nominal ID Copper Water Tubing or Equ
Shipping Weight	205

Dimensions & weight

Weight	205 lbs.
Width	22 in.
Depth	27.375 in.
Height	25.938 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	245 lbs.
Total of Shipping Weight	245 lbs.
Source	Calculation

Warranty

Parts	3 Years
Labor	3 Years

Description

The F-1002MWJ is capable of producing approximately 955 lbs of flaked ice per day. Flaked ice is perfect for salad bars, seafood counters, and other food displays that require long lasting sanitary ice. This Water-cooled, Slim Line Modular icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-1002MWJ requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500SS, B-1650SS, B-1150, B-1300, B-1500SS, B-1650SS. Please consult the Specification Sheet for additional details.

Product Features

Mount 2 units side-by-side for 2x the ice production
Up to 955 lbs of ice produced per 24 hours
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500SS, B-1650SS, B-1150, B-1300, B-1500SS, B-1650SS
2 second rinse every hour to remove sediment
Produces flaked ice
R-404A refrigerant (12.3 oz. / 350 g)
13.73 amps (20 Amp Max fuse)
3.57 kwh/100 lbs.@ 90/70
Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
Clean ice and easy maintenance lead to longer unit life span
Three Years: Parts & Labor warranty on entire machine.
Five Years: Parts warranty on Compressor, air-cooled condenser coil.
Advanced CleanCycle24™ design
Heat Rejection:8200 BTU/hr
