Product Details for HOSHIZAKI DKM500BAJ

Technical Details

Product details

Electrical Specs Single phase, 115v/60/1, 8 ft cord with NEMA 5-15 plug, Amperage: 13.5, Max Fuse/HACR Breaker: 20 A
Utility Consumption 5.56 kWh per 100 lbs @ 90/70, 16.6 gal of Potable Water per 100 lbs @ 90/70
Plumbing Specs 1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT x2 Drain, Minimum 3/4″ Nominal ID Drain Hard Pipe or Equivalent
Shipping Weight 300
Operating Limits Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 9100 BTU/hr, Refrigerant Charge: R-404A, ( 1 lbs. 12.2 oz

Dimensions & weight

Weight 300 lbs.
Width 30 in.
Depth 28 in.
Height 77 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Weight 340 lbs.
Total of Shipping Weight 340 lbs.
Source Calculation

Warranty

Parts 3 Years
Labor 3 Years

Description

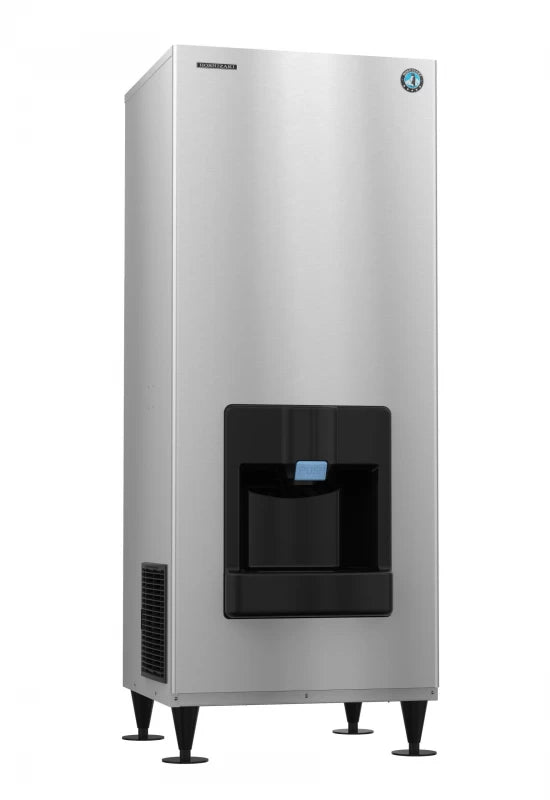

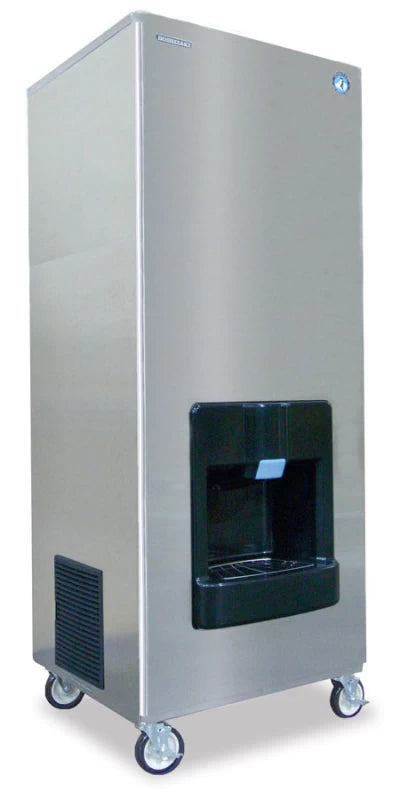

The DKM-500BAJ is capable of producing approximately 545 lbs of Crescent Cube style ice cubes per day, and the built-in dispensing system holds up to 140 lbs in insulated storage* to ensure you always have enough ice on hand! This commercial Air-cooled icemaker is the only one-piece dispenser design on the market! This makes it easy to install and service, and a quiet operating system makes it ideal for use in hotels and similar applications. Ice dispensing height is ADA compliant. This sanitary icemaker/dispenser features a user-friendly dispensing mechanism that allows clean, individual, crescent ice cubes to be dispensed with a simple push of a button. This model features CycleSaver™ design and is ENERGY STAR® qualified. The DKM-500BAJ requires a Single phase, 115v/60/1, 8 ft cord with NEMA 5-15 plug electrical connection and comes with a cord and plug. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.


Product Features

  • Durable, attractive one piece stainless steel exterior
  • Up to 545 lbs of ice produced per 24 hours
  • Ice dispensing height is ADA compliant
  • Up to 140 lbs of built-in storage capacity (6.7ft3)
  • 13.5 amps (20 Amp Max fuse)
  • 5.56 kwh/100 lbs.@ 90/70
  • Single phase, 115v/60/1, 8 ft cord with NEMA 5-15 plug
  • CycleSaver™ design
  • R-404A refrigerant (1 lbs. 12.2 oz. / 800 g)
  • ENERGY STAR® qualified
  • Push button operated, 13 lbs of crescent cube ice/min
  • Heat Rejection: 9100 BTU/hr
  • Three Years: Parts & Labor warranty on entire machine
  • Five Years: Parts warranty on Hermetic compressor, air-cooled fin and tube type condenser
  • Discontinued – Replaced by DB-200H
