SKU: DM200B

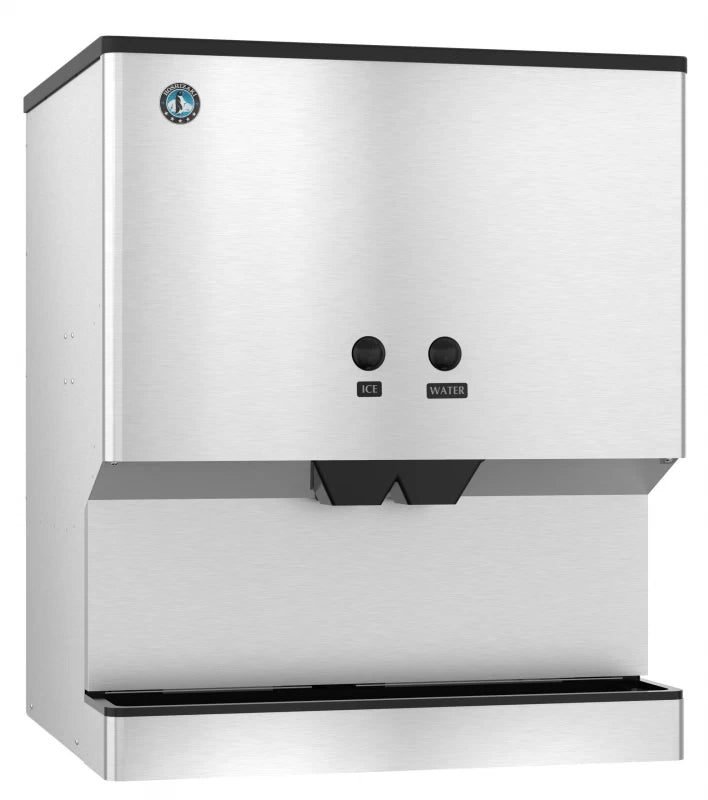

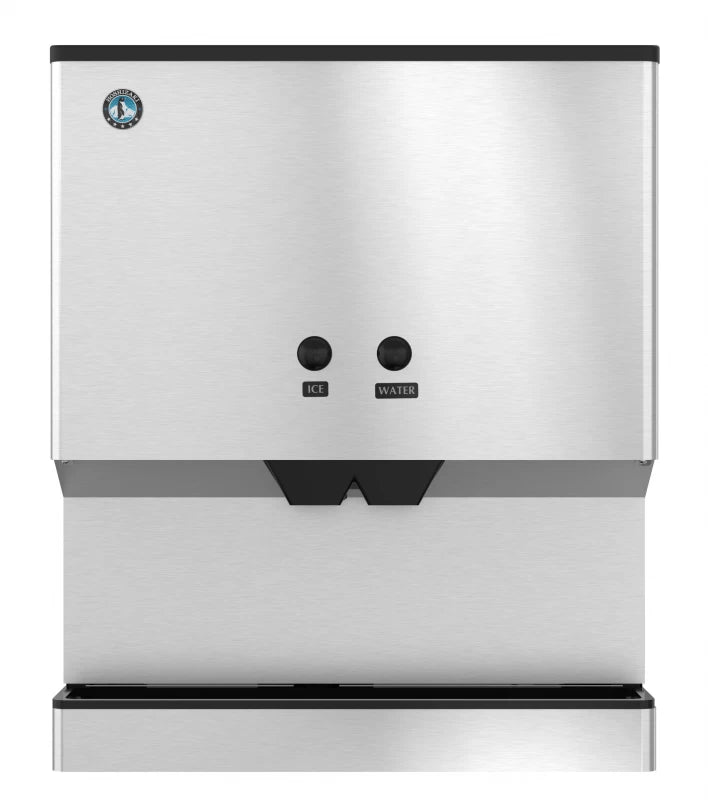

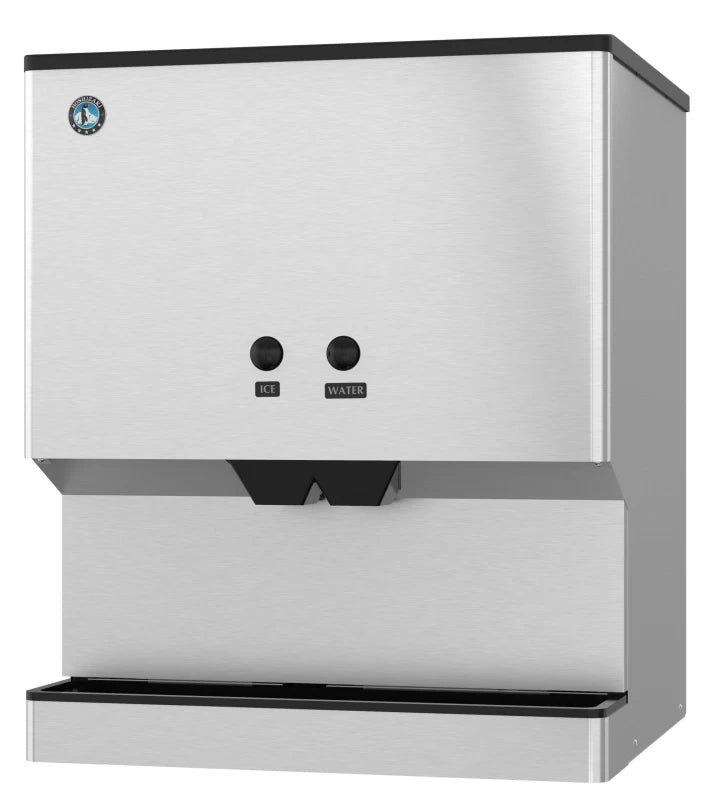

Hoshizaki DM200B 30″ W Ice and Water Dispenser with 200 lbs Capacity – Stainless Steel Exterior

Quick Specification More details

Width:
30"
Depth:
28"
Height:
36.375"
Type:
Ice Machines

About this product

Single phase, 115v/60/1, 8 ft. power cord with NEMA 5-15P plug
Stores up to 200 lbs of ice
Dispenses ice or water with the touch of a button
Push button unique auger agitator design dispenses 7.5 lbs. of ice per minute

Summer Sale

Clearance

SKU: DM200B

Hoshizaki DM200B 30″ W Ice and Water Dispenser with 200 lbs Capacity – Stainless Steel Exterior

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
30"
Depth:
28"
Height:
36.375"
Type:
Ice Machines

About this product

Single phase, 115v/60/1, 8 ft. power cord with NEMA 5-15P plug
Stores up to 200 lbs of ice
Dispenses ice or water with the touch of a button
Push button unique auger agitator design dispenses 7.5 lbs. of ice per minute

Product Details for Hoshizaki DM200B

Technical Details

Product details

Electrical Specs	Single phase, 115v/60/1, 8 ft. power cord with NEMA 5-15P plug, Amperage: 1.4, Max Fuse/HACR Breaker: 15 A
Compatible Icemakers	KML-325M, KM-340M, KM-515M, KML-500M, KML-700M, KM-600M, KM-650M,
Ice Storage Capacity	200 lbs, Cubic Volume: 5.72 ft3
Shipping Weight	210

Dimensions & weight

Weight	210 lbs.
Width	30 in.
Depth	28 in.
Height	36.375 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	250 lbs.
Total of Shipping Weight	250 lbs.
Source	Calculation

Warranty

Parts	3 Years
Labor	3 Years

Description

Safely store and dispense up to 200 lbs of ice with this Ice and Water Dispenser. The DM-200B is the perfect 30″ wide ice and water dispenser ideal for high volume institiutions and hospitality locations! It boasts a seamless bin linear and Foamed-in-place polyurethane insulation in all of the bin walls including the bottom of the unit providing your operation with maximum ice preservation. The DM-200B features a durable and easy to maintain Stainless Steel exterior cabinet. 4″ Die-Cast Legs – (DM LEGS) or cabinet stand (SD-200) optional. Single phase, 115v/60/1, 8 ft. power cord with NEMA 5-15P plug, 60 W dispensing gear motor, 1.4 Amps, 3/4″ FPT drain. The unit is UL Listed, ETL Sanitation Listed, Georgia Made Certified and includes a Three Years: Parts & Labor warranty on entire machine. Compatible icemakers/dispensers, sold separately: KML-325M, KM-340M, KM-515M, KML-500M, KML-700M, KM-600M, KM-650M

Product Features

Single phase, 115v/60/1, 8 ft. power cord with NEMA 5-15P plug
Stores up to 200 lbs of ice
Dispenses ice or water with the touch of a button
Push button unique auger agitator design dispenses 7.5 lbs. of ice per minute
Foamed-in-place polyurethane insulation

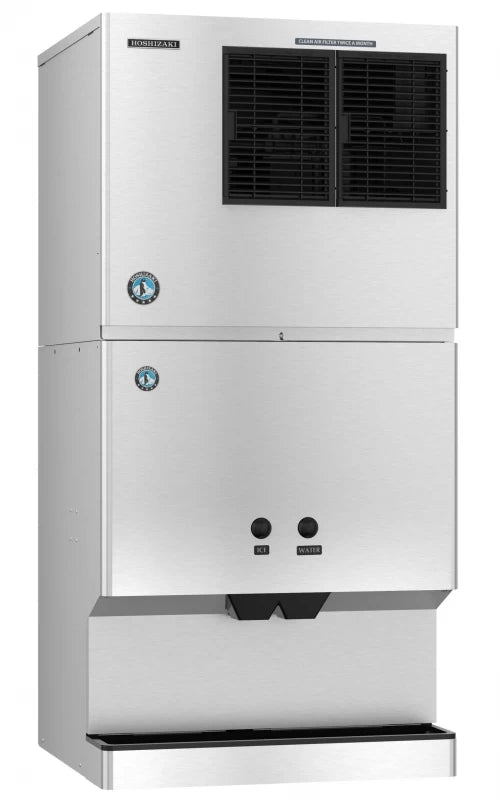

Accommodates ice machine (sold separately) or manual fill
For use with crescent cube ice machines only

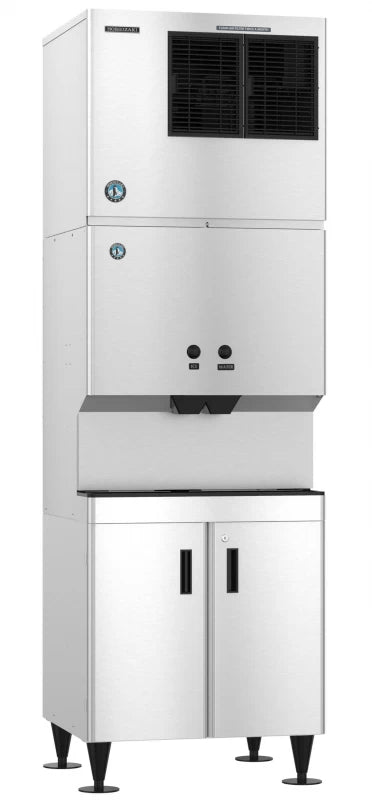

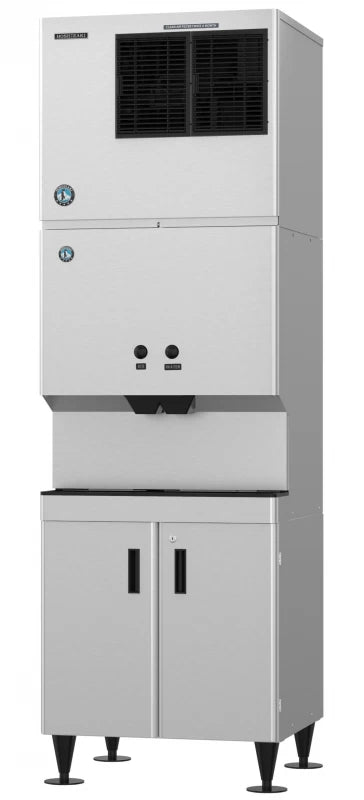

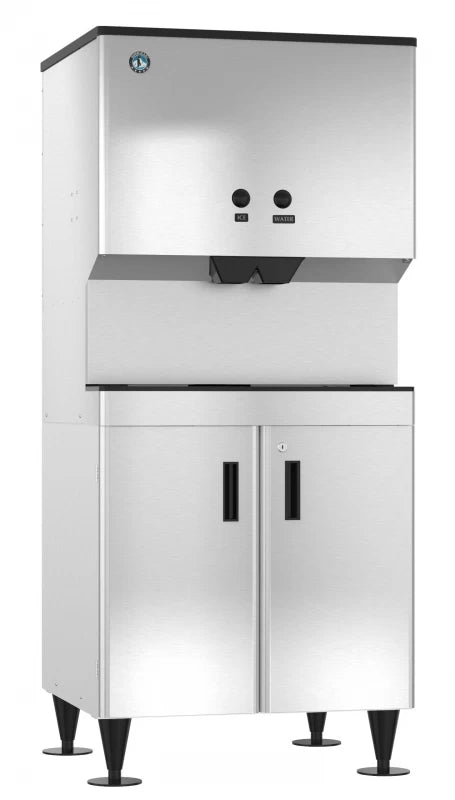

SD-200 Machine Stand optional
Weight: 240
Three Years: Parts & Labor warranty on entire machine
Dimensions: 30″ W x 28″ D x 36- 3/8 ” H
