| Parts | 1 Year |
| Labor | 1 Year |

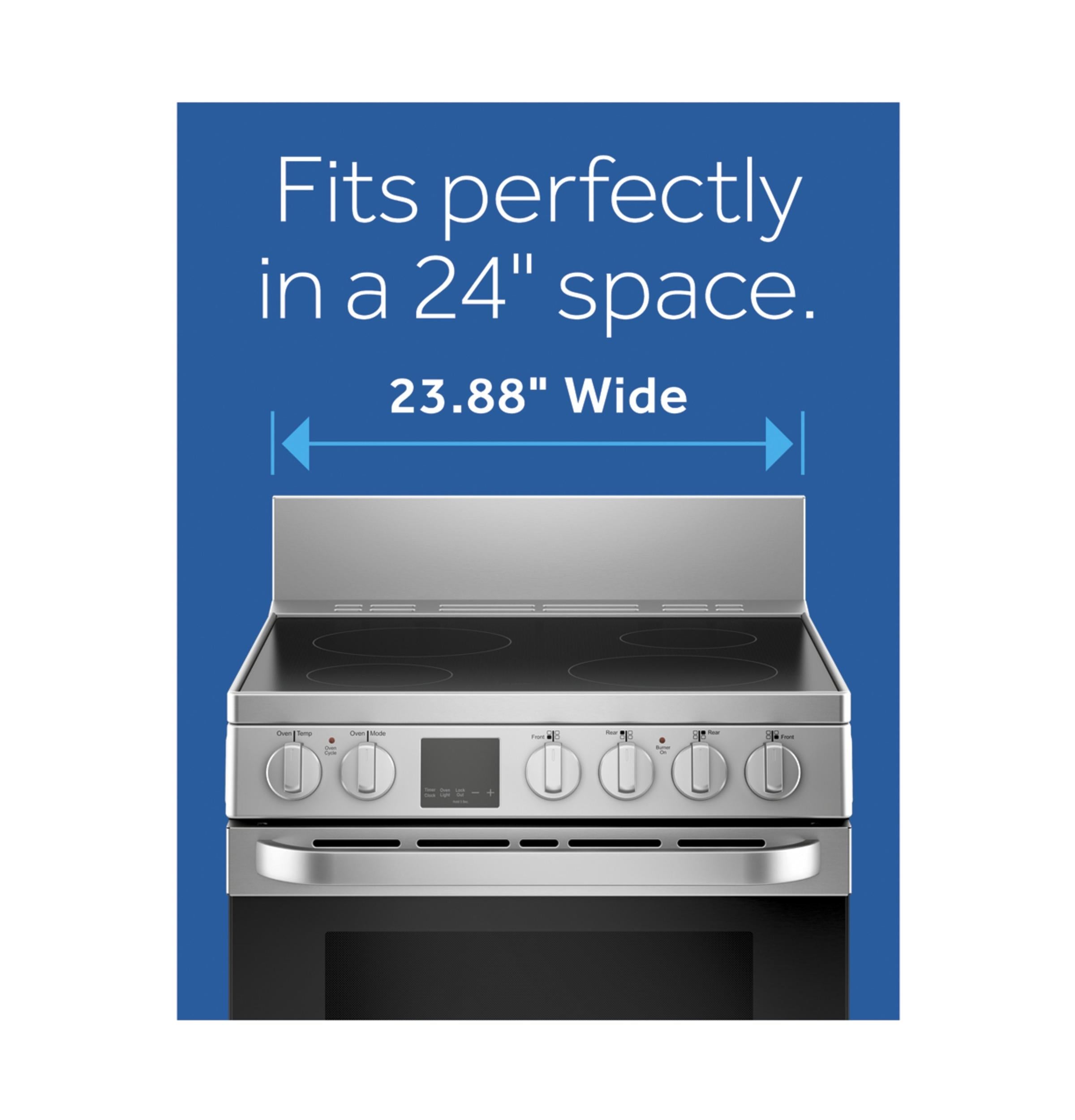

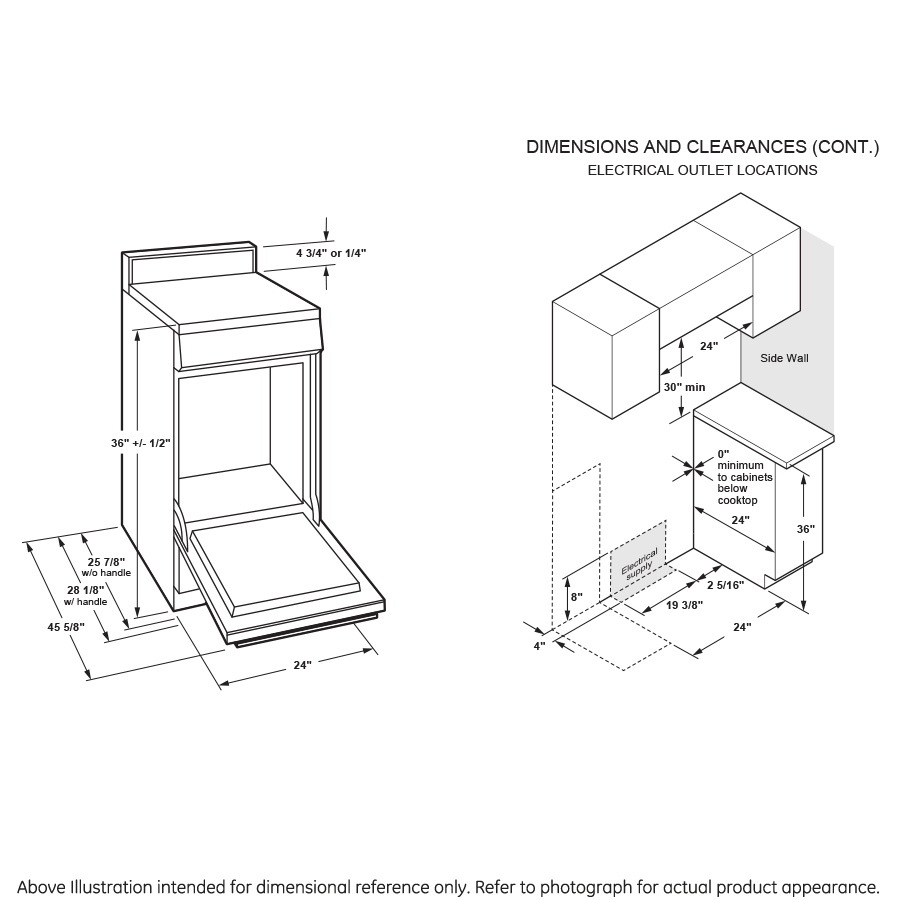

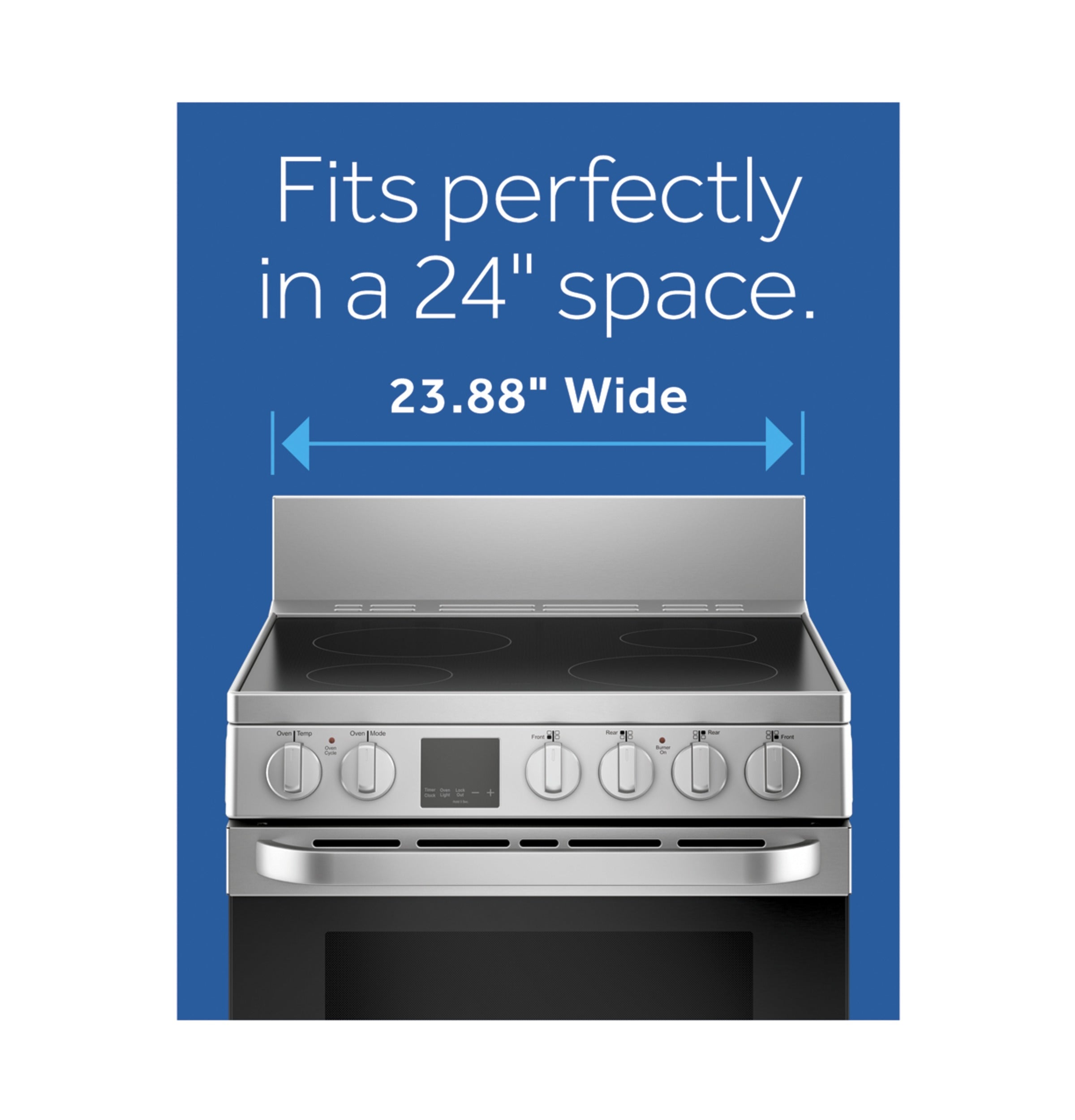

| Overall Width | 24 in |
| Overall Height | 40.75 in |
| Overall Depth | 28.125 in |
| Net Weight | 123 lb |
| Depth Without Handle | 25.75 in |
| Cabinet Width | 24 in |
| Approximate Shipping Weight | 136 lb |
| Depth with Door Open | 45.625 in |
| Oven Interior Dimensions (W x H x D) (in.) | 19 x 15-3/8 x 17-1/8 |
| Height to Cooking Surface (in.) | 36.25 +/- .25 |
| Storage Drawer Features | Removable Full-Width |
| Oven Interior | Blue Gray |
| Oven Control Features | Oven "ON" Light |

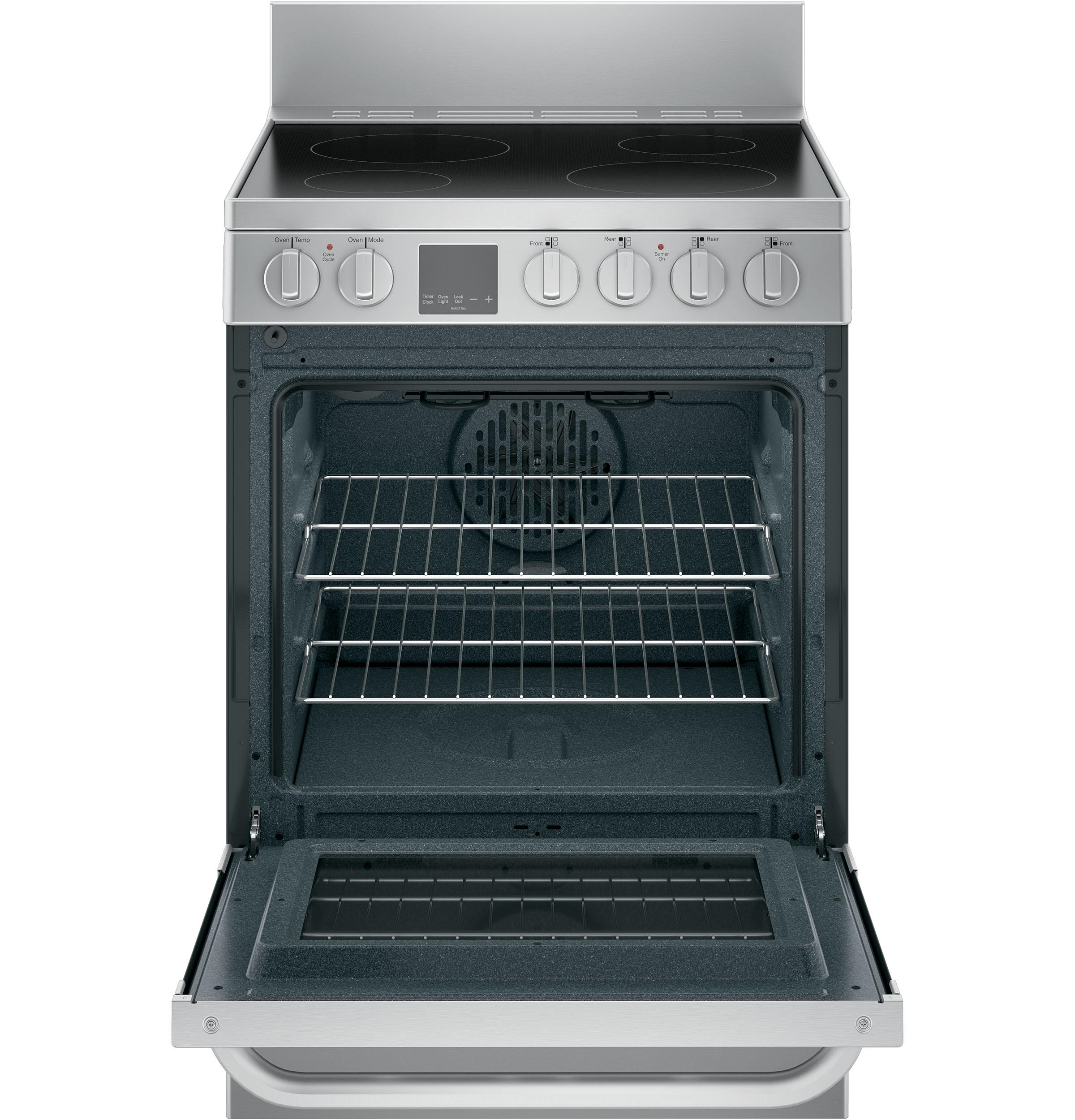

| Oven Rack Features | 2 Flat Nickel Racks |
| Element - Left Front | 6" 1200W |
| Oven Cleaning Type | Steam Clean |

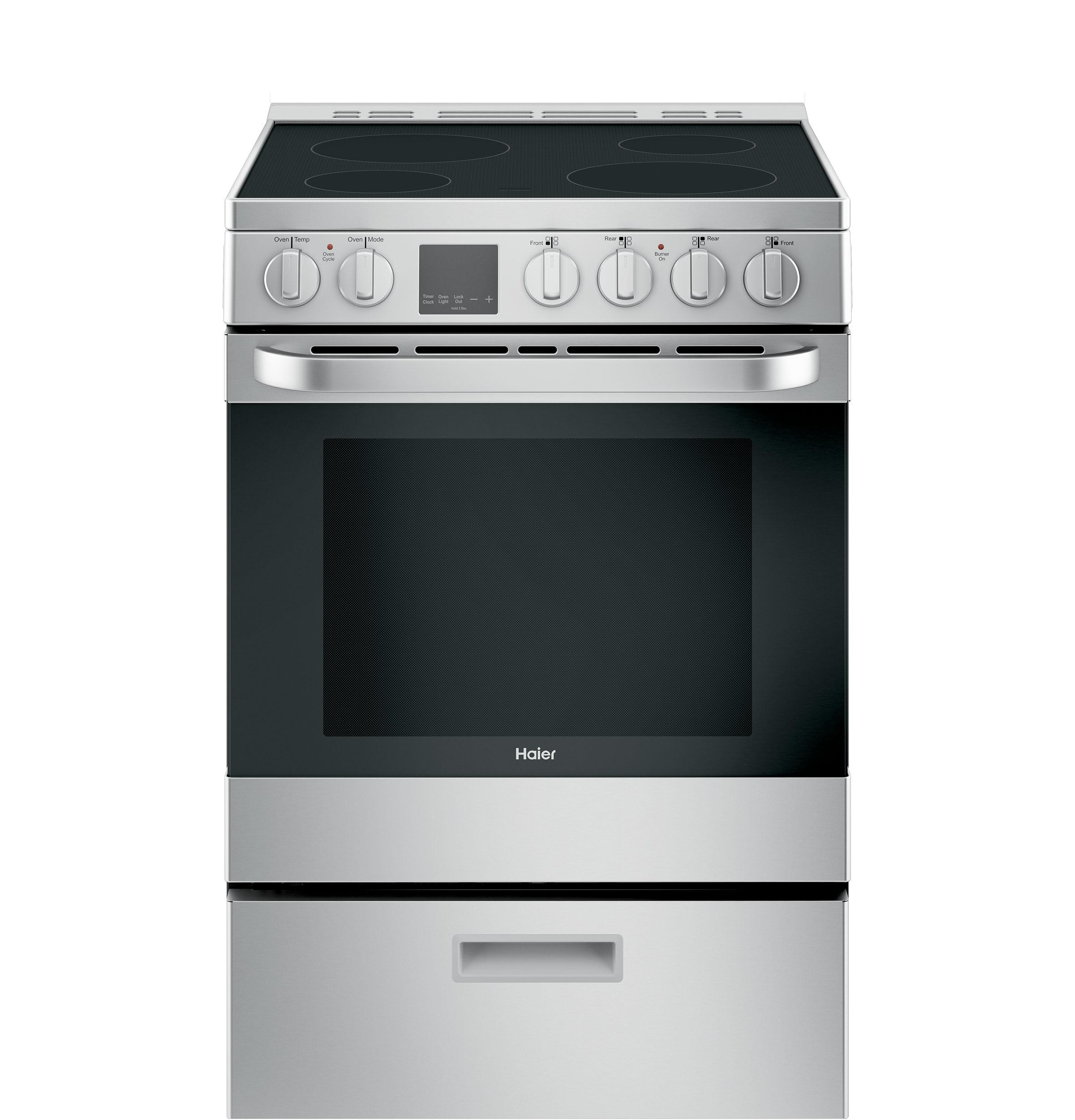

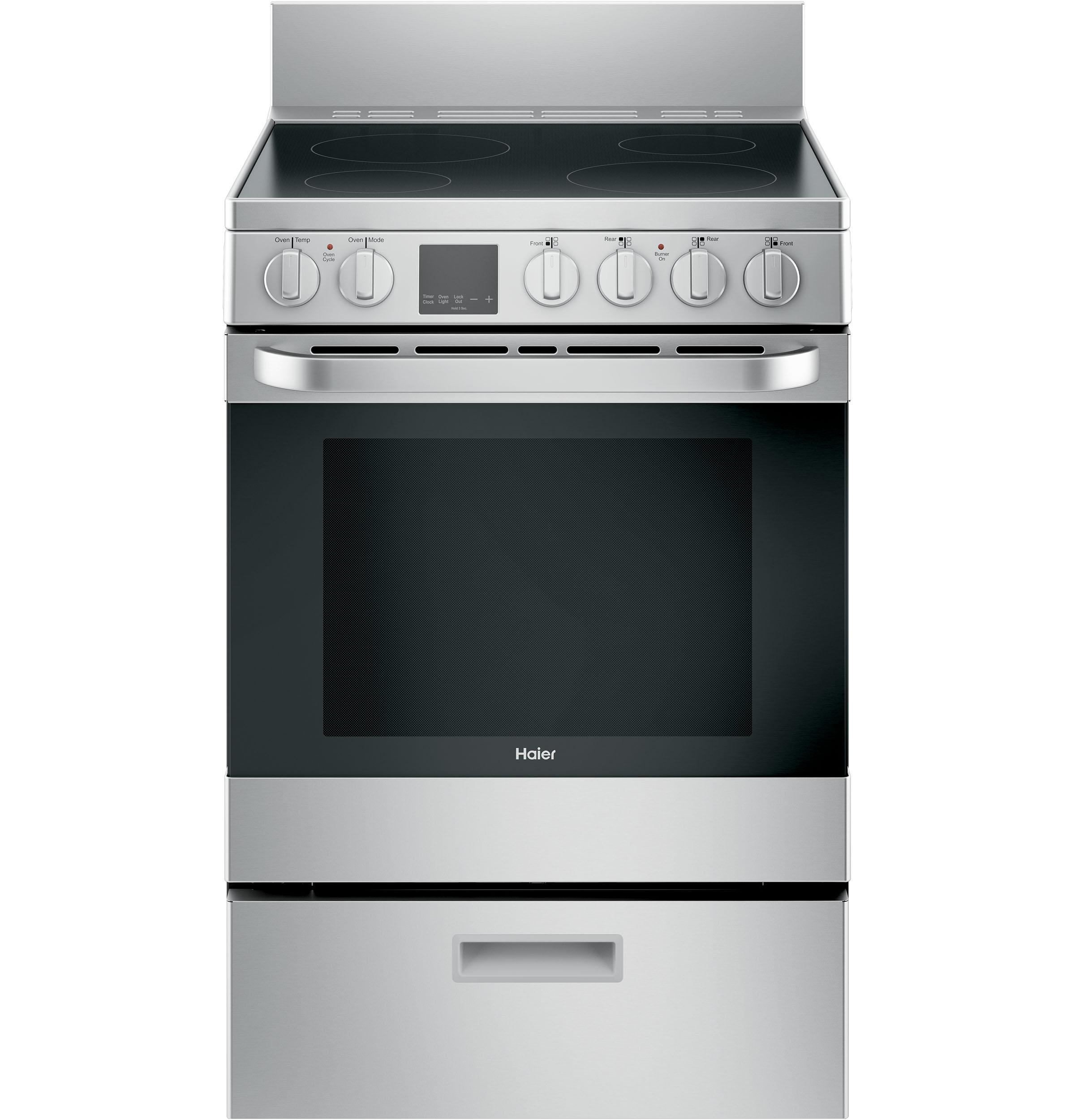

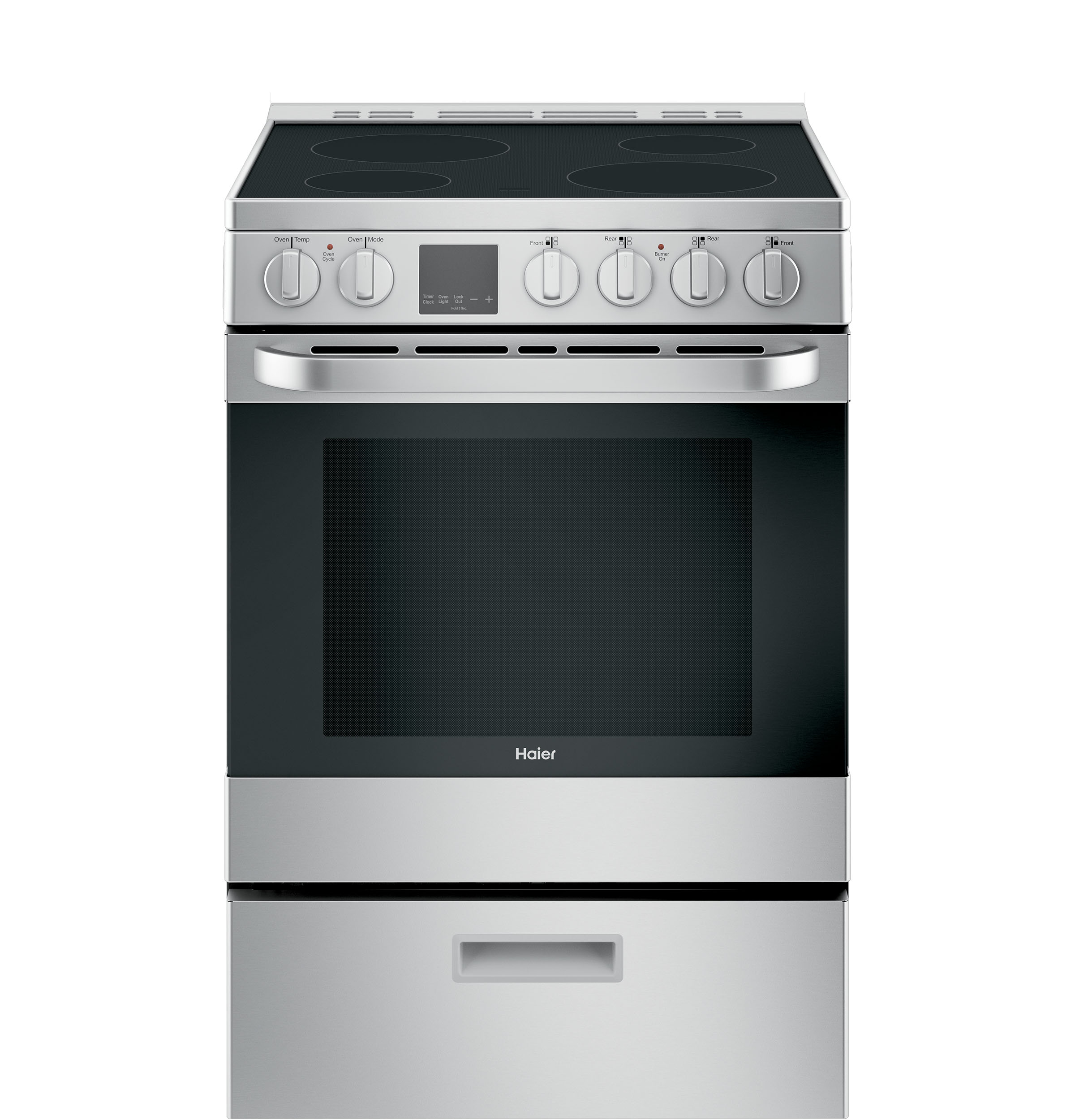

| Product Type | Free-Standing Single Oven |

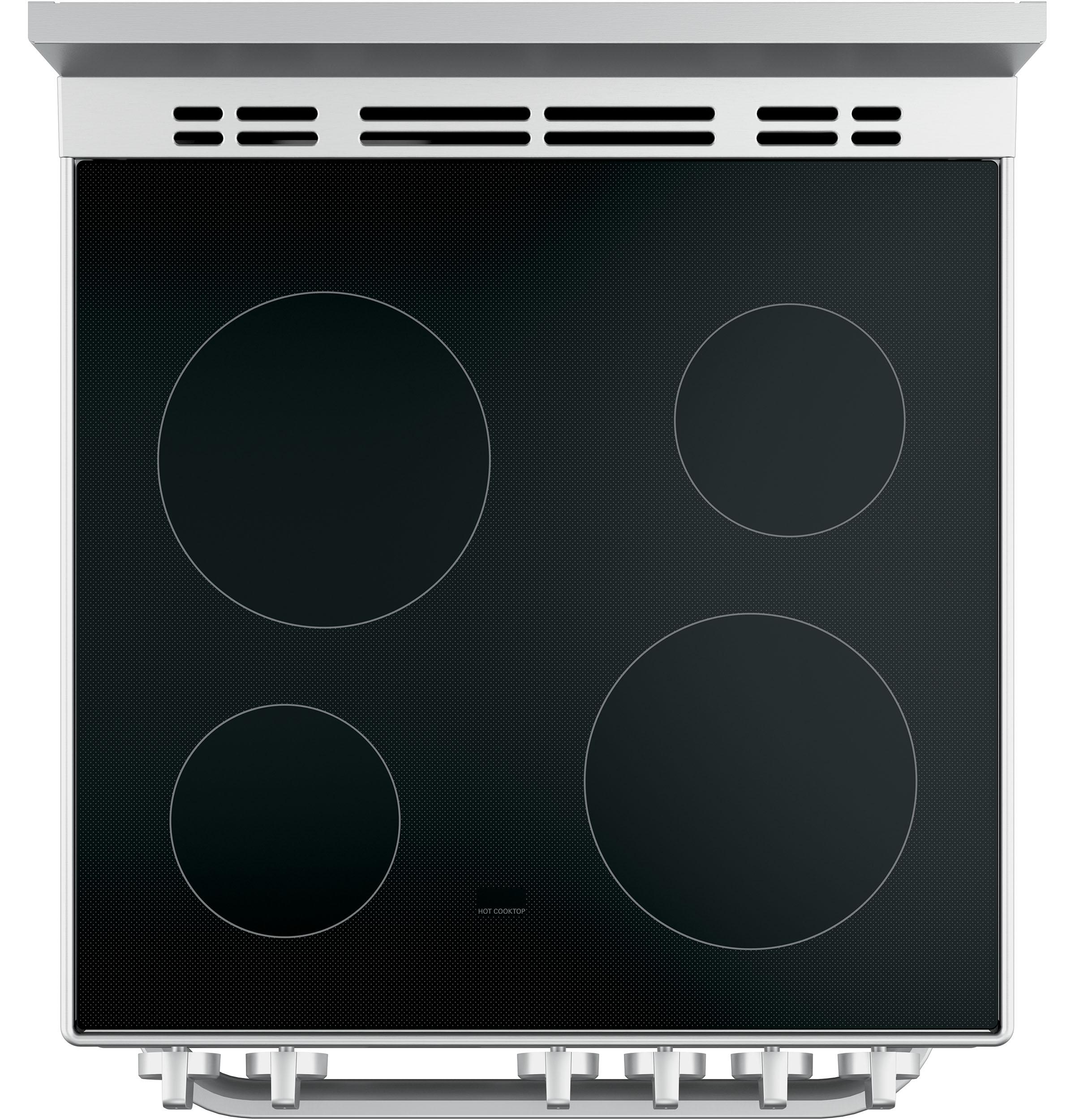

| Cooktop Type | Radiant Smoothtop |
| Fuel Type | Electric |
| Element - Right Front | 8" 2200W |
| Interior Oven Light | 1 |
| Control Location | Front |
| Number of Convection Oven Fans | 1 |
| Dishwasher Safe Knobs | Yes |

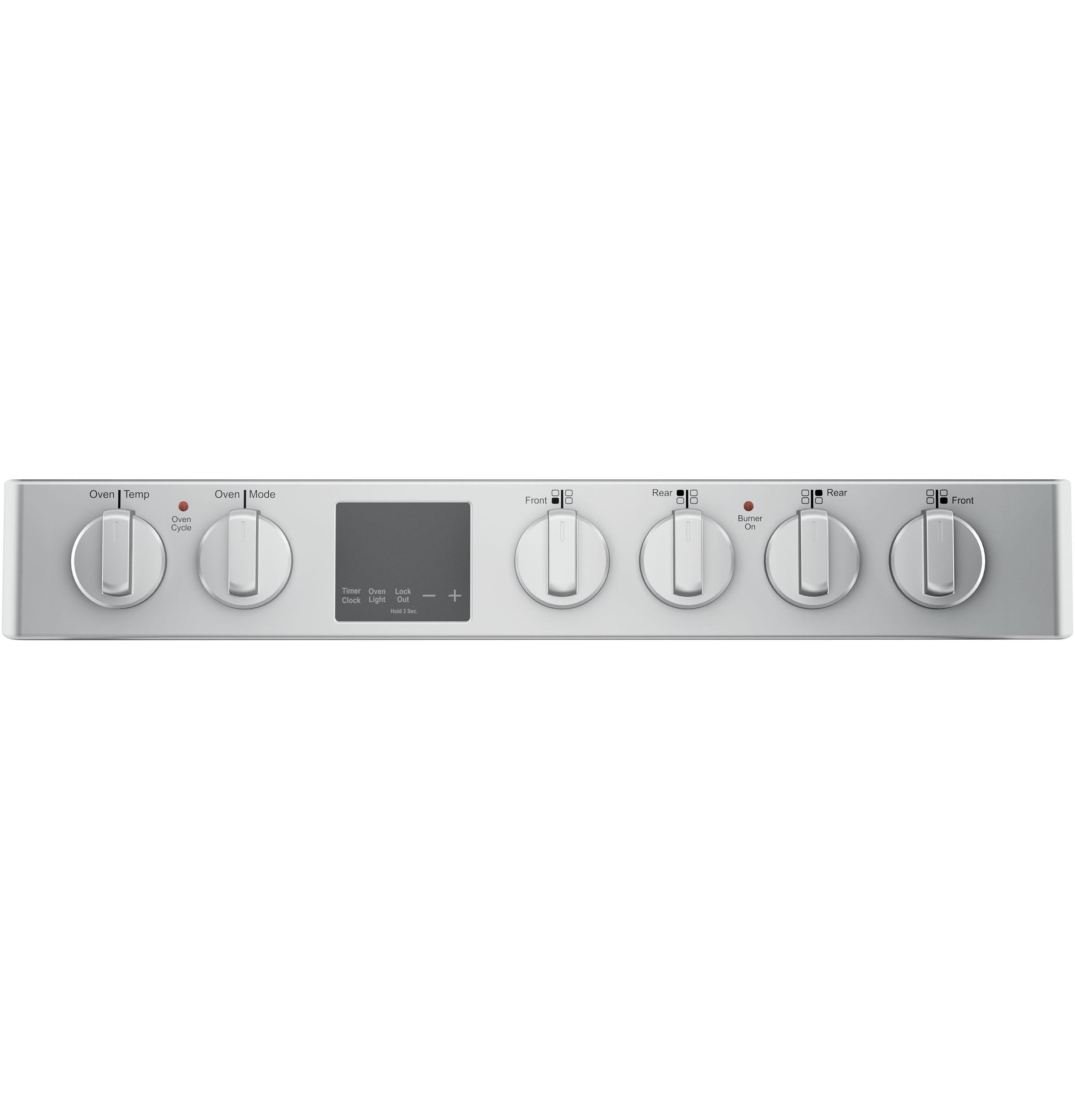

| Control Type | Heavy Duty Knob |
| Drawer Type | Storage |
| Hot Surface Indicator Lights | Yes, plus Oven Indicator Light |
| Sabbath Mode | Yes |
| Leveling System | 4 Leveling Legs |
| Element - Left Rear | 8" 2000W |
| Cooking Technology | Fan Convection |
| Configuration | Range with Storage Drawer |
| Oven Features | Hidden Bake |
| OU Certified | No |
| Oven Cooking Modes | Convection Bake |
| Cooktop Burner Type | Smoothtop |
| Element - Right Rear | 6" 1200W |

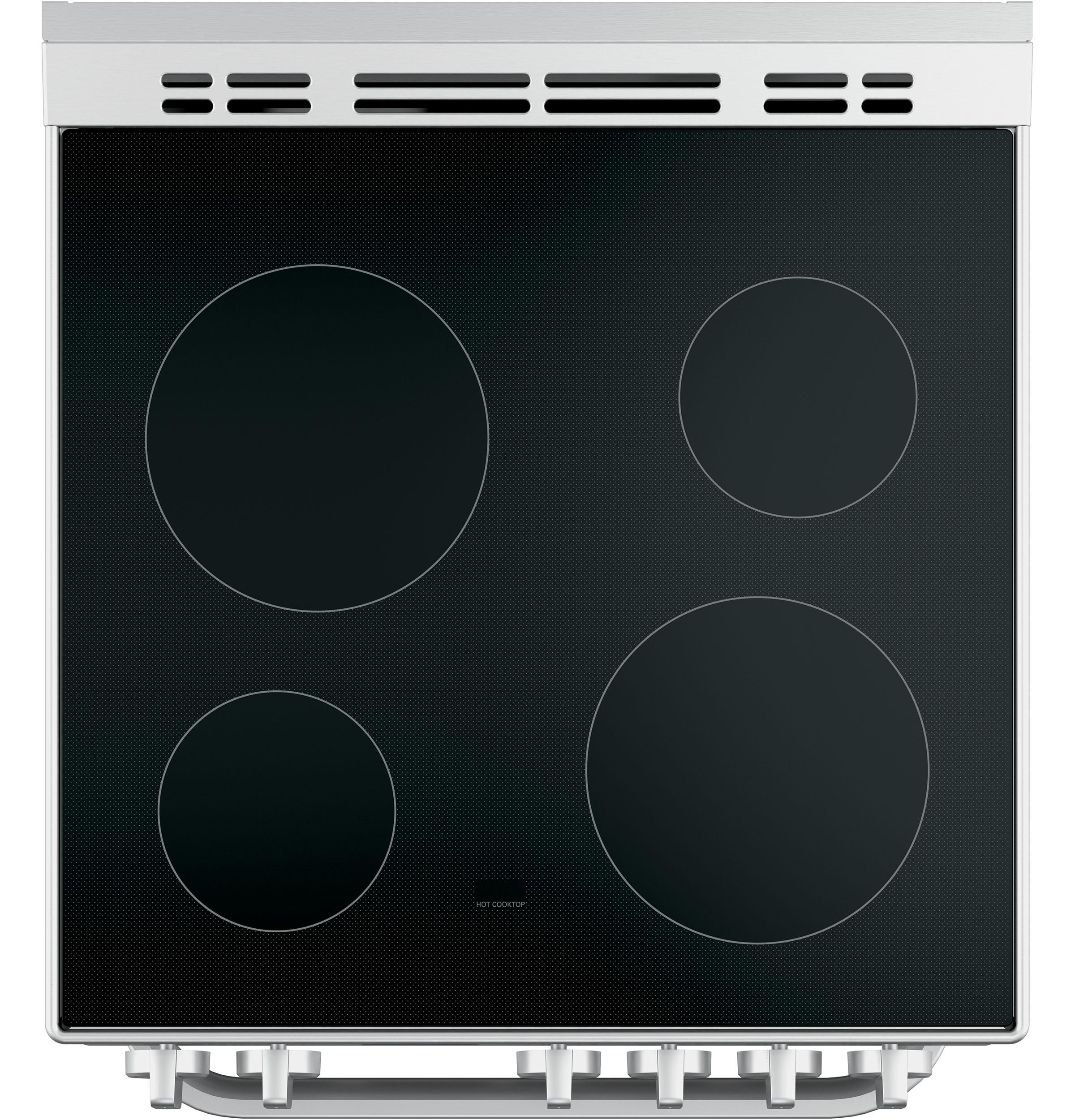

| Cooktop Surface | Black Glass Ceramic |

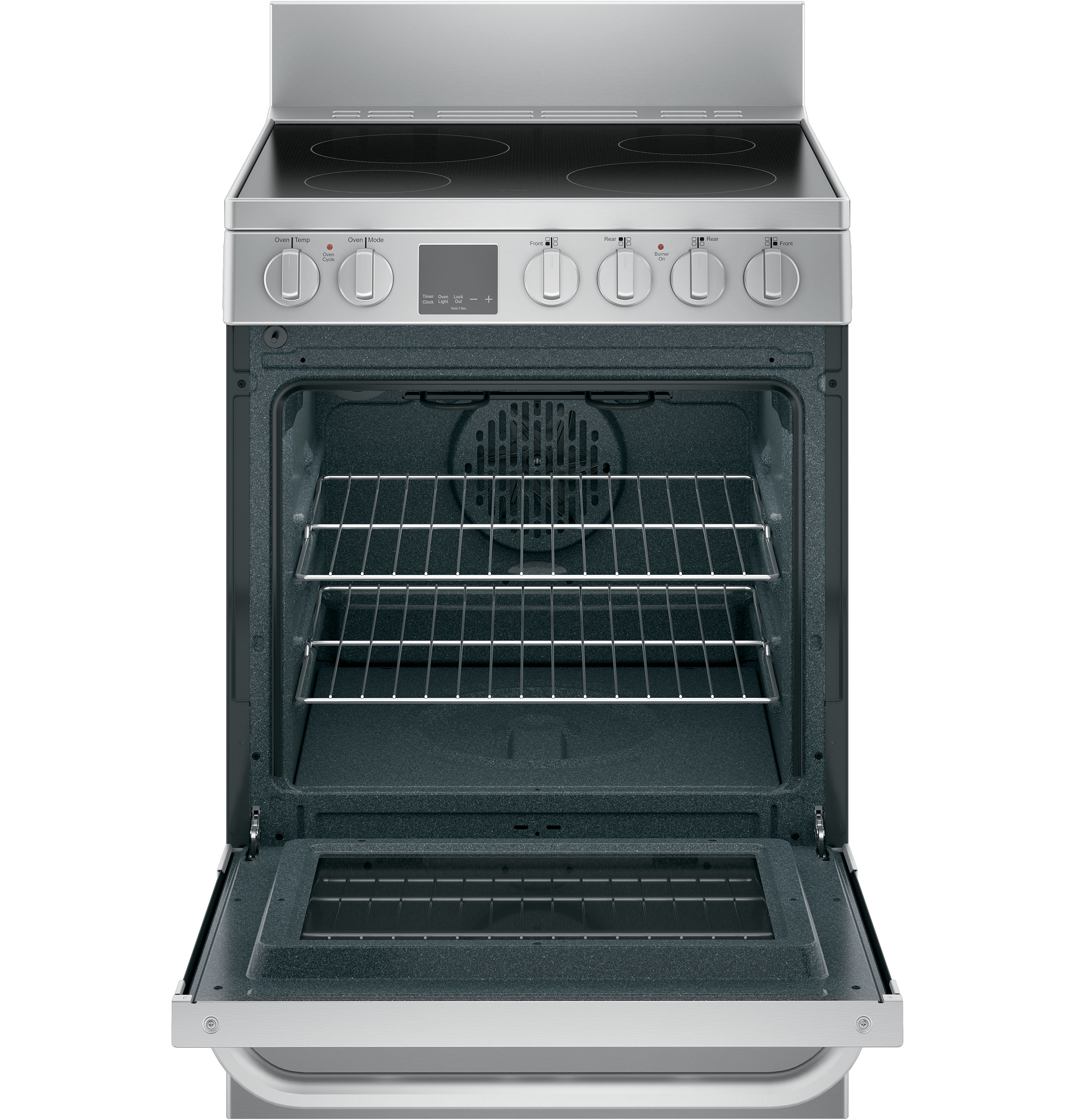

| Oven Rack Positions (Single or Upper/Lower) | 4 |

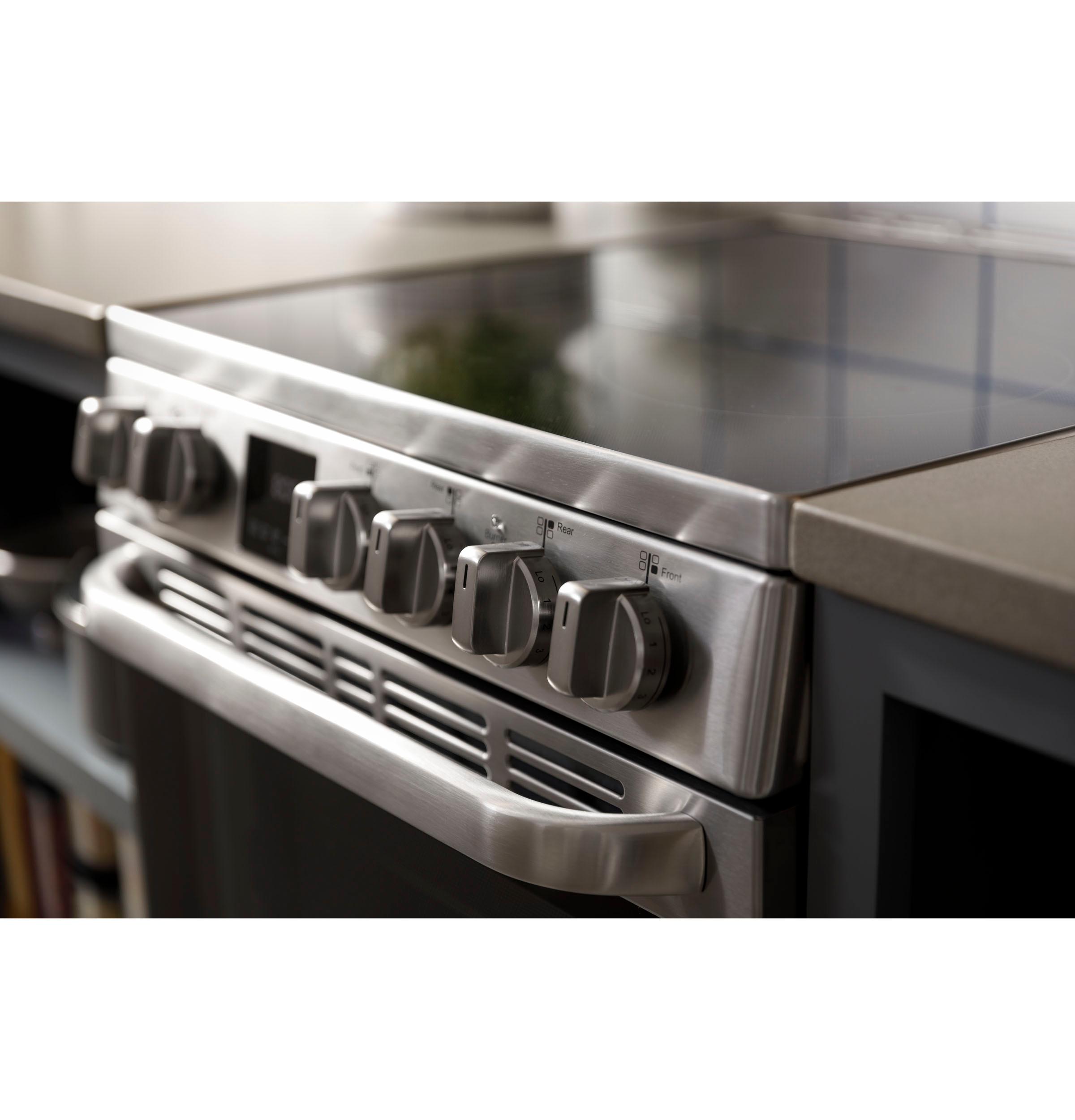

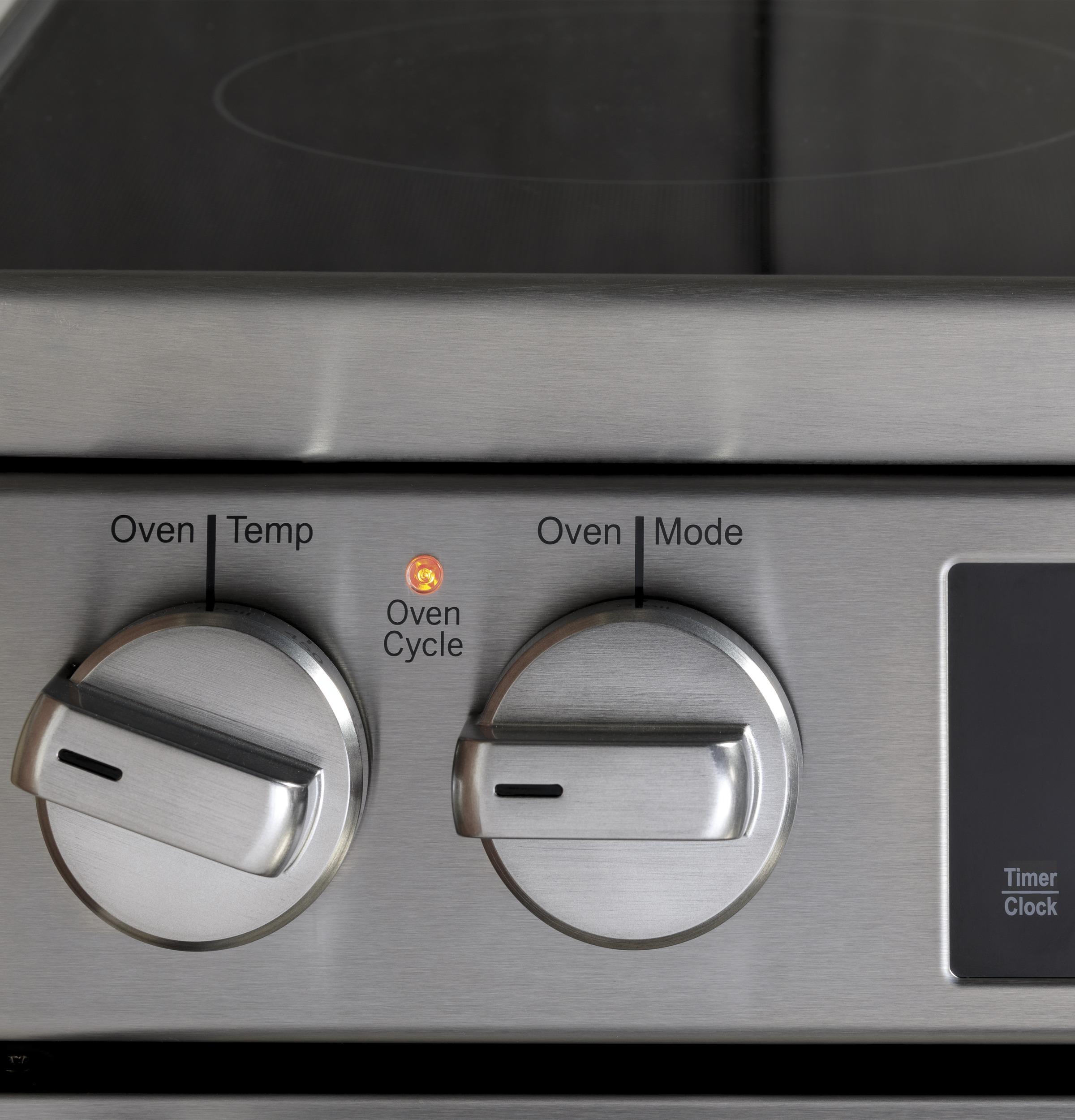

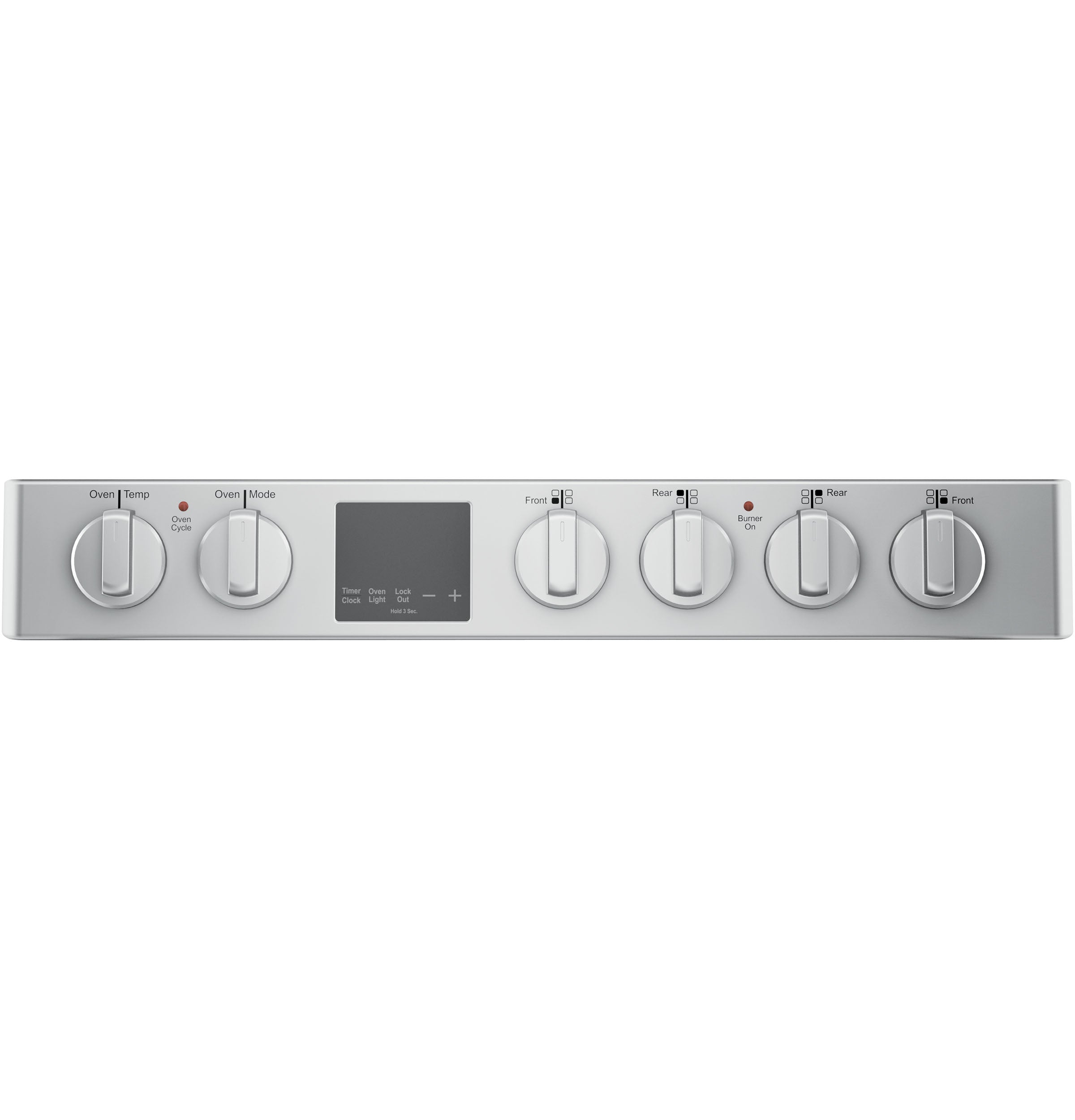

| Control Type | Rotary knobs |
| Oven Features | Clock/Timer |
| Oven Cooking Modes | Broil |
| Oven Cooking Modes | Bake |
| Oven Features | 4-Pass Broil Element |
| Oven Interior | 1 Incandescent Light |
| Air Fry Basket | Optional- JXAFTRAY1VSS |

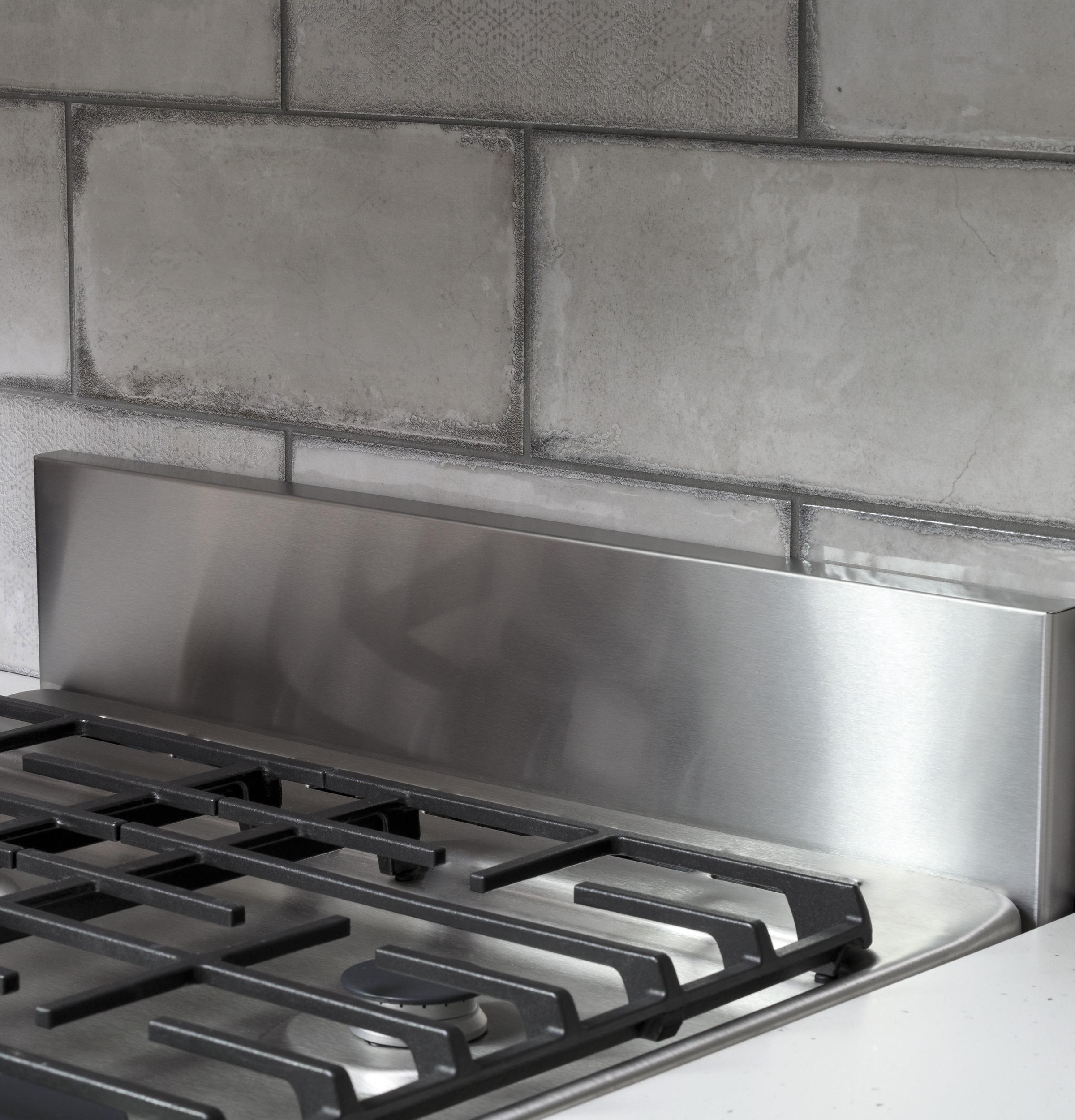

| Optional Backguard | Included |
| Textured Steel Side Panels | Yes |
| Oven Door Features | Oven Window |
| Handle Color | Stainless Steel |
| Control Knobs | Stainless |
| Door Swing | Pull Down |
| Color Appearance | Stainless Steel |
| Electrical Requirements | 208/240V ; 60Hz ; 40A |
| Amp Rating at 208V | 35.6 |
| Broiler Wattage | 3000W |
| Amp Rating at 240V | 40 |
| KW Rating at 240V | 10.7 |
| Bake Wattage | 2700W |
| KW Rating at 208V | 8.2 |
| Hertz | 60 |
| Parts Warranty | 1 year |
| Labor Warranty | 1 Year |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Oven Interior Dimensions (W x H x D) (in.) | 19 x 15-3/8 x 17-1/8 |
| Width | 24 in. |
| Height | 40.75 in. |
| Length | 28.13 in. |
| Weight | 123 lbs. |
| Number of Boxes | 1 |
| Shipping Width | 29 in. |
| Shipping Height | 45.75 in. |
| Shipping Length | 33.13 in. |
| Shipping Weight | 163 lbs. |
| Total of Shipping Weight | 163 lbs. |
| Source | Calculation |
| Cubic Feet Measurement | 15.92 ft³ |
| Dimensional Weight | 197.89 lbs. |
| Total of Cubes | 15.92 ft³ |
| Total of Dimensional Weight | 197.89 lbs. |
| Total Capacity (cubic feet) | 2.90 cu ft |

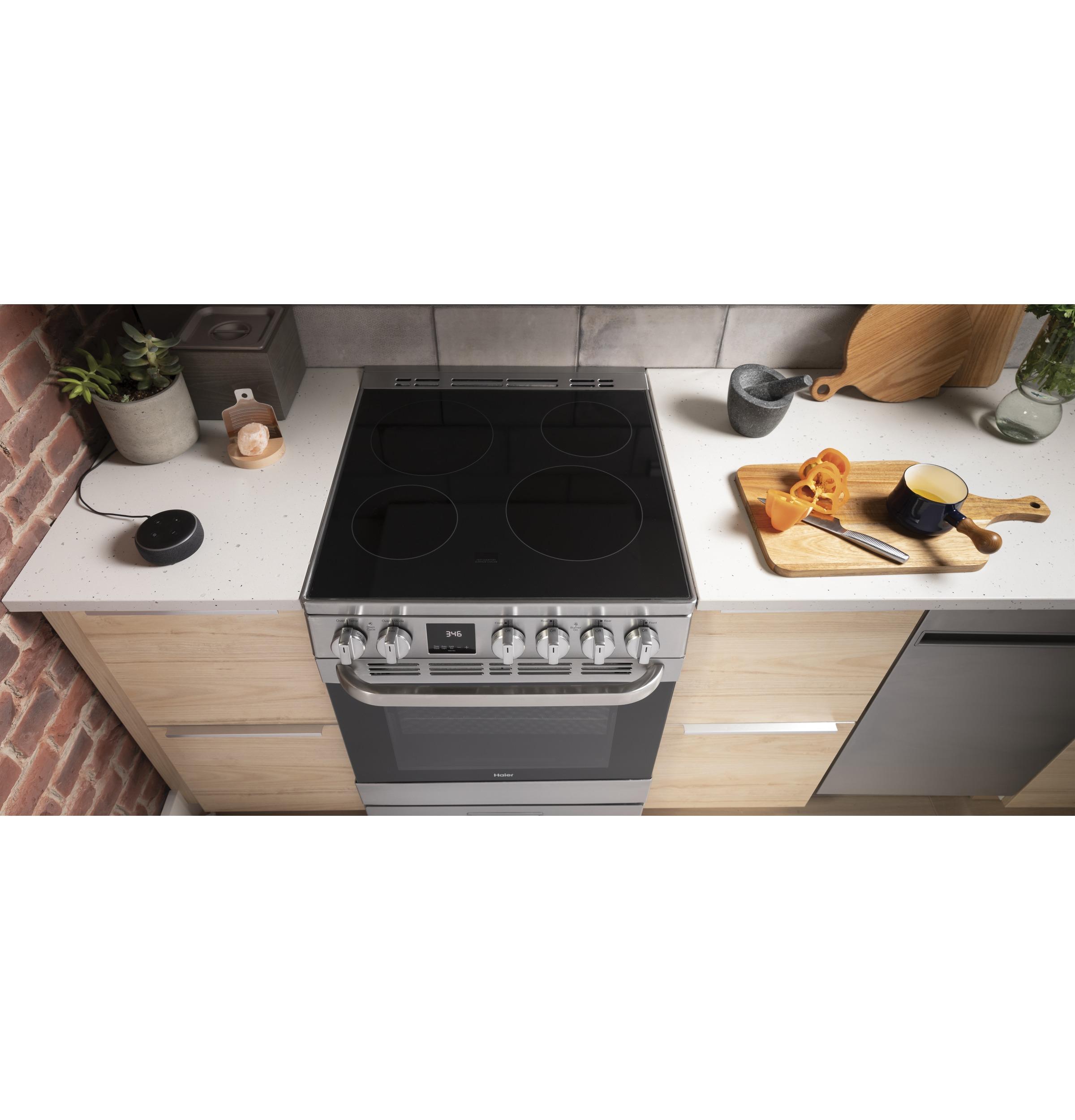

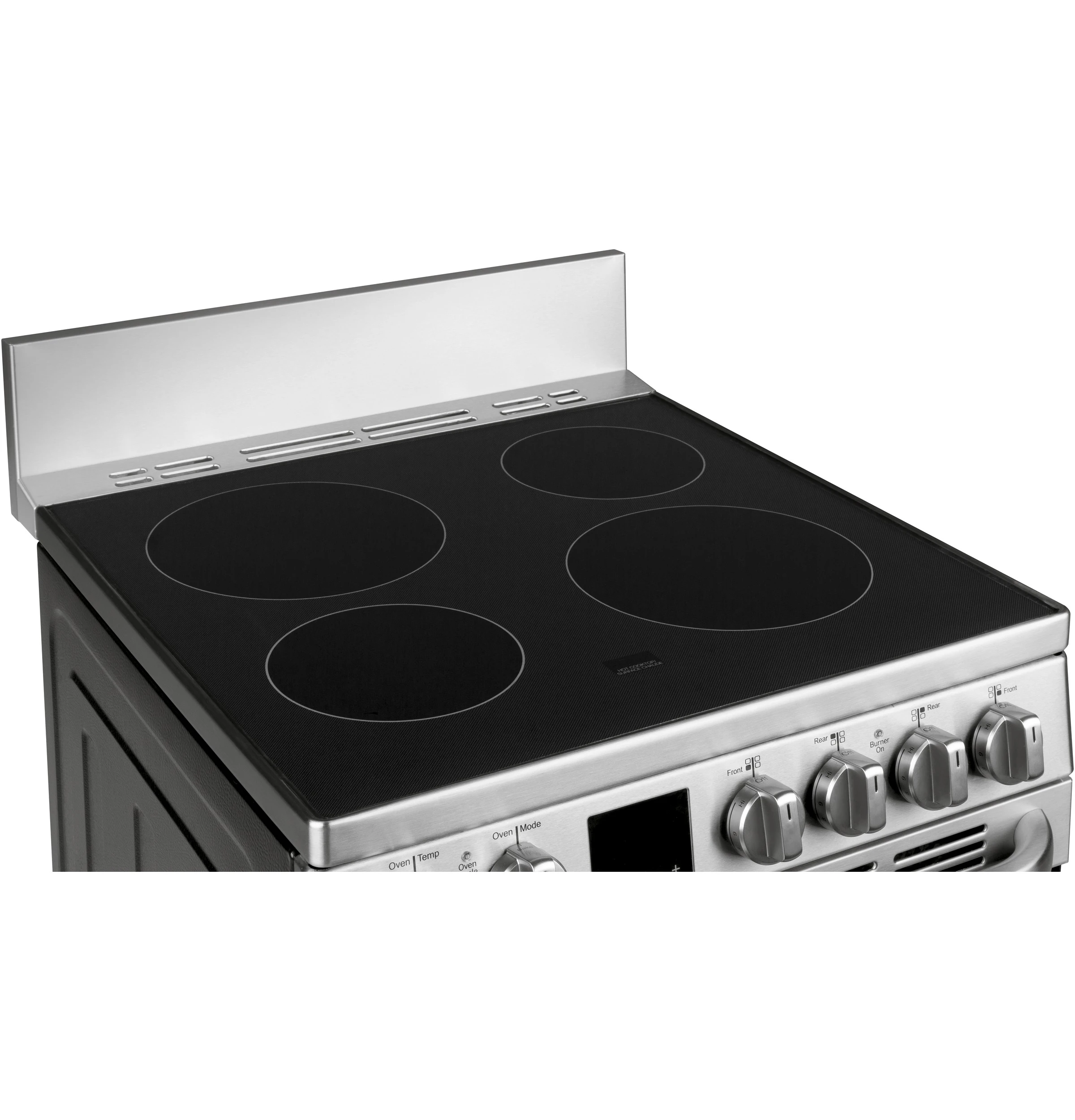

Breeze through the kitchen cleanup. Easy-to-clean, ceramic surface makes mealtimes simply effortless
Cooking cleanup is easy with a Quick Clean, steam cleaning option that makes removing baked-on oven messes a snap and a hidden bake element that sits beneath a smooth surface for hassle-free cleaning

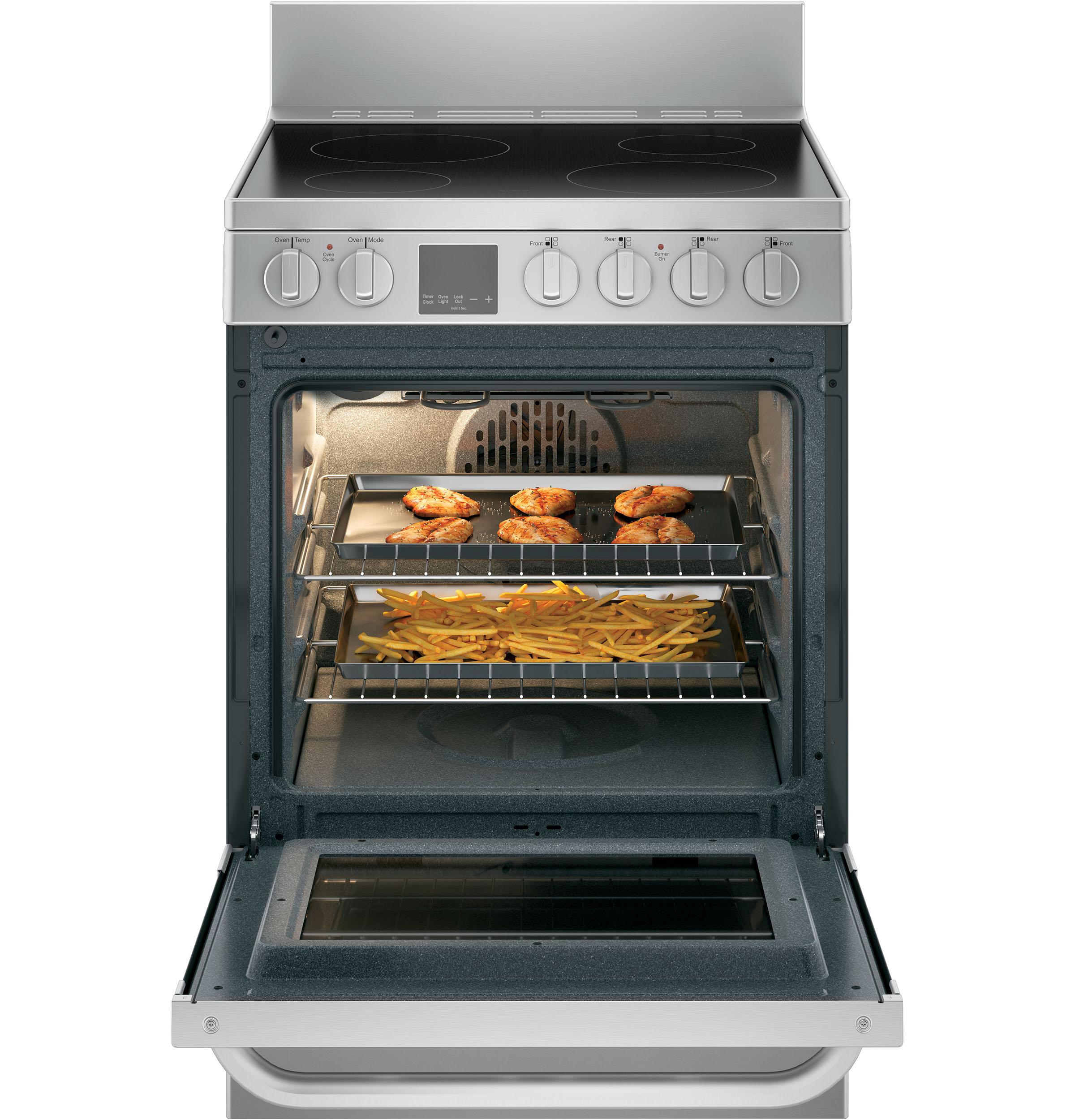

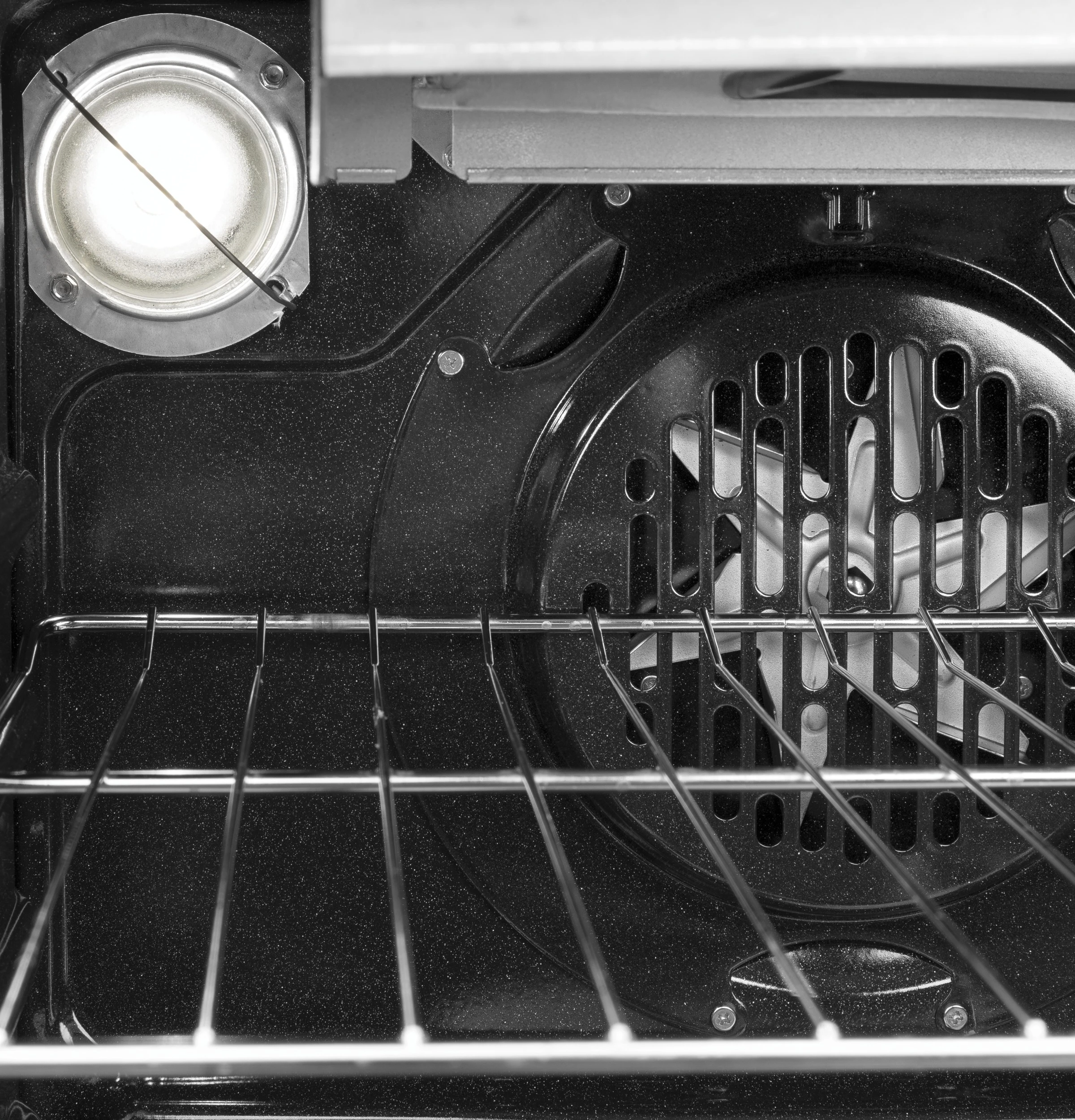

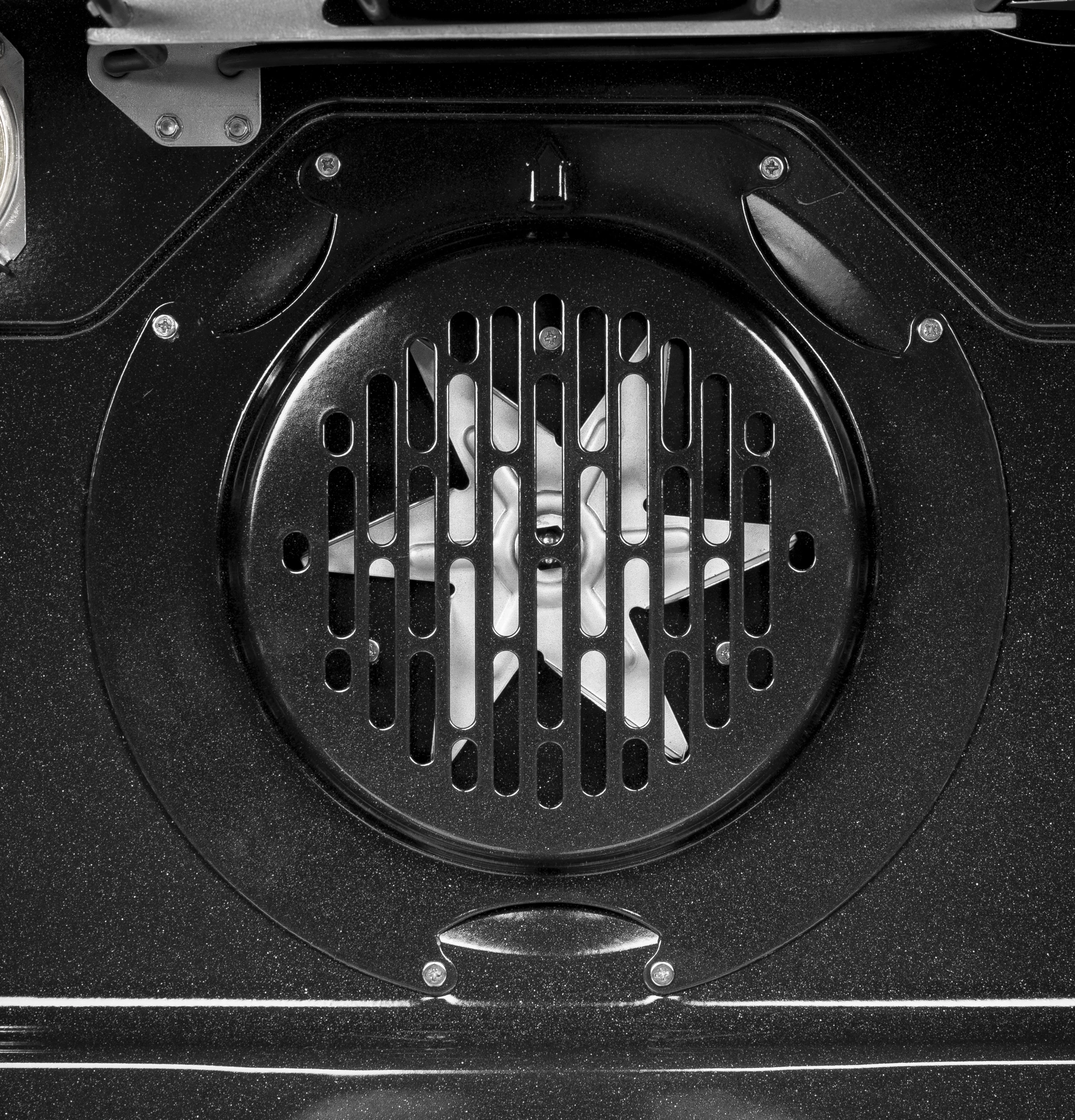

With this tech-savvy oven, you've got baking down. Rear fan and additional heating element distribute hot air throughout the oven for a faster, more even bake.

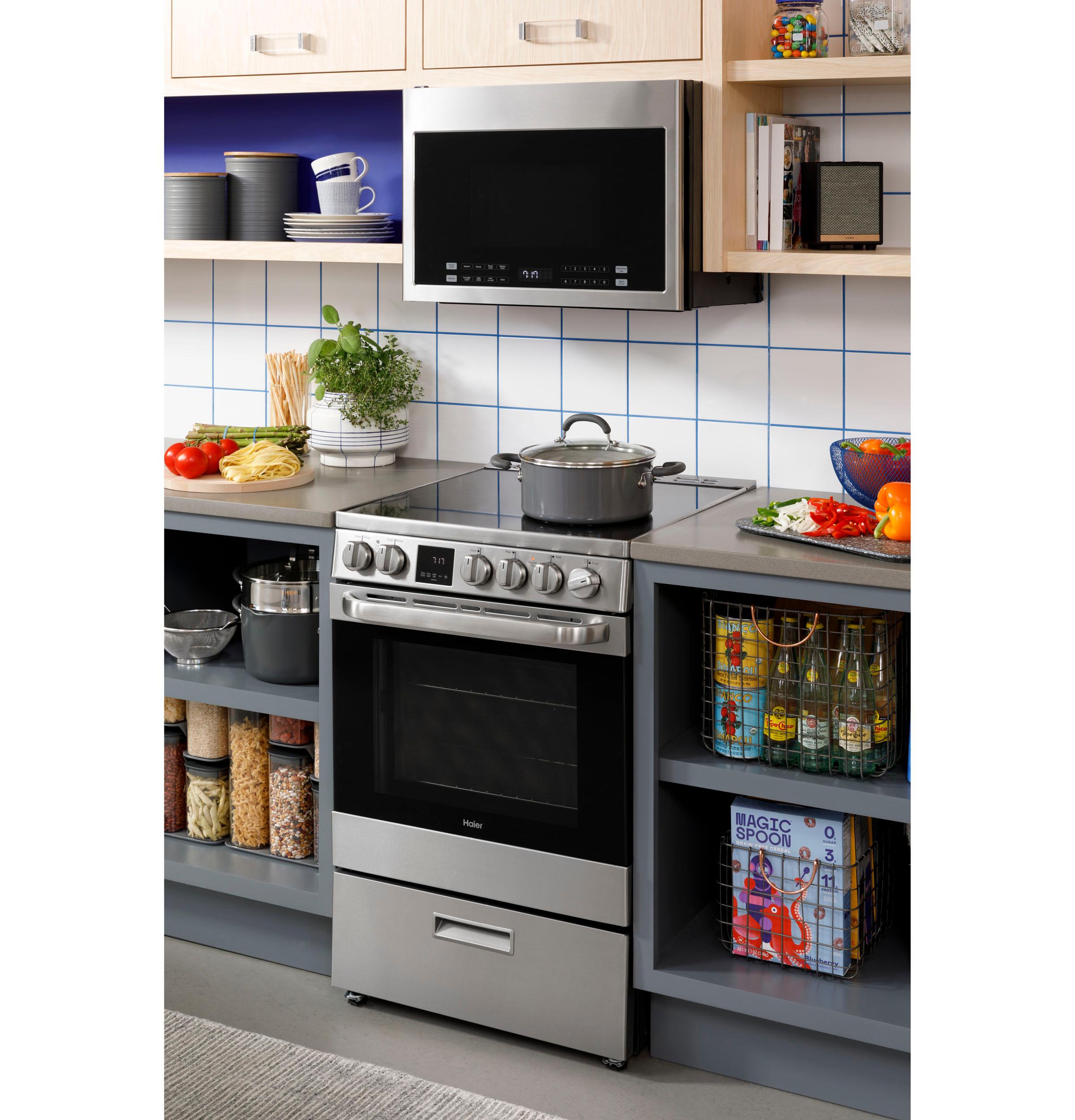

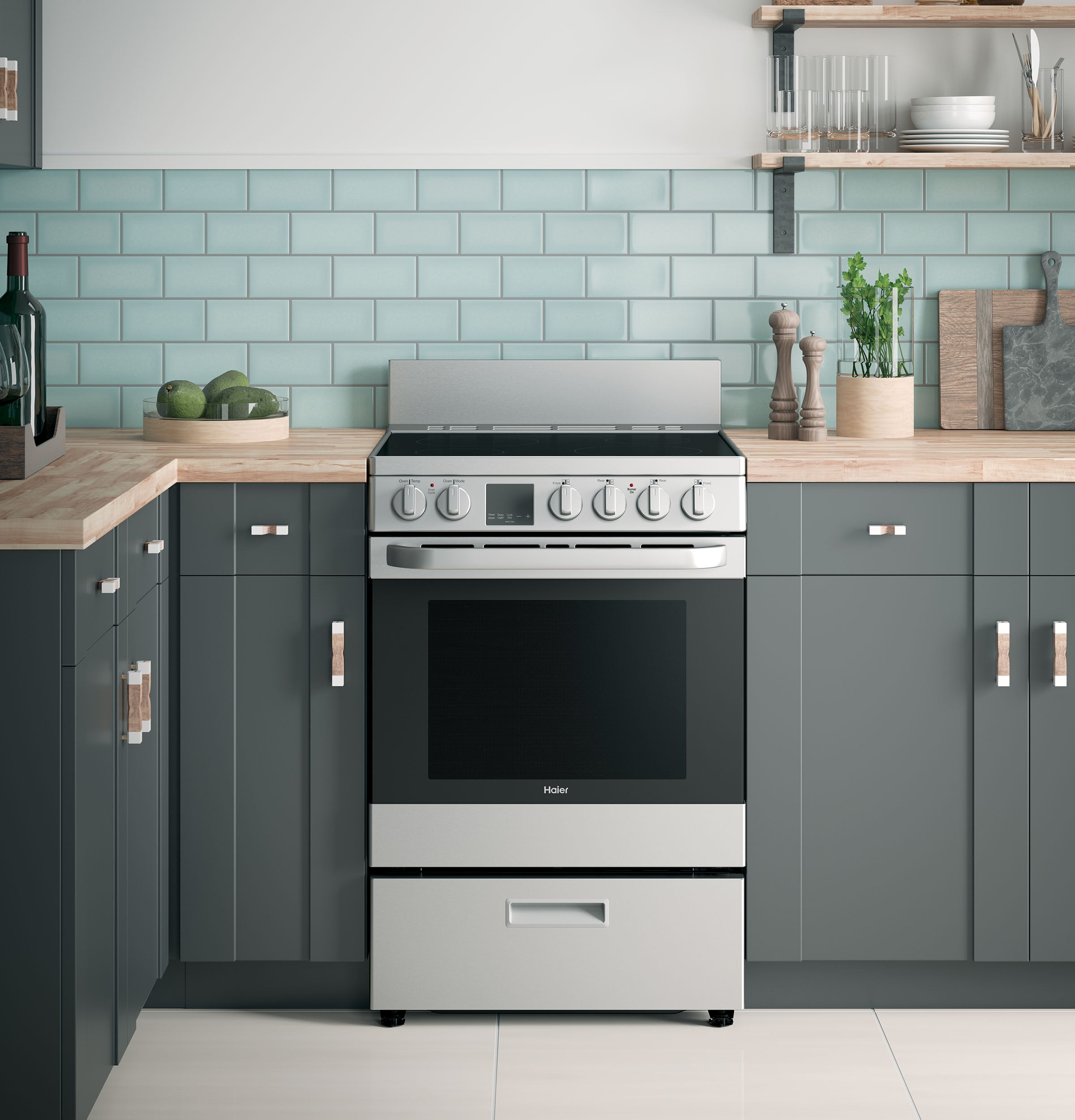

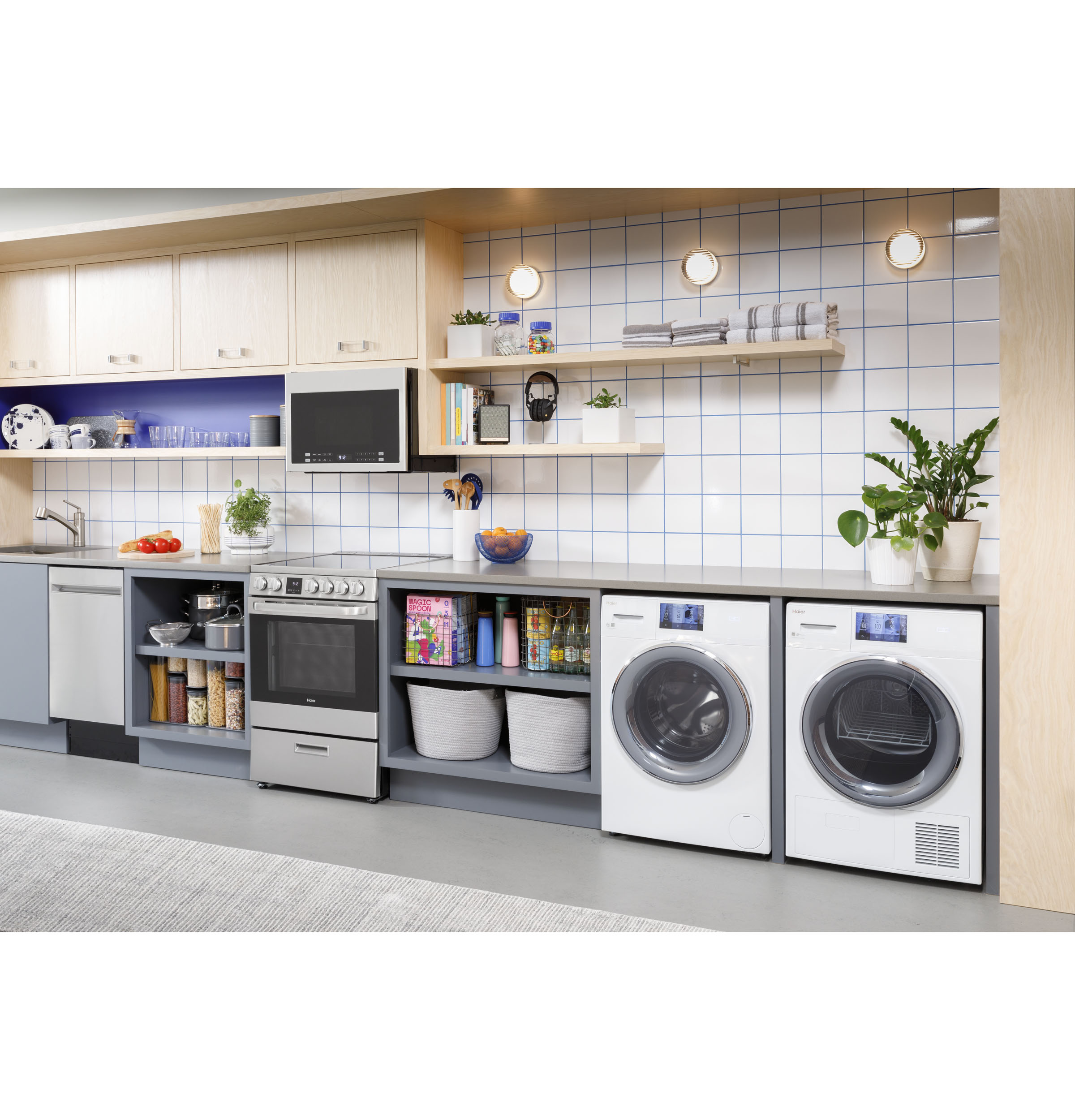

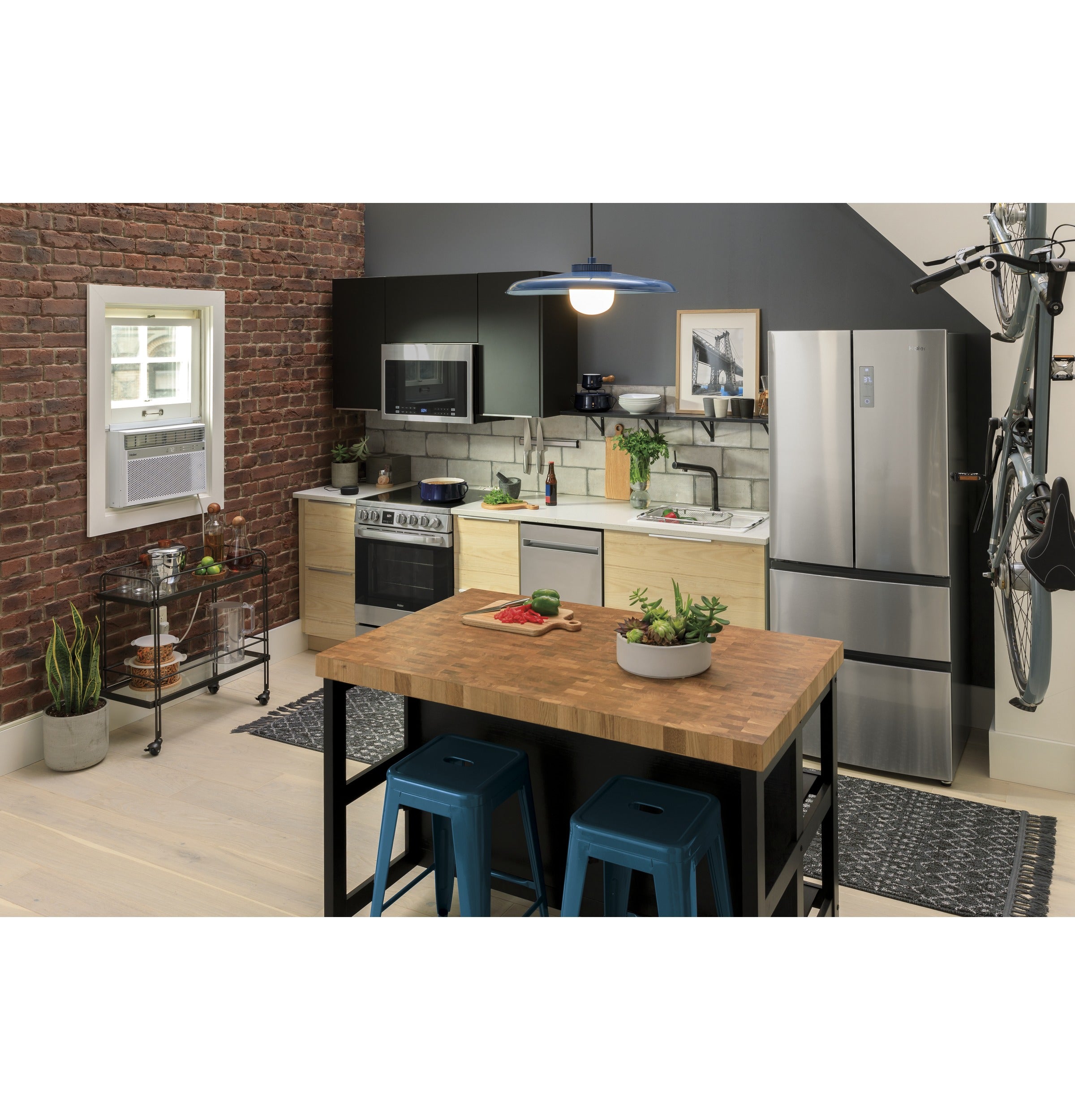

Match the look with your style. Versatile design gives you the option of a traditional look or a slide-in appearance.
This convenient, steam-cleaning option makes removing baked-on oven spills ultra-quick and super easy

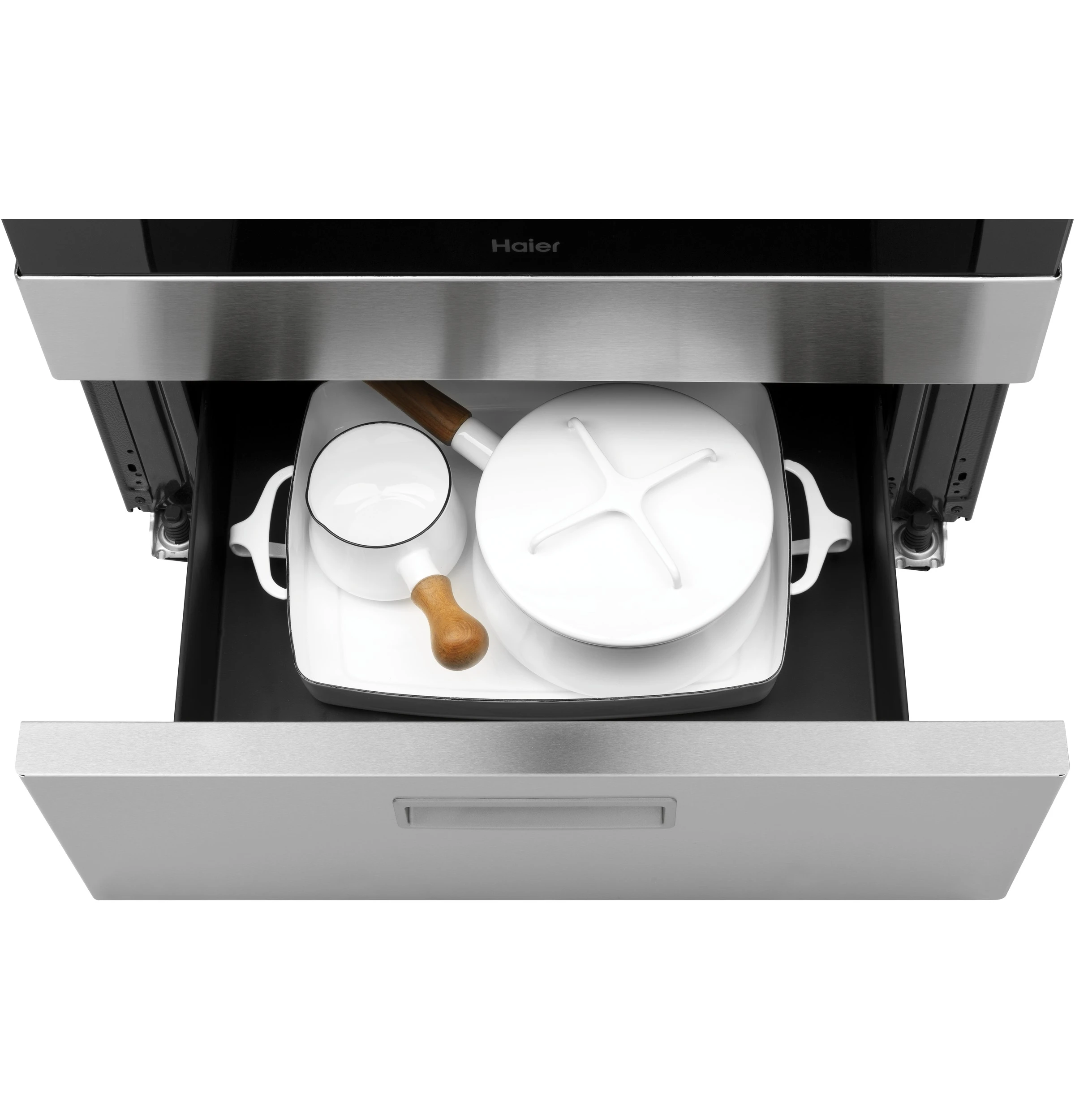

Stores cookware or kitchen accessories
See frozen pizzas, brownies and more with total clarity thanks to bright, focused interior lighting

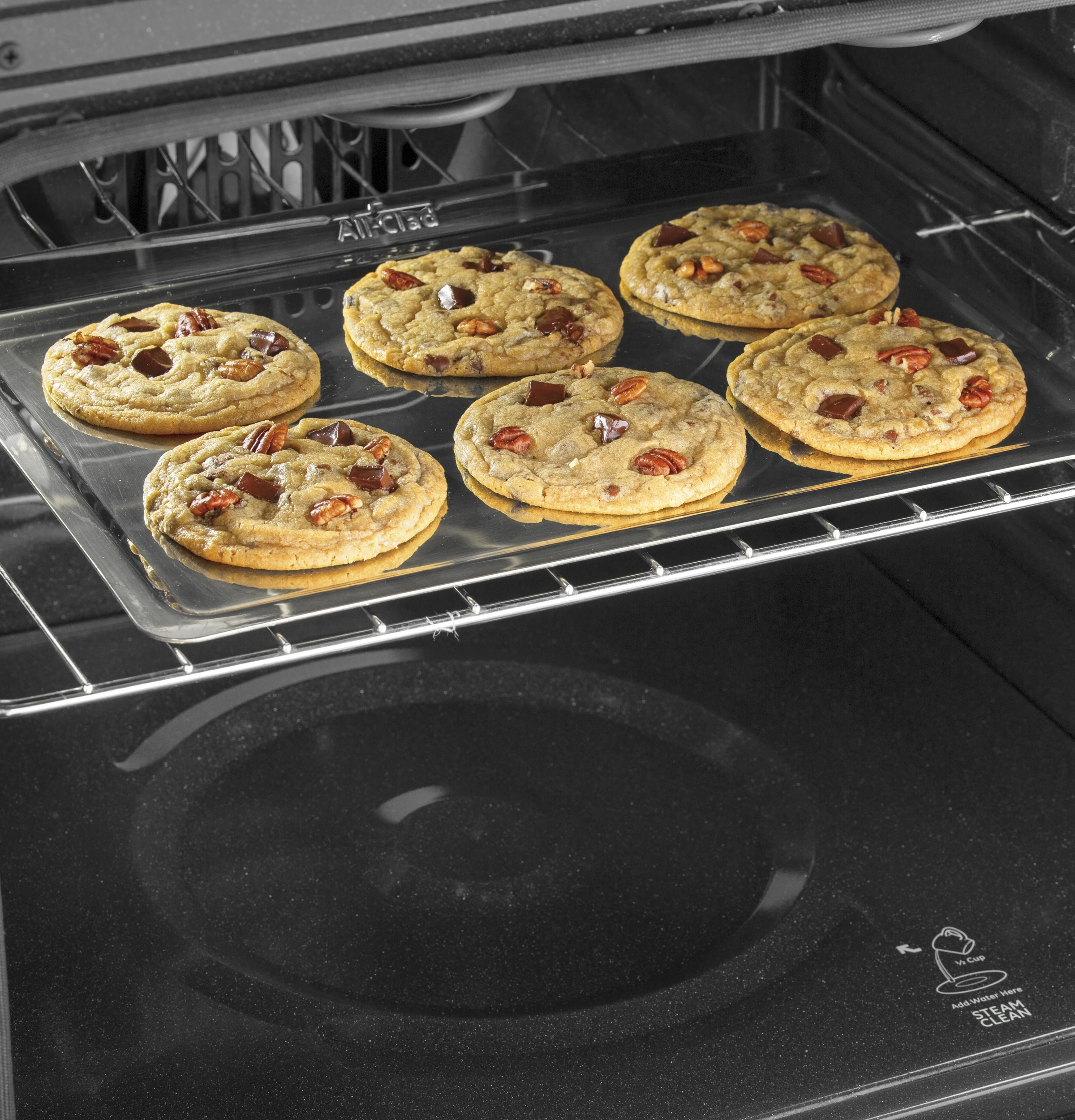

Busy lifestyles don't stop for cooking spills. Hidden bake element sits beneath a smooth surface, making cleaning fast and easy
