GE24DNHPDG Tankless Electric Water Heater Diamond Gray

Name: GE24DNHPDG Tankless Electric Water Heater Diamond Gray
Brand: GE
SKU: GE24DNHPDG
Price: 512.10 USD
Availability: InStock

Quick Specification More details

Width:
10.2"
Depth:
3.7"
Height:
15.2"
Type:
Tankless Water Heaters

About this product

Unlimited Hot Water on Demand
Whole Home Solution
Performance Up to 5.3 Gallons Per Minute (GPM)
Intuitive Design

GE24DNHPDG Tankless Electric Water Heater Diamond Gray

$512.10 ~~$602.97~~ Save $90.87 / 15% OFF

Quantity:

More on the way

Active Rebates

Extended Protection

1-Year Extended Protection
$43.49
2-Year Extended Protection
$75.99
3-Year Extended Protection
$115.99
5-Year Extended Protection
$163.99
Manufacturer Warranty Only

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
10.2"
Depth:
3.7"
Height:
15.2"
Type:
Tankless Water Heaters

About this product

Unlimited Hot Water on Demand
Whole Home Solution
Performance Up to 5.3 Gallons Per Minute (GPM)
Intuitive Design

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Videos
Reviews

$512.10 ~~$602.97~~ Save $90.87 / 15% OFF

Product Details for GE GE24DNHPDG

Technical Details

Weights & dimensions

Overall Width	10.2 in
Overall Height	15.2 in
Product Height (to top of unit)	15.2 in
Approximate Shipping Weight	15.2 lb
Net Weight	14.09 lb
Overall Depth	3.70 in
Product Diameter	10.200 in

Features

Uniform Energy Factor (UEF)	>0.91

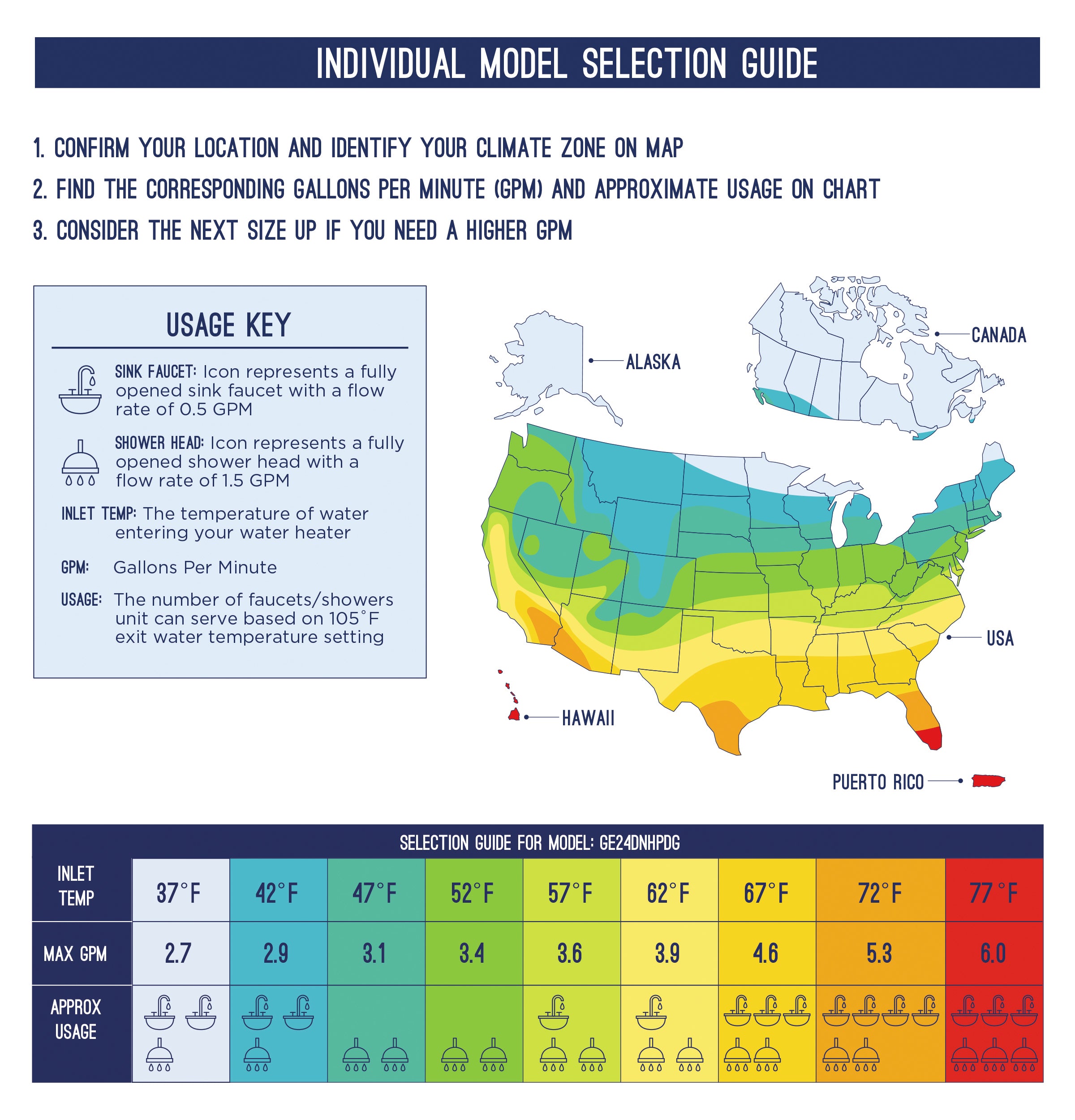

Flowrate (GPM) @ 47 F inlet	3.09
Flowrate (GPM) @ 37 F inlet	2.7
Flowrate (GPM) @ 77 F inlet	6
Flowrate (GPM) @ 62 F inlet	3.9
Min. operating pressure (psi)	25
Controls	Digital Electronic Control
Max. operating pressure (psi)	150
Max: operating pressure (psi)	150
Fuel Type	Electric
Flowrate (GPM) @ 57 F inlet	3.59
Configuration	Space Saver
Installation Location	Indoor
Flowrate (GPM) @ 72 F inlet	5.3
Temperature adjustment amount (degree)	1
Activation Flowrate (GPM)	≤ 0.5
Temperature Setting Factory Default	105° F
Product Type	Electric Tankless
Flowrate (GPM) @ 52 F inlet	3.4
Integrated Safety Devices	Flow sensor. High limit thermostat (on each heating element). Inlet Temperature Sensor. Material Rated for Ignition Containment. Outlet Temperature Sensor.
Maximum Outlet Temperature (F)	140
Water Connection Location	Bottom
Point of Use	Whole Home
Cold/hot water connections (inches)	3/4" Cold Water Inlet; 3/4" Hot Water Outlet
Flowrate (GPM) @ 67 F inlet	4.59
Temperature Setting	86-140° F Range
Flowrate (GPM) @ 42 F inlet	2.9
Controls	Adjustable Temperature
Controls	Adjust degree Fahrenheit/Celsius

Appearance

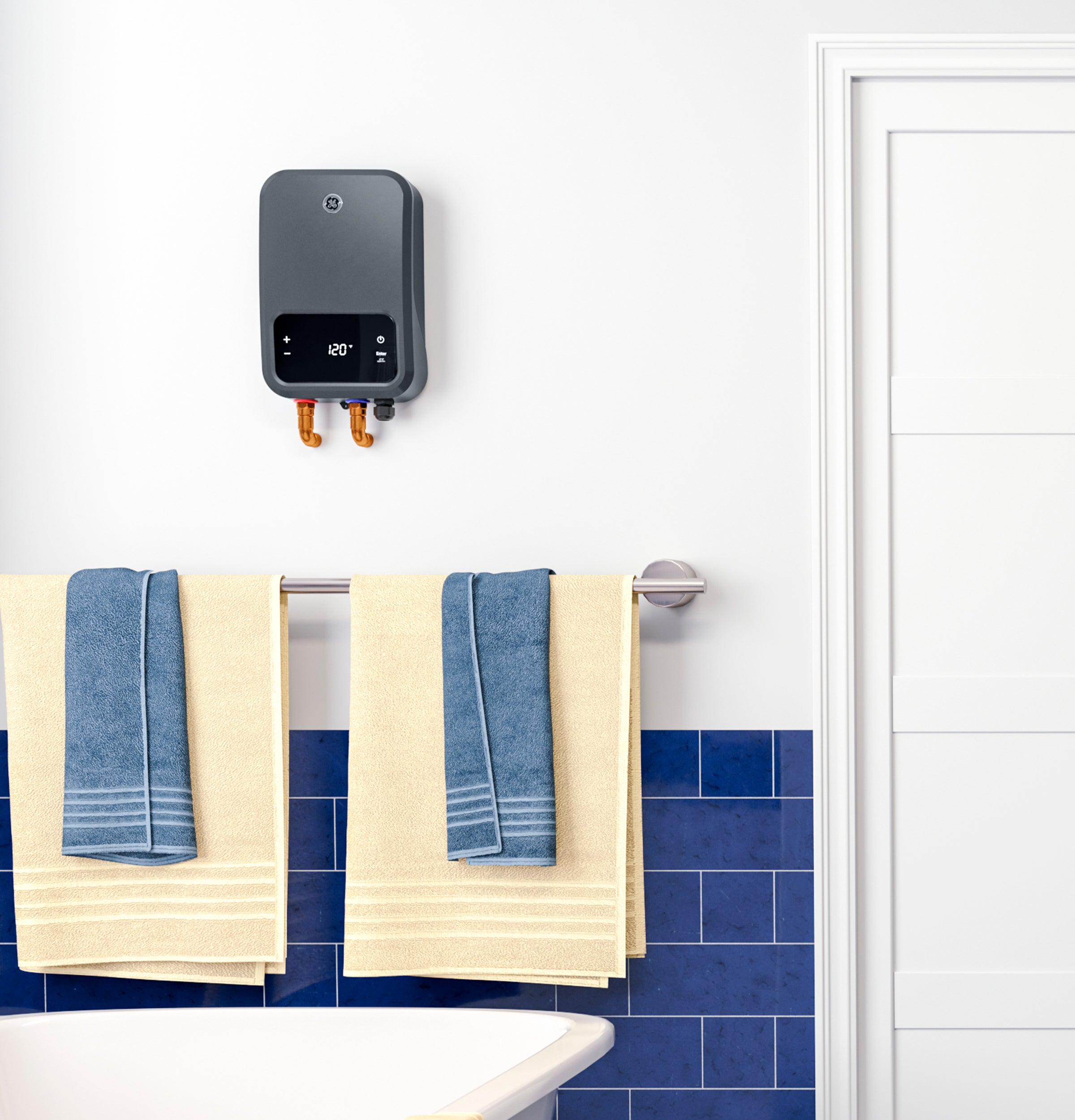

Installation	Wall Mounted
Color Appearance	Diamond Gray

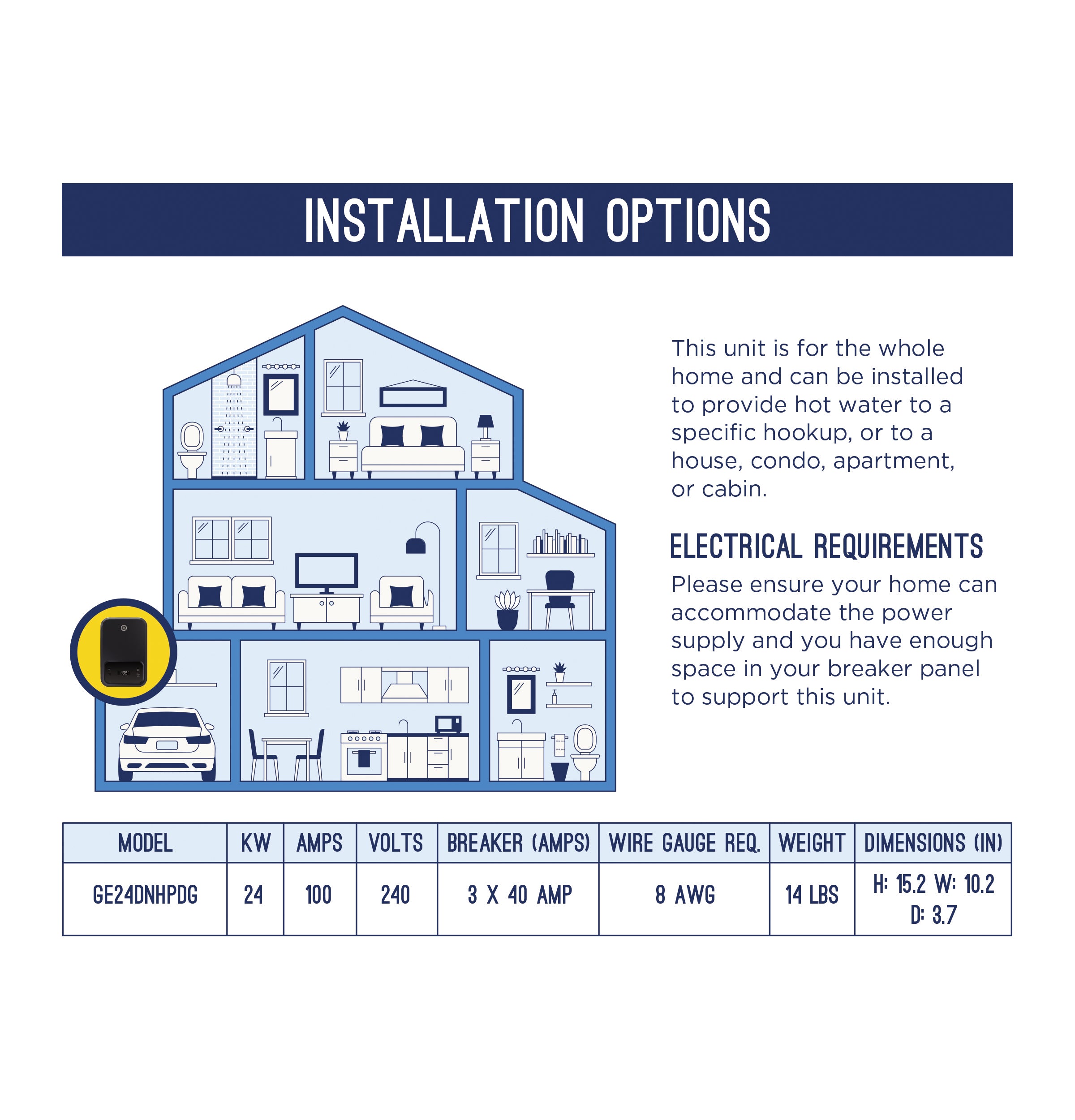

Power / ratings

Electrical Requirements	240V ; 120A
Power Rating-kW	24
Amps	100.0
Hertz	60
Voltage (MAX)	240 V
Electrical Circuit Required	40 Amp (x3)
First Hour Delivery GPH	162

Dimensions & weight

Width	10.2 in.
Height	15.2 in.
Length	3.7 in.
Weight	14.09 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	15.2 in.
Shipping Height	20.2 in.
Shipping Length	8.7 in.
Shipping Weight	54.09 lbs.
Total of Shipping Weight	54.09 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	0.33 ft³
Dimensional Weight	3.46 lbs.
Total of Cubes	0.33 ft³
Total of Dimensional Weight	3.46 lbs.

Warranty

Warranty Notes	See written warranty for full details
Parts Warranty	Return to Vendor
Labor Warranty	No Warranty
Parts Warranty	5-Year Replacement

Capacity

5.3 Gallons Per Minute (GPM)

Description

Unlimited Hot Water on Demand
Tankless electric water heater provides instant, continuous water flow

Whole Home Solution
Easily provides enough hot water for a house or apartment

Performance Up to 5.3 Gallons Per Minute (GPM)
Enough to run 2 showers and 4 faucets simultaneously in warm climates (*Results are based on 72 F inlet water temperature and 105 F outlet water temperature)

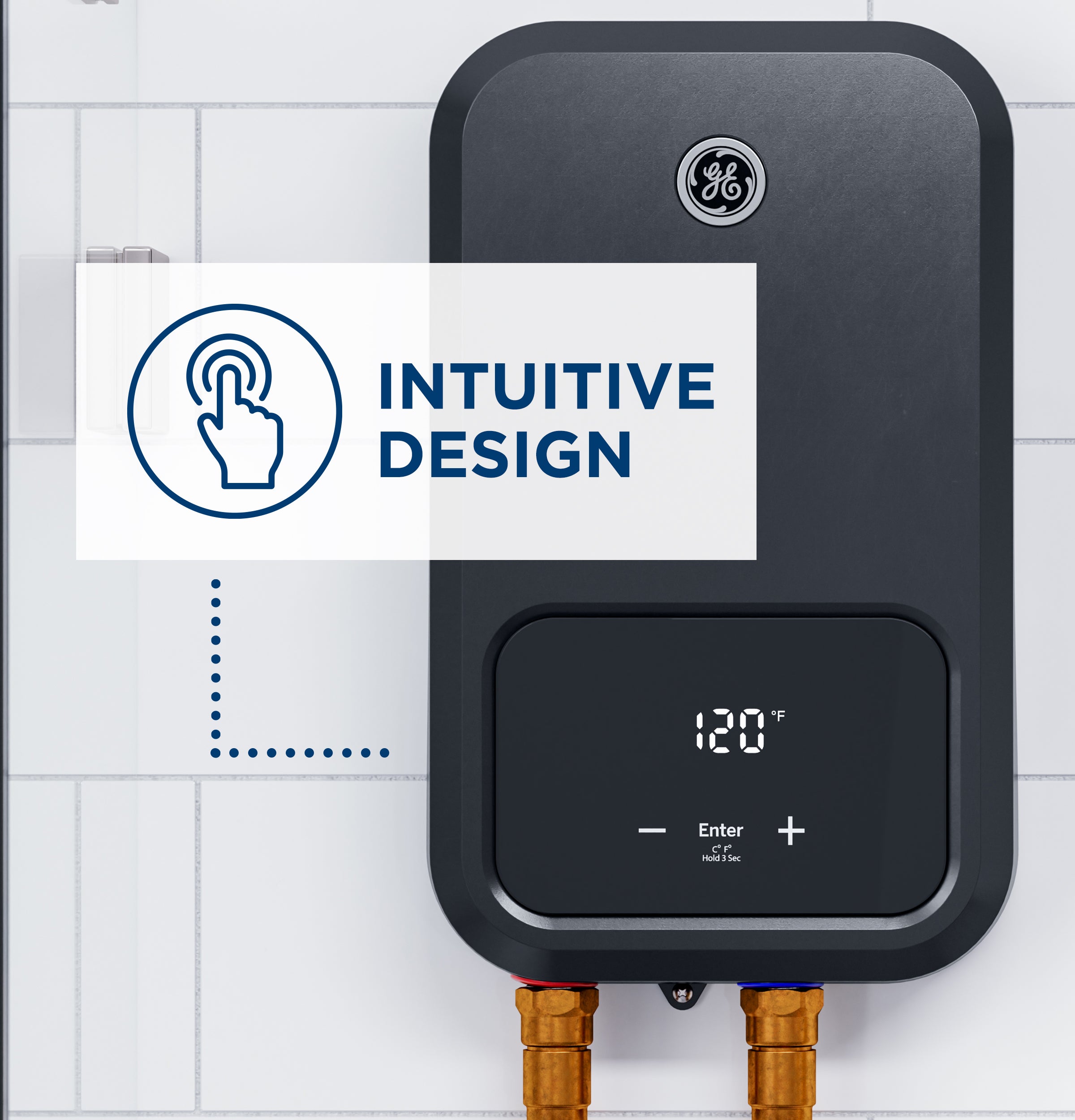

Intuitive Design
Adjust temperature and settings with easy-use touch screen

Energy Efficient
Conserves energy and water by only using energy when hot water is in use, saving you money

Space Saver
Compact design takes up significantly less space than a tank style water heater

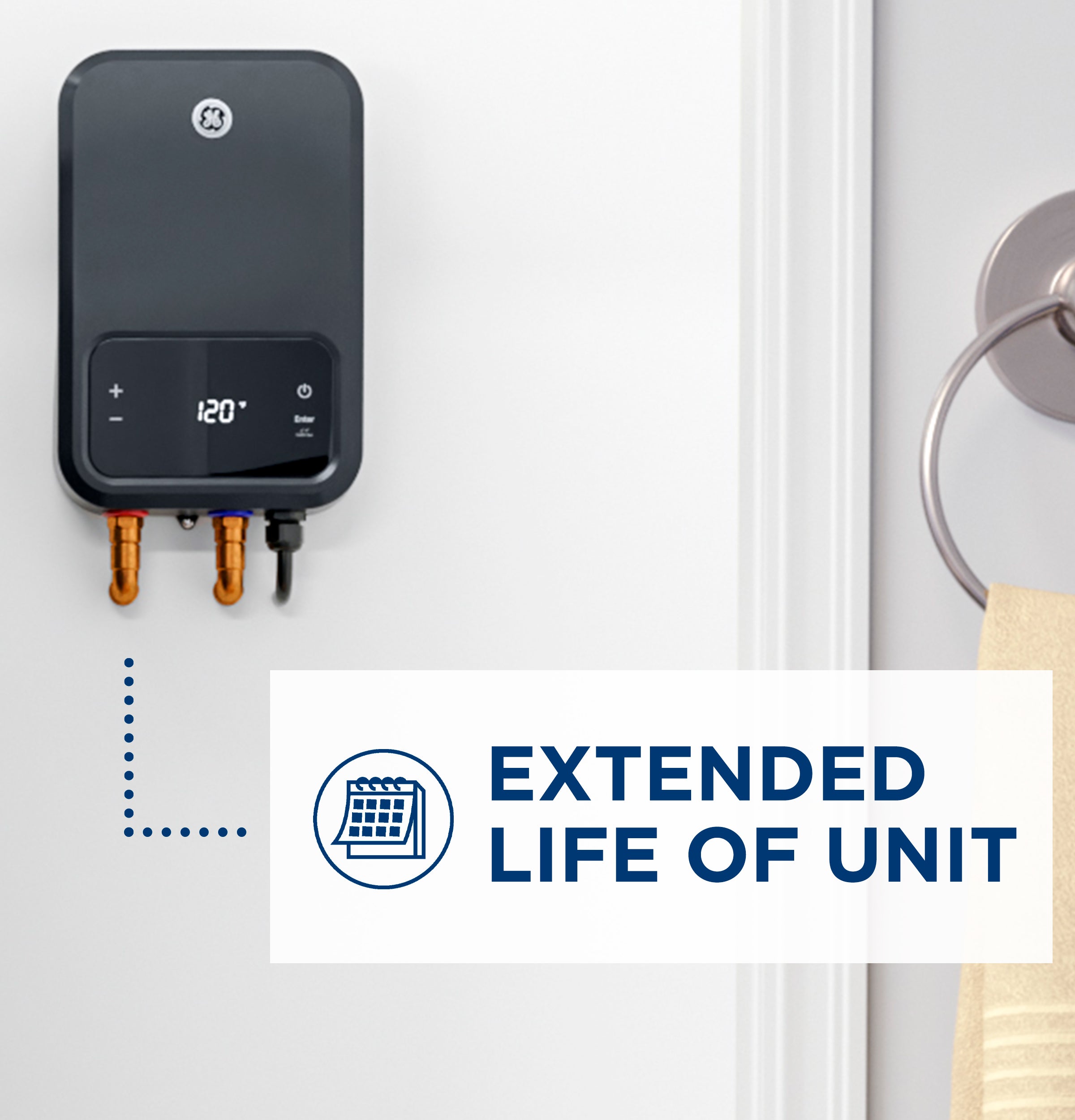

Scale Reduction Technology
Extends the life of the unit by shielding heating element from water and scale buildup

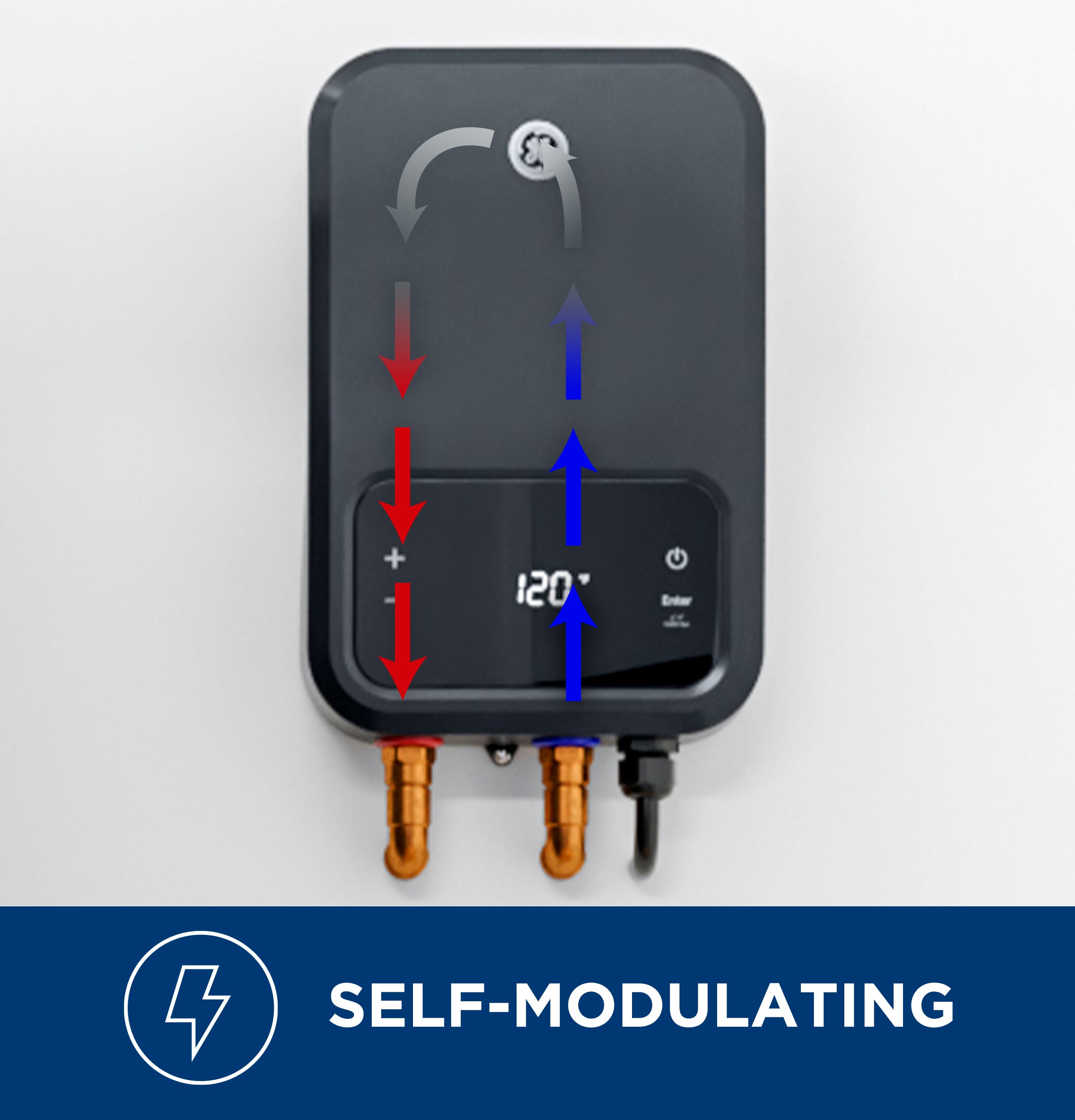

Self Modulating Technology
Utilizes inlet and outlet temperature sensors to optimize energy usage and keep water temperature consistent

Easy Installation
Uses standard 1/2-in NPT water connections and does not require venting for simple, wall-mounted water heater installation

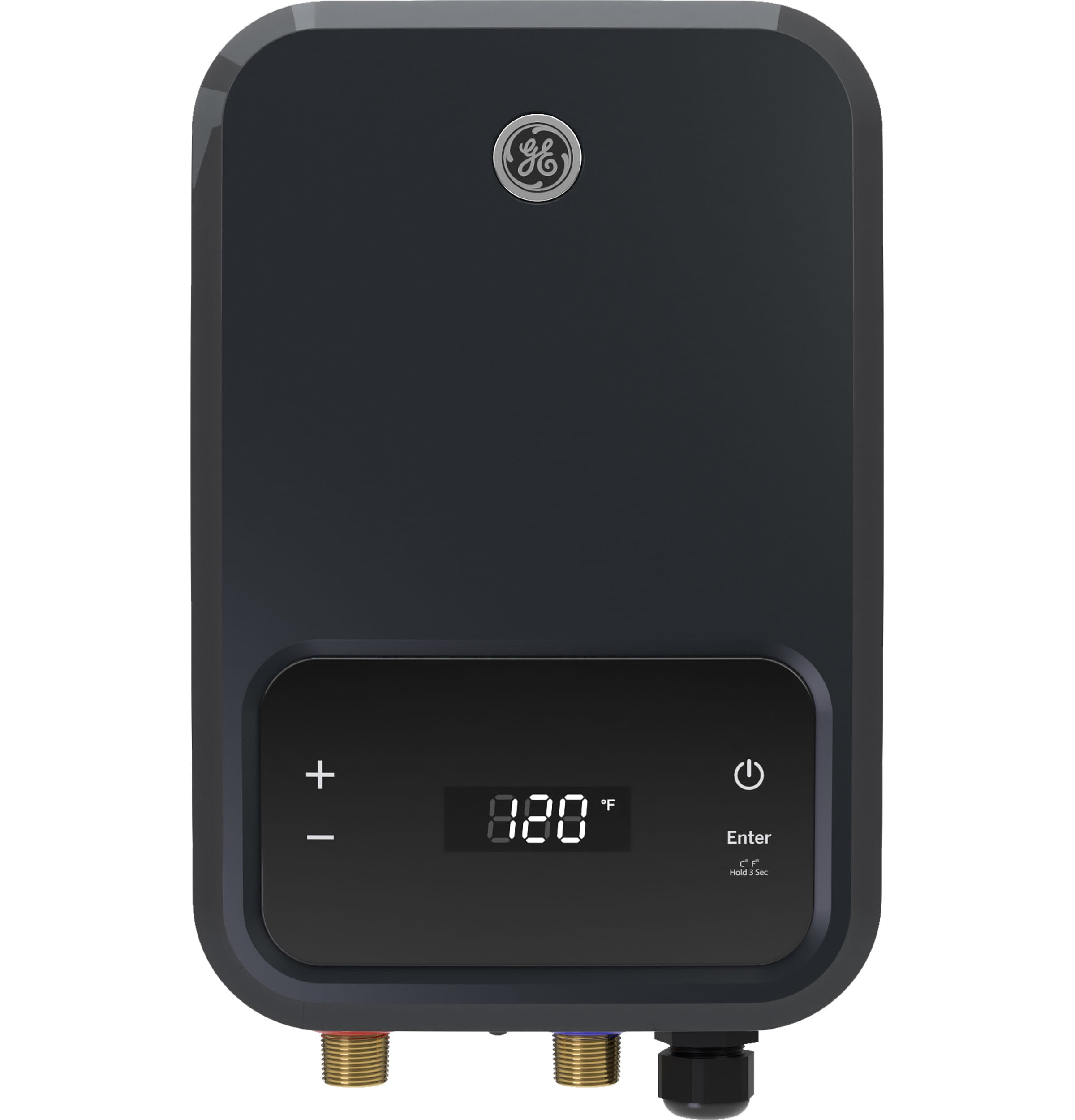

Digital Temperature Control
Easily set temperatures in 1(degree) increments ranging from 86(degree)F to 140(degree)F

Fahrenheit or Celsius
Switch temperature units with a simple tap on an easy-read digital display

Warranty Length
5-year Limited Replacement Warranty

Product Features

Easy Installation
Uses standard 1/2-in NPT water connections and does not require venting for simple, wall-mounted water heater installation
Digital Temperature Control
Easily set temperatures in 1° increments ranging from 86°F to 140°F
Fahrenheit or Celsius
Switch temperature units with a simple tap on an easy-read digital display
Warranty Length
5-year Limited Replacement Warranty

Manuals & Guides

Key Features

Unlimited Hot Water on Demand

Tankless electric water heater provides instant, continuous water flow

Whole Home Solution

Easily provides enough hot water for a house or apartment

Performance Up to 5.3 Gallons Per Minute (GPM)

Enough to run 2 showers and 4 faucets simultaneously in warm climates (*Results are based on 72˚F inlet water temperature and 105˚F outlet water temperature)
