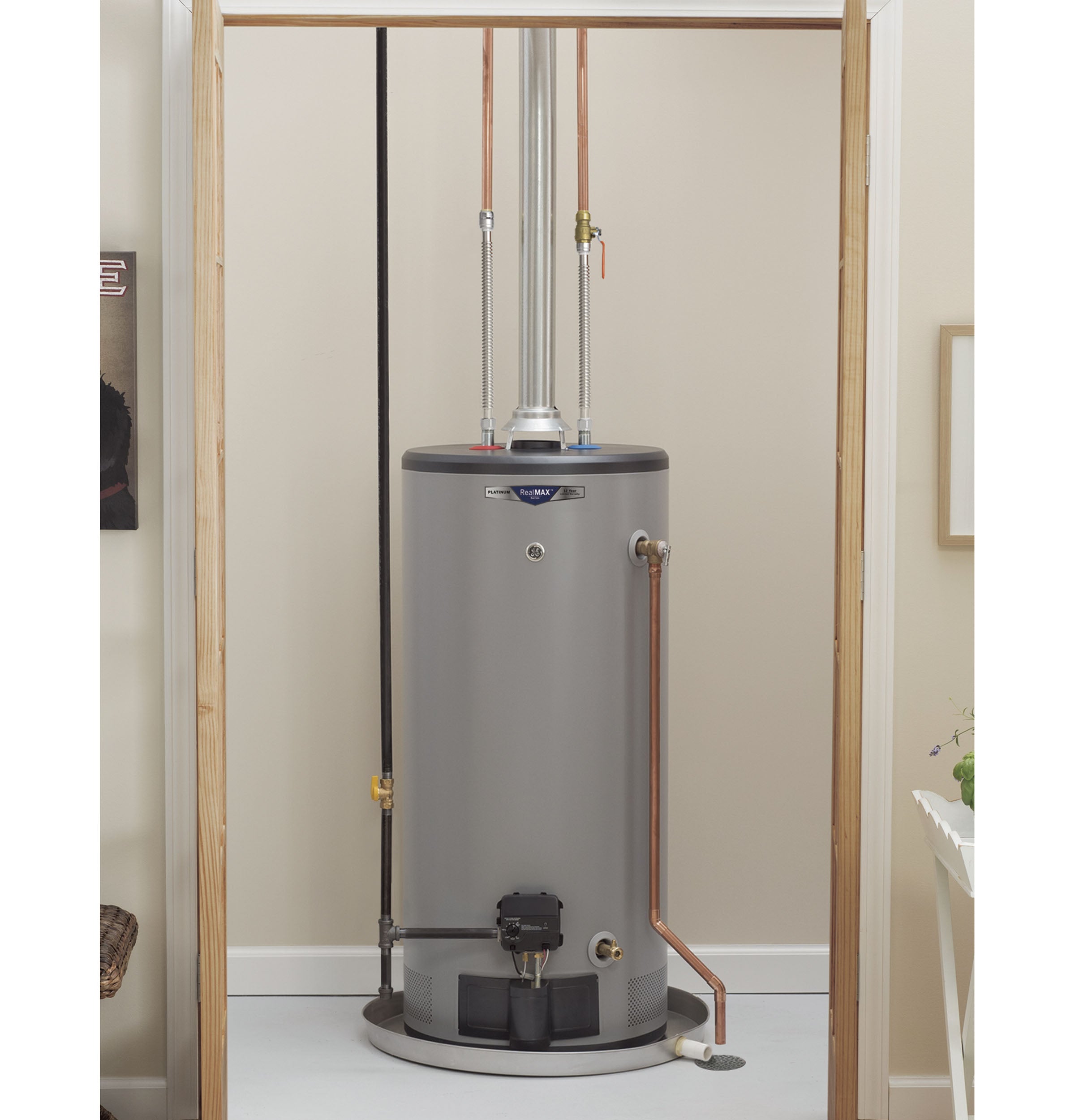

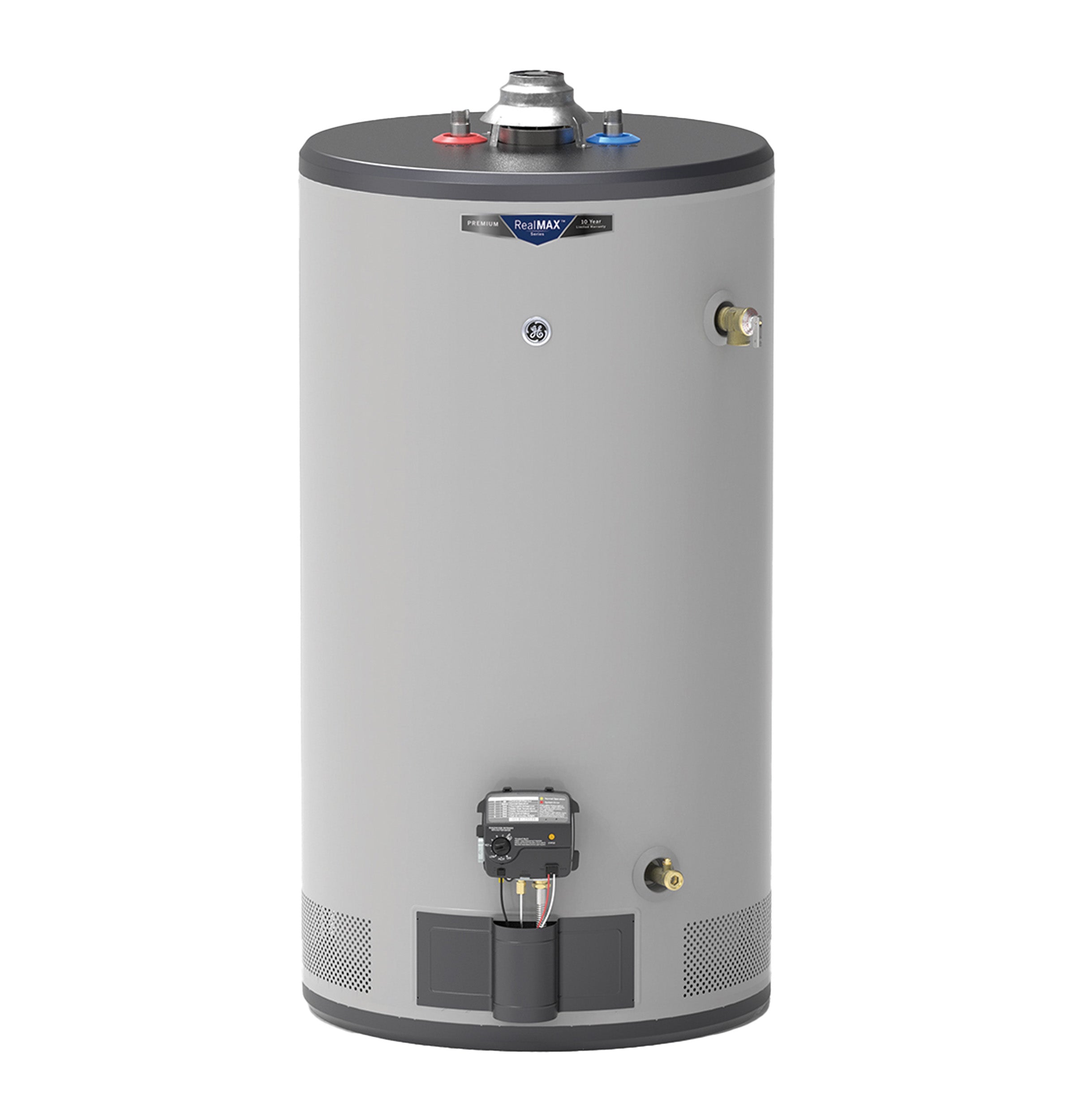

GE GG50S10BXR RealMAX Premium 50-Gallon Short Natural Gas Atmospheric Water Heater Gray
Sale price
$858.41
Regular price
$1,311.97
Save
$453.56
/ 34% OFF
More on the way
Active Rebates
Extended Protection
?
Extend your appliance's warranty beyond the manufacturer's terms with our Extended Protection Plan.
Enjoy added peace of mind long after the original warranty expires.
This Protection Plan includes:
- Full parts and labor coverage during the whole period of the extension plan.
- Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty
- Food loss protection
- 24/7 toll-free number for support
-
$43.49
-
$75.99
-
$115.99
-
$163.99
-
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Sale price
$858.41
Regular price
$1,311.97
Save
$453.56
/ 34% OFF
Product Details for GE GG50S10BXR
Technical Details
Weights & dimensions
| Overall Width | 25 in |
| Overall Height | 49.625 in |
| Product Height (to top of unit) | 46.25 in |
| Overall Depth | 25 in |
| Product Height (to top of water inlet/outlet connections) | 47.75 in |
| Height to Gas Control | 11.25 in |
| Approximate Shipping Weight | 172 lb |
| Net Weight | 163 lb |
| Product Diameter | 25 in |
| Vent Size | 3" Type B Vent |
| Connection Sizes - Water Inlet (MNPT) | 3/4" |
| Connection Sizes - Hot Water Outlet (MNPT) | 3/4" |
Features
| FVIR Safety System | Prevents accidental ignition of flammable vapors |
| Vent | Atmospheric |
| Controls | LED Indicator |
| UEF | .63 |
| Temp & Pressure Relief Valve | Yes |
| Height Description | Short |
| Fuel Type | Natural Gas |
| Pilot Light Window / Button | Yes |
| Configuration | Short |
| Drain Valve Type | Plastic |
| Product Type | Atmospheric Gas |
| Family Size | 3-5 or more People |
| Bin Testing | High |
| Water Connection Location | Top |
| Overheat Protection | Dry Burning Protection |
| Gas Valve | Self Powered |
| Anode Rod | Magnesium |
| Temperature Setting | 45-160° F Range |
| Altitude Rating | 10,100 ft |
Warranty
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 10-year tank and parts |
| Labor Warranty | Limited 1-year entire appliance |
Power / ratings
| Burner BTU Size (k) | 40 |
| Hertz | 60 |
| First Hour Delivery GPH | 77 gal/h |
Capacity

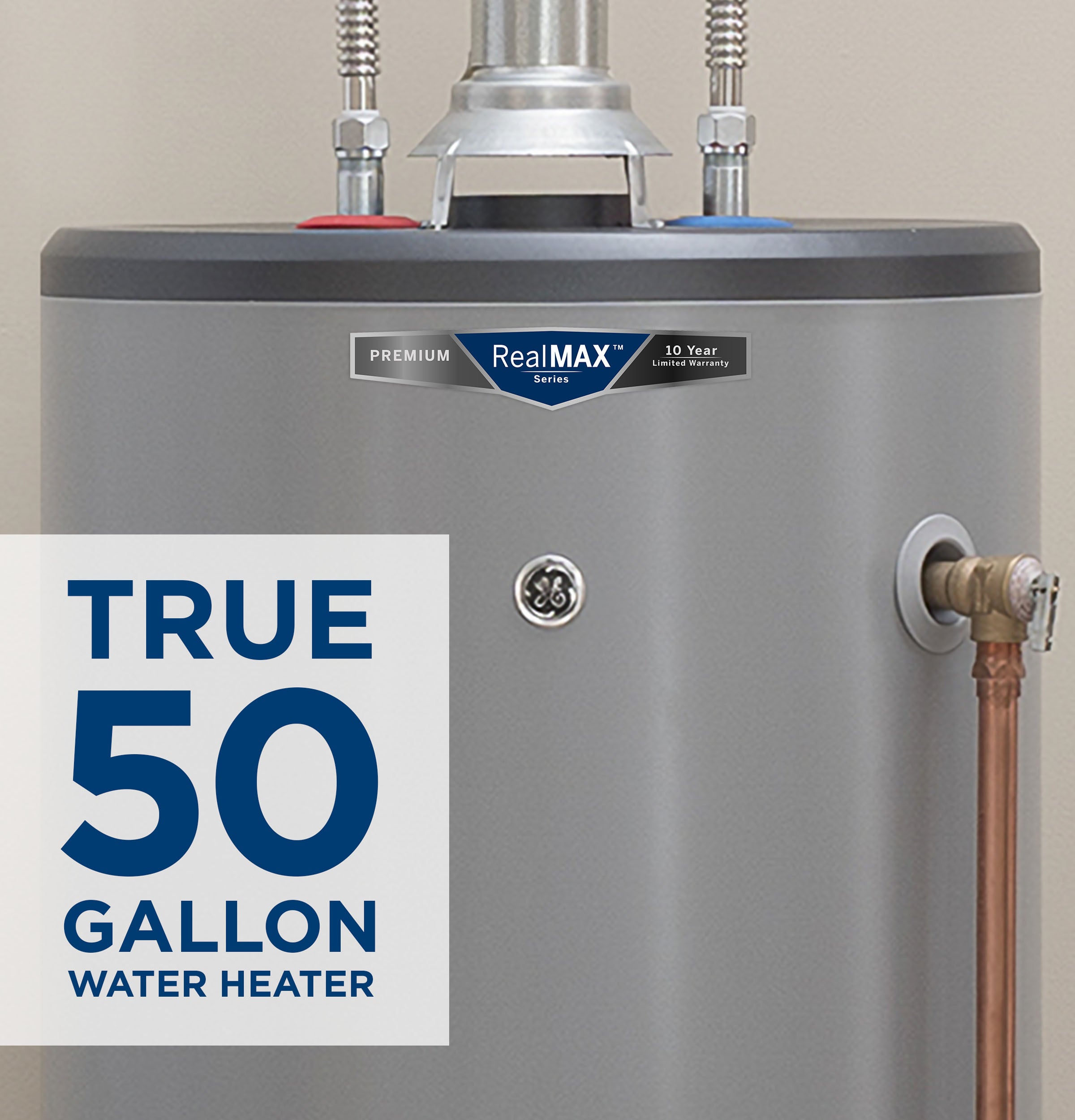

| Unit Capacity | 50 Gallons |
Appearance
| Color Appearance | Gray |
Warranty
| Parts | 10 Year |
| Labor | 1 Year |
Other
| Product Diameter | 25 in |
| Vent Size | 3" Type B Vent |
| Connection Sizes - Water Inlet (MNPT) | 3/4" |
Dimensions & weight
| Width | 25 in. |
| Height | 49.63 in. |
| Length | 25 in. |
| Weight | 163 lbs. |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Width | 30 in. |
| Shipping Height | 54.63 in. |
| Shipping Length | 30 in. |
| Shipping Weight | 203 lbs. |
| Total of Shipping Weight | 203 lbs. |
| Source | Calculation |
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 17.95 ft³ |
| Dimensional Weight | 223.13 lbs. |
| Total of Cubes | 17.95 ft³ |
| Total of Dimensional Weight | 223.13 lbs. |
Description
Household Size
Provide hot water for the whole family of 3 to 5+ persons

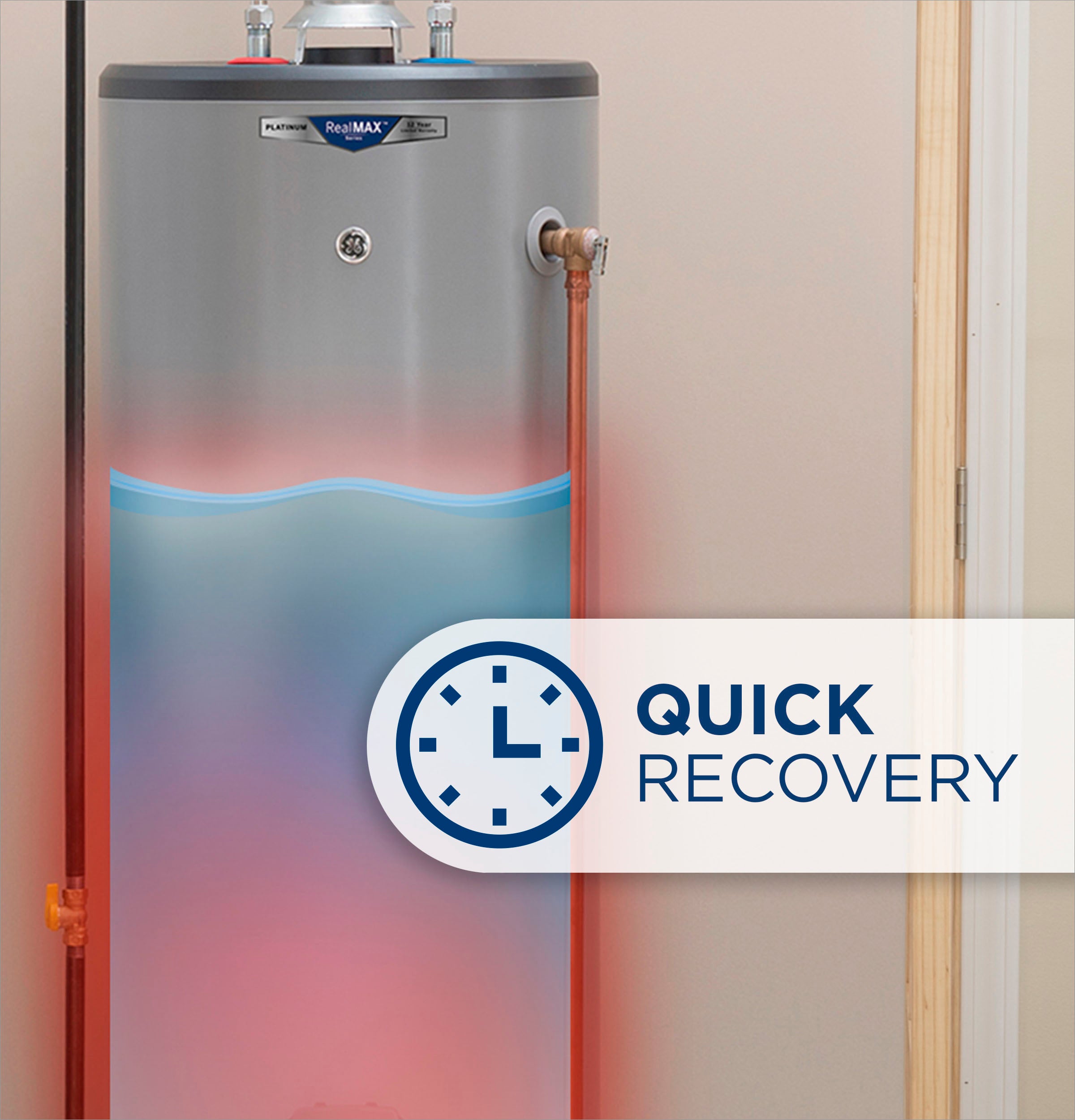

Quick Recovery
Quickly replenish hot water with a max-performance 40K burner

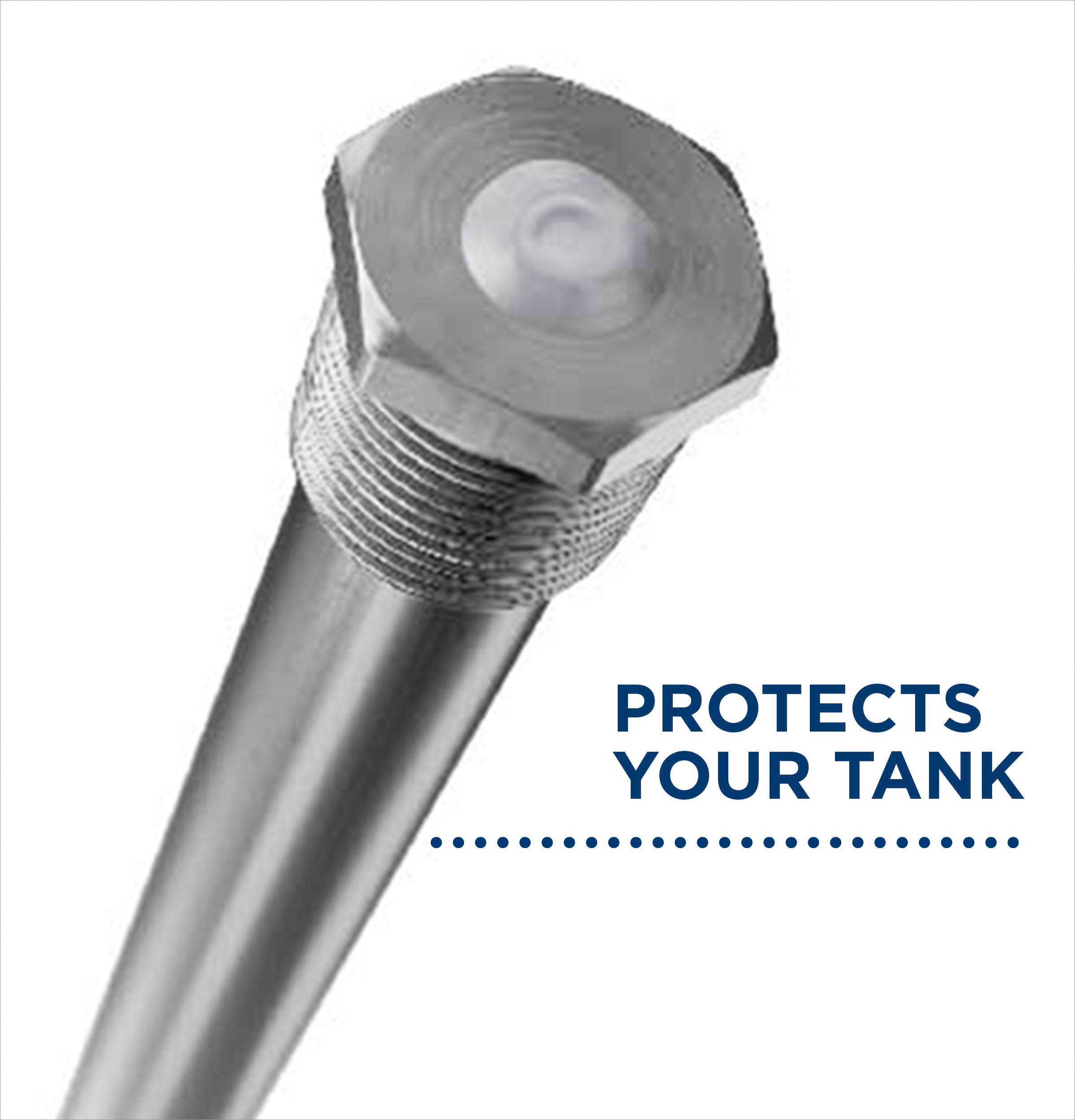

Anode Rod
Durable design offers long-lasting protection against corrosion to extend the life of your water heater tank

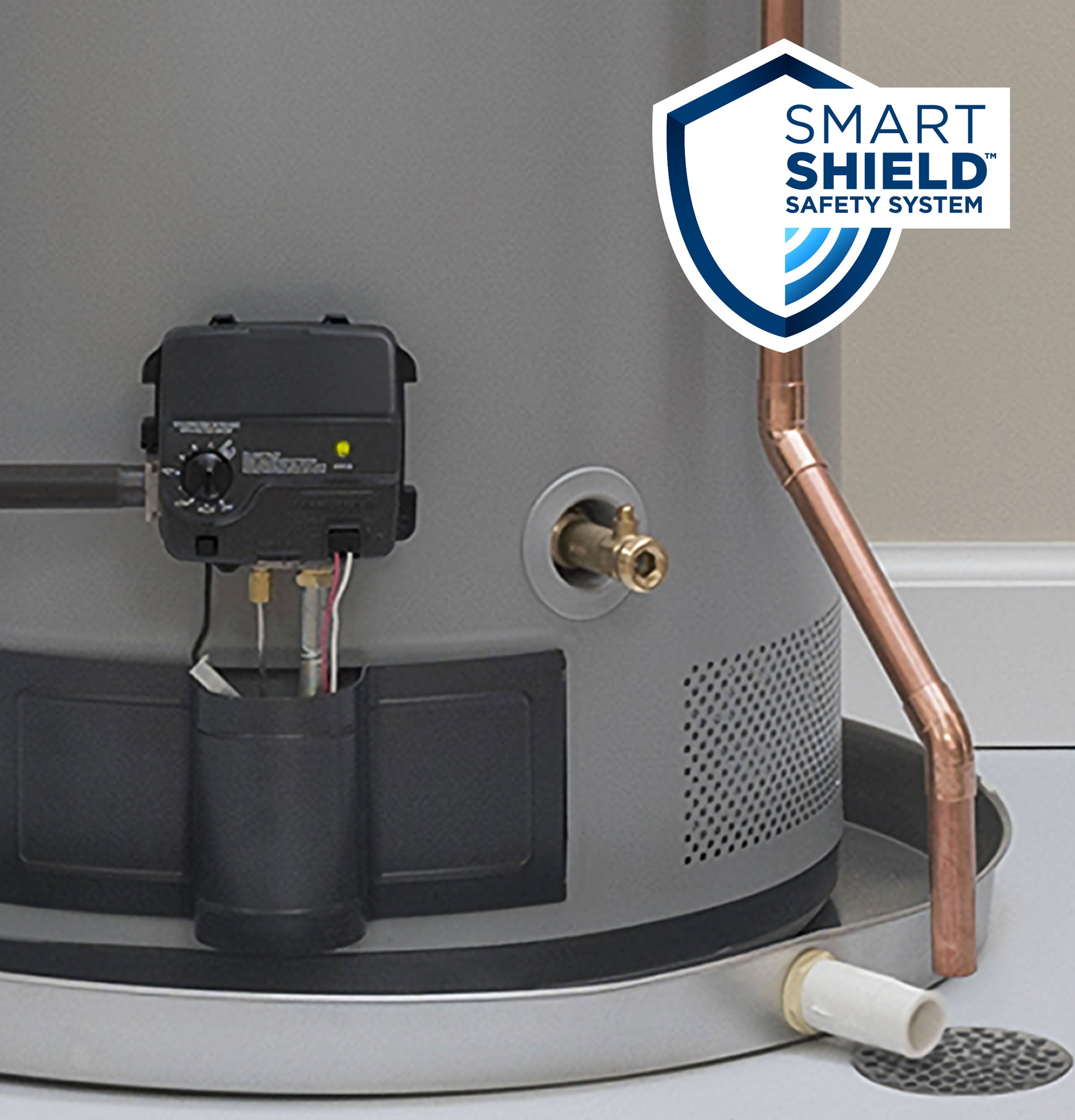

SmartShield (TM) Safety System
Monitors the surrounding air and automatically shuts off the unit if abnormal temperatures are detected

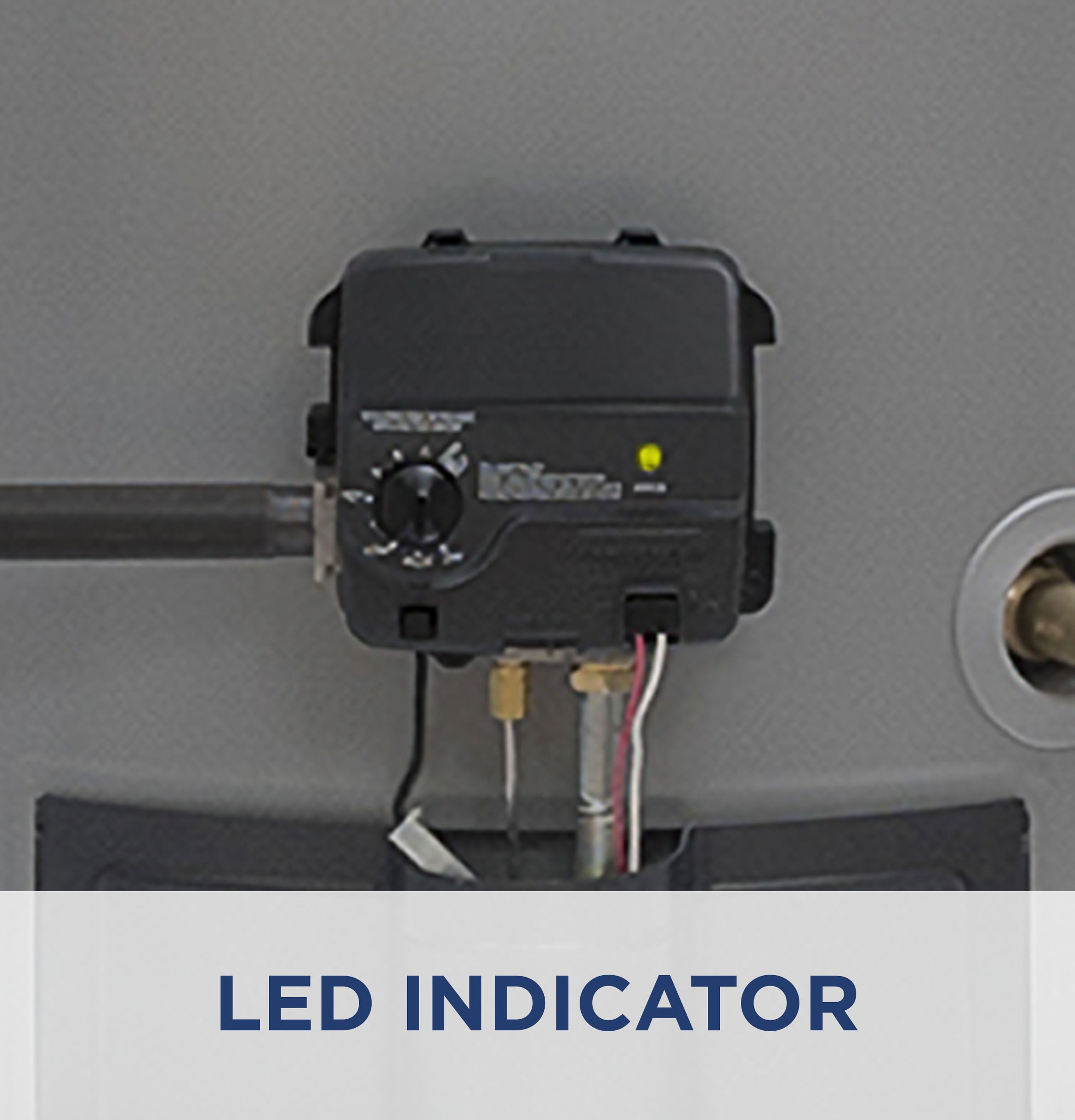

Self-Diagnostic
Monitors and reports on gas system status via LED status indicator

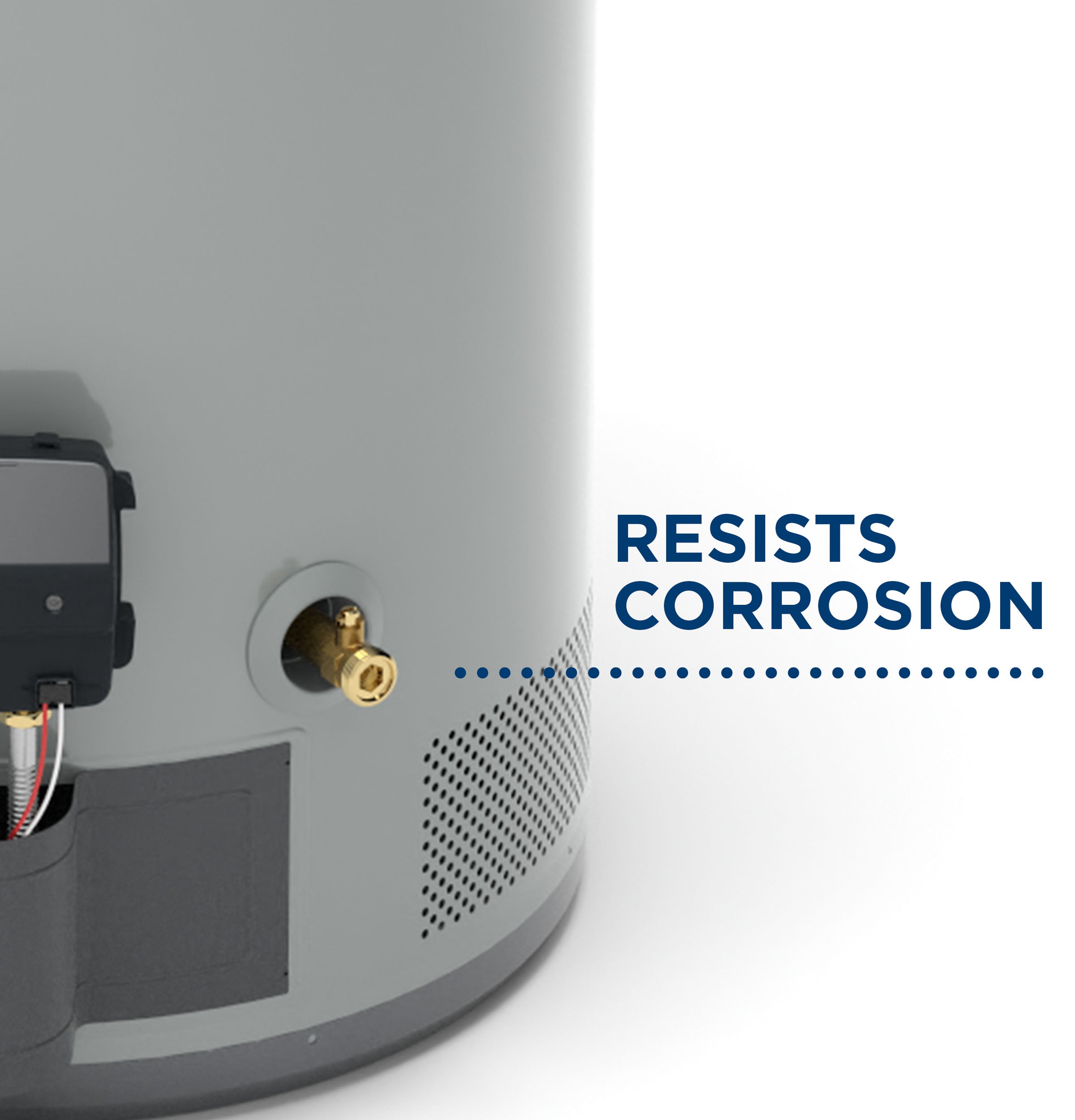

Drain Valve
Rust-proof construction can be counted on to provide long-lasting service

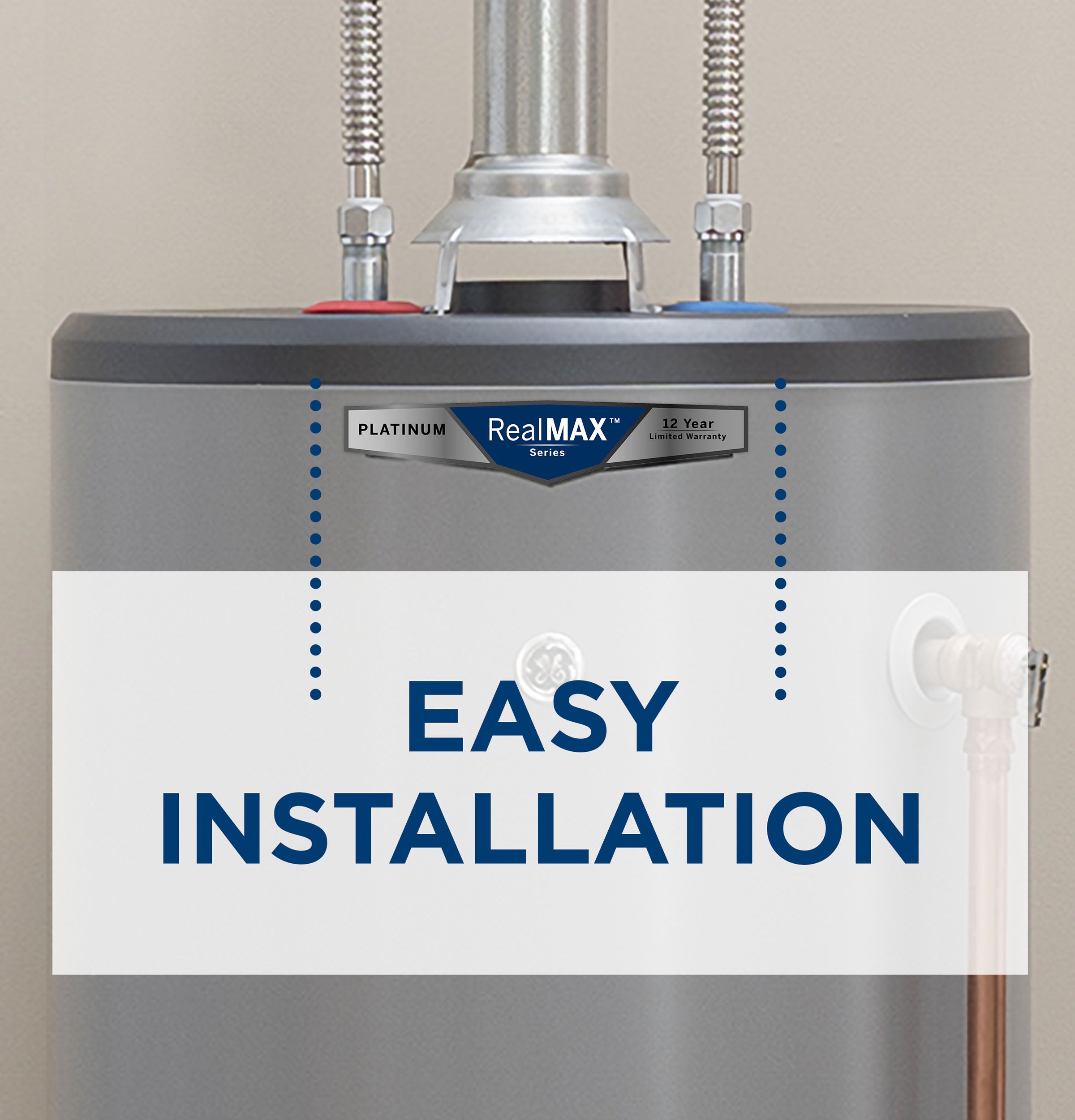

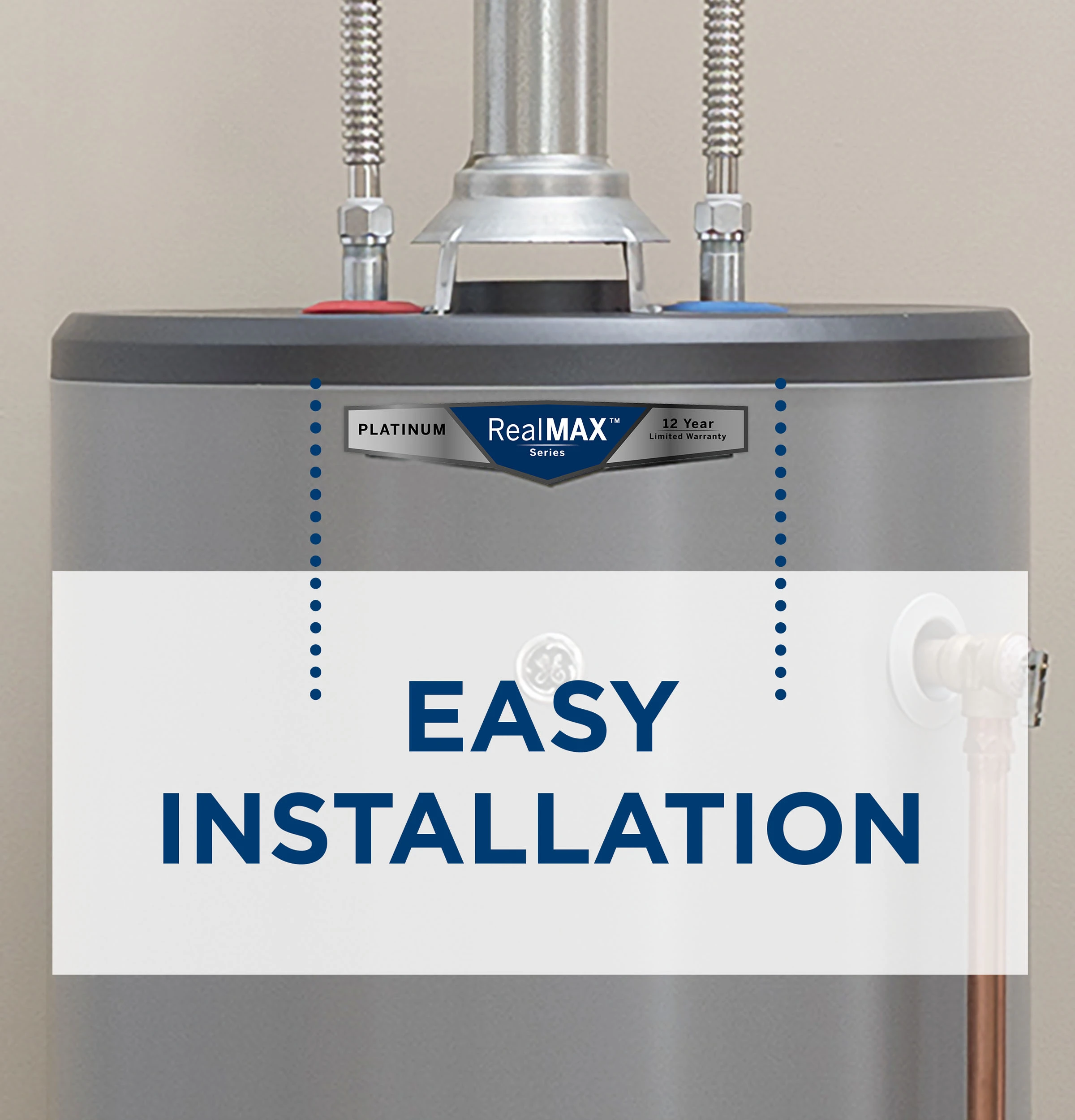

Easy Installation
Replace your old water heater quickly and easily using standard water and gas connections

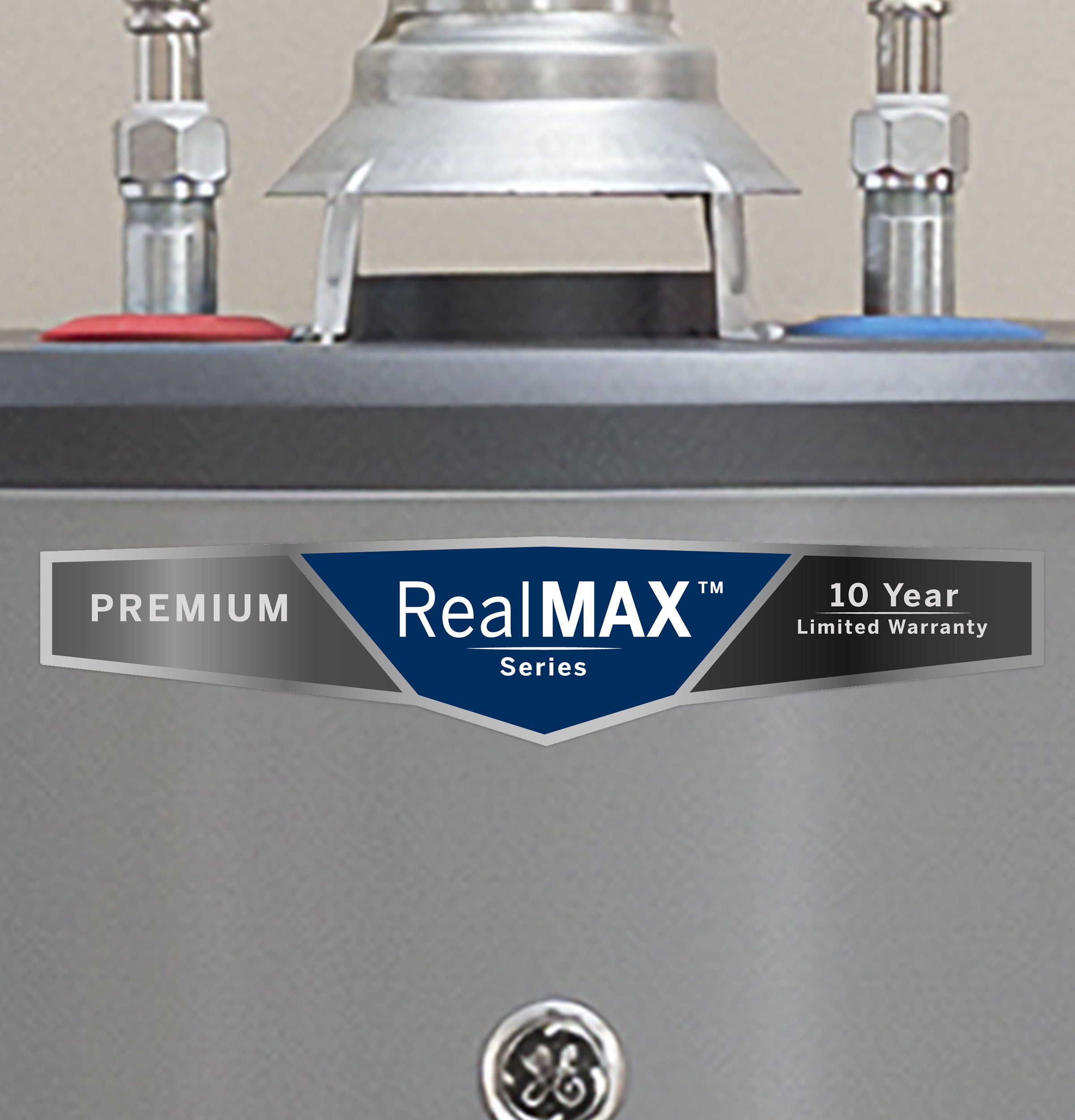

Built-To-Last Warranty
RealMAX Premium water heaters carry a 10-year tank and parts limited warranty
Provide hot water for the whole family of 3 to 5+ persons
Quick Recovery
Quickly replenish hot water with a max-performance 40K burner
Anode Rod
Durable design offers long-lasting protection against corrosion to extend the life of your water heater tank
SmartShield (TM) Safety System
Monitors the surrounding air and automatically shuts off the unit if abnormal temperatures are detected
Self-Diagnostic
Monitors and reports on gas system status via LED status indicator
Drain Valve
Rust-proof construction can be counted on to provide long-lasting service
Easy Installation
Replace your old water heater quickly and easily using standard water and gas connections
Built-To-Last Warranty
RealMAX Premium water heaters carry a 10-year tank and parts limited warranty
Manuals & Guides
Key Features
Household Size
Provide hot water for the whole family of 3 to 5+ persons
Quick Recovery
Quickly replenish hot water with a max-performance 40K burner
Anode Rod
Durable design offers long-lasting protection against corrosion to extend the life of your water heater tank
SmartShield ™ Safety System
Monitors the surrounding air and automatically shuts off the unit if abnormal temperatures are detected
Self-Diagnostic
Monitors and reports on gas system status via LED status indicator
Drain Valve
Rust-proof construction can be counted on to provide long-lasting service
Easy Installation
Replace your old water heater quickly and easily using standard water and gas connections
Built-To-Last Warranty
RealMAX Premium water heaters carry a 10-year tank and parts limited warranty
