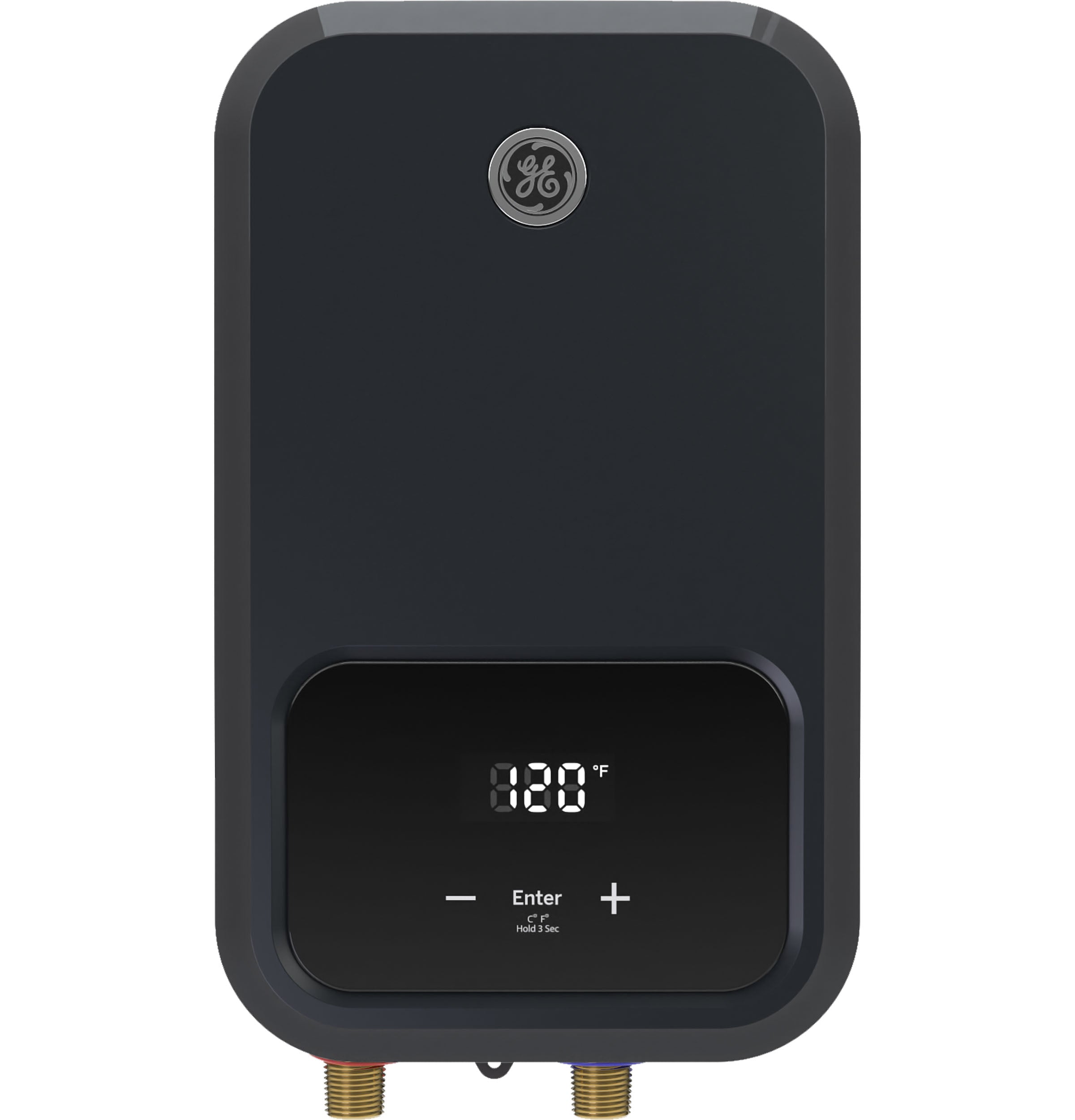

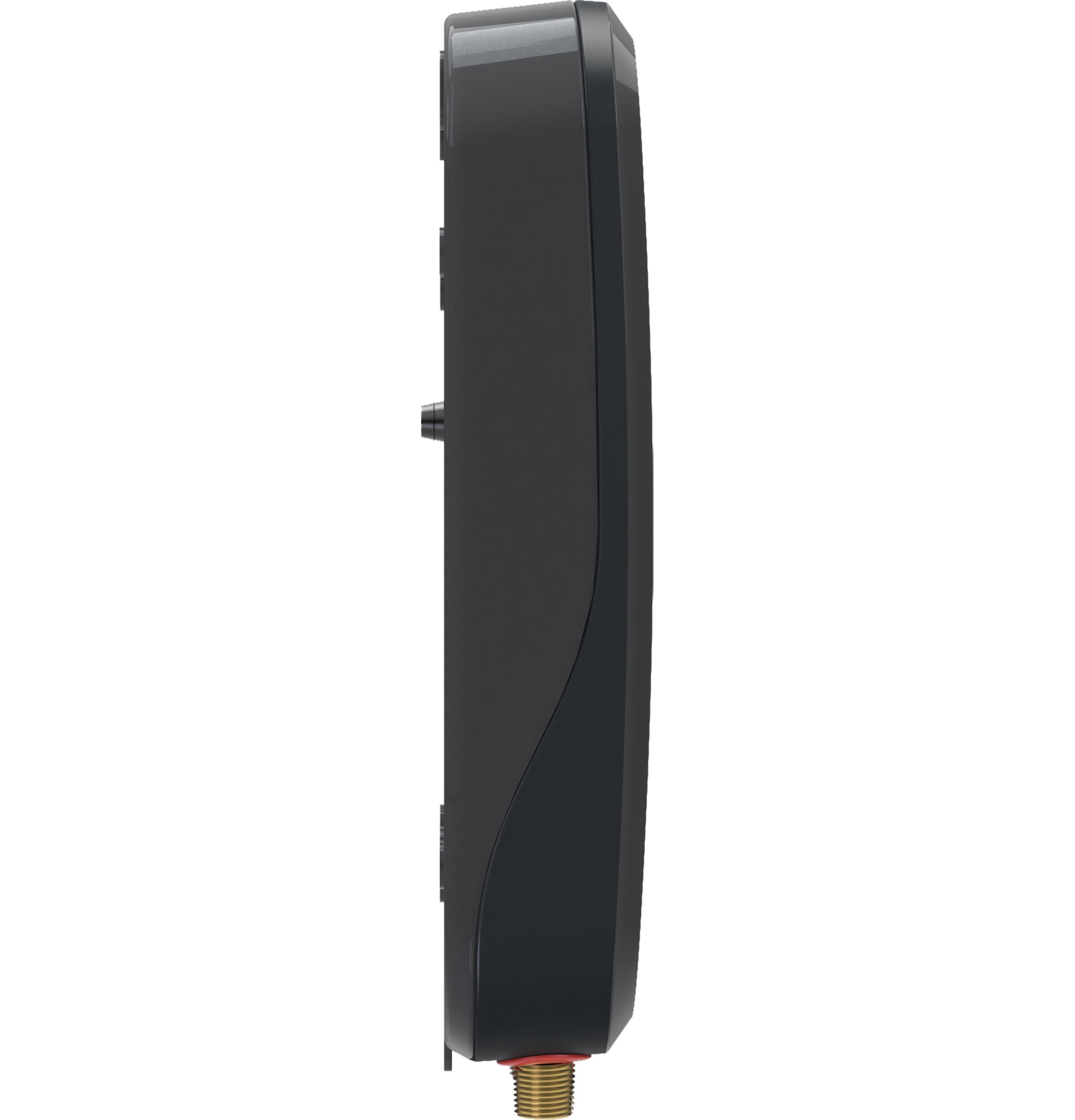

GE15SNHPDG Tankless Electric Water Heater Diamond Gray

Name: GE15SNHPDG Tankless Electric Water Heater Diamond Gray
Brand: GE
SKU: GE15SNHPDG
Price: 305.10 USD
Availability: InStock

Quick Specification More details

Width:
8.5"
Depth:
2.4"
Height:
14.2"
Type:
Tankless Water Heaters

About this product

Unlimited Hot Water on Demand
Point of Use
Performance Up to 2.9 Gallons Per Minute (GPM)
Remote Control

GE15SNHPDG Tankless Electric Water Heater Diamond Gray

$305.10 ~~$425.97~~ Save $120.87 / 28% OFF

Quantity:

More on the way

Active Rebates

Extended Protection

1-Year Extended Protection
$30.99
2-Year Extended Protection
$51.99
3-Year Extended Protection
$75.99
5-Year Extended Protection
$139.99
Manufacturer Warranty Only

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
8.5"
Depth:
2.4"
Height:
14.2"
Type:
Tankless Water Heaters

About this product

Unlimited Hot Water on Demand
Point of Use
Performance Up to 2.9 Gallons Per Minute (GPM)
Remote Control

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Videos
Reviews

$305.10 ~~$425.97~~ Save $120.87 / 28% OFF

Product Details for GE GE15SNHPDG

Technical Details

Weights & dimensions

Overall Width	8.5 in
Overall Height	14.2 in
Product Height (to top of unit)	14.2 in
Approximate Shipping Weight	10.1 lb
Net Weight	9.7 lb
Overall Depth	2.40 in
Product Diameter	8 1/2 in

Features

Uniform Energy Factor (UEF)	>0.91

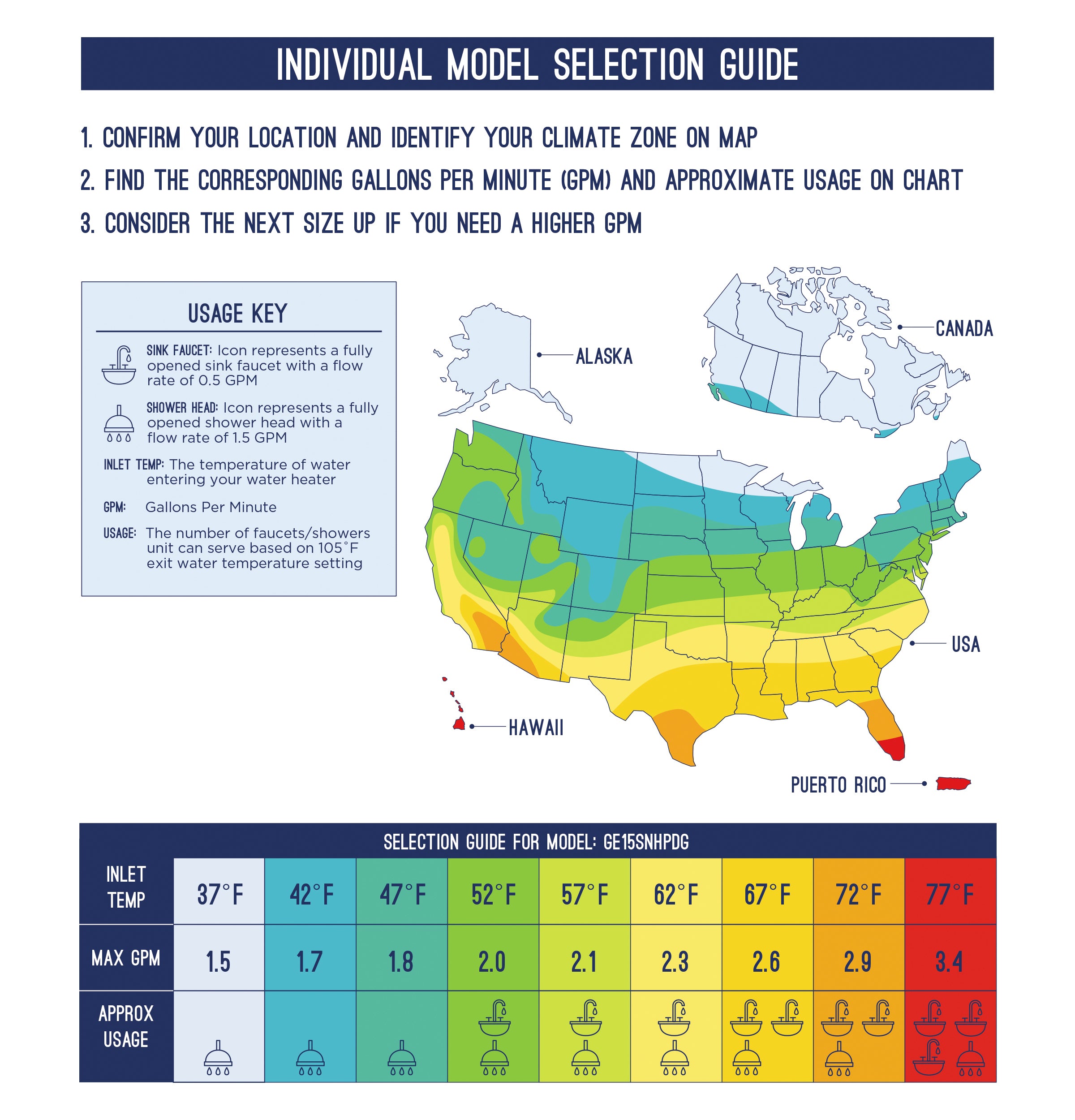

Flowrate (GPM) @ 47 F inlet	1.79
Flowrate (GPM) @ 37 F inlet	1.5
Flowrate (GPM) @ 77 F inlet	3.4
Flowrate (GPM) @ 62 F inlet	2.29
Min. operating pressure (psi)	25
Controls	Digital Electronic Control
Max. operating pressure (psi)	150
Max: operating pressure (psi)	150
Fuel Type	Electric
Flowrate (GPM) @ 57 F inlet	2.09
Configuration	Space Saver
Installation Location	Indoor
Flowrate (GPM) @ 72 F inlet	2.9
Temperature adjustment amount (degree)	1
Activation Flowrate (GPM)	≤ 0.4
Temperature Setting Factory Default	105° F
Product Type	Electric Tankless
Flowrate (GPM) @ 52 F inlet	2
Integrated Safety Devices	Flow sensor. High limit thermostat (on each heating element). Inlet Temperature Sensor. Material Rated for Ignition Containment. Outlet Temperature Sensor.
Maximum Outlet Temperature (F)	140
Water Connection Location	Bottom
Point of Use	Yes
Cold/hot water connections (inches)	1/2" Cold Water Inlet; 1/2" Hot Water Outlet
Remote Control	Yes
Flowrate (GPM) @ 67 F inlet	2.59
Temperature Setting	86-140° F Range
Flowrate (GPM) @ 42 F inlet	1.7
Controls	Adjustable Temperature
Controls	Adjust degree Fahrenheit/Celsius

Appearance

Installation	Wall Mounted
Color Appearance	Diamond Gray

Power / ratings

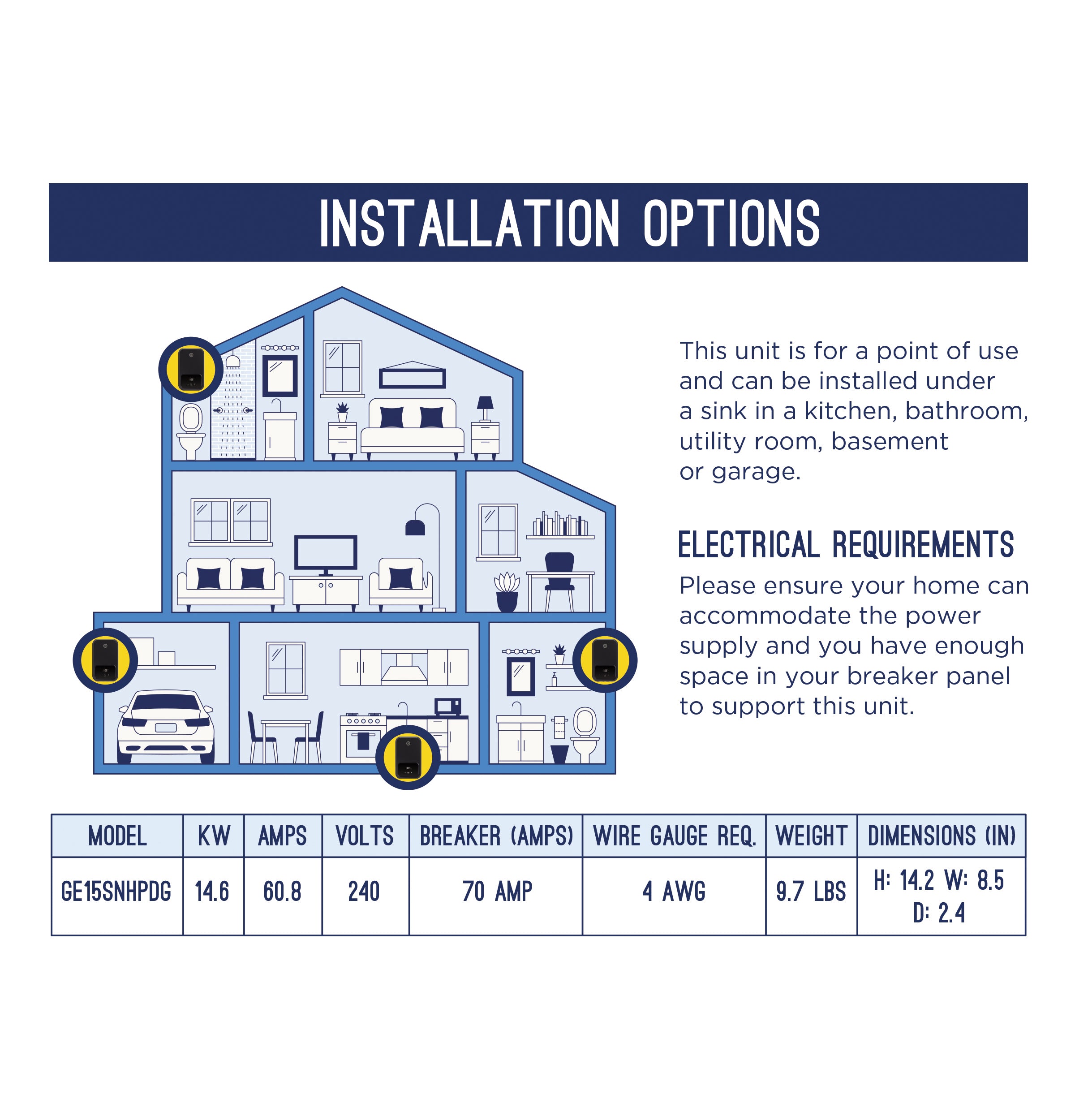

Electrical Requirements	240V ; 70A
Power Rating-kW	14.6
Amps	60.8
Hertz	60
Voltage (MAX)	240 V
Electrical Circuit Required	70 Amp

Other

Product Diameter

8.5 in

Dimensions & weight

Width	8.5 in.
Height	14.2 in.
Length	2.4 in.
Weight	9.7 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	13.5 in.
Shipping Height	19.2 in.
Shipping Length	7.4 in.
Shipping Weight	49.7 lbs.
Total of Shipping Weight	49.7 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	0.17 ft³
Dimensional Weight	1.75 lbs.
Total of Cubes	0.17 ft³
Total of Dimensional Weight	1.75 lbs.

Warranty

Warranty Notes	See written warranty for full details
Parts Warranty	Return to Vendor
Labor Warranty	No Warranty
Parts Warranty	5-Year Replacement

Capacity

2.9 Gallons Per Minute (GPM)

Description

Unlimited Hot Water on Demand
Tankless electric water heater provides instant, continuous water flow

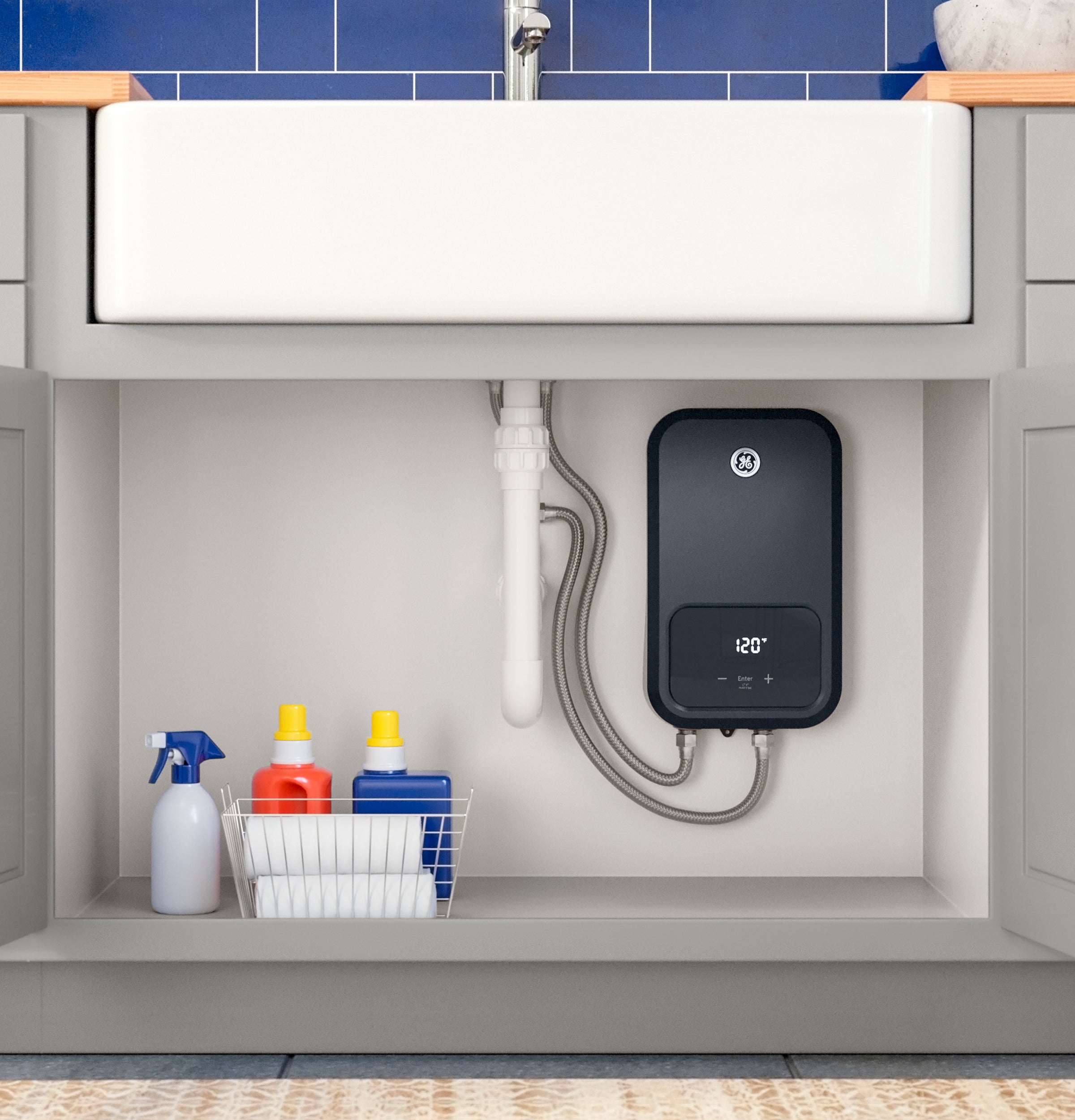

Point of Use
Installs at the point of use, for hot water where you need it

Performance Up to 2.9 Gallons Per Minute (GPM)
Enough to run 2 faucets and 1 shower simultaneously in warm climates (*Results are based on 72 F inlet water temperature and 105 F outlet water temperature)

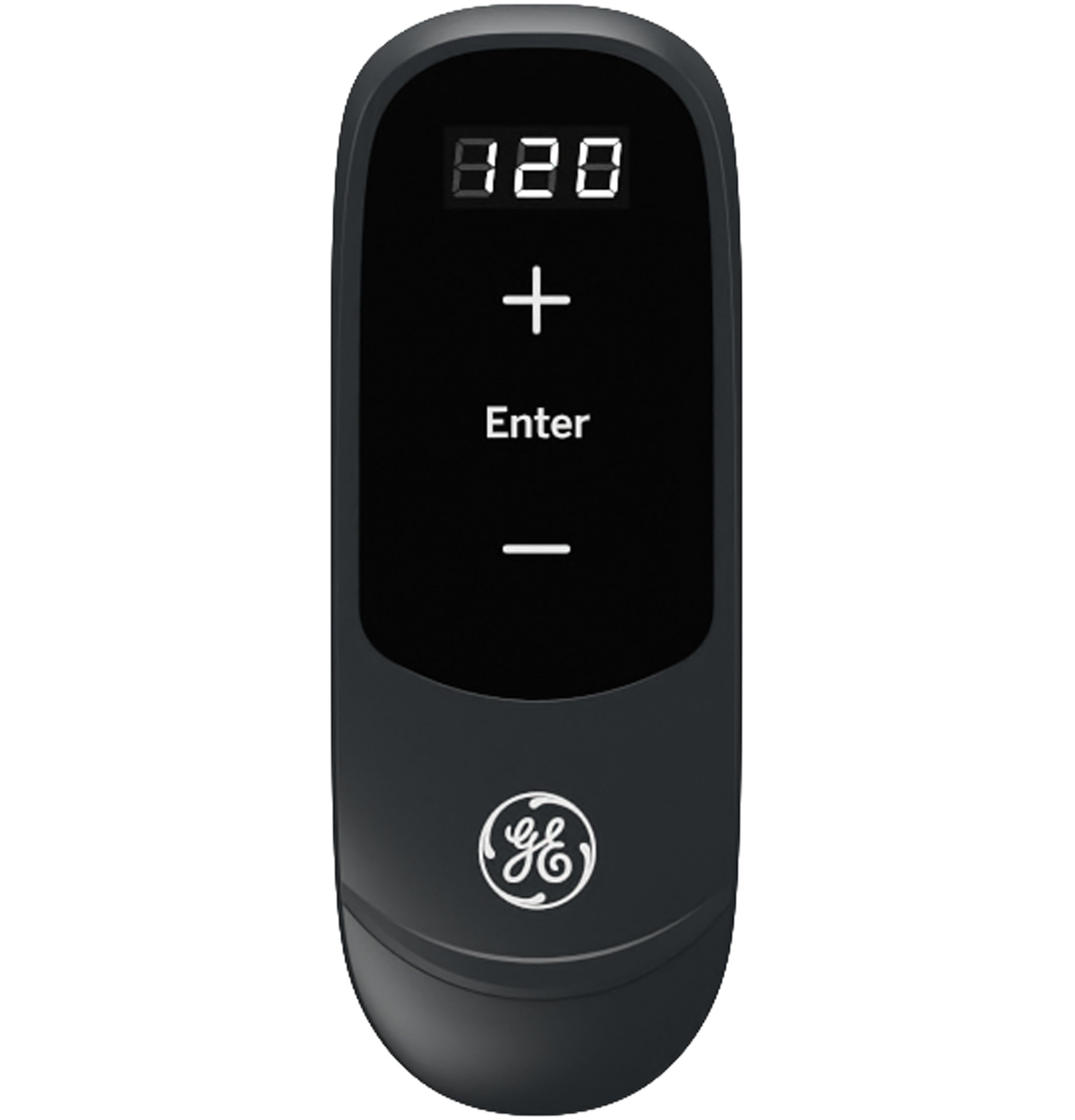

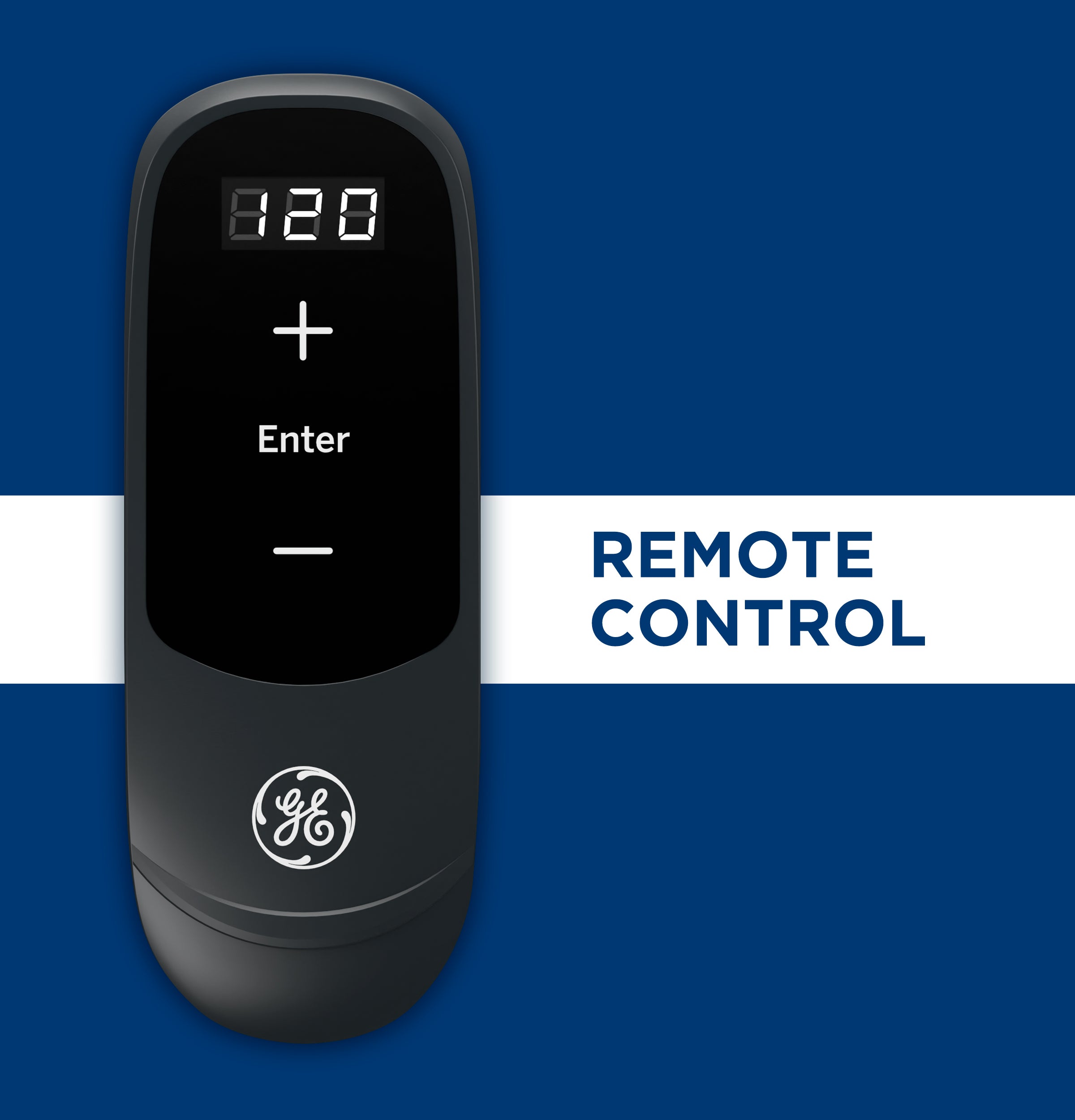

Remote Control
Conveniently change temperature settings and control your unit from up to 30' away

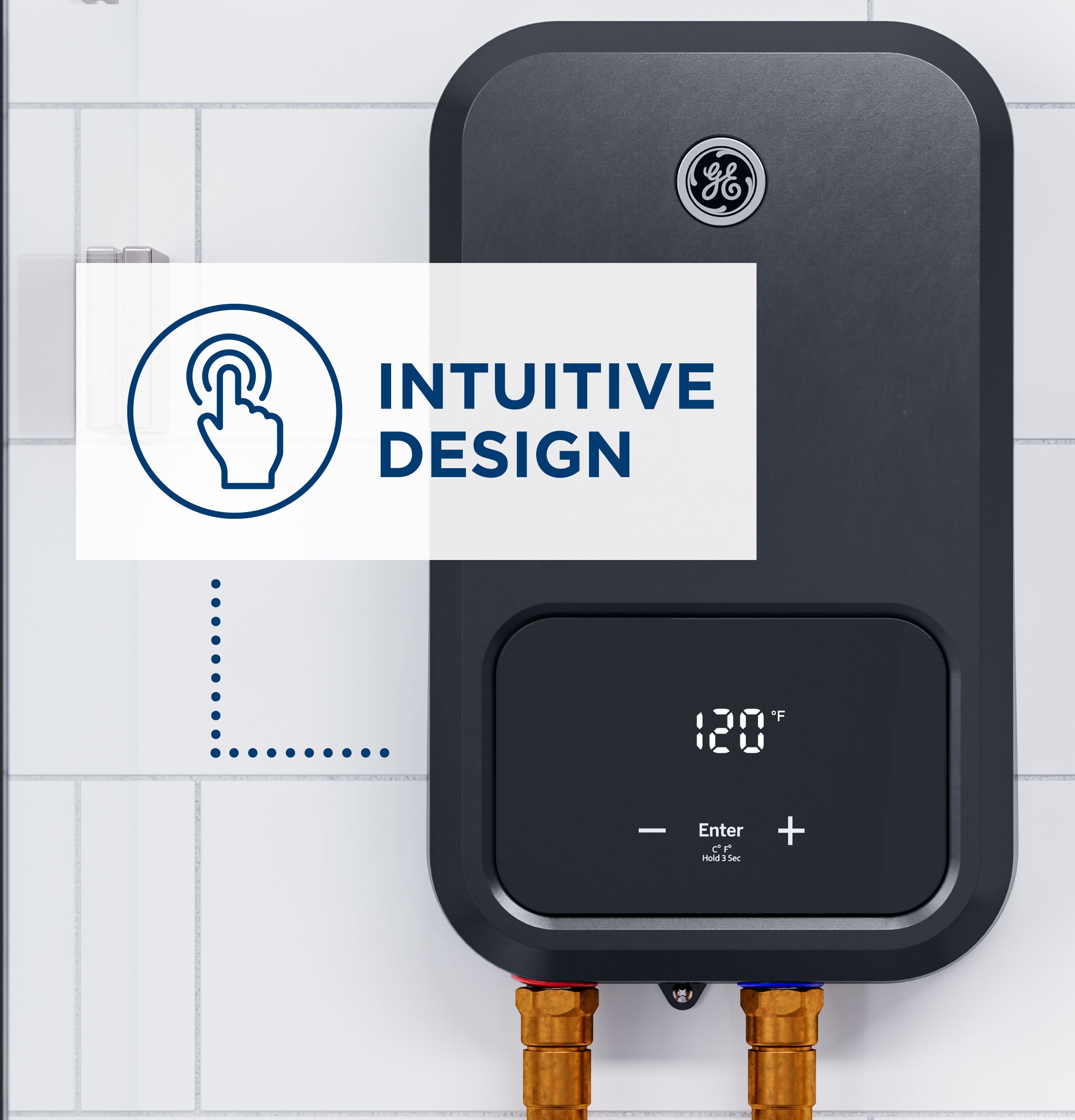

Intuitive Design
Adjust temperature and settings with easy-use touch screen

Energy Efficient
Conserves energy and water by only using energy when hot water is in use, saving you money

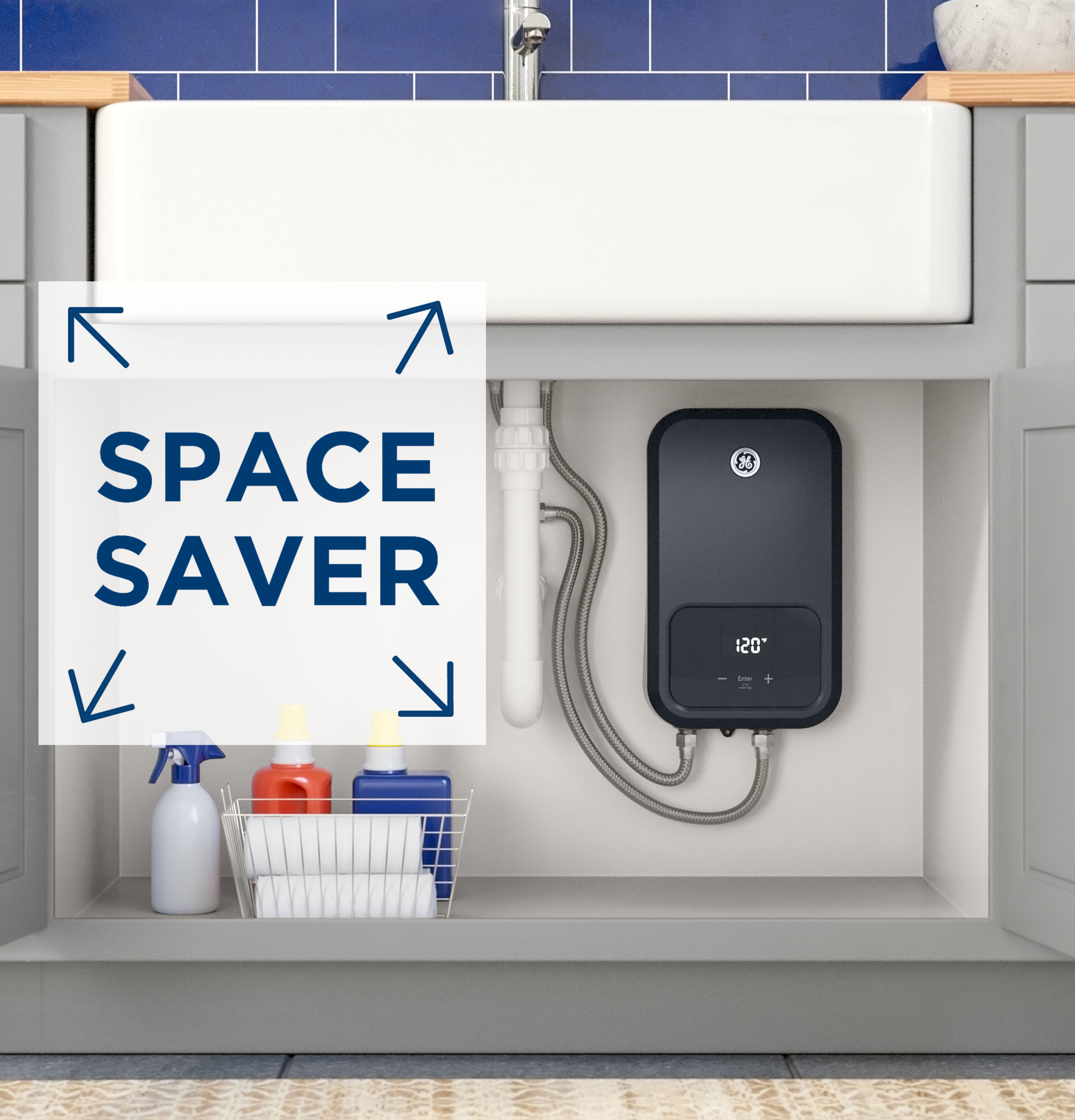

Space Saver
Compact design takes up significantly less space than a tank style water heater

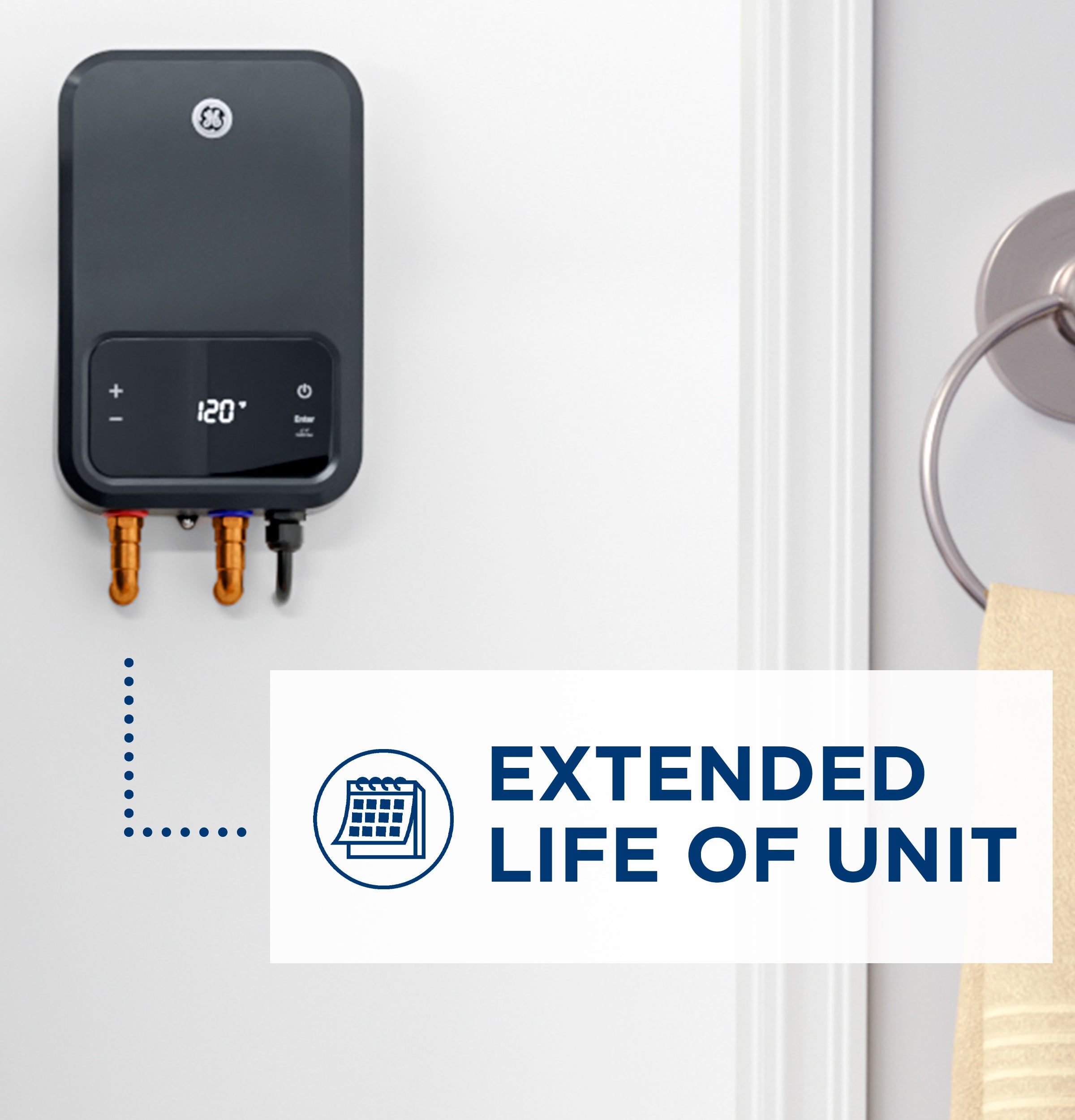

Scale Reduction Technology
Extends the life of the unit by shielding heating element from water and scale buildup

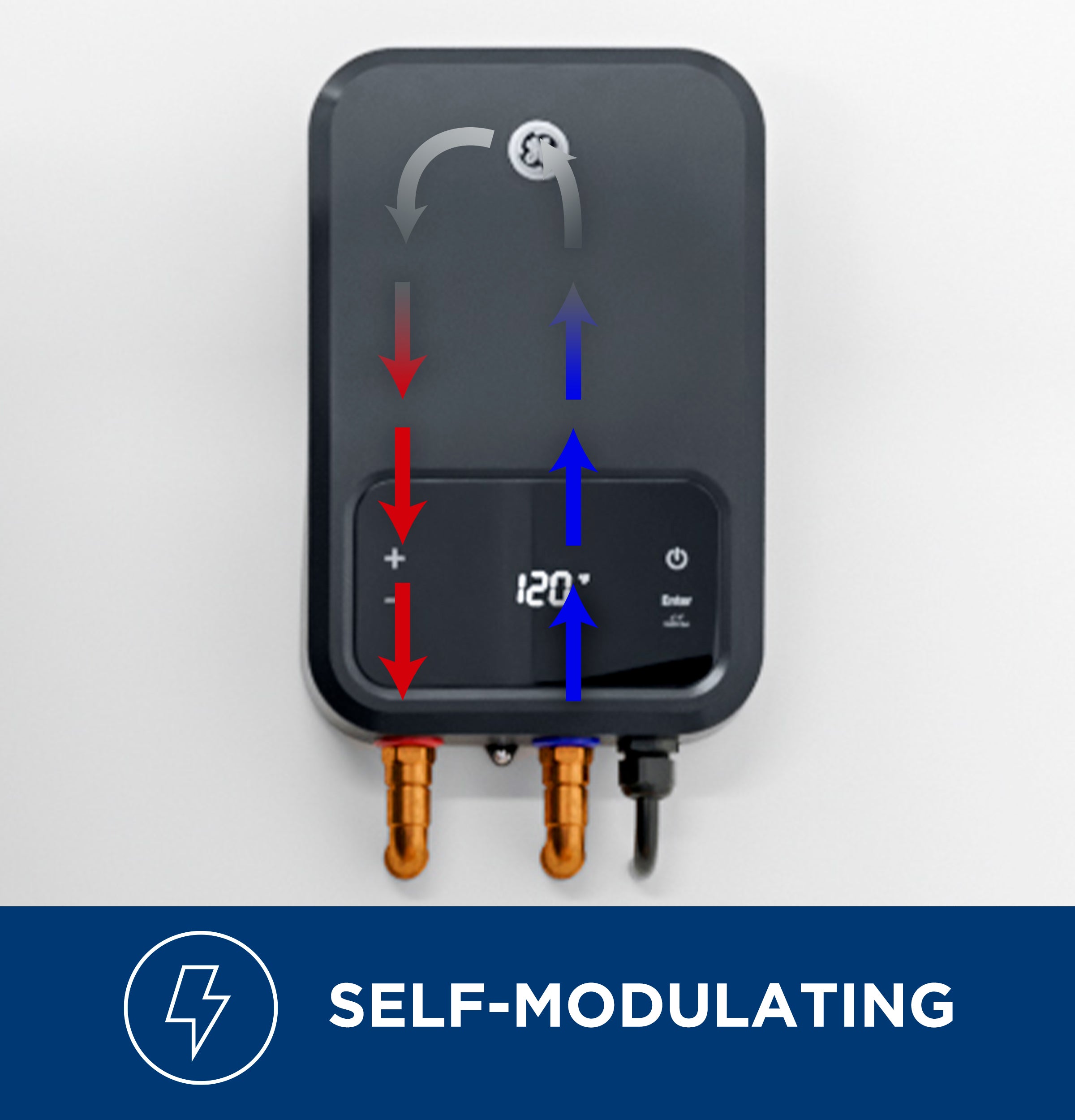

Self Modulating Technology
Utilizes inlet and outlet temperature sensors to optimize energy usage and keep water temperature consistent

Easy Installation
Uses standard 1/2-in NPT water connections and does not require venting for simple, wall-mounted water heater installation

Digital Temperature Control
Easily set temperatures in 1(degree) increments ranging from 86(degree)F to 140(degree)F

Fahrenheit or Celsius
Switch temperature units with a simple tap on an easy-read digital display

Warranty Length
5-year Limited Replacement Warranty

Product Features

Easy Installation
Uses standard 1/2-in NPT water connections and does not require venting for simple, wall-mounted water heater installation
Digital Temperature Control
Easily set temperatures in 1° increments ranging from 86°F to 140°F
Fahrenheit or Celsius
Switch temperature units with a simple tap on an easy-read digital display
Warranty Length
5-year Limited Replacement Warranty

Manuals & Guides

Key Features

Unlimited Hot Water on Demand

Tankless electric water heater provides instant, continuous water flow

Point of Use

Installs at the point of use, for hot water where you need it

Performance Up to 2.9 Gallons Per Minute (GPM)

Enough to run 2 faucets and 1 shower simultaneously in warm climates (*Results are based on 72˚F inlet water temperature and 105˚F outlet water temperature)
