GE APPLIANCES IM5D GE® Icemaker
- SKU IM5D
- Type Ice makers
- Dimensions 18.5″/10.0″/10.5″
SKU: PYD22KYNFS
More on the way
Extend your appliance's warranty beyond the manufacturer's terms with our Extended Protection Plan.
Enjoy added peace of mind long after the original warranty expires.
This Protection Plan includes:
Easily wipe away smudges and fingerprints for a look that's always sparkling clean

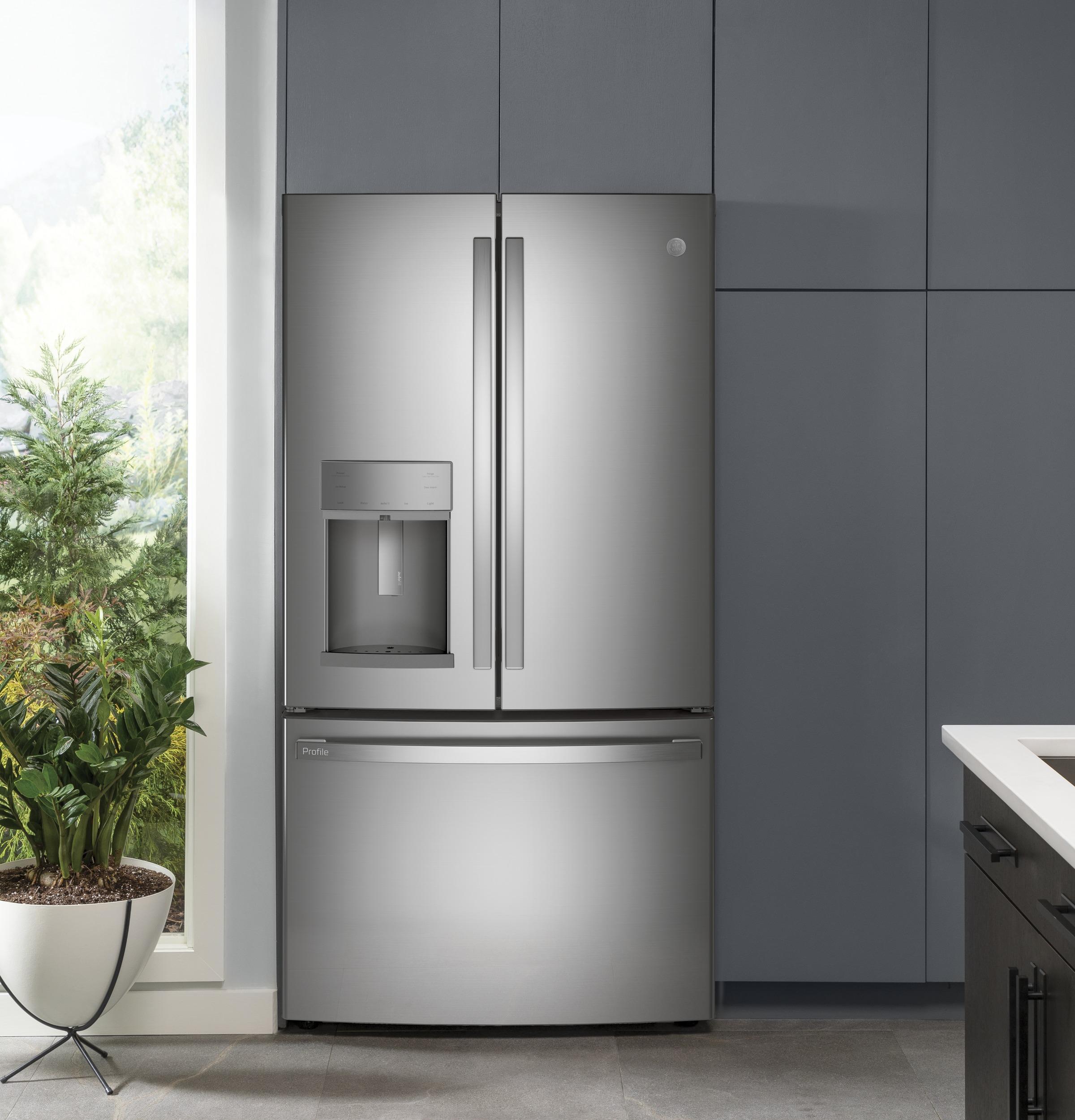

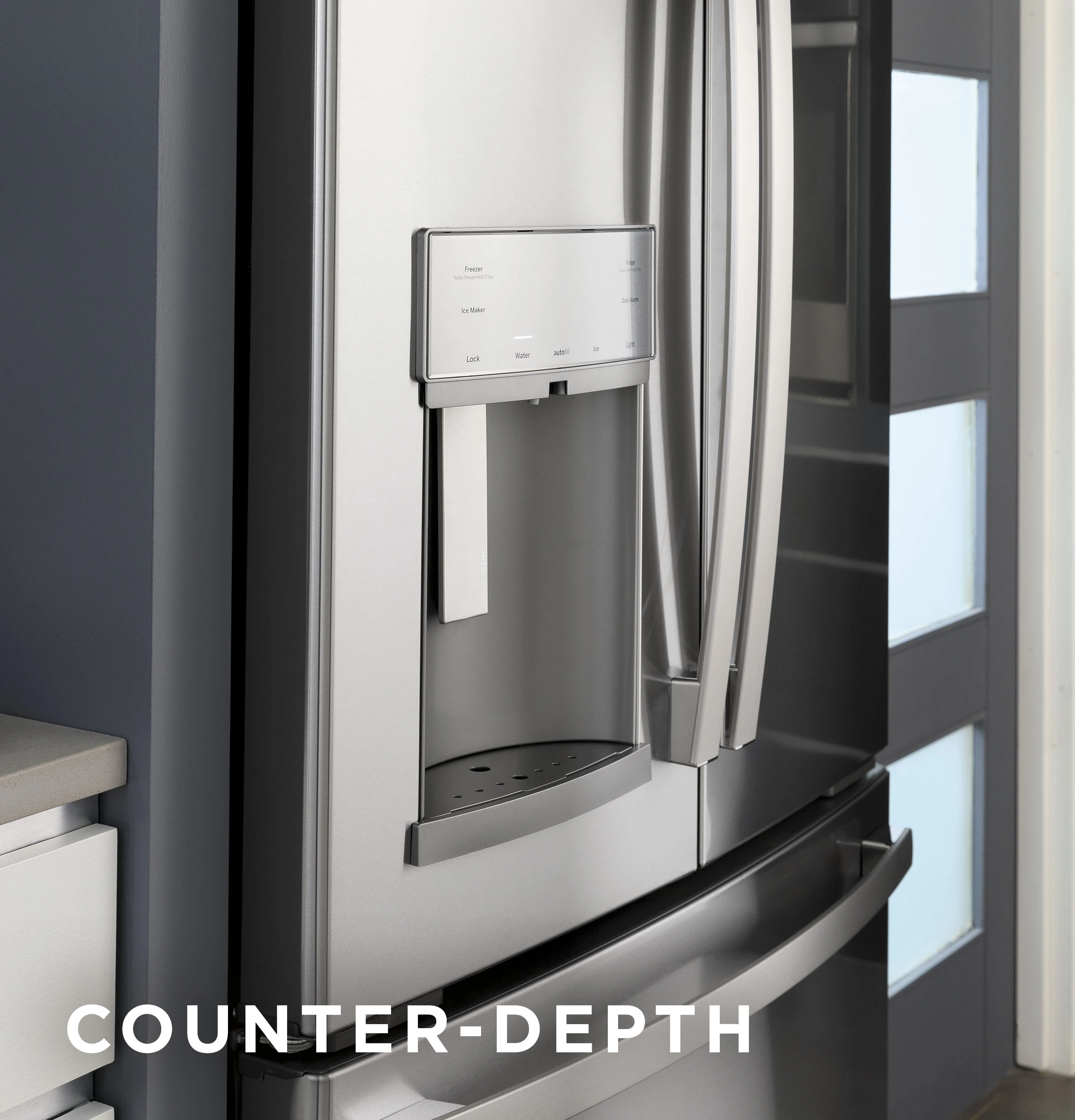

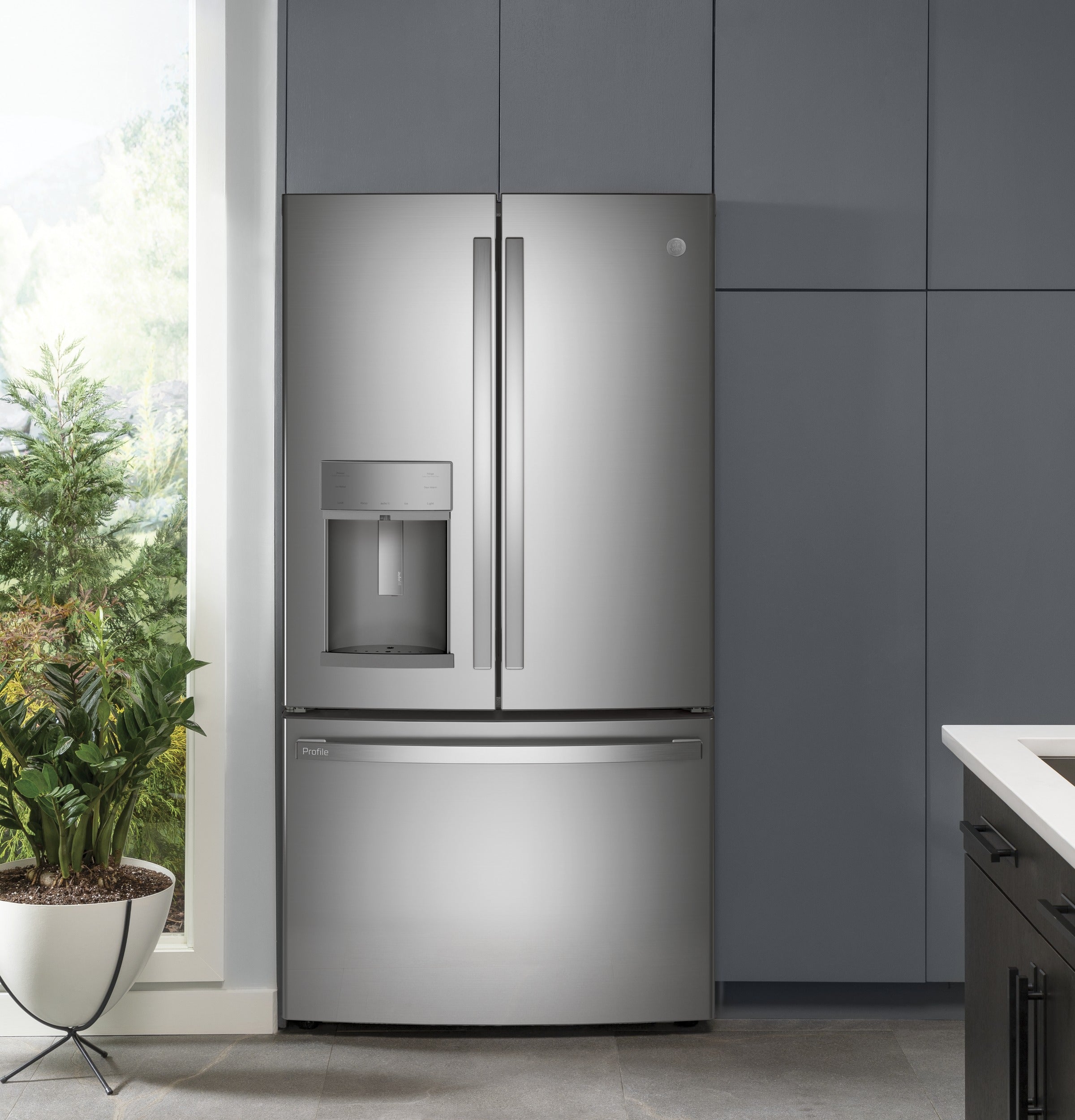

Offers a built-in look by fitting nearly flush with surrounding cabinetry

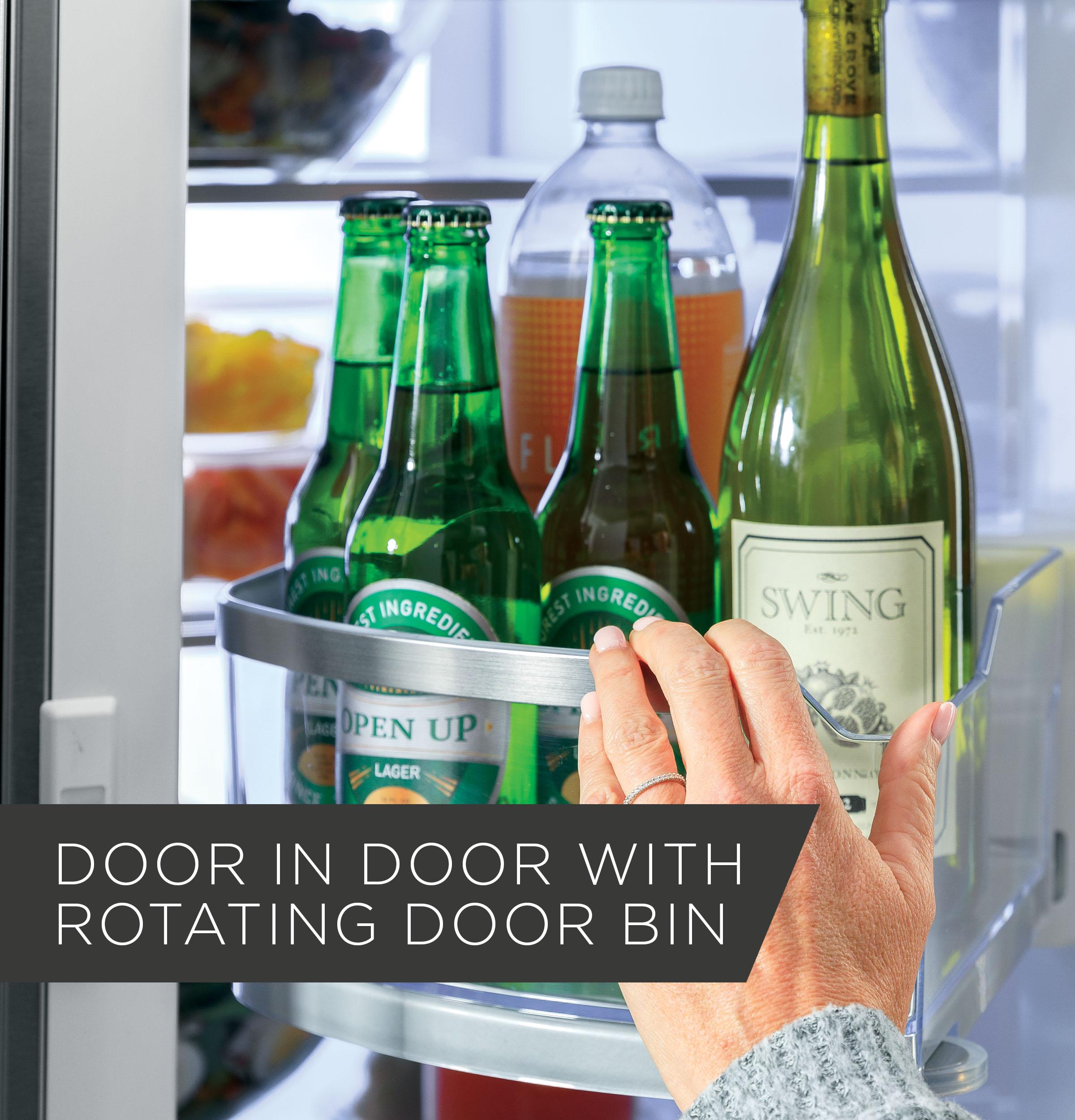

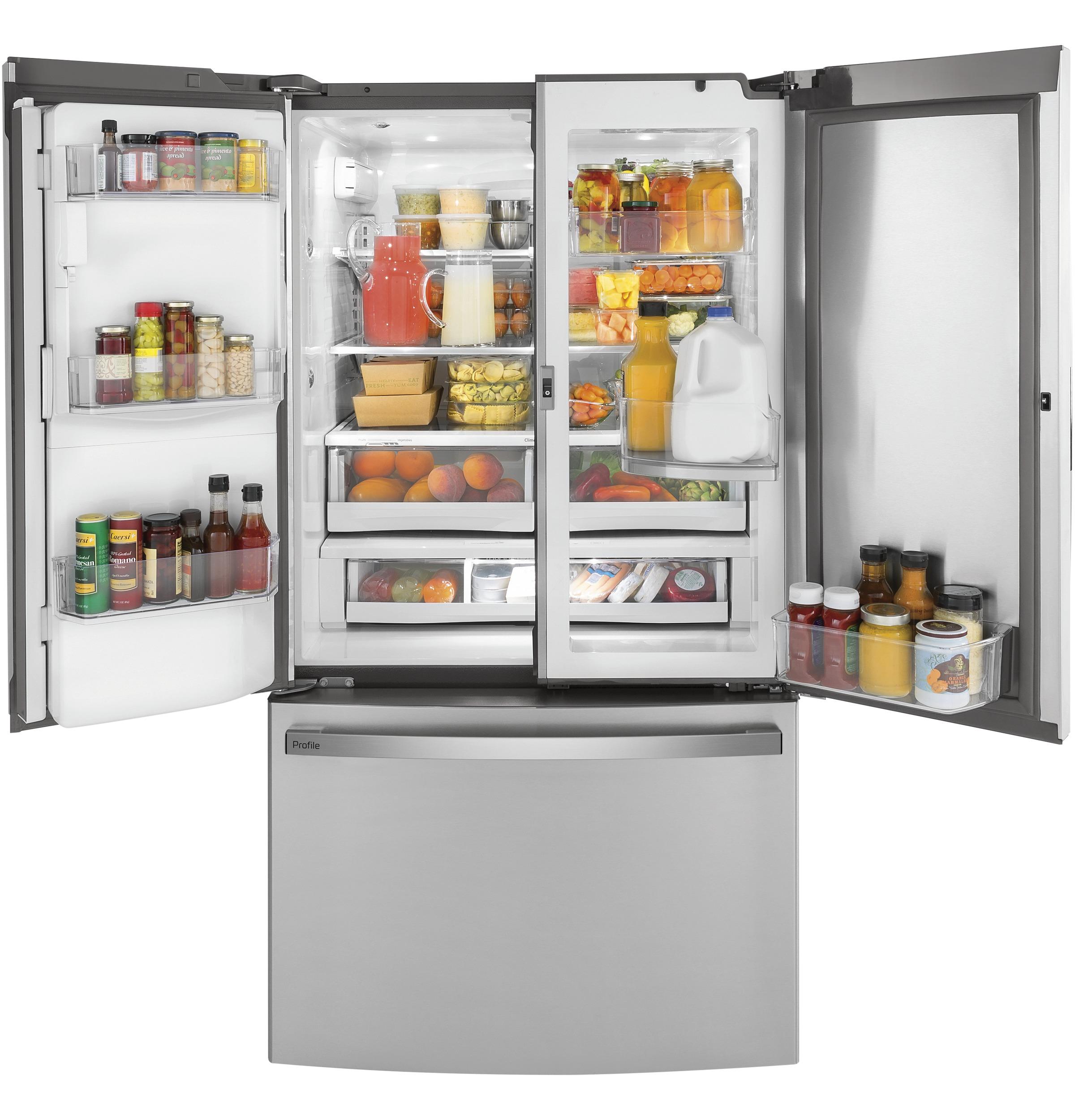

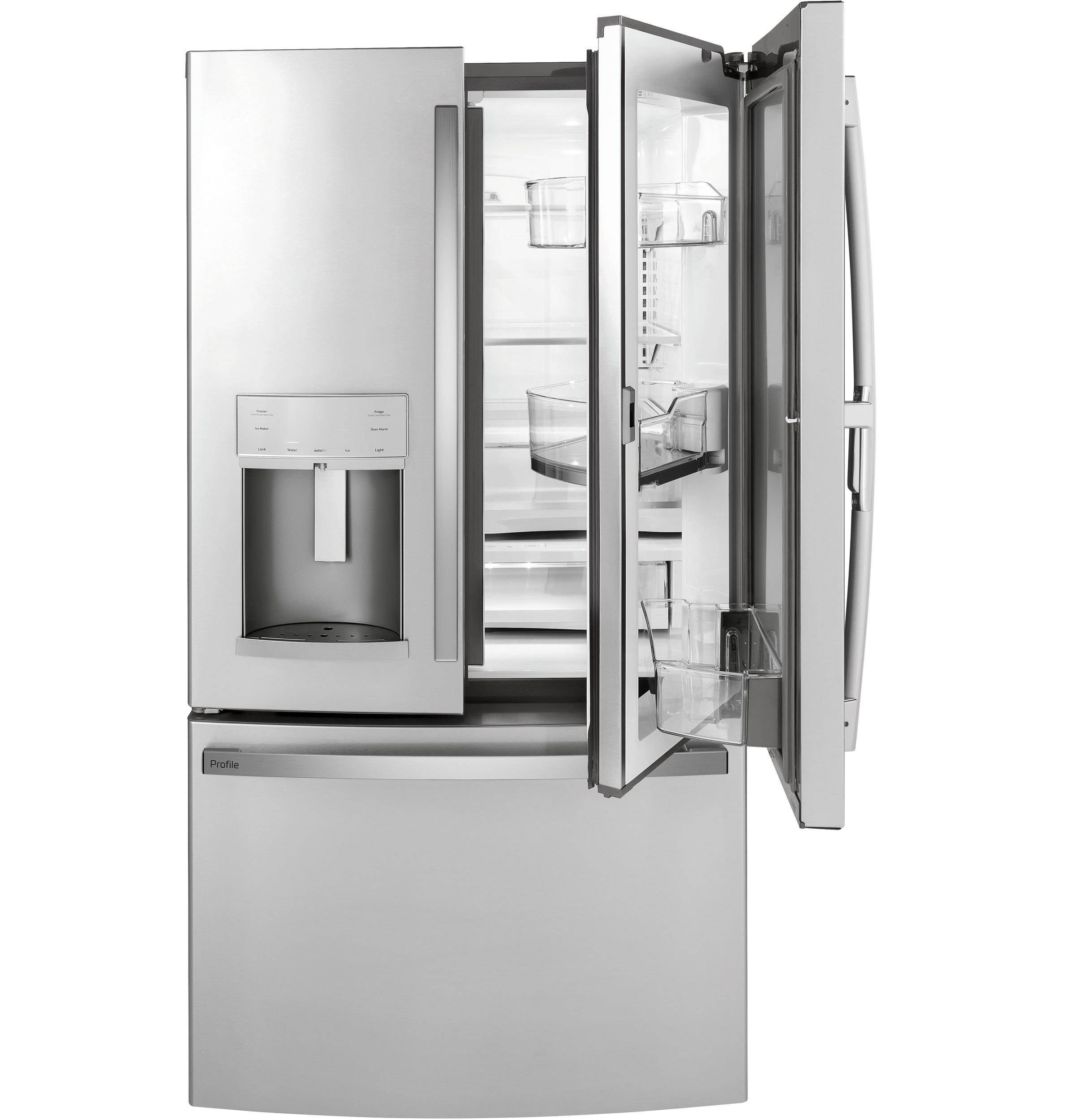

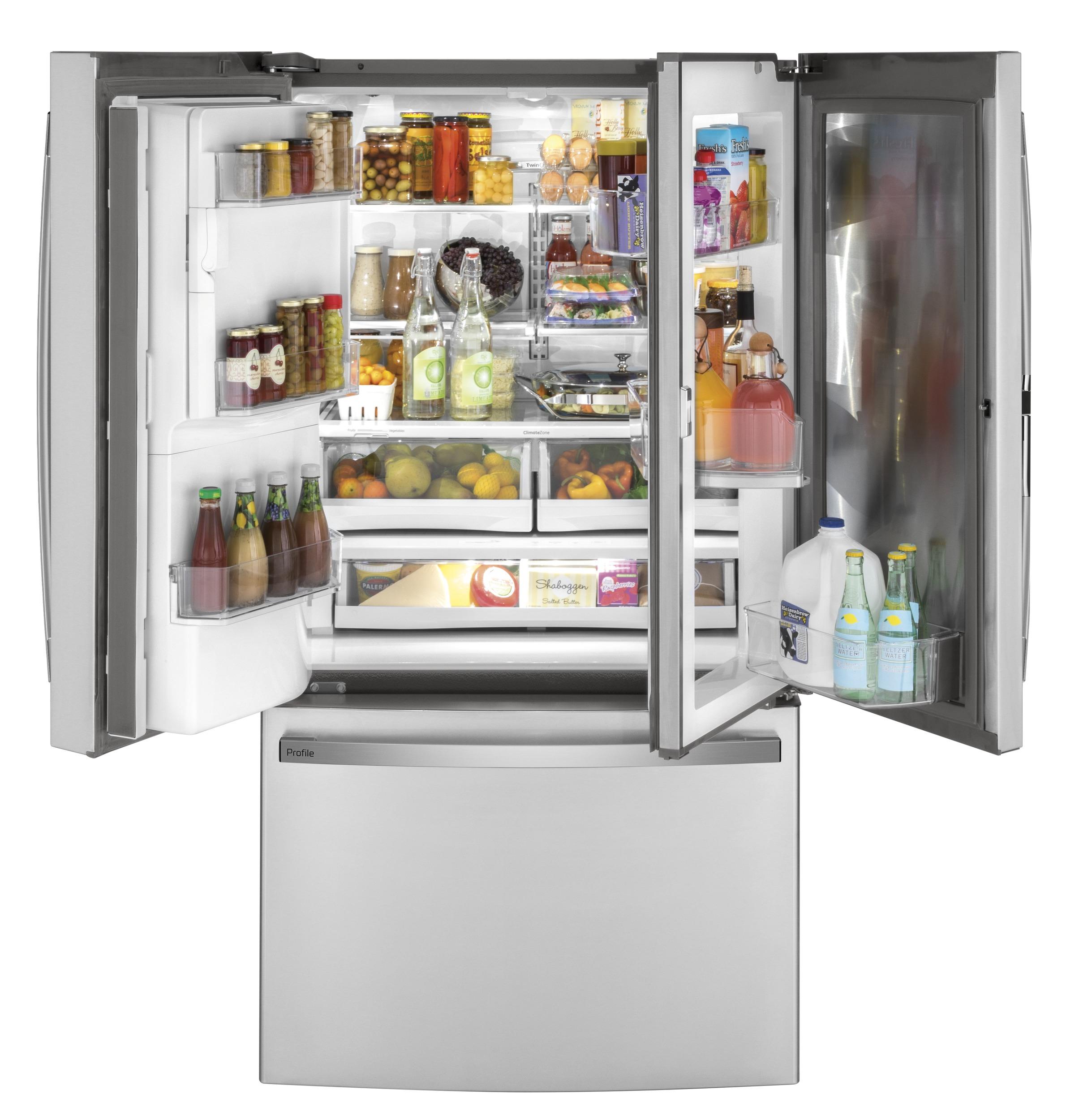

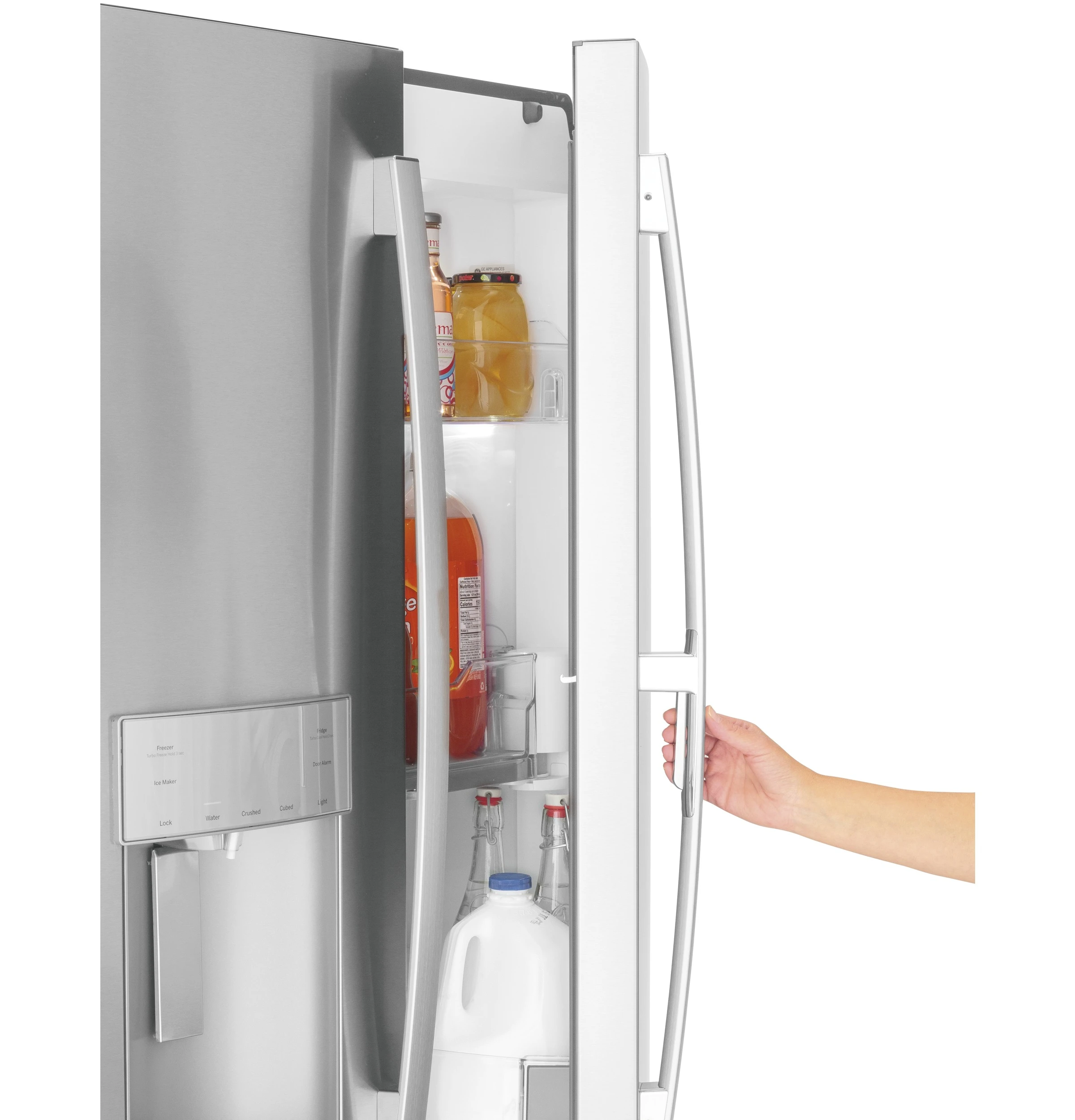

Innovative door design provides quick access to family favorites, from kids' snacks to taller items, such as recorked wine bottles

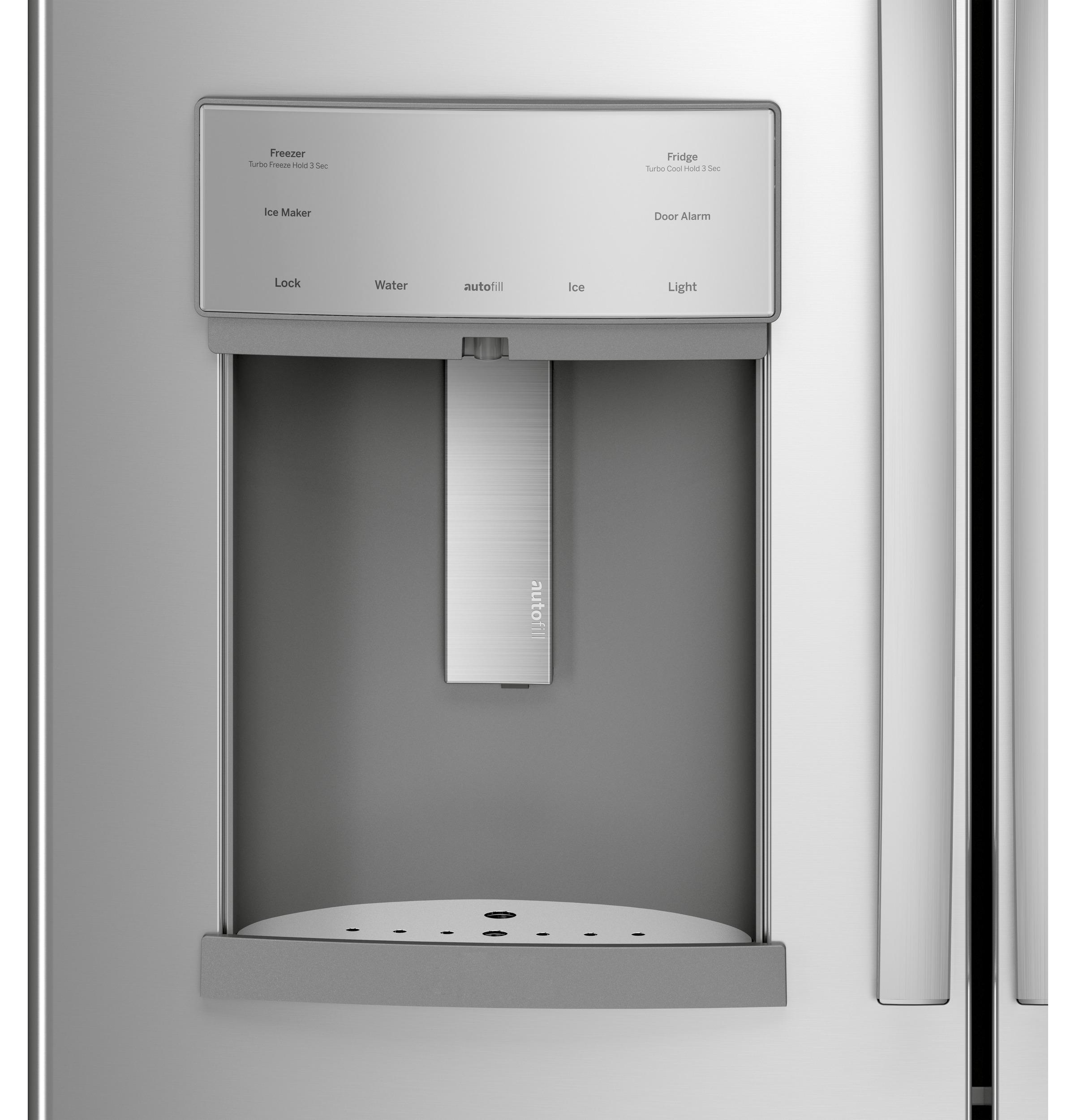

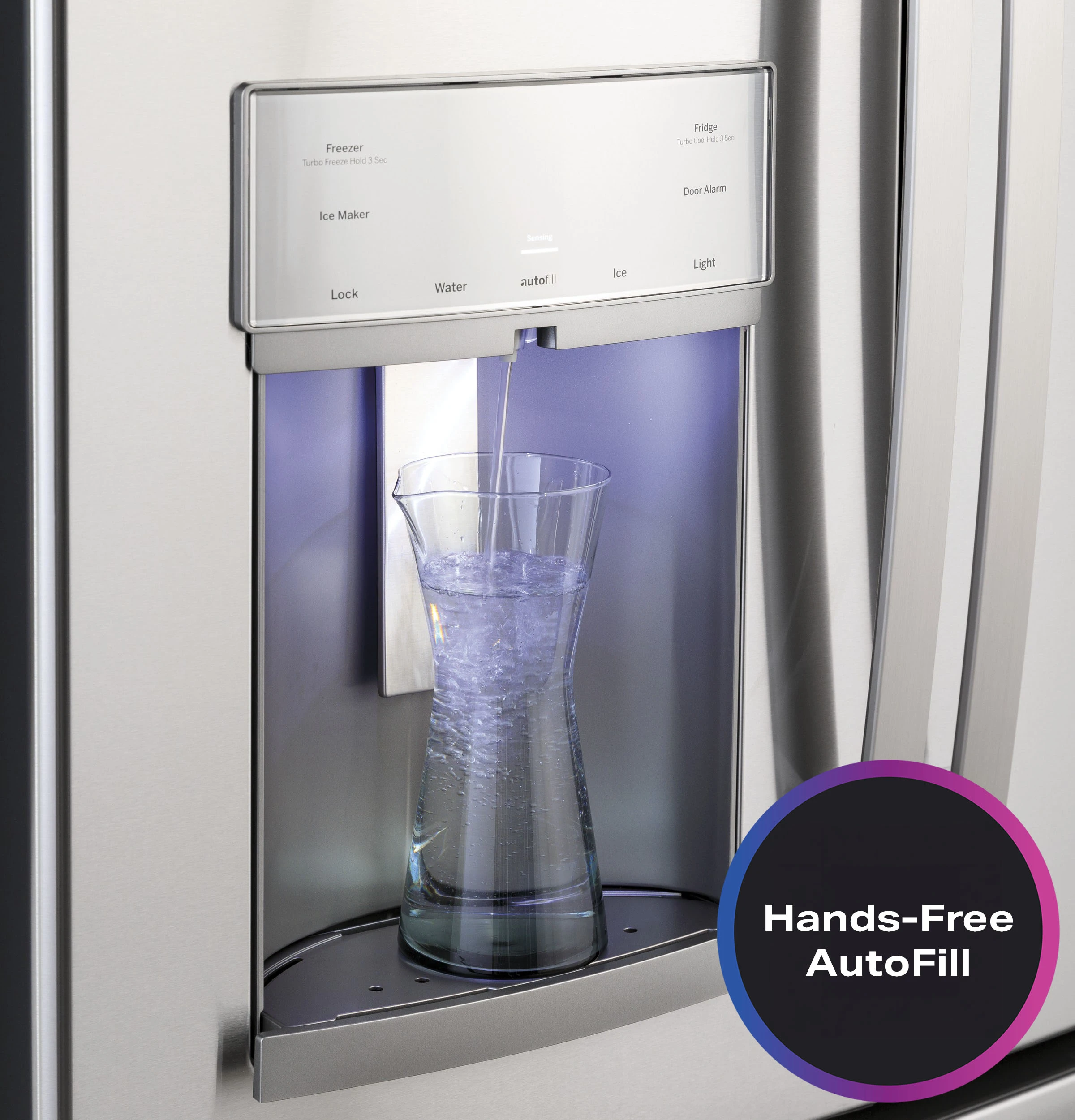

Lets you walk away while the dispenser automatically fills any container with filtered water
3 accurate settings deliver the optimal temperature for your favorite foods

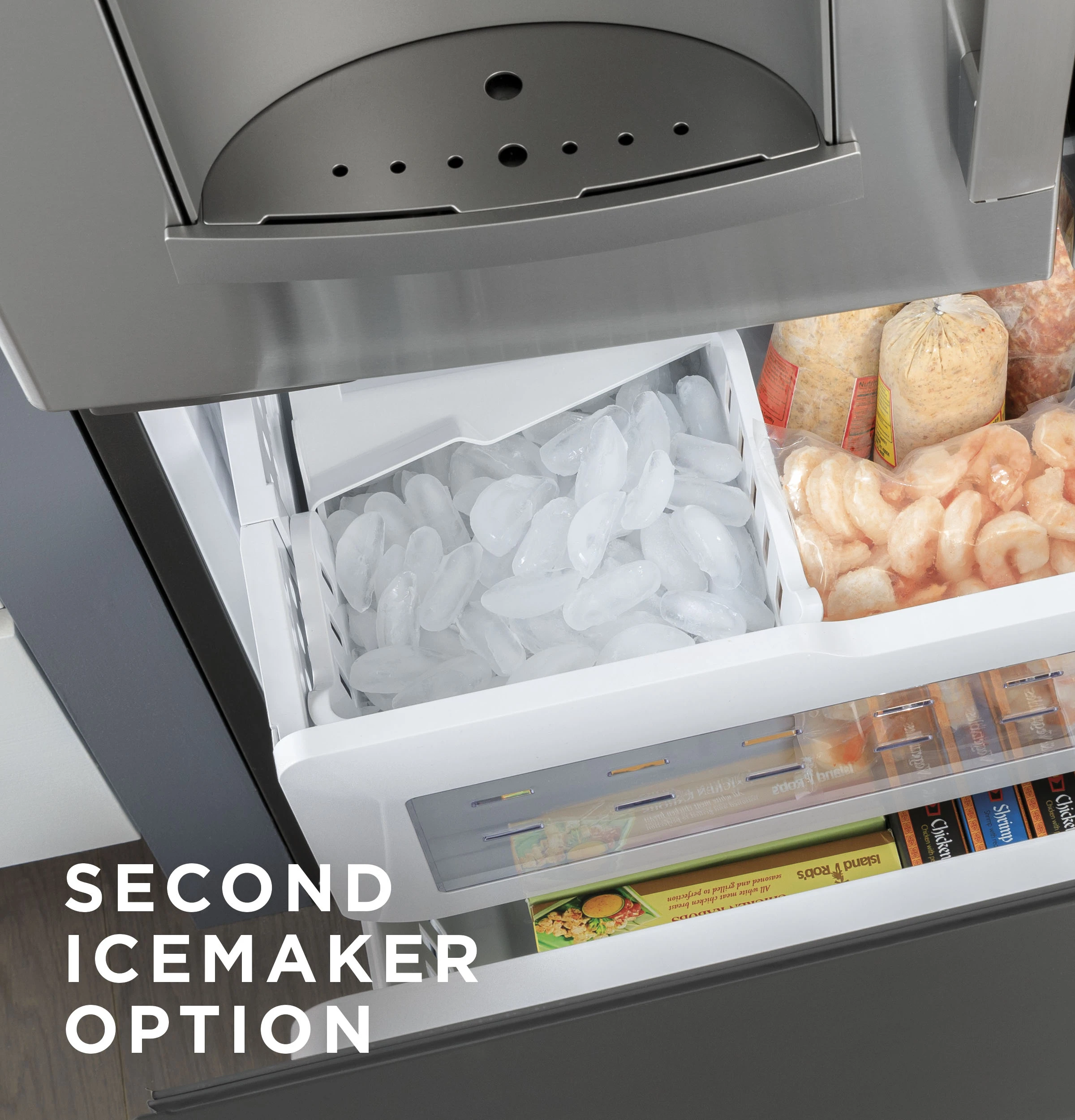

Always have extra ice on hand with an optional second icemaker in the freezer (IM5D kit sold separately)
Separate climates in the...
Easily wipe away smudges and fingerprints for a look that's always sparkling clean
Offers a built-in look by fitting nearly flush with surrounding cabinetry
Innovative door design provides quick access to family favorites, from kids' snacks to taller items, such as recorked wine bottles
Lets you walk away while the dispenser automatically fills any container with filtered water

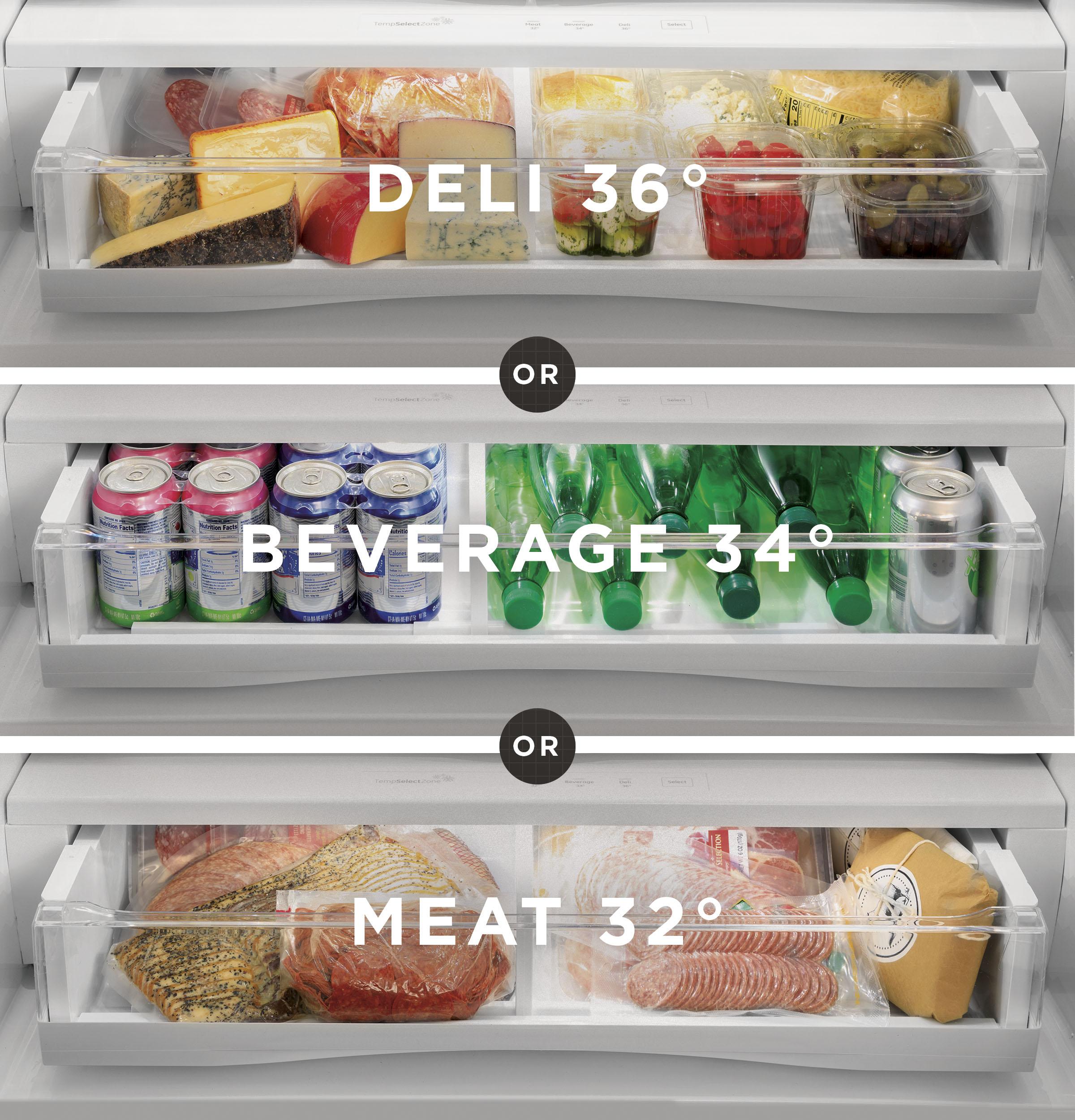

3 accurate settings deliver the optimal temperature for your favorite foods
Always have extra ice on hand with an optional second icemaker in the freezer (IM5D kit sold separately)

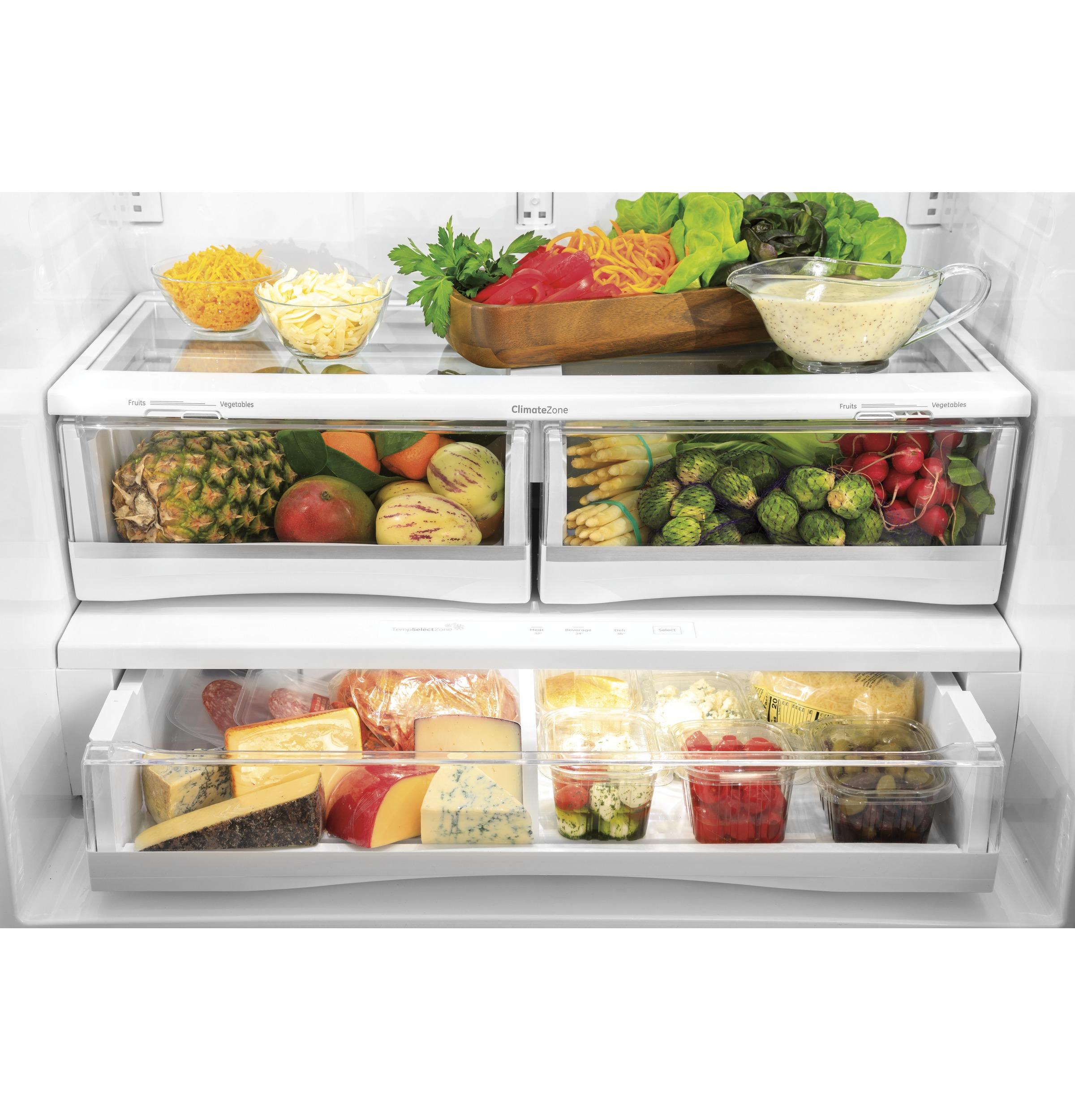

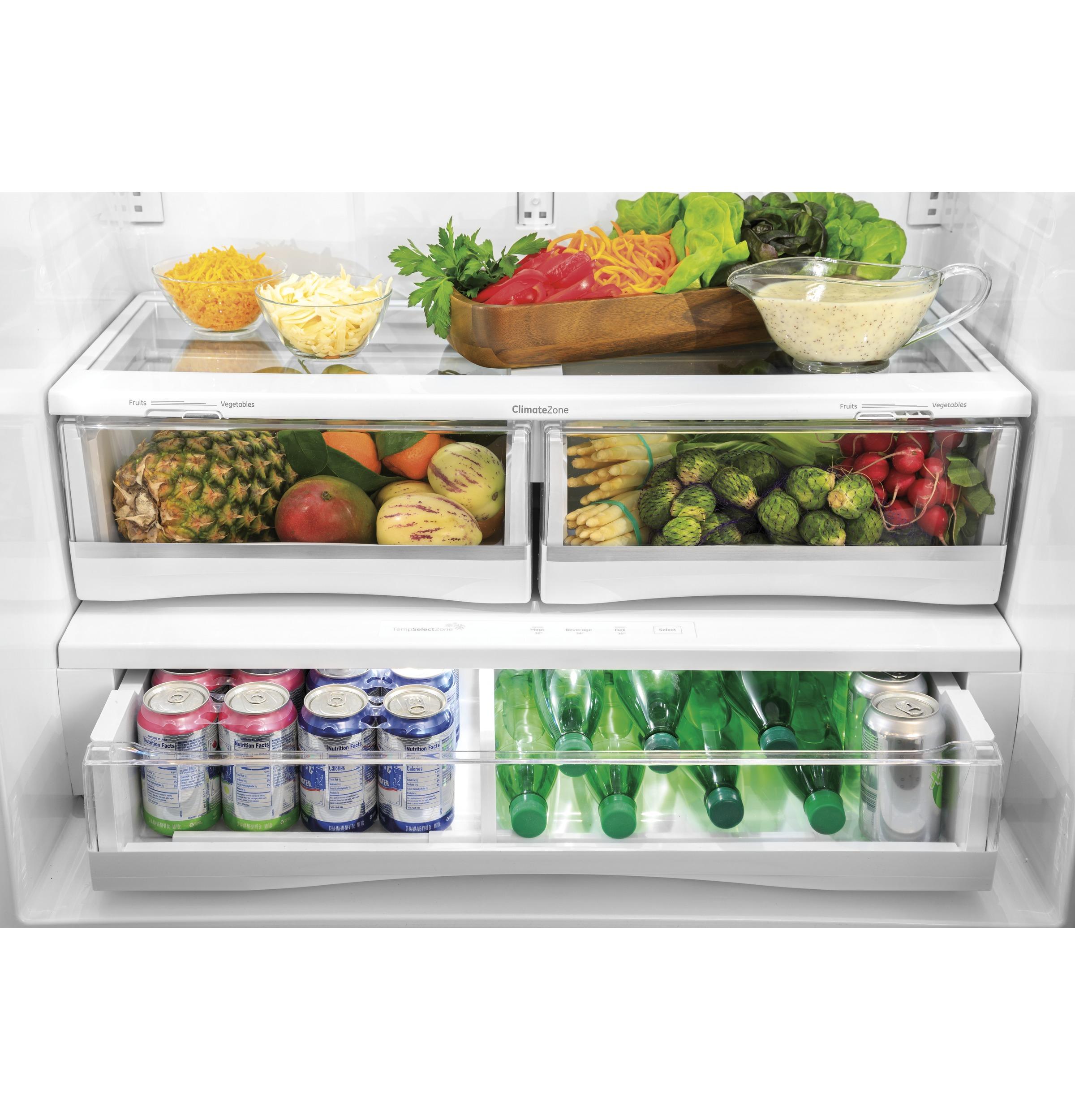

Separate climates in the fresh food and freezer sections help keep foods fresh
Reduces trace pharmaceuticals from water and ice* (* Removes 98% of ibuprofen, atenolol, fluoxetine, progesterone and trimethoprim. These pharmaceuticals are not necessarily in all users' water)
Positioned throughout the interior and under fresh food doors to spotlight foods inside the refrigerator and in the freezer

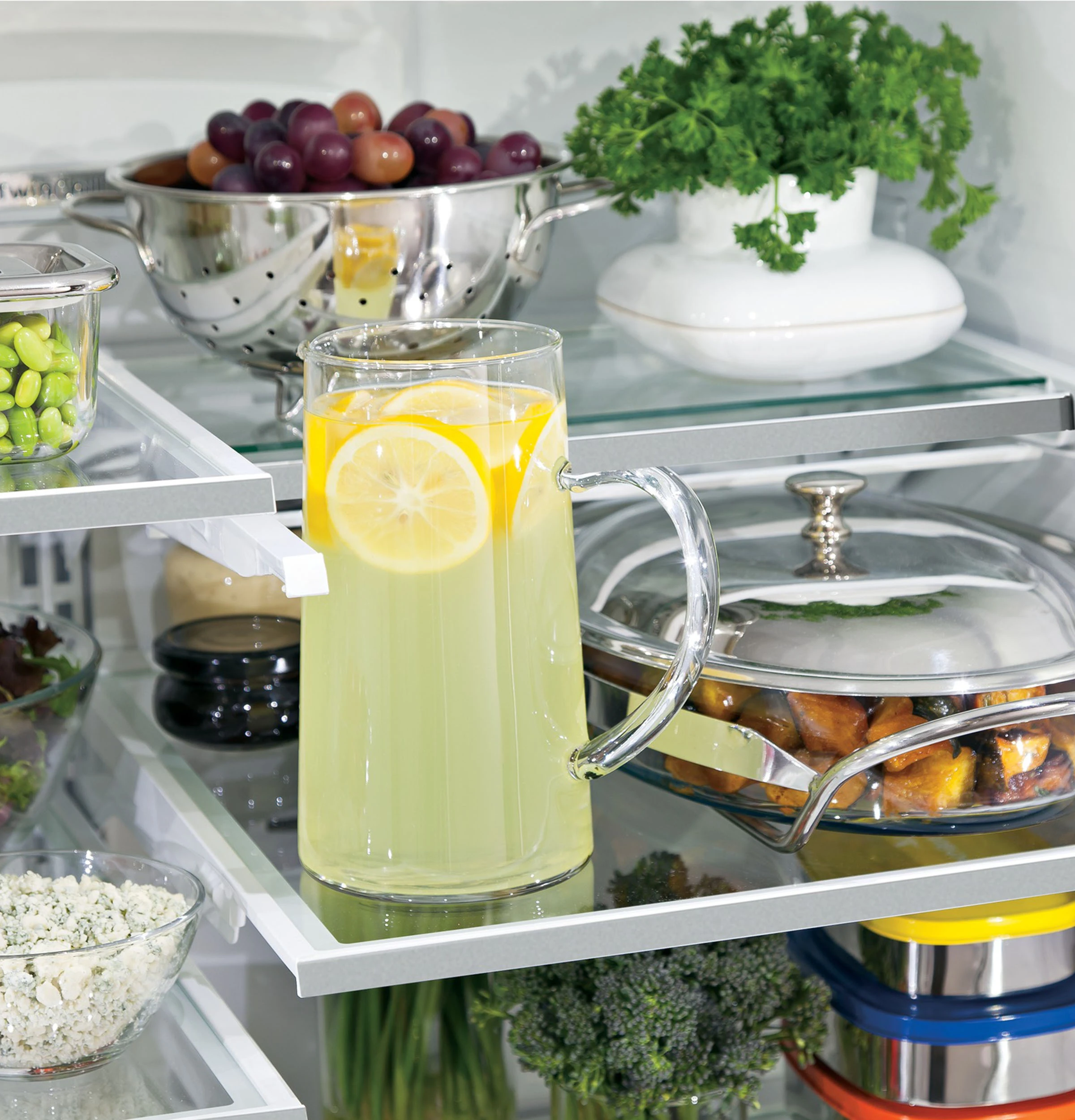

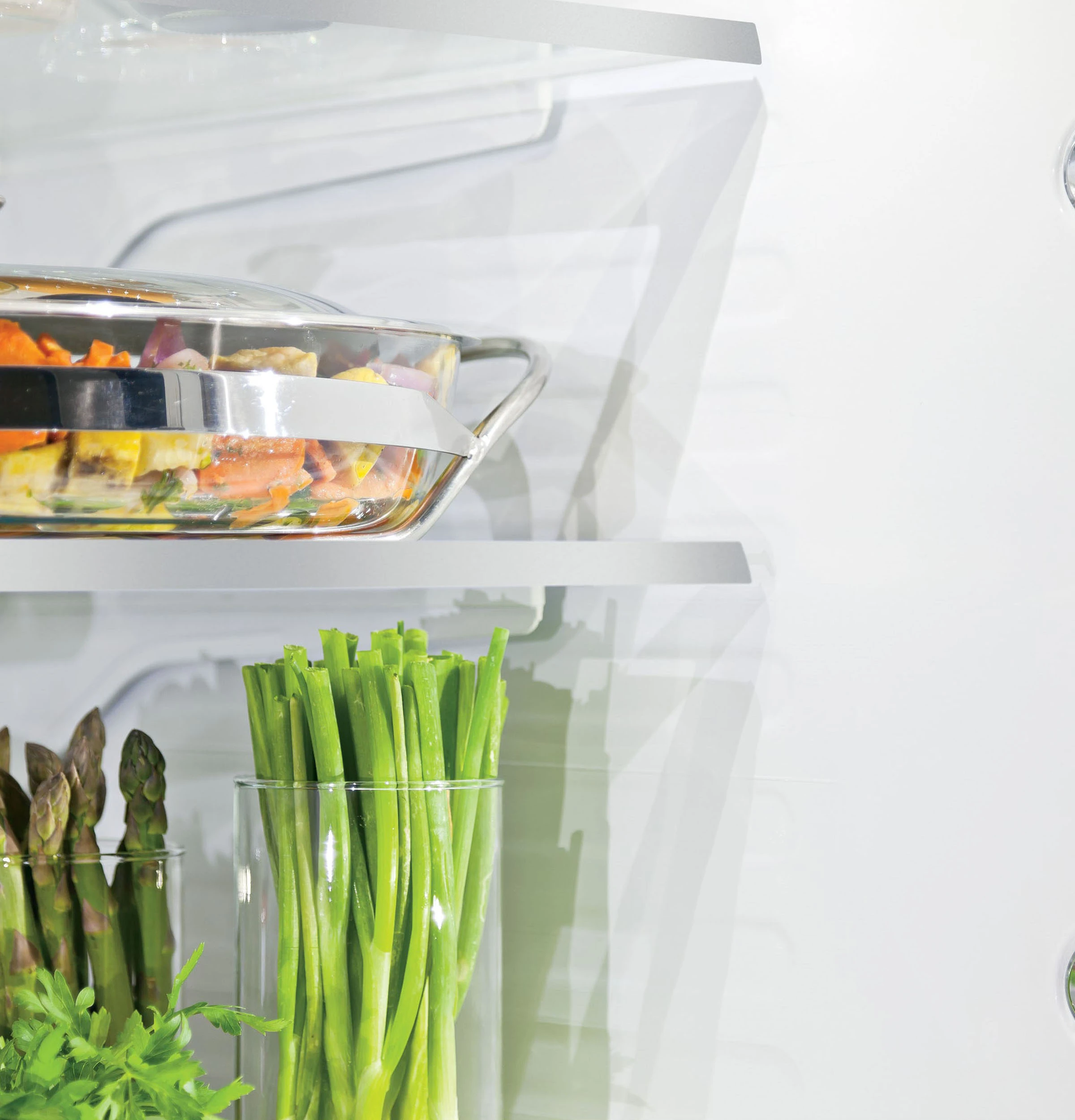

Quickly slides out of the way to make room for tall items
Allows for extra door storage when you need it and tucks away when you don't

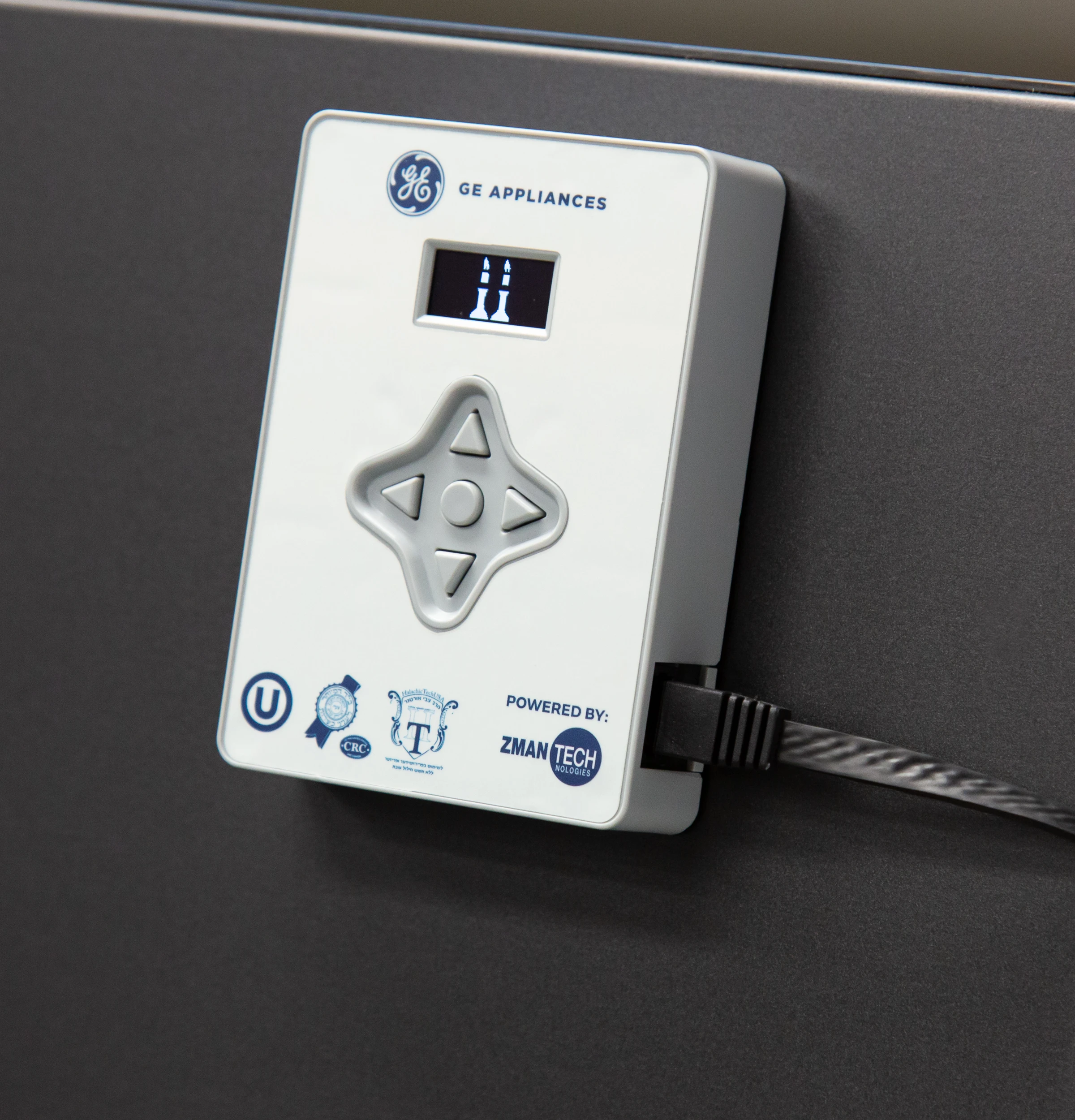

The Shabbos Keeper connects to your refrigerator to automatically enable Shabbos compatible modes each week and before every holiday (Shabbos Keeper sold separately, visit www.zmantechnologies.com for details)
CAPACITY | |
Total Capacity (cubic feet) | 22.1 |
Fresh Food Capacity | 14.89 |
Freezer Capacity | 7.18 |
FILTER | |
App Filter - Capacity | Refer Large (20-24 cu. ft.) |
App Filter - Autofill | Yes |
App Filter - Hot Water | No |
App Filter - Product Type | Refer French Door |
App Filter - Dispenser | Yes |
App Filter - Icemaker | Yes |
APPEARANCE | |
Counter-Depth Design | Yes |

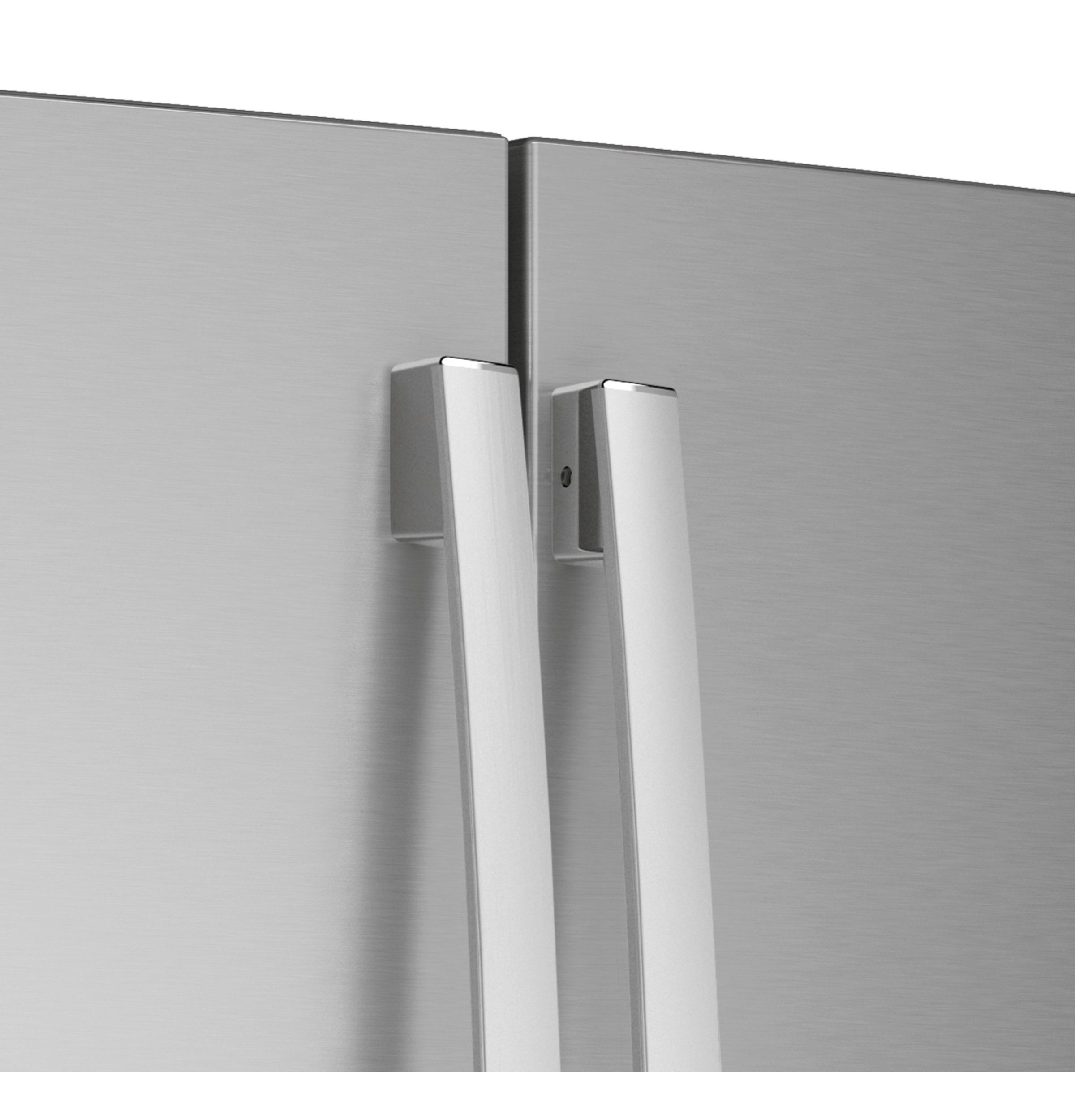

Handle Color | Stainless Steel w/Chrome |
Exterior Design | Contoured Doors |
Handle Design | Designer Style |
Hidden Door Hinge(s) | Yes |
Textured Steel Case | Case Only - Dark Gray |
Color Appearance | Fingerprint Resistant Stainless Steel |
Door Stops | Yes |
Door Swing | Hinges on Left & Right |
WARRANTY | |
Warranty Notes | See written warranty for full details |
Parts Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
POWER / RATINGS | |
Volts/Hertz/Amps | 120v; 60Hz; 15A |

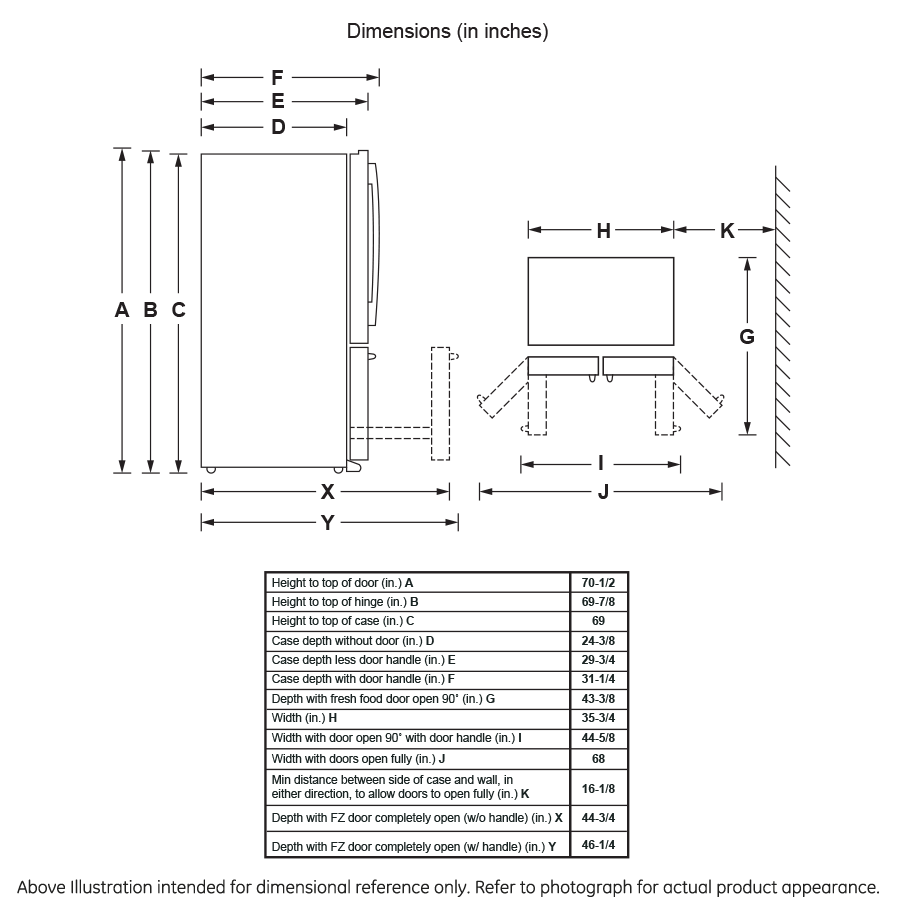

WEIGHTS & DIMENSIONS | |
Net Weight | 353.0 |
Case Depth Without Door | 24.375 |
Side Air Clearances | 0.125 |
Depth Without Handle | 29.75 |
Overall Depth | 31.25 |
Top Air Clearances | 1.0 |
Back Air Clearances | 2.0 |
Height to Top of Case | 69.0 |
Overall Width | 35.75 |
Overall Height | 69.875 |
Width w/Door Open 90 Degrees Incl. Handle | 44.625 |
Approximate Shipping Weight | 383.0 |
Depth with Door Open 90° | 43.375 |
FEATURES | |

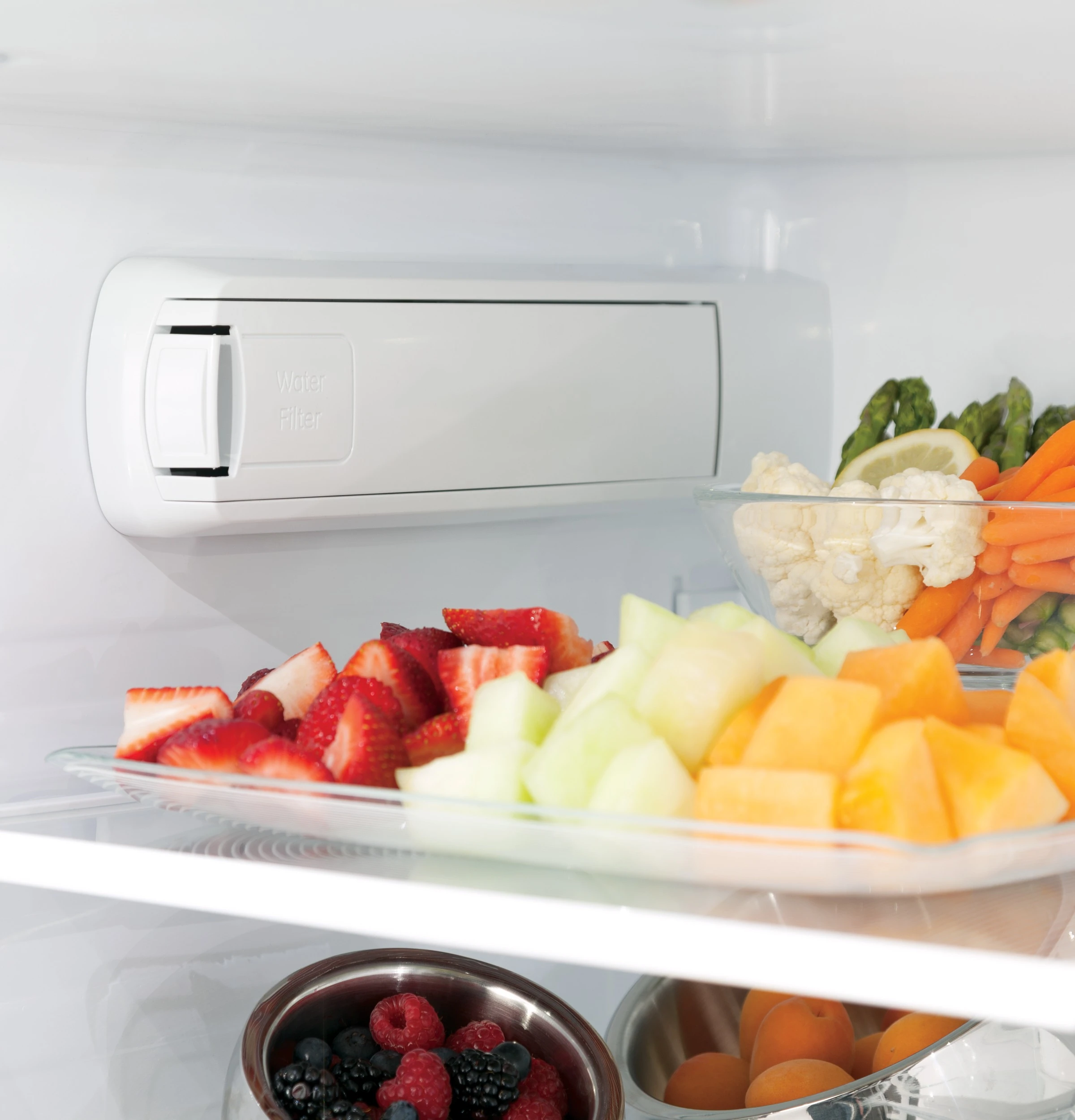

Filter Location | Left wall |
Icemaker | Optional 2nd Icemaker (IM5D) in Freezer Space Saving Ice |
Dispenser Features | Door Alarm Hands-Free AutoFill LED Dispenser Light Water Filter Indicator Light |
Fresh Food Features | Showcase LED Lighting 7 |
Sabbath Mode | Enhanced Shabbos Mode (when used with Shabbos Keeper, sold separately, visit www.zmantechnologies.com for details) |
WiFi Connect | Optional (Requires part no. PBX23W00Y0) |
Freezer Features | Interior Lighting - LED (2) Turbo Freeze |

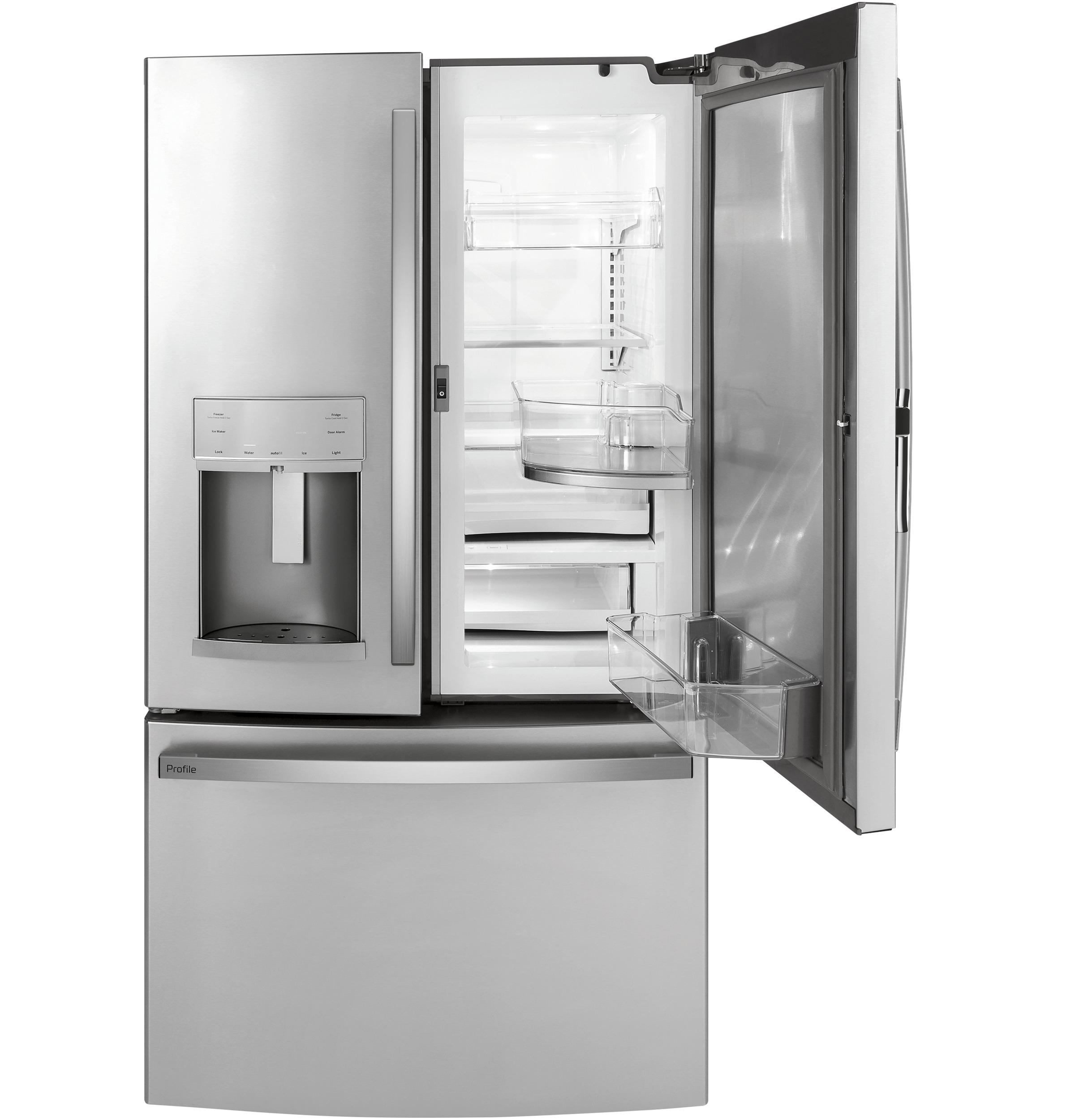

Configuration | Door in Door |

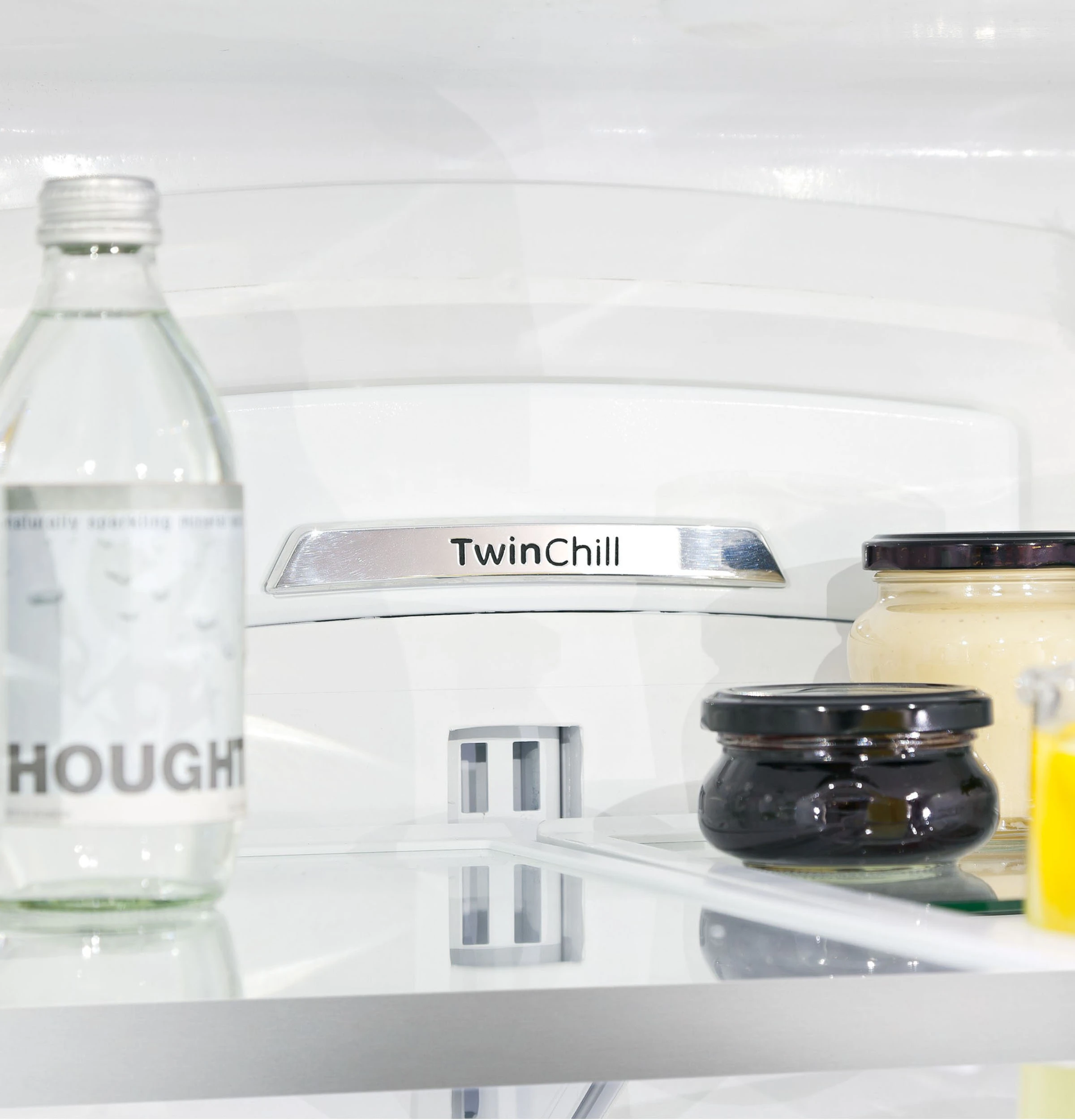

Temperature Management System | TwinChill™ Evaporators |
Leveling System | 2 Front Leveling Legs |
Temperature Management Features | Turbo Cool setting |
Defrost Type | Frost Guard |

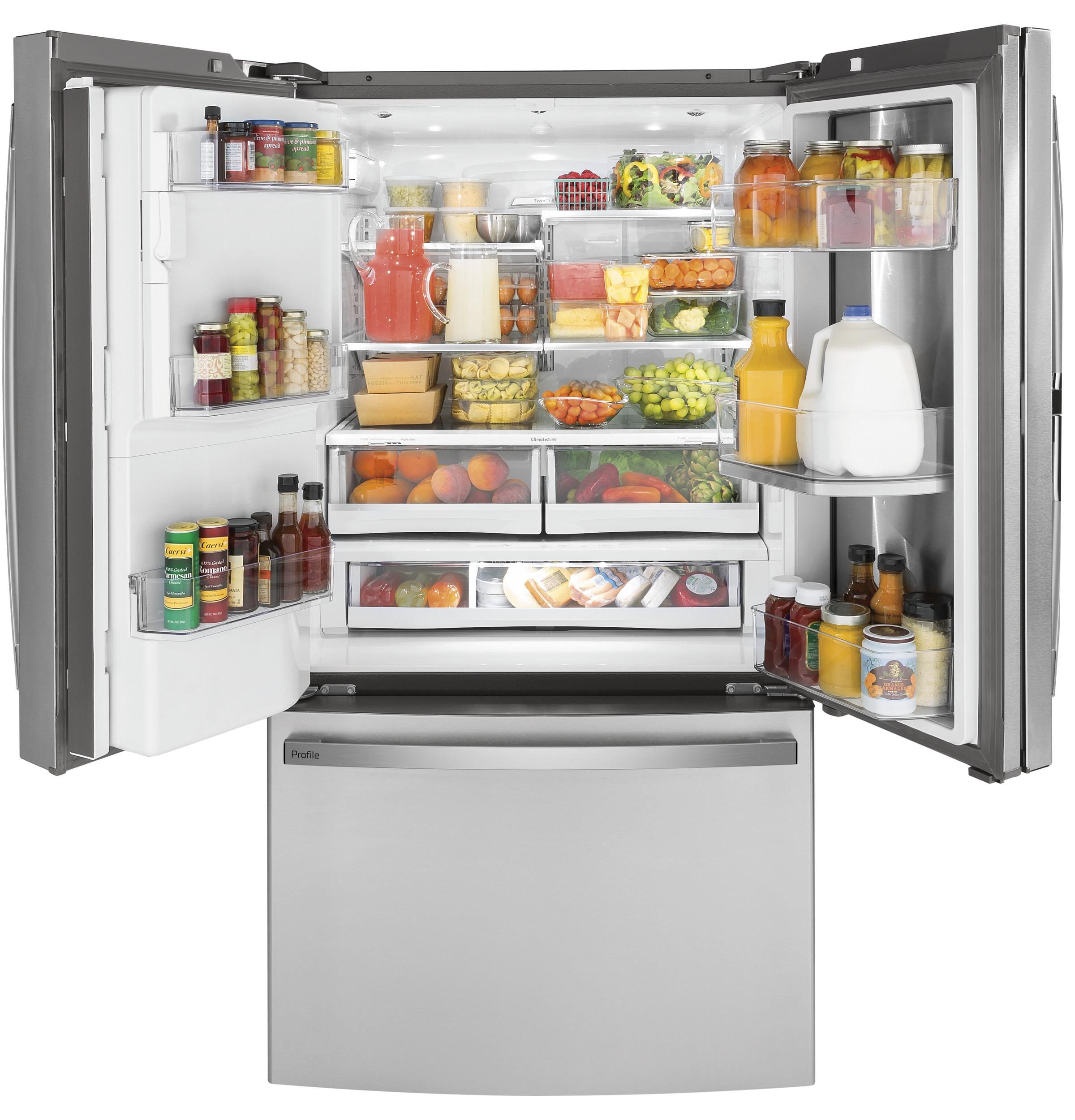

Fresh Food Cabinet Shelves | 1 Quick Space Shelf 3 Spill Proof 4 Split Adjustable; 1 Full-Width 5 Total - Glass with Silver Trim |
Control Type | External Electronic Digital Temperature Display |
Fresh Food Door Bins | 1 Rotating 6 Total |
Exterior Style | Counter-Depth |
Water Filtration | Advanced Filtration System (RPWFE) Removes Pharmaceuticals Water Filter Indicator Light |

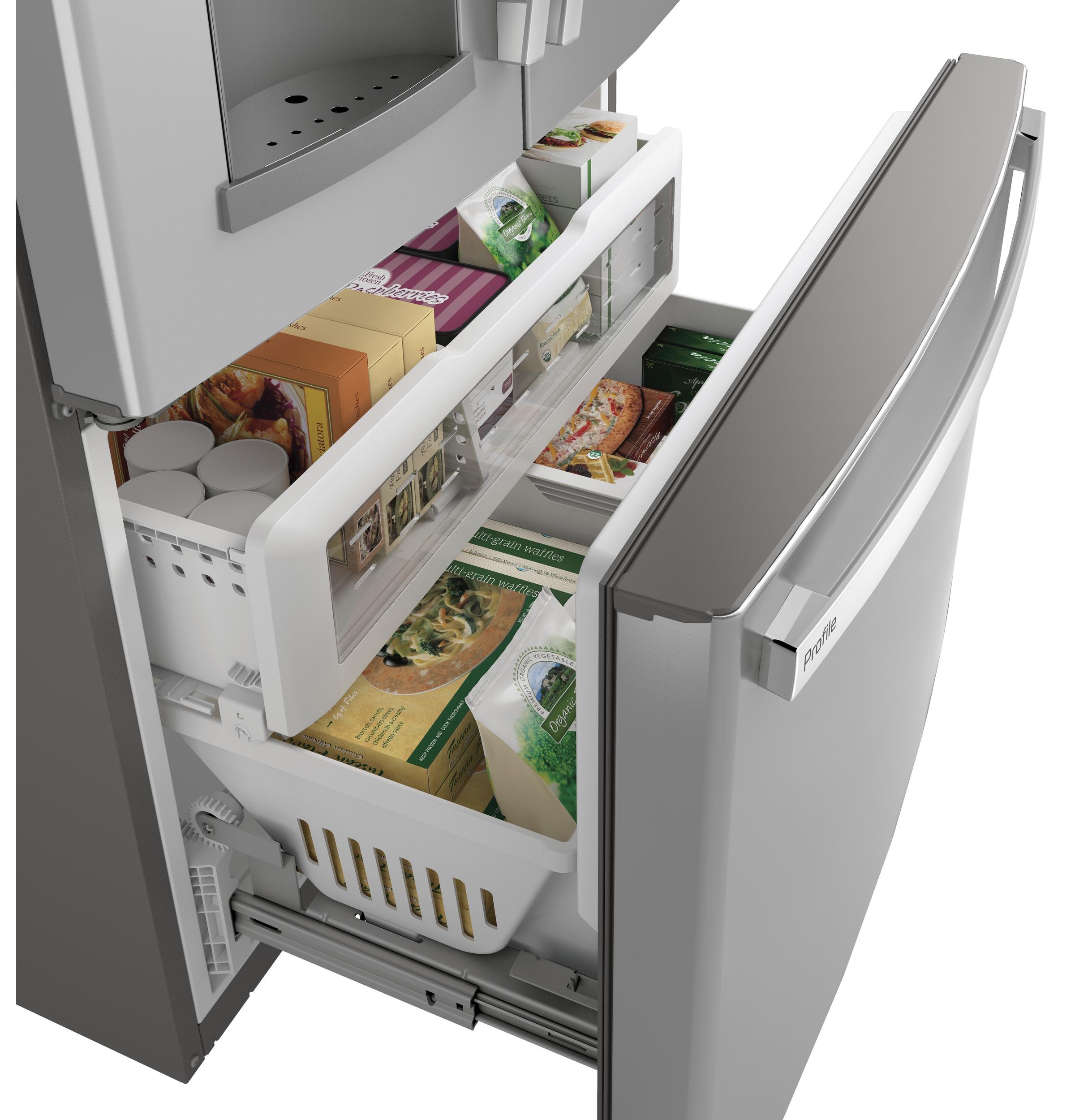

Freezer Storage Baskets | 2 Full-Width |
Product Type | Bottom Freezer Refrigerator Counter Depth Refrigerator French-Door Refrigerator |
Freezer Door Bins | 1 Total |

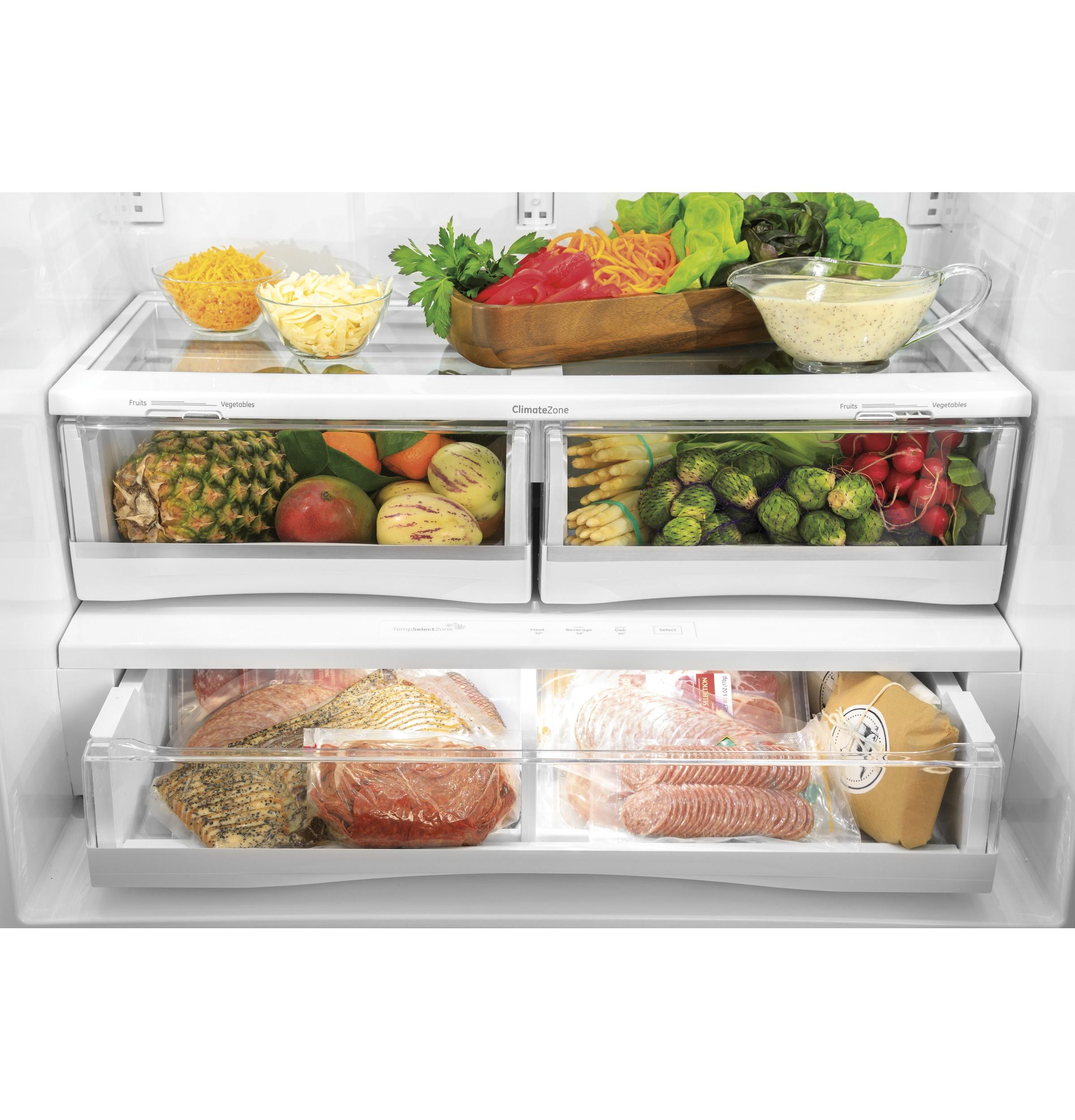

Fresh Food Cabinet Drawers | 1 Full-Width, Adjustable Temperature Drawer 2 Adjustable Humidity 3 Total Electronic Temperature Control w/ LED Lighting |
Dispenser | Cubes, Crushed Ice and Water Large Color-Matched |
Performance Features | Easily Removable Door Gaskets |
