Sale price $2,198.97 Regular price $2,798.97 Save $600.00 / 21% OFF

Product Details for GE PP9830SRSS

Technical Details

Features

Bridge Element 800W (4400W Total)
Cooktop Burner Type Ribbon
Fuel Type Electric
Element - Left Front 7" 1800W
Indicator Lights Surface Element "ON"
Element - Right Front 9"/6" 3000W Power Boil
Control Location Front Center
Cooktop Type Radiant Smoothtop
Cooktop Surface Black Patterned Glass Ceramic with Stainless Steel Trim
Cooktop Control Features Control Lock Capability
Element - Left Rear 7" 1800W
Control Type Infinite Heat Rotary
Downdraft Vent Fan Speeds 3
CFM/ Sones Rating 400/ 7.0 (High Speed)
Element - Right Rear 6" 1500W
Power Boil Burner Yes
Dual Ring Burners Yes
Product Type Cooktop
Indicator Lights 4 Hot Surface

Appearance

Frame Color / Material Stainless Steel
Color Appearance Stainless Steel
Frameless Yes

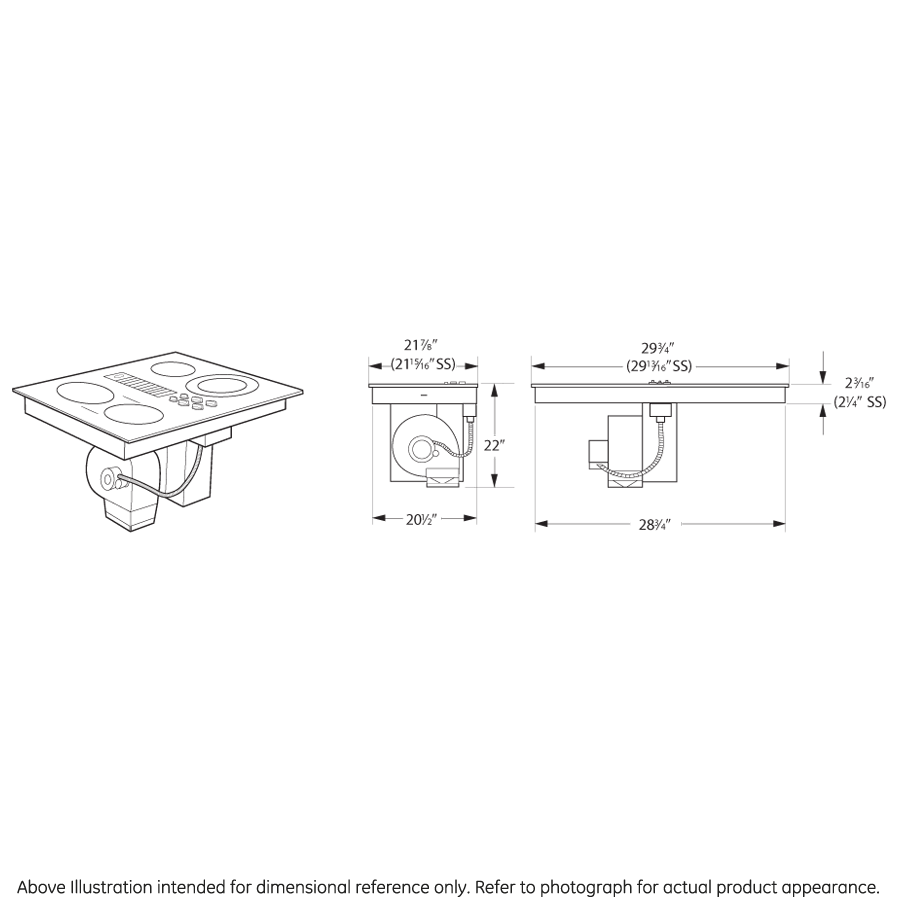

Weights & dimensions

Cooktop Size 30 in
Overall Height 21.9375 in
Cabinet Width 30 in
Approximate Shipping Weight 60 lb
Overall Width 29.875 in
Net Weight 45 lb
Overall Depth 2.5625 in
Cutout Width (in) 28.875
Cutout Height (in) 2.5625
Cutout Depth (in) 20.625

Warranty

Parts Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details
Labor Warranty Limited 1-year entire appliance

Power / ratings

KW Rating at 208V 6.9
Amp Rating at 240V 40
KW Rating at 240V 9.1
Amp Rating at 208V 40
Electrical Requirements 208/240V ; 60Hz ; 40A
Hertz 60

Accessories

Optional Accessories Alternate Installation Kit (WB01X24570)
Cooktop Cleaning WX10X10020

Warranty

Parts 1 Year
Labor 1 Year

Other

Cooktop Size 30 in

Dimensions & weight

Width 29.88 in.
Height 21.94 in.
Length 2.56 in.
Weight 45 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 34.88 in.
Shipping Height 26.94 in.
Shipping Length 7.56 in.
Shipping Weight 85 lbs.
Total of Shipping Weight 85 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 0.97 ft³
Dimensional Weight 10.12 lbs.
Total of Cubes 0.97 ft³
Total of Dimensional Weight 10.12 lbs.

Description

Cook foods quickly and evenly on this sleek, glass surface.Use different pan sizes on this single, 3,000-watt flexible element that produces rapid powerful heat.21 15/16 H x 29 7/8 W x 2 9/16 D

Key Features

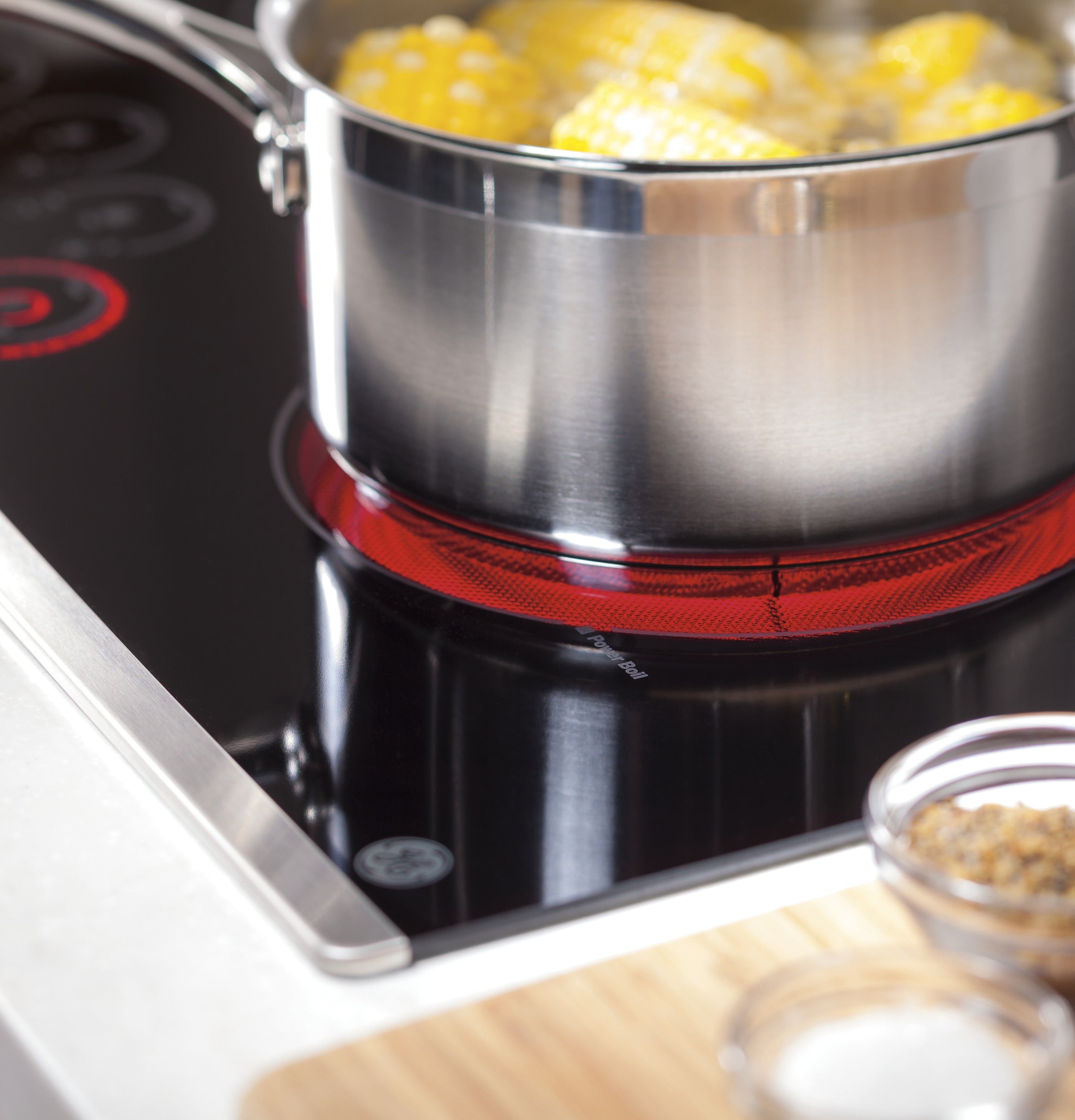

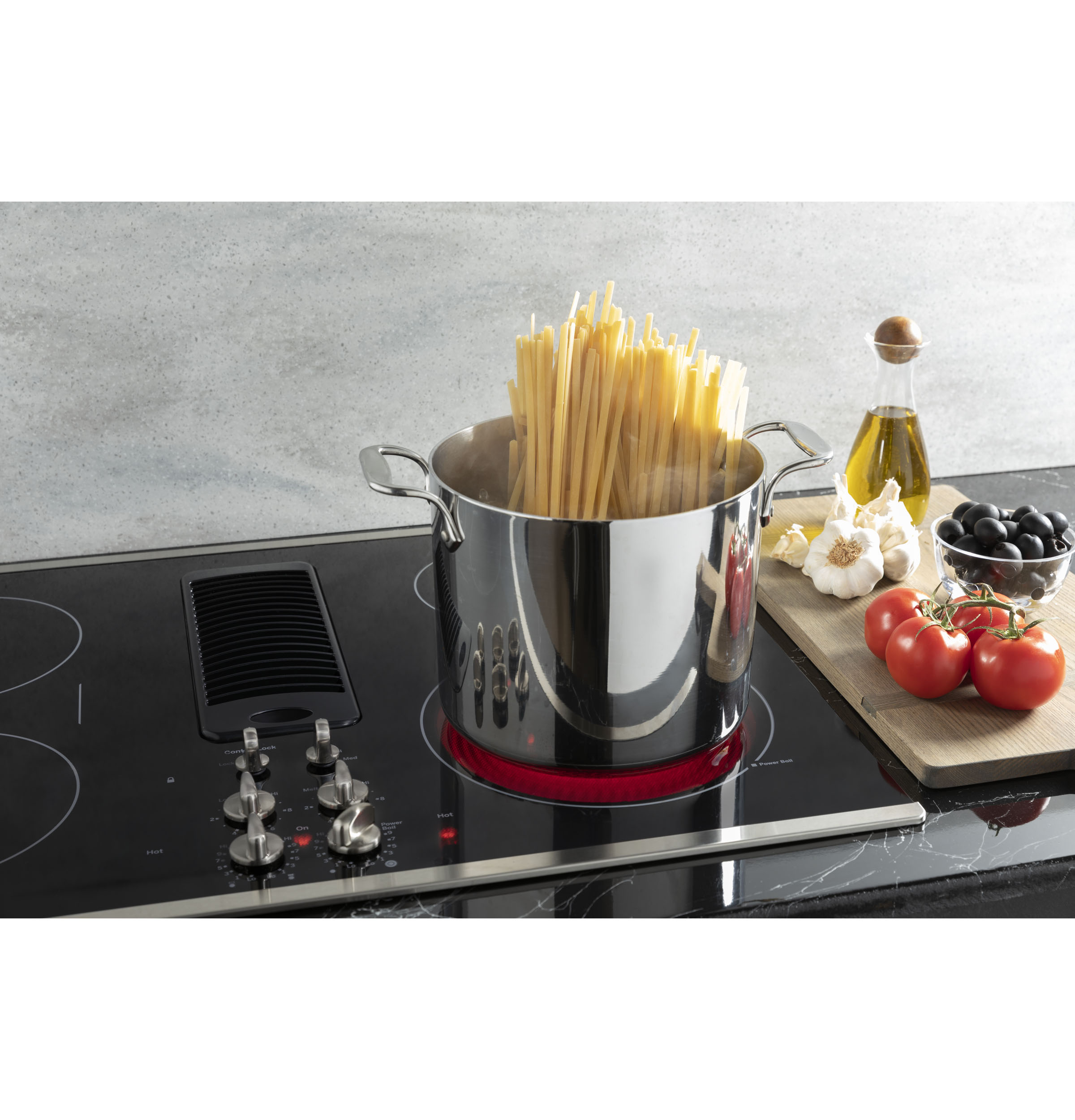

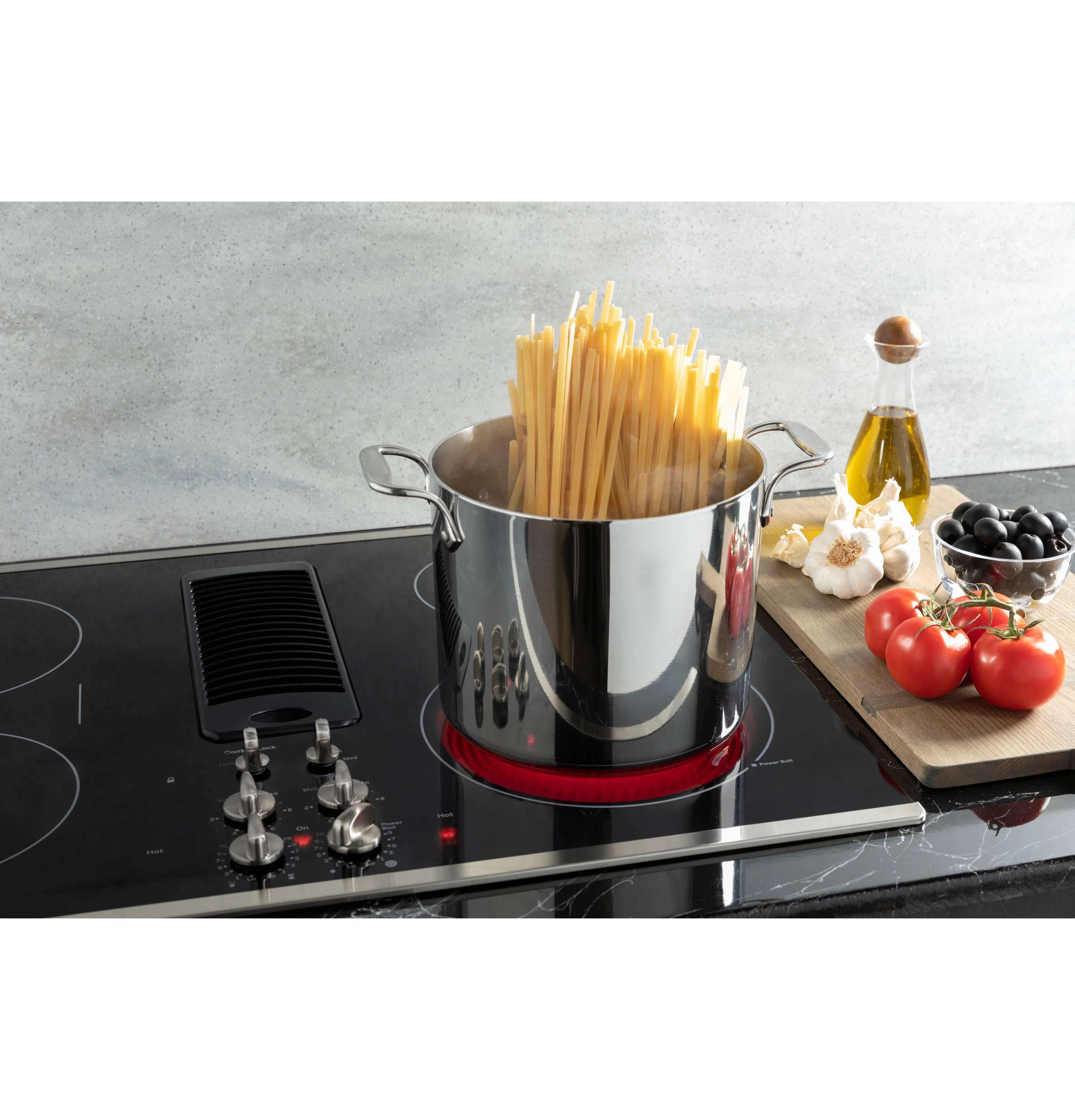

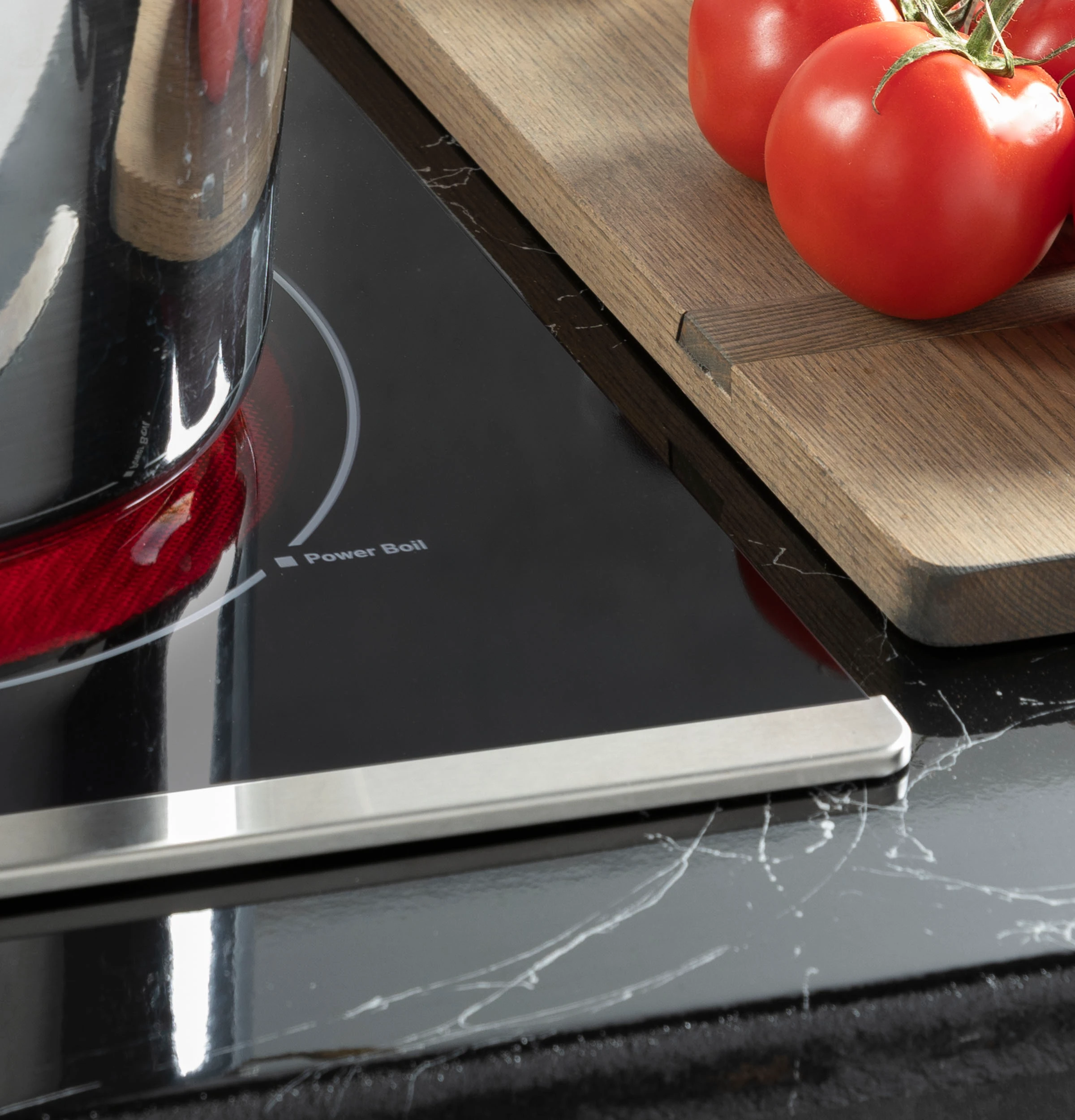

9"/6" Power Boil element

Use different pan sizes on this single, 3,000-watt flexible element that produces rapid powerful heat

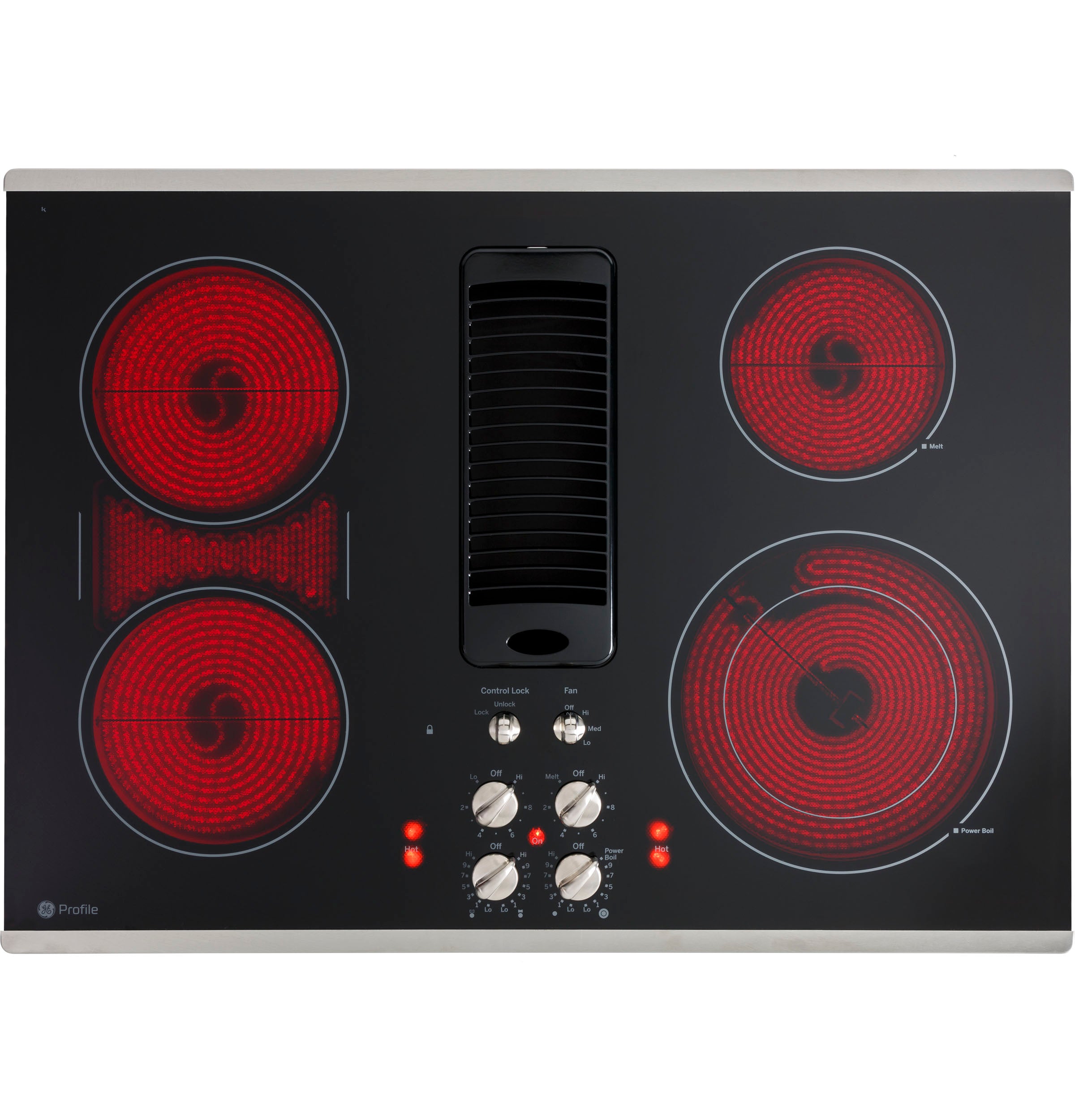

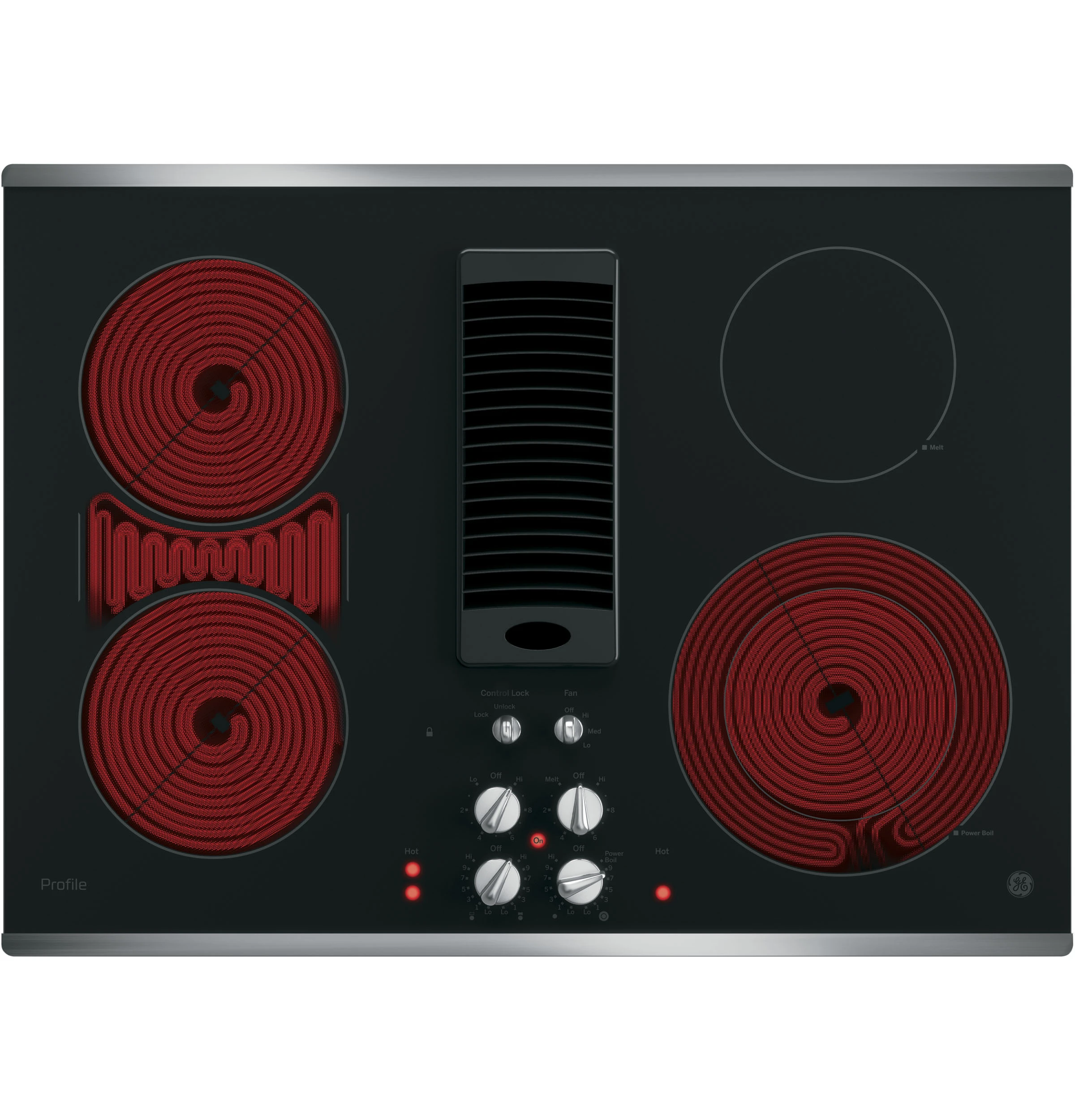

Four radiant cooking elements

Cook foods quickly and evenly on this sleek, glass surface

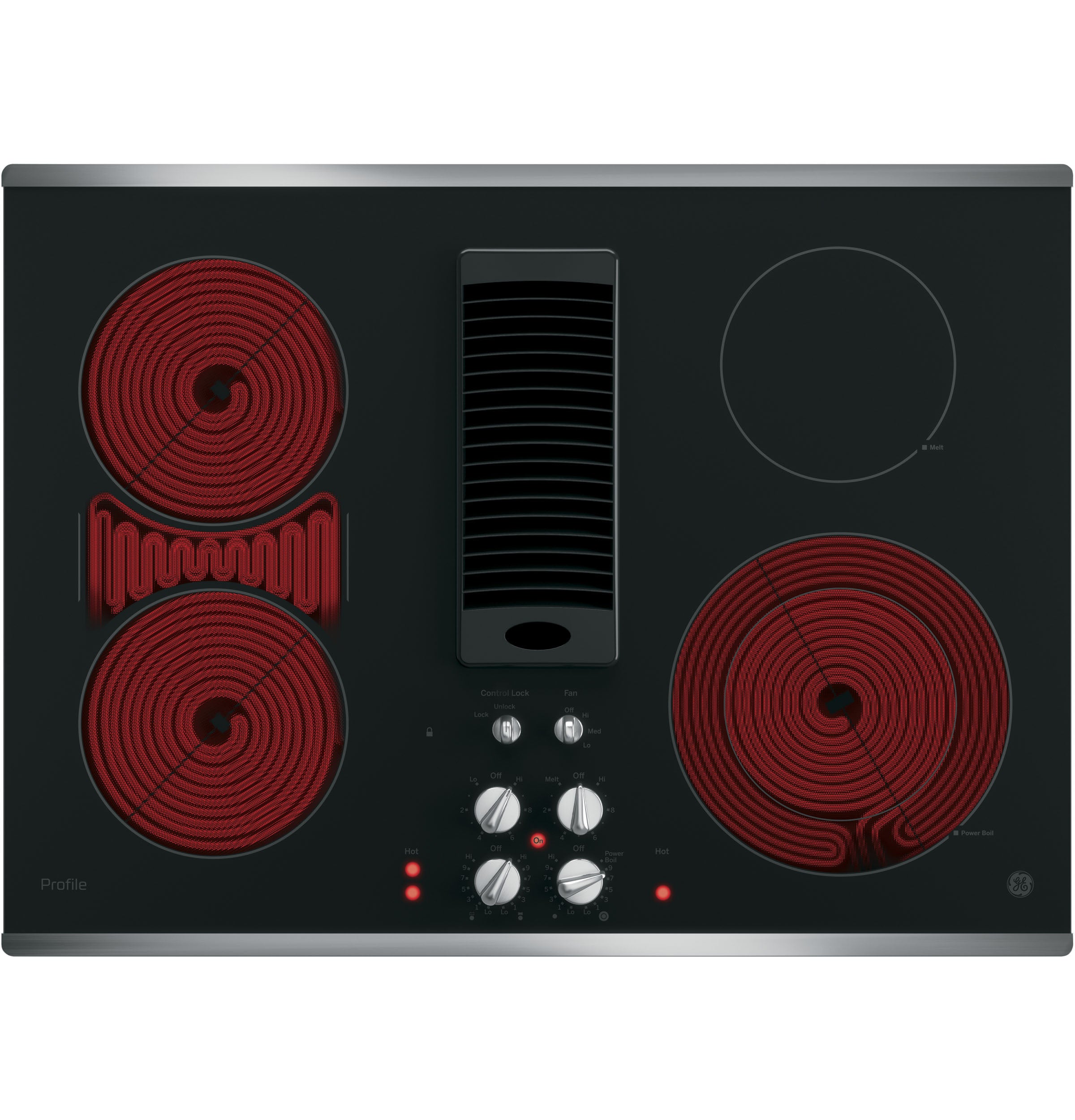

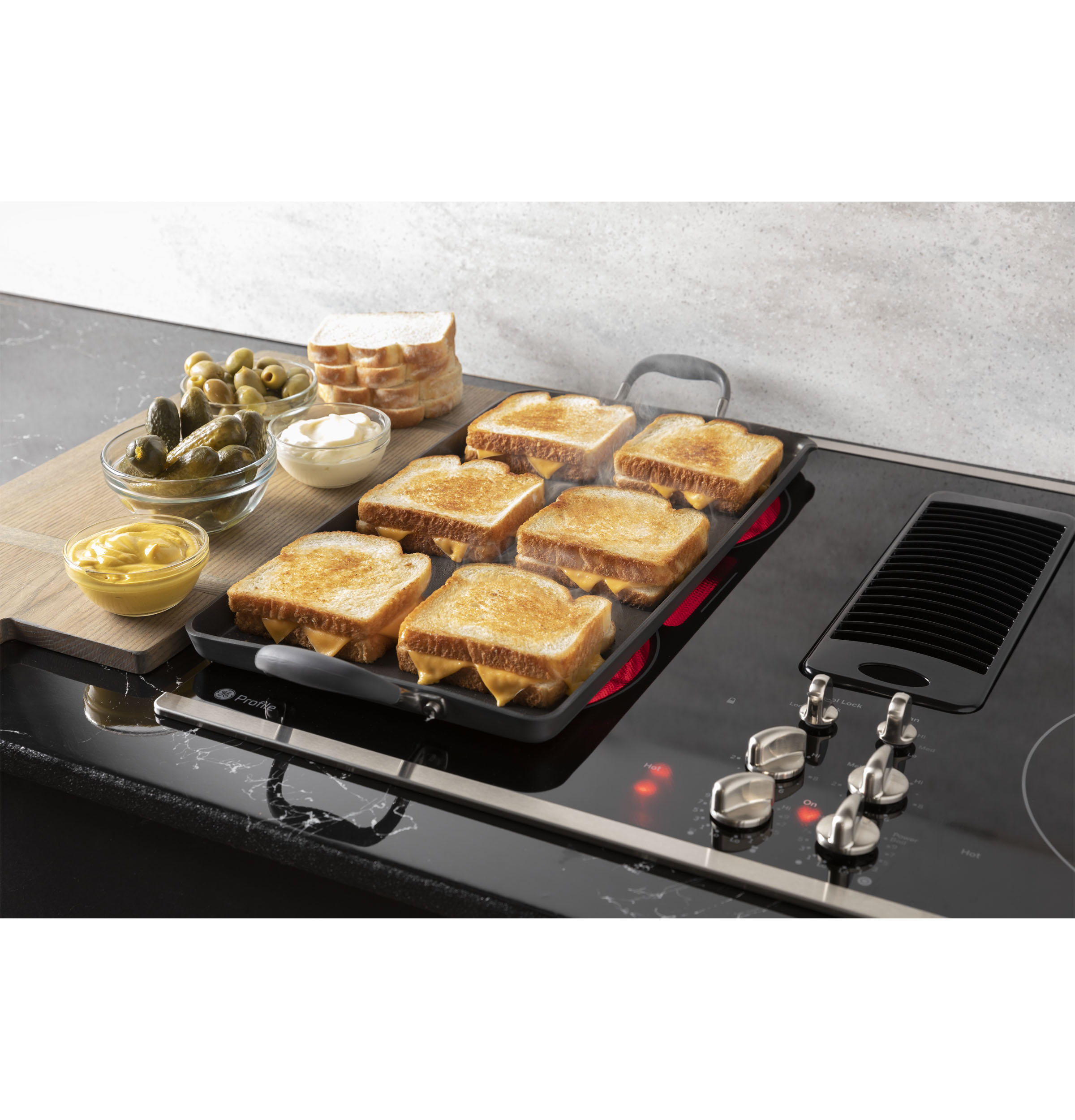

Bridge Element

Combines cooking elements into one cooking area

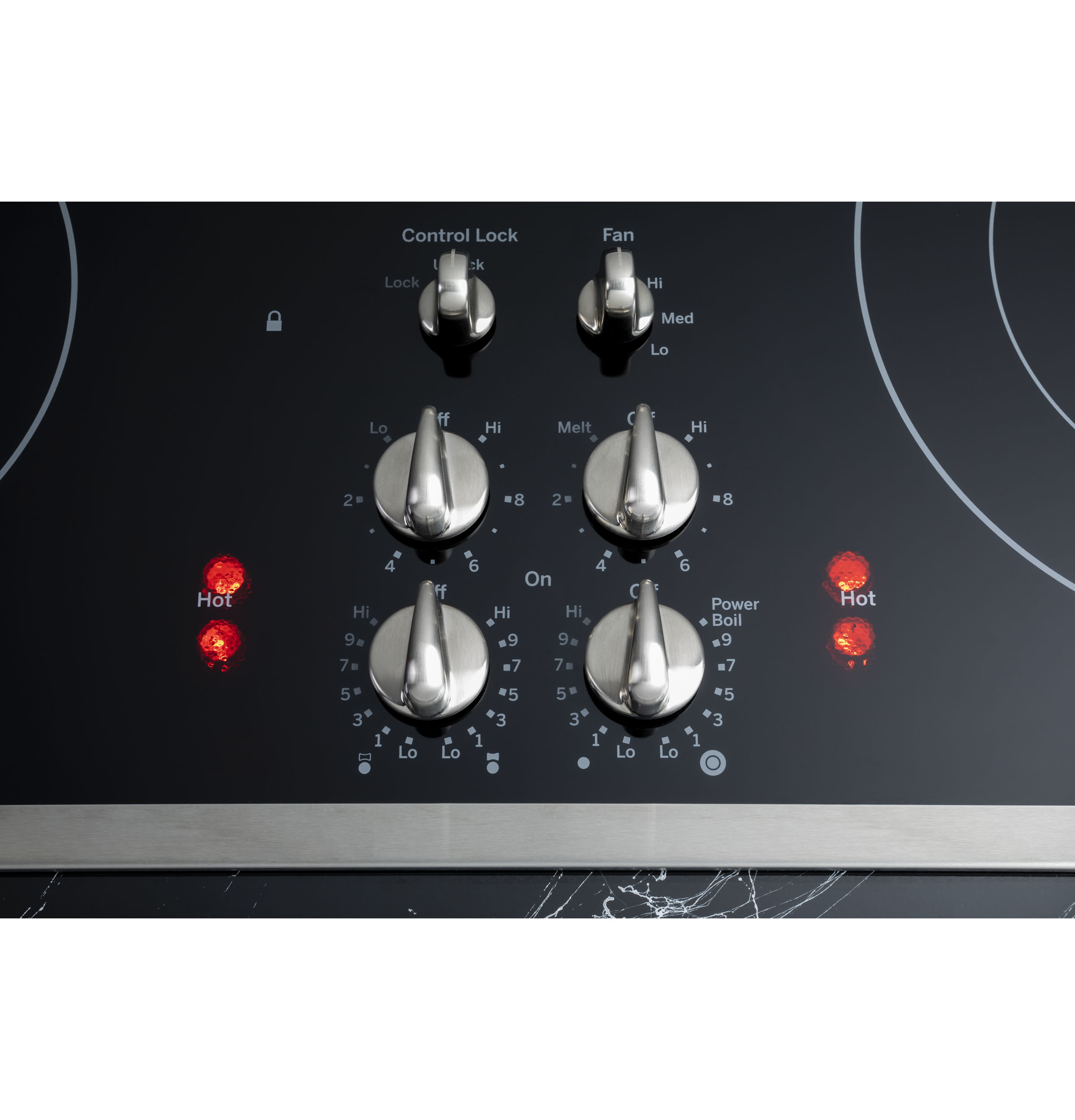

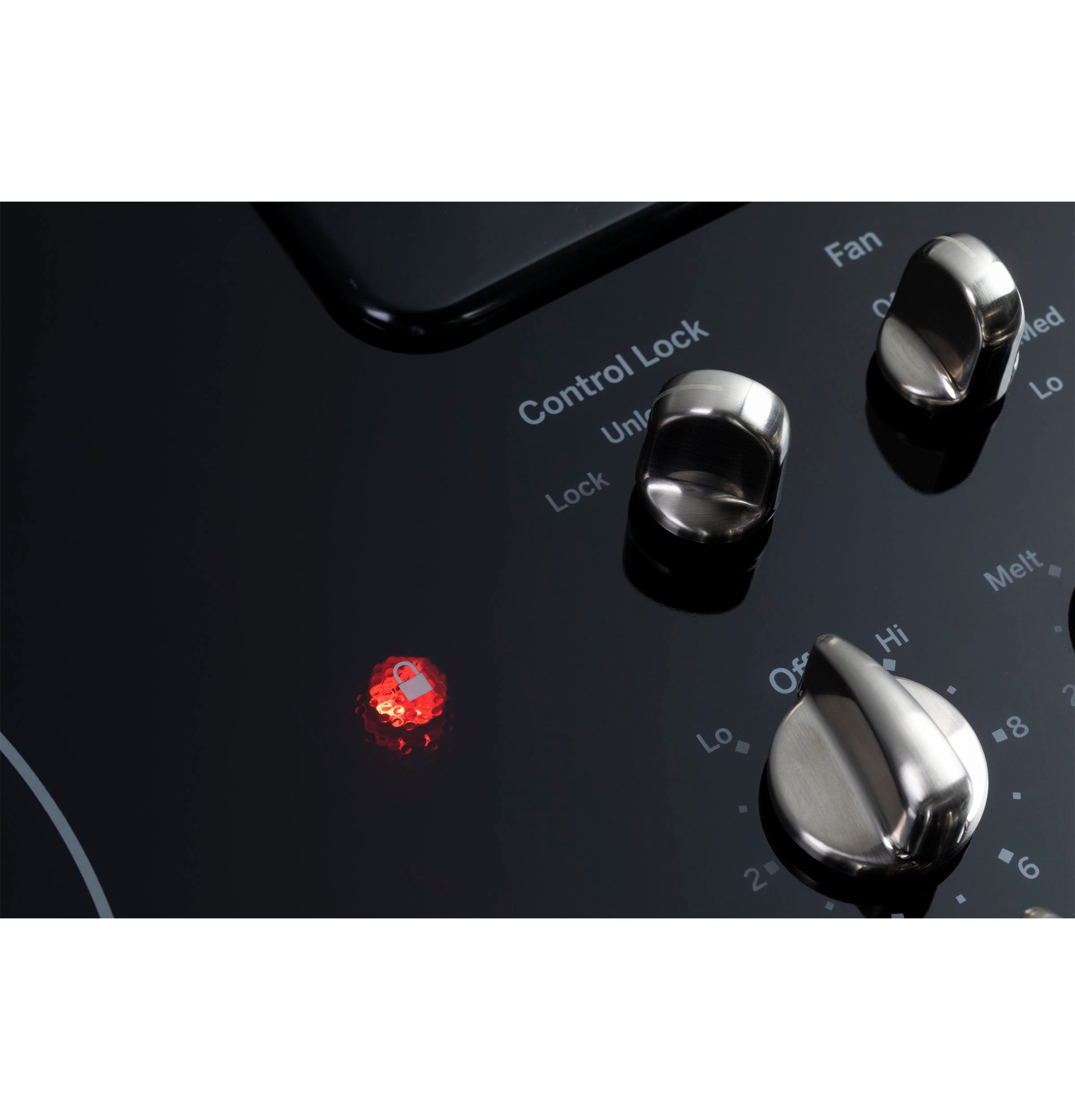

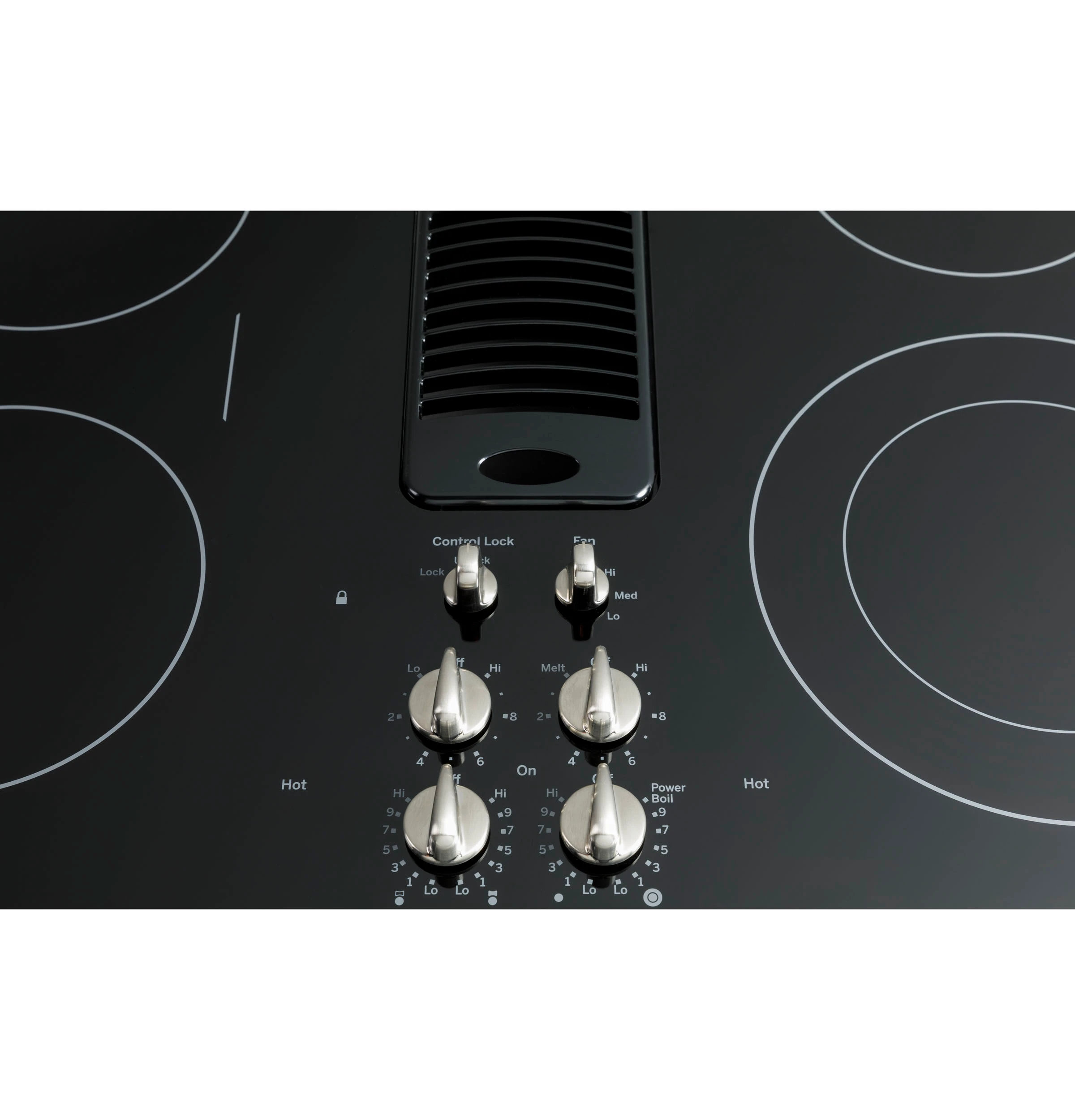

Control lock capability

Protects against unintended activation

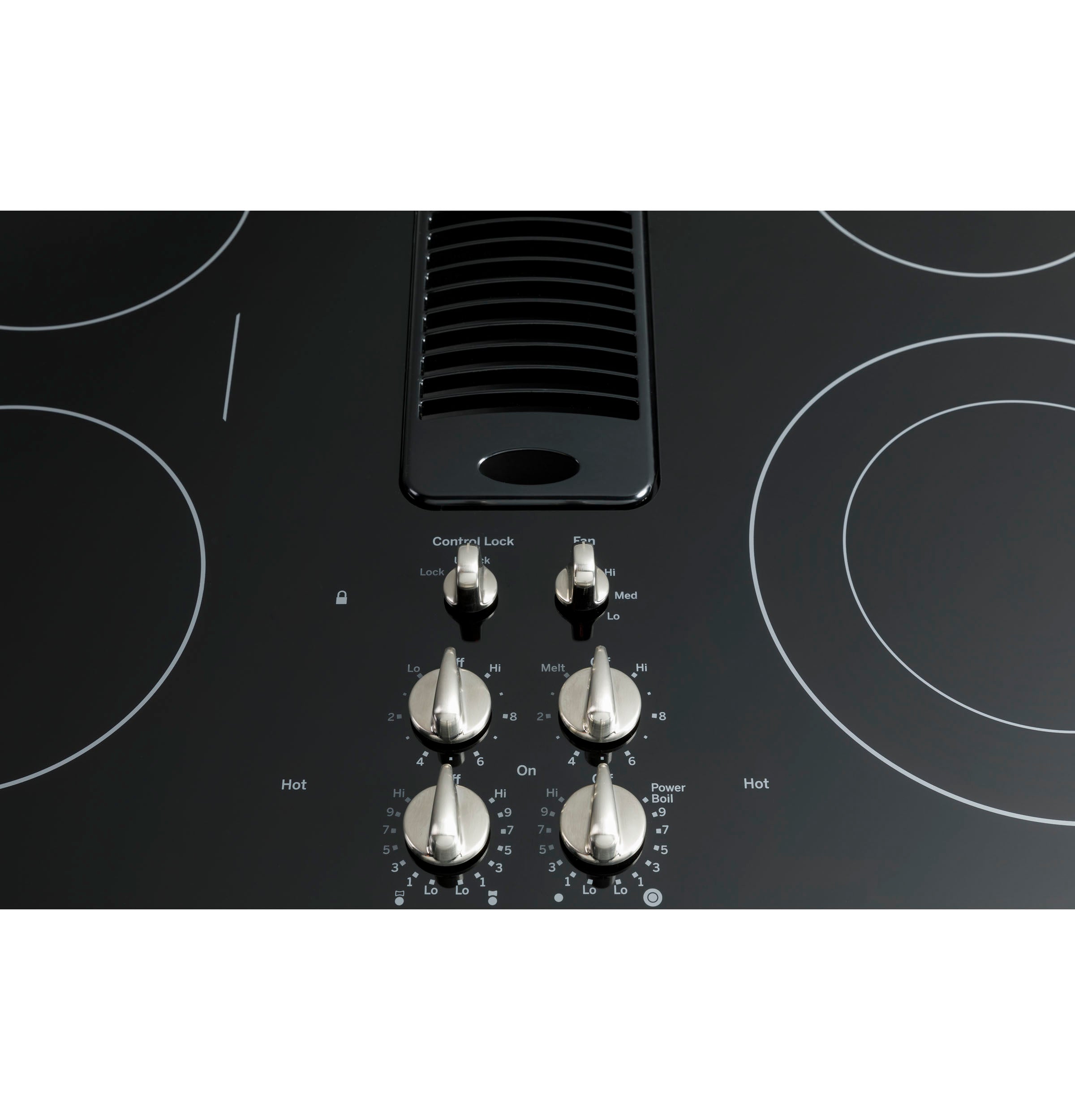

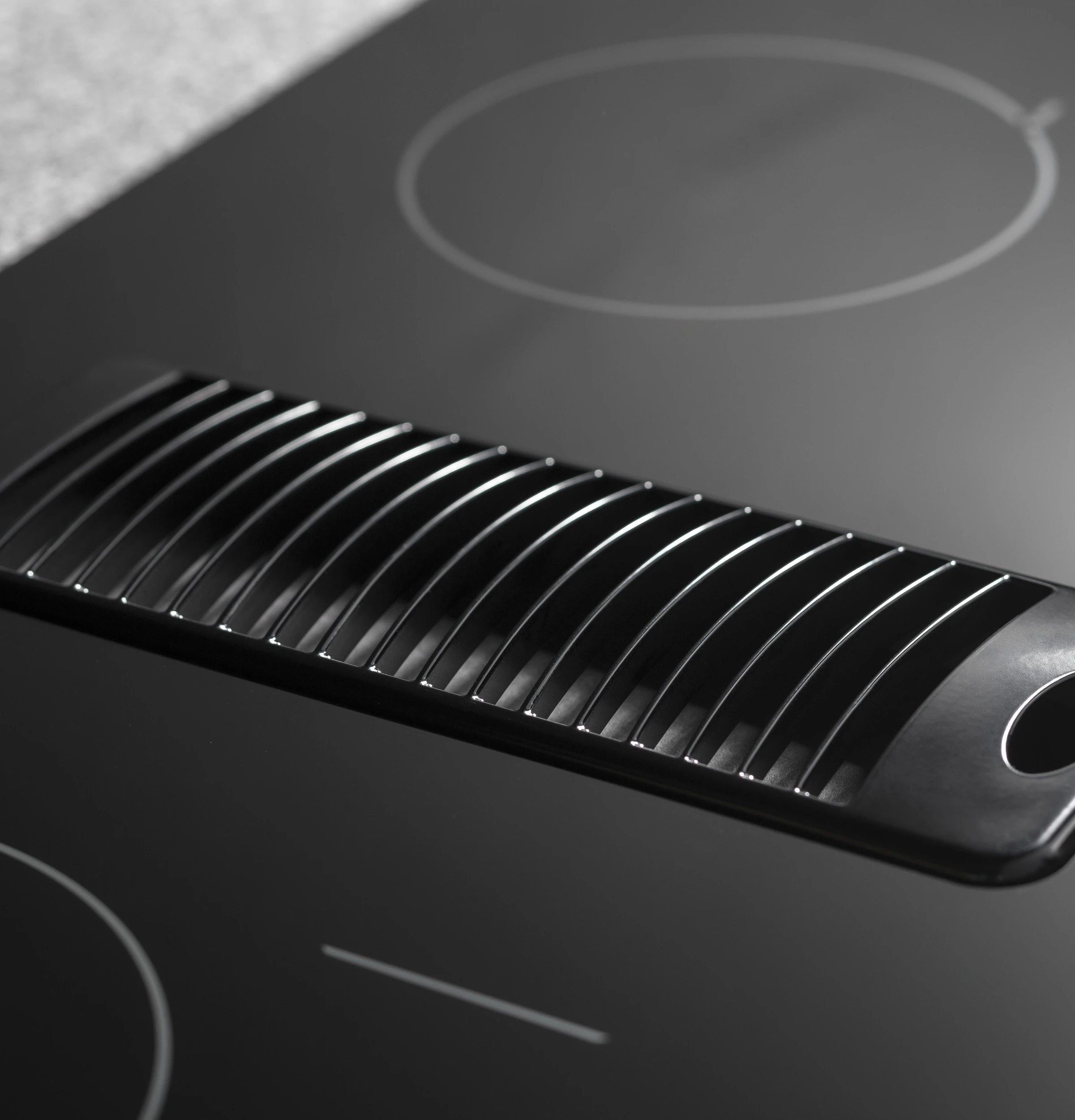

Downdraft exhaust

Powerful exhaust system effectively pulls smoke and steam out of the kitchen

Knob controls with black glass surface

Achieve a modern look with the convenience of knob controls

Hot surface indicator lights

Know when elements are too hot to touch with a quick glance

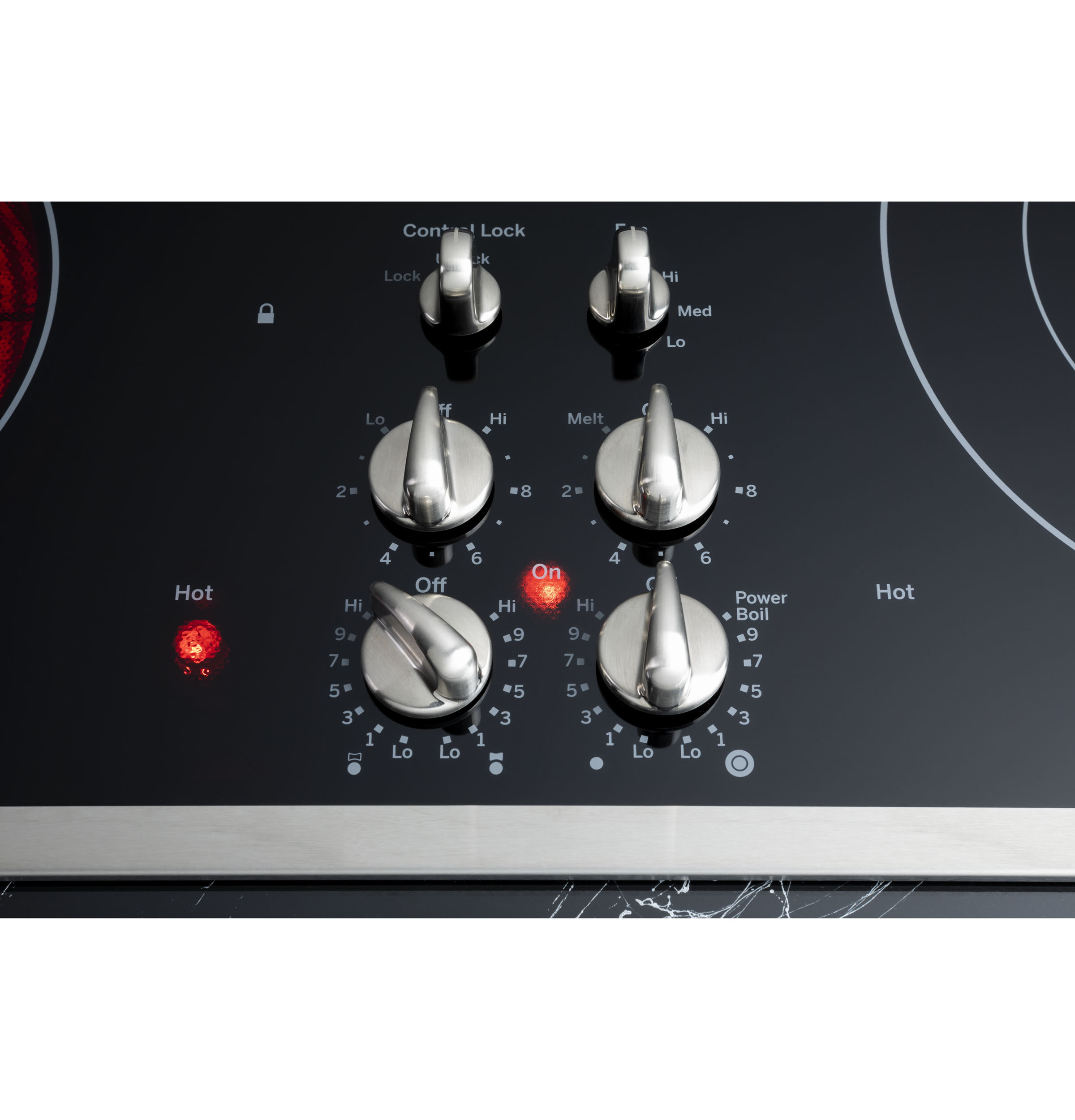

Cooktop "On" indicator light

A light lets you know when an element is active

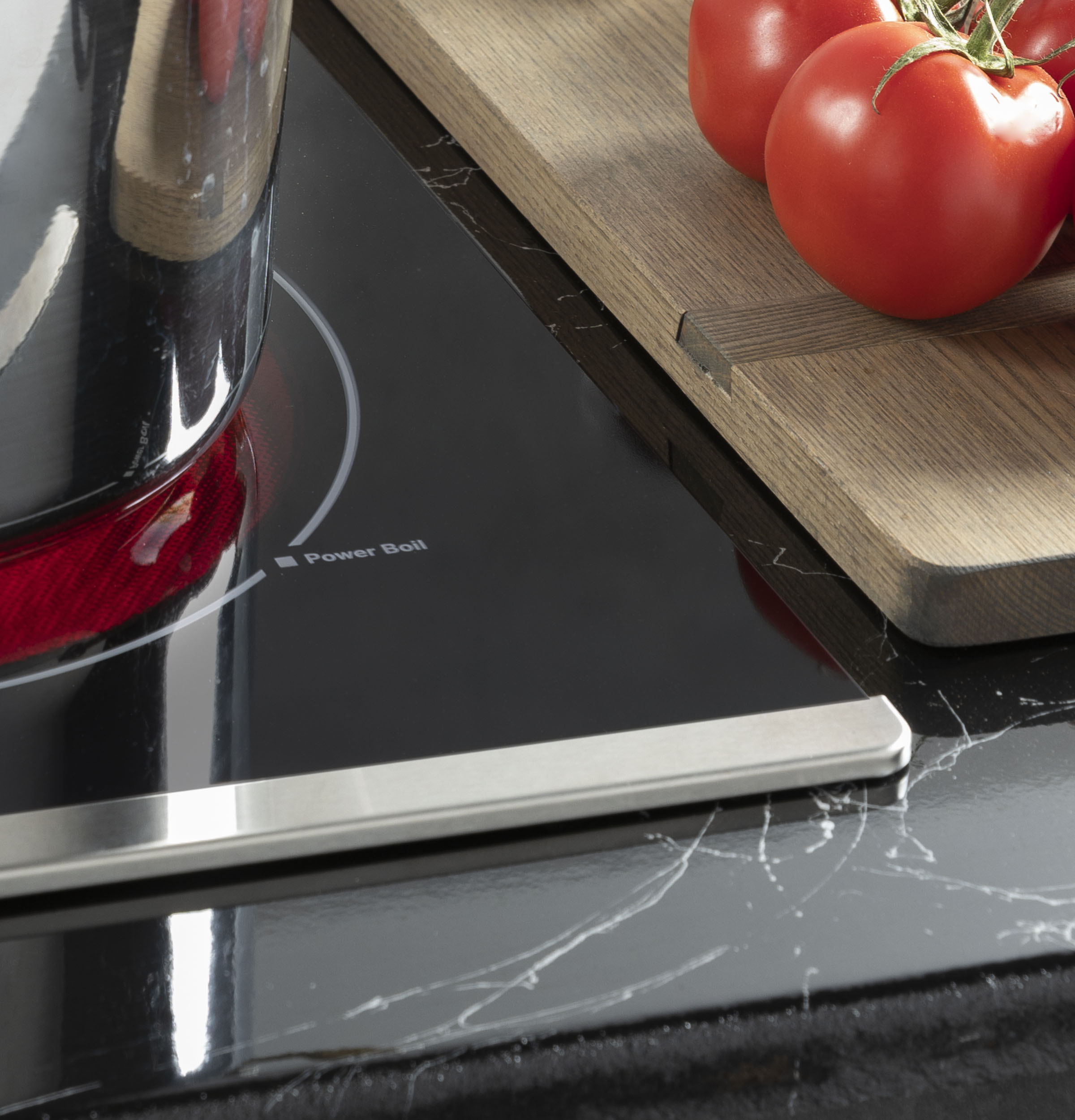

Stainless steel trim

Complement other stainless steel appliances in the kitchen with this touch of elegance

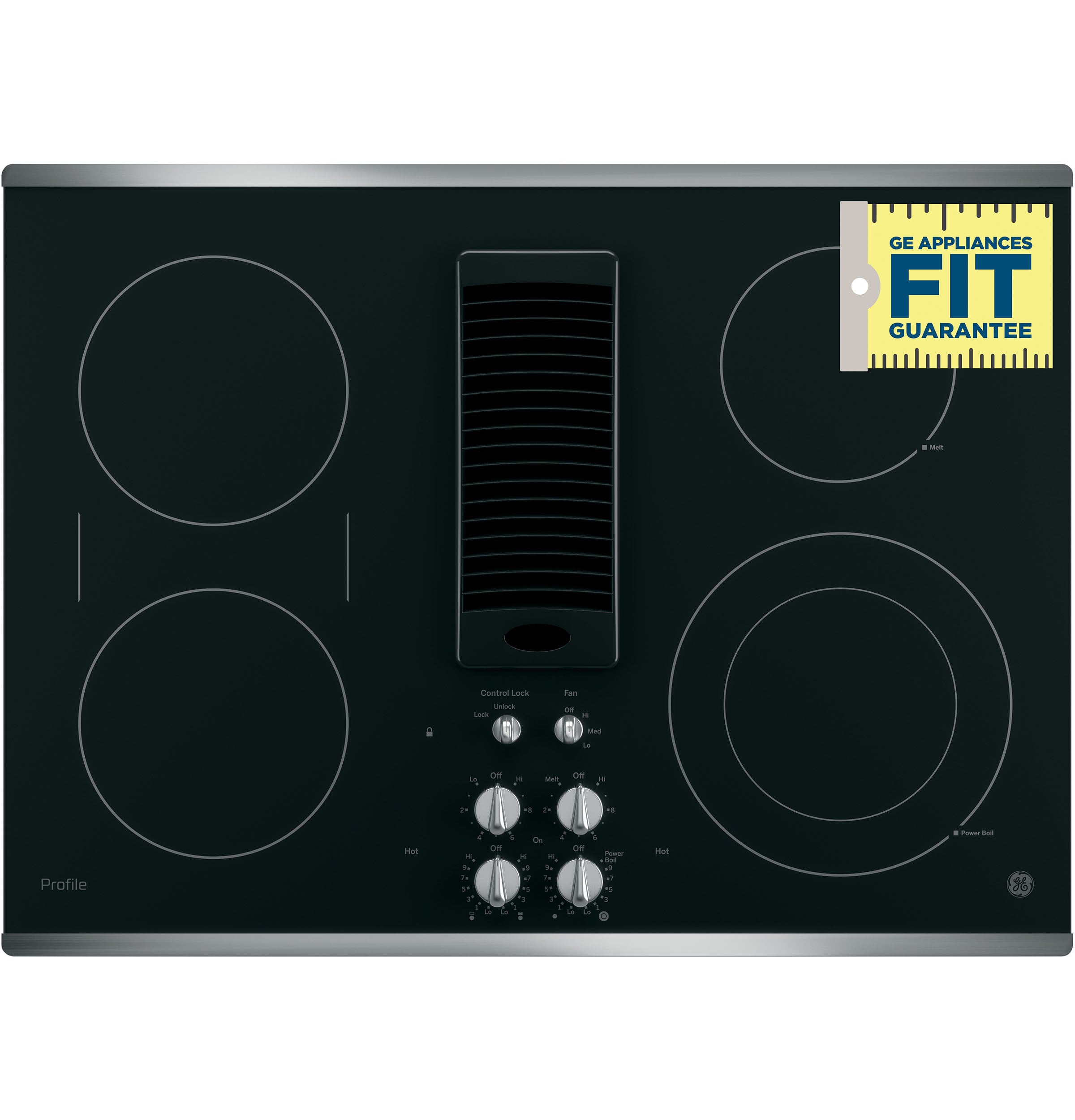

Fit Guarantee

Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
