| Overall Height | 4.03 in |
| Overall Width | 21.53 in |
| Overall Depth | 21 in |

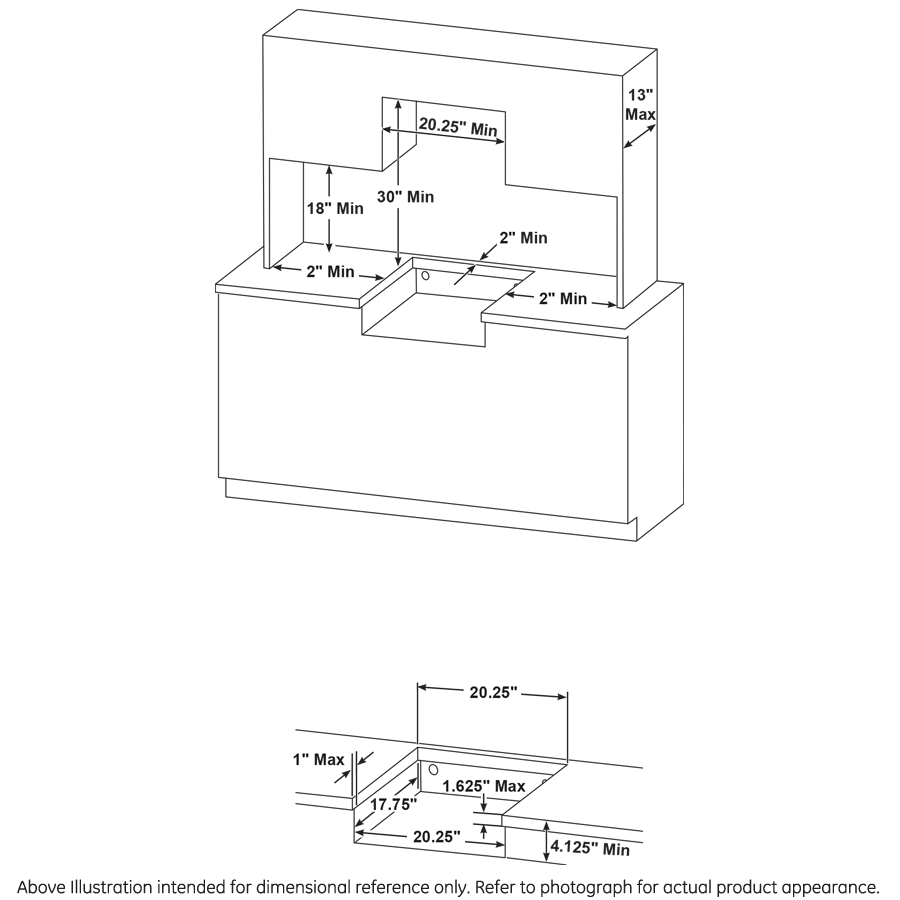

| Cutout Height (in) | 4.13 |
| Cutout Depth (in) | 17.75 |
| Approximate Shipping Weight | 24 lb |
| Net Weight | 20.5 lb |
| Cutout Width (in) | 20.25 |
| Cooktop Burner Type | Sealed |
| Burner - Right Rear | 6,500 BTU |
| RV Ready | Yes |
| Fuel Type | Liquid Propane Gas |
| Flame Detection | Yes |
| Control Location | Front |
| Ignition System | Electronic |
| Burner - Center | 8,000 BTU Front |
| Cooktop Surface | Porcelain-Enamel |
| Burner - Left Rear | 6,500 BTU |

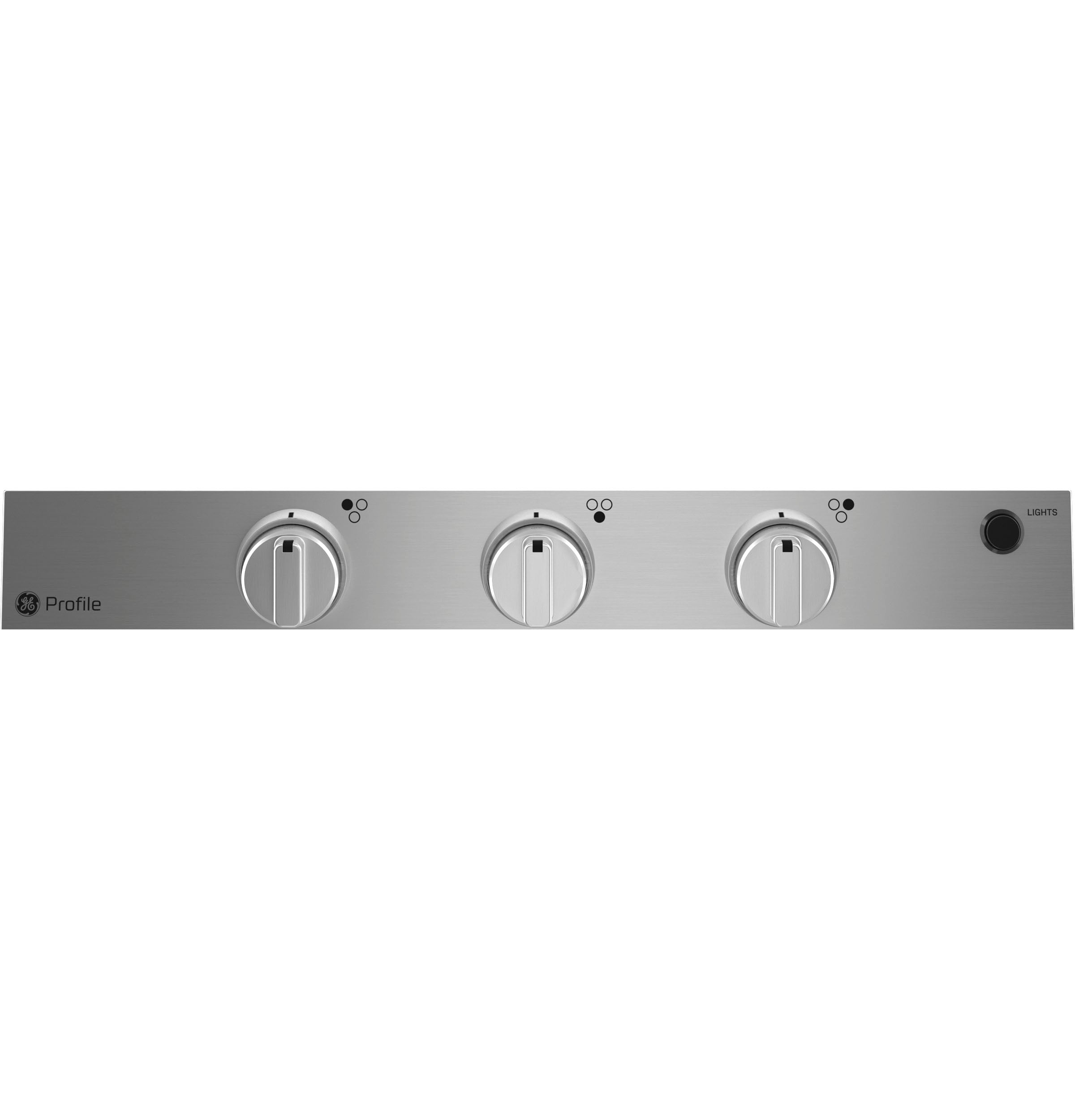

| Control Type | Knob |
| Cooktop Burner Grate Material | Continuous Cast Iron |
| Cooktop Burner Grate Features | Matte Black |
| Product Type | Cooktop |
| Control Type | Backlit |
| Cooktop Burner Grate Features | Edge-to-Edge Grates |
| Cooktop Burner Grate Features | Continuous Grates |
| Cooktop Burner Grate Features | Fixed to prevent vibration, but removable |
| Volts/Hertz | 12V DC |
| Hertz | 60 |
| Electrical Requirements | 12V |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 2-year entire appliance |
| Parts Warranty | Limited 2-year entire appliance |
| Color Appearance | Stainless Steel |
| Cooktop Burner Grate Color | Matte Black |
| Installation | RV Ready |
| Control Knobs | Stainless Appearance |

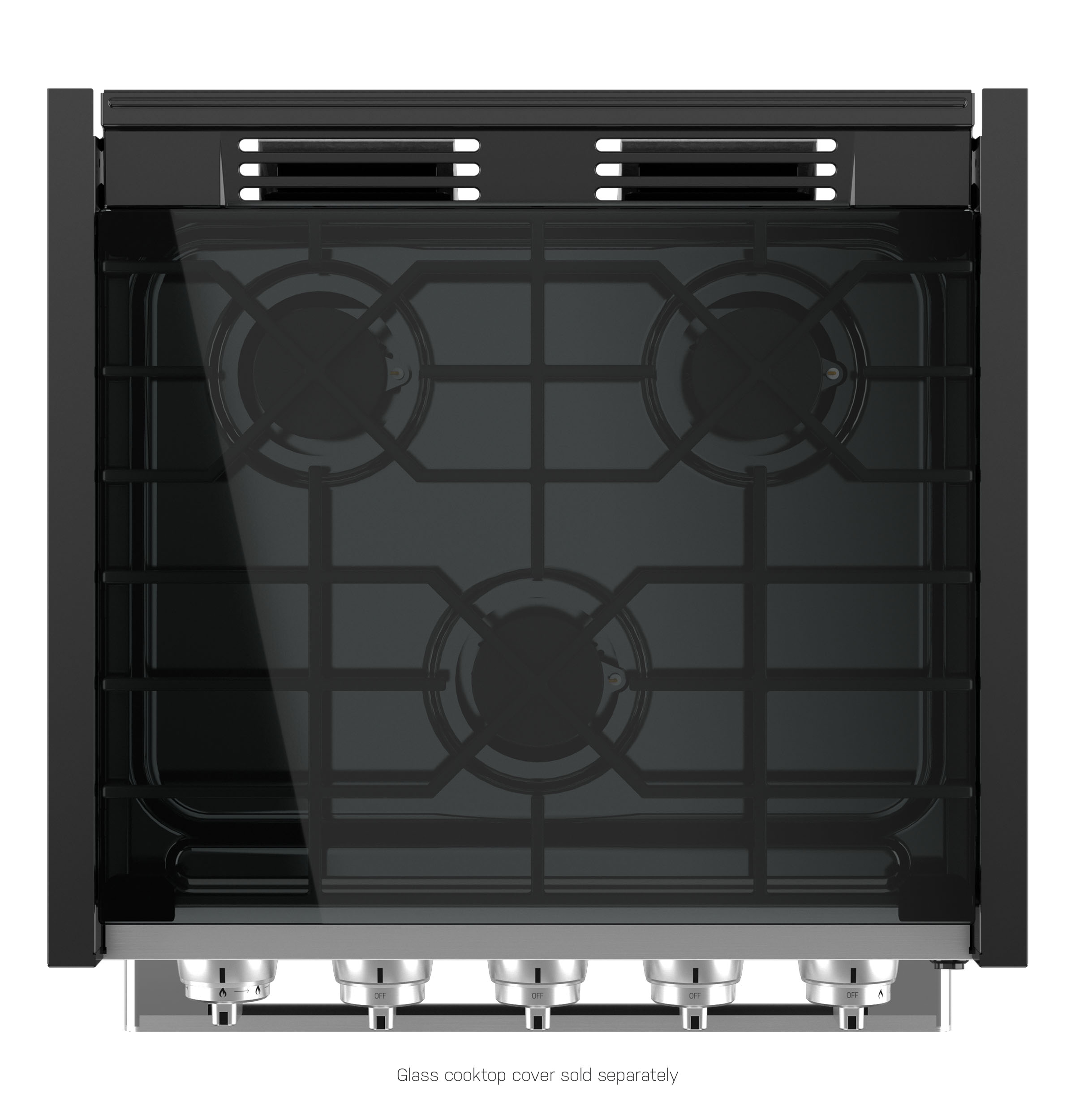

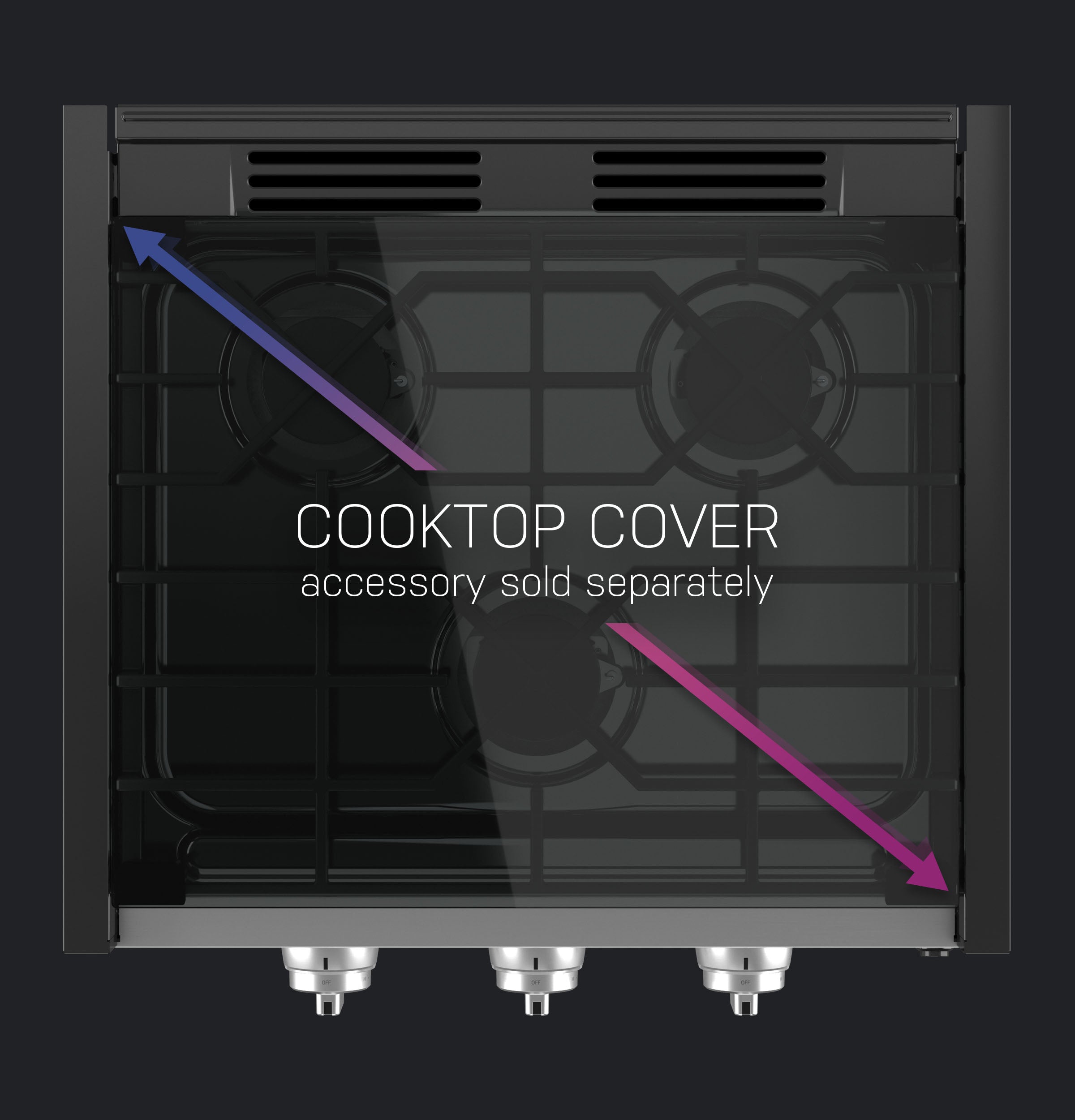

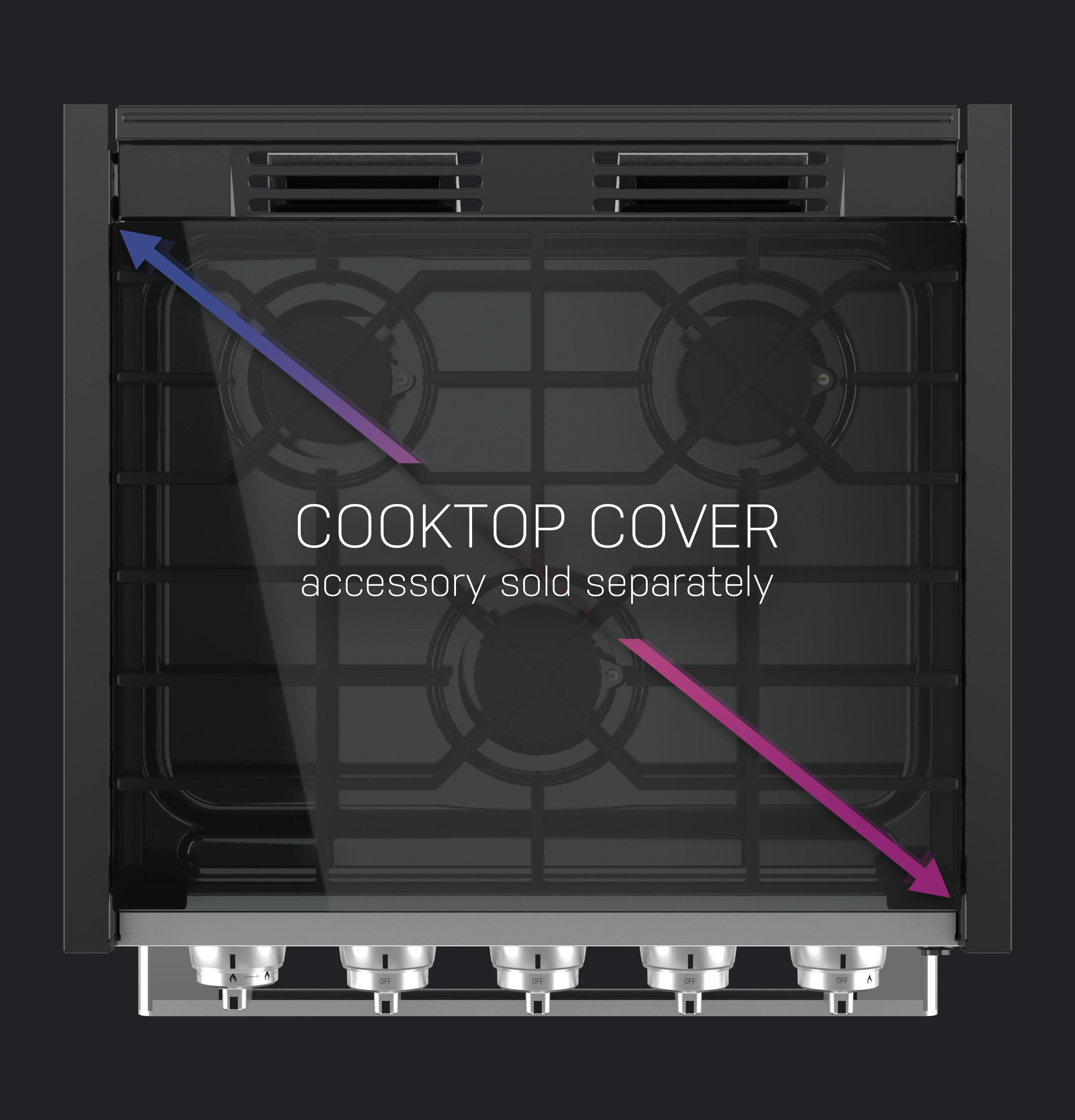

| Cover Accessory (sold separately) | JXCVR21 |
| Width | 21.53 in. |
| Height | 4.03 in. |
| Length | 21 in. |
| Weight | 20.5 lbs. |
| Number of Boxes | 1 |
| Shipping Width | 26.53 in. |
| Shipping Height | 9.03 in. |
| Shipping Length | 26 in. |
| Shipping Weight | 60.5 lbs. |
| Total of Shipping Weight | 60.5 lbs. |
| Source | Calculation |
| Cubic Feet Measurement | 1.05 ft³ |
| Dimensional Weight | 13.11 lbs. |
| Total of Cubes | 1.05 ft³ |
| Total of Dimensional Weight | 13.11 lbs. |
