| Overall Height | 4.1 in |
| Overall Width | 12 in |
| Approximate Shipping Weight | 12.9 lb |
| Net Weight | 11.8 lb |
| Overall Depth | 22.60 in |
| Cooktop Burner Type | Sealed |
| RV Ready | Yes |
| Fuel Type | Liquid Propane Gas |
| Control Location | Front |
| Ignition System | Electronic |
| Burner - Center | 6,500 BTU Front; 6,500 BTU Rear |
| Cooktop Surface | Porcelain-Enamel |

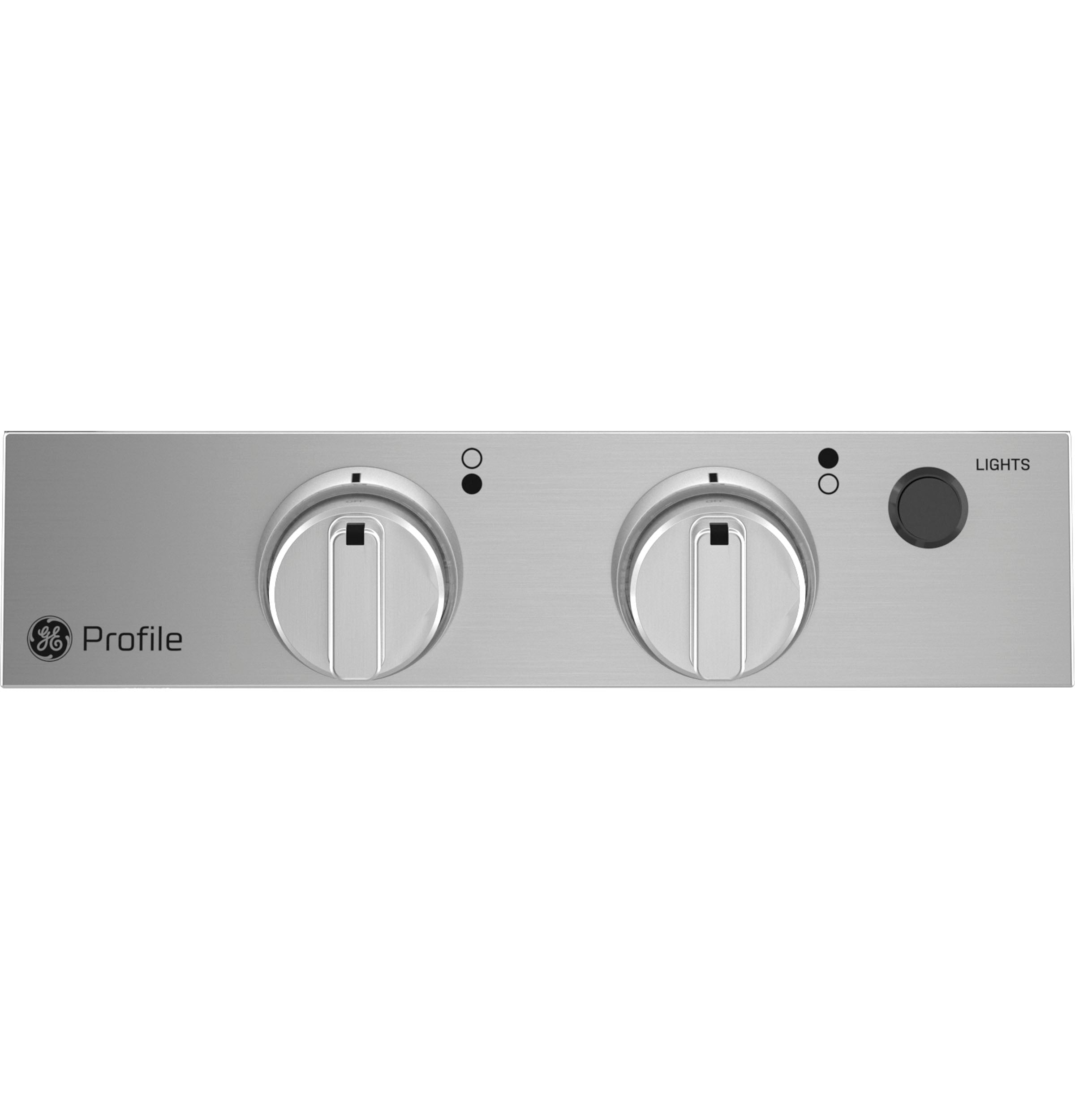

| Control Type | Knob |
| Cooktop Burner Grate Features | Matte Black |
| Cooktop Burner Grate Material | Continuous Cast Iron |
| Product Type | Cooktop |
| Control Type | Backlit |
| Cooktop Burner Grate Features | Edge-to-Edge Grates |
| Cooktop Burner Grate Features | Continuous Grates |
| Cooktop Burner Grate Features | Fixed to prevent vibration, but removable |
| Volts/Hertz | 12V DC |
| Hertz | 60 |
| Electrical Requirements | 12V |
| Color Appearance | Stainless Steel |
| Cooktop Burner Grate Color | Matte Black |
| Installation | RV Ready |

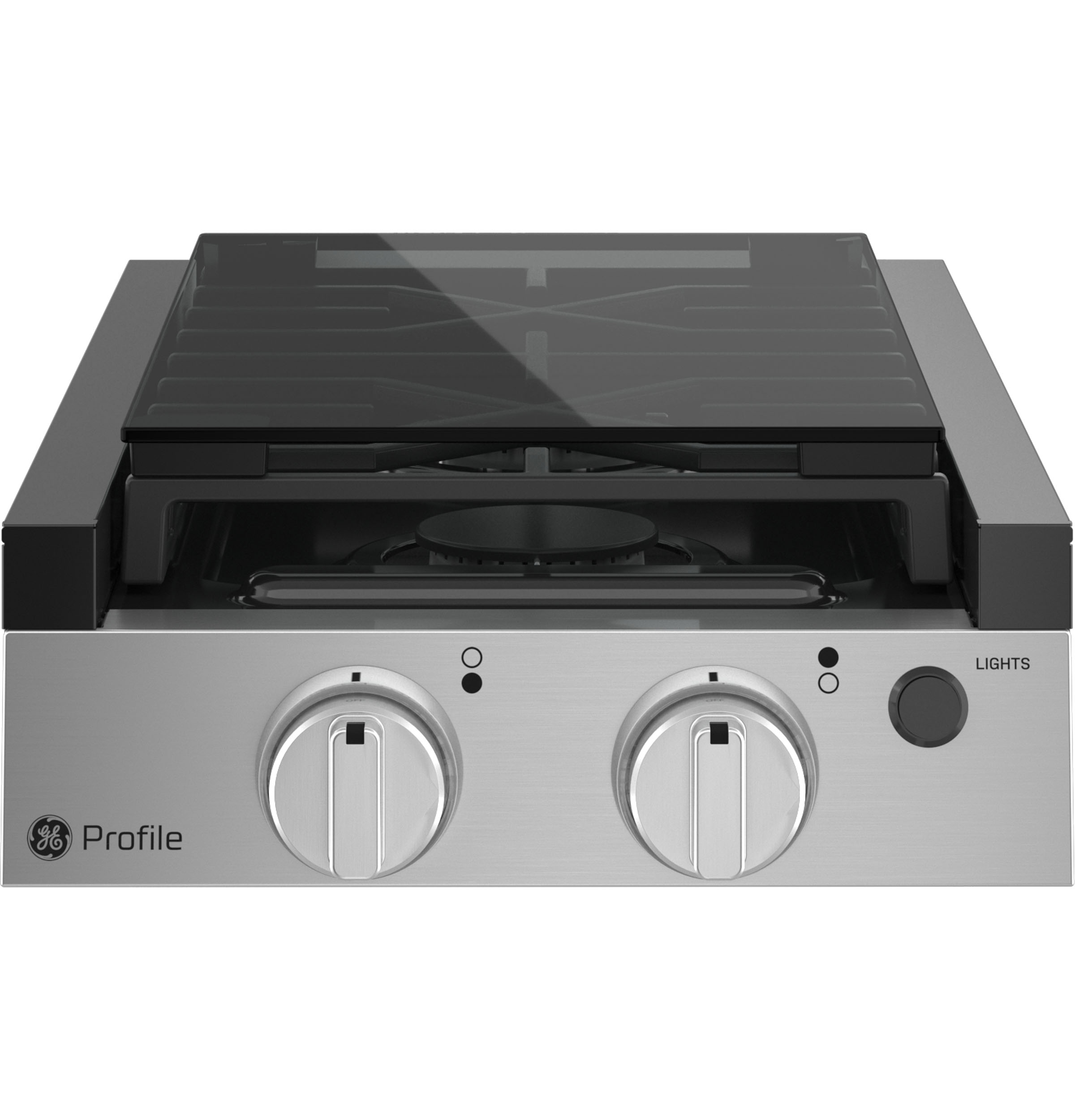

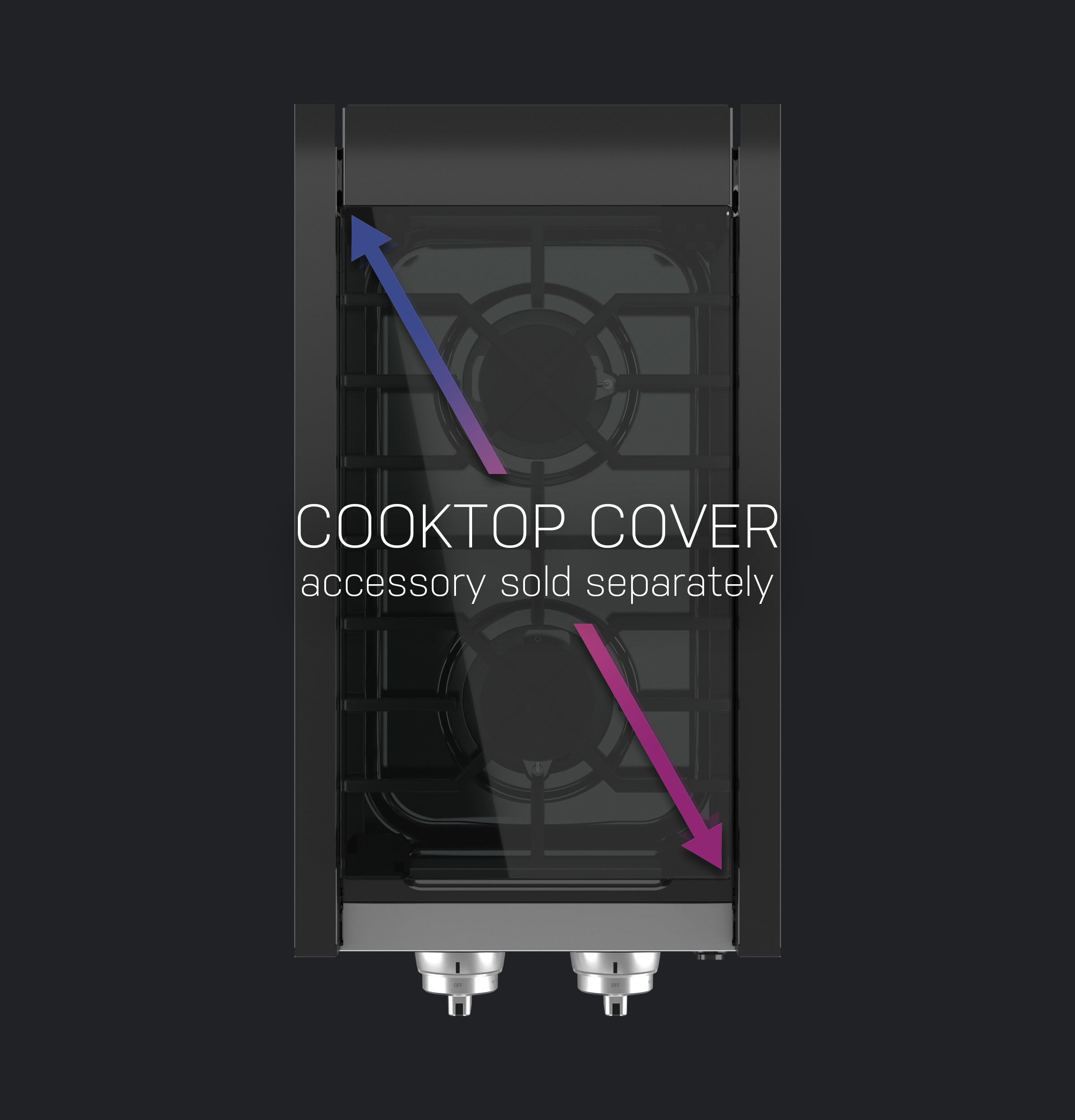

| Cover Accessory (sold separately) | JXCVR12 |
| Width | 12 in. |
| Height | 4.1 in. |
| Length | 22.6 in. |
| Weight | 11.8 lbs. |
| Number of Boxes | 1 |
| Shipping Width | 17 in. |
| Shipping Height | 9.1 in. |
| Shipping Length | 27.6 in. |
| Shipping Weight | 51.8 lbs. |
| Total of Shipping Weight | 51.8 lbs. |
| Source | Calculation |
| Cubic Feet Measurement | 0.64 ft³ |
| Dimensional Weight | 6.7 lbs. |
| Total of Cubes | 0.64 ft³ |
| Total of Dimensional Weight | 6.7 lbs. |
| Labor Warranty | Limited 2-year entire appliance |
| Parts Warranty | Limited 2-year entire appliance |
| Warranty Notes | See written warranty for full details |
