SKU: PLD617RTSS | UPC: 084691896975

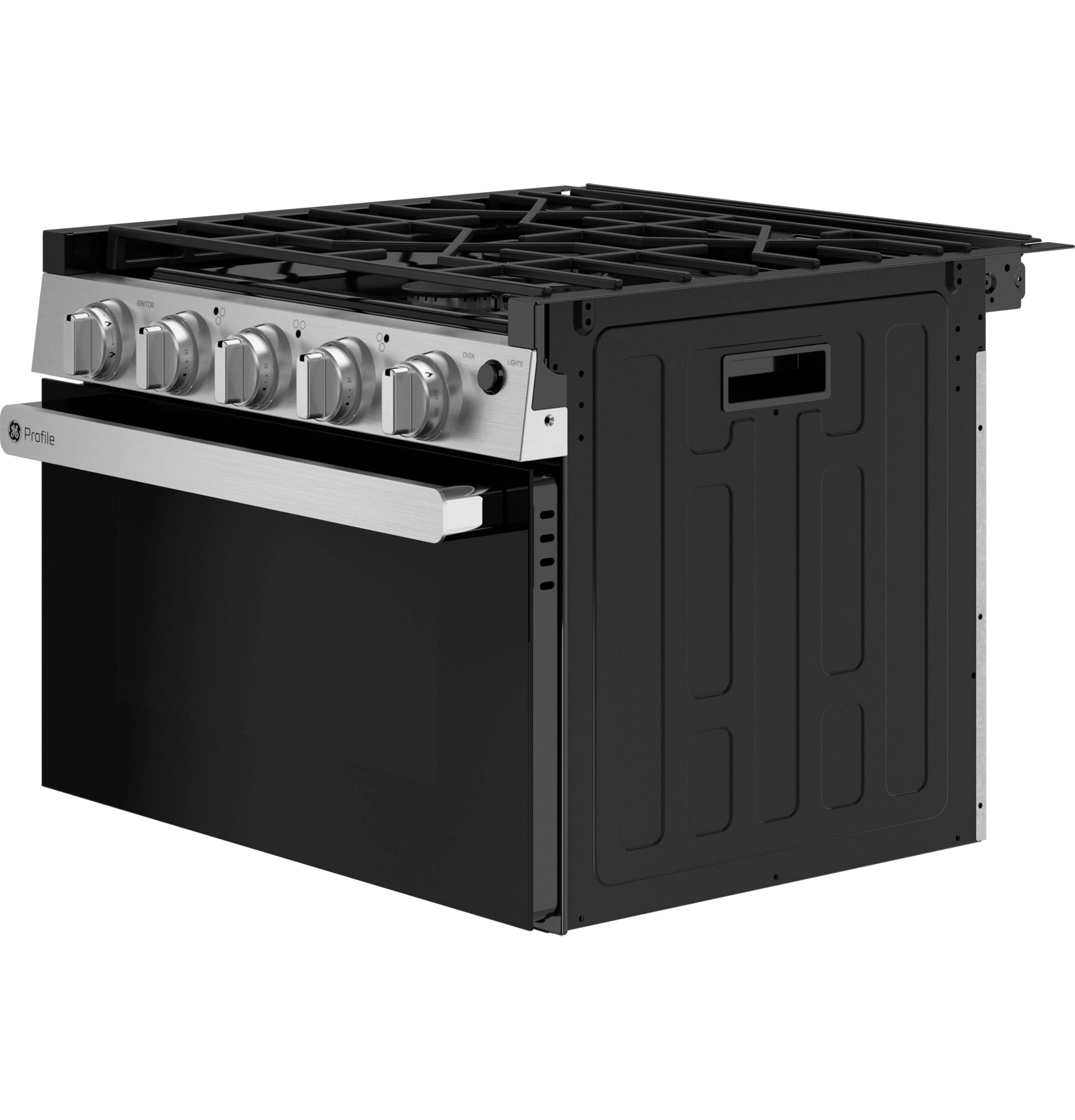

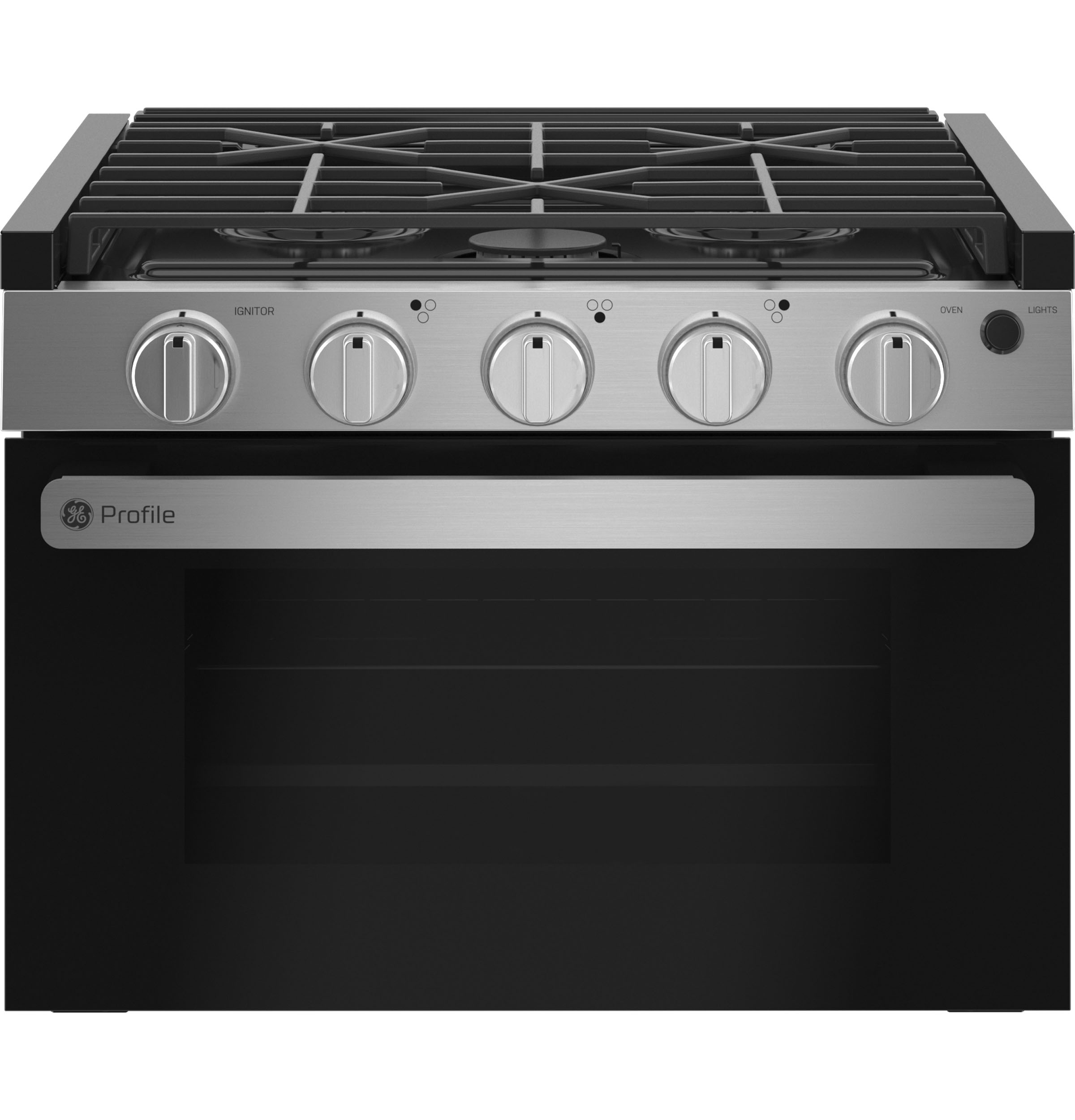

GE Profile PLD617RTSS 17" Drop-In RV Gas Range Stainless Steel

Quick Specification More details

Width:
20.125"
Depth:
17.75"
Height:
16.125"
Type:
Freestanding Ranges

About this product

17" Drop-In Range

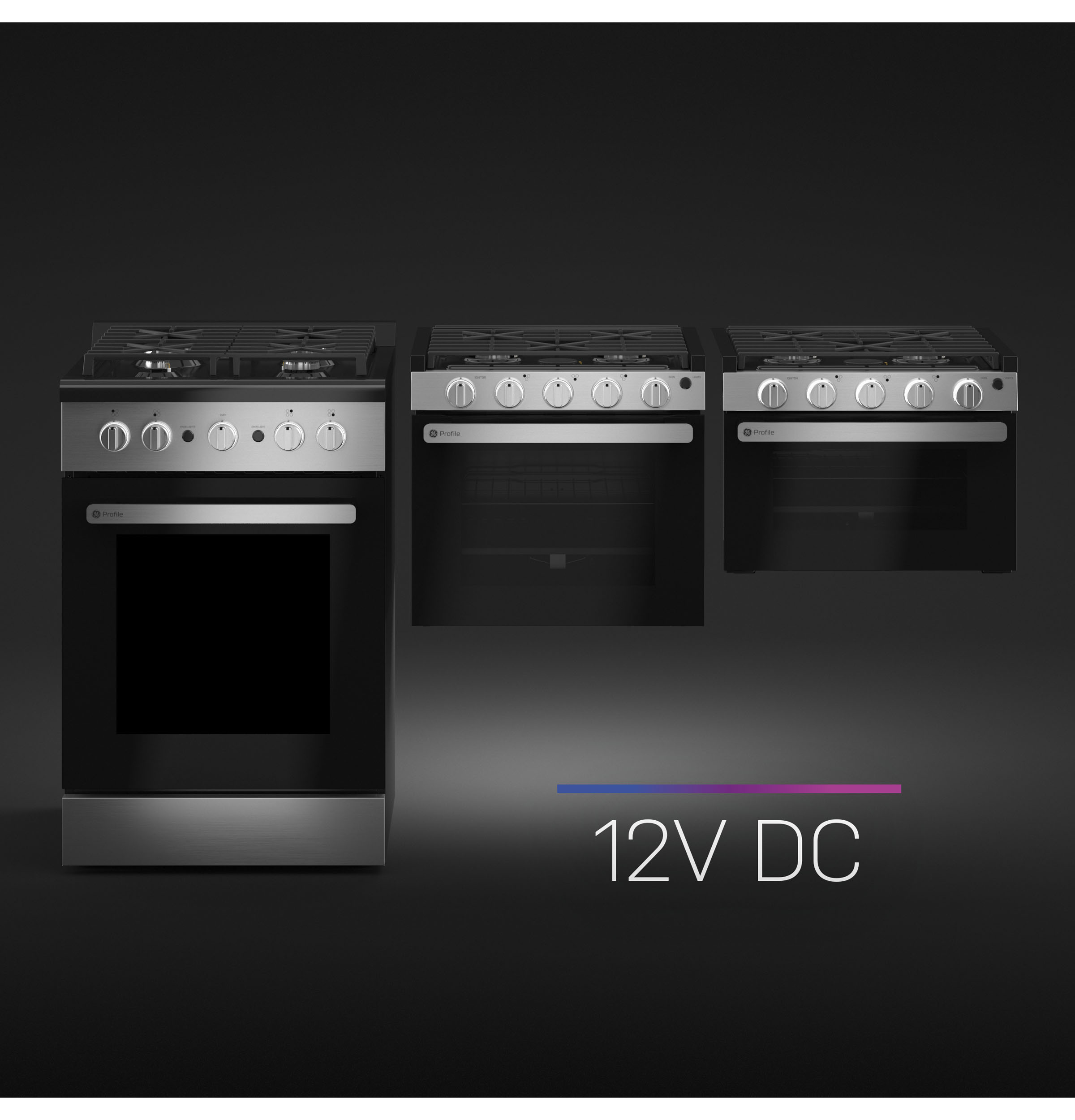

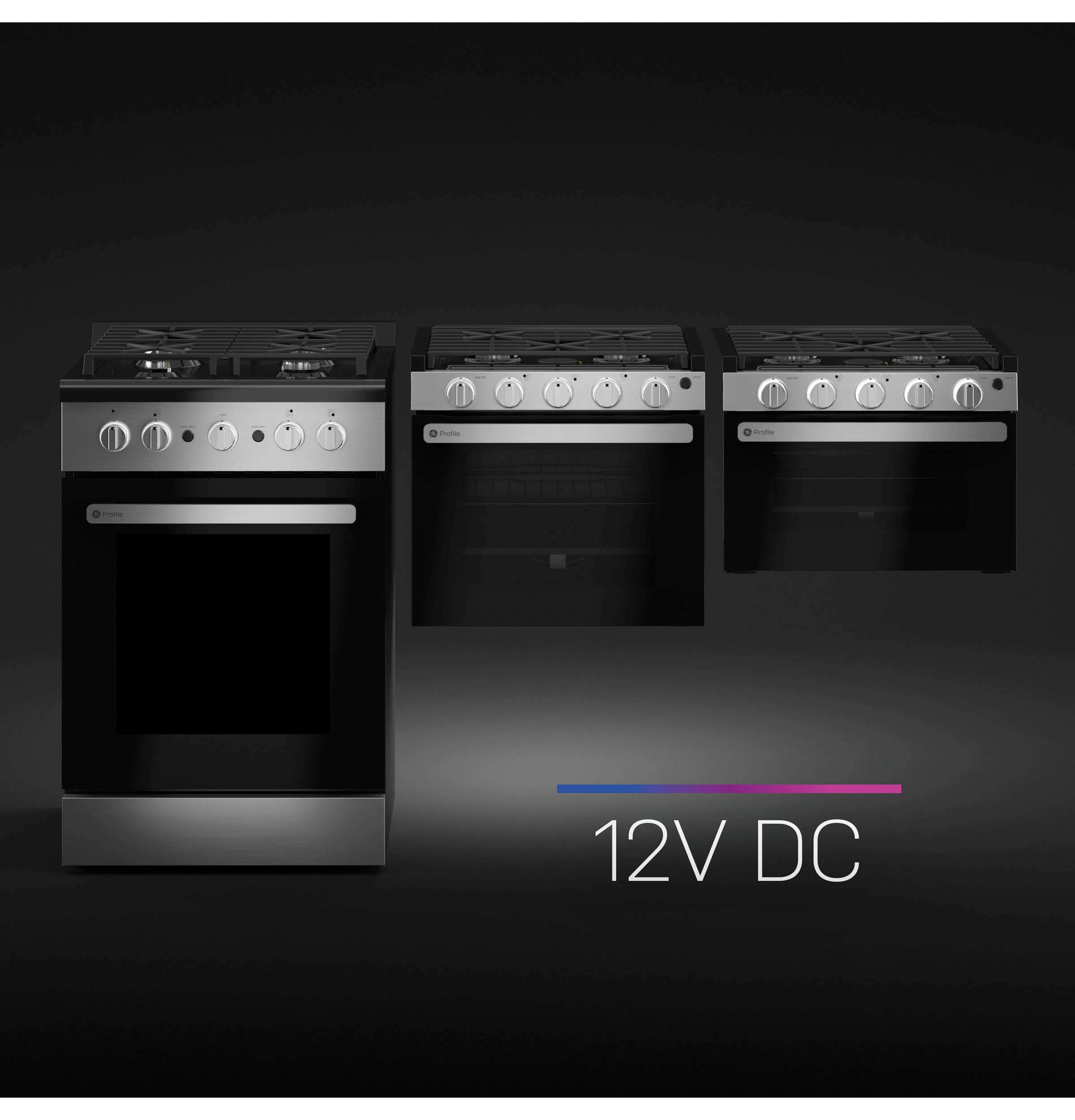

12V DC Voltage Rating
Liquid Propane Fuel

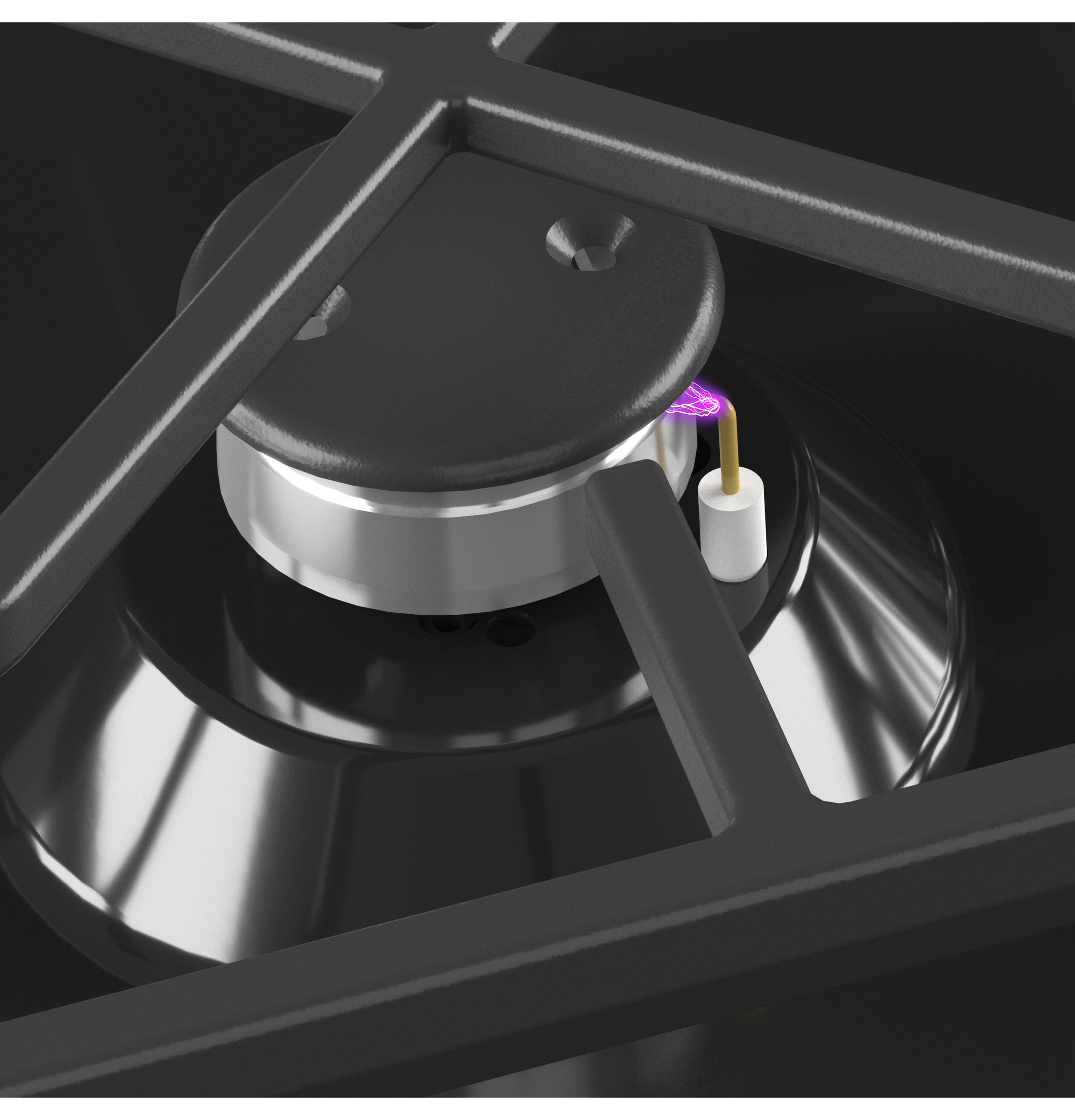

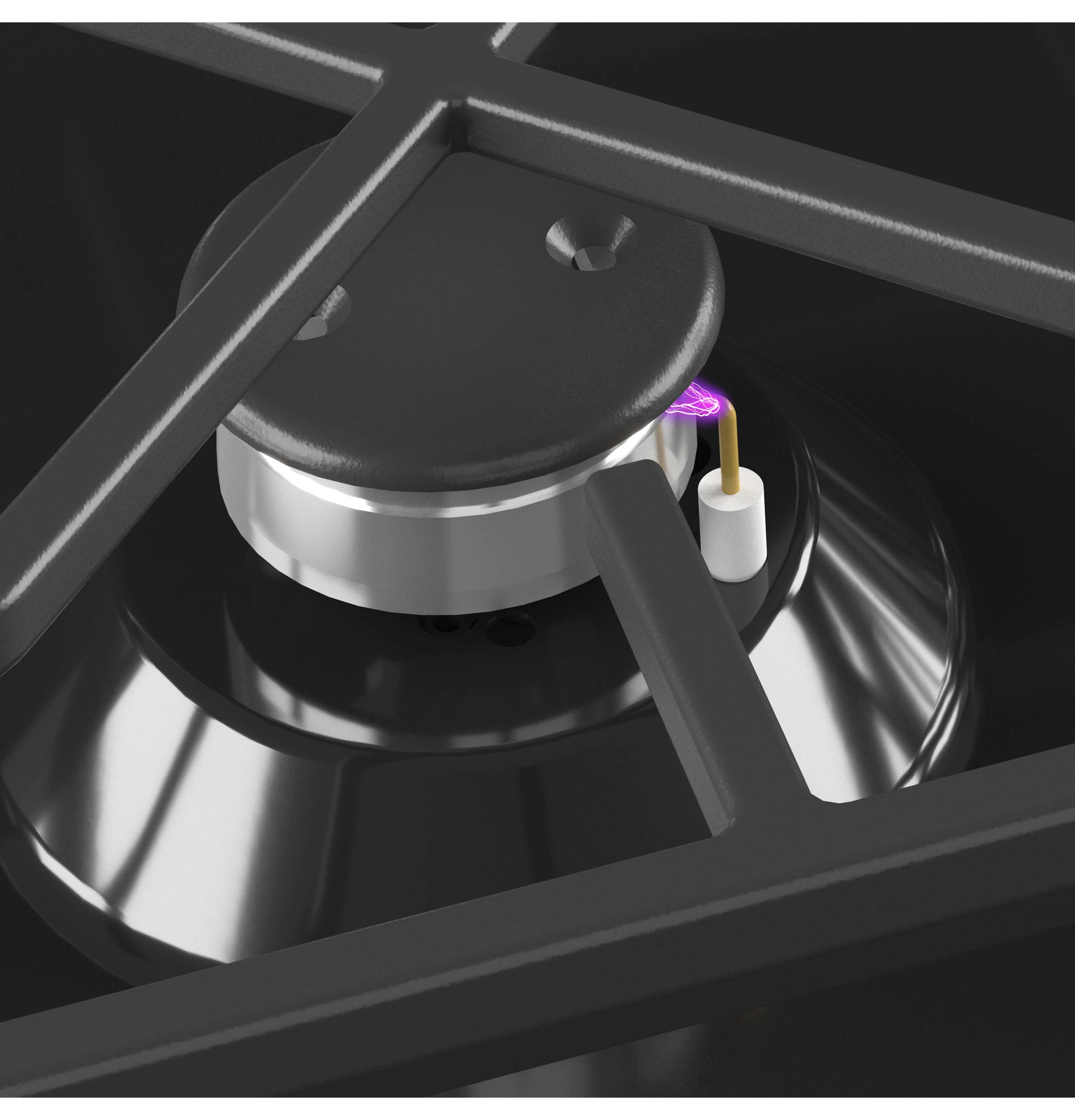

Spark Ignition System

Summer Sale

Clearance

SKU: PLD617RTSS | UPC: 084691896975

GE Profile PLD617RTSS 17" Drop-In RV Gas Range Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
20.125"
Depth:
17.75"
Height:
16.125"
Type:
Freestanding Ranges

About this product

17" Drop-In Range
12V DC Voltage Rating
Liquid Propane Fuel
Spark Ignition System

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for GE PLD617RTSS

Technical Details

Weights & dimensions

Overall Width	20.125 in
Overall Depth	17.75 in
Overall Height	16.125 in
Net Weight	56.1 lb
Approximate Shipping Weight	63.8 lb

Appearance

Cooktop Burner Grate Color	Matte Black
Oven Door Features	Oven Window
Installation	RV Ready

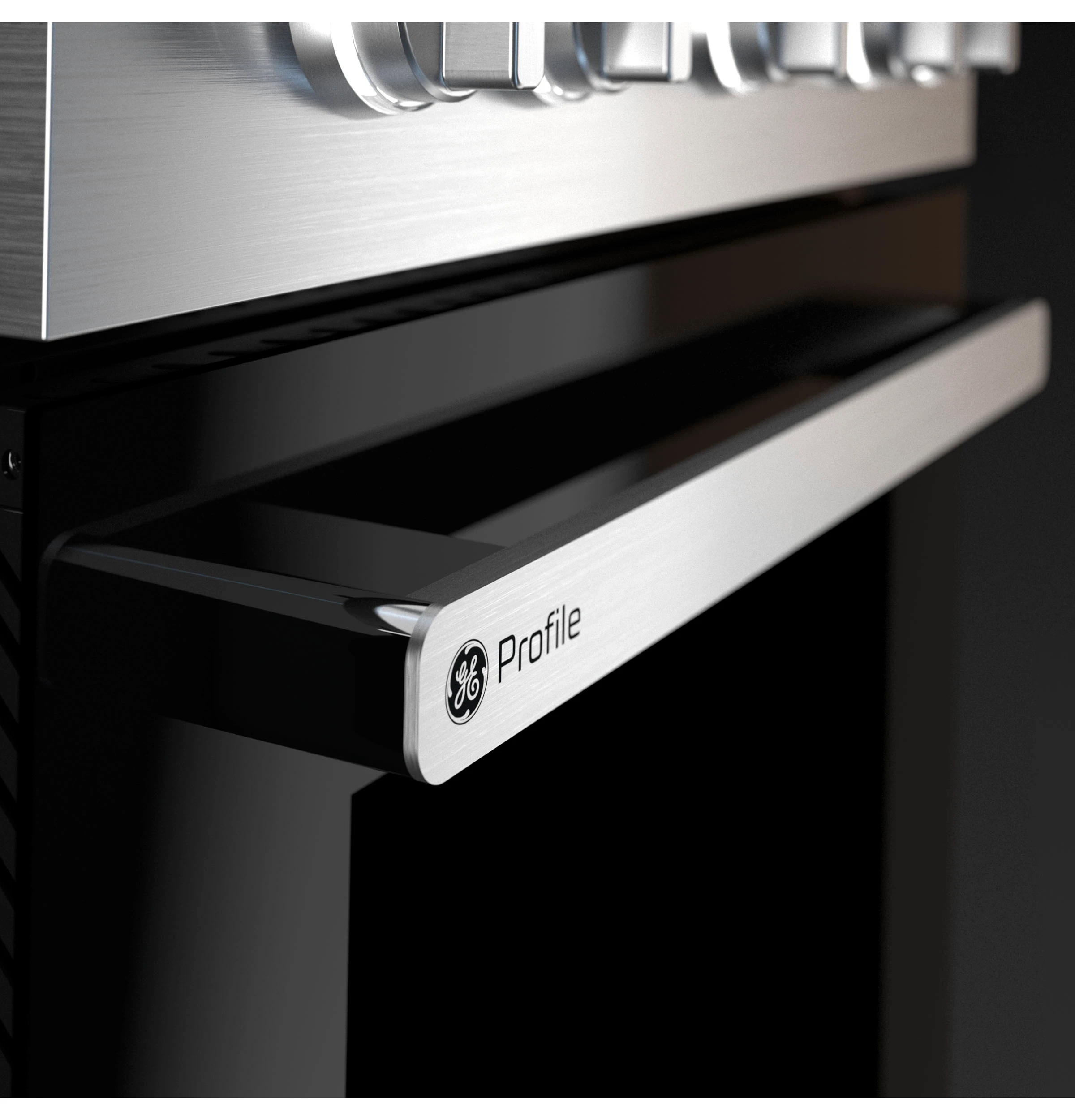

Handle Color	Stainless Steel
Color Appearance	Stainless Steel
Oven Door Features	Glass Door

Features

Ignition System	Piezo
Burner - Right Rear	6,500 BTU
Interior Oven Light	Halogen
Fuel Type	Liquid Propane Gas
Oven Interior	Easy Clean Interior
Oven Control Features	Light On/Off
Cooktop Burner Type	Sealed
Oven Rack Features	1 Nickel
Burner - Left Rear	6,500 BTU
Product Type	Drop-In
Cooktop Burner Grate Features	Matte Black
Cooktop Burner Grate Material	Continuous Cast Iron
Valves (Degree of Turn)	260
Burner - Center	8,000 BTU Center Front
RV Ready	Yes
Cooktop Surface	Porcelain-Enamel

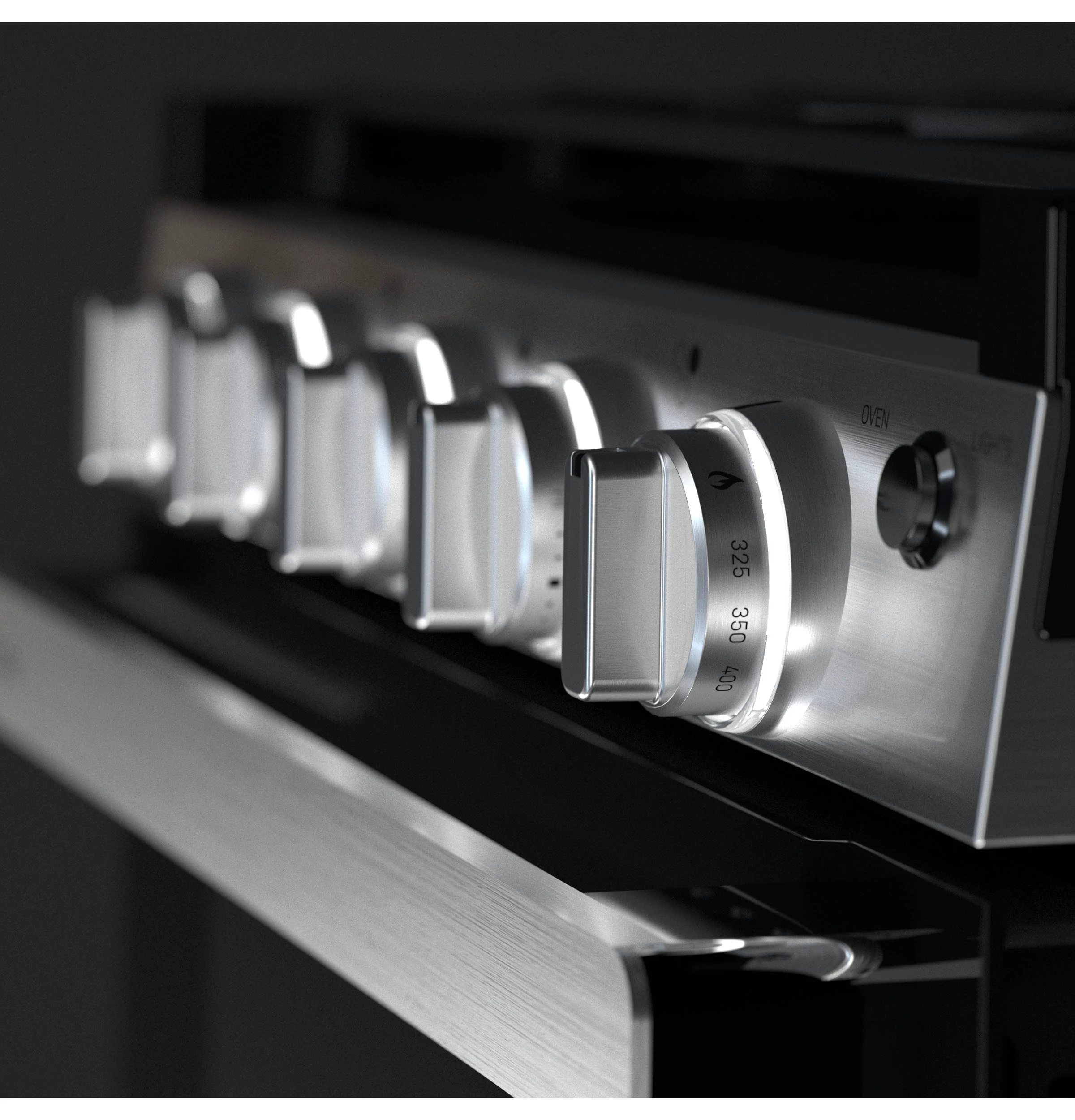

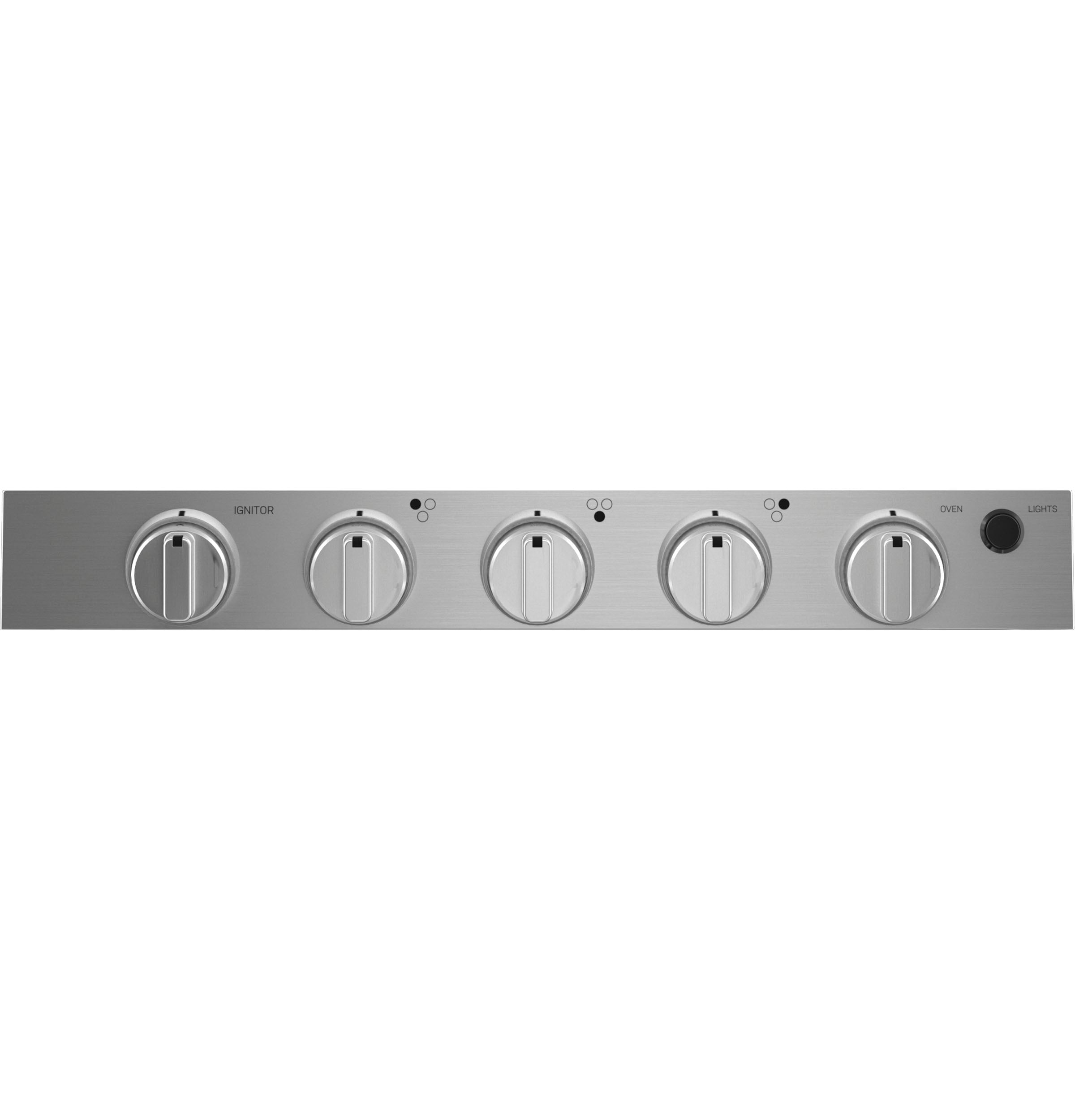

Control Location	Front Controls
Oven Rack Positions (Single or Upper/Lower)	2
Cooking Technology	Traditional

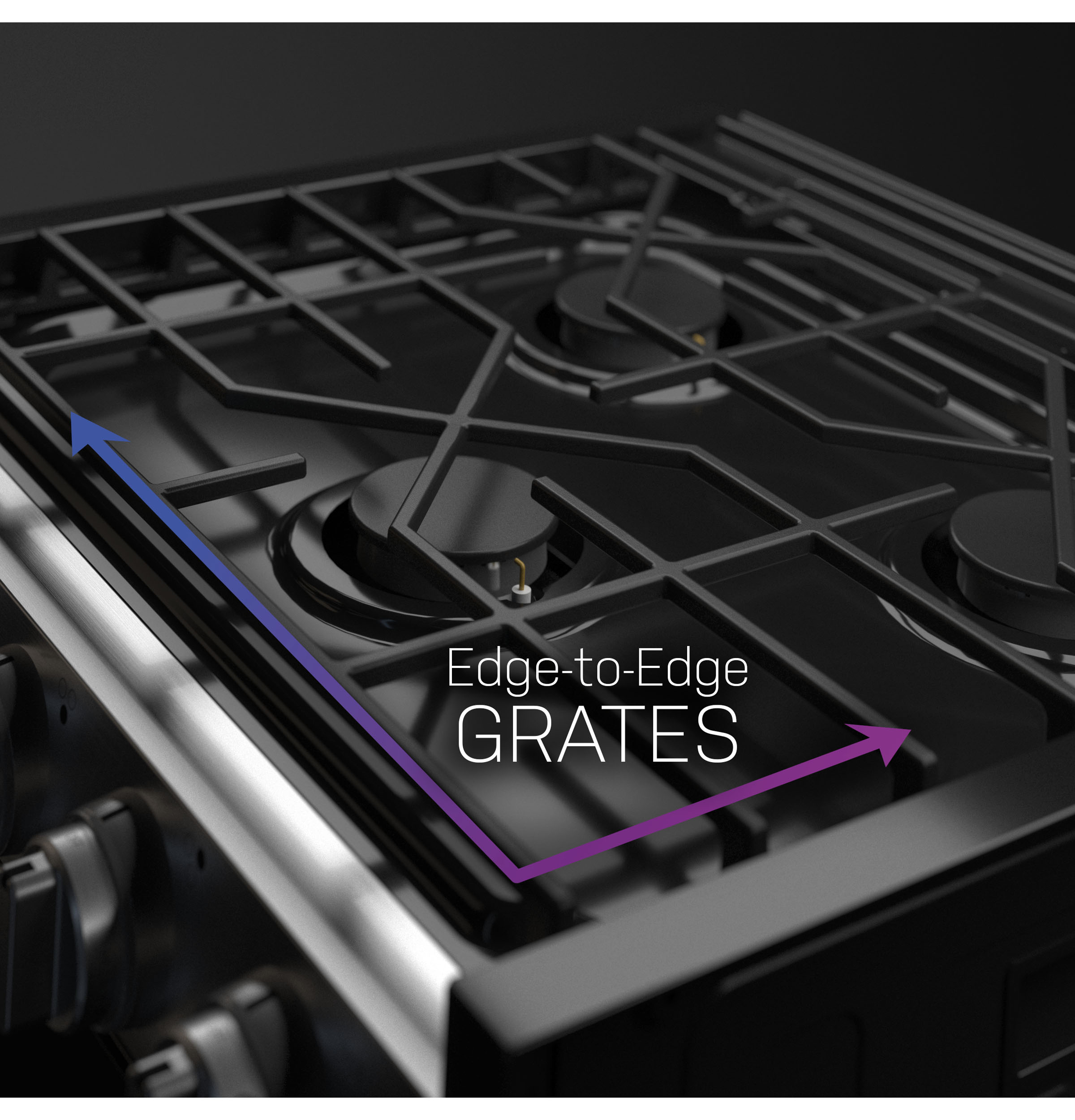

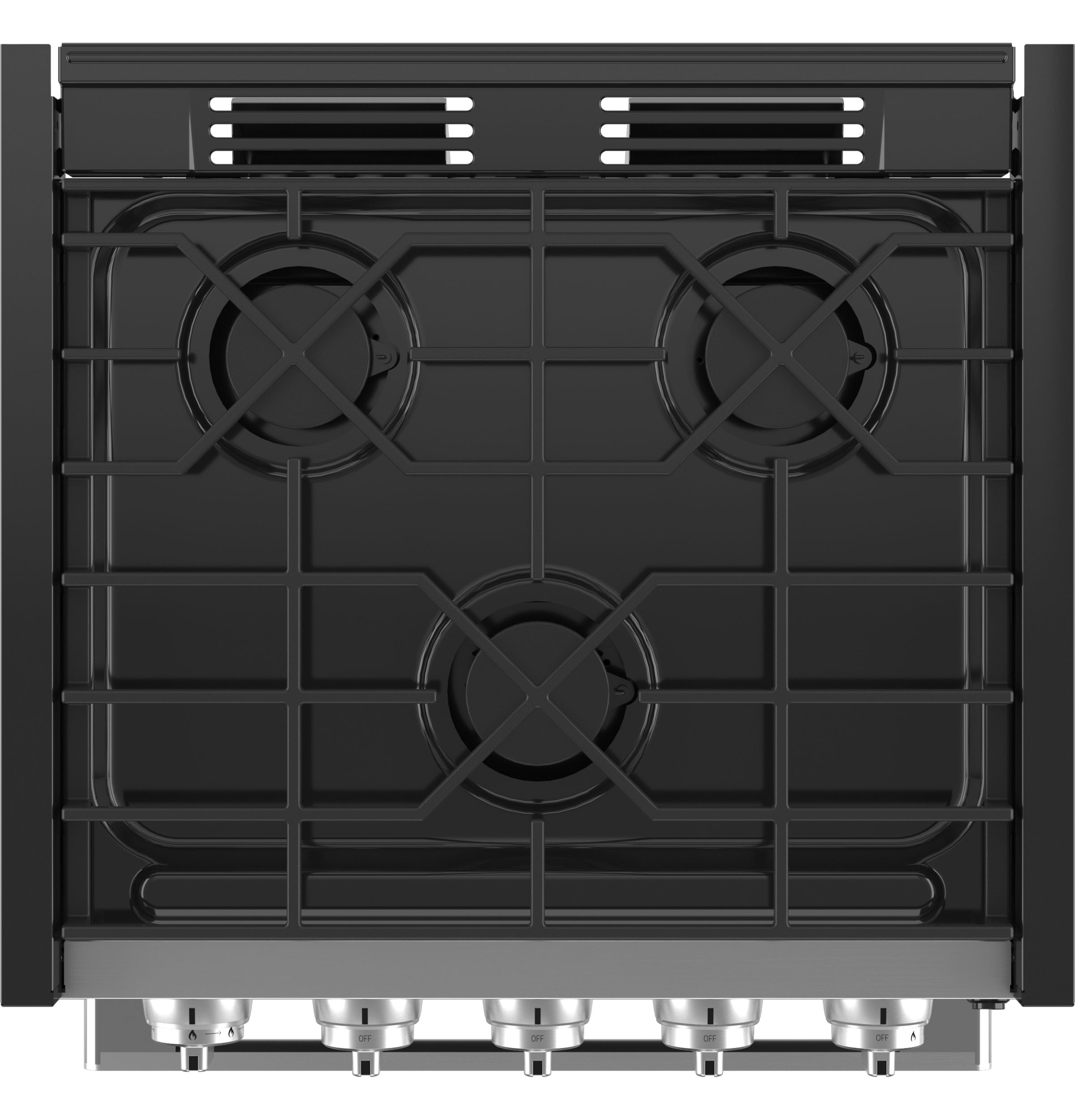

Cooktop Burner Grate Features	Edge-to-Edge Grates
Cooktop Burner Grate Features	Continuous Grates
Cooktop Burner Grate Features	Fixed to prevent vibration, but removable

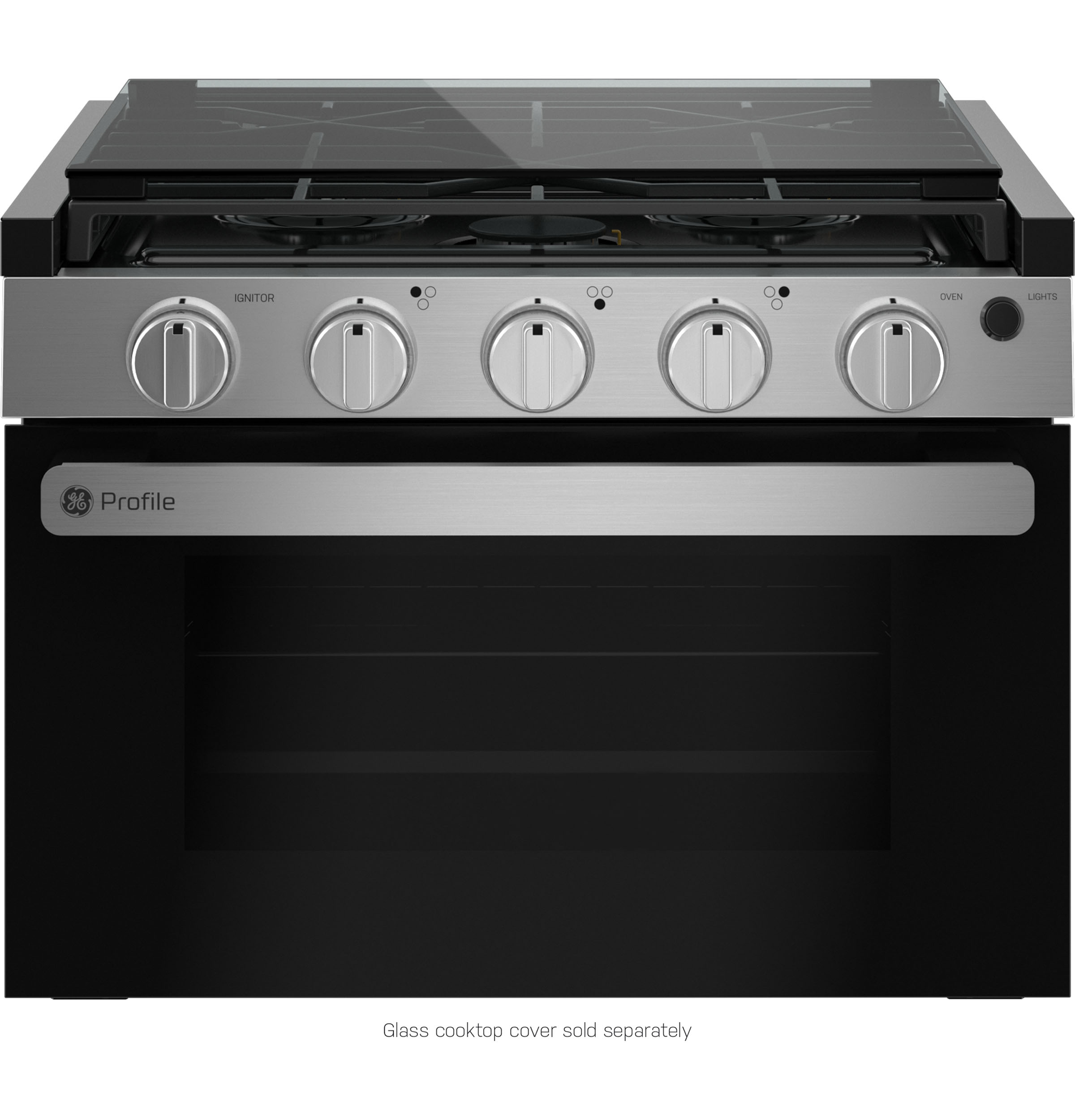

Cooktop Surface	Glass Cooktop Cover/Worksurface
Oven Interior	Black Enamel

Power / ratings

Bake/Broiler BTU Rating - LP (000's BTU's)	7.1 BTU Bake
Volts/Hertz	12V DC
Electrical Requirements	12V
Hertz	60

Dimensions & weight

Width	20.13 in.
Height	16.13 in.
Length	17.75 in.
Weight	56.1 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	25.13 in.
Shipping Height	21.13 in.
Shipping Length	22.75 in.
Shipping Weight	96.1 lbs.
Total of Shipping Weight	96.1 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	3.33 ft³
Dimensional Weight	41.44 lbs.
Total of Cubes	3.33 ft³
Total of Dimensional Weight	41.44 lbs.

Capacity

Total Capacity (cubic feet)

1.30 cu ft

Warranty

Labor Warranty	Limited 2-year entire appliance
Parts Warranty	Limited 2-year entire appliance
Warranty Notes	See written warranty for full details

Accessories

Cover Accessory (sold separately)

JXCVR21T

Description

Conveniently use your 12V DC range with your RV's 12 volt system for power thanks to this hardwired range.Fully contain liquid propane in your RV for easy mobile cooking on your propane gas range.16 1/8 H x 20 1/8 W x 17 3/4 D

Product Features

17" Drop-In Range

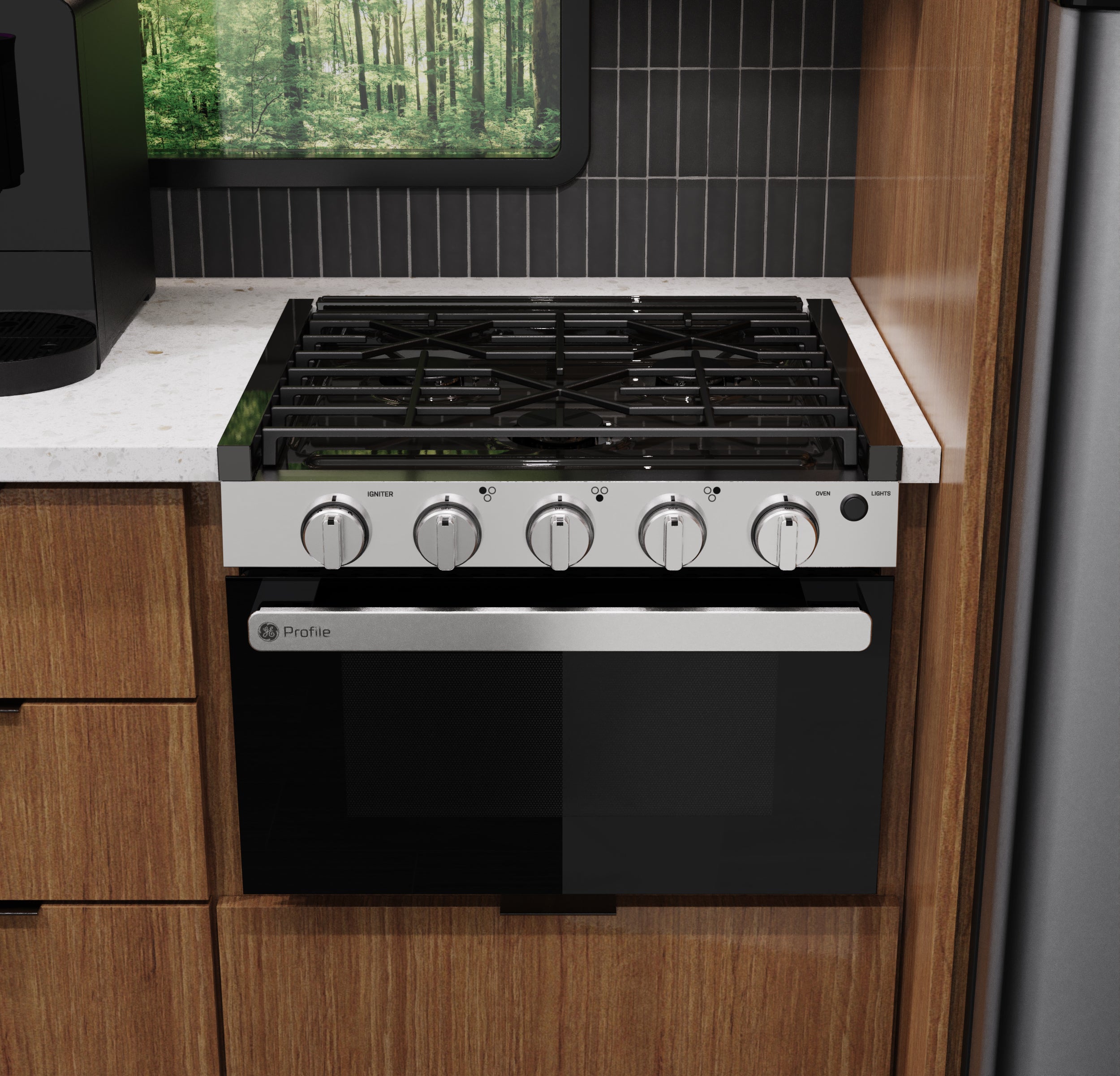

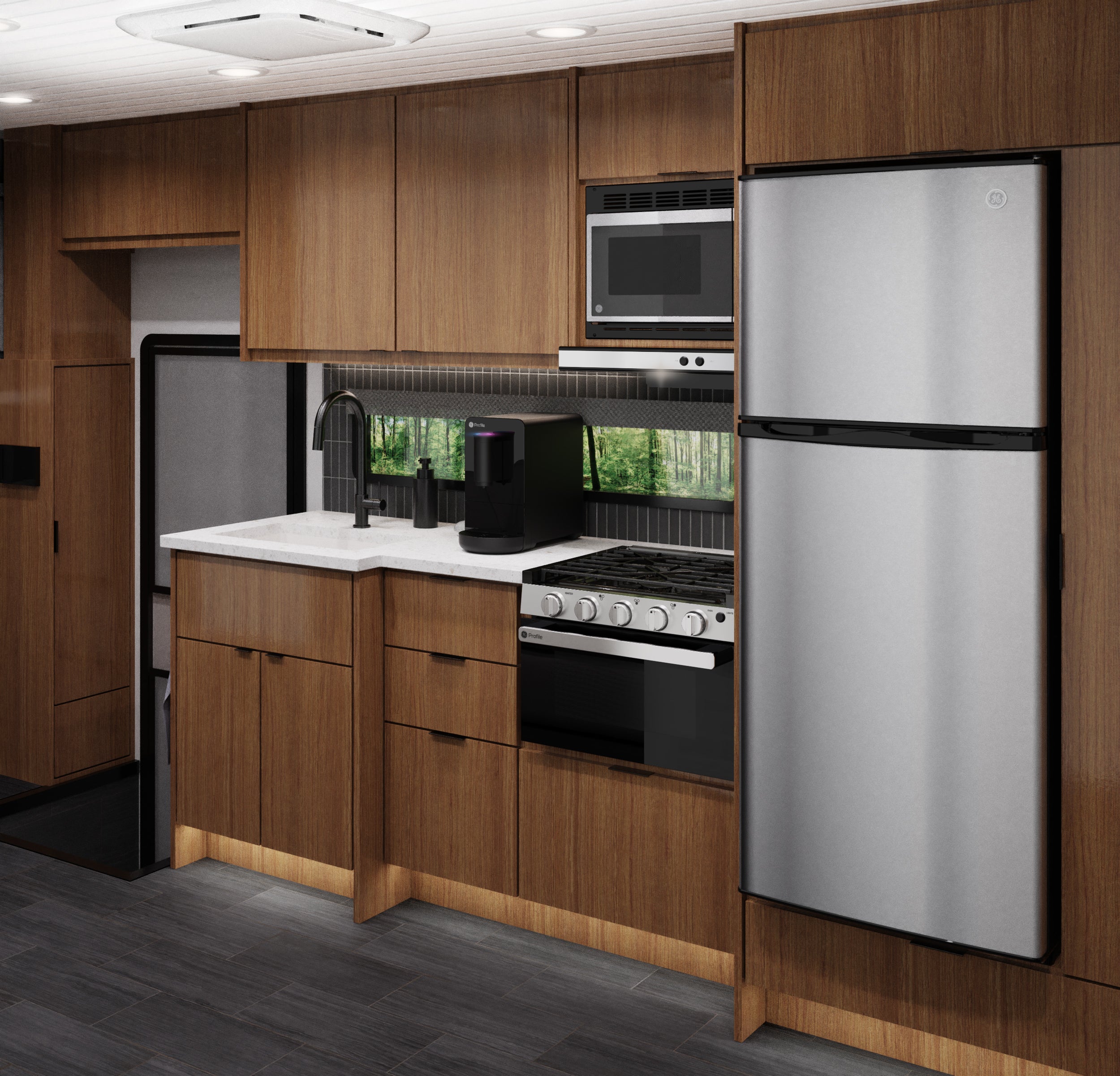

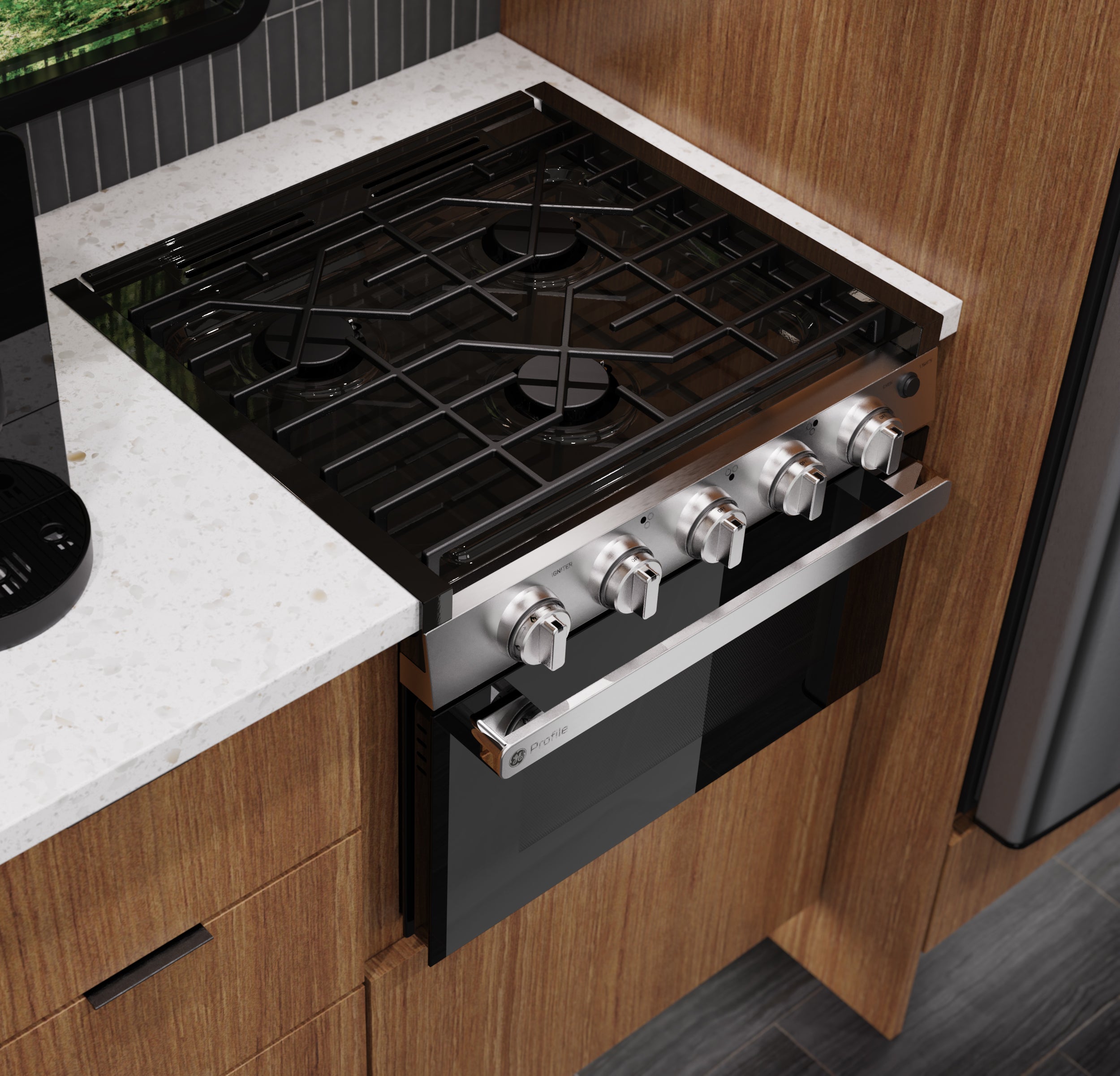

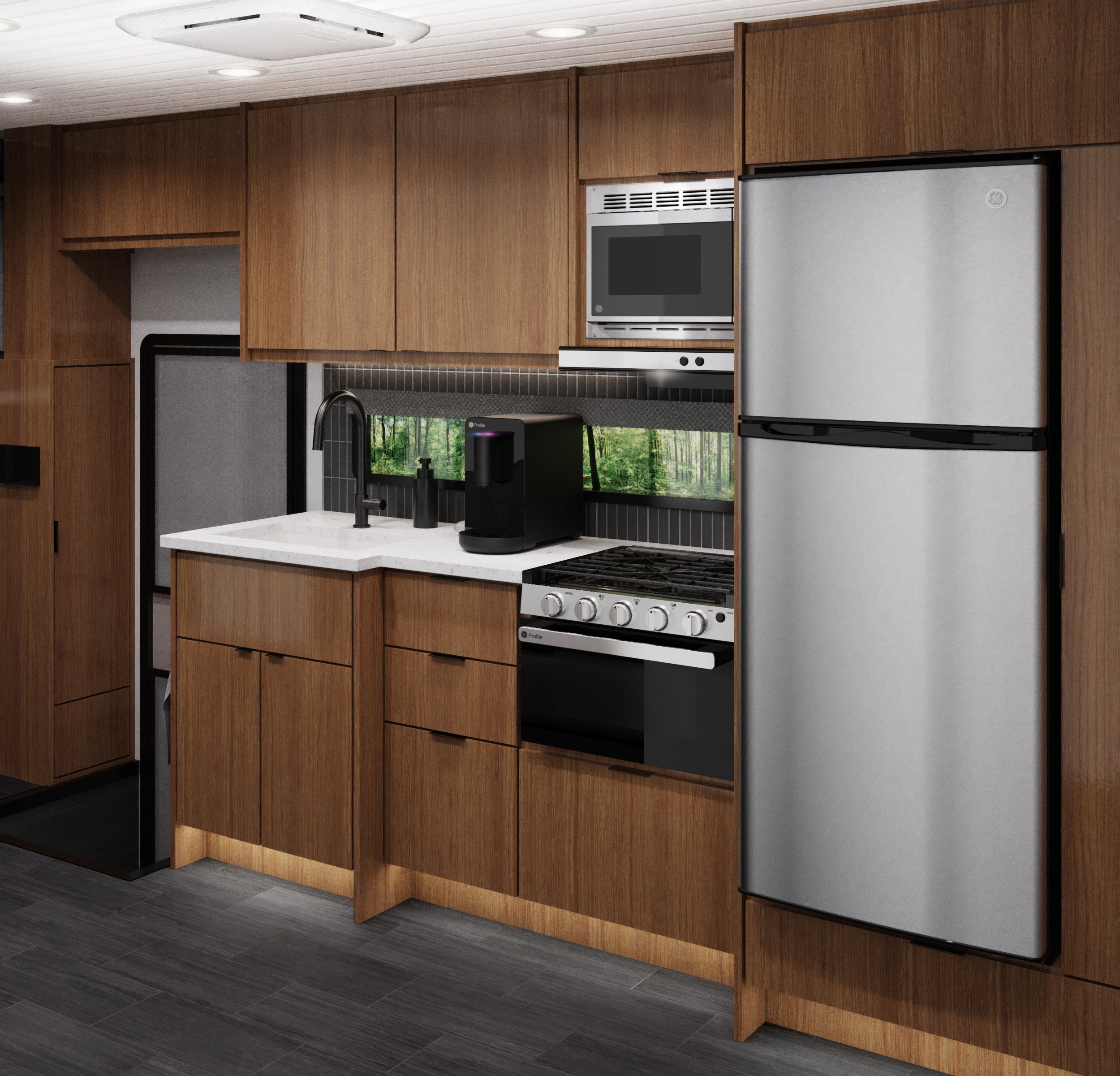

Discover how this 17" drop-in RV stove fits perfectly into your camper for easy on-the-go cooking
Liquid Propane Fuel
Fully contain liquid propane in your RV for easy mobile cooking on your propane gas range
Easy-Clean Enamel Oven
Wipe away messes and grime with one simple swipe in this enamel easy-clean oven

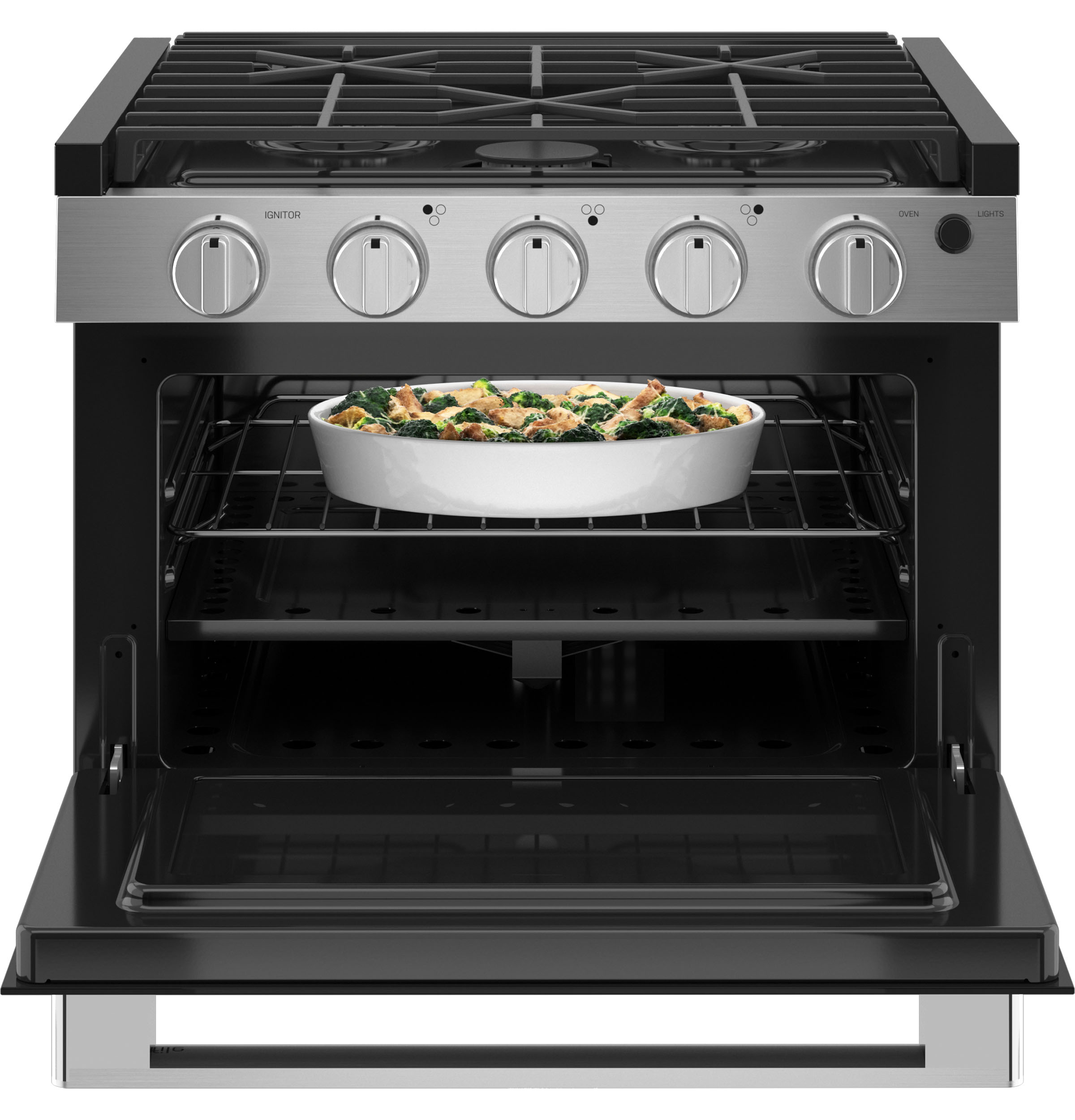

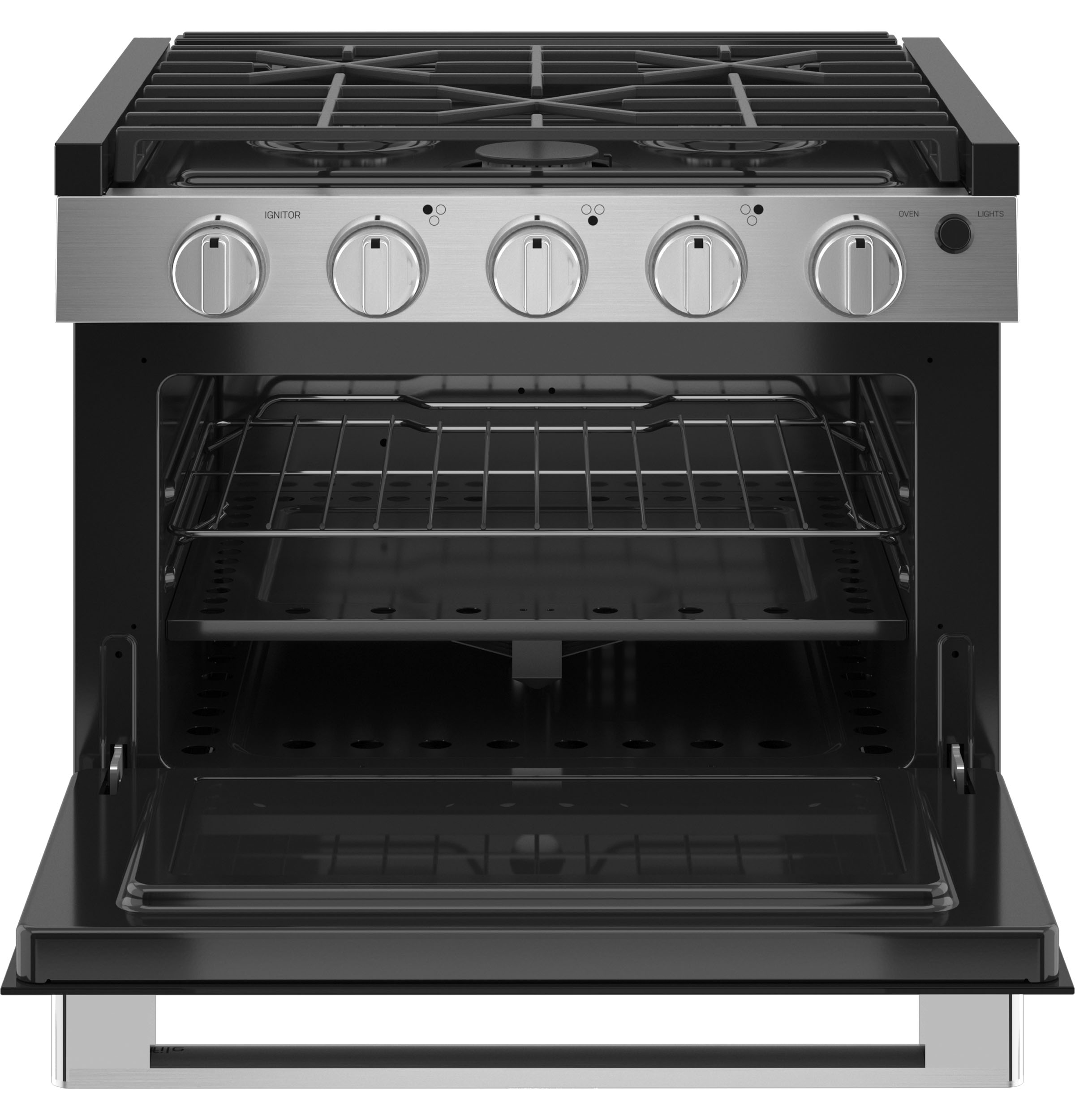

Nickel Oven Rack with Multiple Positions
This durable and fully adjustable nickel rack has 2 flexible oven rack positions to accommodate a variety of cookware
