Sale price $3,033.60 Regular price $3,992.97 Save $959.37 / 24% OFF

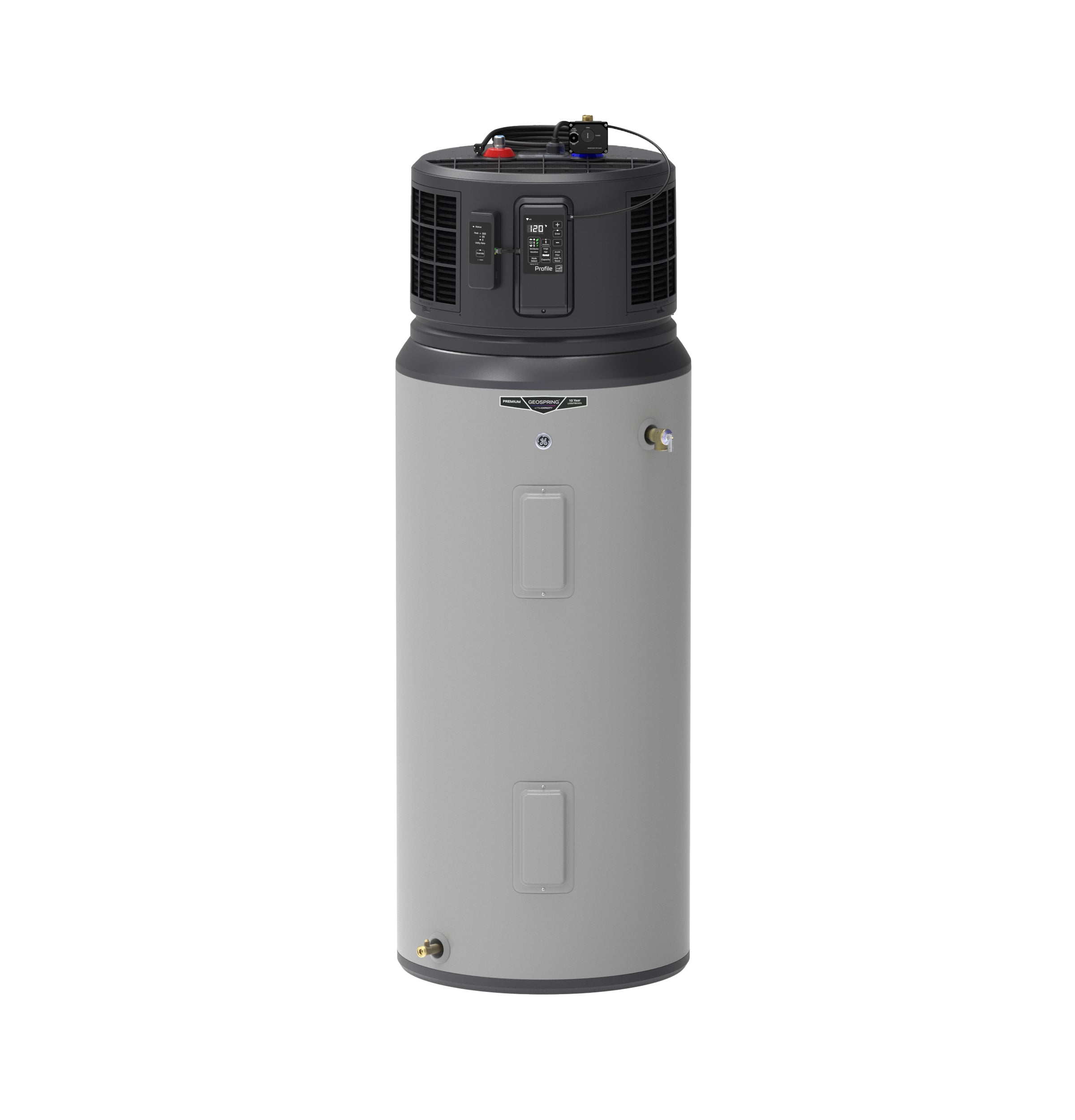

Product Details for GE Profile PJ80S10FPY

Technical Details

Weights & dimensions

Product Height (to top of water inlet/outlet connections) 76.375 in
Approximate Shipping Weight 360 lb
Overall Width 27 in
Overall Height 76.375 in
Product Height (to top of unit) 75 in
Net Weight 331 lb
Product Diameter 27 in
Overall Depth 27 in
Connection Sizes - Water Inlet (MNPT) 3/4"
Connection Sizes - Hot Water Outlet (MNPT) 3/4"

Features

Power Cord Length 6' 3-prong
Control Type LED
Demand Response Capable Yes
Drain Valve Left Side
Temp & Pressure Relief Valve Right Side
Fuel Type Electric
Operating Modes High Demand/Boost
Electronic, Integrated Mixing Valve Yes
Drain Valve Type Brass
Temperature Setting Factory Default 120° F
Product Type Electric
WiFi Connect Built-In
Water Connection Location Top
Sensor Leak Sensor Included (SPLK10N01A)
Diagnostic Feedback Filter, Lock, Standard Electric
Anode Rod Sensing
Renewable Air Filter Top of Unit
Temperature Setting 100-140° F Range
Connected Capabilities Google Home

Appearance

Installation Free-Standing
Color Appearance Gray

Power / ratings

Operating Water Pressure 20-125 PSI (30-80 PSI recommended)
Electrical Consumption - Lower Element 900W at 120VAC
Electrical Consumption - Upper Element 900W at 120VAC
Electrical Circuit Required 120/110VAC 15A, 60HZ or 240/208VAC 25A, 60Hz
Hertz 60
Volts/Hertz 120V; 60Hz or 240V; 60Hz
First Hour Rate (FHR) 94 Gallons
Voltage (MAX) 240 V
Energy Consumption (kWh/year) 1417

Warranty

Warranty Notes See written warranty for full details
Parts Warranty Limited 10-year tank and parts
Labor Warranty No Warranty

Capacity

Unit Capacity 80 Gallons

Economical / quiet

Operating Sound Level 41 dBA

Description

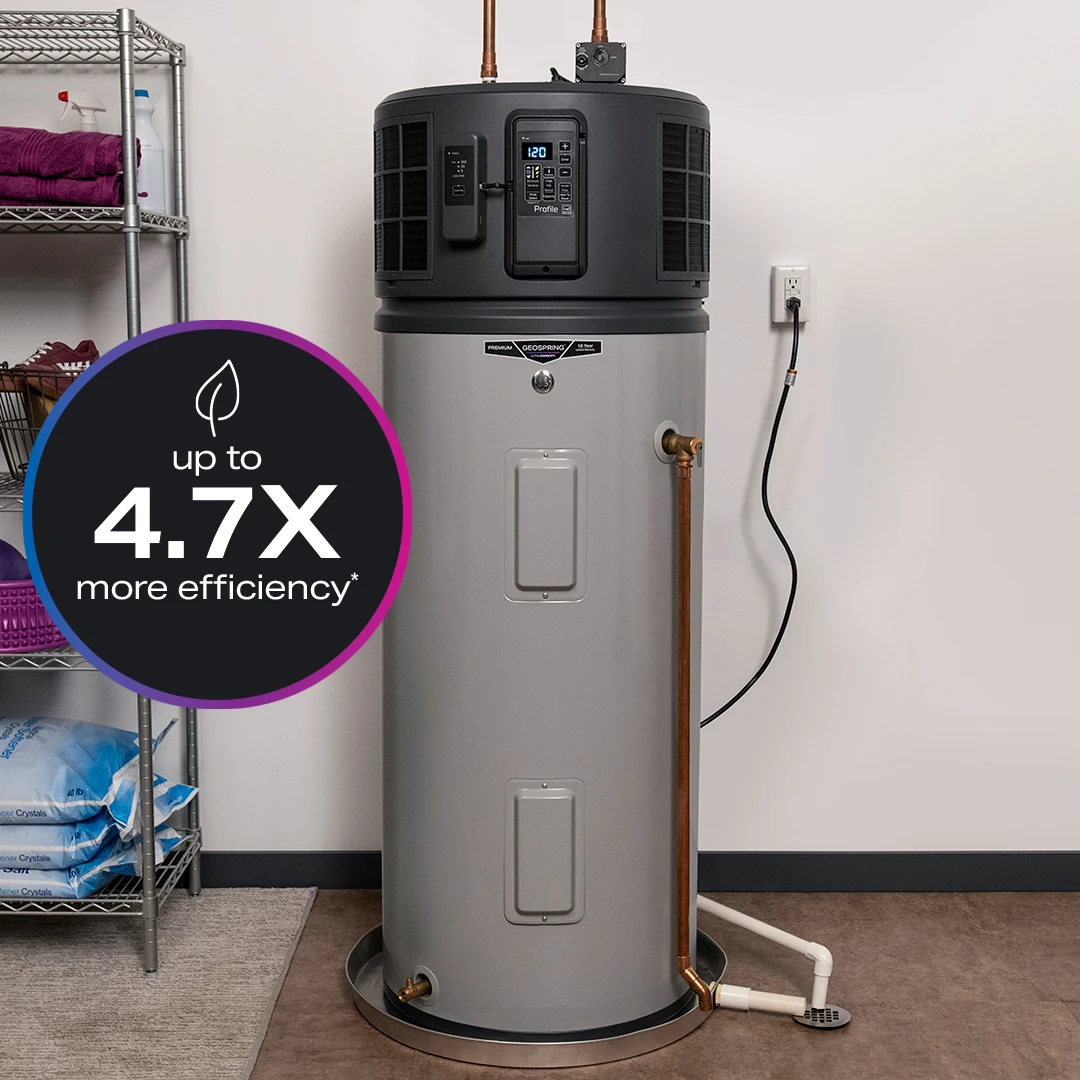

Up to 4.7x More Energy Efficiency
Turn air into hot water power. Our heat pump water heater converts ambient air into water-heating energy, delivering up to 4.7x more efficiency than standard models-heat pump water heater performance that exceeds ENERGY STAR(R) requirements.

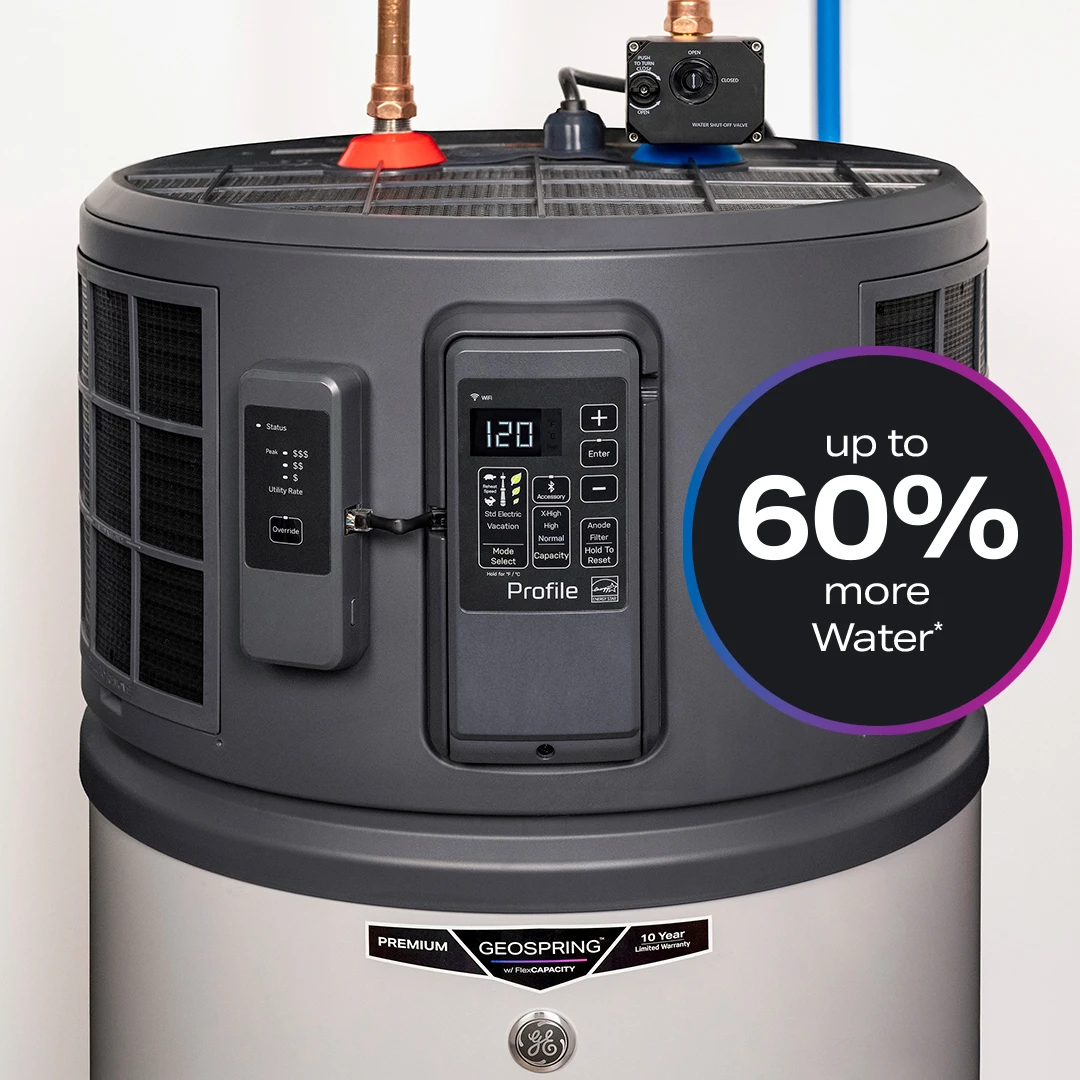

FlexCAPACITY
FlexCAPACITY's electronic mixing valve delivers precise temperature control by blending hot and cold water at the point of exit. Get up to 60% more hot water-an 80-gallon unit performs like a 125-gallon model. Discover how to get more hot water. (*vs comparable water heaters without mixing valve at 120(degree)F set and 58(degree)F water temperature)

Homeowner Savings
Unlock savings with up to $550* on annual energy bills. Plus, qualify for up to $900 in EnergyStar and local utility rebates, and receive up to $2,000 in Inflation Reduction Act (IRA) tax credits. (*GE Standard Electric GE50S10BAM vs GE Profile PH50S10BPY Heat Pump Water Heater)

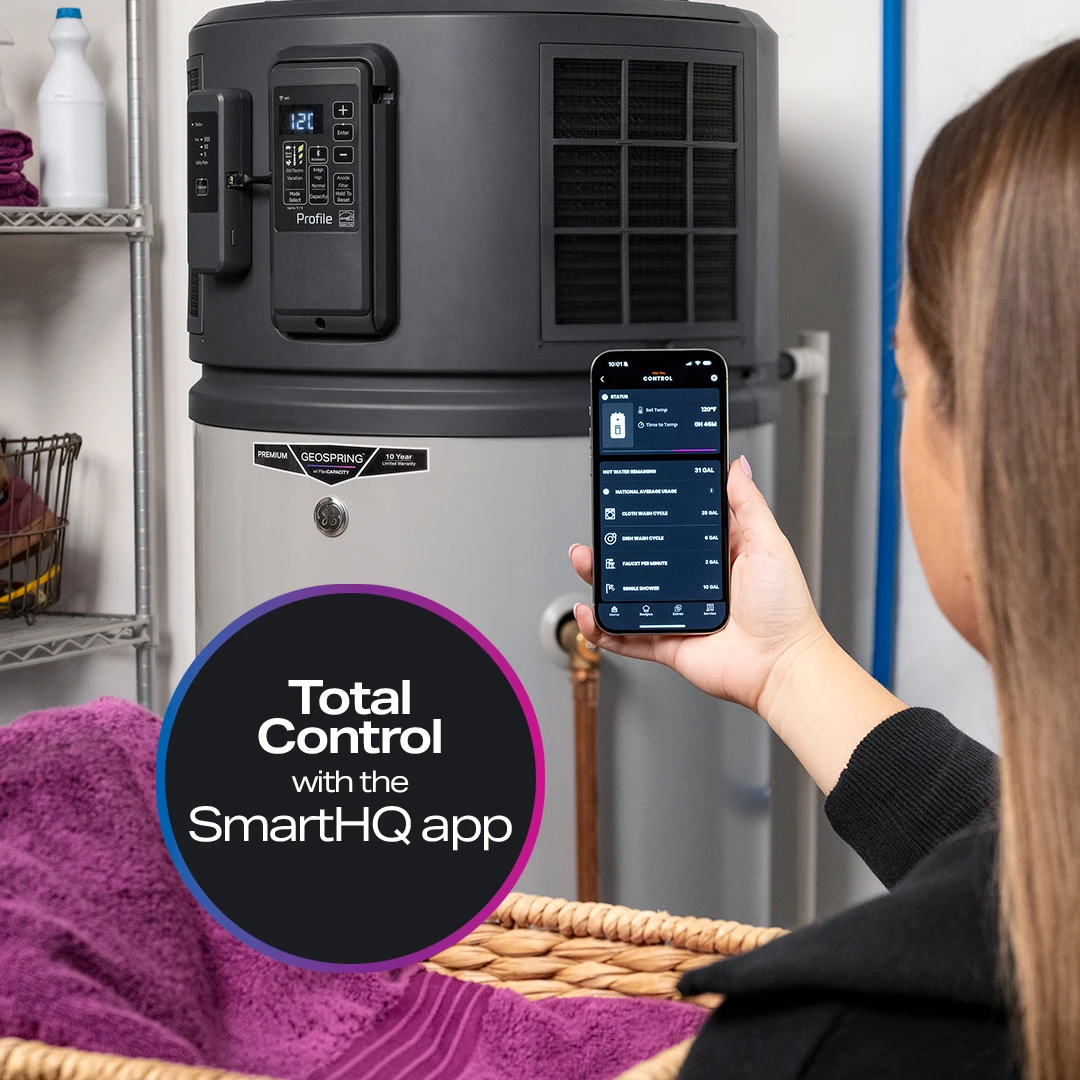

Total Control with SmartHQ(TM)
Stay connected, anytime, anywhere. Built-in WiFi and the SmartHQ(TM) app let you monitor, control, and adjust your smart heat pump water heater from the palm of your hand. Enjoy alerts, usage tracking, and access to the latest features-all from one app.

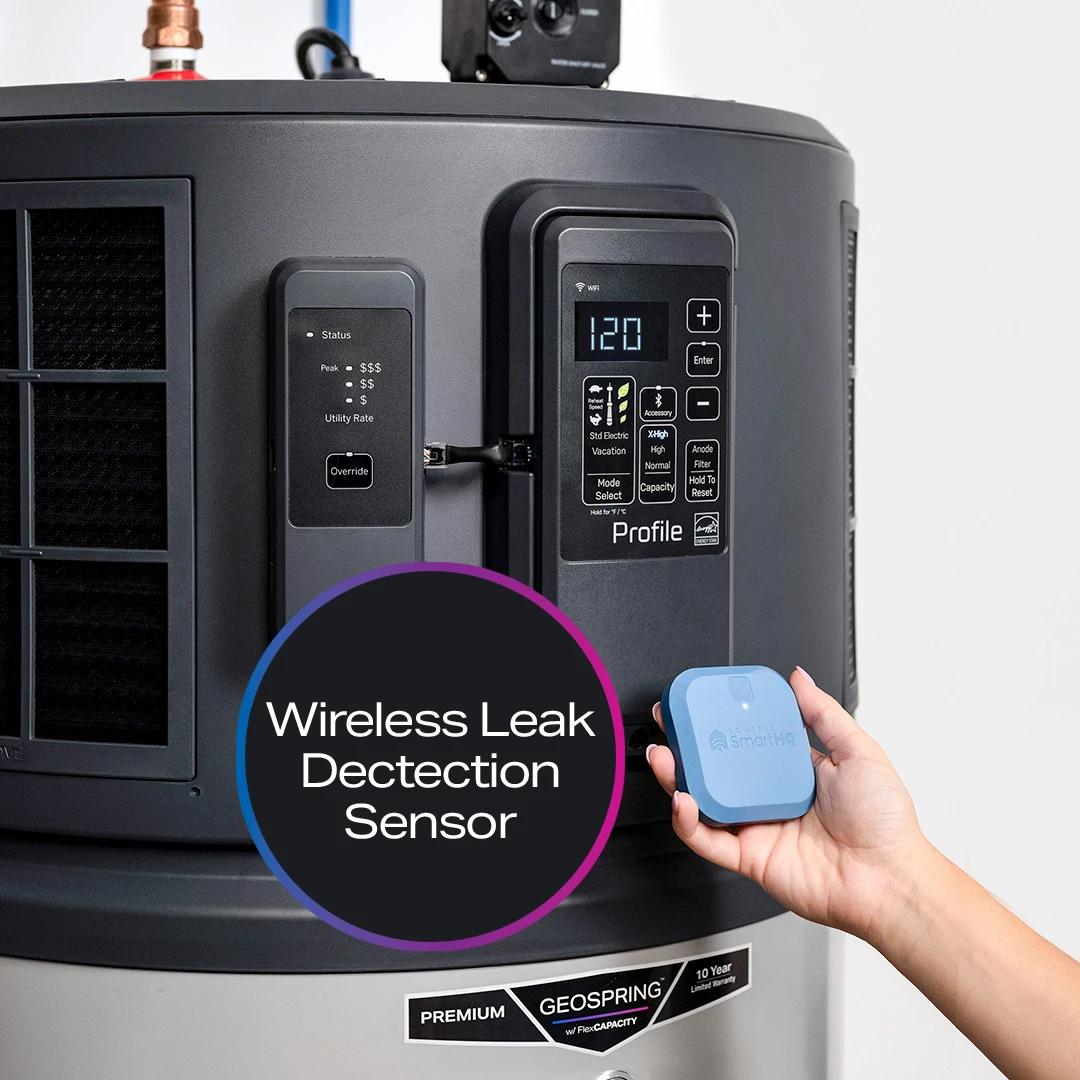

Wireless Leak Detection with Automatic Water Shutoff
Our exclusive wireless water sensor detects leaks and sends instant alerts via the SmartHQ(TM) app. Place sensors wherever you need, ensuring automatic water shutoff in case of emergency-no strings (or wires) attached.

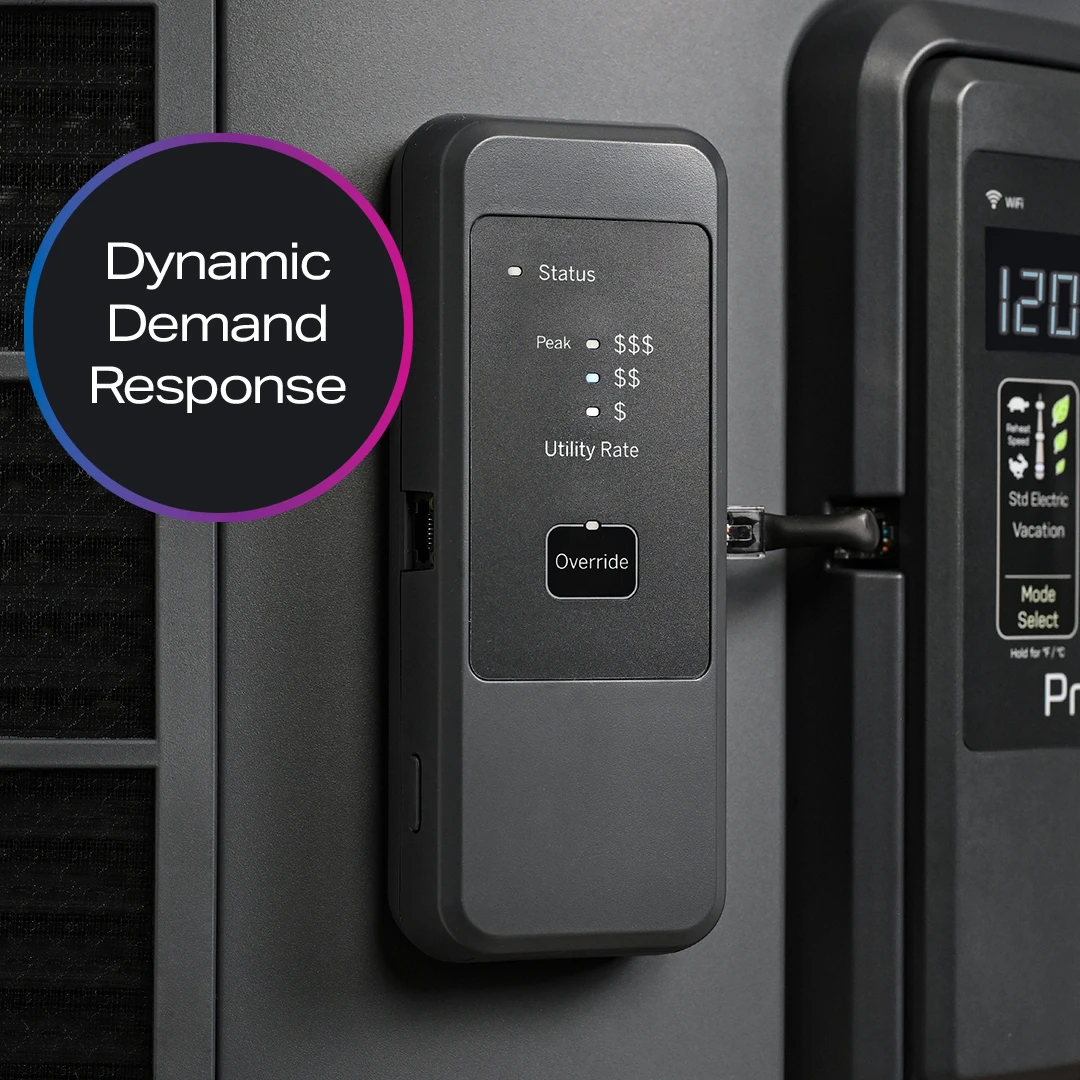

Dynamic Demand Response
Lower energy bills made simple. GEOSPRING(TM) water heaters are EcoPort Certified with built-in demand response capabilities to optimize home energy usage when rates are the lowest. Stay ahead of fluctuating energy costs.

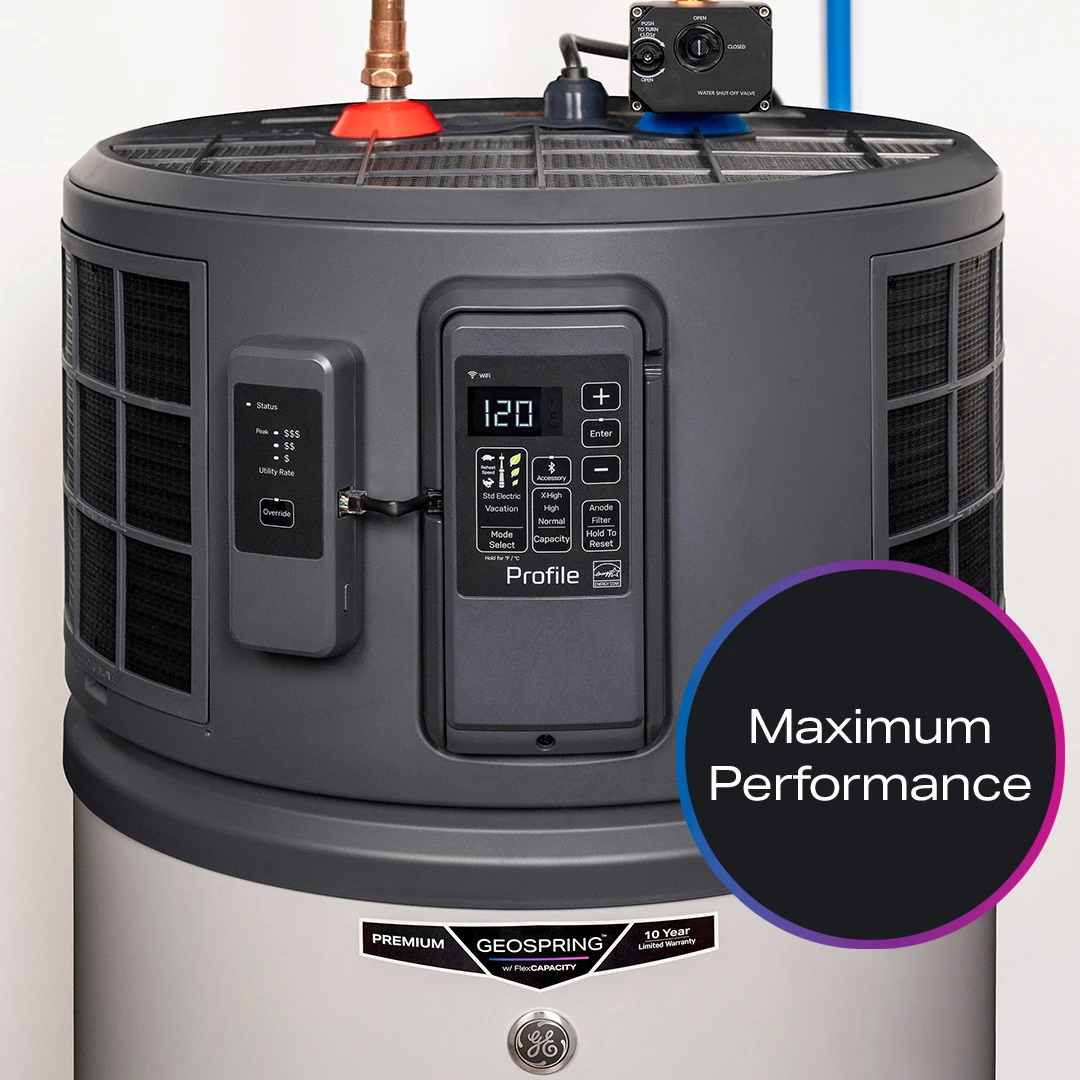

Maximum Performance
Hot water when you need it most. GEOSPRING(TM) heat pump water heaters deliver 94 gallons of hot water in the first hour of operation*. Built for homes with high water demands, they ensure maximum efficiency and performance you can trust. (*Measured through DOE First Hour Rating)

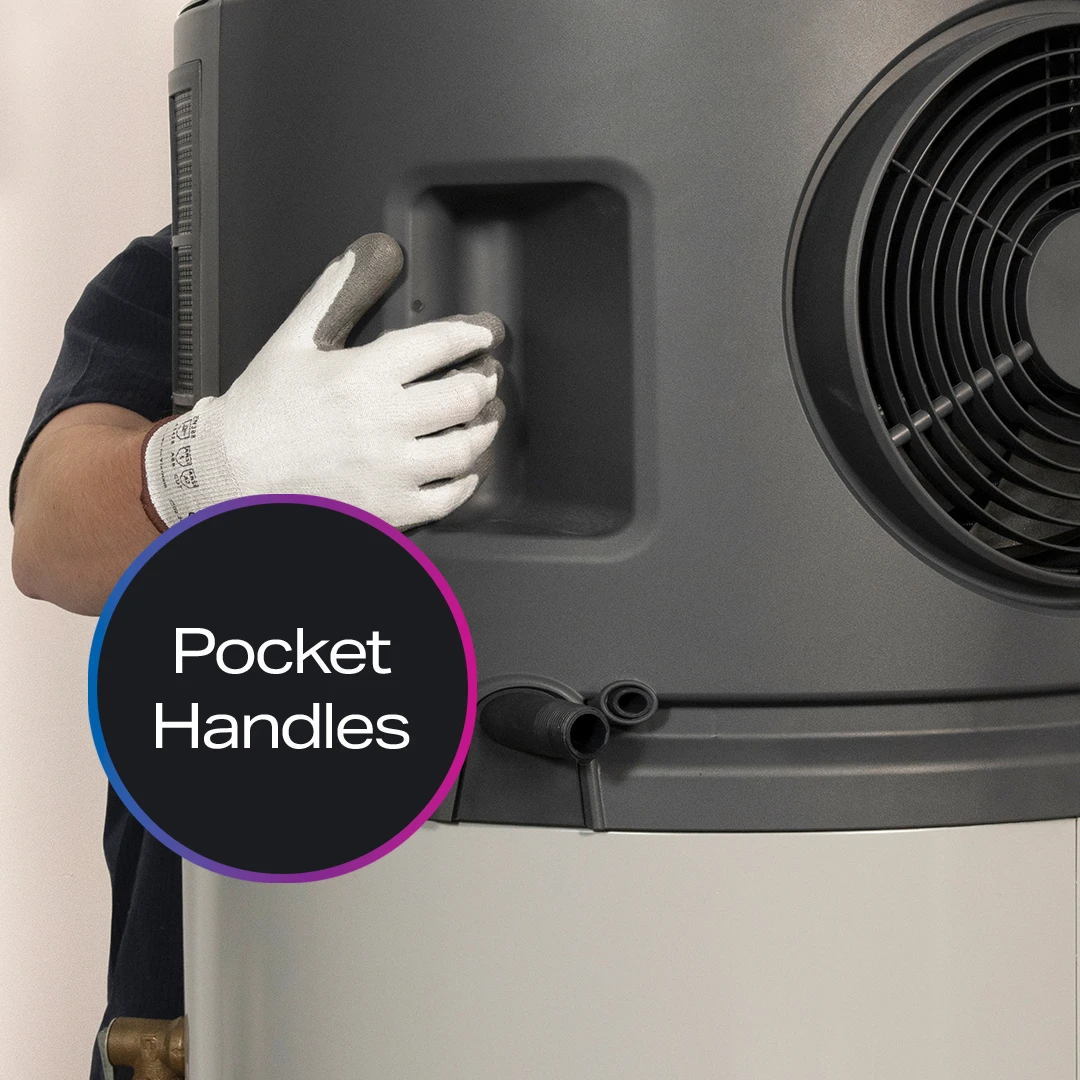

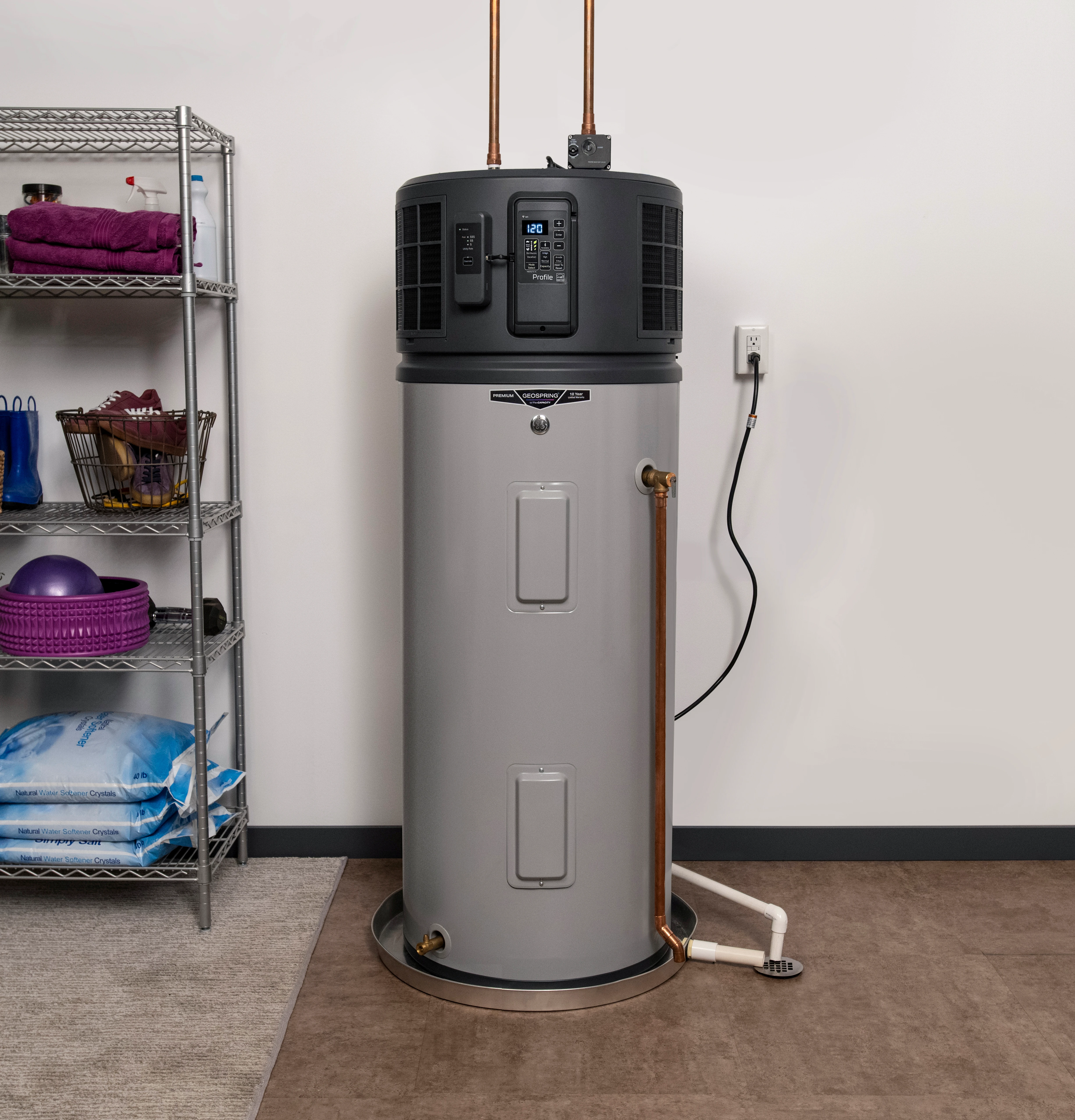

Flexible & Easy Installation
GEOSPRING(TM) heat pump water heaters install easily with a 120V standard plug-in or converts to 240V for enhanced efficiency. Integrated pocket handles and pre-installed wire connectors simplify setup.

Household Size
On the X-High setting, our water heaters supply ample hot water for households of up to 8 people. It's the best hot water heater for large family needs, ensuring comfort and convenience every day.

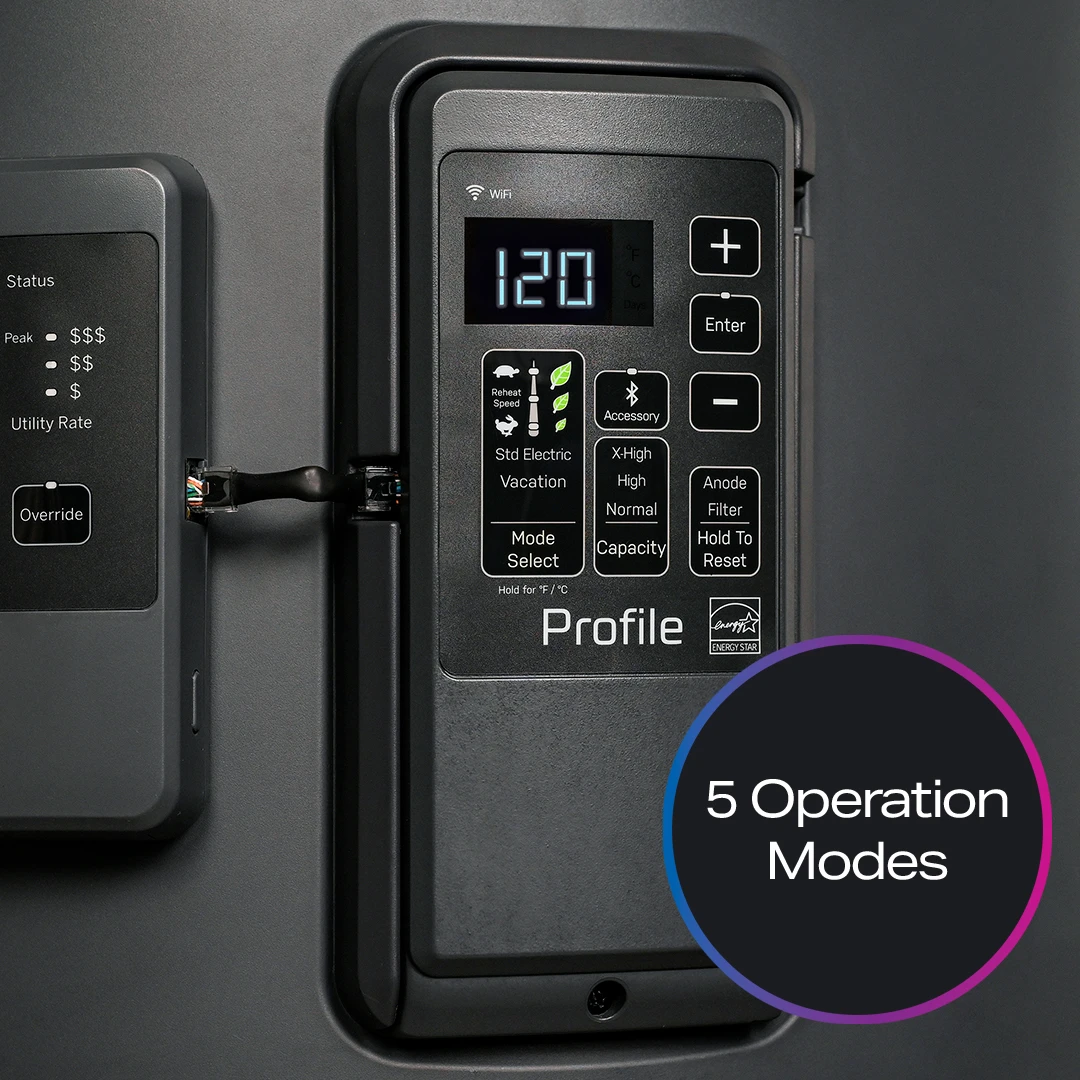

Five Operation Modes
Hot water your way. Choose from five operational settings: Heat Pump , Hybrid, High Demand, Electric, and Vacation modes. Enjoy personalized water heating with flexible operation modes designed for maximum comfort and efficiency.

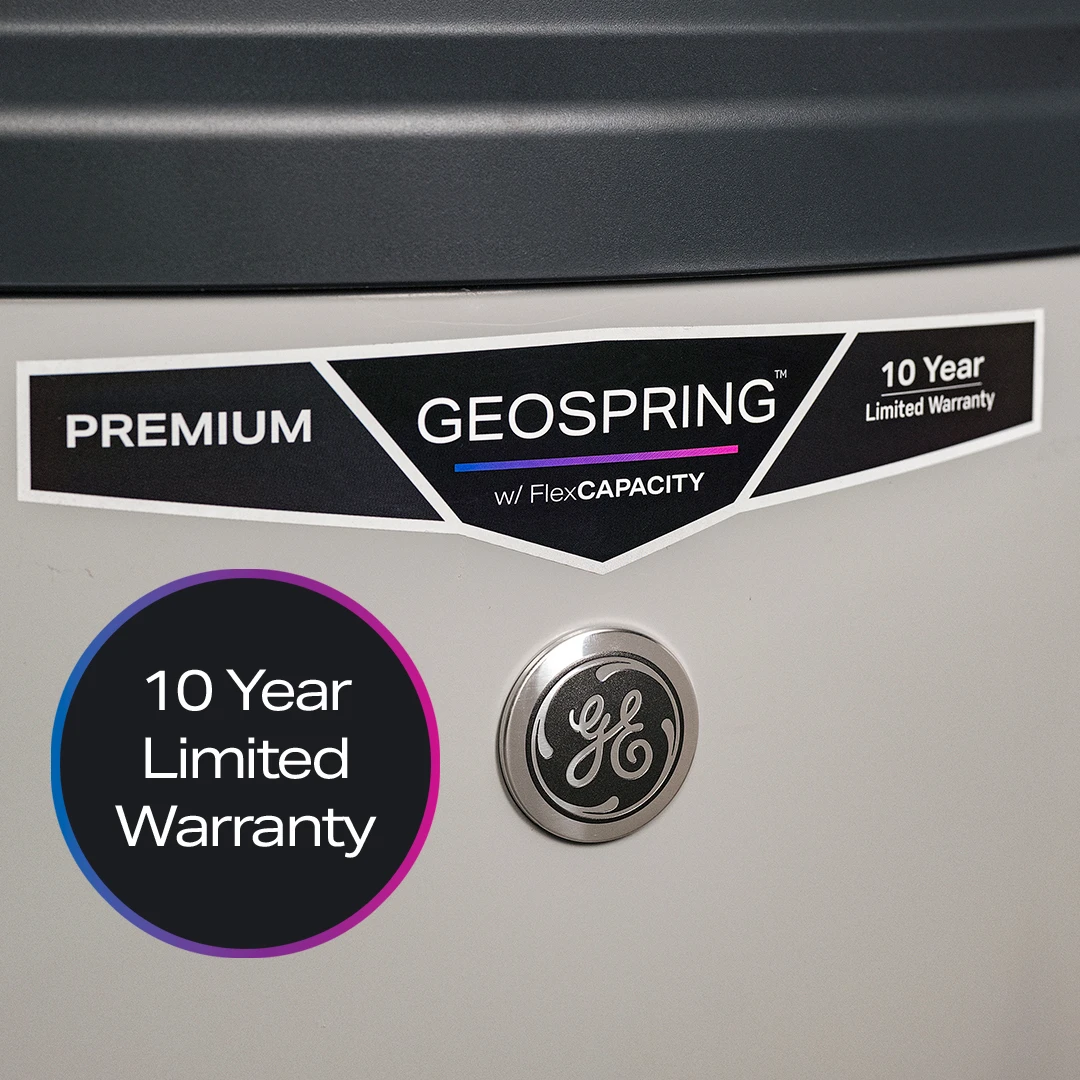

10 Year Limited Warranty
Built to last, guaranteed. Enjoy long-term peace of mind with our limited 10-year tanks and parts limited warranty. Dependable performance backed by our commitment to quality and durability.

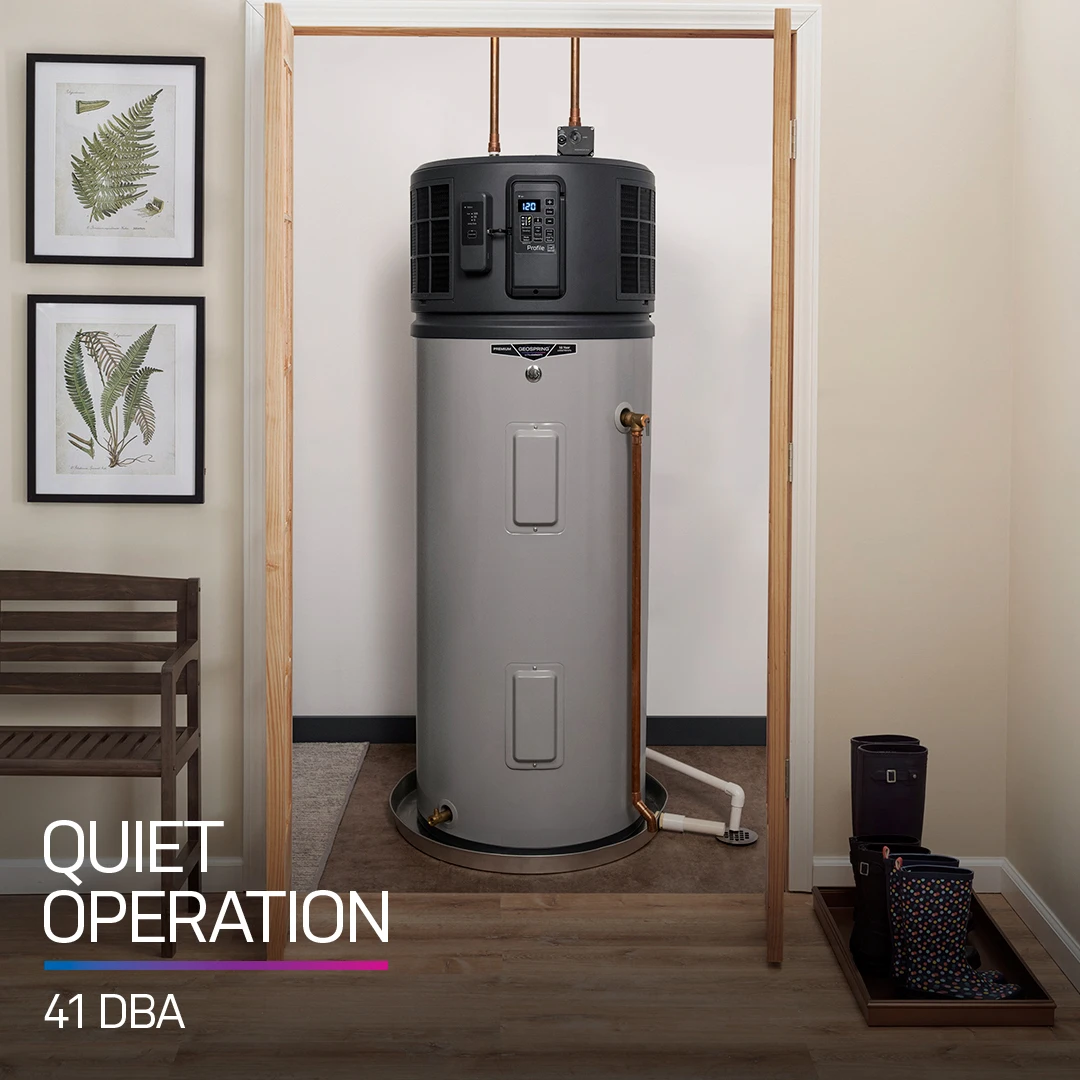

Quiet Operation
Whisper-quiet comfort. GEOSPRING(TM) heat pump water heaters operate at a low 41 dBA, ensuring a peaceful home environment. Experience the tranquility of a quiet heat pump water heater without sacrificing performance.

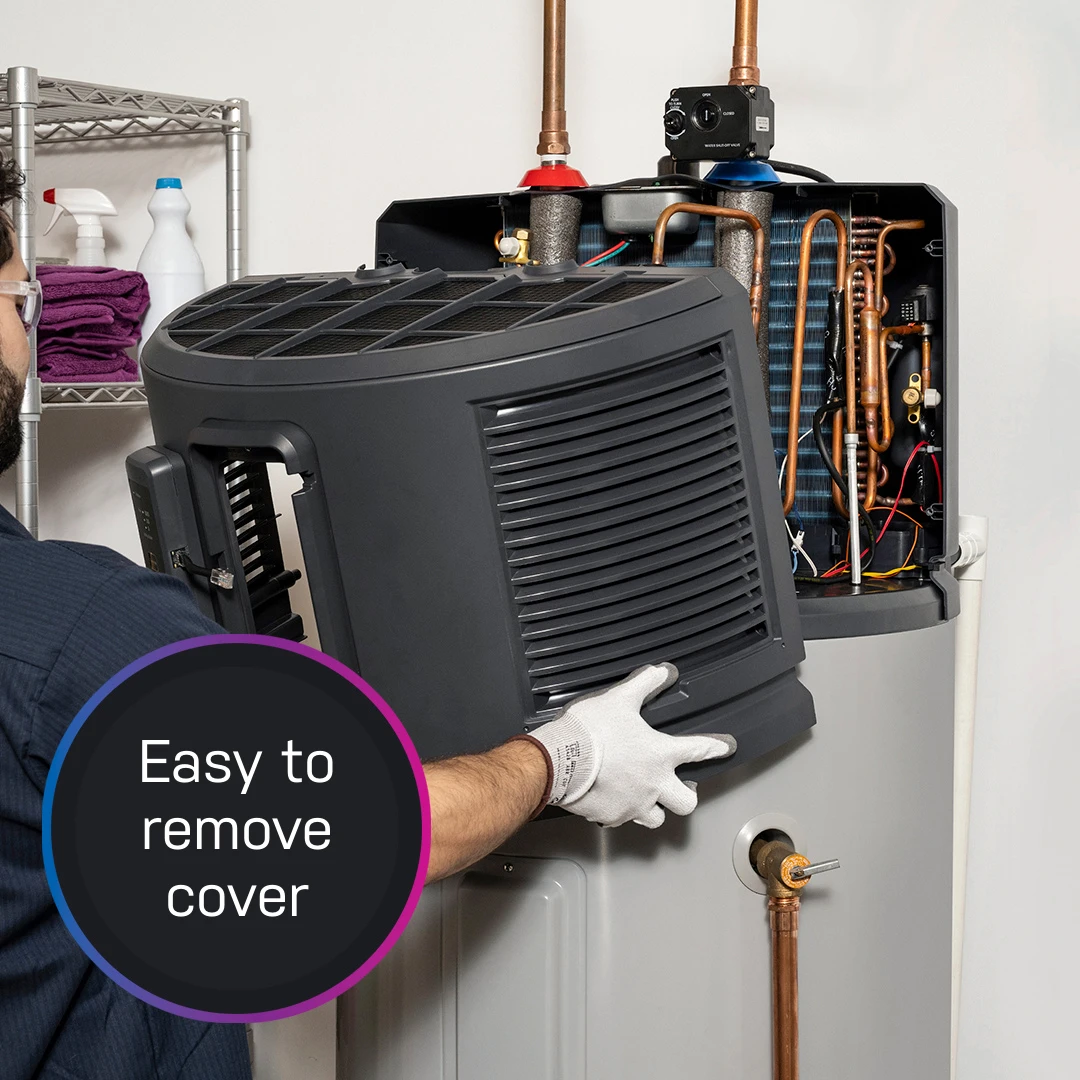

Easy To Service
Built for sustainability. Unlike most competitors, our heat pump water heaters are designed to be serviceable, reducing waste and landfill impact. Enjoy low maintenance and long-lasting performance for a greener home.

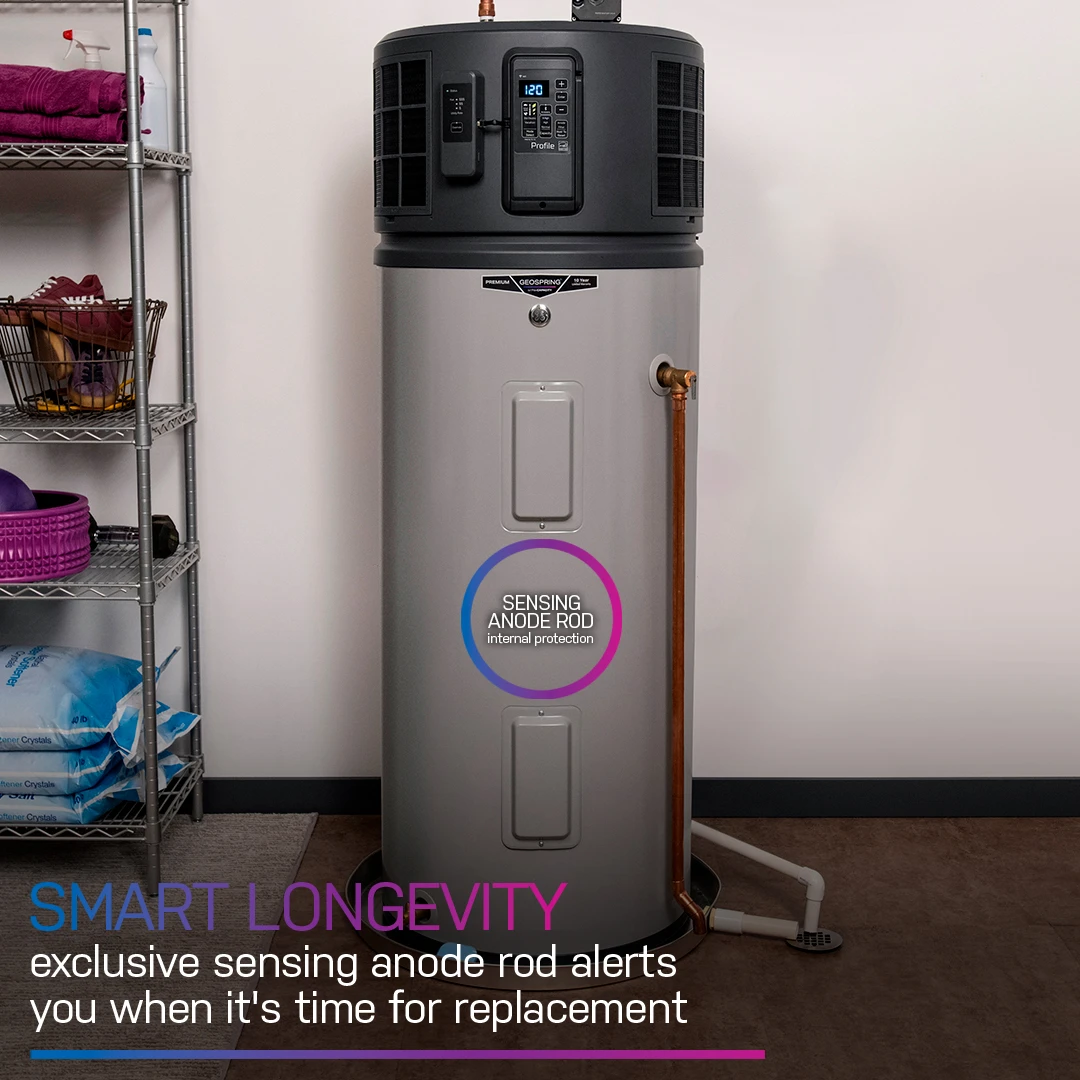

Sensing Anode Rod
Smart water heater protection. Our exclusive anode rod sensing technology alerts you when it's time for replacement, extending your water heater's life and optimizing its performance for years to come.

Variable Speed Compressor
Adapts to your home. GEOSPRING(TM) heat pump water heaters feature a variable speed compressor that adjusts speed based on environmental conditions. Enjoy consistent hot water, even in colder climates, with enhanced energy efficiency.



Product Features

  • Household Size
    On the X-High setting, our water heaters supply ample hot water for households of up to 8 people. It’s the best hot water heater for large family needs, ensuring comfort and convenience every day.

Key Features

Up to 4.7x More Energy Efficiency

Turn air into hot water power. Our heat pump water heater converts ambient air into water-heating energy, delivering up to 4.7x more efficiency than standard models—heat pump water heater performance that exceeds ENERGY STAR® requirements.

FlexCAPACITY

FlexCAPACITY’s electronic mixing valve delivers precise temperature control by blending hot and cold water at the point of exit. Get up to 60% more hot water—an 80-gallon unit performs like a 125-gallon model. Discover how to get more hot water. (*vs comparable water heaters without mixing valve at 120°F set and 58°F water temperature)

Homeowner Savings

Unlock savings with up to $550* on annual energy bills. Plus, qualify for up to $900 in EnergyStar and local utility rebates. (*GE Standard Electric GE50S10BAM vs GE Profile PH50S10BPY Heat Pump Water Heater)

Total Control with SmartHQ™

Stay connected, anytime, anywhere. Built-in WiFi and the SmartHQ™ app let you monitor, control, and adjust your smart heat pump water heater from the palm of your hand. Enjoy alerts, usage tracking, and access to the latest features—all from one app.

Wireless Leak Detection with Automatic Water Shutoff

Our exclusive wireless water sensor detects leaks and sends instant alerts via the SmartHQ™ app. Place sensors wherever you need, ensuring automatic water shutoff in case of emergency—no strings (or wires) attached.

Dynamic Demand Response

Lower energy bills made simple. GEOSPRING™ water heaters are EcoPort Certified with built-in demand response capabilities to optimize home energy usage when rates are the lowest. Stay ahead of fluctuating energy costs.

Maximum Performance

Hot water when you need it most. GEOSPRING™ heat pump water heaters deliver 94 gallons of hot water in the first hour of operation*. Built for homes with high water demands, they ensure maximum efficiency and performance you can trust. (*Measured through DOE First Hour Rating)

Flexible & Easy Installation

GEOSPRING™ heat pump water heaters install easily with a 120V standard plug-in or converts to 240V for enhanced efficiency. Integrated pocket handles and pre-installed wire connectors simplify setup.

Five Operation Modes

Hot water your way. Choose from five operational settings: Heat Pump , Hybrid, High Demand, Electric, and Vacation modes. Enjoy personalized water heating with flexible operation modes designed for maximum comfort and efficiency.

10 Year Limited Warranty

Built to last, guaranteed. Enjoy long-term peace of mind with our limited 10-year tanks and parts limited warranty. Dependable performance backed by our commitment to quality and durability.

Quiet Operation

Whisper-quiet comfort. GEOSPRING™ heat pump water heaters operate at a low 41 dBA, ensuring a peaceful home environment. Experience the tranquility of a quiet heat pump water heater without sacrificing performance.

Easy To Service

Built for sustainability. Unlike most competitors, our heat pump water heaters are designed to be serviceable, reducing waste and landfill impact. Enjoy low maintenance and long-lasting performance for a greener home.

Sensing Anode Rod

Smart water heater protection. Our exclusive anode rod sensing technology alerts you when it’s time for replacement, extending your water heater’s life and optimizing its performance for years to come.

Variable Speed Compressor

Adapts to your home. GEOSPRING™ heat pump water heaters feature a variable speed compressor that adjusts speed based on environmental conditions. Enjoy consistent hot water, even in colder climates, with enhanced energy efficiency.
