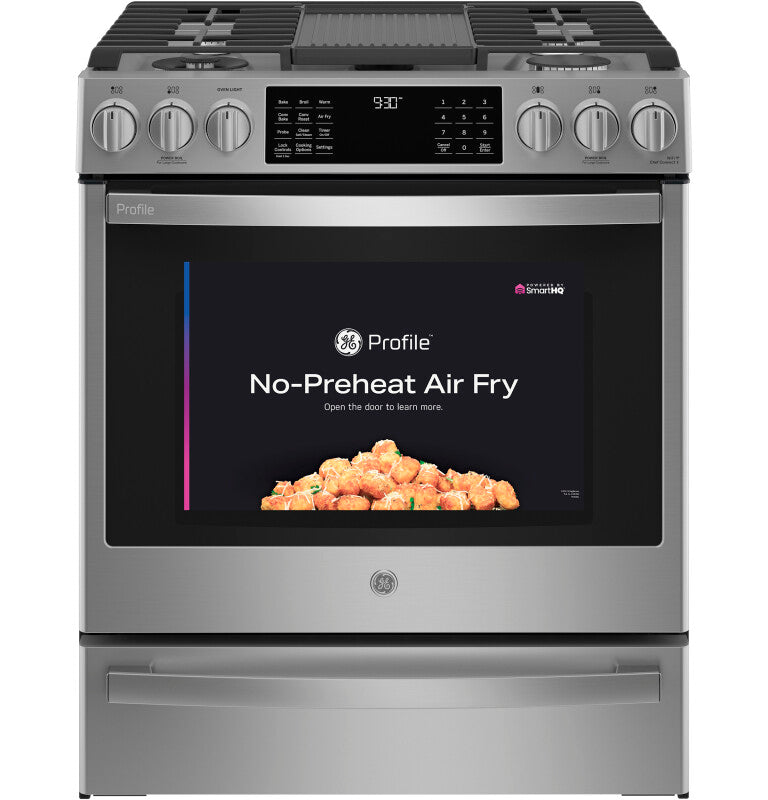

No Preheat Air Fry
Cook healthier, crispier versions of your favorite foods in less time, thanks to an air fryer right in your oven that doesn't require preheating, a basket or a special tray

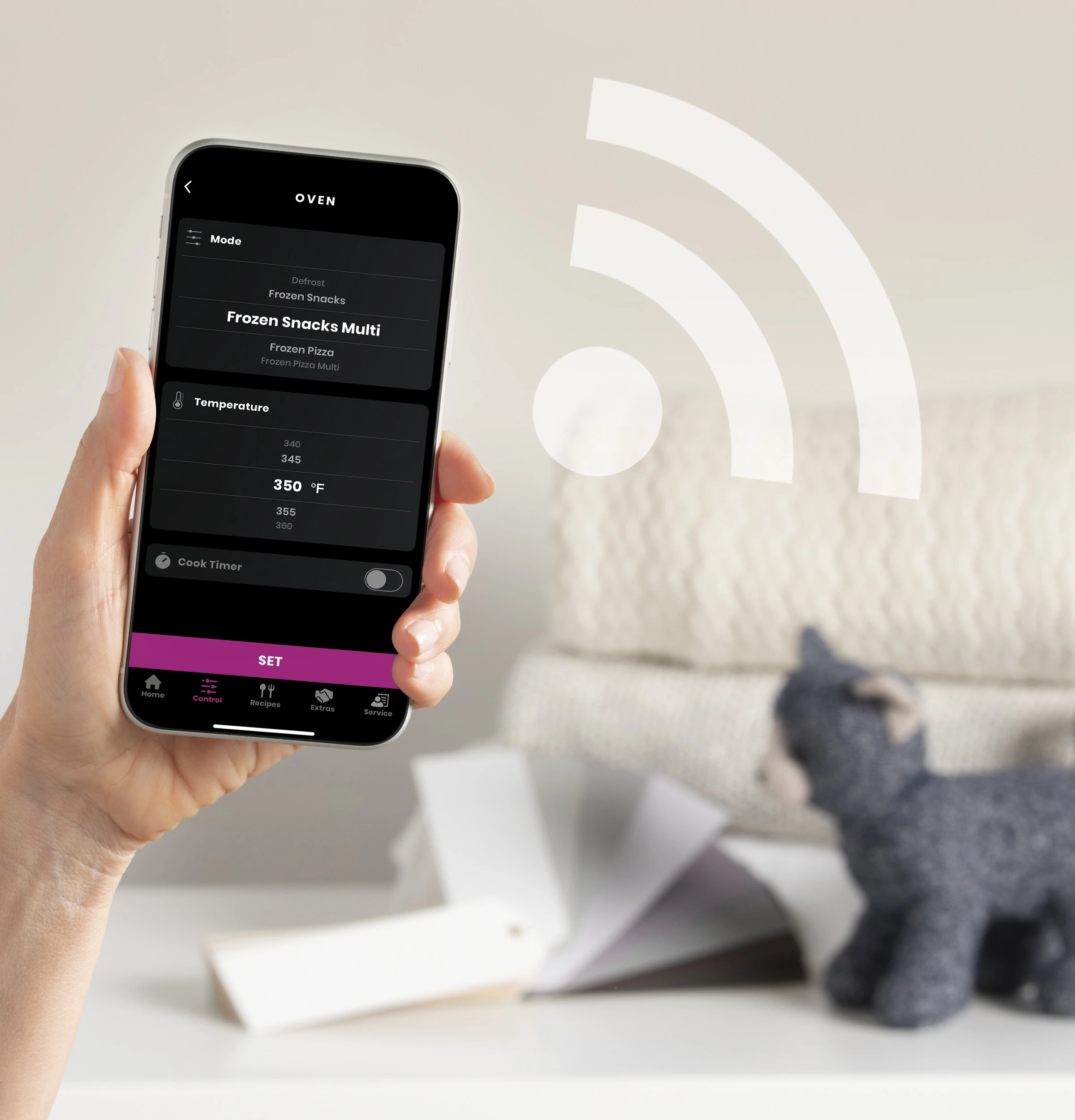

This smart oven features built-in WiFi so you can control oven functions with the SmartHQ app on your smart device
Easily wipe away smudges and fingerprints for a look that's always sparkling clean
This gas range will fit your existing 30" cut-out, or GE Appliances will help pay for modifications up to $300. See offer criteria and details

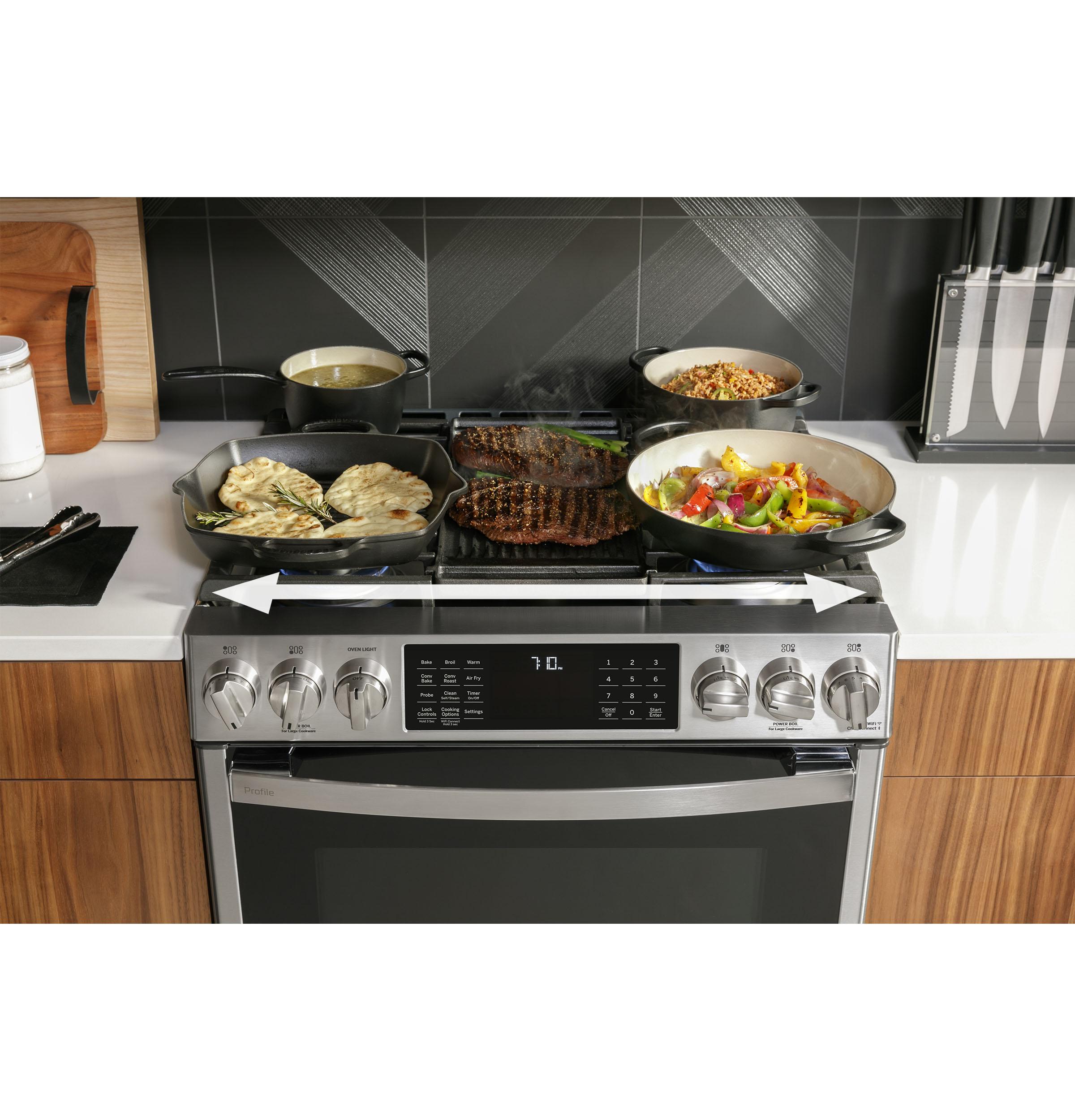

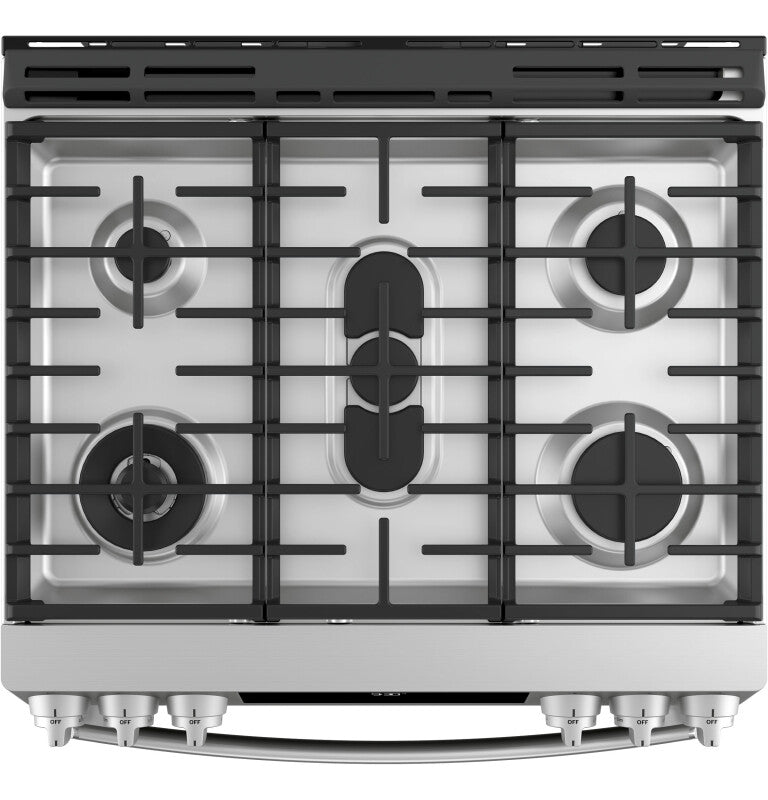

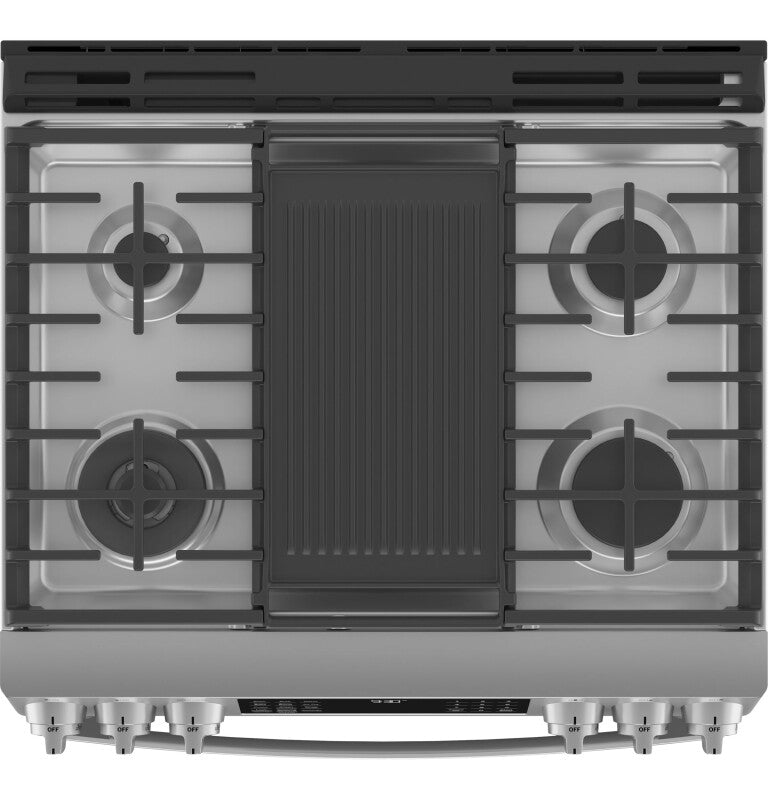

Continuous, edge-to-edge cooktop give you a large cooking space and can handle any cookware

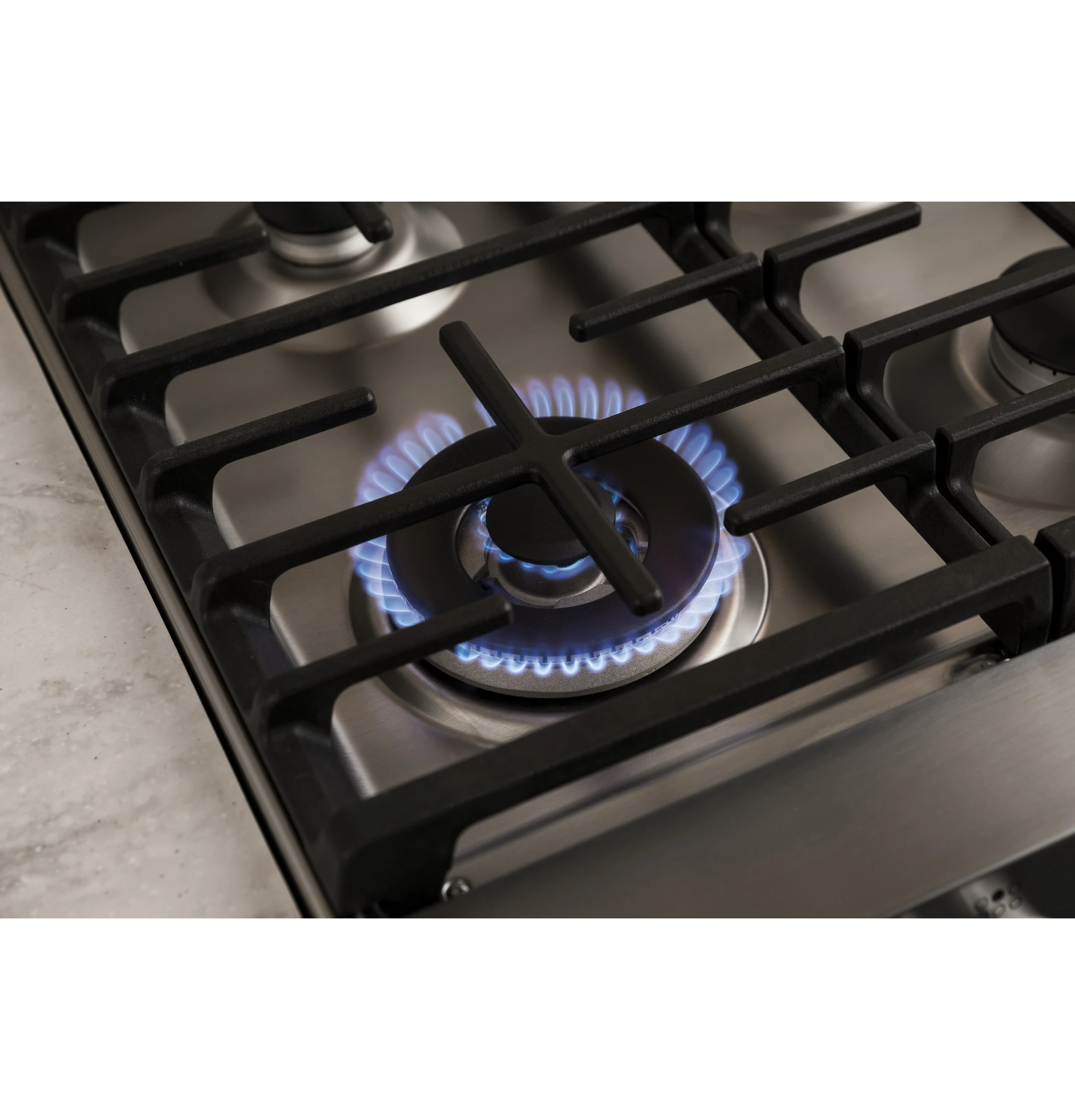

A versatile burner offers three different-sized flame rings on a single burner element, so it's like having three burners in one

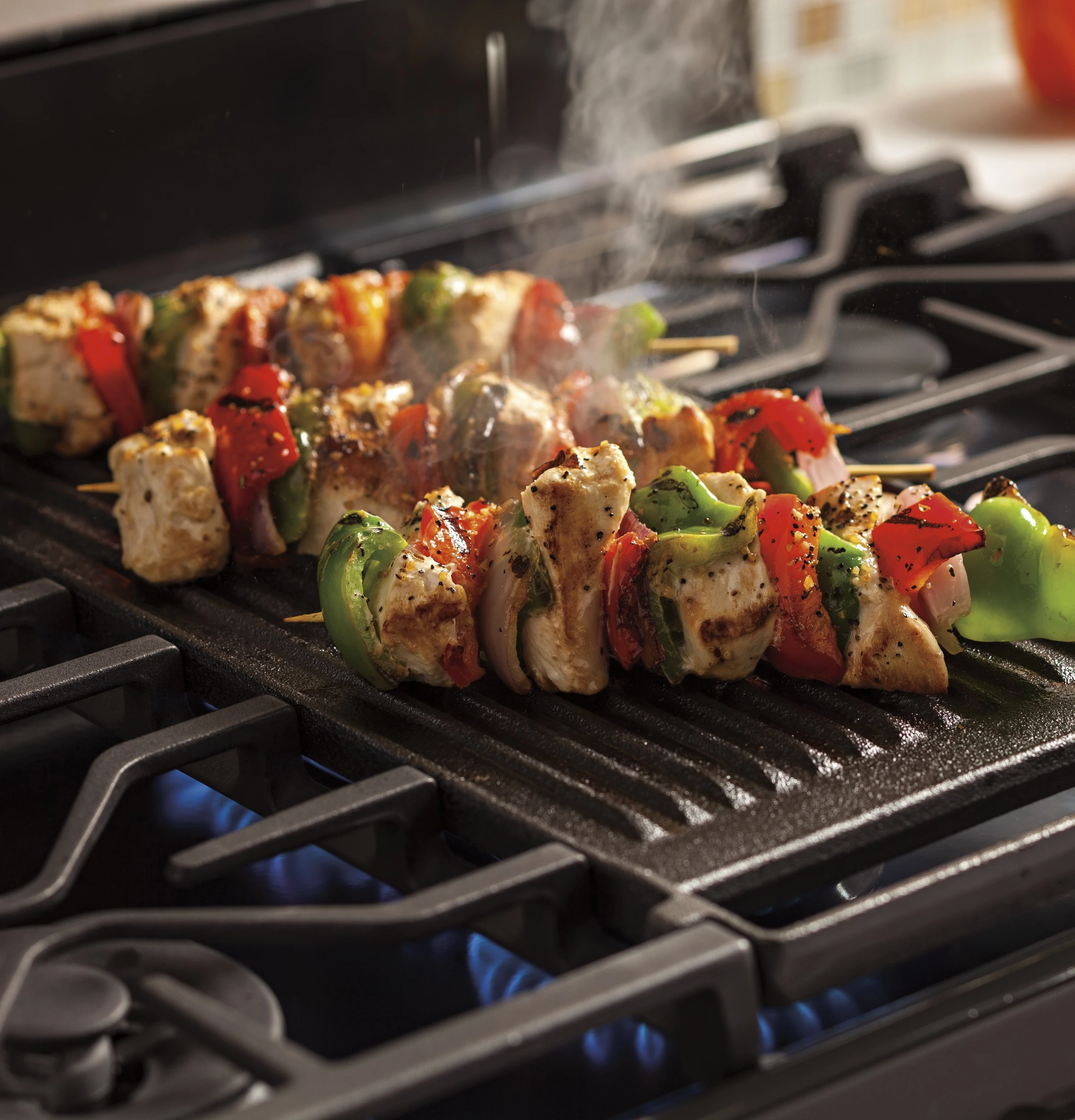

This extra-large, reversible griddle and grill combination lets you enjoy the best in cooking versatility

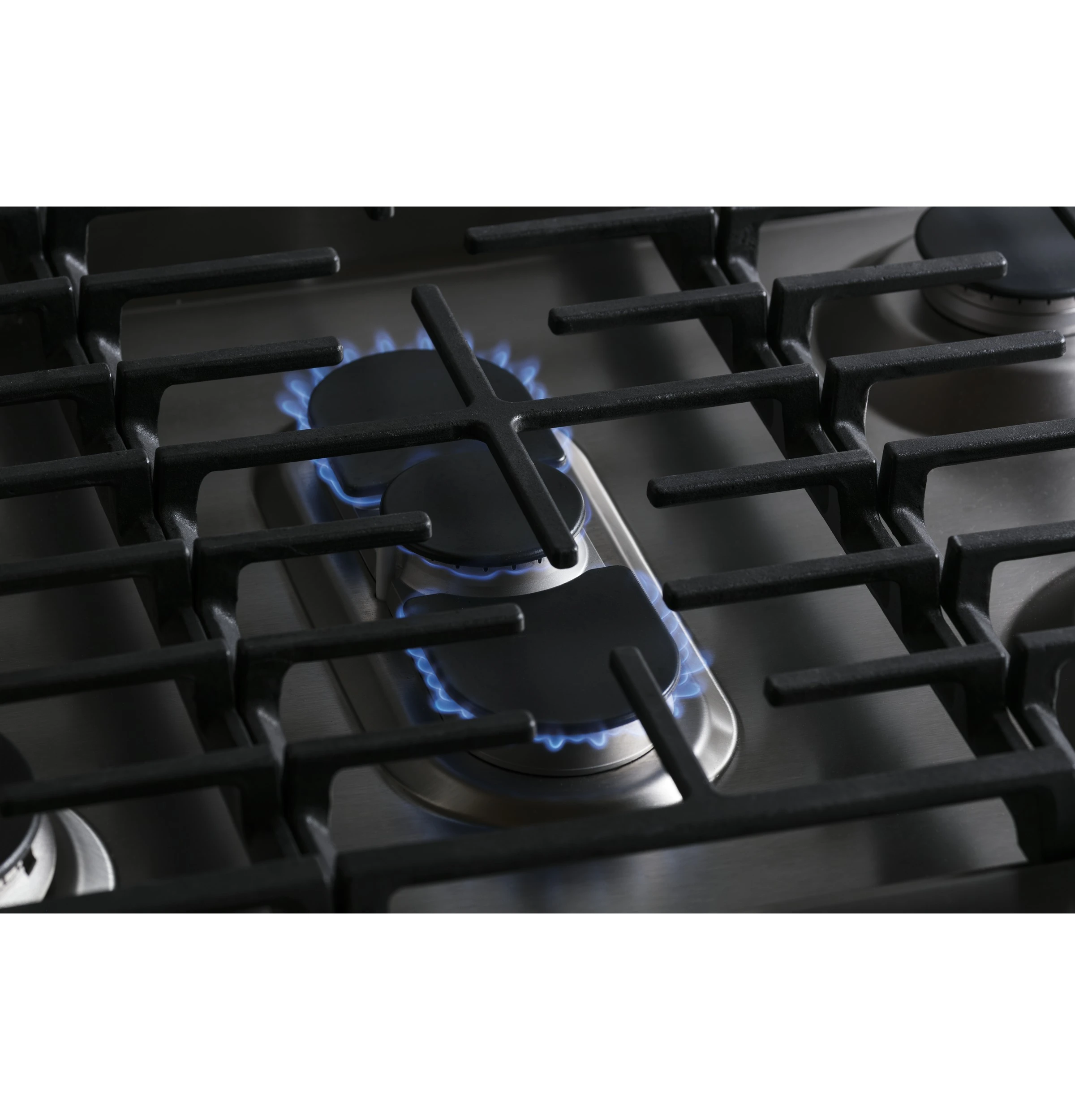

This flexible gas cooktop burner lets you choose between round and oval burner shapes

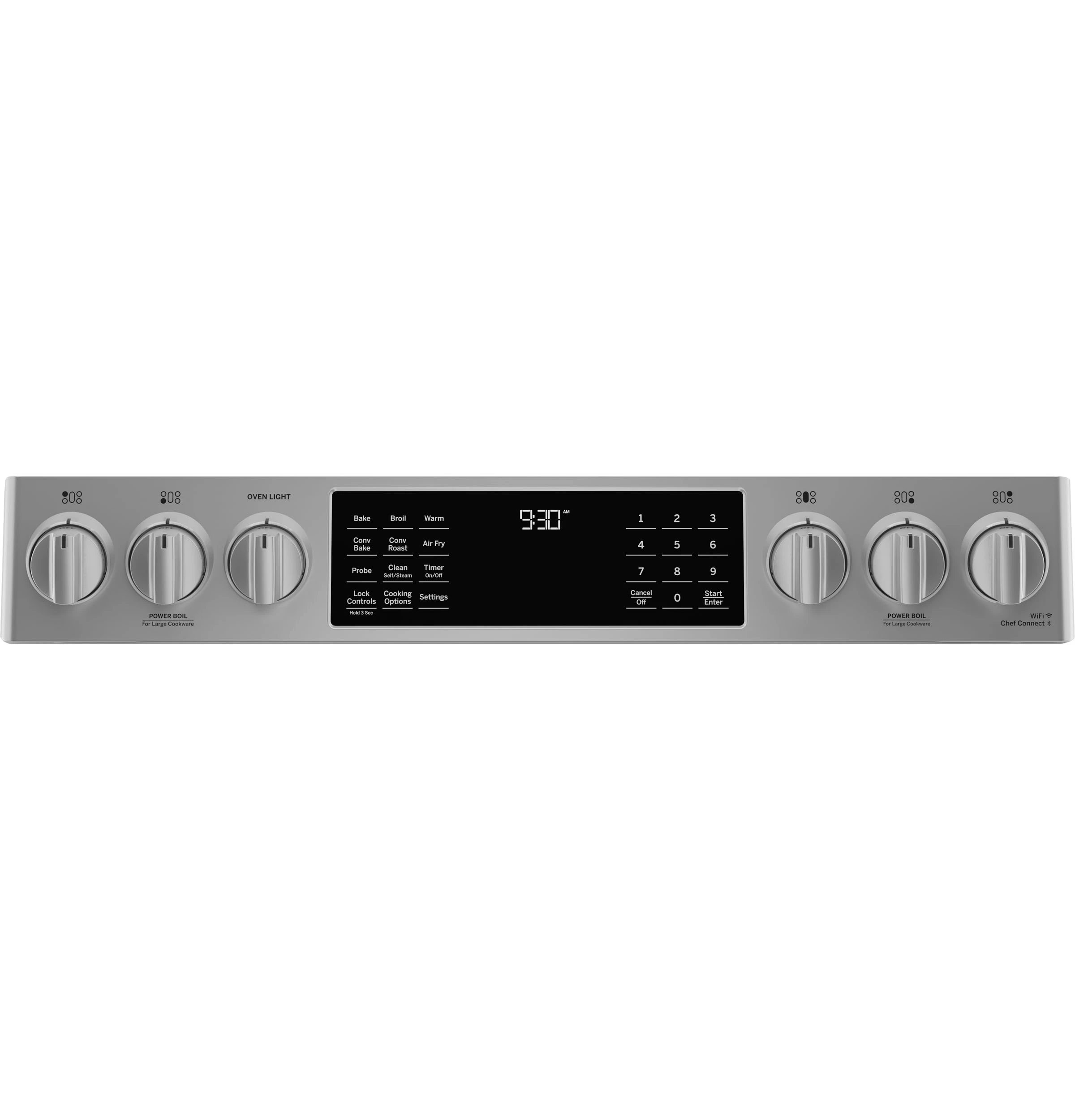

Backlit touch controls give this oven a high-tech look with a display that disappears when not in use and reappears when touched

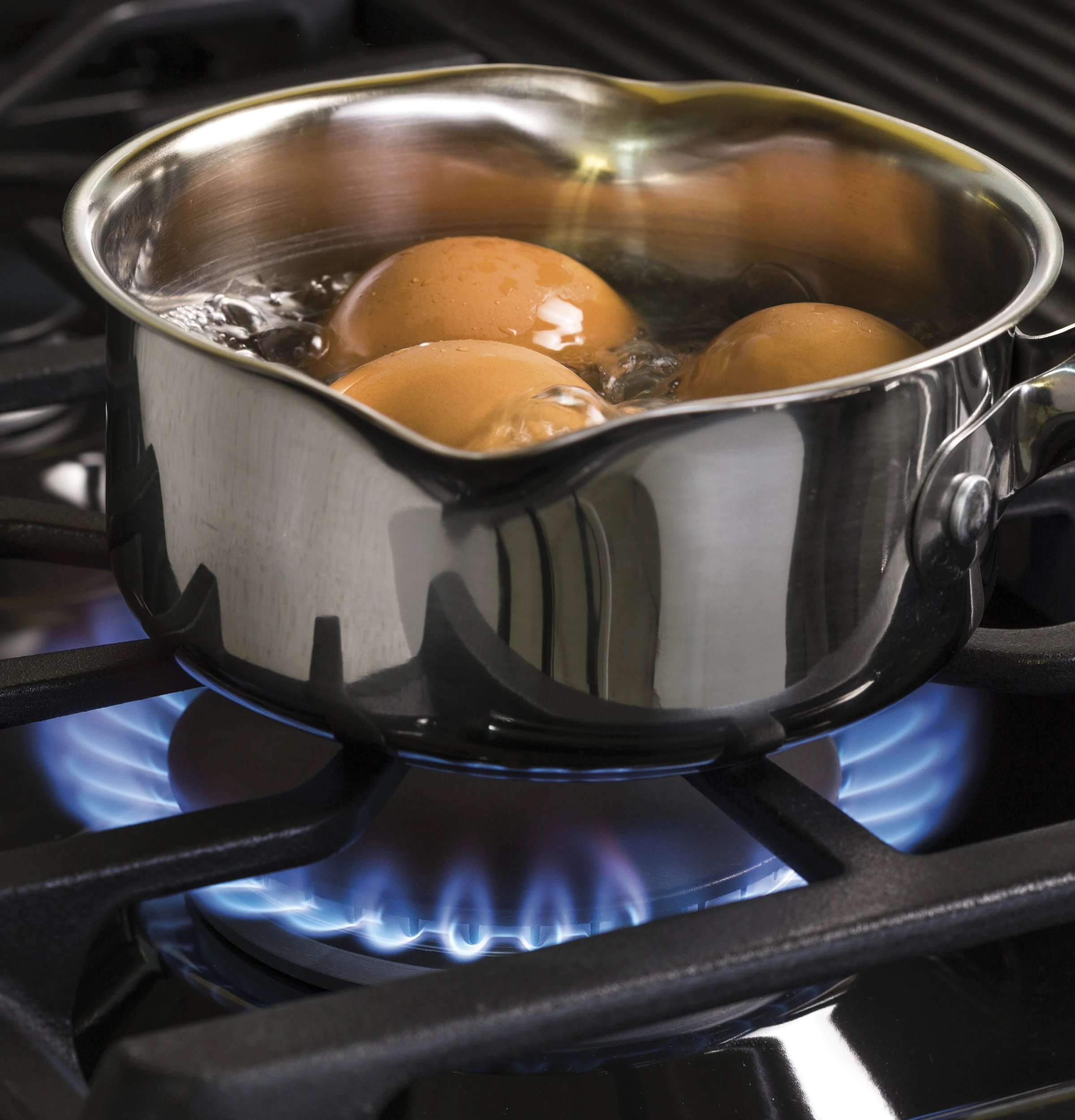

This 18,000-BTU power boil element produces intense heat to boil water fast

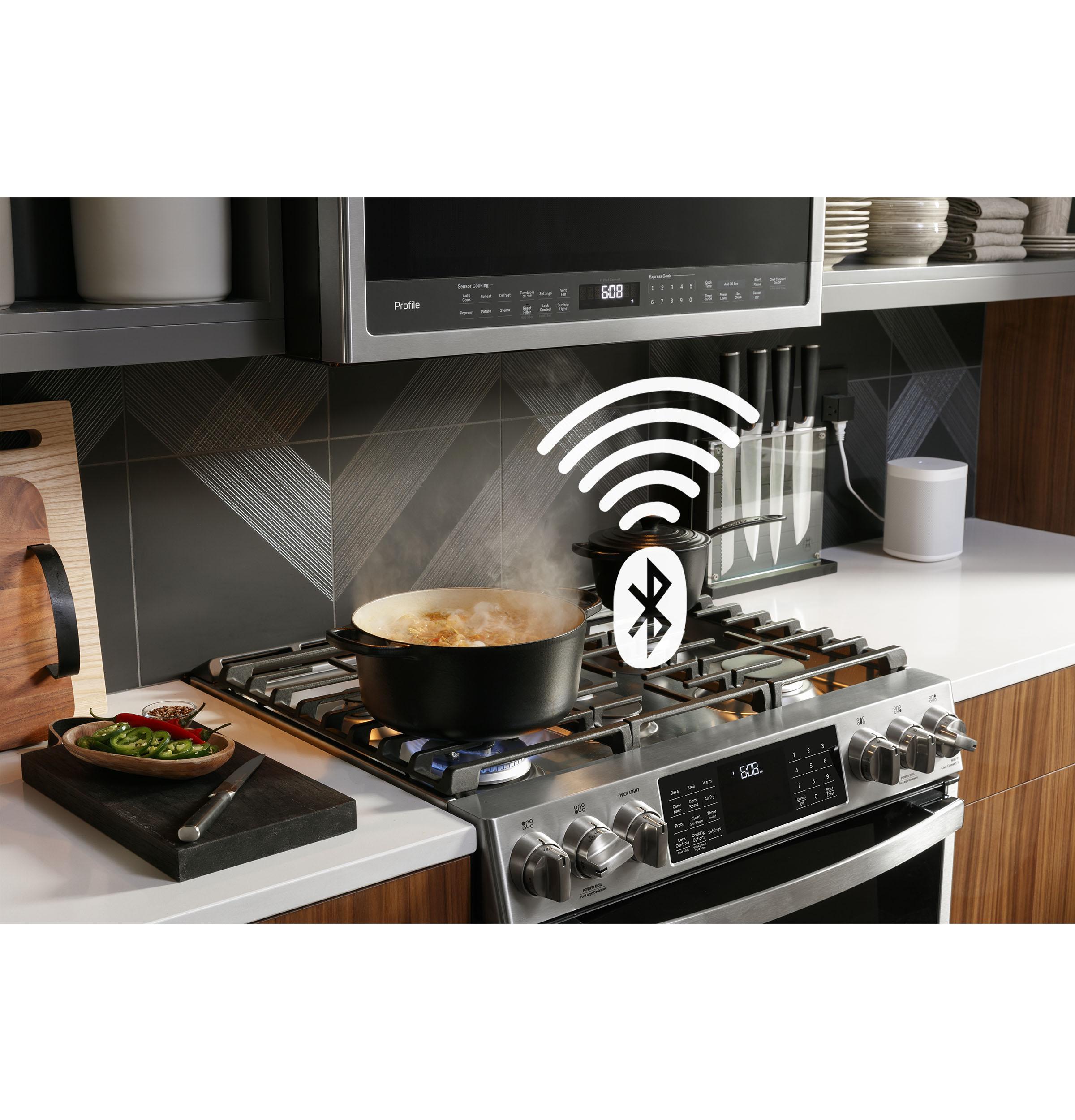

Synchronize your oven and GE Appliances over-the-range microwave so that clocks are always matching and lights automatically come on when a burner is activated with Chef Connect

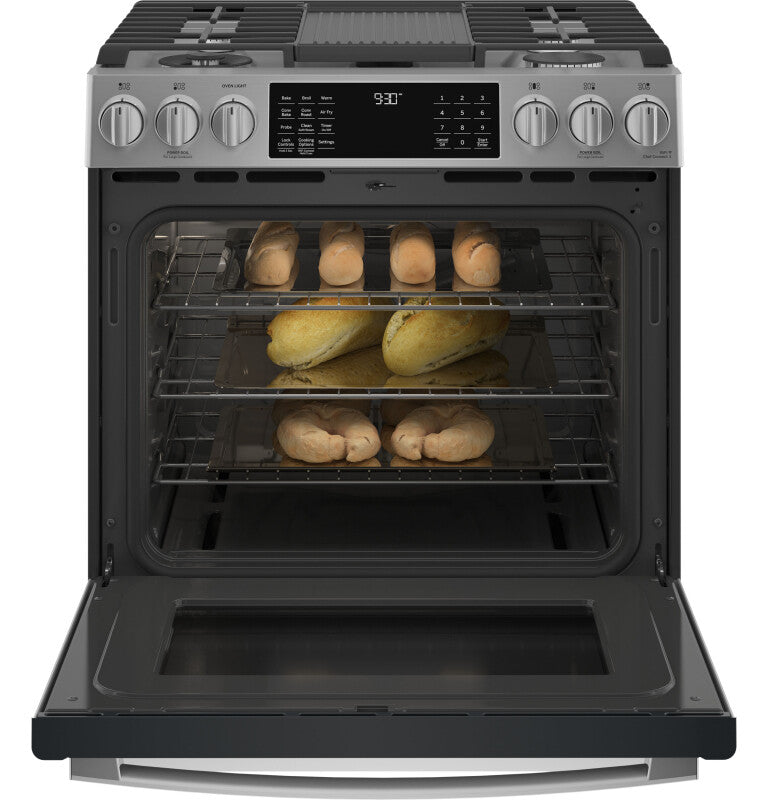

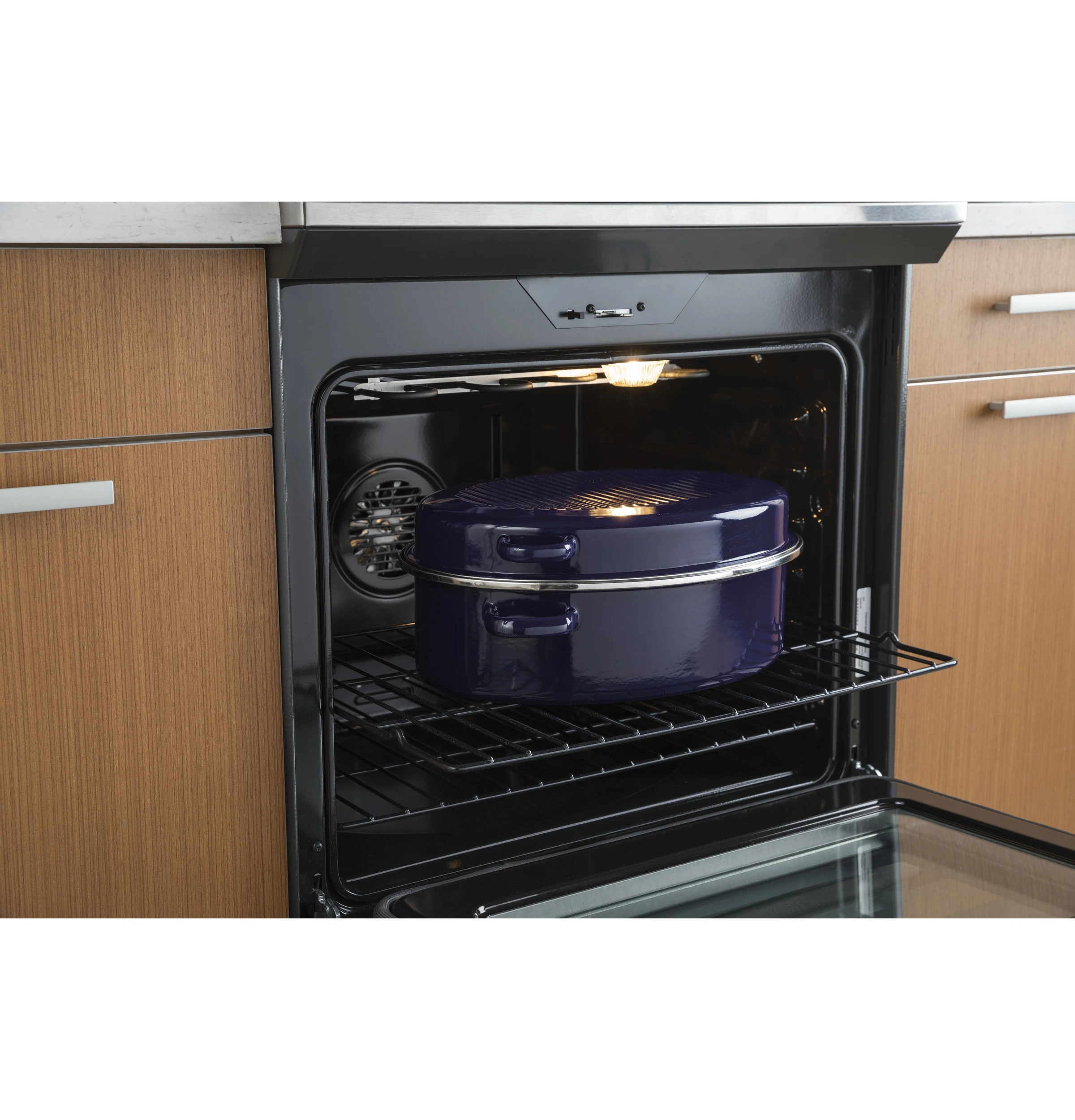

This oven features True Convection, an advanced convection system that uses a third heating element and fan for the highest level of heat and air circulation

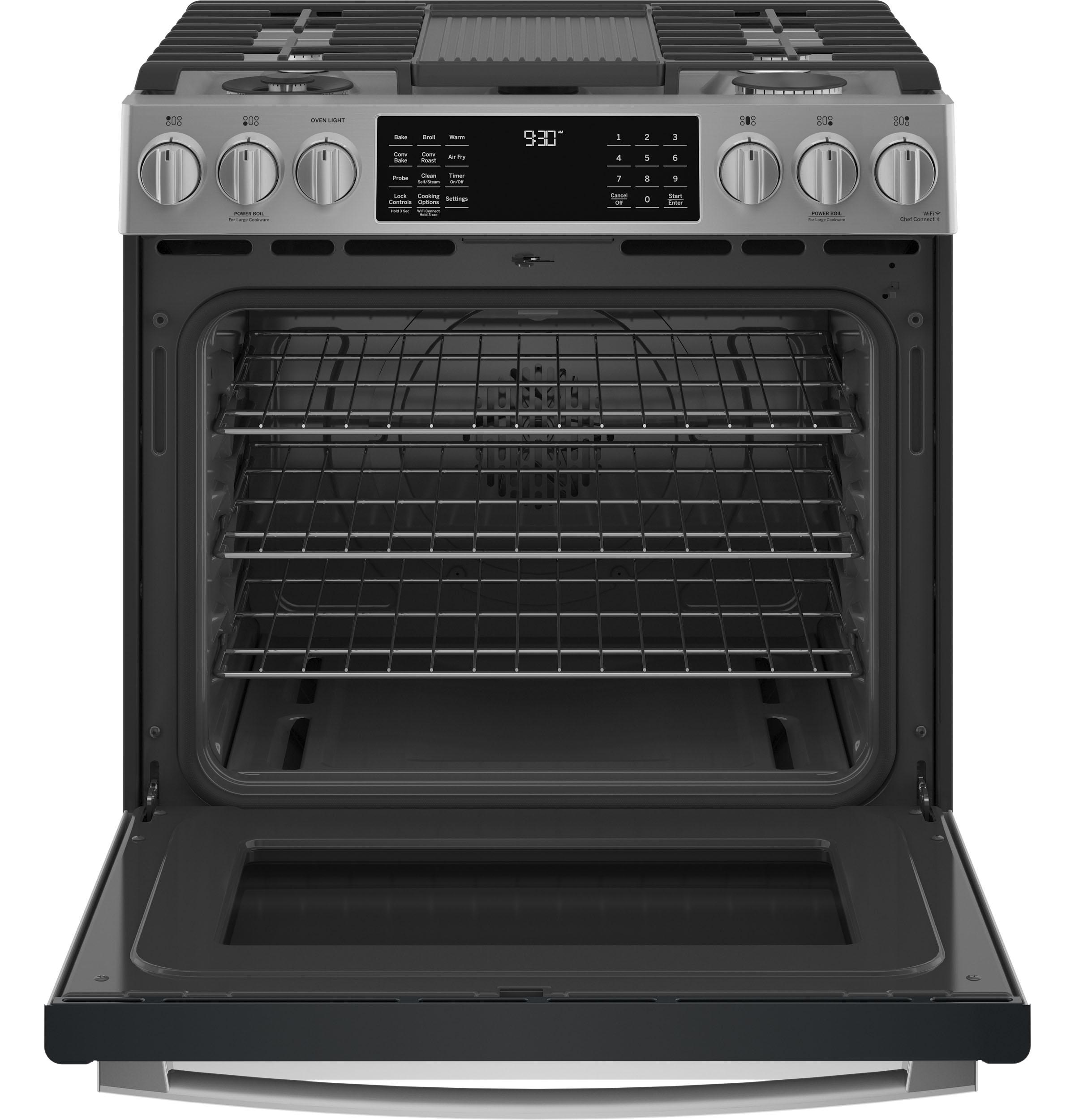

These durable oven racks can be left in the oven during the self-clean cycle so you never have to scrub
An innovative temperature probe that helps you achieve the perfect level of doneness for oven favorites
This self-cleaning oven uses optional steam cleaning for light soils to clean the oven cavity with less heat and odor
CAPACITY | |
Total Capacity (cubic feet) | 5.6 |
FILTER | |
App Filter - Cleaning Type | Steam and Self-Clean |
App Filter - Drawer Type | Storage |
App Filter - Cooktop Type | Standard Grates |
App Filter - Product Type | Ranges Slide-In Single Oven |
App Filter - Control Type | Electronic touchpad |
App Filter - Convection | Yes |
App Filter - Edge-to-Edge Cooktop | Yes |
App Filter - Fuel Type | Gas |
App Filter - Tri-Ring Burner | Yes |
App Filter - Cooking Technology | Convection |
App Filter - Cabinet Width | Cooking 30 in. (Standard) |
App Filter - WiFi Connect | Built-In |
APPEARANCE | |
Handle | Designer Style Stainless Steel |
Installation | Flush Appearance Free-standing cut-out |
Oven Door Features | Big View Oven Window |
Control Knobs | Stainless Steel |
Cooktop Burner Grate Color | Matte Black |
Color Appearance | Fingerprint Resistant Stainless Steel |
POWER / RATINGS | |
Top Burner BTU Rating - LP (000's BTU's) | (1) 18.0; (1) 15.0; (1) 9.5/8.0; (1) 5.0 |
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 16.5 Broiler |
Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 21.0 (1) 15.0; (1) 9.5/8.0; (1)5.0 |
Volts/Hertz/Amps | 120v; 60Hz; 15A |
Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 13.5 Broiler |
WARRANTY | |
Warranty Notes | See written warranty for full details |
Parts Warranty | Limited 1-year entire appliance |
Labor Warranty | Limited 1-year entire appliance |
ACCESSORIES | |
Trim Kit | JXFILLR1SS Optional |
LP Conversion Kit | Included |
Center Grate | Included |
Optional Accessories | WB48X21543 Roller Rack |

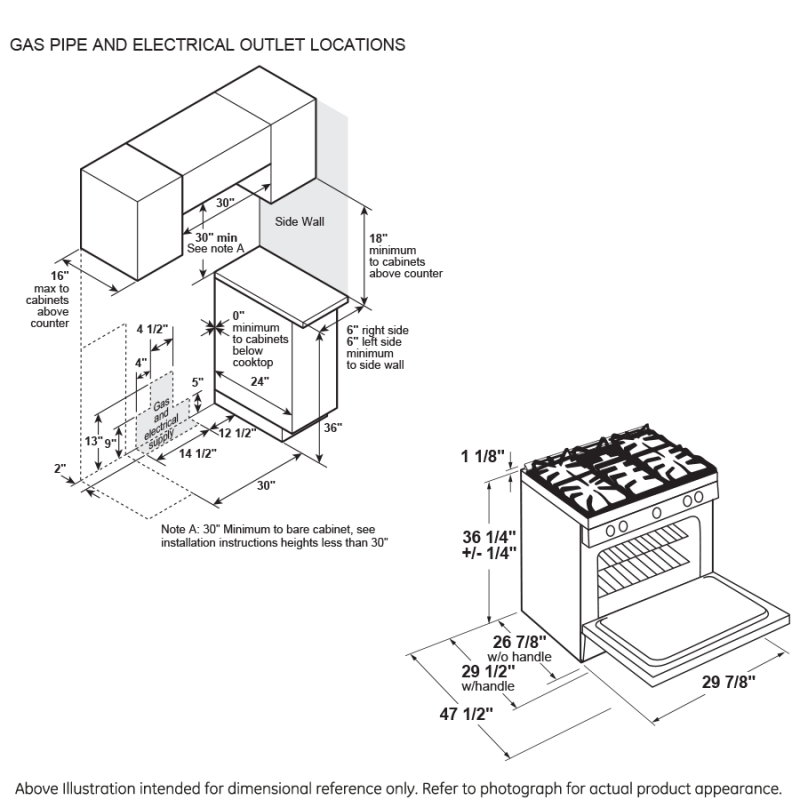

WEIGHTS & DIMENSIONS | |
Net Weight | 224.0 |
Height to Cooking Surface (in.) | 36 1/4 +/- 1/4 |
Depth Without Handle | 26.875 |
Overall Depth | 29.5 |
Cabinet Opening | 30.0 |
Depth with Door Open | 47.5 |
Approximate Shipping Weight | 244.0 |
Cabinet Width | 30.0 |
Overall Height | 36.5 |
Height to Top of Rear Vent Trim | 37.625 |
Oven Interior Dimensions (W x H x D) (in.) | 24 x 19-1/2 x 20-5/8 |
Overall Width | 30.0 |
FEATURES | |
Oven Cleaning Type | Self-Clean with Steam Clean Option |
Cooktop Burner Type | Sealed |
Cooking System | True European Convection |
Oven Interior | 1 Incandescent Light Black |
Fuel Type | Natural Gas (factory set) |
Burner - Left Rear | 5,000 BTU Precise Simmer |
Burner - Center | 9,500 BTU Dual Oval |
Cooktop Surface | Deep Recessed Stainless Steel |
Configuration | Range with Smooth Glide Storage Drawer |
WiFi Connect | Built-In |
Oven Rack Features | 3 Self-Clean Oven Racks |
Burner - Left Front | 21,000 BTU Tri-ring Burner |
Oven Cooking Modes | Convection Bake Convection Roast Frozen Pizza Multi Rack Frozen Pizza Single Rack (No Preheat) Frozen Snacks Multi Rack Frozen Snacks Single Rack (No Preheat) No Preheat Air Fry Proof Warming |
Burner - Right Rear | 9,500 BTU |
Ignition System | Electronic |
Connected Capabilities | Amazon Alexa DiGiorno Drop IFTTT Innit Sonos The Google Assistant |
Self-Clean Oven Door Lock | Automatic |
Cooktop Burner Grate Features | Edge-to-Edge Grates |
Product Type | Slide-In Single Oven |
Cooktop Type | Standard Grates |
Control Location | Front controls |
Oven Control Features | Audible Preheat Signal Auto Recipe Conversion Auto Self Clean Certified Sabbath Mode Control Lock Capability Electronic Clock & Kitchen Timer Front Controls In-Oven Broiling Temperature Probe |
Griddle | Reversible Integrated Grill/Griddle (Included) |
Grill | Included JXGRILL1 |
Cooktop Burner Grate Material | Heavy Cast Iron |
Drawer Type | Storage |
Burner - Right Front | 15,000 BTU |
Cooking Technology | Convection |
Control Type | Glass Touch |
Interior Oven Light | 1 Incandescent |
