GE APPLIANCES JXGRATE1 GAS RANGE CENTER CAST IRON GRATE
- SKU JXGRATE1
- Type Gas range accessories
- Dimensions 1.5″/9.0″/19.38″
- Gas
Shop with confidence!
As an authorized dealer, we guarantee genuine products, full manufacturer warranties, and expert support.

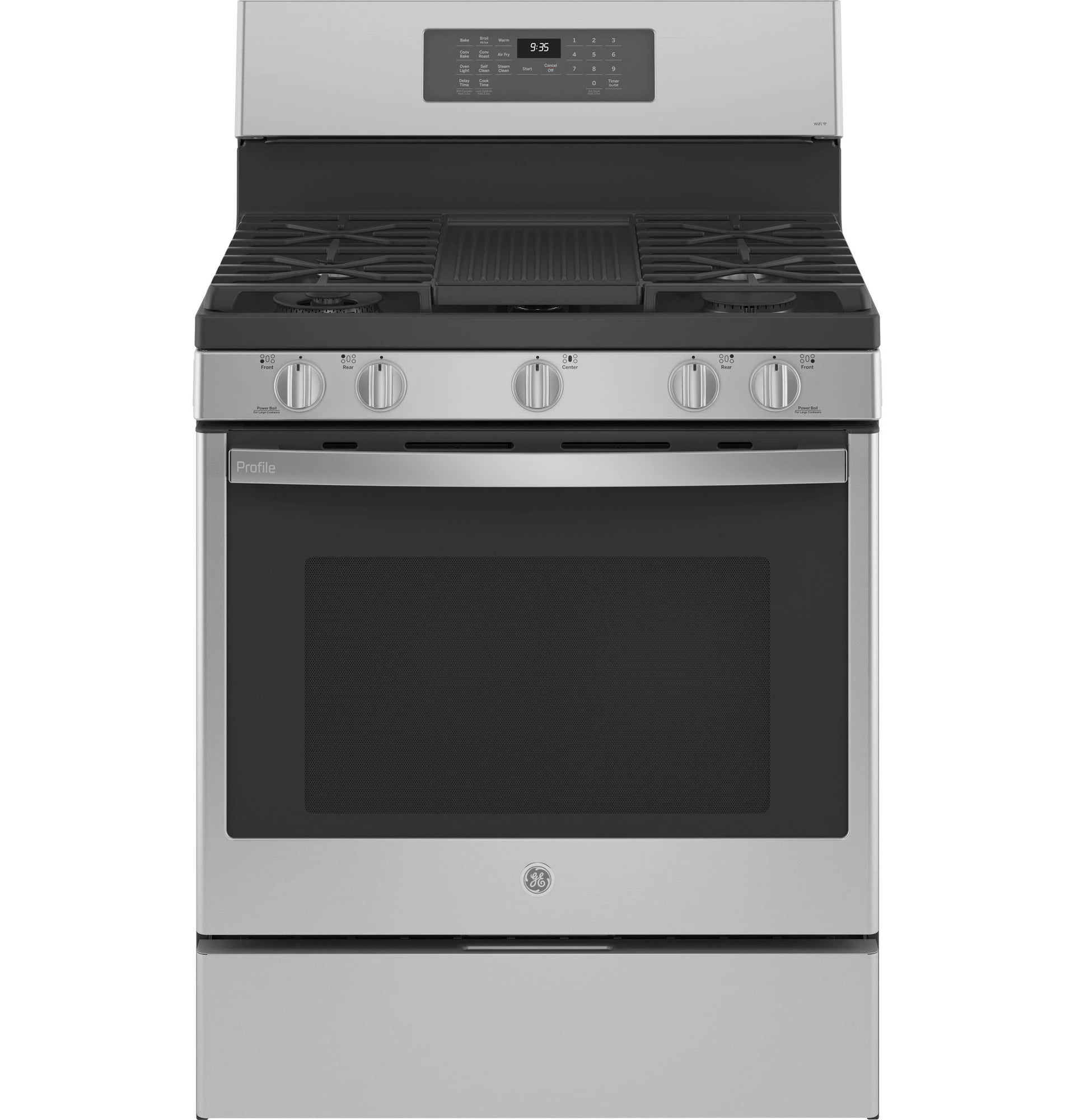

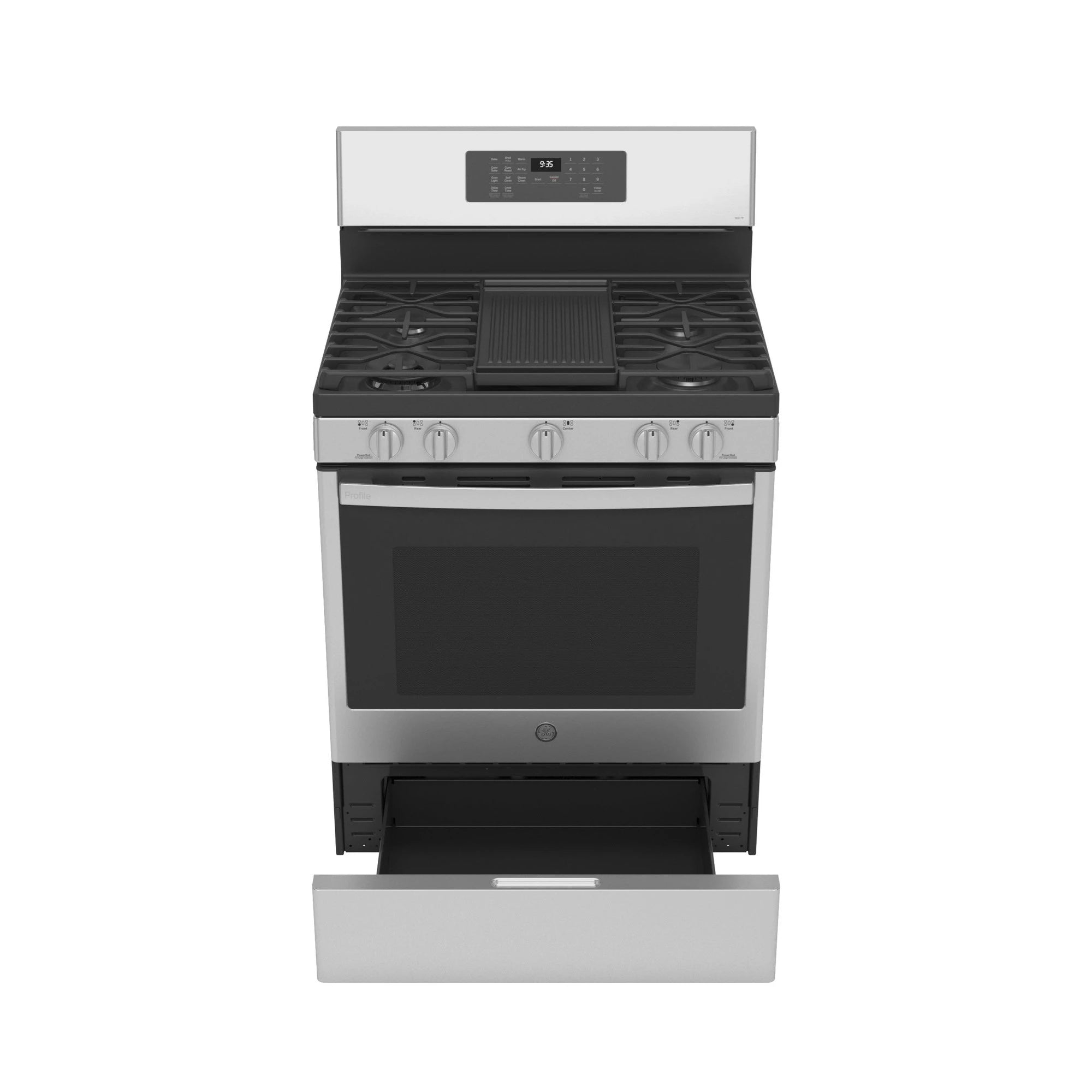

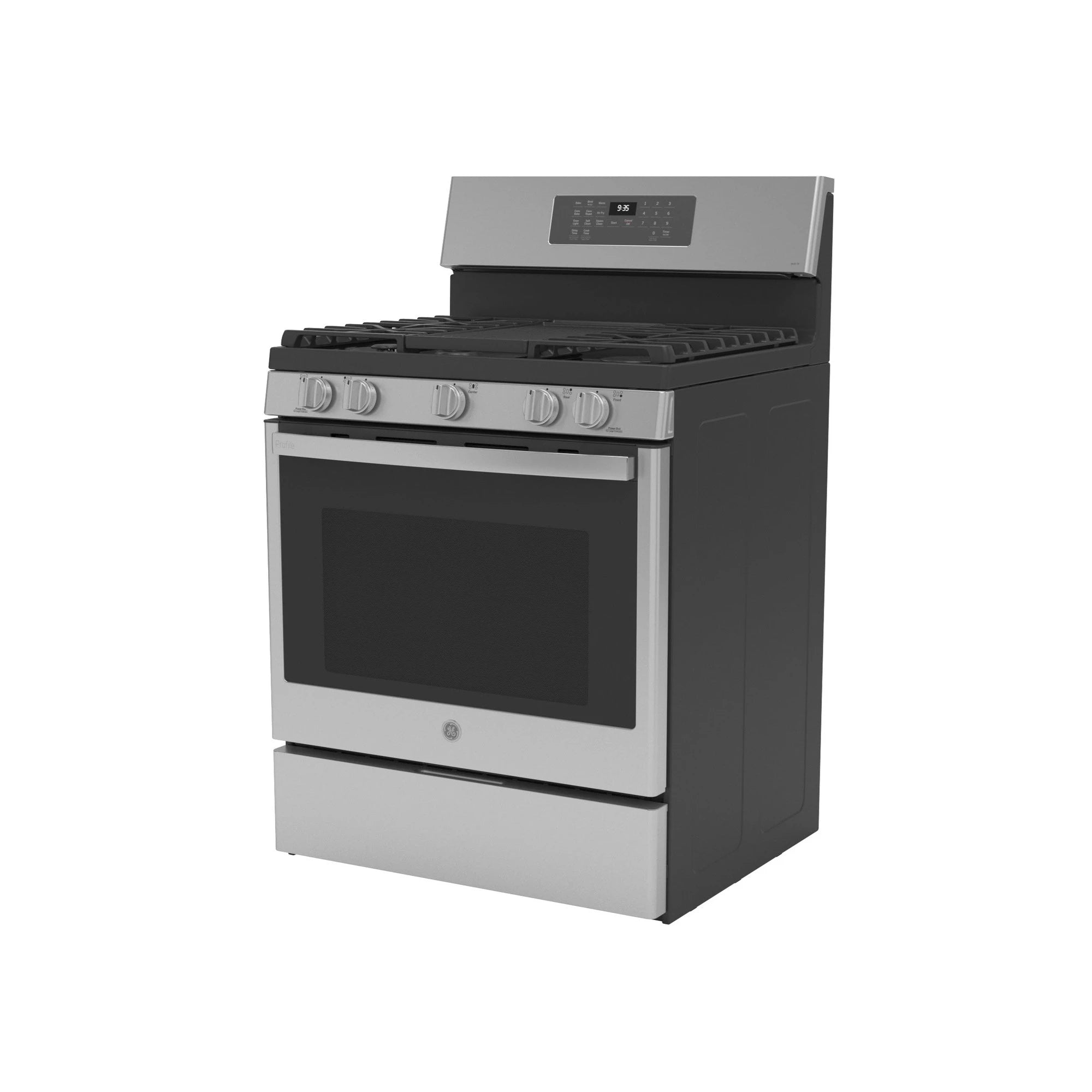

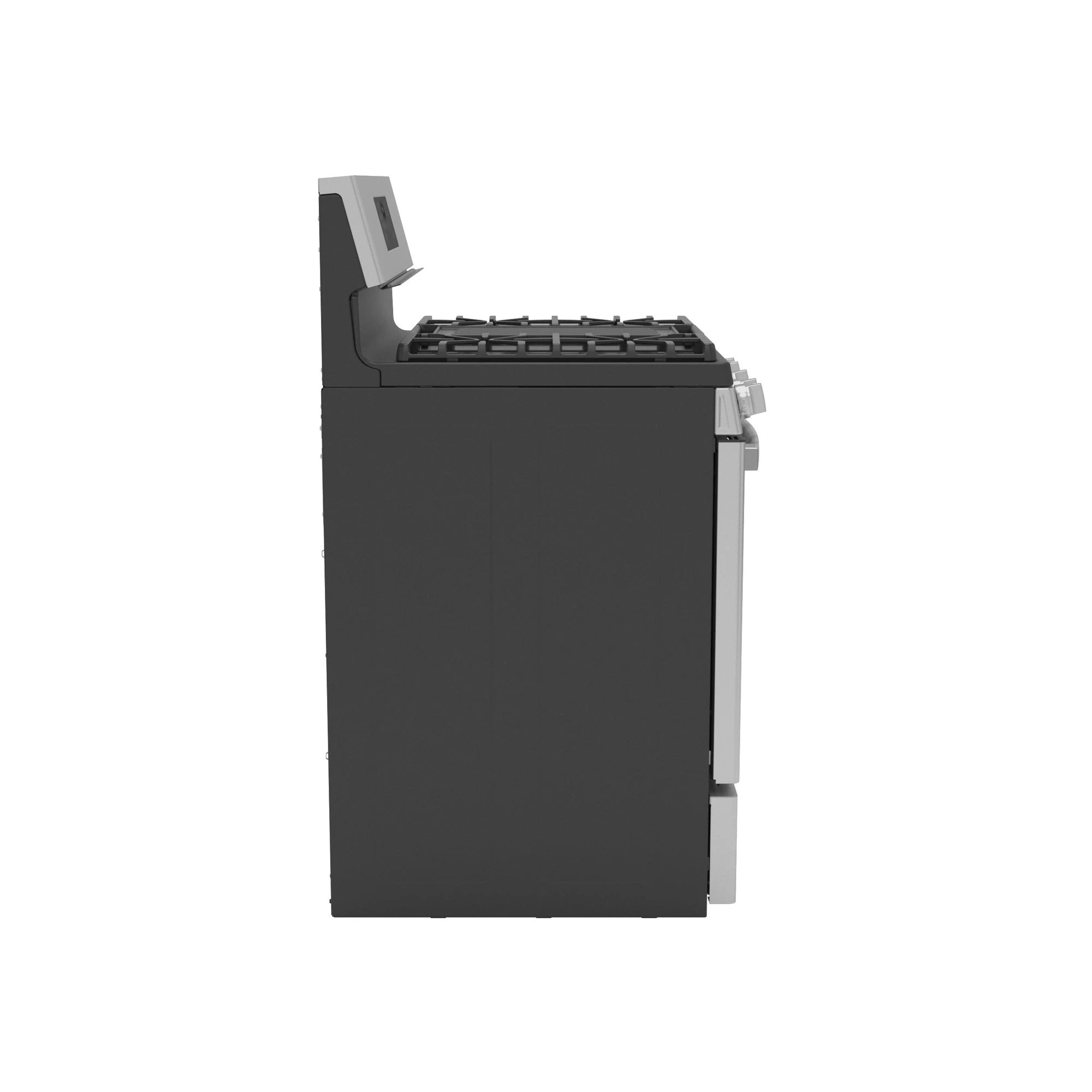

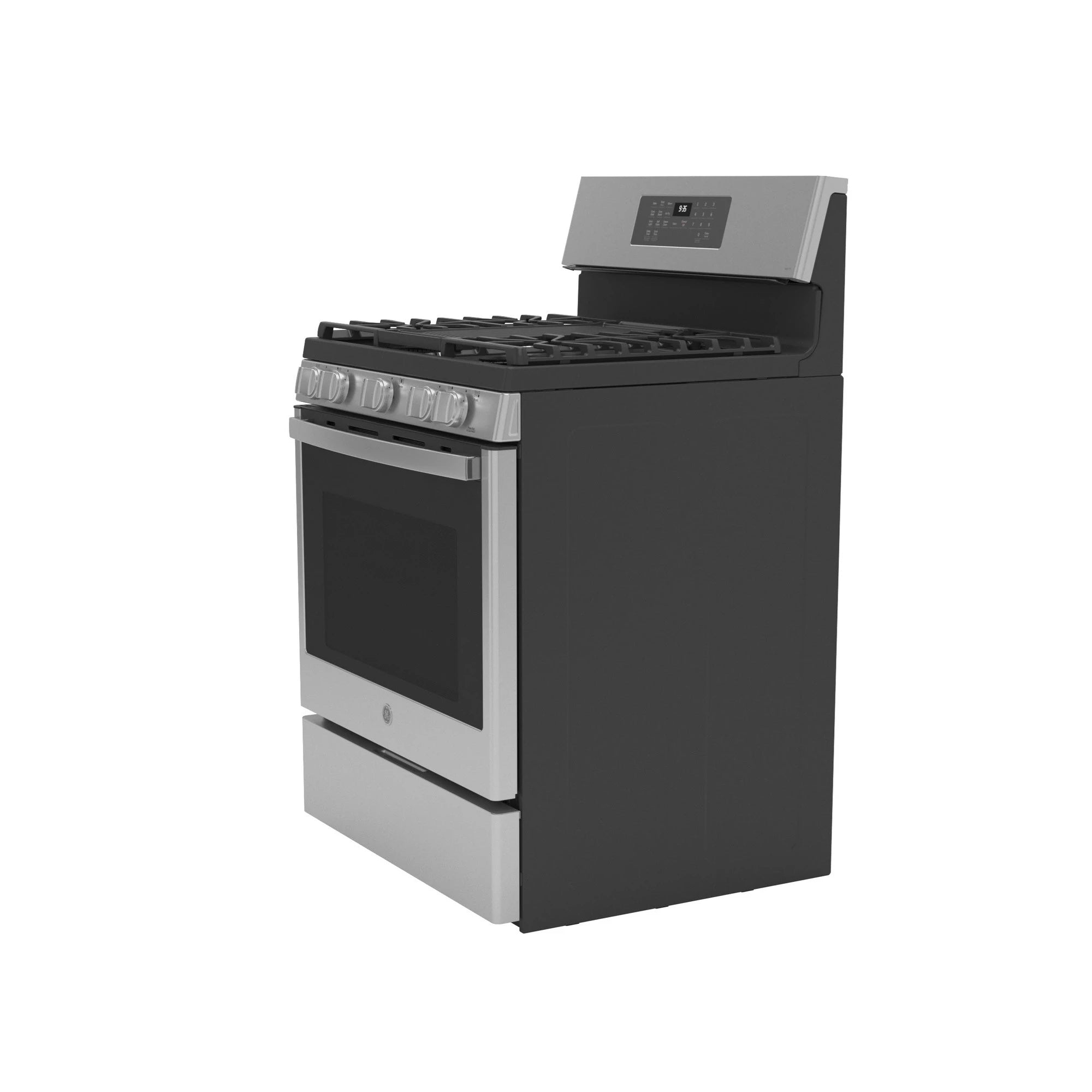

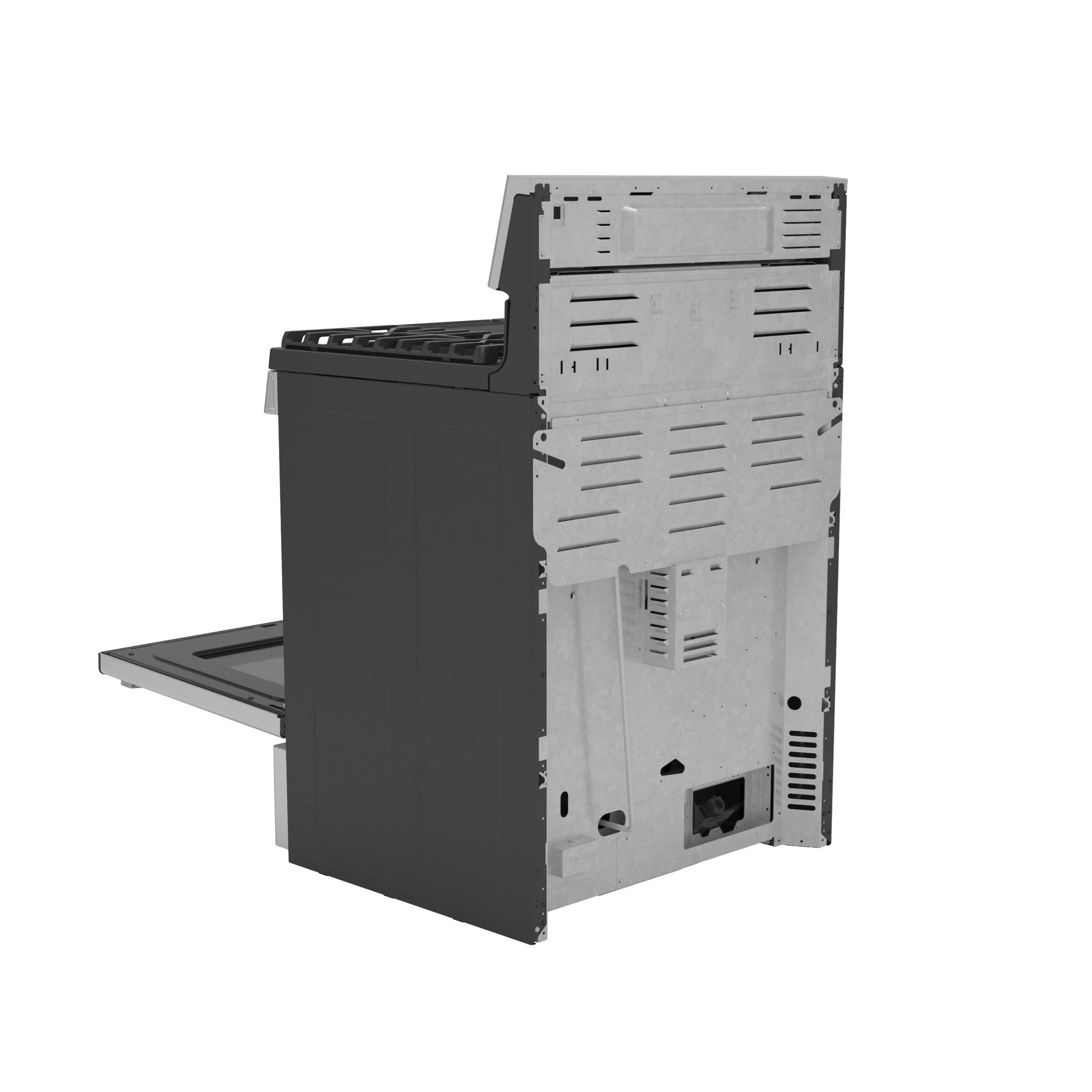

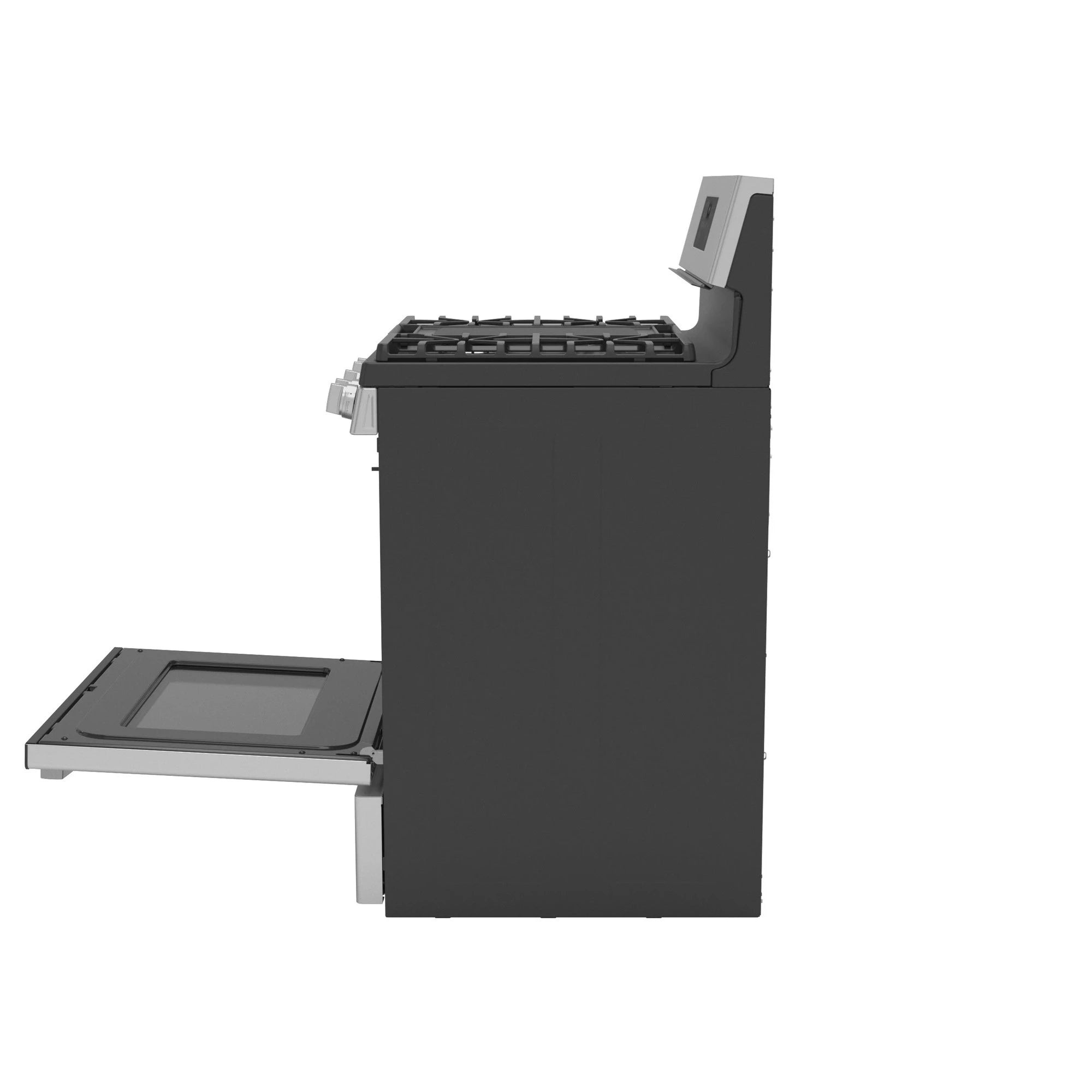

SKU: PGB935YPFS
More on the way
Extend your appliance's warranty beyond the manufacturer's terms with our Extended Protection Plan.
Enjoy added peace of mind long after the original warranty expires.
This Protection Plan includes:

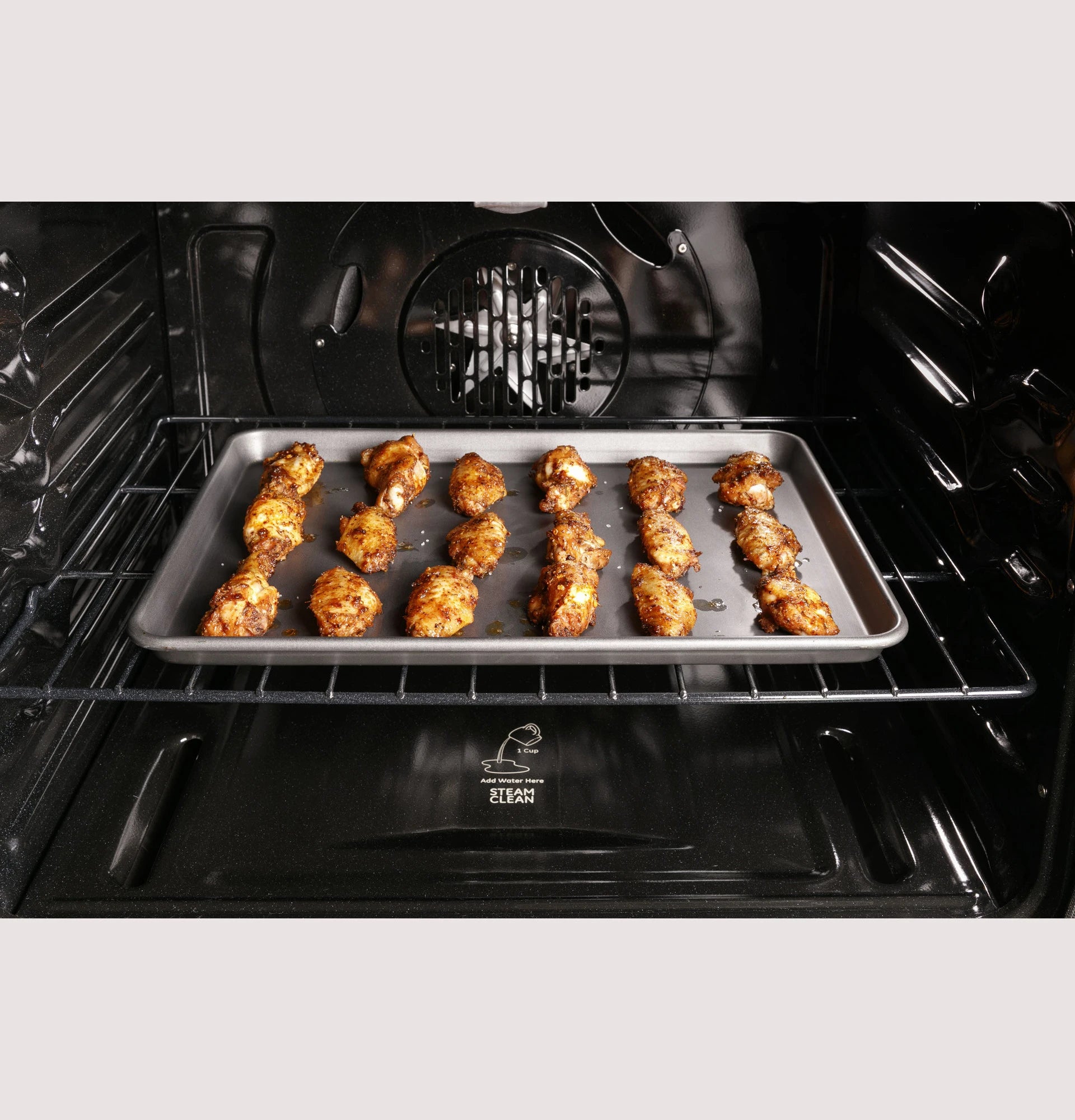

No Preheat Air Fry
Cook healthier, crispier versions of your favorite foods in less time, thanks to an air fryer right in your oven that doesn't require preheating, a basket or a special tray

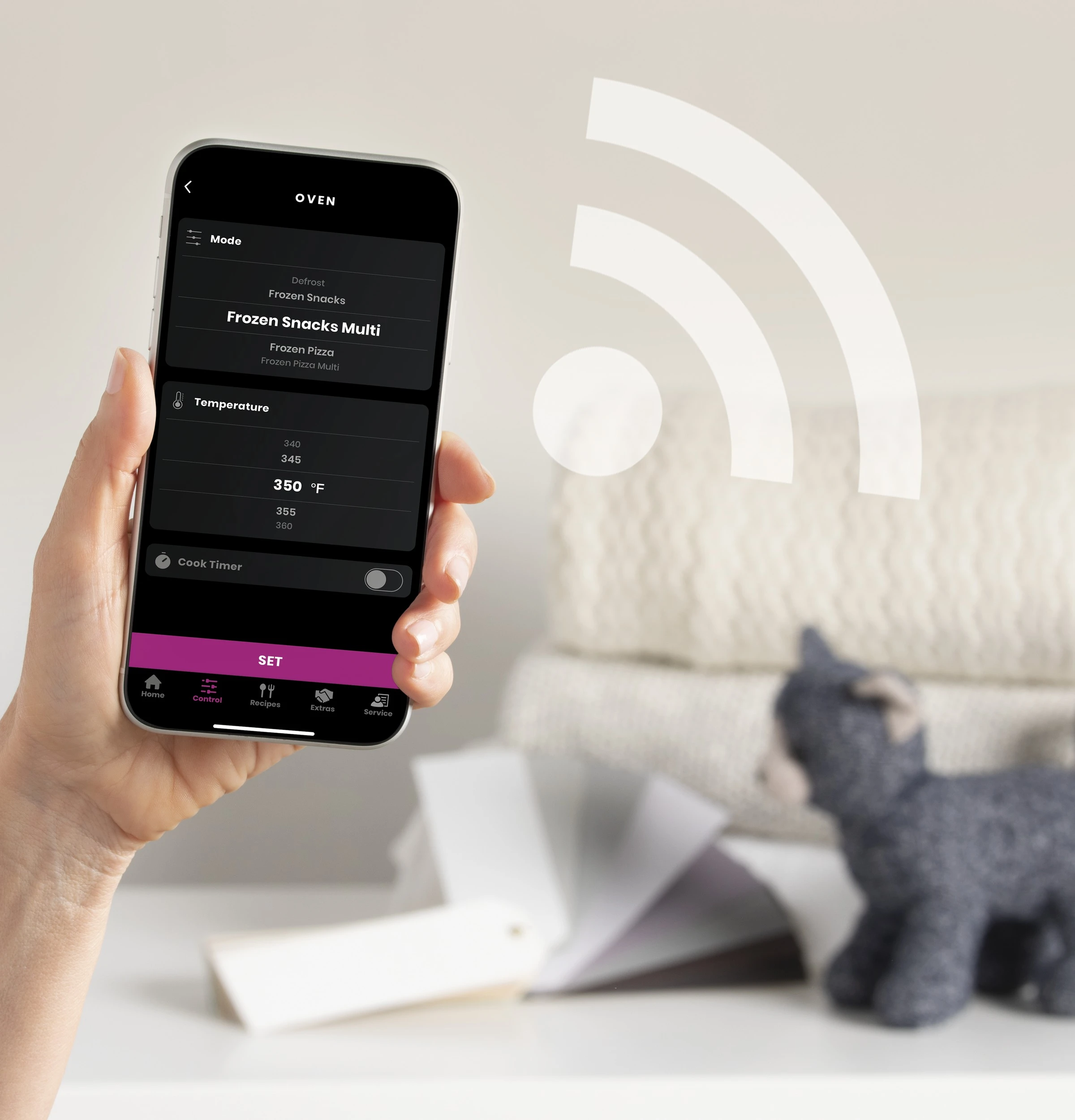

This smart oven features built-in WiFi so you can control oven functions with the SmartHQ app on your smart device
Easily wipe away smudges and fingerprints for a look that's always sparkling clean

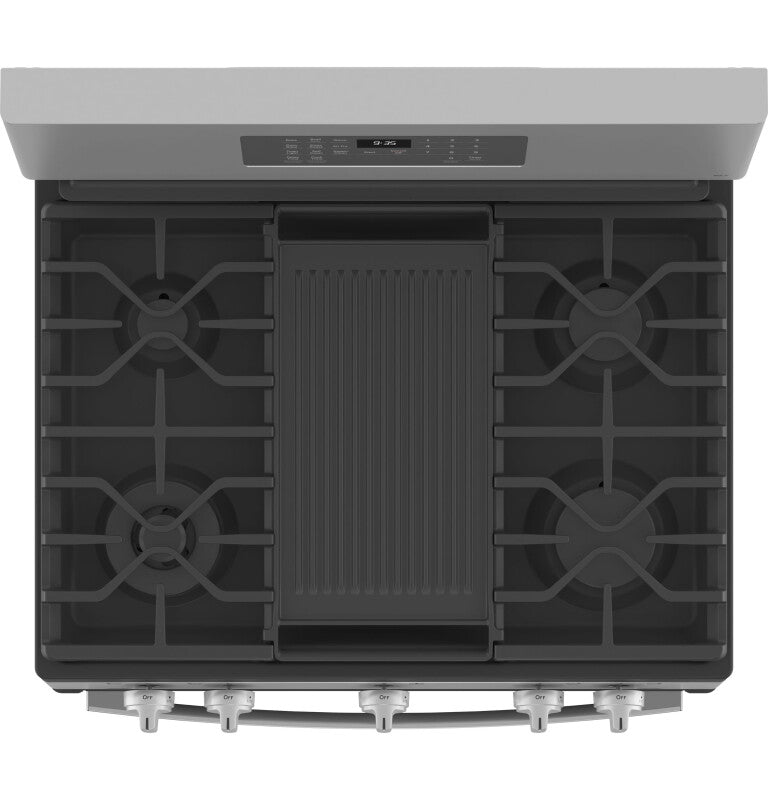

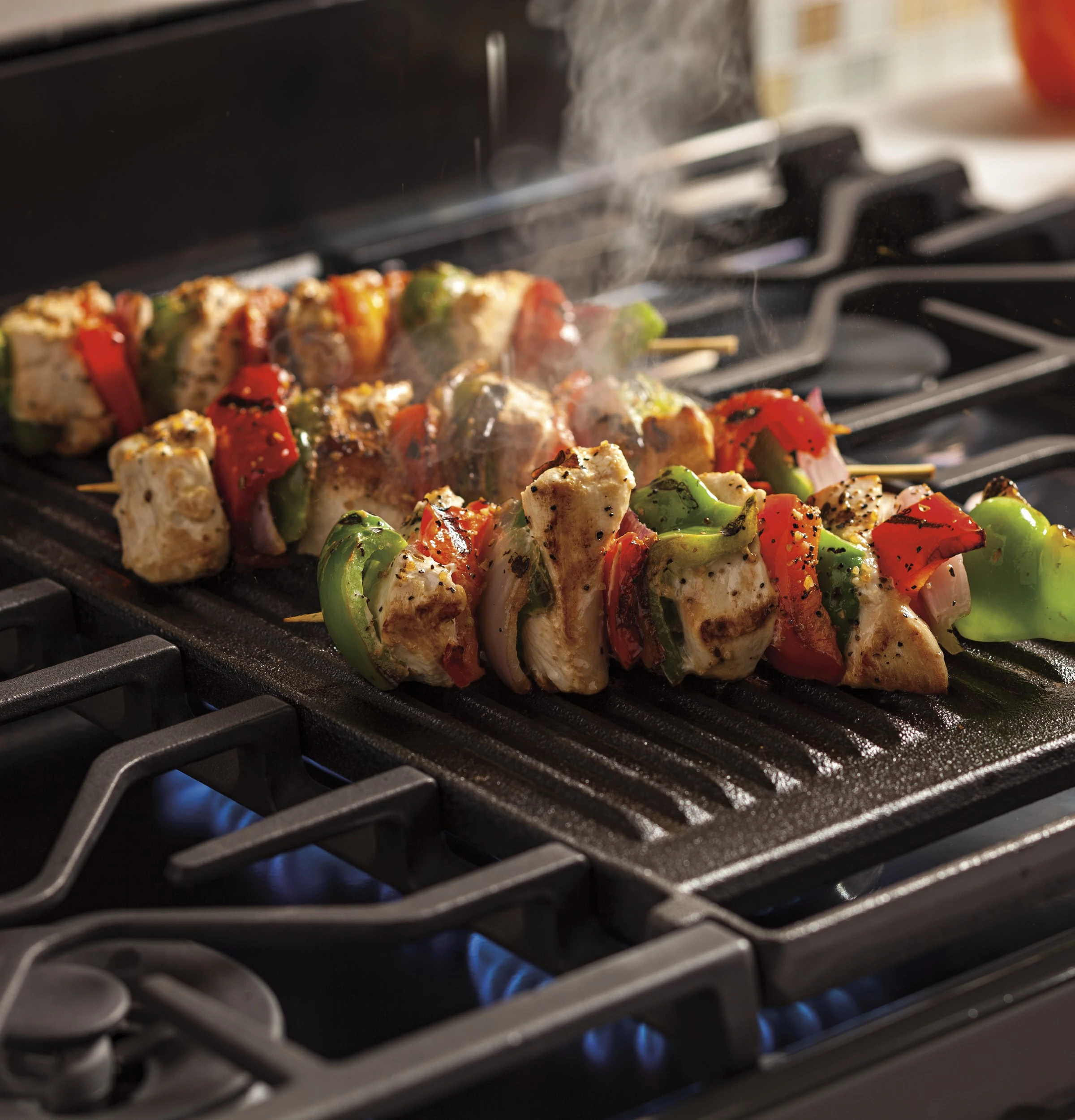

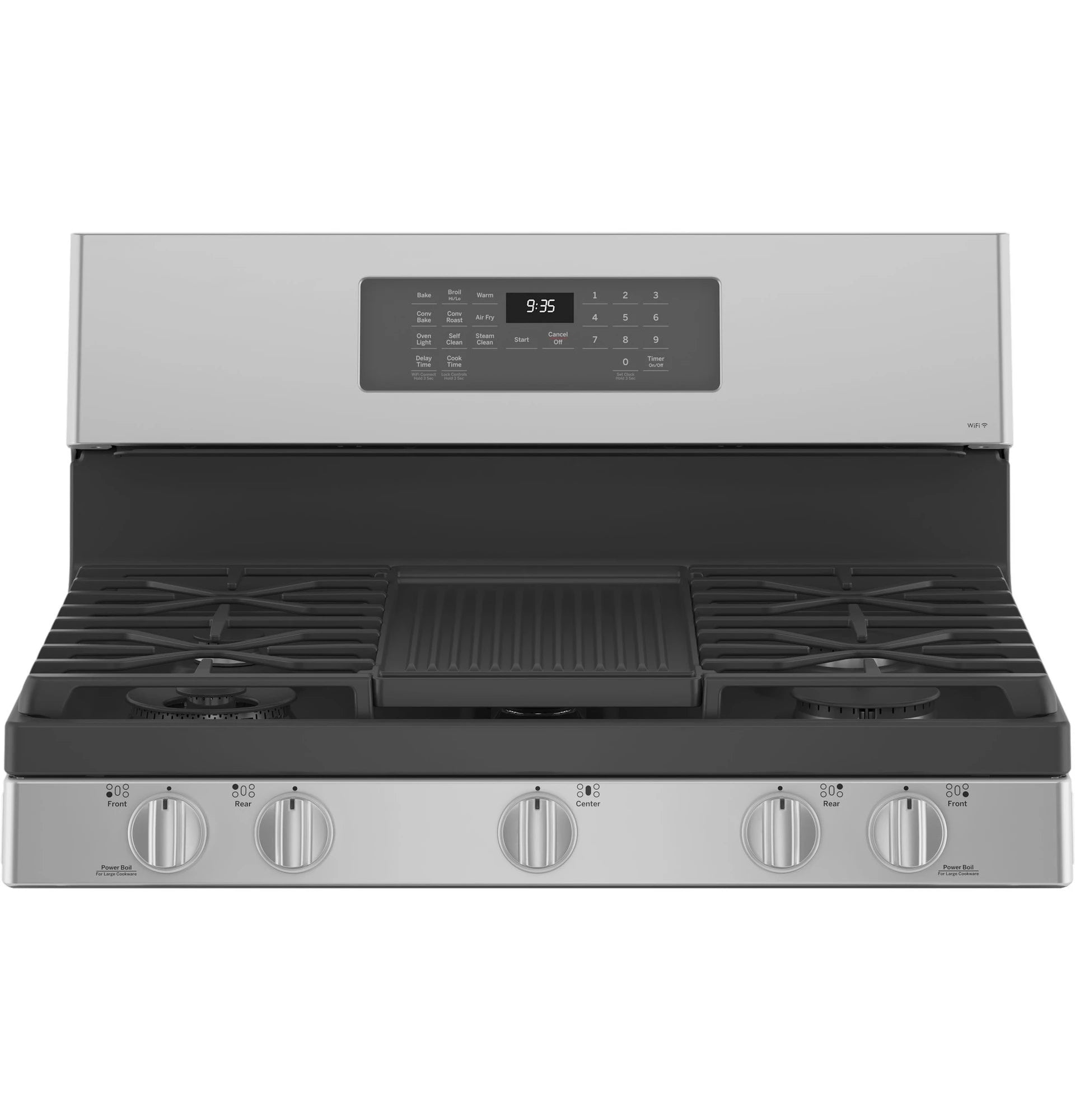

This extra-large, reversible griddle and grill combination lets you enjoy the best in cooking versatility

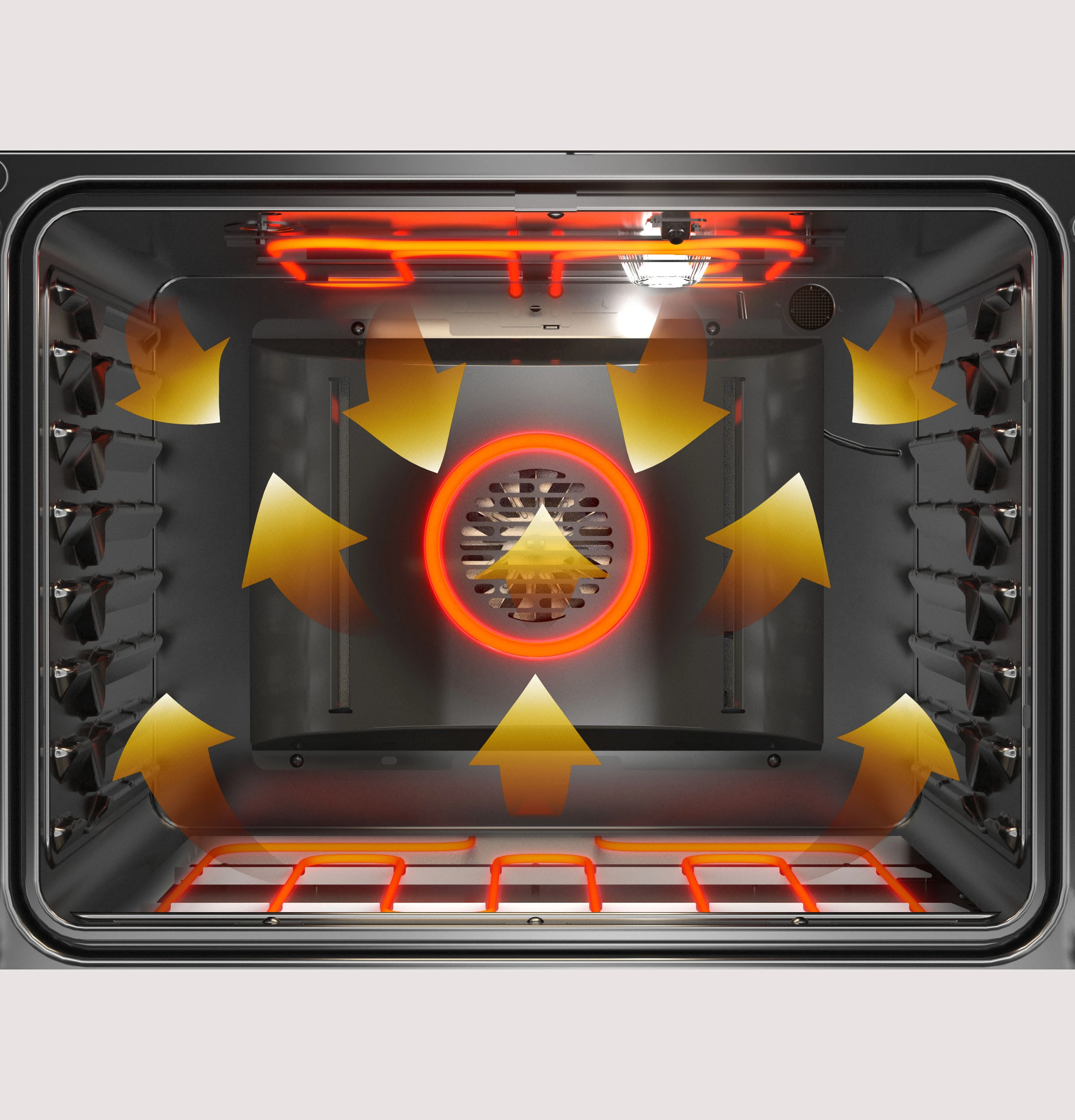

Enjoy consistent baking thanks to an advanced convection system that pairs a third heating element with a rear fan for a high level of precision

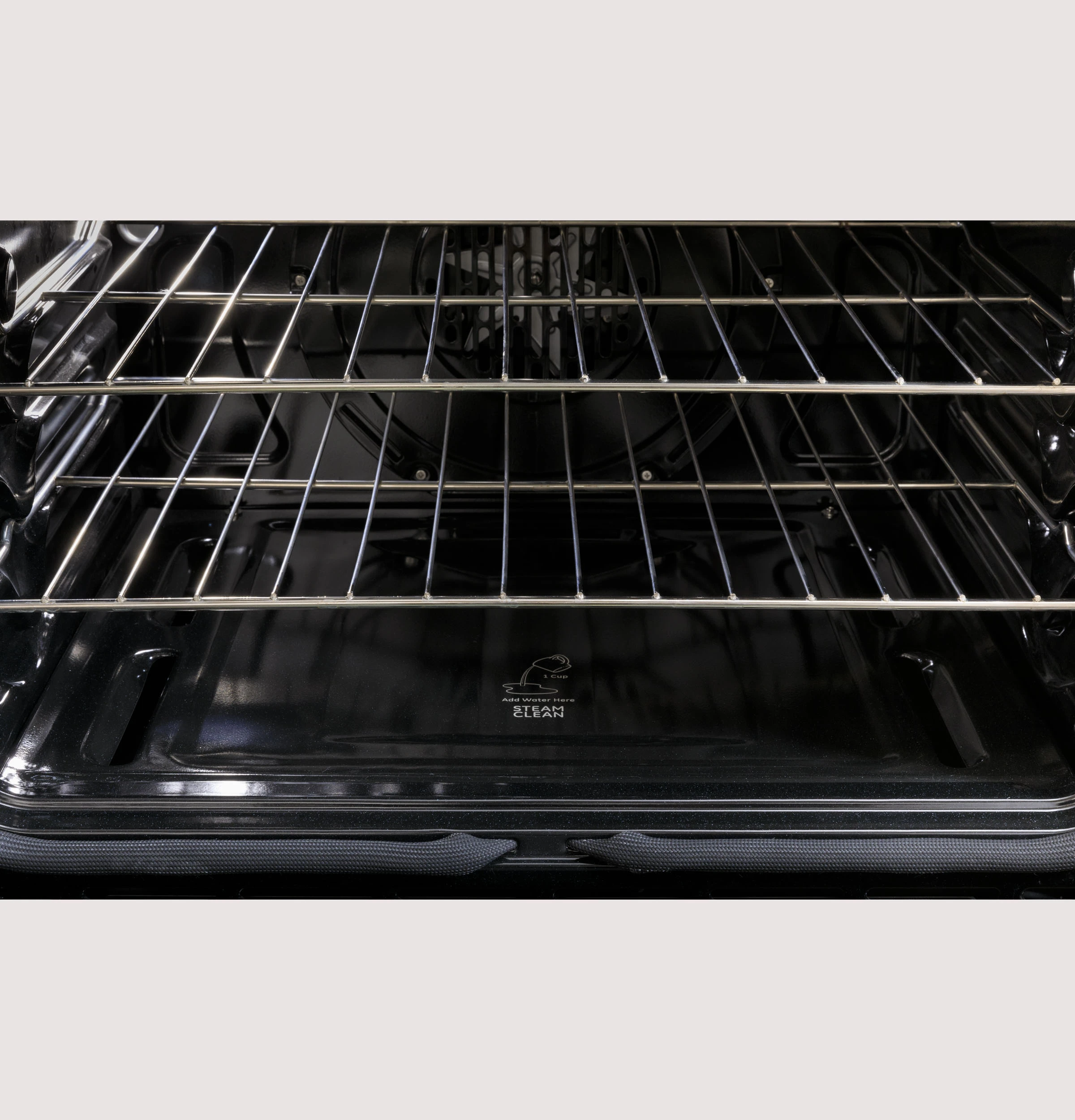

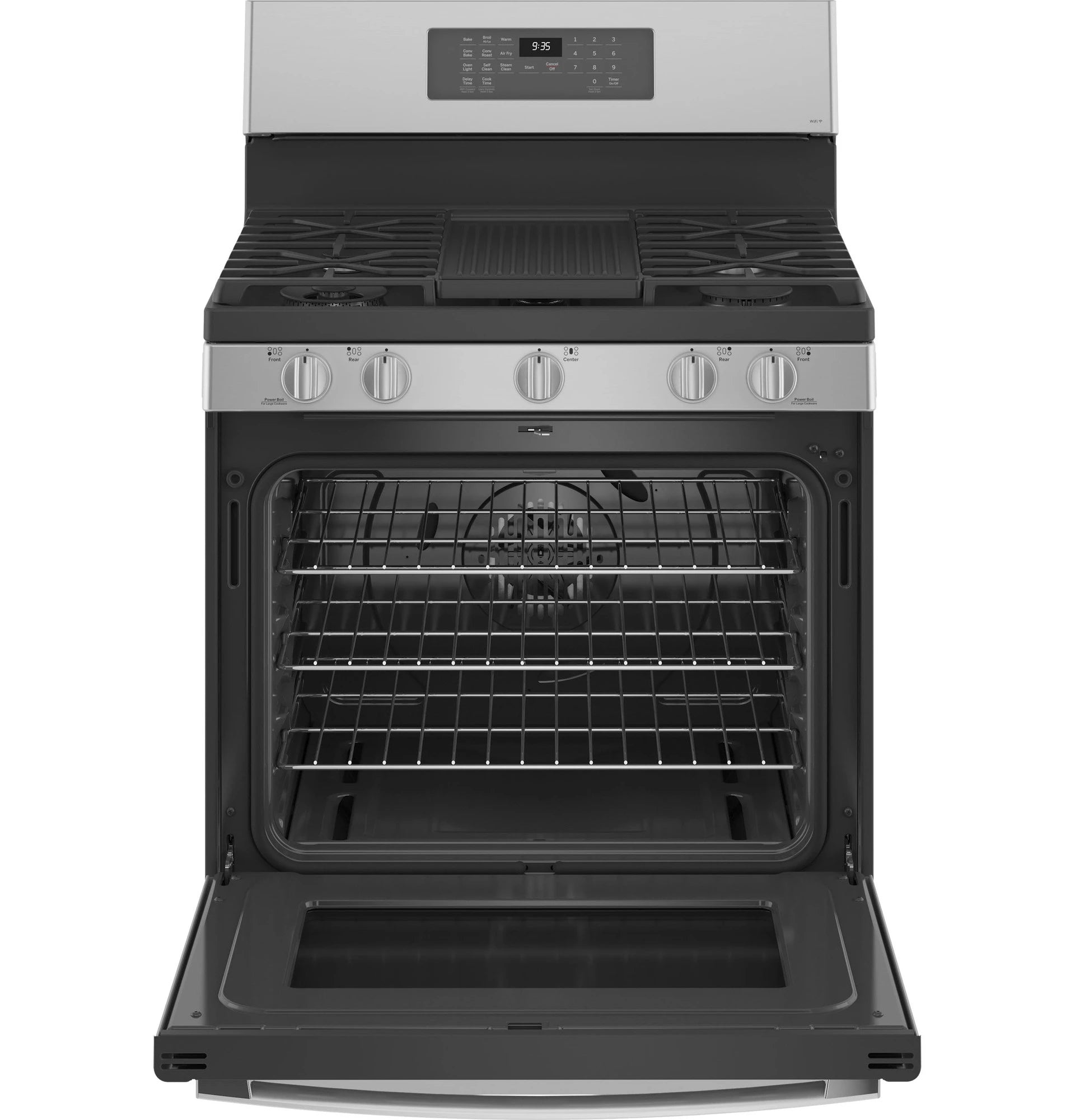

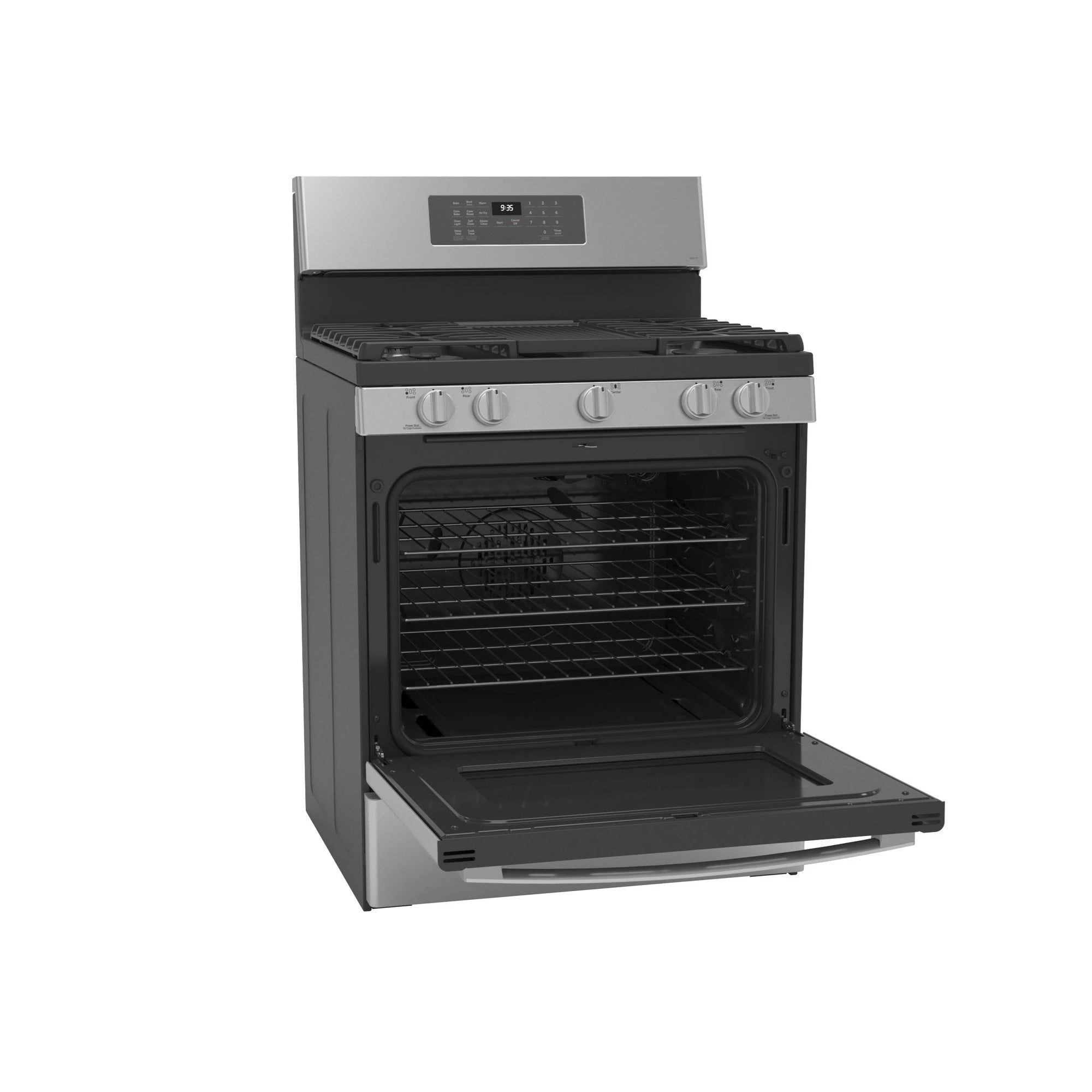

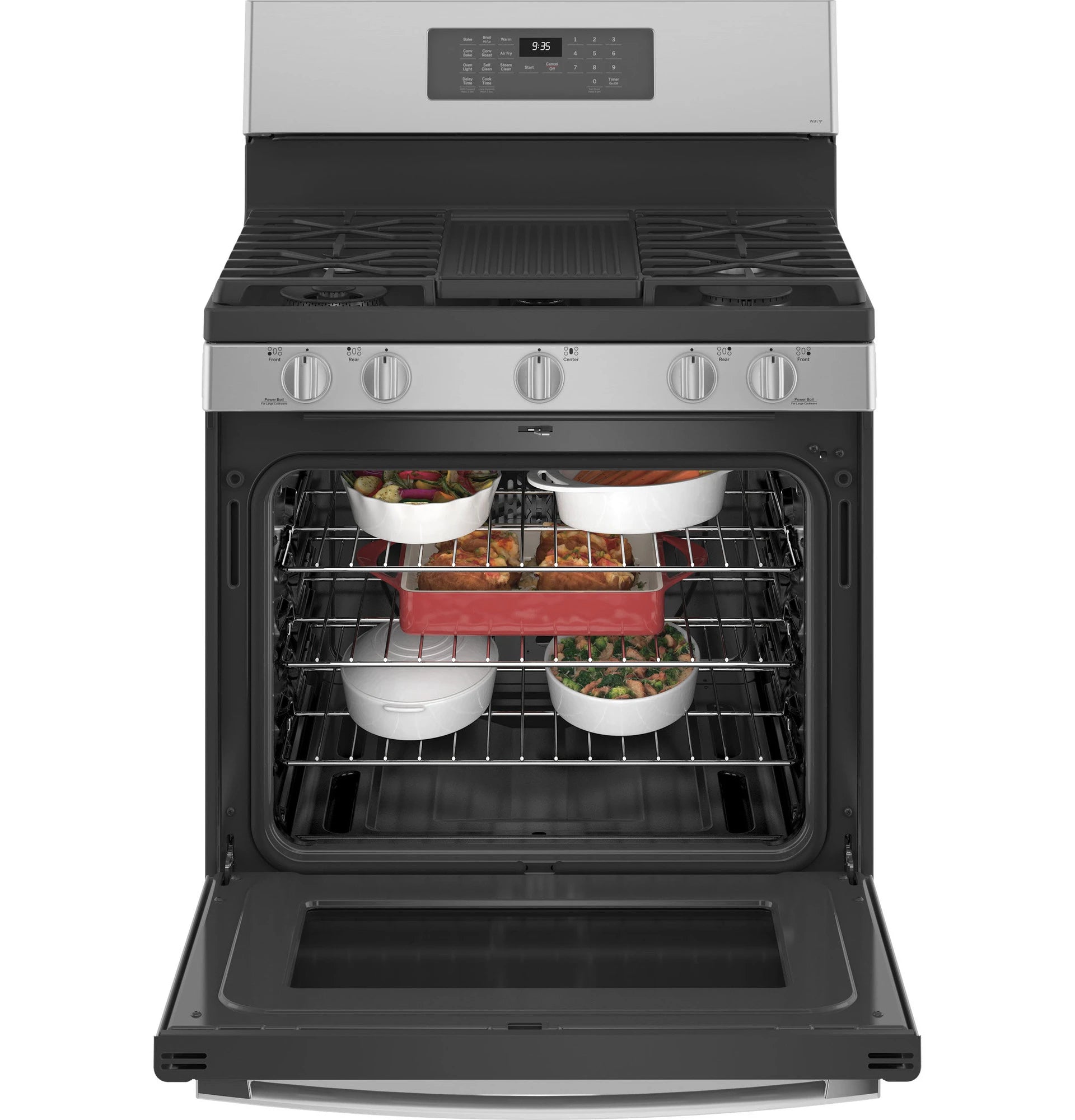

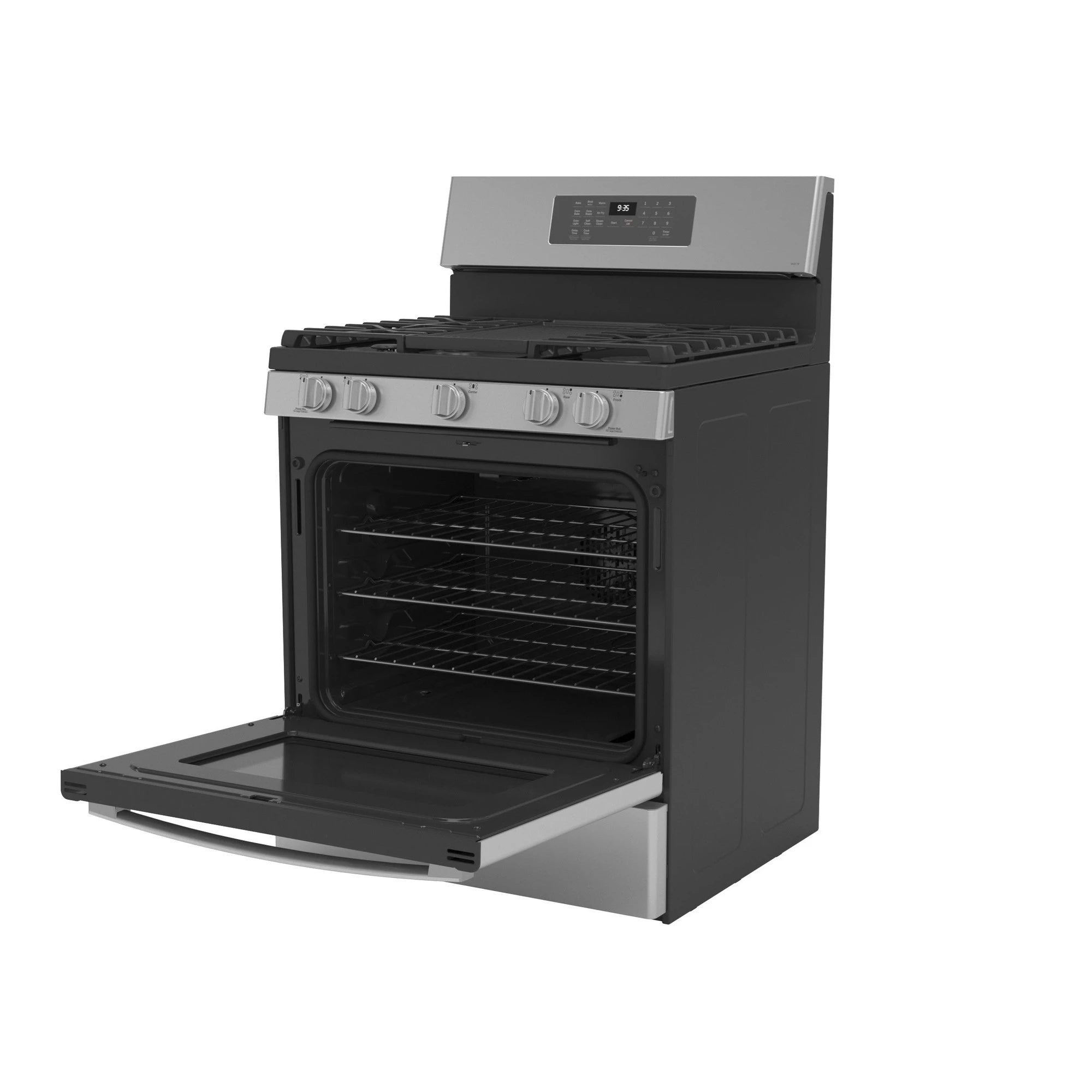

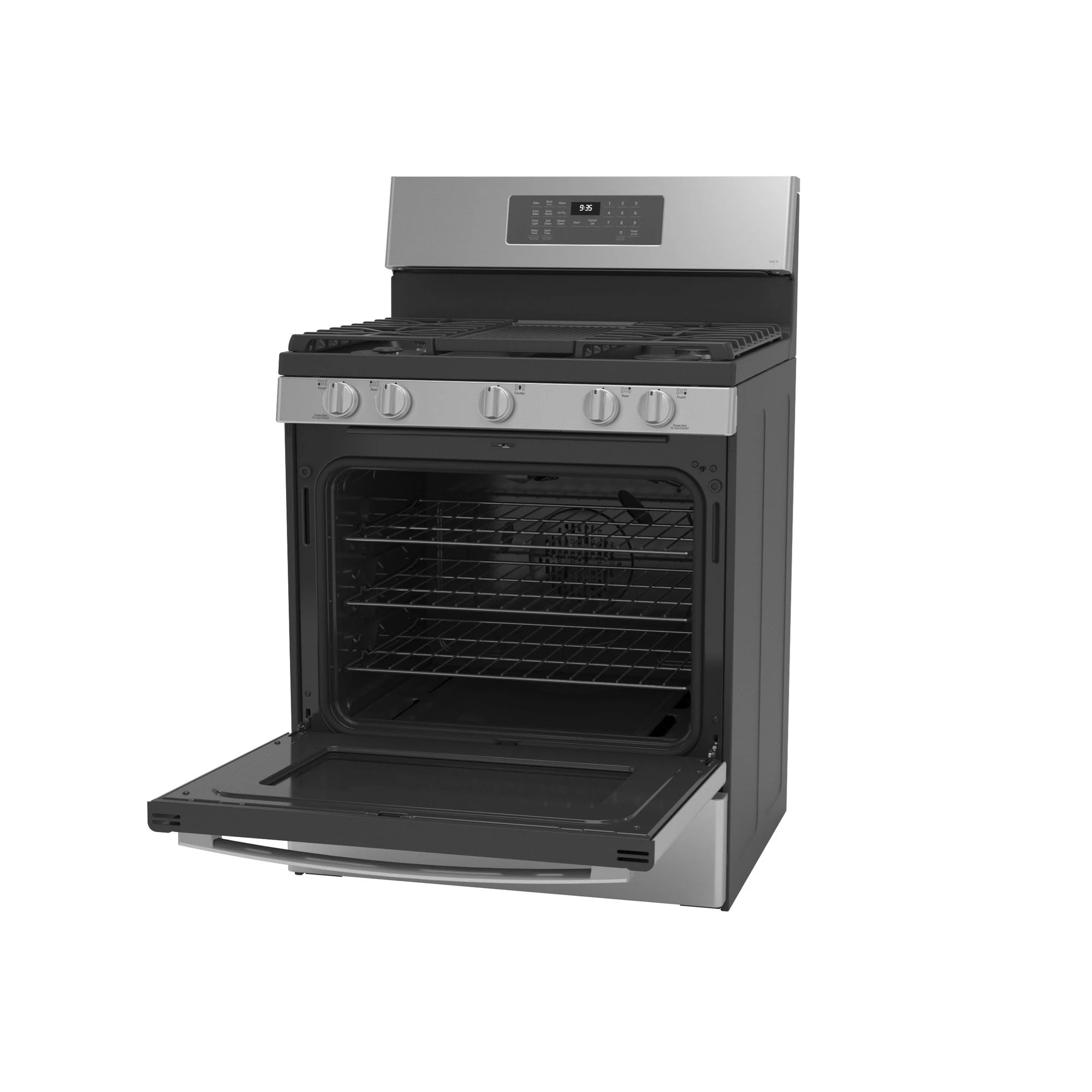

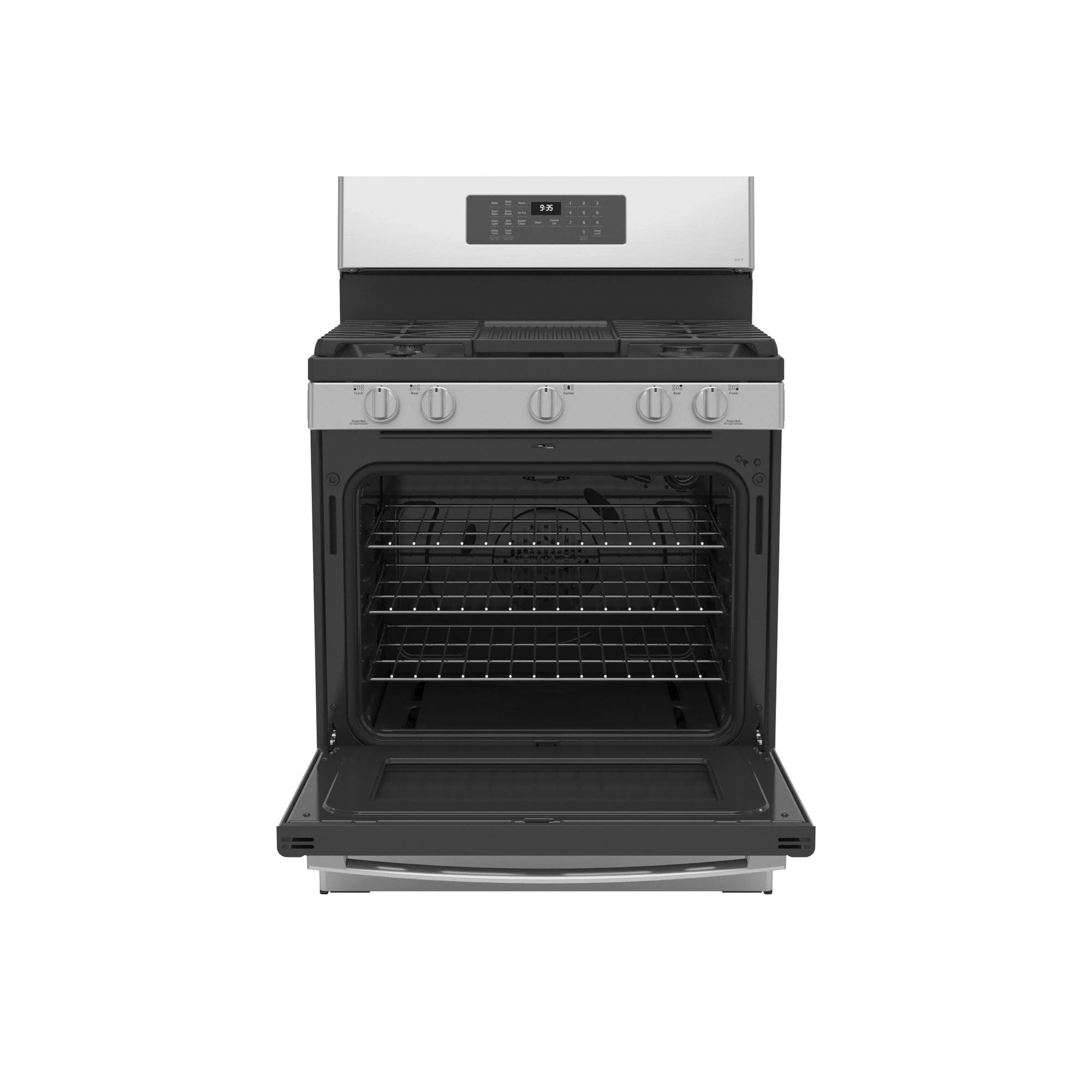

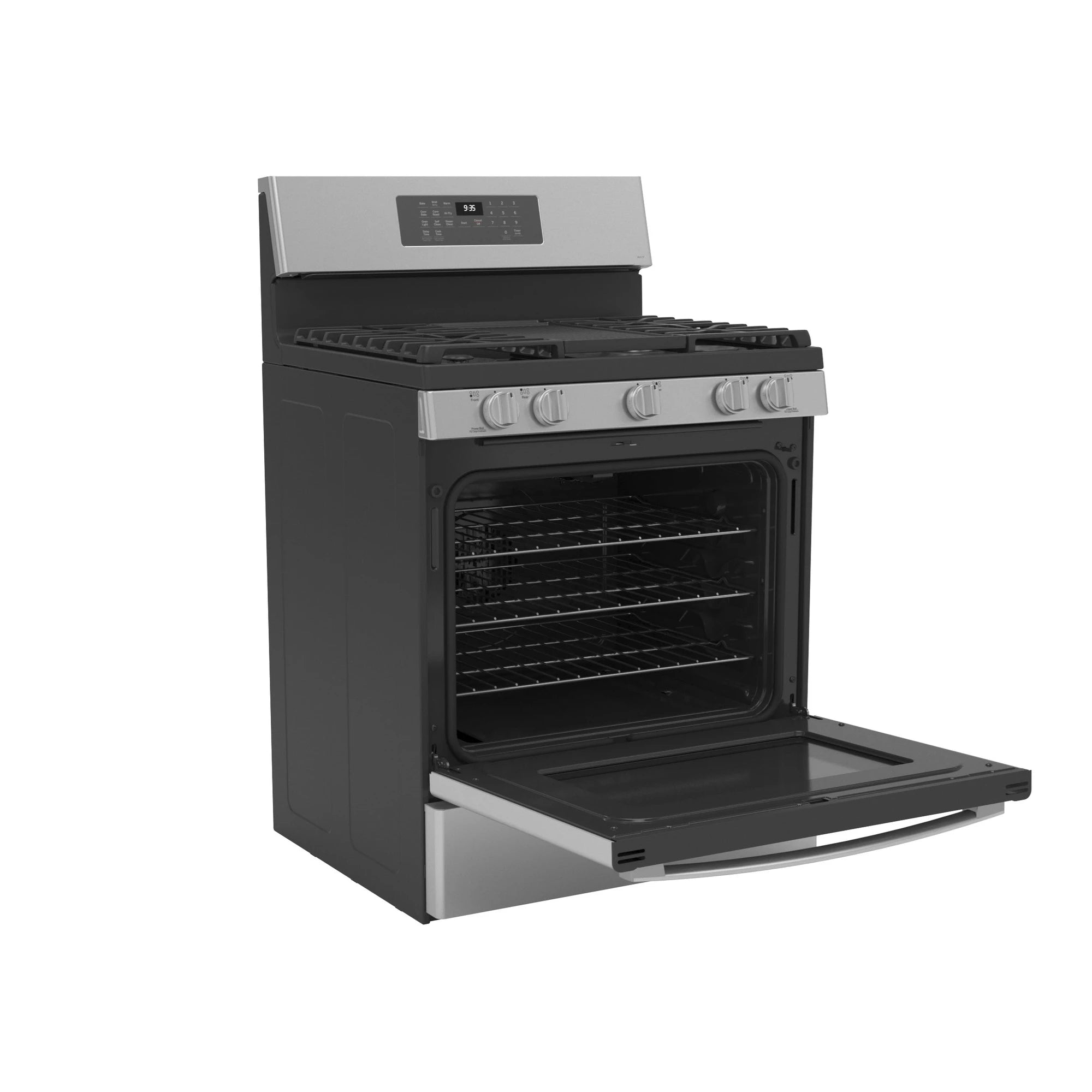

This oven features three adjustable racks for extra space in the oven

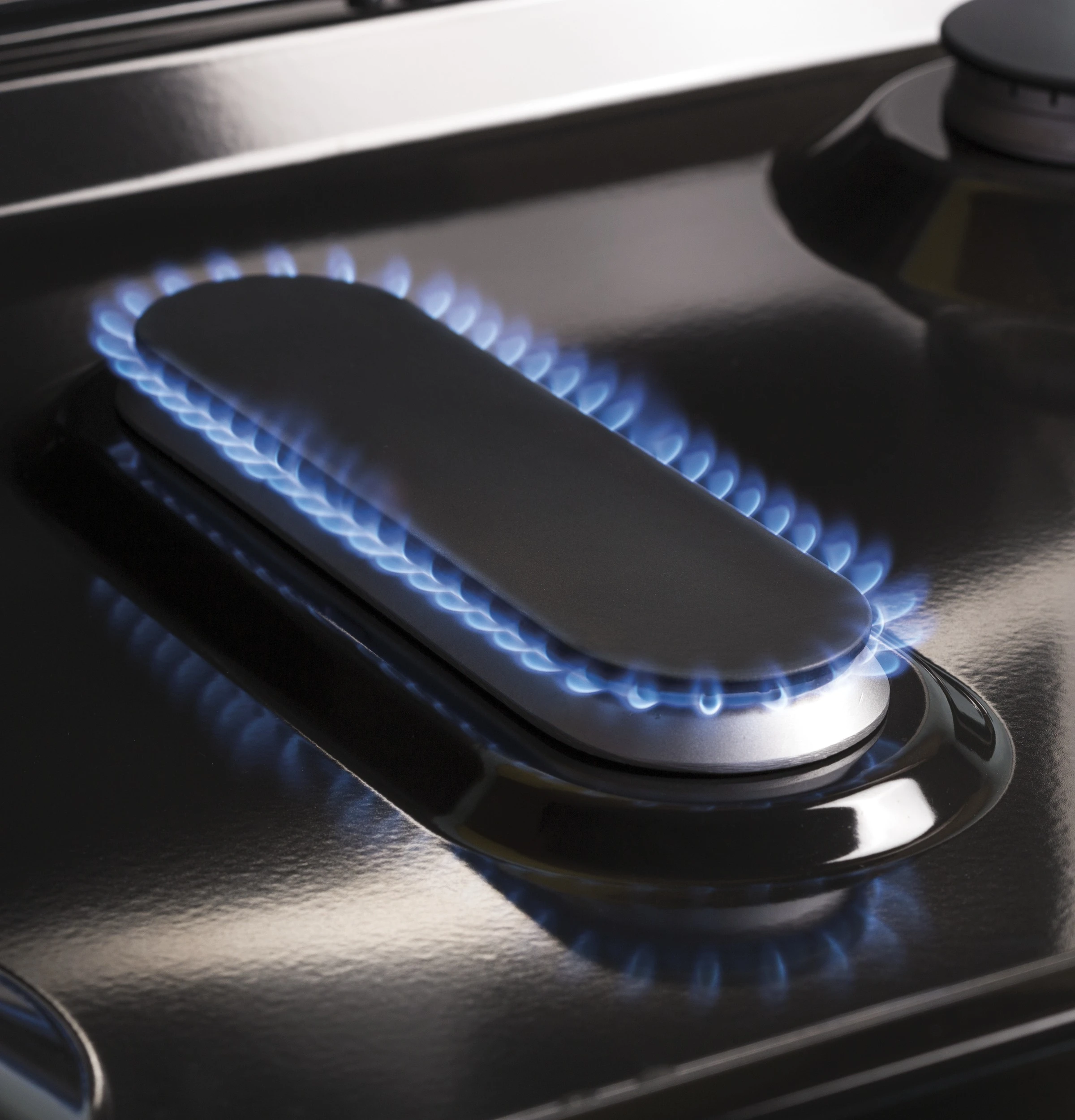

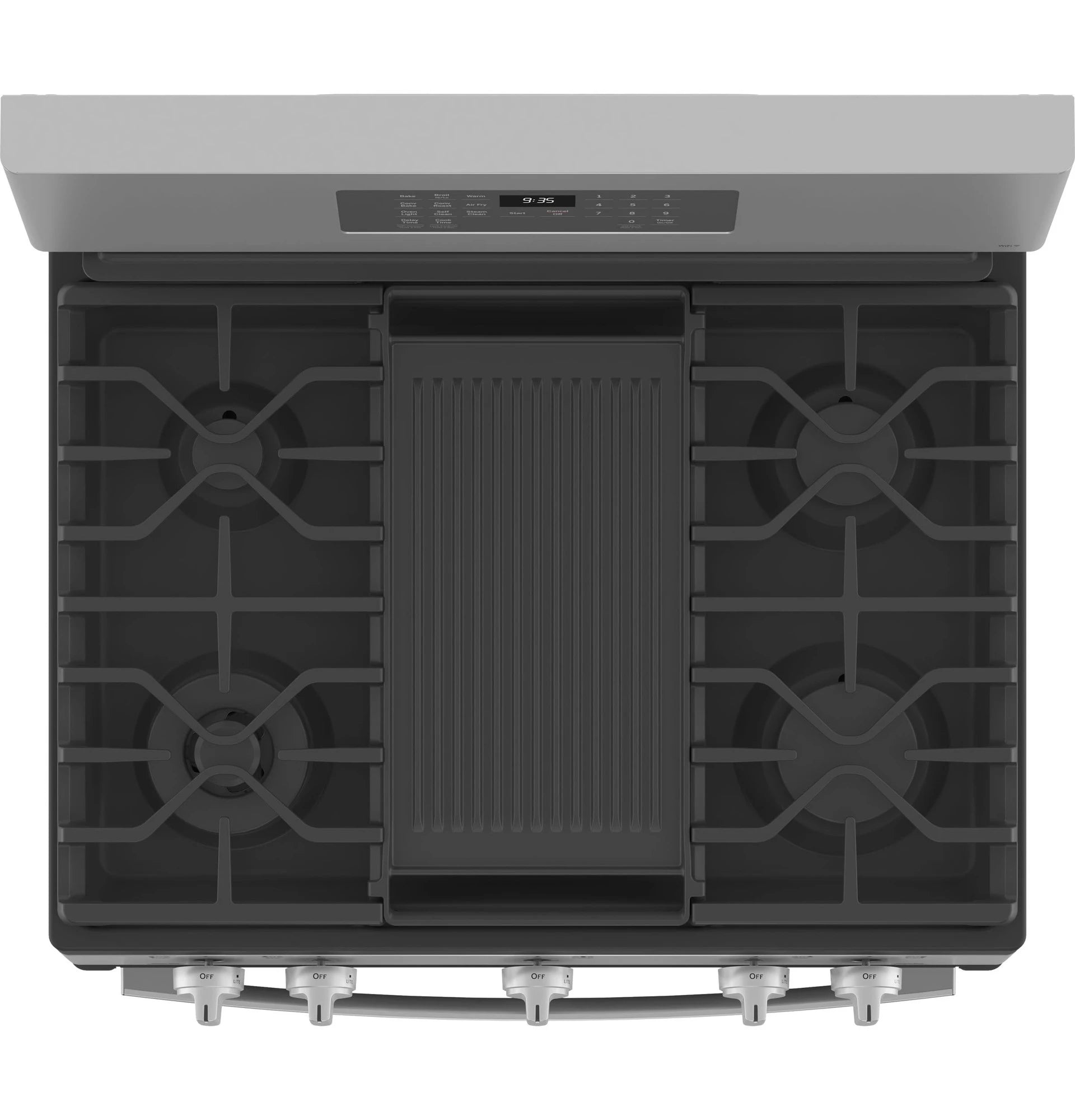

This center oval burner gives you a fifth burner and the perfect place to use griddles or odd-size cookware
This self-cleaning oven uses optional steam cleaning for light soils to clean the oven cavity with less heat and odor

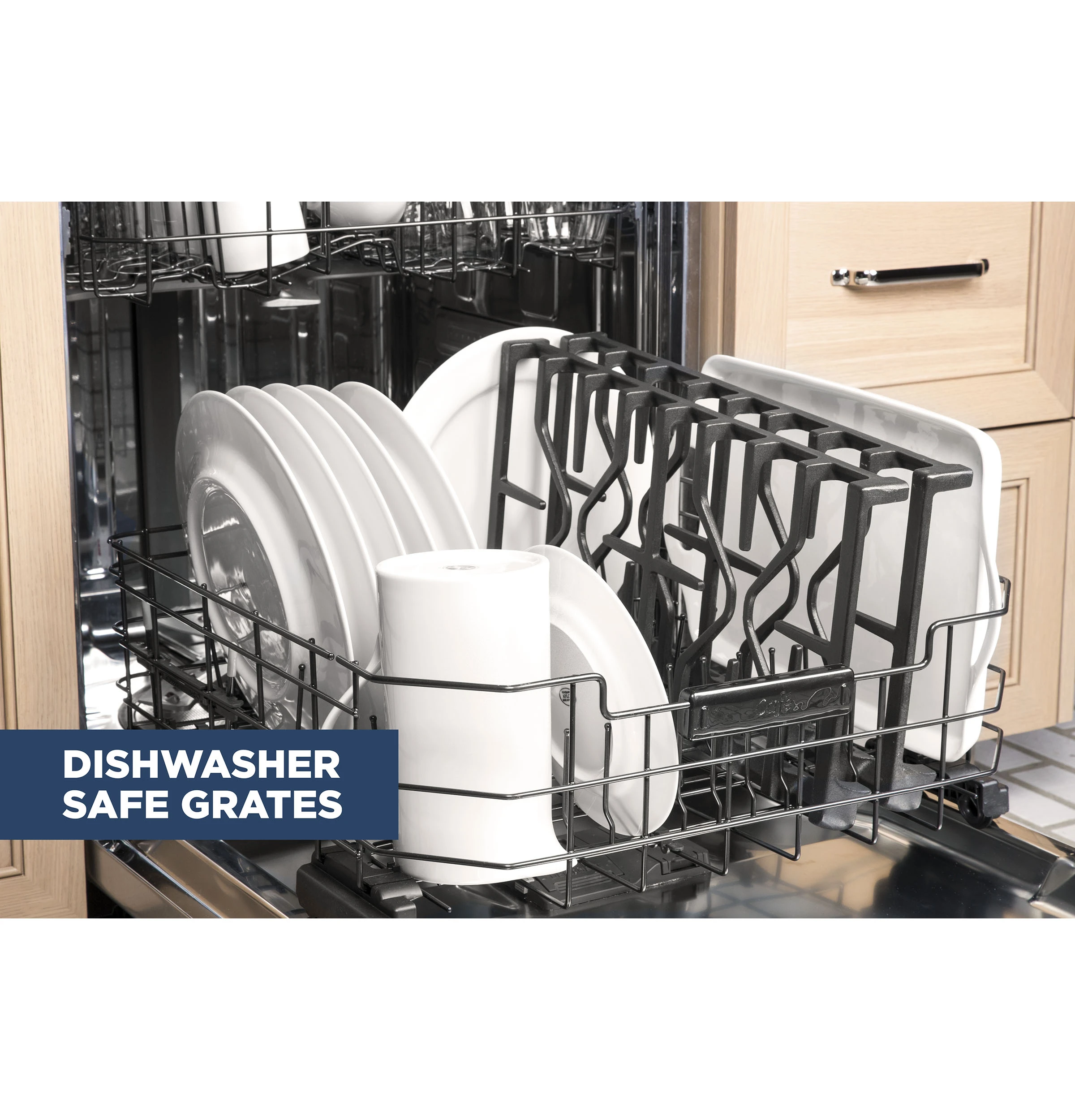

These cooktop grates can be cleaned one of two ways ™ either in the dishwasher, or on the bottom of a self-clean oven

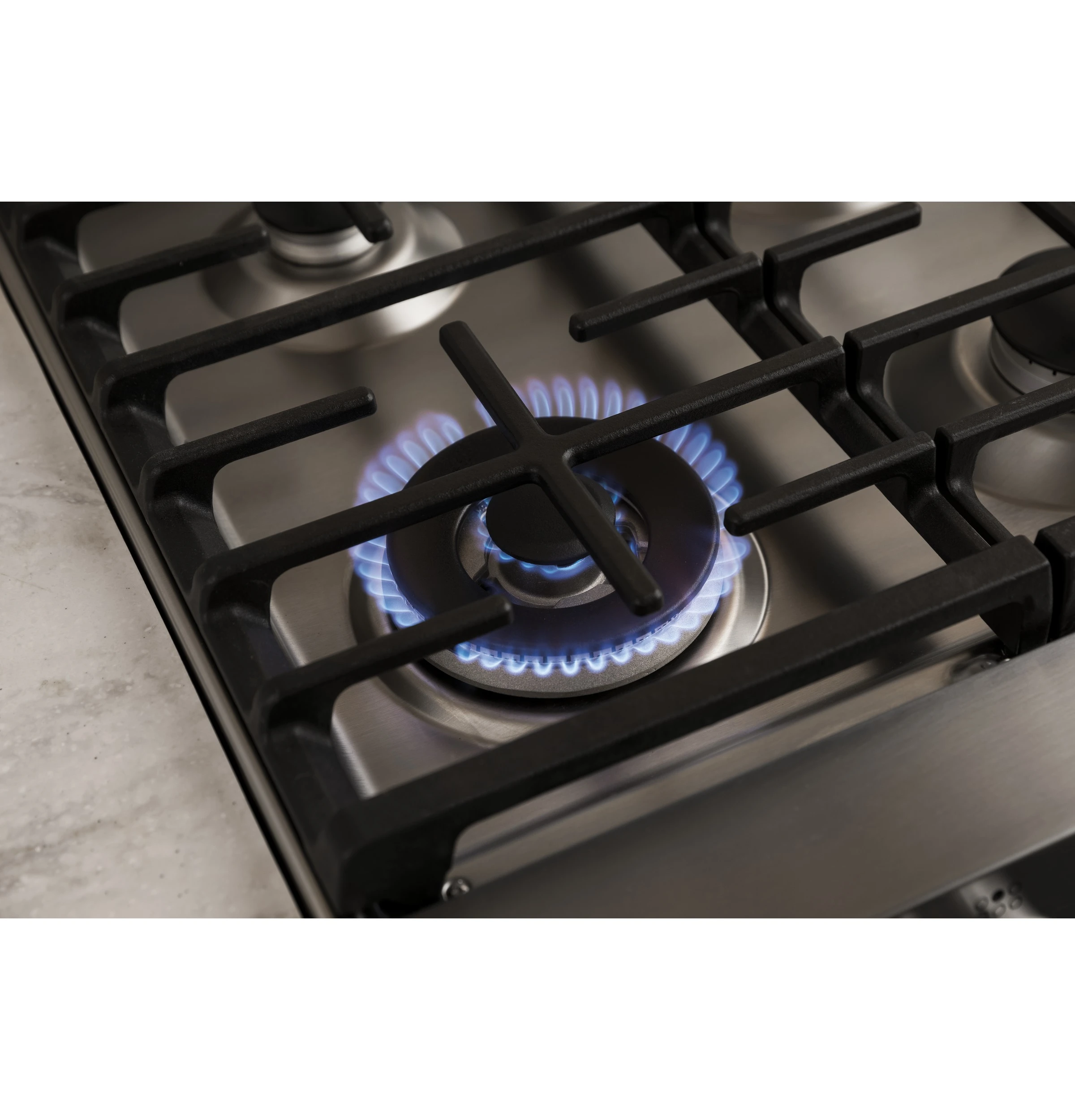

A versatile burner offers three different-sized flame rings on a single burner element, so it's like having three burners in one

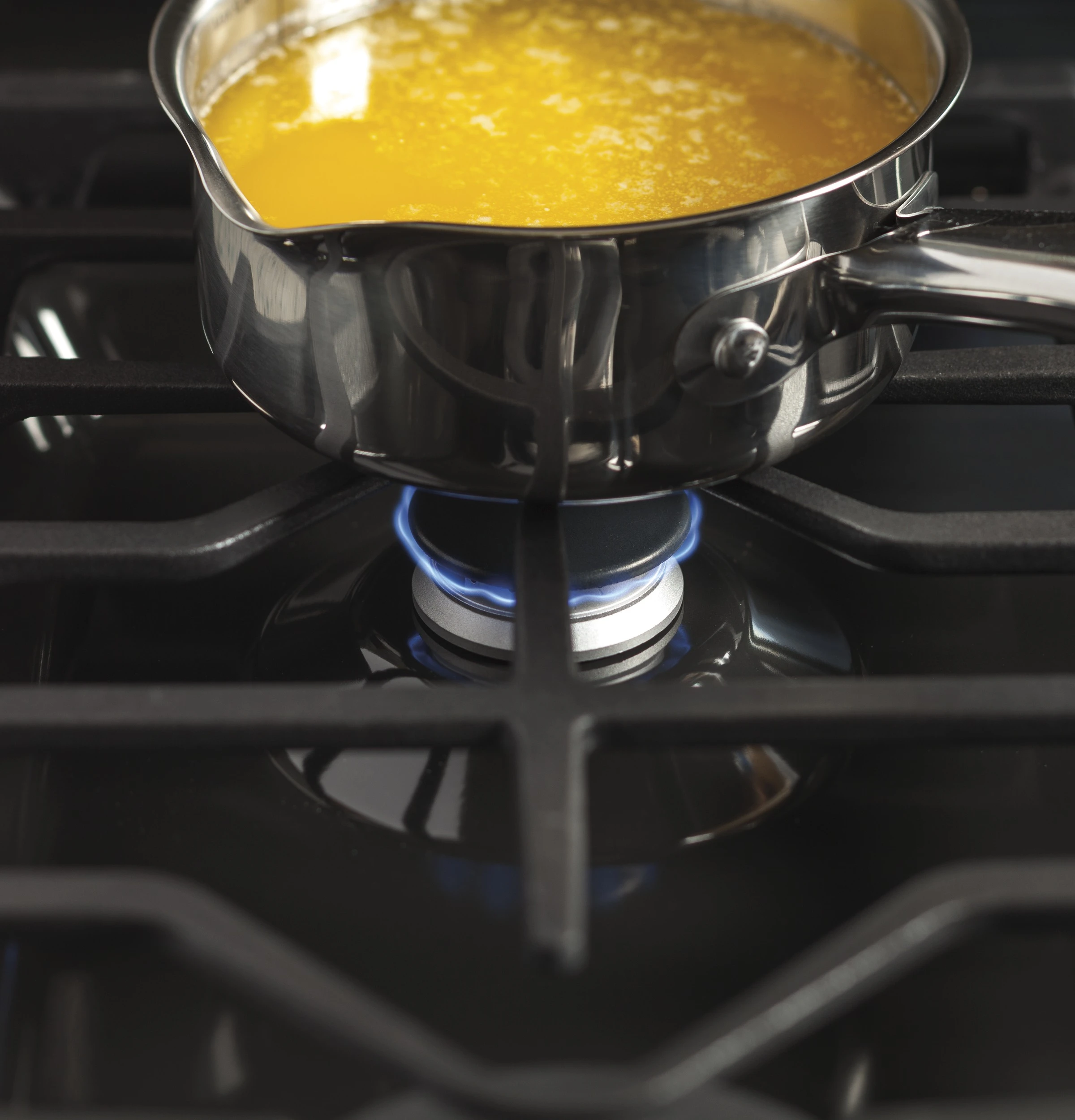

This burner setting provides low, even heat so delicate dishes don't burn
Cook an entire meal at once with a 5.6 cubic foot oven which provides enough room for multiple dishes
The Shabbos Keeper connects to your range to automatically enable Shabbos compatible modes each week and before every holiday (Shabbos Keeper sold separately)
CAPACITY | |
Total Capacity (cubic feet) | 5.6 |
APPEARANCE | |
Control Knobs | Profile Premium Heavy Duty |
Handle Color | Stainless Steel |
Handle Design | Sculptured |
Cooktop Burner Grate Color | Matte Black |
Oven Door Features | Easy clean oven door Profile™ XL |
Frameless Oven Door(s) | Stainless Steel |
Color Appearance | Fingerprint Resistant Stainless Steel |
POWER / RATINGS | |
Top Burner BTU Rating - LP (000's BTU's) | (1) 18.0; (1) 15.0; (1) 8.0; (1) 9.5; (1) 5.0 |
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 16.5 Broiler |
Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 20.0; (1) 18.0; (1) 10.0; (1) 9.5; (1) 5.0 |
Volts/Hertz/Amps | 120v; 60Hz; 15A |
Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 13.5 Broiler |
WARRANTY | |
Warranty Notes | See written warranty for full details |
Parts Warranty | Limited 1-year entire appliance |
Labor Warranty | Limited 1-year entire appliance |
ACCESSORIES | |
Grates | JXGRATE1 (Optional) |
Optional Accessories | WB48X21543 Roller Rack |
LP Conversion Kit | Included |

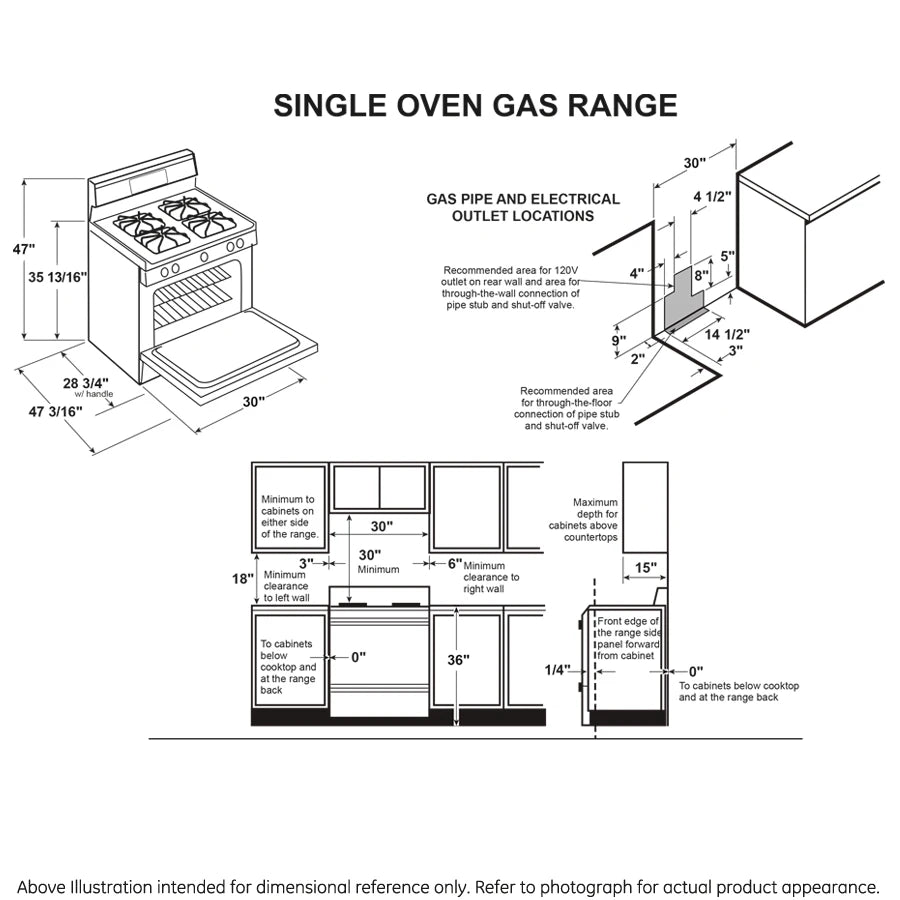

WEIGHTS & DIMENSIONS | |
Net Weight | 225.0 |
Height to Cooking Surface (in.) | 35 13/16 |
Overall Depth | 28.75 |
Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 20-5/8 |
Overall Width | 30.0 |
Overall Height | 47.0 |
Approximate Shipping Weight | 245.0 |
Cabinet Width | 30.0 |
Depth with Door Open 90° | 47.1875 |
FEATURES | |
Burner - Right Front | 18,000 BTU Power Boil |
Burner - Left Rear | 5,000 BTU |
Oven Cleaning Type | Self-Clean |
Cooktop Burner Type | Sealed |
Burner - Right Rear | 9,500 BTU |
Cooktop Burner Grate Features | Continuous Grates |
Valves (Degree of Turn) | 270 |
Oven Interior | 2 Oven Interior Lights |
Sabbath Mode | Enhanced Shabbos Mode (when used with Shabbos Keeper, sold separately, visit www.zmantechnologies.com for details) Sabbath Mode |
Oven Rack Features | 3 Oven Racks 6 Embossed Rack Positions |
Fuel Type | Natural Gas (factory set) |
Cleaning Time | Variable |
Backguard | Fingerprint resistant stainless |
WiFi Connect | Built-In |
Burner - Center | 10,000 BTU Oval |
Cooking Technology | Convection |
Cooktop Surface | Deep Recessed One-Piece Upswept |

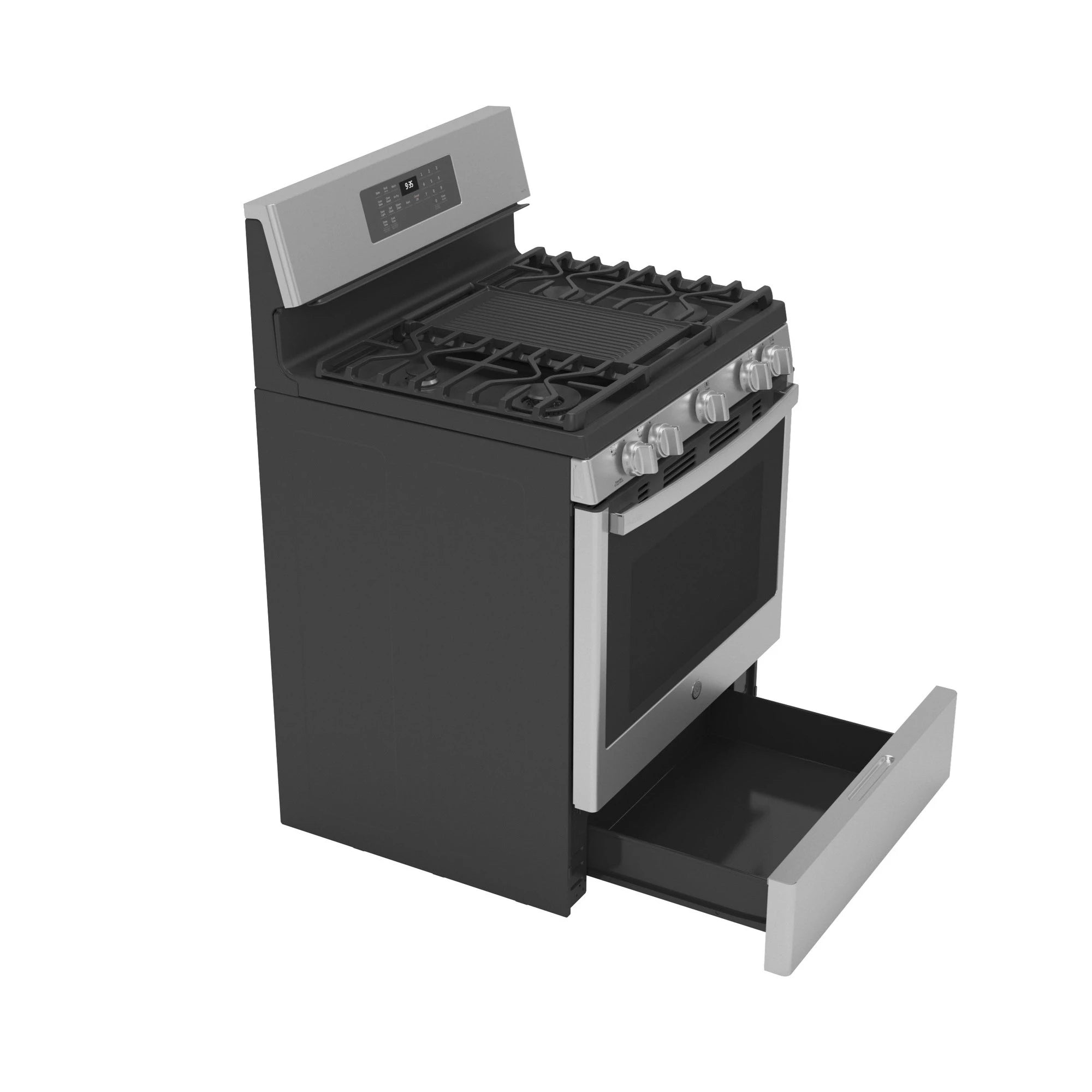

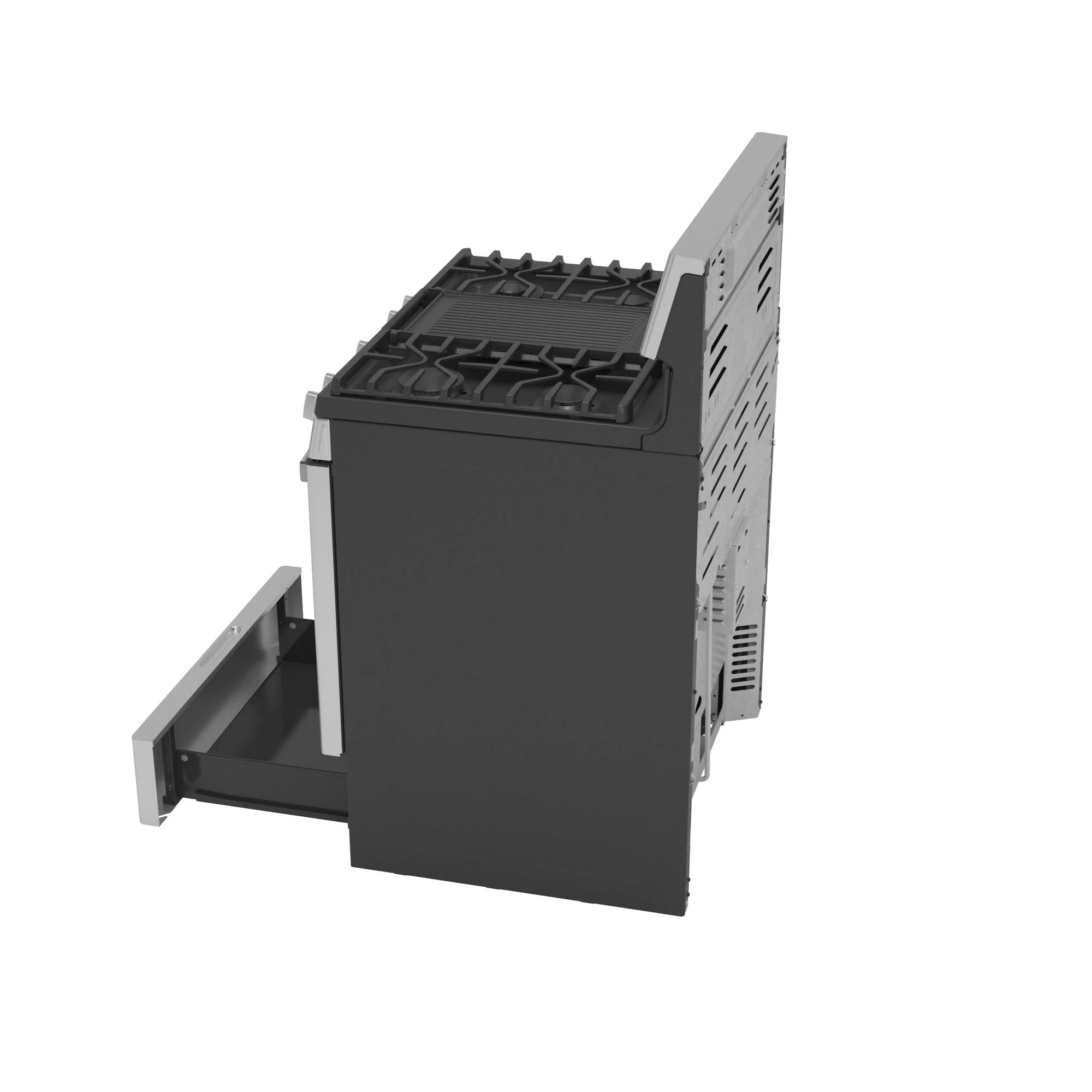

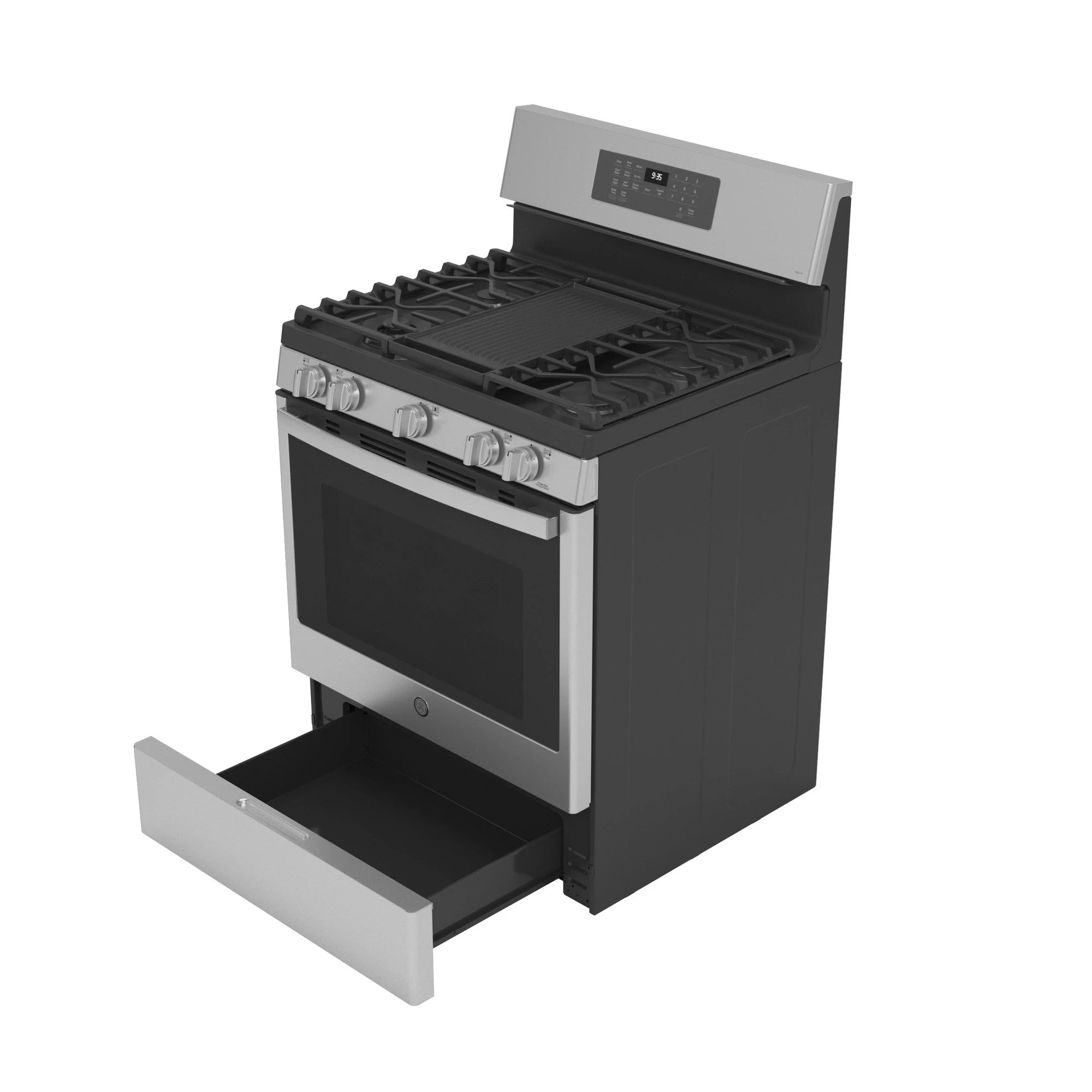

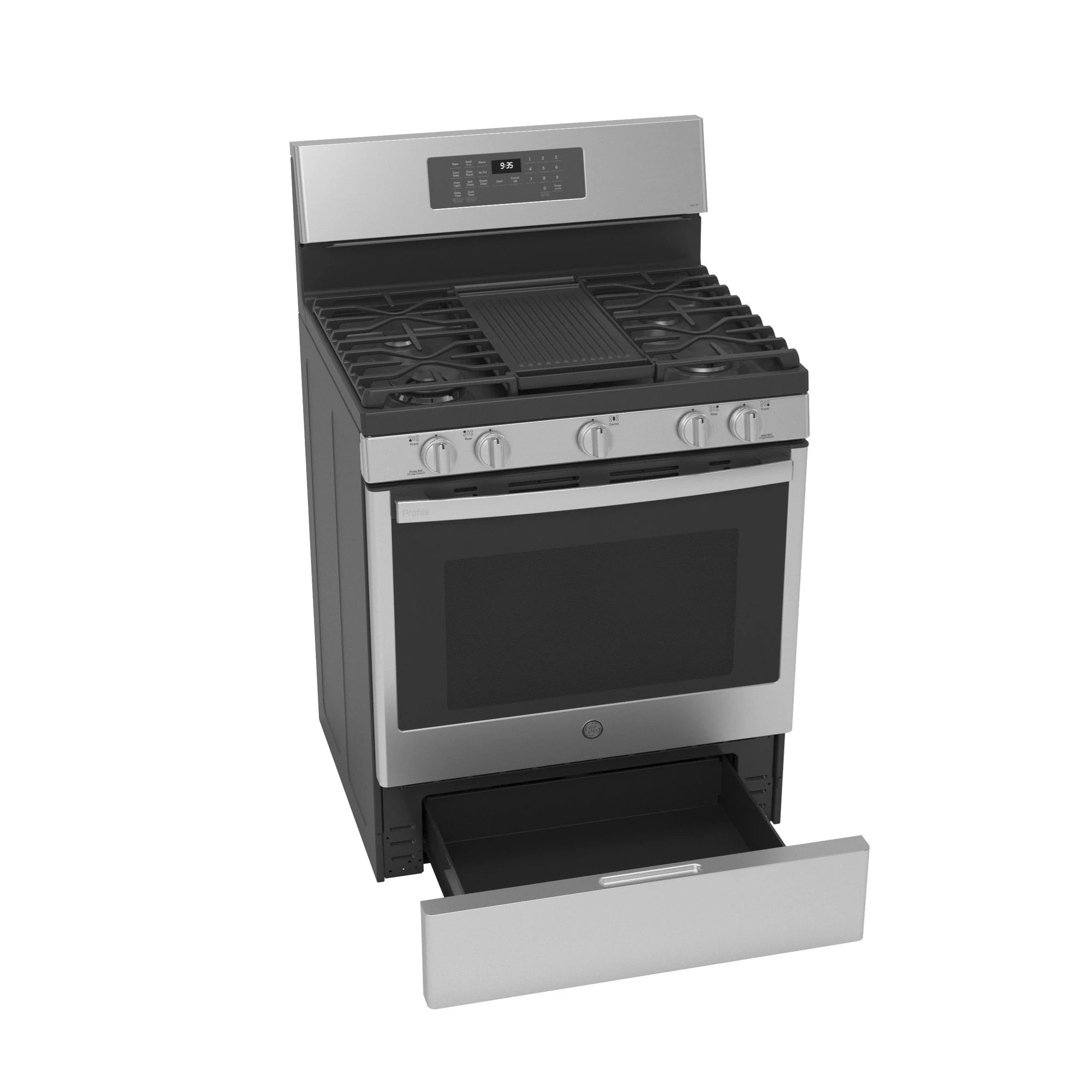

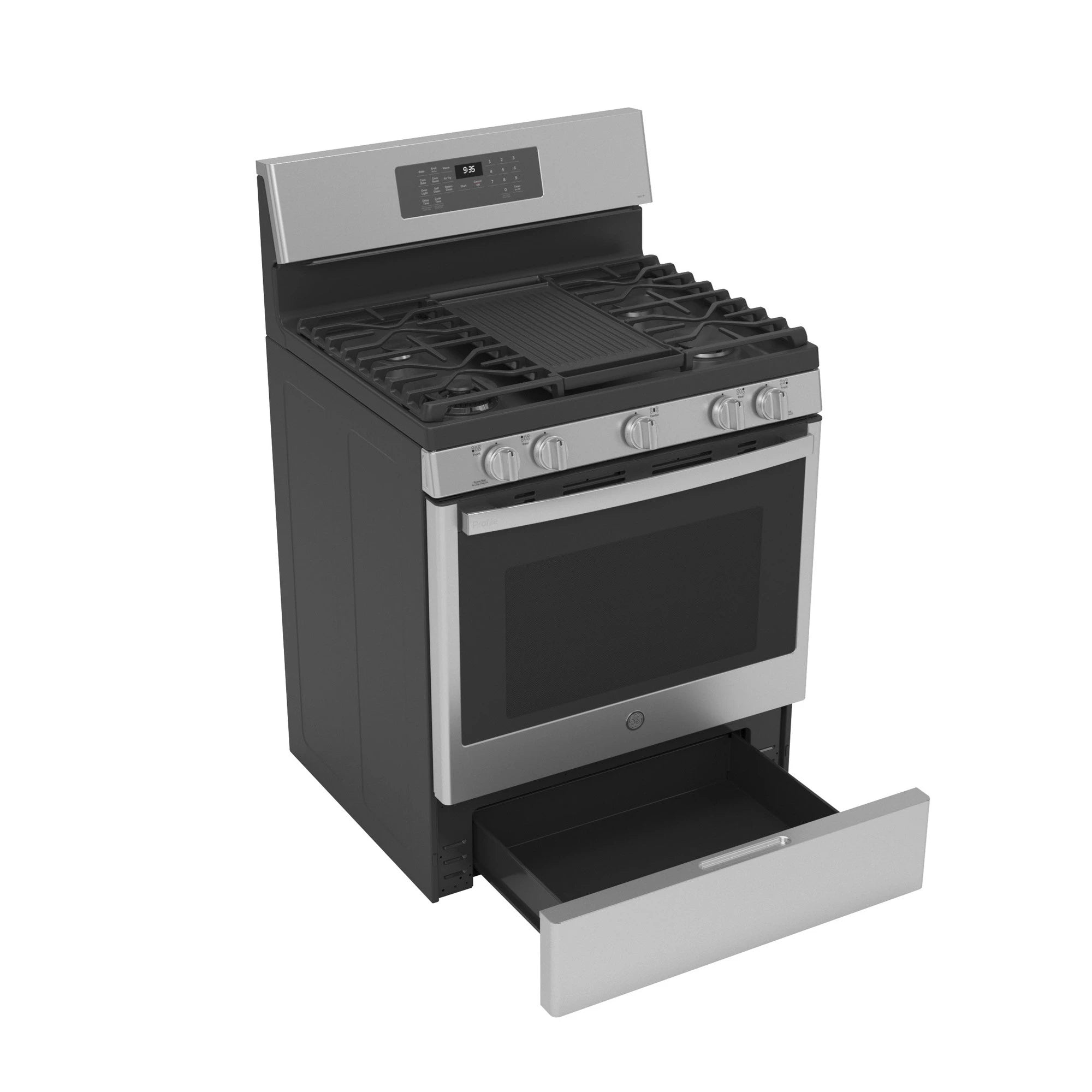

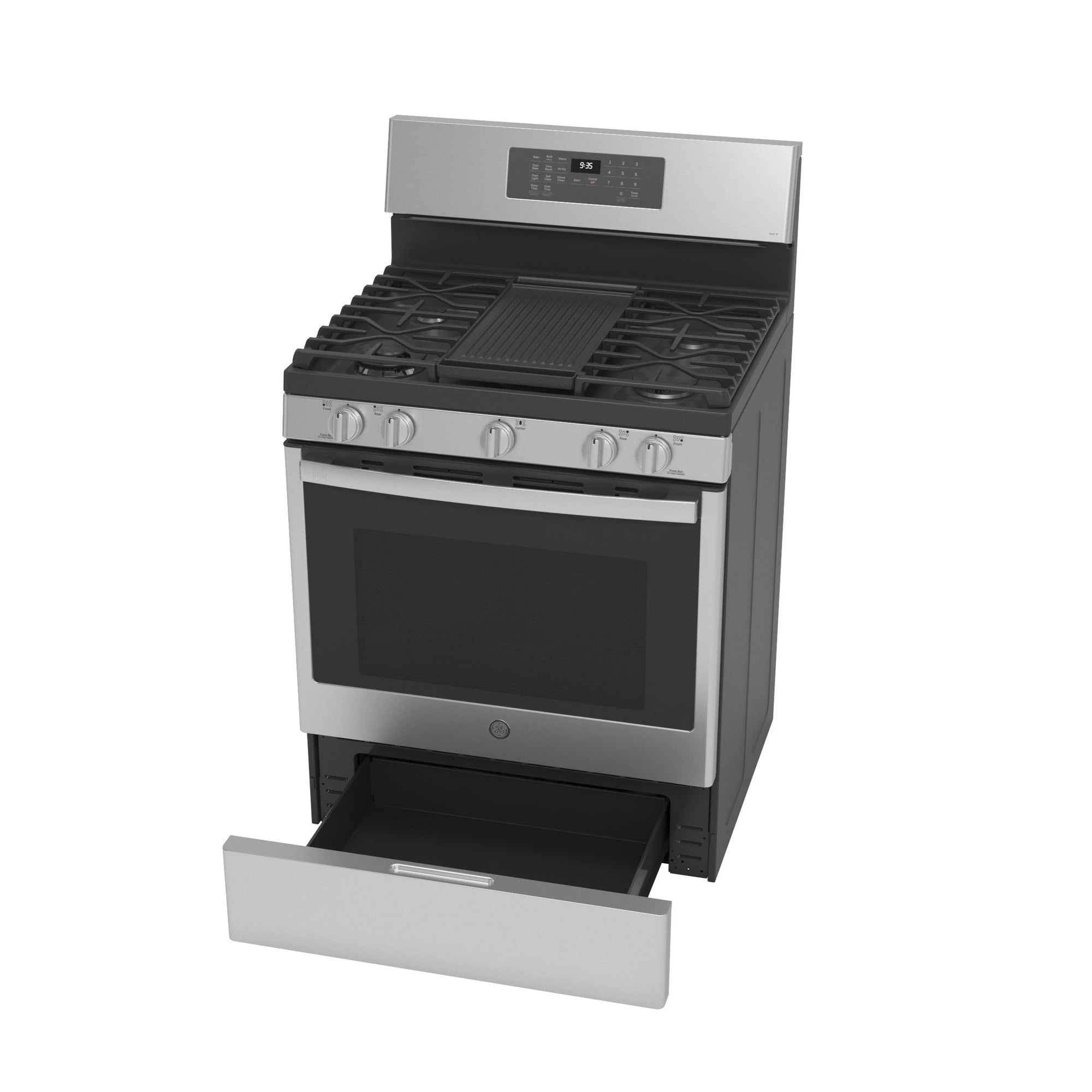

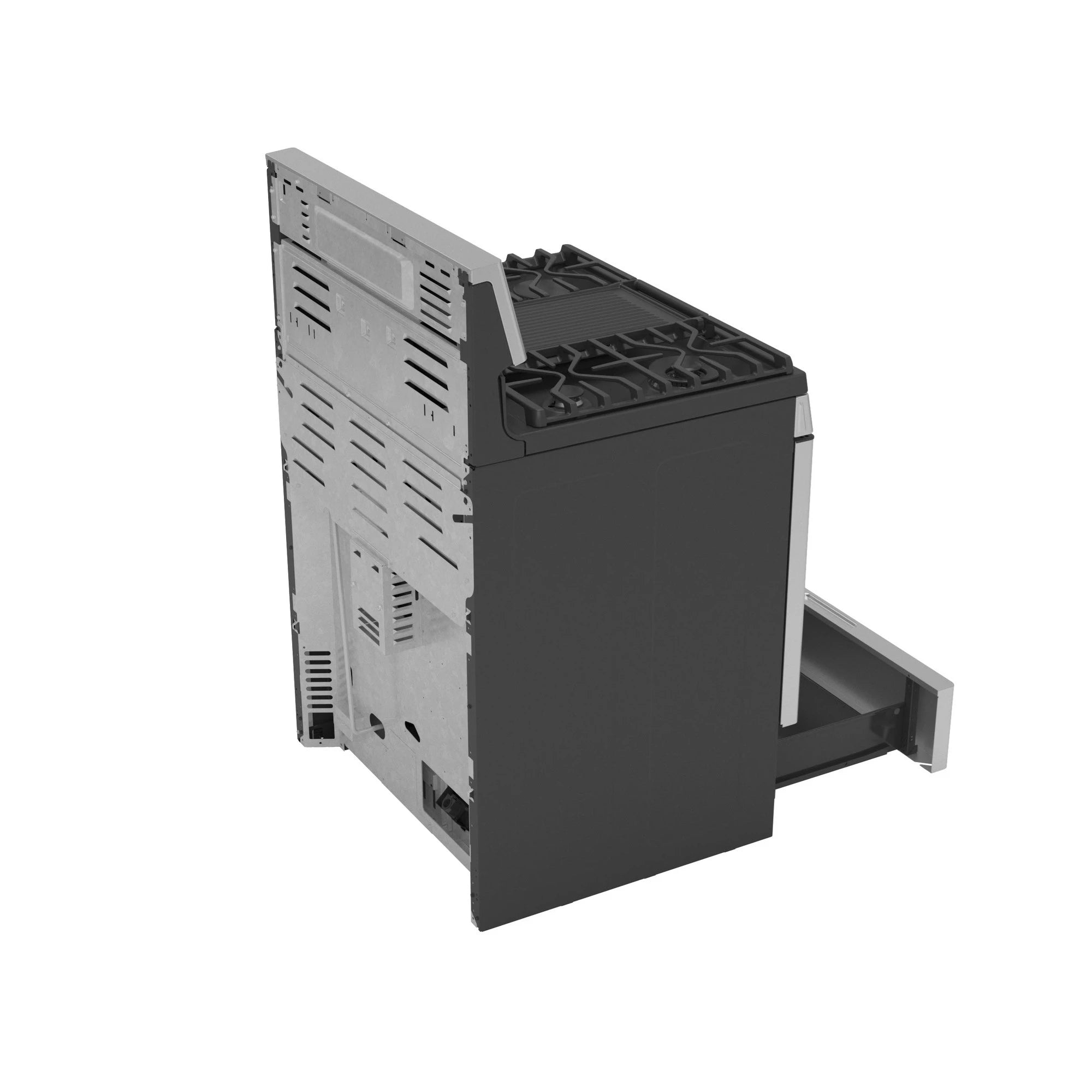

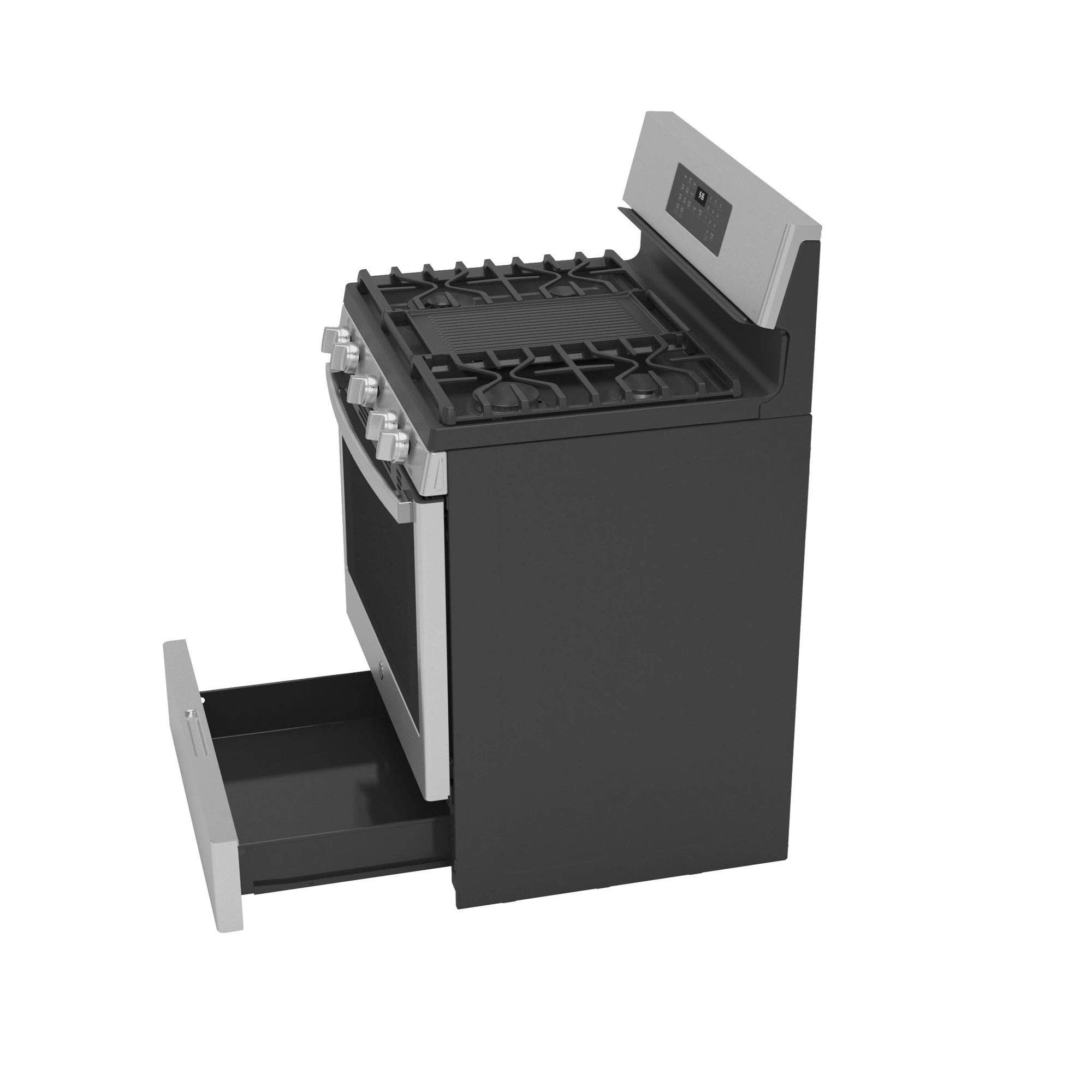

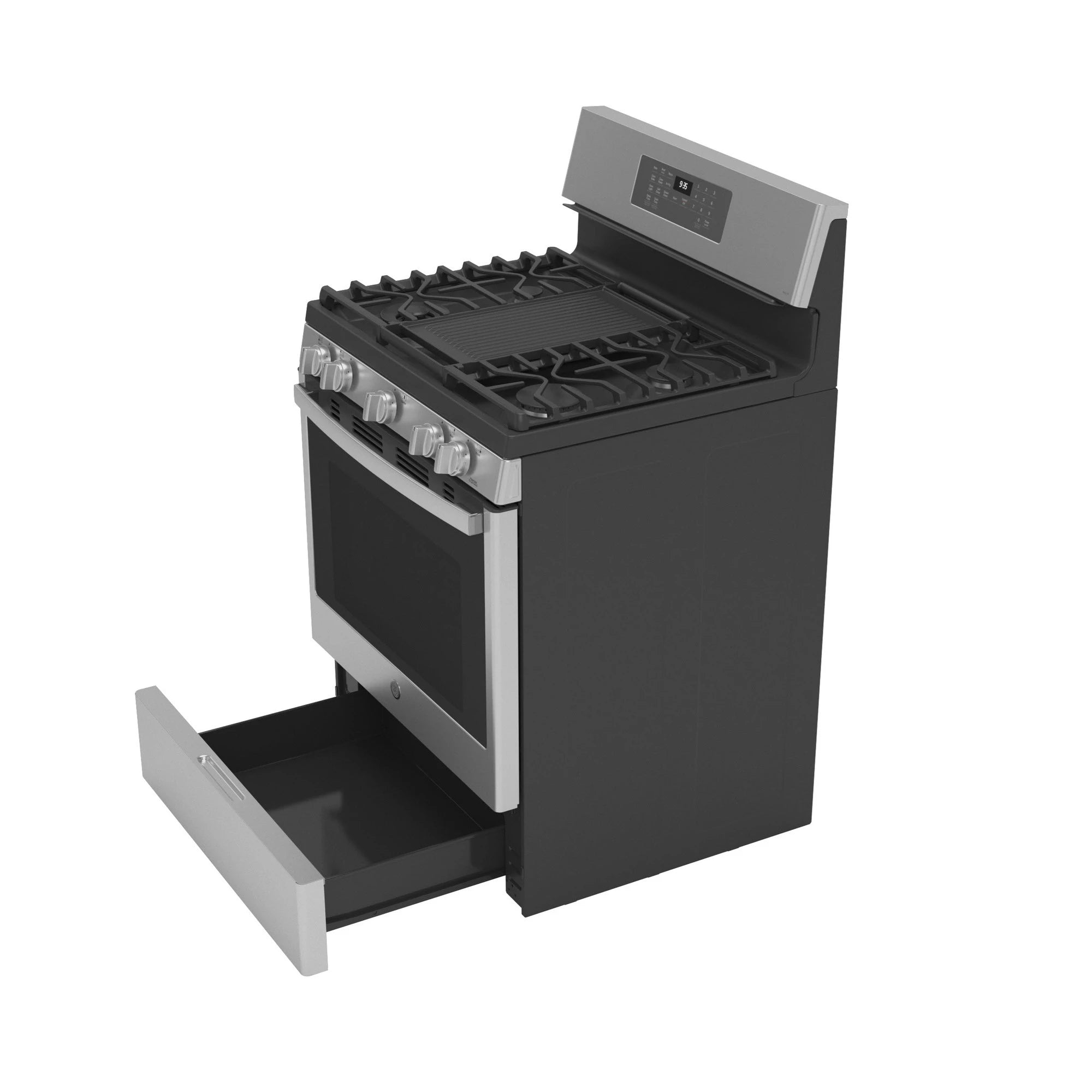

Configuration | Range with Storage Drawer |
Temperature Management System | True Temp System |
Self-Clean Oven Door Lock | Automatic |
Leveling System | 4 Leveling Legs |
Burner - Left Front | 20,000 BTU Tri-ring Burner |
Cooktop Burner Grate Material | Heavy Cast |
Control Type | Digital Temperature Display Glass Touch |
Oven Cooking Modes | Convection Bake Convection Roast No Preheat Air Fry |
Ignition System | Electronic |
Griddle | Reversible Cast Grill/Griddle |
Oven Control Features | Audible Preheat Signal Auto Oven Shut-Off Auto Recipe Conversion Auto Self Clean Automatic Oven Timer (Time Bake) Control Lock Capability Delay Bake Option (Time Bake) Delay Clean Option Digipad Numeric Entry Electronic Clock and Timer Hi / Low Broil In-Oven Broiling Oven Light Pad Sabbath Mode Self-Clean Cool Down Time Display |
Product Type | Free-Standing Single Oven |
Dishwasher Safe Knobs | Yes |
