Sale price $3,379.00 Regular price $5,384.97 Save $2,005.97 / 37% OFF

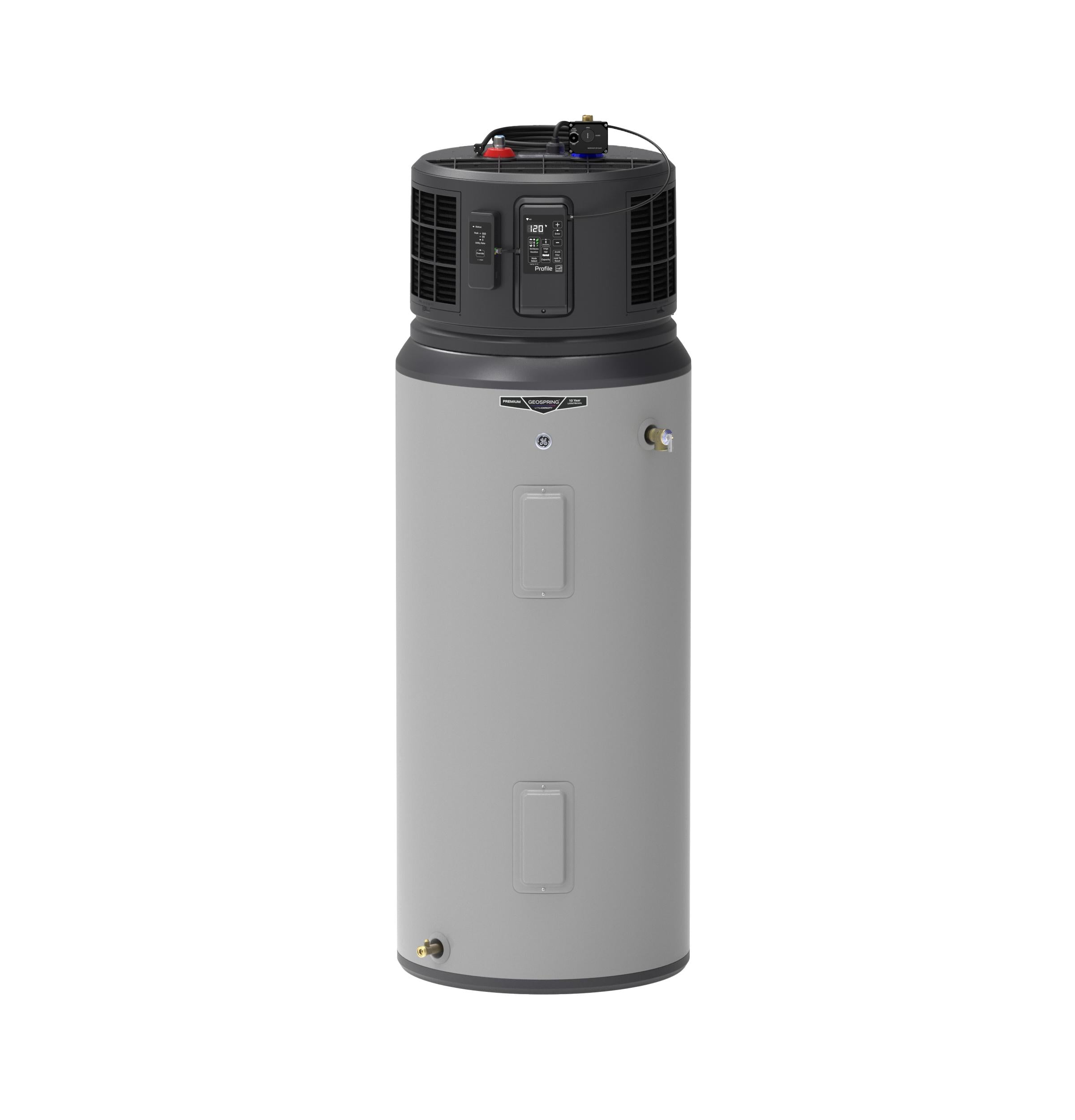

Product Details for GE APPLIANCES PF80S10FPY

Technical Details

Appearance

Installation Free-Standing
Color Appearance Gray

Power / ratings

Operating Water Pressure 20
Hertz 60
Volts/Hertz 120
Electrical Consumption - Lower Element 3600
First Hour Rate (FHR) 94
Voltage (MAX) 240
Energy Consumption (kWh/year) 1417
Electrical Consumption - Upper Element 3600
Electrical Circuit Required 120

Warranty

Warranty Notes See written warranty for full details
Parts Warranty Limited 10-year tank and parts
Labor Warranty Limited 1-year entire appliance

Weights & dimensions

Product Height (to top of water inlet/outlet connections) 76.38
Approximate Shipping Weight 360
Overall Width 27.0
Overall Height 76.38
Product Height (to top of unit) 75.0
Net Weight 331
Product Diameter 27.0
Overall Depth 27.0
Connection Sizes - Water Inlet (MNPT) 3.0
Connection Sizes - Hot Water Outlet (MNPT) 3.0

Features

Power Cord Length 6
Control Type Electronic
LED
Service Diagnostics Integrated
Demand Response Capable Yes
Drain Valve Left Side
Temp & Pressure Relief Valve Right Side
Fuel Type Electric
Operating Modes Heat Pump
High Demand/Boost
Hybrid (Default Mode)
Standard Electric
Electronic, Integrated Mixing Valve Yes
Drain Valve Type Brass
Temperature Setting Factory Default 120
Product Type Electric
WiFi Connect Built-In
Water Connection Location Top
Sensor Leak Sensor Included (SPLK10N01A)
Diagnostic Feedback Filter, Lock, Standard Electric
Anode Rod Magnesium
Sensing
Renewable Air Filter Top of Unit
Temperature Setting 100
Connected Capabilities Amazon Alexa
Google Home

Features

  • Up to 4.7x More Energy Efficiency
    Turn air into hot water power. Our heat pump water heater converts ambient air into water-heating energy, delivering up to 4.7x more efficiency than standard models-heat pump water heater performance that exceeds ENERGY STAR(R) requirements.
  • FlexCAPACITY
    FlexCAPACITY's electronic mixing valve delivers precise temperature control by blending hot and cold water at the point of exit. Get up to 60% more hot water-an 80-gallon unit performs like a 125-gallon model. Discover how to get more hot water. (*vs comparable water heaters without mixing valve at 120(degree)F set and 58(degree)F water temperature)
  • Homeowner Savings
    Unlock savings with up to $550* on annual energy bills. Plus, qualify for up to $900 in EnergyStar and local utility rebates. (*GE Standard Electric GE50S10BAM vs GE Profile PH50S10BPY Heat Pump Water Heater)
  • Total Control with SmartHQ(TM)
    Stay connected, anytime, anywhere. Built-in WiFi and the SmartHQ(TM) app let you monitor, control, and adjust your smart heat pump water heater from the palm of your hand. Enjoy alerts, usage tracking, and access to the latest features-all from one app.
  • Wireless Leak Detection with Automatic Water Shutoff
    Our exclusive wireless water sensor detects leaks and sends instant alerts via the SmartHQ(TM) app. Place in your home, ensuring automatic water shutoff in case of emergency-no strings (or wires) attached.
  • Dynamic Demand Response
    Lower energy bills made simple. GEOSPRING(TM) water heaters are EcoPort Certified with built-in demand response capabilities to optimize home energy usage when rates are the lowest. Stay ahead of fluctuating energy costs.
  • Maximum Performance
    Hot water when you need it most. GEOSPRING(TM) heat pump water heaters deliver 94 gallons of hot water in the first hour of operation*. Built for homes with high water demands, they ensure maximum efficiency and performance you can trust. (*Measured through DOE First Hour Rating)
  • Flexible & Easy Installation
    GEOSPRING(TM) heat pump water heaters install easily with a 120V standard plug-in or converts to 240V for enhanced efficiency. Integrated pocket handles and pre-installed wire connectors simplify setup.
  • Household Size
  • Five Operation Modes
    Hot water your way. Choose from five operational settings: Heat Pump , Hybrid, High Demand, Electric, and Vacation modes. Enjoy personalized water heating with flexible operation modes designed for maximum comfort and efficiency.
  • 10 Year Limited Warranty
    Built to last, guaranteed. Enjoy long-term peace of mind with our limited 10-year tanks and parts limited warranty. Dependable performance backed by our commitment to quality and durability.
  • Quiet Operation
    Whisper-quiet comfort. GEOSPRING(TM) heat pump water heaters operate at a low 41 dBA, ensuring a peaceful home environment. Experience the tranquility of a quiet heat pump water heater without sacrificing performance.
  • Easy To Service
    Built for sustainability. Unlike most competitors, our heat pump water heaters are designed to be serviceable, reducing waste and landfill impact. Enjoy low maintenance and long-lasting performance for a greener home.
  • Sensing Anode Rod
    Smart water heater protection. Our exclusive anode rod sensing technology alerts you when it's time for replacement, extending your water heater's life and optimizing its performance for years to come.
  • Variable Speed Compressor
    Adapts to your home. GEOSPRING(TM) heat pump water heaters feature a variable speed compressor that adjusts speed based on environmental conditions. Enjoy consistent hot water, even in colder climates, with enhanced energy efficiency.



Description

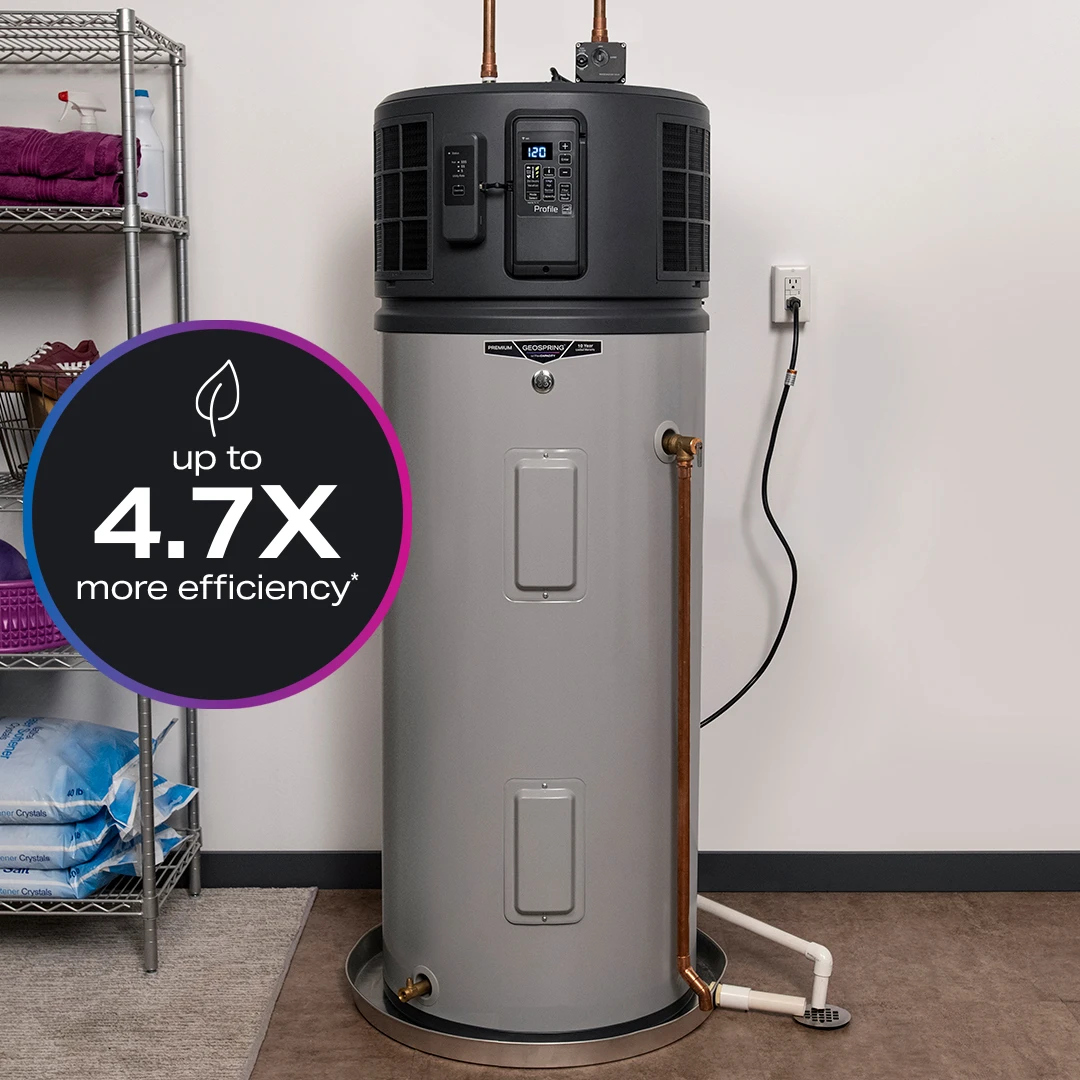

Up to 4.7x More Energy Efficiency
Turn air into hot water power. Our heat pump water heater converts ambient air into water-heating energy, delivering up to 4.7x more efficiency than standard models-heat pump water heater performance that exceeds ENERGY STAR(R) requirements.

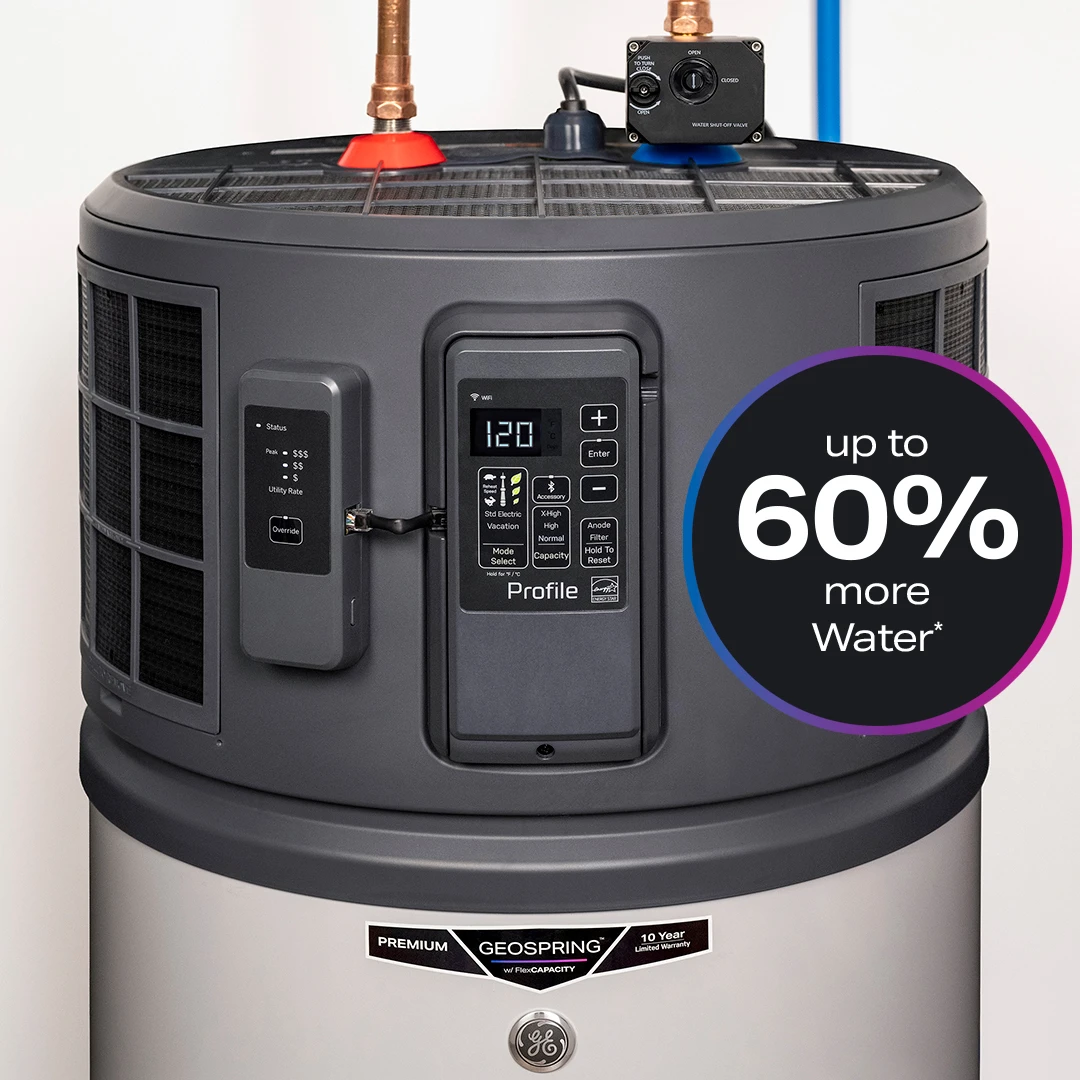

FlexCAPACITY
FlexCAPACITY's electronic mixing valve delivers precise temperature control by blending hot and cold water at the point of exit. Get up to 60% more hot water-an 80-gallon unit performs like a 125-gallon model. Discover how to get more hot water. (*vs comparable water heaters without mixing valve at 120(degree)F set and 58(degree)F water temperature)

Homeowner Savings
Unlock savings with up to $550* on annual energy bills. Plus, qualify for up to $900 in EnergyStar and local utility rebates, and receive up to $2,000 in Inflation Reduction Act (IRA) tax credits. (*GE Standard Electric GE50S10BAM vs GE Profile PH50S10BPY Heat Pump Water Heater)

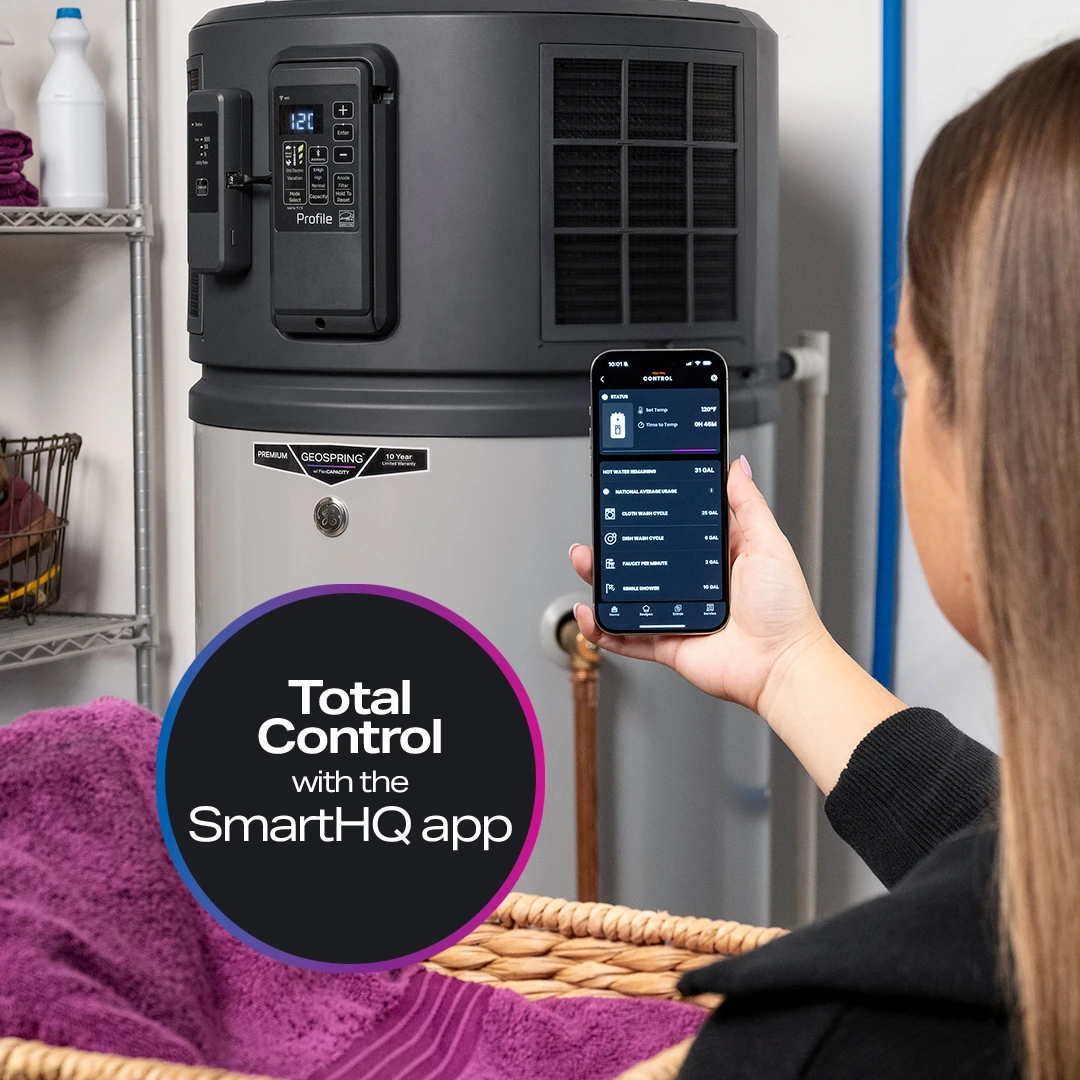

Total Control with SmartHQ(TM)
Stay connected, anytime, anywhere. Built-in WiFi and the SmartHQ(TM) app let you monitor, control, and adjust your smart heat pump water heater from the palm of your hand. Enjoy alerts, usage tracking, and access to the latest features-all from one app.

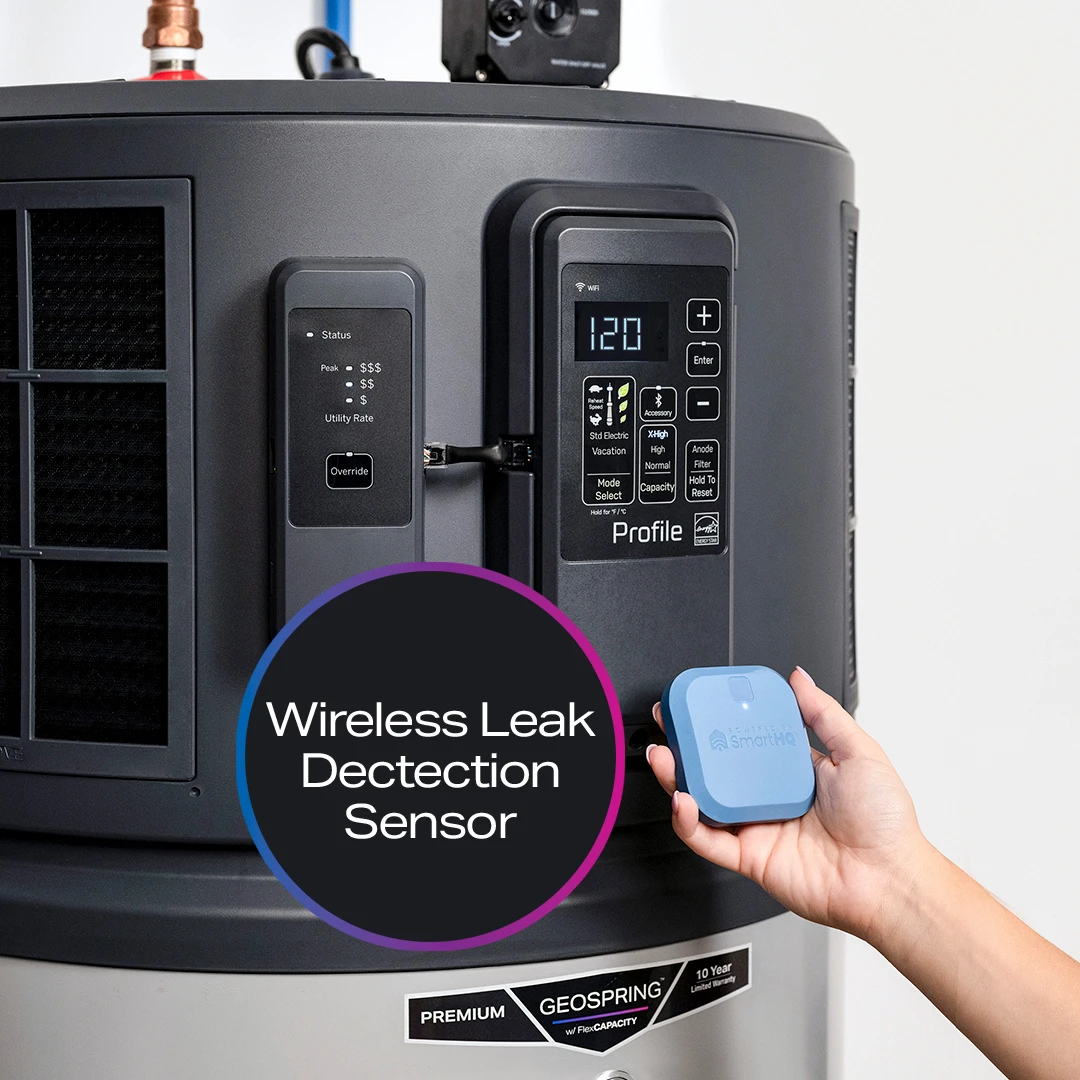

Wireless Leak Detection with Automatic Water Shutoff
Our exclusive wireless water sensor detects leaks and sends instant alerts via the SmartHQ(TM) app. Place sensors wherever you need, ensuring automatic water shutoff in case of emergency-no strings (or wires) attached.

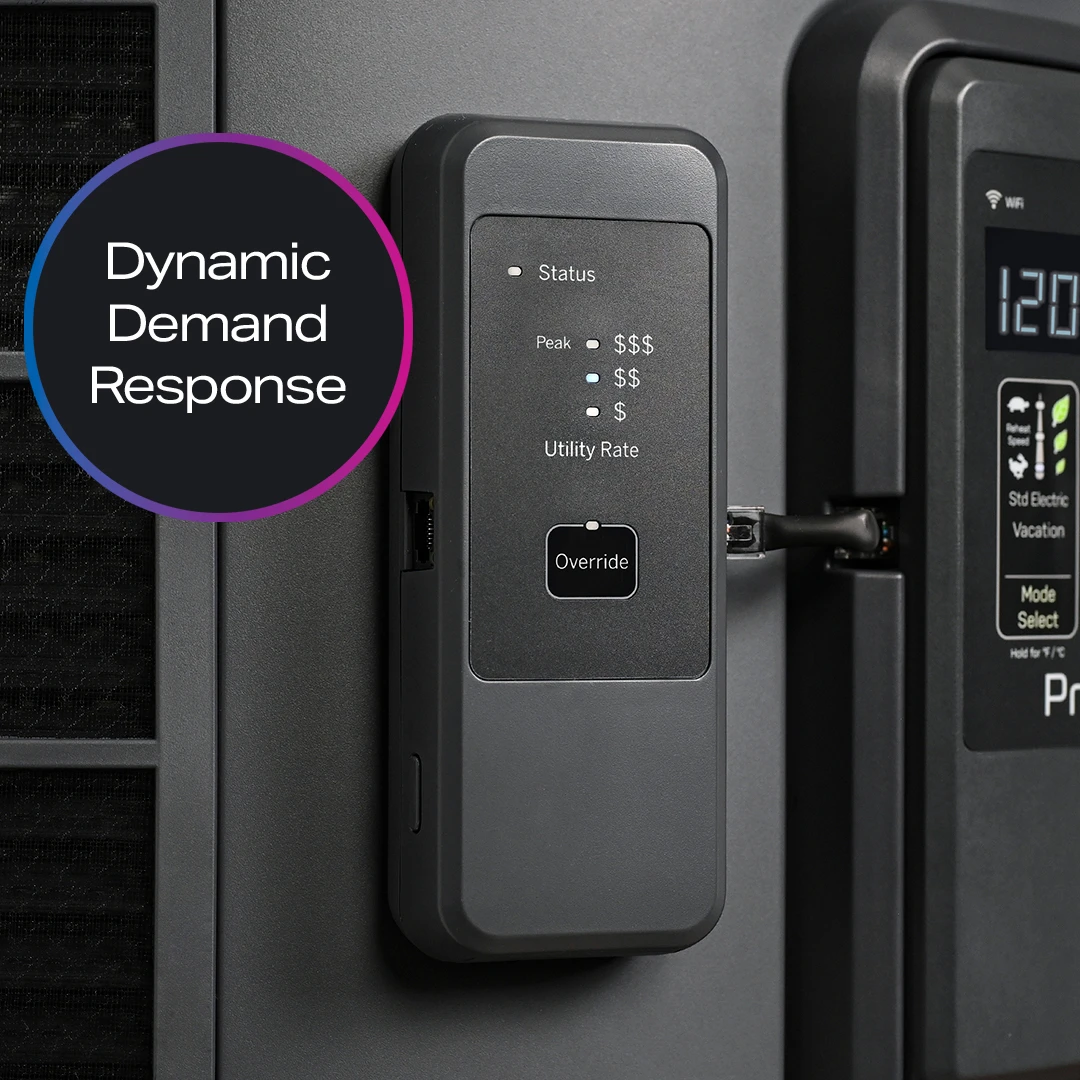

Dynamic Demand Response
Lower energy bills made simple. GEOSPRING(TM) water heaters are EcoPort Certified with built-in demand response capabilities to optimize home energy usage when rates are the lowest. Stay ahead of fluctuating energy costs.

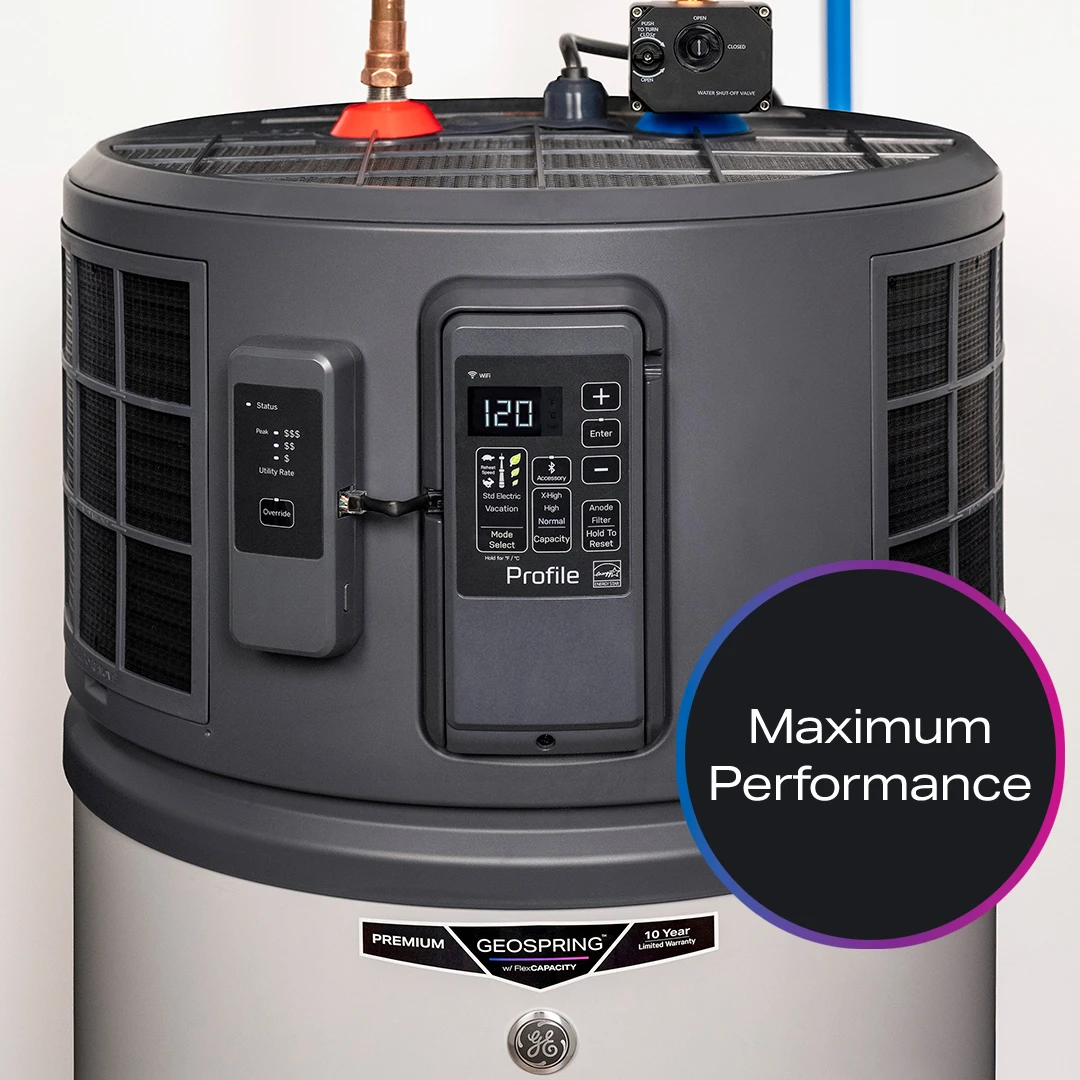

Maximum Performance
Hot water when you need it most. GEOSPRING(TM) heat pump water heaters deliver 94 gallons of hot water in the first hour of operation*. Built for homes with high water demands, they ensure maximum efficiency and performance you can trust. (*Measured through DOE First Hour Rating)

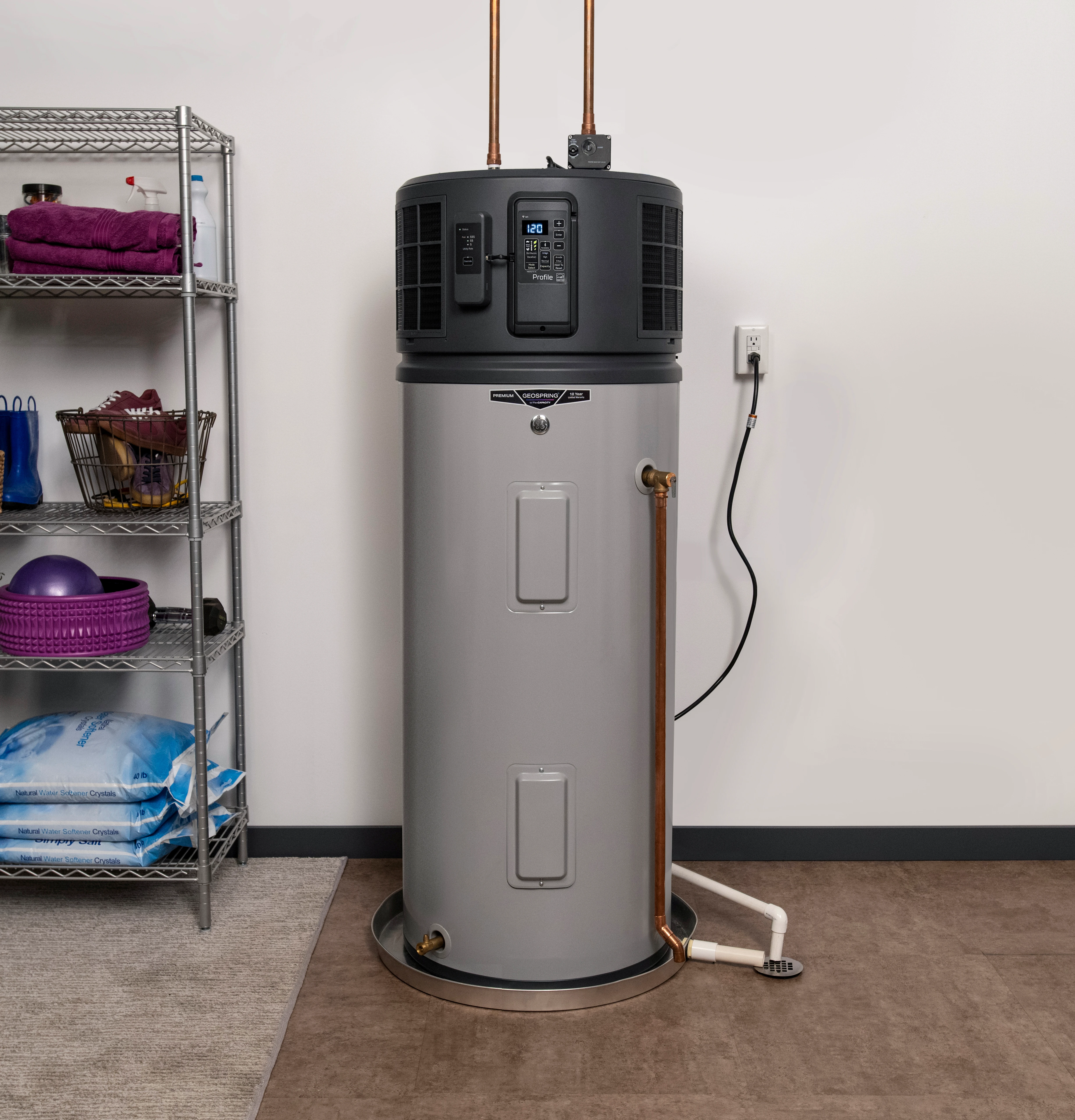

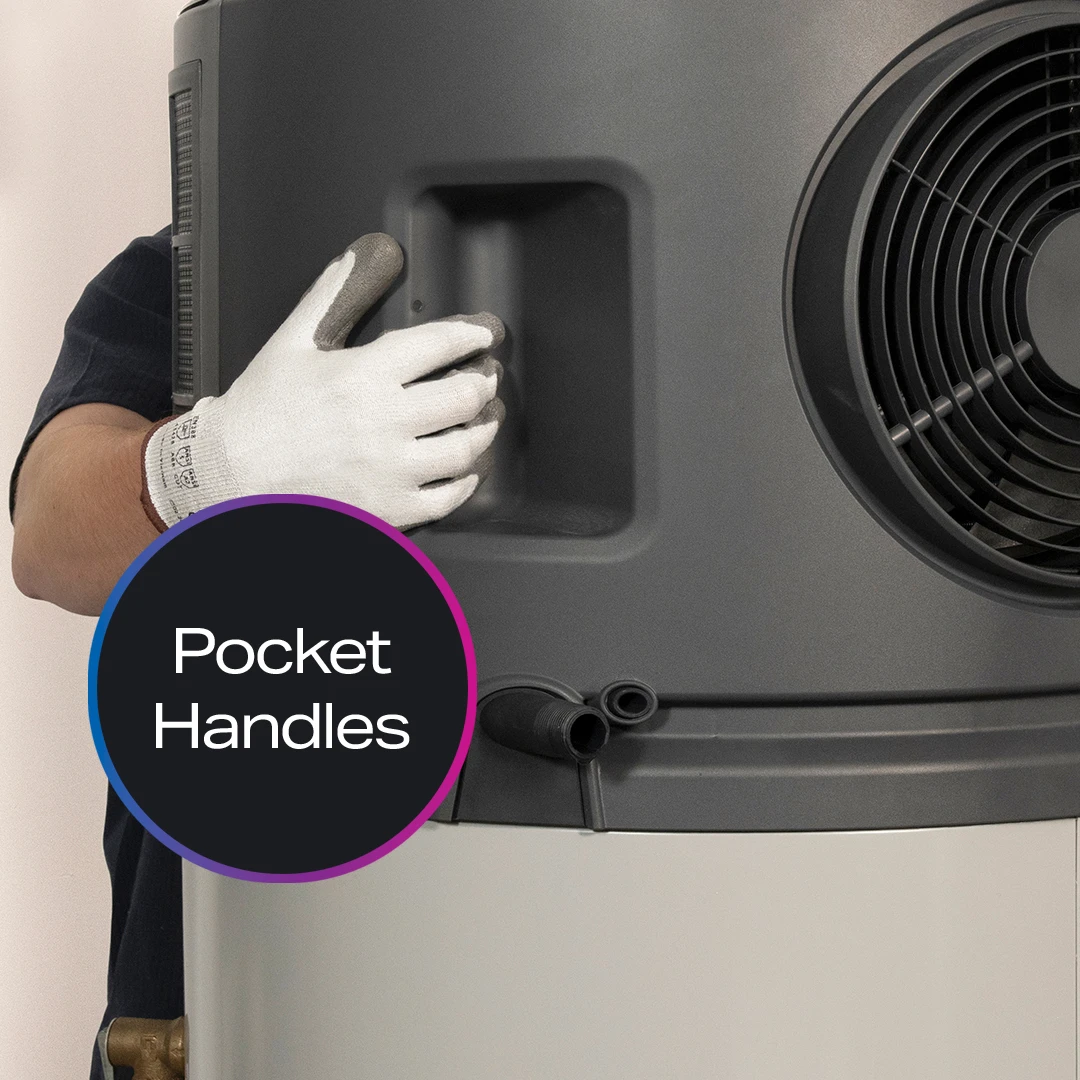

Flexible & Easy Installation
GEOSPRING(TM) heat pump water heaters install easily with a 120V standard plug-in or converts to 240V for enhanced efficiency. Integrated pocket handles and pre-installed wire connectors simplify setup.

Household Size
On the X-High setting, our water heaters supply ample hot water for households of up to 8 people. It's the best hot water heater for large family needs, ensuring comfort and convenience every day.

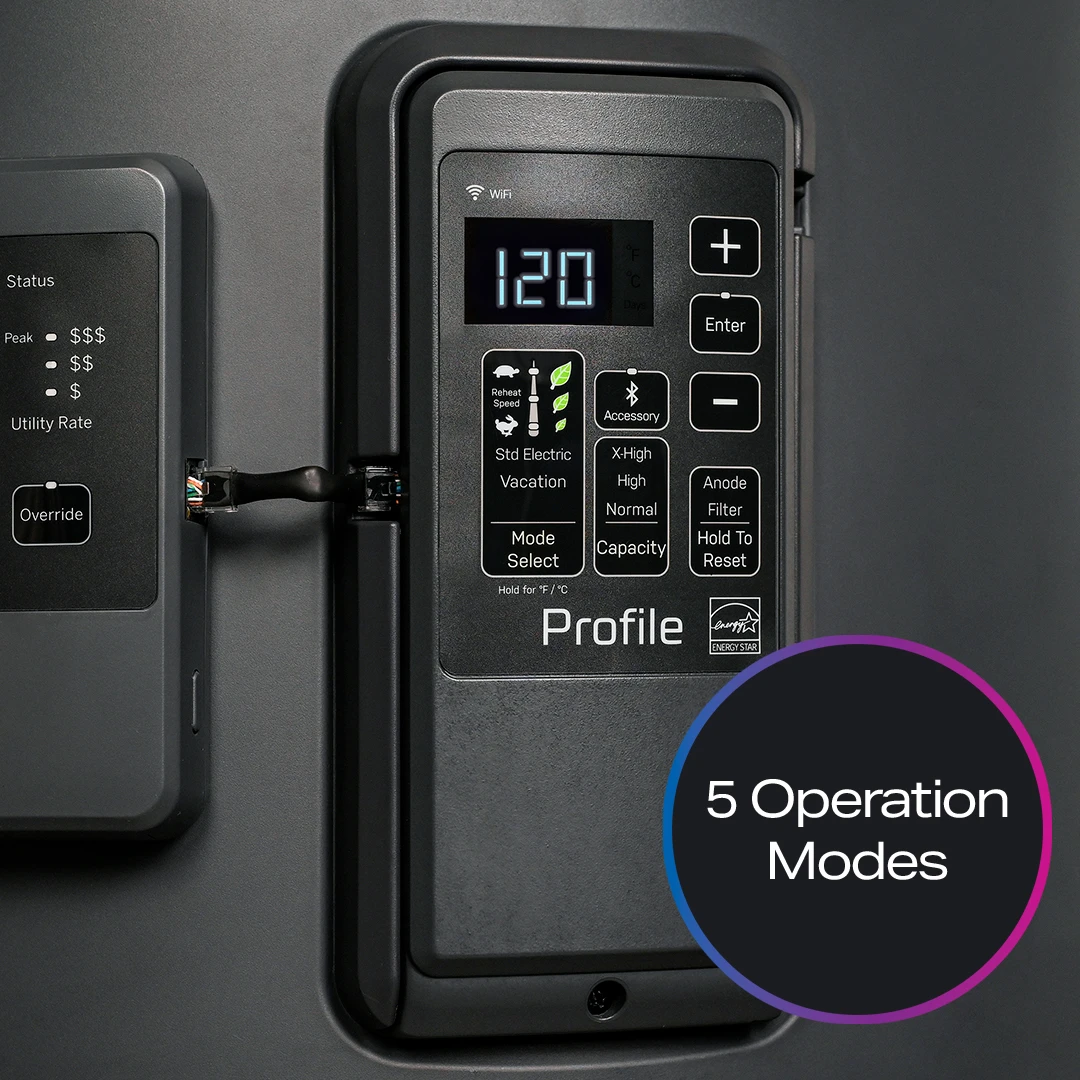

Five Operation Modes
Hot water your way. Choose from five operational settings: Heat Pump , Hybrid, High Demand, Electric, and Vacation modes. Enjoy personalized water heating with flexible operation modes designed for maximum comfort and efficiency.

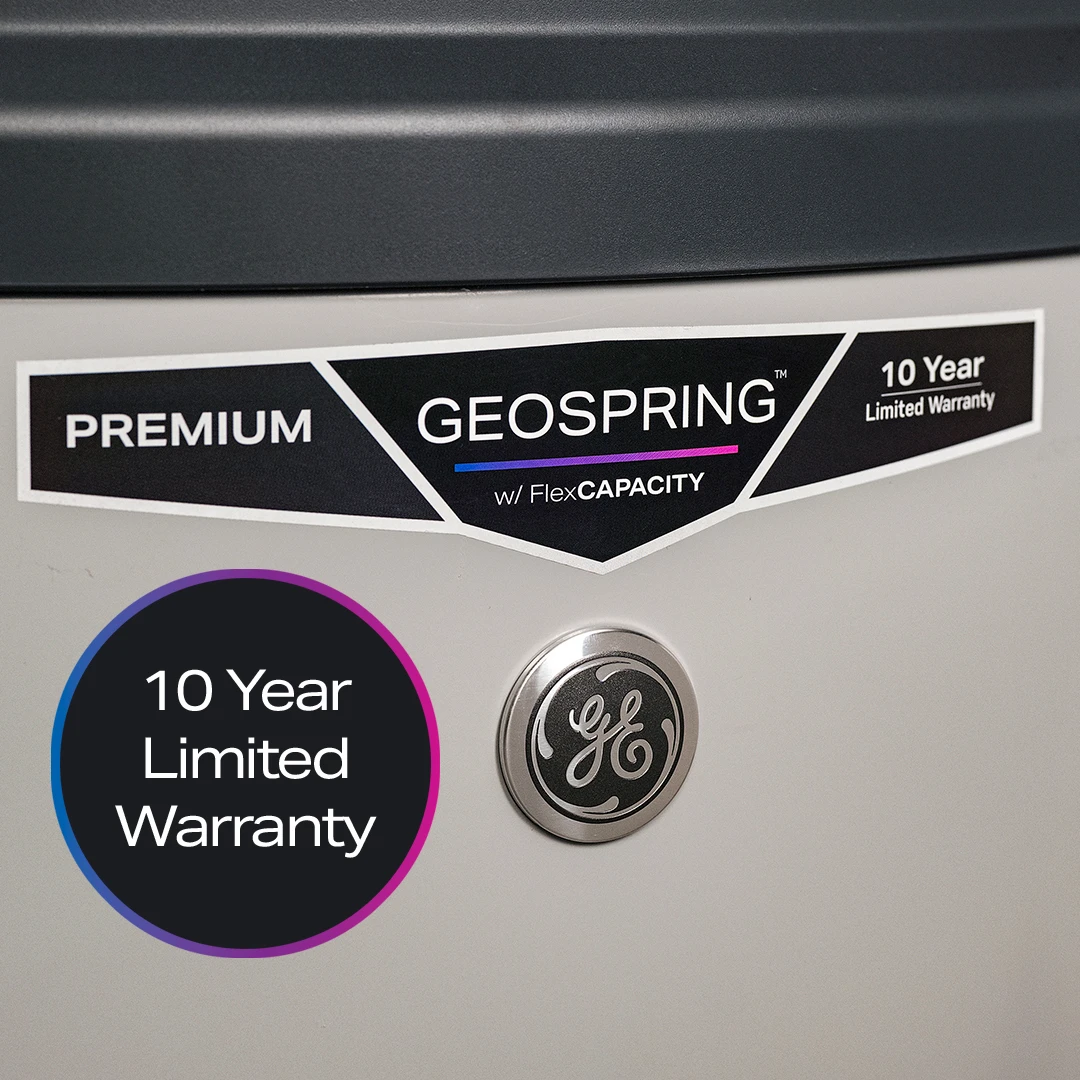

10 Year Limited Warranty
Built to last, guaranteed. Enjoy long-term peace of mind with our limited 10-year tanks and parts limited warranty. Dependable performance backed by our commitment to quality and durability.

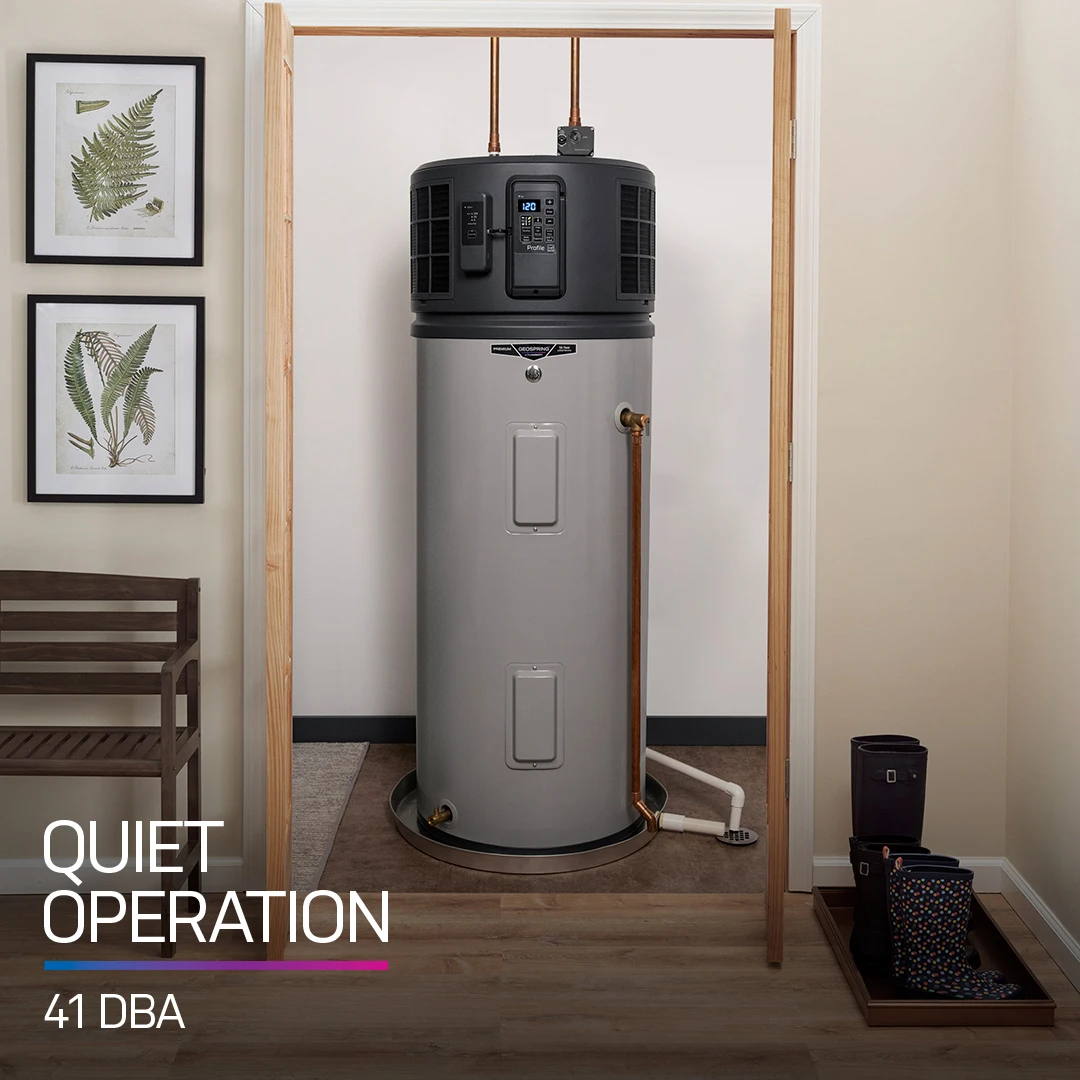

Quiet Operation
Whisper-quiet comfort. GEOSPRING(TM) heat pump water heaters operate at a low 41 dBA, ensuring a peaceful home environment. Experience the tranquility of a quiet heat pump water heater without sacrificing performance.

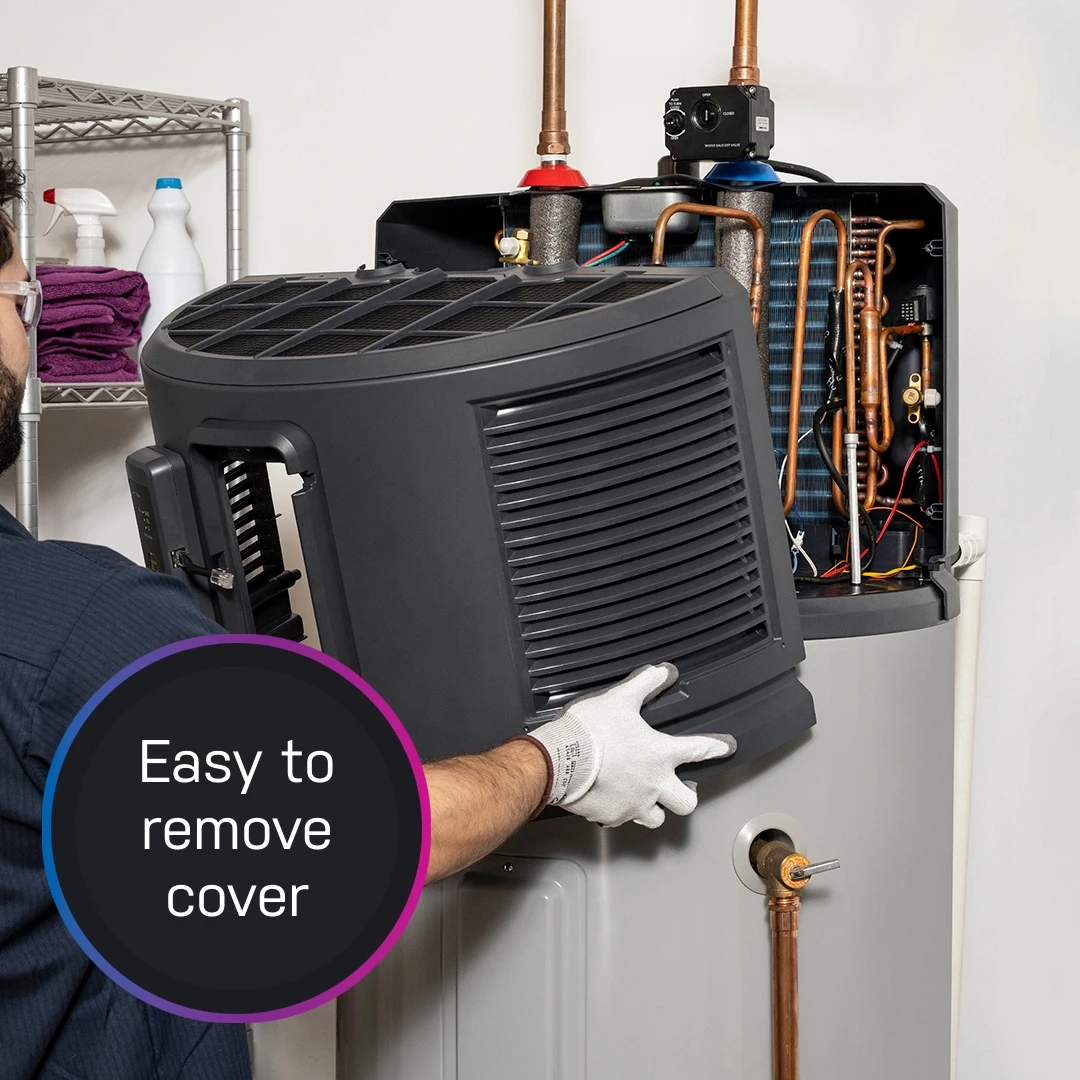

Easy To Service
Built for sustainability. Unlike most competitors, our heat pump water heaters are designed to be serviceable, reducing waste and landfill impact. Enjoy low maintenance and long-lasting performance for a greener home.

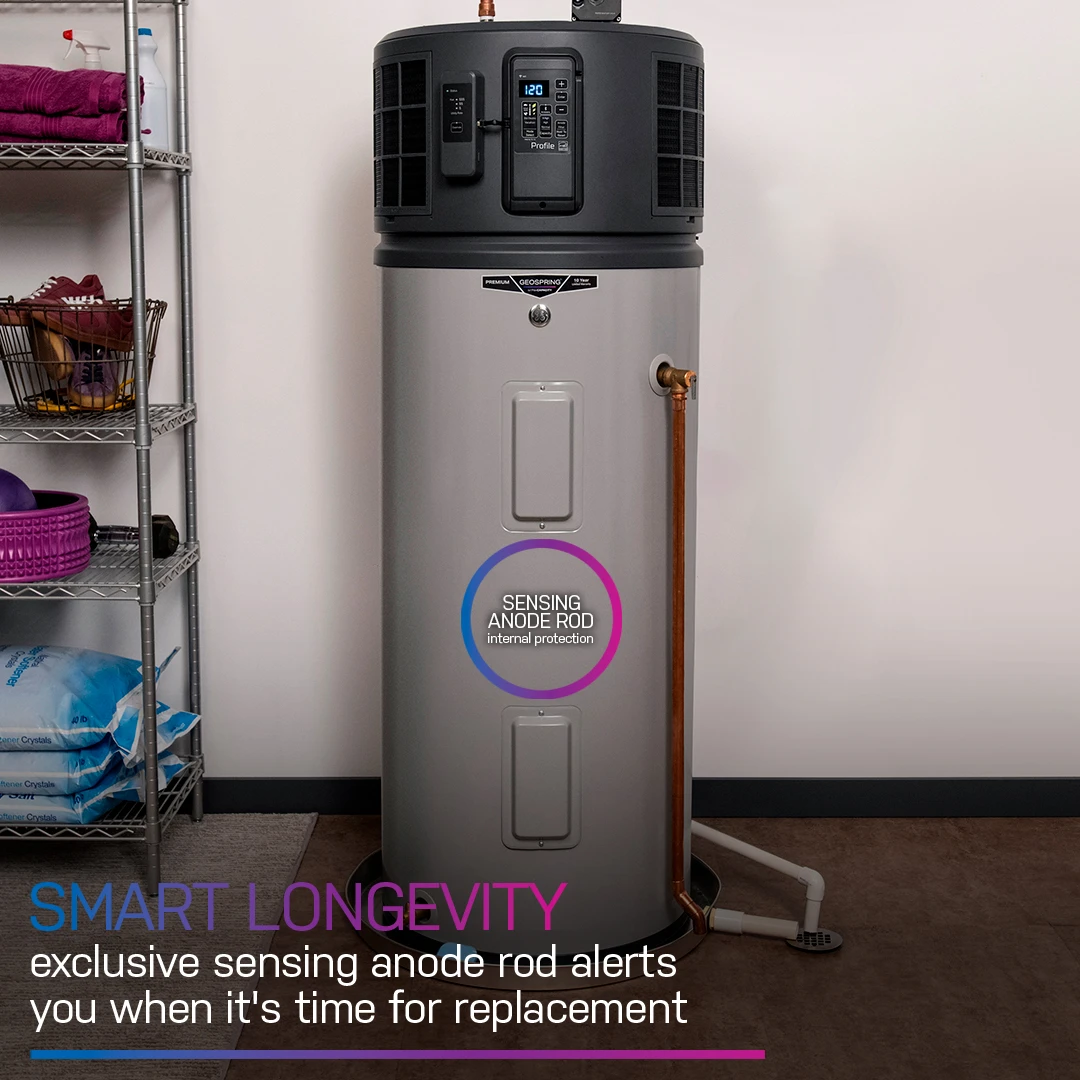

Sensing Anode Rod
Smart water heater protection. Our exclusive anode rod sensing technology alerts you when it's time for replacement, extending your water heater's life and optimizing its performance for years to come.

Variable Speed Compressor
Adapts to your home. GEOSPRING(TM) heat pump water heaters feature a variable speed compressor that adjusts speed based on environmental conditions. Enjoy consistent hot water, even in colder climates, with enhanced energy efficiency.
