SKU: PBV10R5VBB

GE Profile PBV10R5VBB 10.0 cu. ft. 12V DC Bottom Freezer Refrigerator Glass with Black Appearance

Quick Specification More details

Width:
23.5"
Depth:
26.5"
Height:
60"
Type:
Bottom Freezer Refrigerators

About this product

12V DC Power
Modern 12V DC Bottom Freezer Design with Reflective Glass Finish
Maximized Storage
Energy Saving Defrost

Summer Sale

Clearance

SKU: PBV10R5VBB

GE Profile PBV10R5VBB 10.0 cu. ft. 12V DC Bottom Freezer Refrigerator Glass with Black Appearance

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
23.5"
Depth:
26.5"
Height:
60"
Type:
Bottom Freezer Refrigerators

About this product

12V DC Power
Modern 12V DC Bottom Freezer Design with Reflective Glass Finish
Maximized Storage
Energy Saving Defrost

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for GE Profile PBV10R5VBB

Technical Details

Weights & dimensions

Overall Width	23.5 in
Overall Depth	26.5 in
Overall Height	60 in
Side Air Clearances	0 in
Approximate Shipping Weight	143 lb
Height to Top of Case	59 in
Back Air Clearances	0 in
Top Air Clearances	0 in
Height to Top of Hinge	60 in
Net Weight	132 lb

Features

Fresh Food Features	LED Lighting
Control Type	Electronic
Exterior Style	Standard Depth
Performance Features	Turbo Cool
Refrigerant Type	R600a
Door Liner	HIPS
Freezer Cabinet Shelves	2 Drawers
Fresh Food Cabinet Shelves	3 Full-Width Glass
Sabbath Mode	Yes
Fresh Food Cabinet Shelf Features	Glass with trim
Defrost Type	Semi-Automatic Defrost
Fresh Food Cabinet Drawers	1 Vegetable Drawer
Fresh Food Door Bins	Clear
RV Ready	Yes
Product Type	Bottom Freezer Refrigerator
OU Certified	No
Freezer Features	Spillproof Freezer Floor
Fresh Food Door Bins	3 Full-Width
Fresh Food Door Bins	2L Bottle Storage
Performance Features	Sabbath Mode

Appearance

Adjustable Rollers	2 Ajdustable Legs
Handle	RV Door Latch
Easy to Remove Door Gaskets	Yes
Door Swing	Reversible Door
Color Appearance	Glass with Black Appearance
Door Stops	135 Degree
Handle Design	Recessed
Installation	RV Ready
Handle	Pocket Handle

Capacity

Fresh Food Capacity	7.45 cu ft
Freezer Capacity	2.53 cu ft
Total Capacity (cubic feet)	10.00 cu ft

Economical / quiet

NeverClean™ Condensor	Yes
Cabinet Liner	HIPS
Quiet Package	40 dBA

Power / ratings

Volts/Hertz/Amps	12V/DC; 20A
Hertz	60

Other

Side Air Clearances

0 in

Dimensions & weight

Width	23.5 in.
Height	60 in.
Length	26.5 in.
Weight	132 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	28.5 in.
Shipping Height	65 in.
Shipping Length	31.5 in.
Shipping Weight	172 lbs.
Total of Shipping Weight	172 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	21.62 ft³
Dimensional Weight	268.81 lbs.
Total of Cubes	21.62 ft³
Total of Dimensional Weight	268.81 lbs.

Warranty

Labor Warranty	Limited 1-year entire appliance
Parts Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details

Description

Upgrade your RV with our sleek 12V DC bottom freezer refrigerator featuring a modern design and a stylish reflective glass finish.Revel in plenty of extra space in this maximized design. Three full-width glass shelves provide a flexible solution in this 10-cubic-foot refrigerator with bottom freezer..60 H x 23 1/2 W x 26 1/2 D

Product Features

12V DC Power
Designed specifically for use in RVs, this innovative 12V DC bottom freezer RV refrigerator is compatible with both battery and solar power.
Energy Saving Defrost
Semi-automatic defrost technology allows for improved battery performance and energy savings when compared to traditional RV freezer defrost cycles.
Full-Width Crisper Drawer
Enjoy fresh food thanks to an innovative crisper drawer that helps optimize food preservation.

Manuals & Guides

Use and Care Manual

Key Features

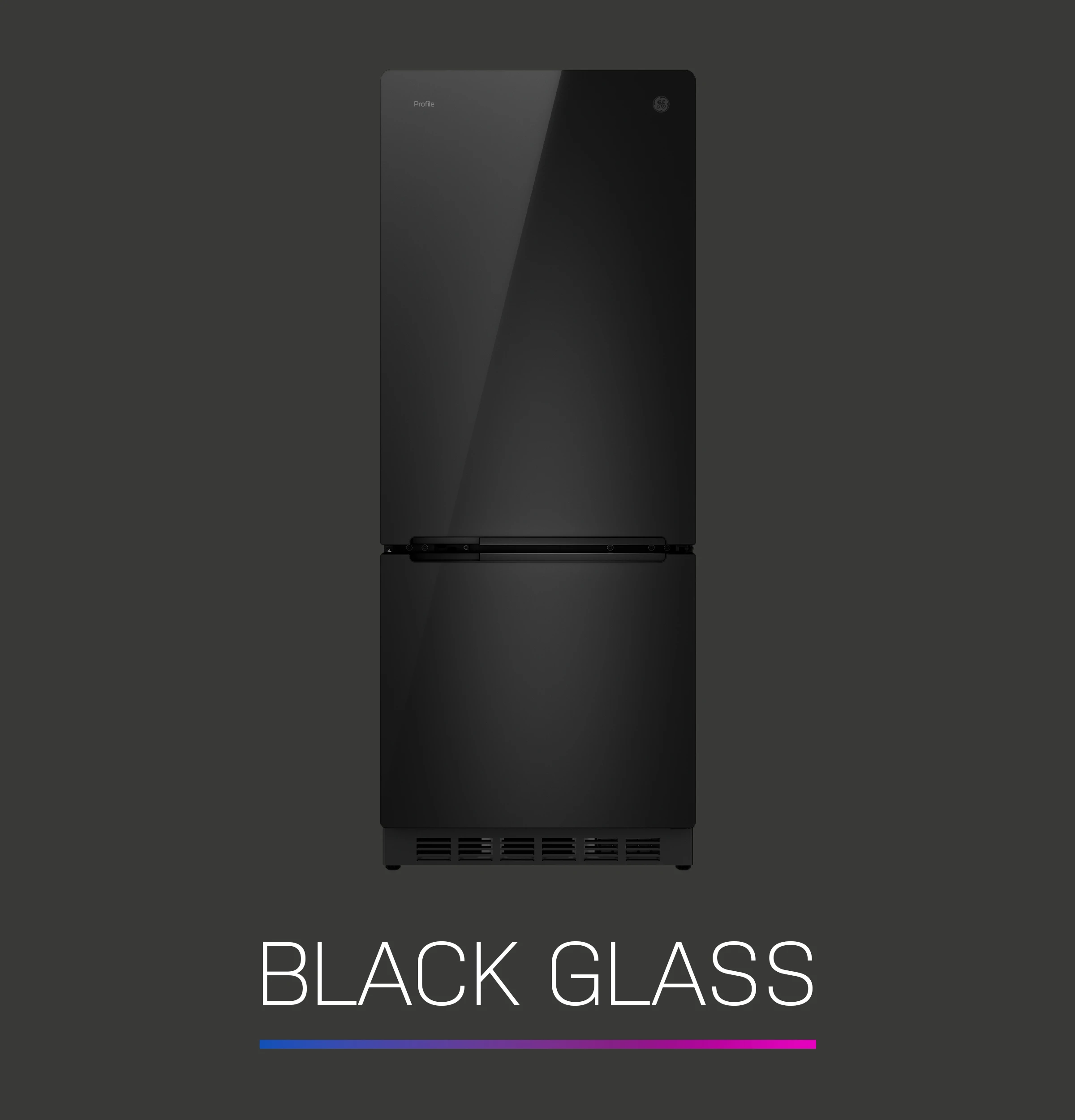

Modern 12V DC Bottom Freezer Design with Reflective Glass Finish

Upgrade your RV with our sleek 12V DC bottom freezer refrigerator featuring a modern design and a stylish reflective glass finish

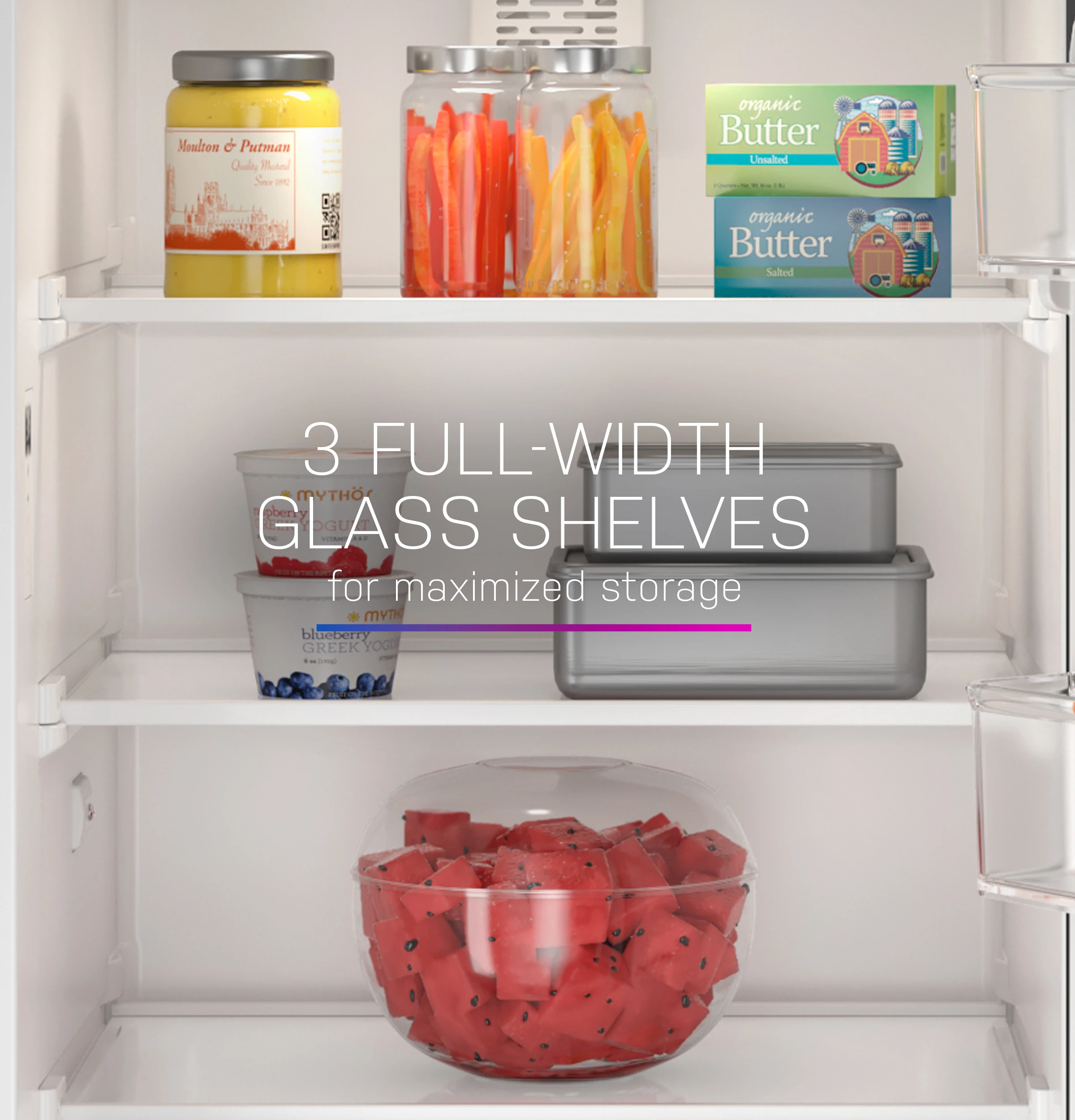

Maximized Storage

Revel in plenty of extra space in this maximized design. Three full-width glass shelves provide a flexible solution in this 10-cubic-foot refrigerator with bottom freezer.

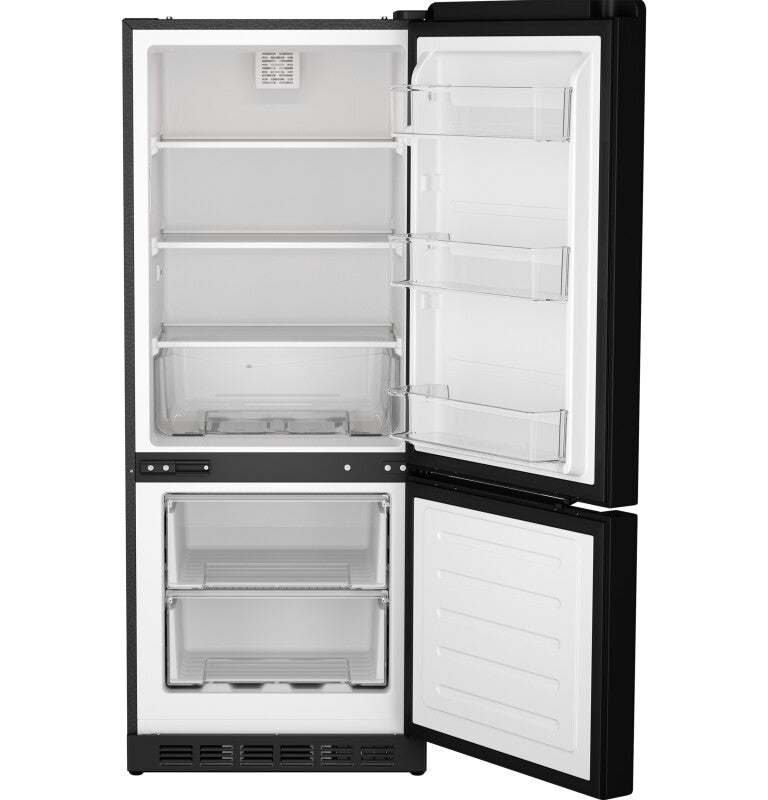

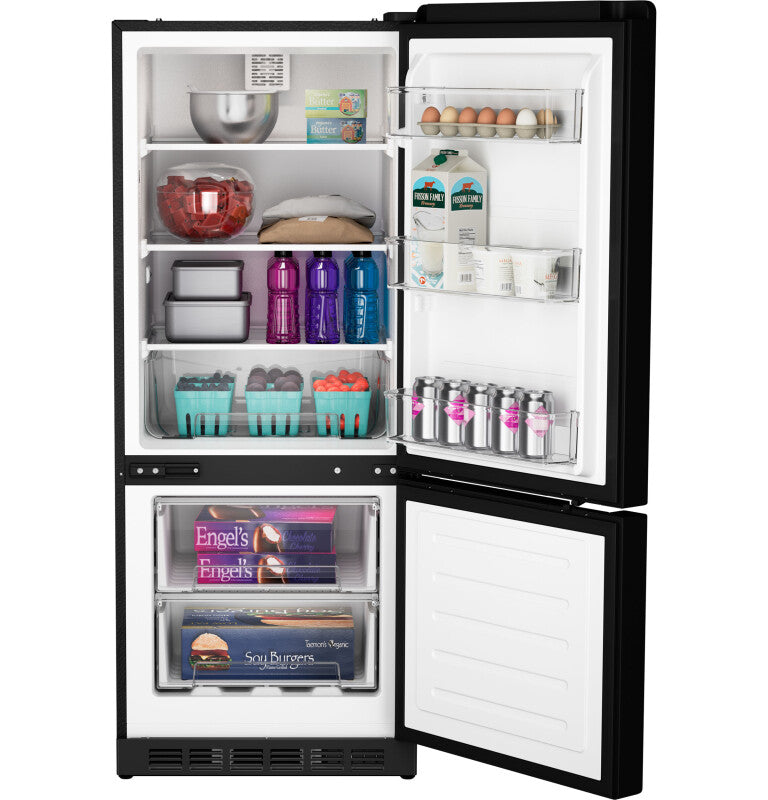

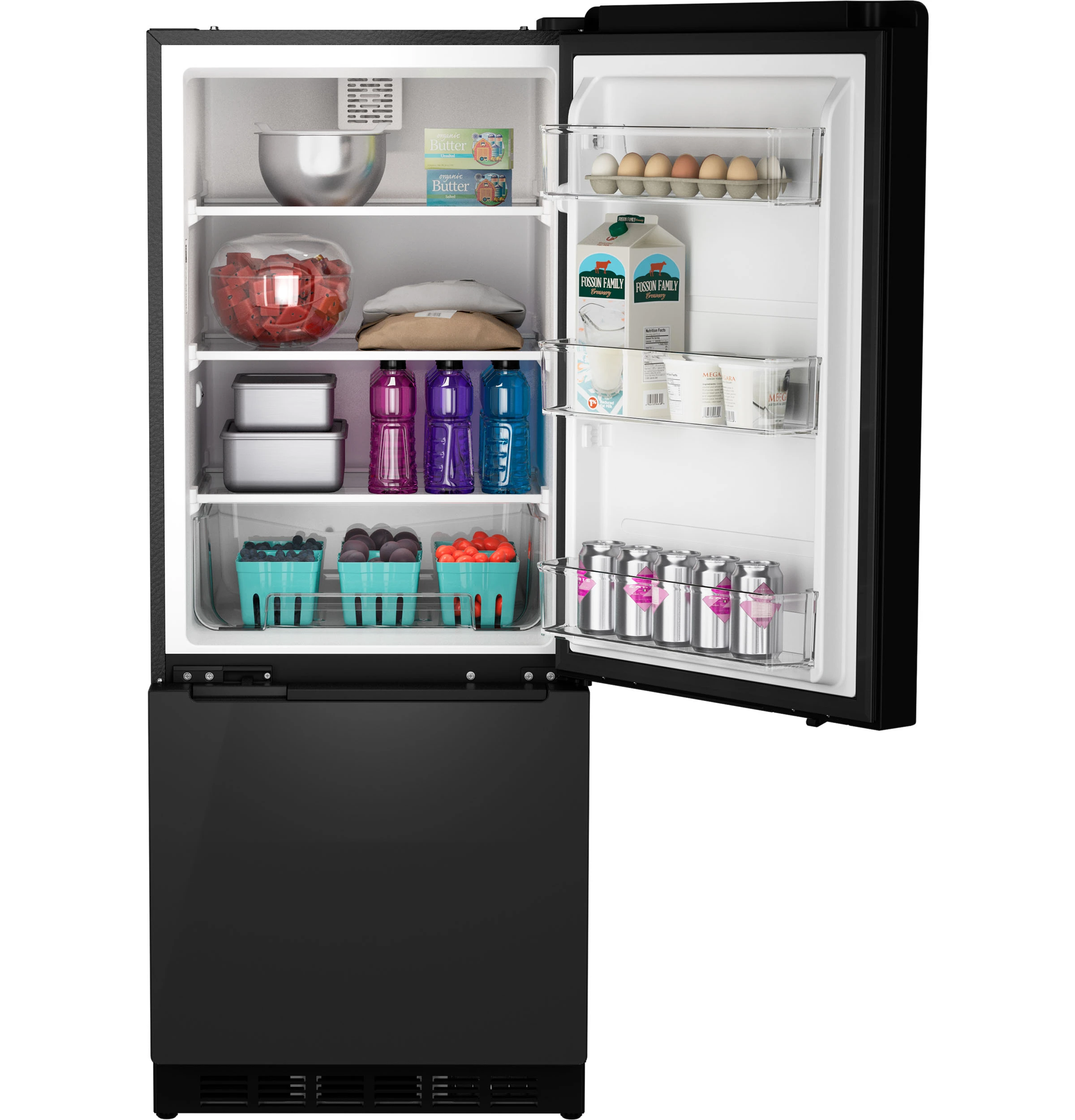

Convenient Refrigerator Organization

This inventive 12V DC bottom freezer design includes glass refrigerator shelves, clear door bins and clear crisper drawers for optimized organization and clear visibility.

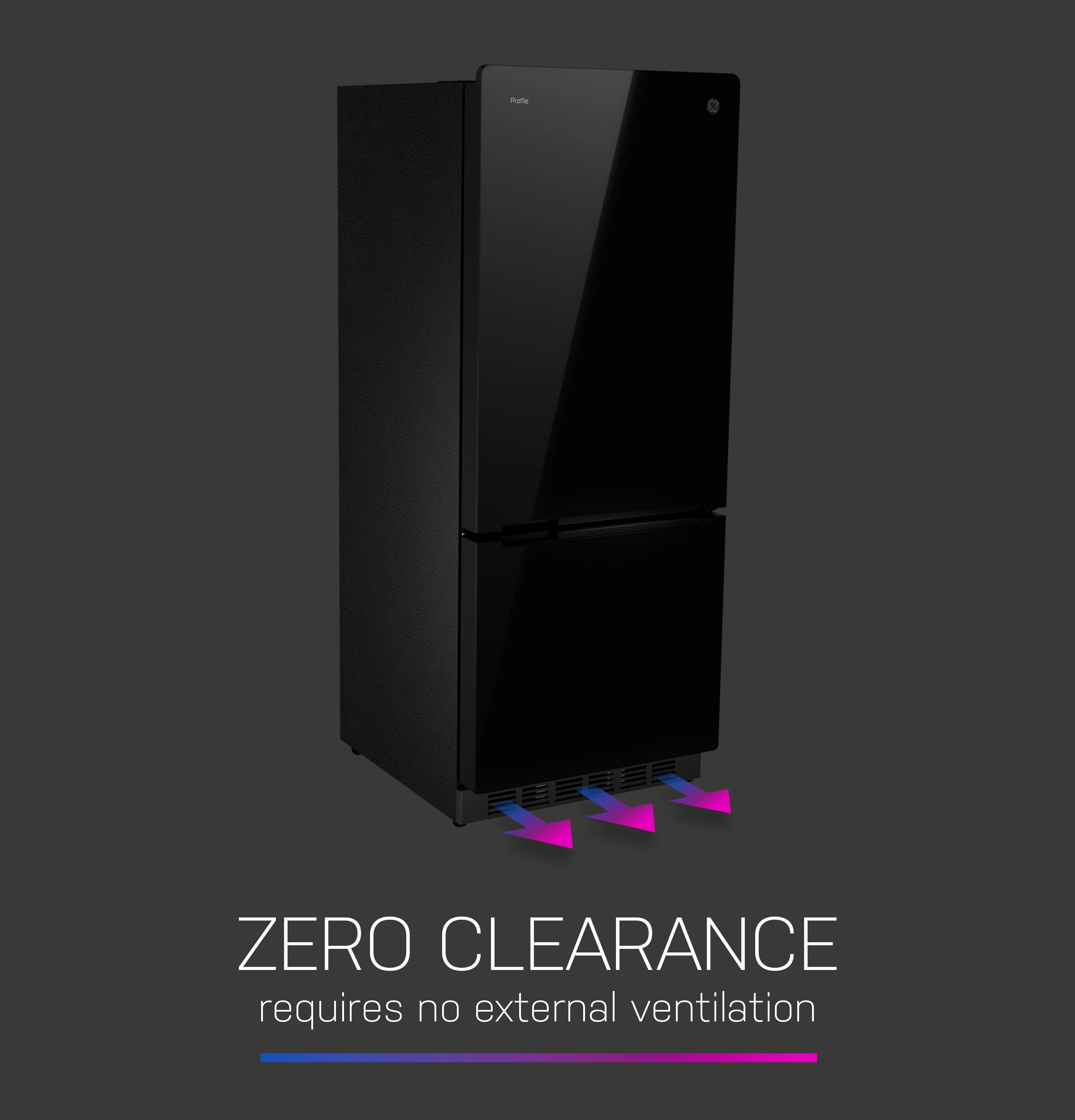

Easy Refrigerator Installation

12V DC refrigerator installation has never been easier thanks to a unique design that requires no external ventilation and zero clearance because of a bottom ventilation design.

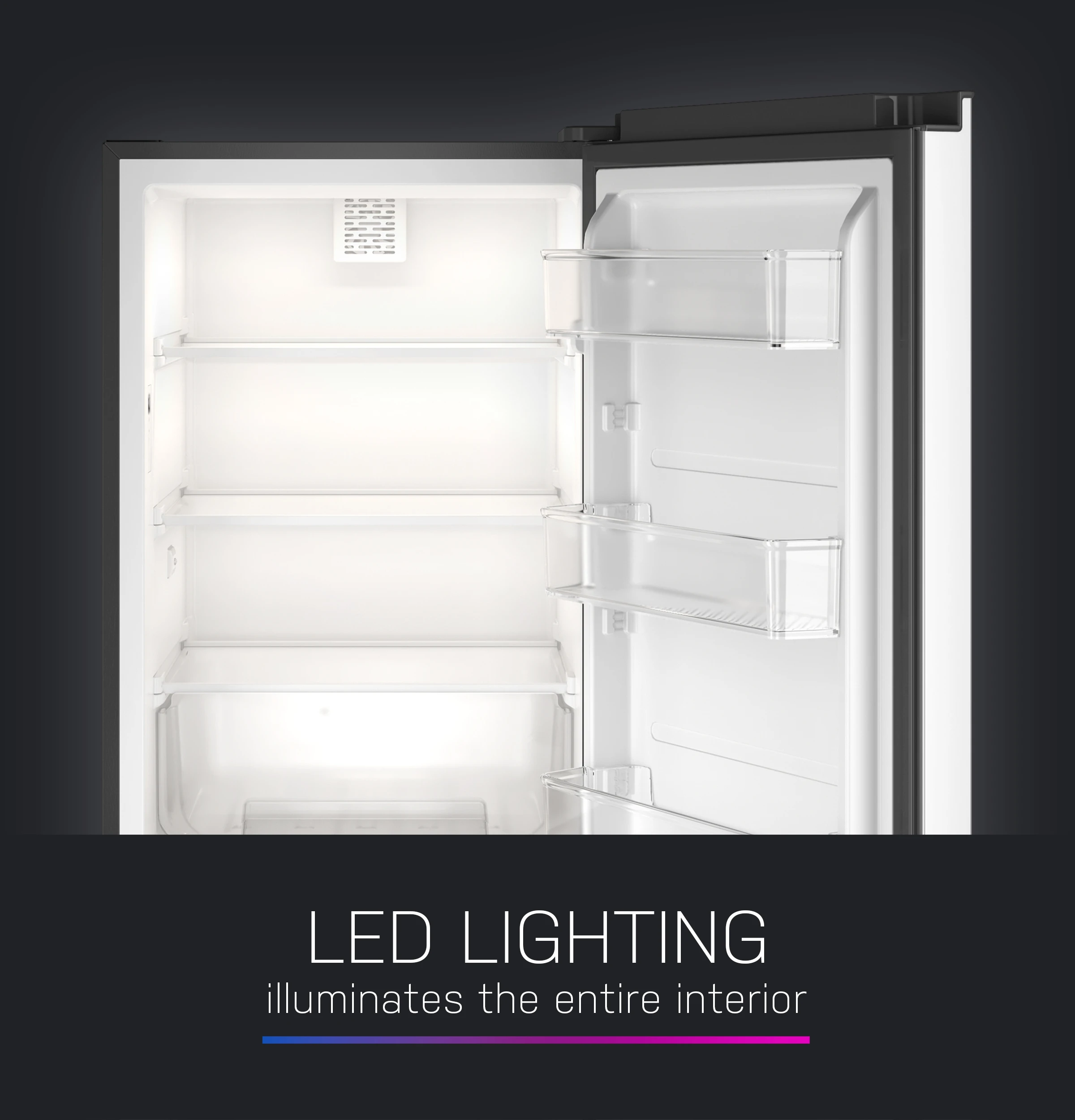

LED Lighting

Refrigerator LED lights fully illuminate the entire interior for advanced visibility of all your fresh foods.

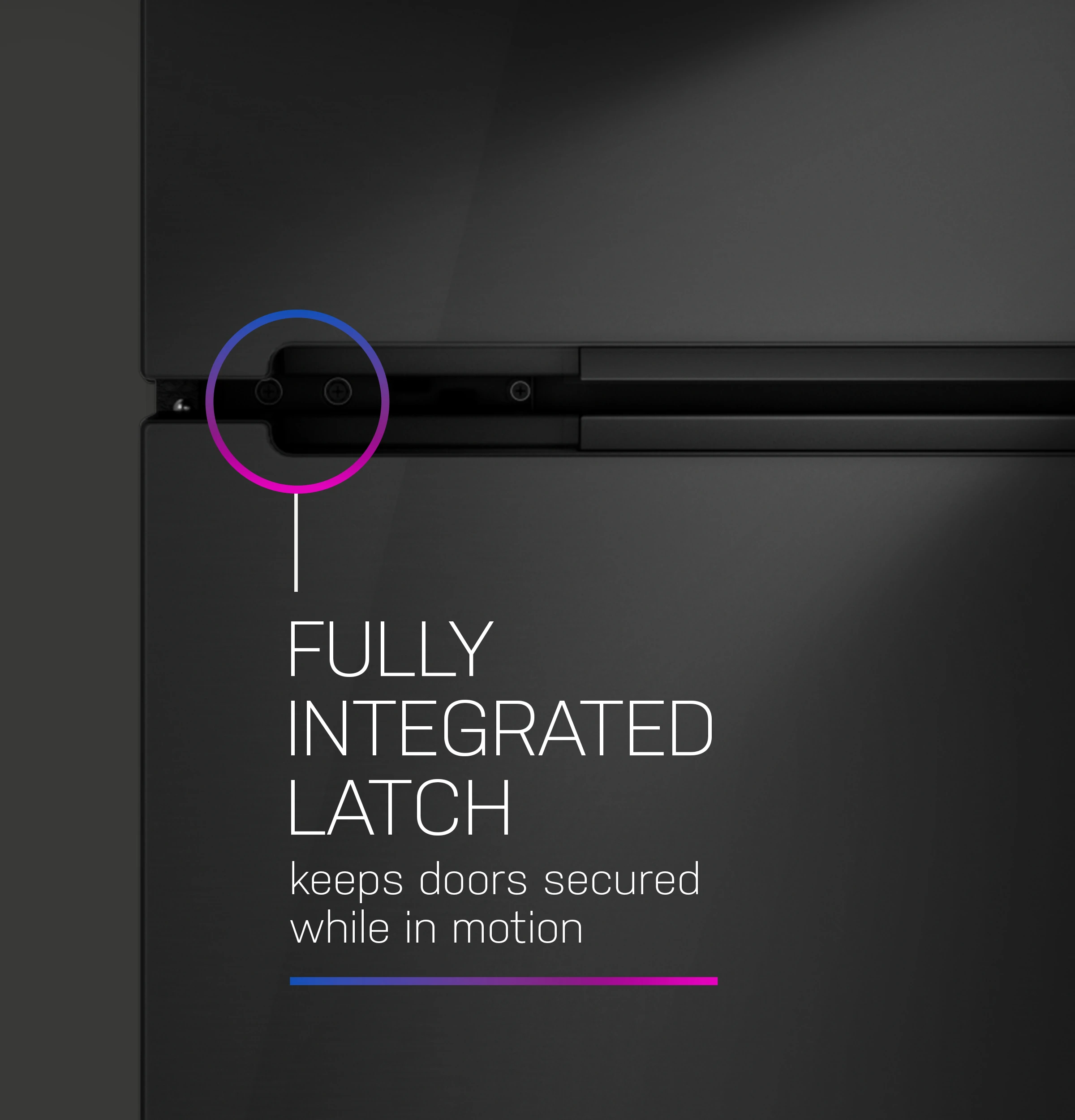

Integrated Refrigerator Latches

Factory-installed door pocket handles offer an integrated design and function as refrigerator safety latches to keep doors securely closed when in motion.

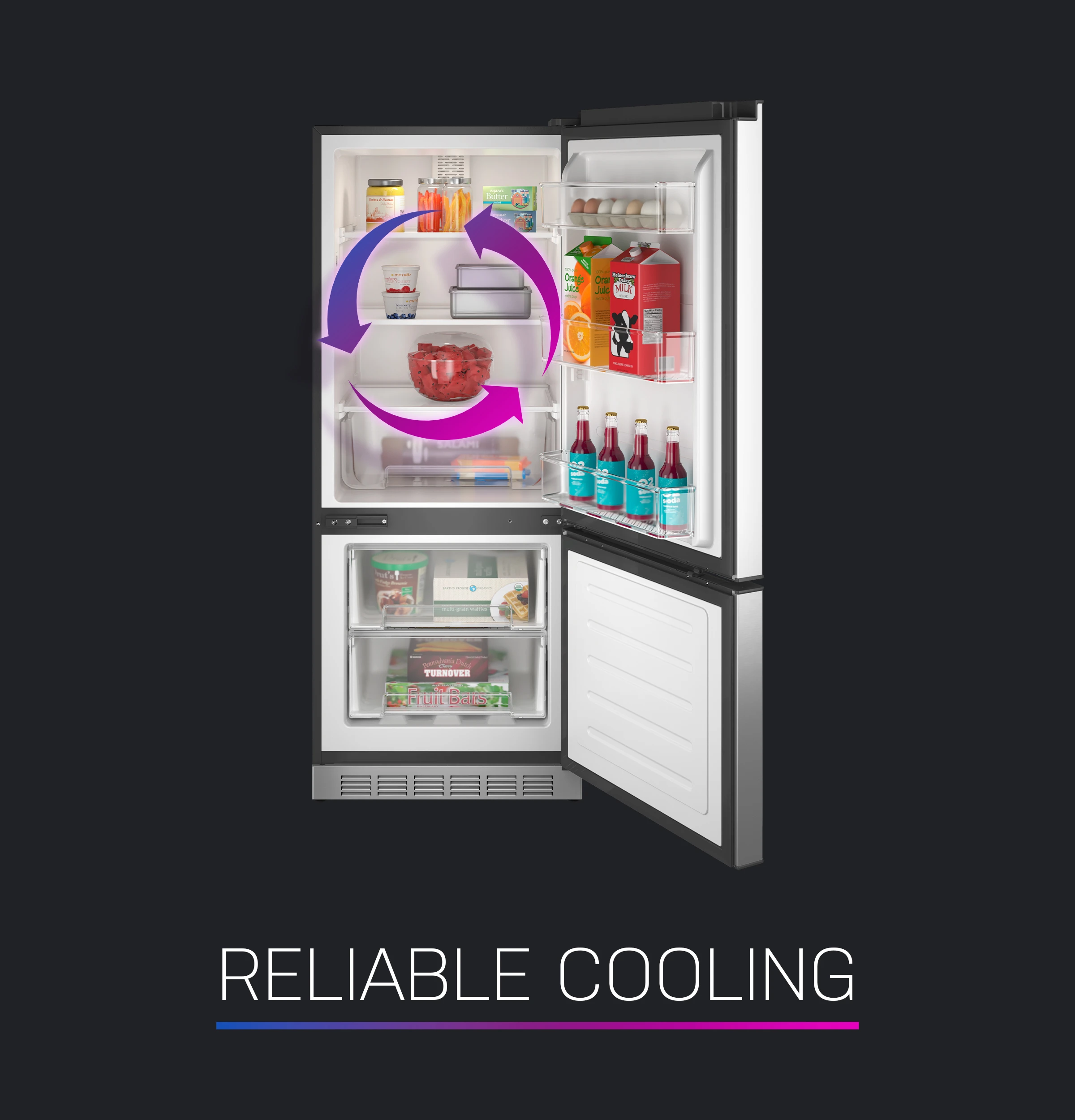

Reliable Cooling Performance

Durability tested compressor and interior fan for increased cooling performance and dependable operation.

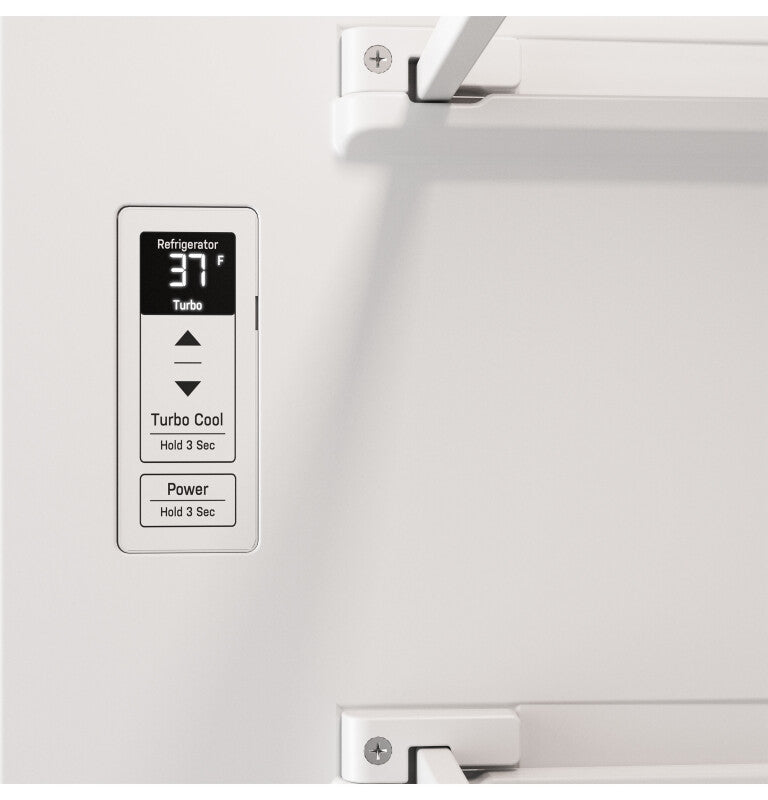

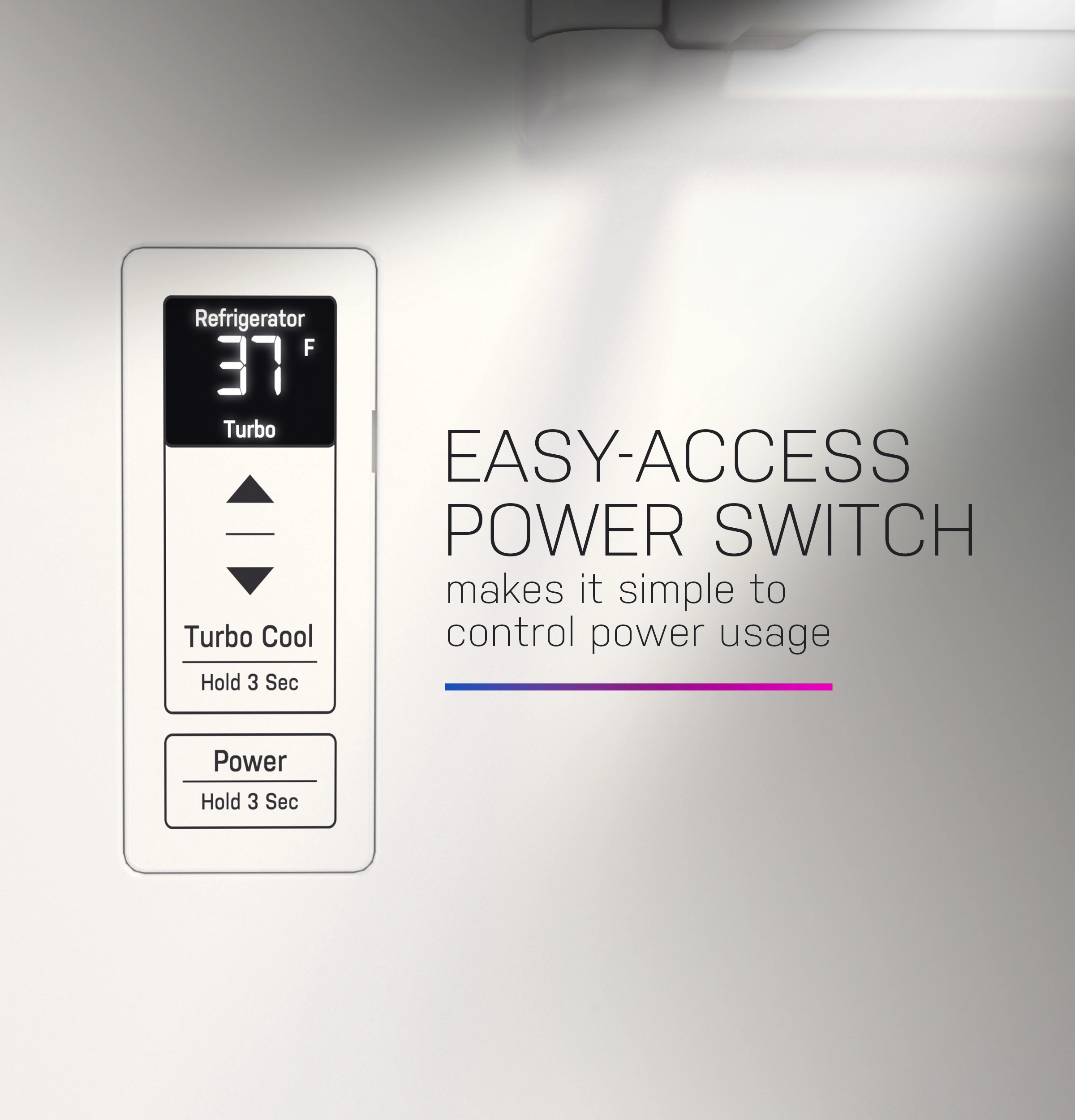

Power Management

An easy-access refrigerator on/off switch makes it simple to turn off and manage power usage when the appliance is not in use.

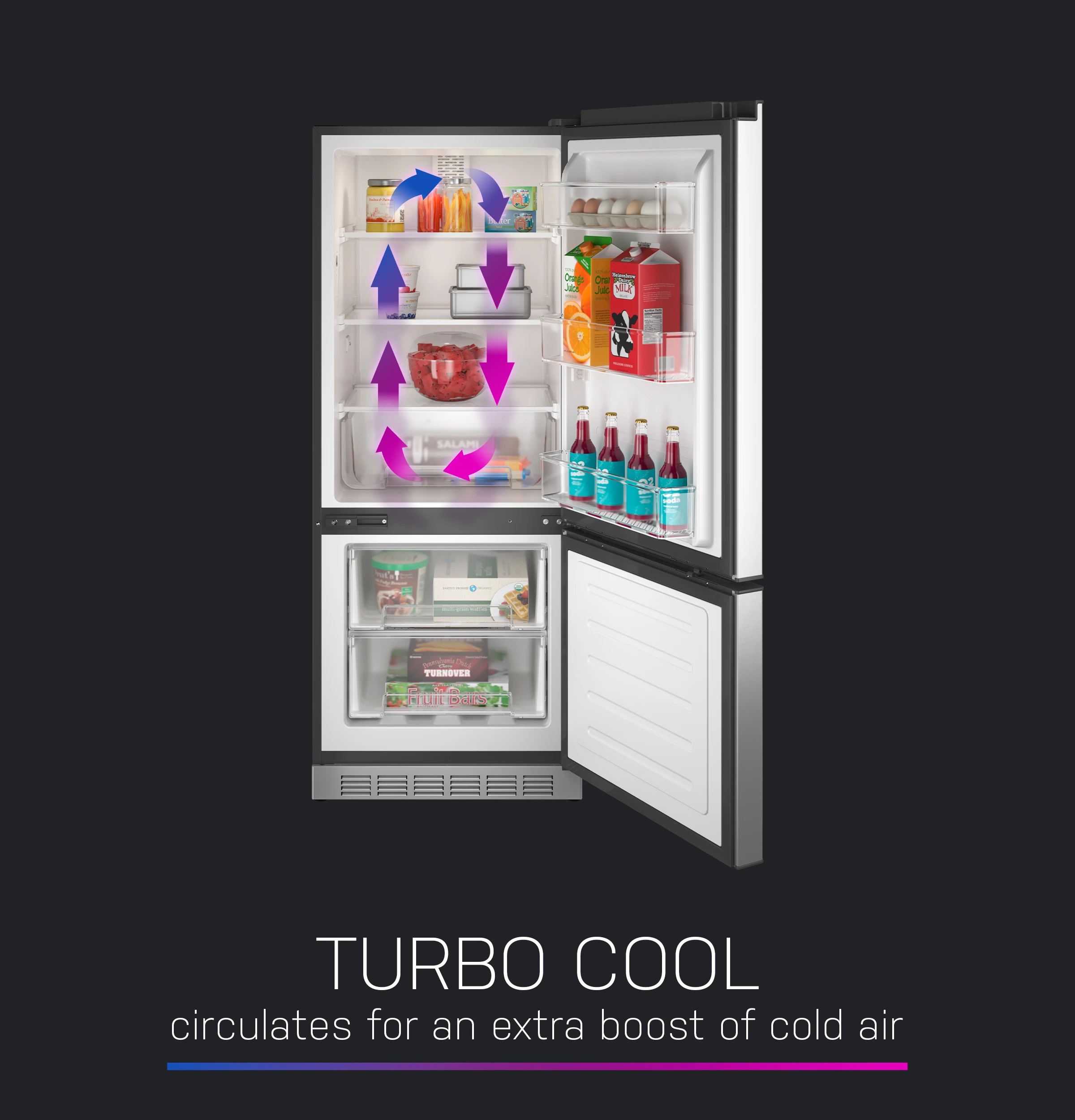

Turbo Cool Setting

Quickly bring down the interior refrigerator temperature thanks to an innovative Turbo Cool Setting, which circulates an extra boost of cold air throughout the interior when selected.
