Sale price $1,149.30 Regular price $2,098.97 Save $949.67 / 45% OFF

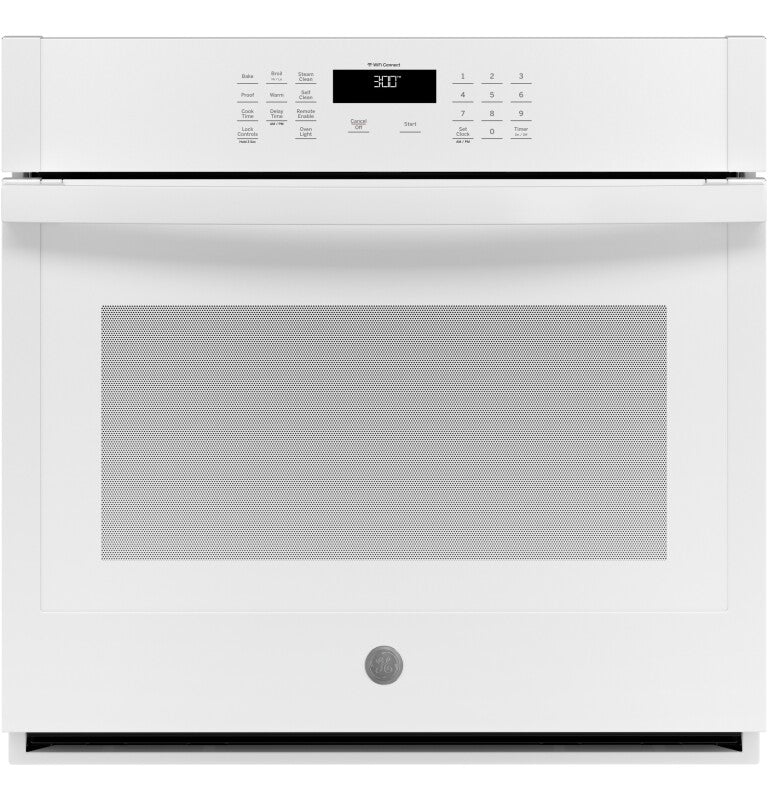

Product Details for GE APPLIANCES JTS3000DNWW

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Weights & dimensions

Overall Depth 26.75 in
Overall Width 29.75 in
Overall Height 28.625 in
Oven Interior Dimensions (W x H x D) (in.) 25 x 17-3/8 x 20-1/4
Cabinet Width 30 in
Net Weight 120 lb

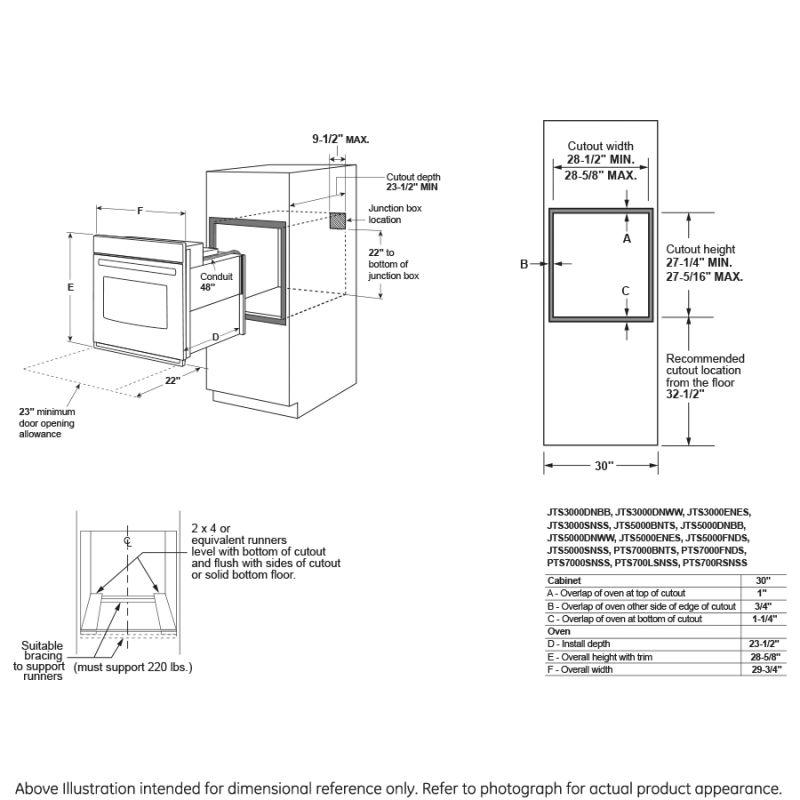

Cutout Dimensions (w x h x d) (in.) 28-5/8 x 27-5/16 x 23-1/2
Approximate Shipping Weight 136 lb
Cutout Depth (in) 23.5
Depth with Door Open 49.75 in
Cutout Height (in) 27.3125
Cutout Width (in) 28.625

Dimensions & weight

Width 29.75 in.
Height 28.63 in.
Length 26.75 in.
Weight 120 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 34.75 in.
Shipping Height 33.63 in.
Shipping Length 31.75 in.
Shipping Weight 160 lbs.
Total of Shipping Weight 160 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 13.18 ft³
Dimensional Weight 163.89 lbs.
Total of Cubes 13.18 ft³
Total of Dimensional Weight 163.89 lbs.

Features

WiFi Connect Built-In
Oven Cooking Modes Thermal Broil Hi/Lo
Fuel Type Electric
Product Type Single Oven
Cooking Technology Traditional
Cleaning Time Variable with Delay Clean Option
Configuration Single Oven
Oven Rack Positions (Single or Upper/Lower) 6
Sabbath Mode Yes
Oven Rack Features Embossed Rack Positions
Self-Clean Oven Door Lock Automatic
OU Certified No
Oven Cleaning Type Self-Clean with Steam Clean Option
Connected Capabilities Fresco
Control Type Glass Touch Controls
Oven Control Features Audible Preheat Signal
Oven Features 8-Pass Broil Element
Oven Interior Black Gloss Finish
Oven Interior Hidden Bake
Oven Features Closed Door Broiling
Oven Control Features Warm Mode
Control Type LED Display
Connected Capabilities The Google Assistant
Connected Capabilities Amazon Alexa
Connected Capabilities IFTTT
Connected Capabilities Innit
Connected Capabilities Sonos
Control Type Electronic
Oven Control Features 12-Hour Shut-Off Capability
Oven Control Features C° or F° Programmable
Oven Control Features Sabbath Mode
Oven Control Features Cook Time
Oven Control Features Delay Time
Oven Control Features Electronic Clock & Kitchen Timer
Oven Control Features Mis-Wire Detection
Oven Control Features Proof Mode
Oven Control Features Remote Enabled
Oven Control Features Control Lock Capability
Oven Cooking Modes Thermal Bake
Oven Features 10-Pass Bake Element
Oven Interior 1 Halogen Light
Connected Capabilities Google Home
Oven Rack Features 2 Heavy-Duty Oven Racks

Power / ratings

Bake Wattage 2850W
Electrical Requirements 208/240V ; 60Hz ; 20A
KW Rating at 240V 4.2
Amp Rating at 208V 20
Broiler Wattage 4000W
Hertz 60
Amp Rating at 240V 20
KW Rating at 208V 3.2

Appearance

Oven Door Features Big View Oven Window
Handle Color White Gloss
Color Appearance White
Handle Designer Style
Installation Side-by-Side
Installation Undercounter
Installation Under Cooktop
Installation Above Warming Drawer
Installation Under Built-In Advantium
Installation Under Built-In Microwave

Warranty

Labor Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details
Parts Warranty Limited 1-year entire appliance

Capacity

Total Capacity (cubic feet) 5.00 cu ft

Description

Simple controls that wipe clean with little effort.Cleaning the oven interior has never been easier, with two cleaning options to fit your lifestyle.28 5/8 H x 29 3/4 W x 26 3/4 D

Key Features

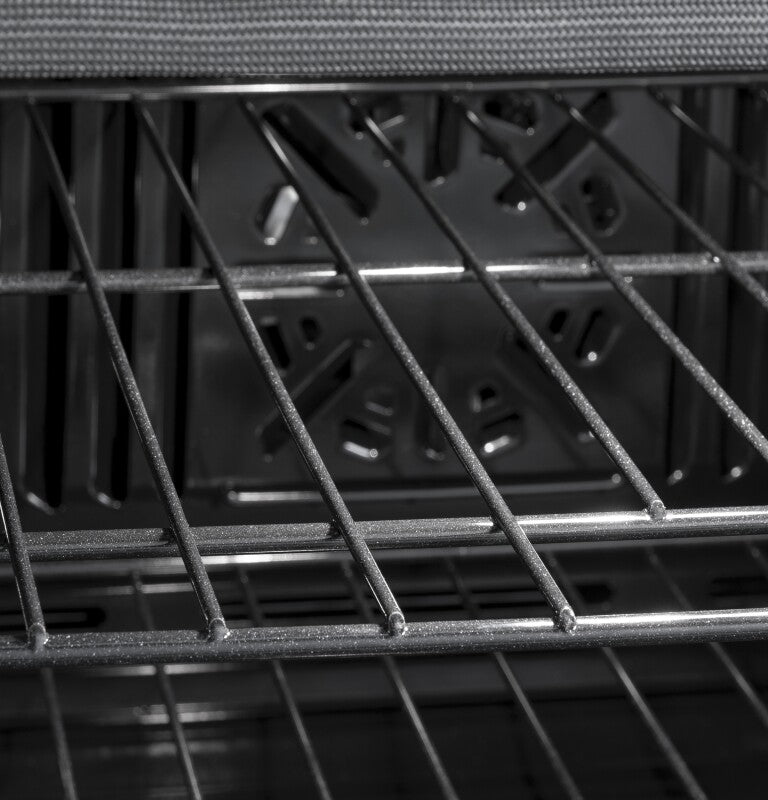

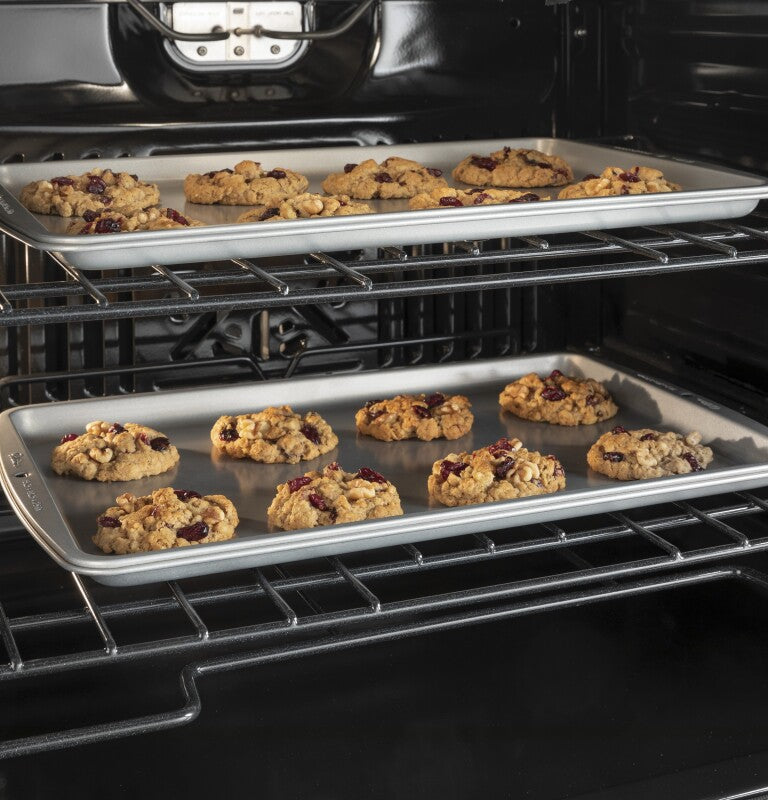

Heavy-duty racks

Durable design that handles heavy baking dishes with ease

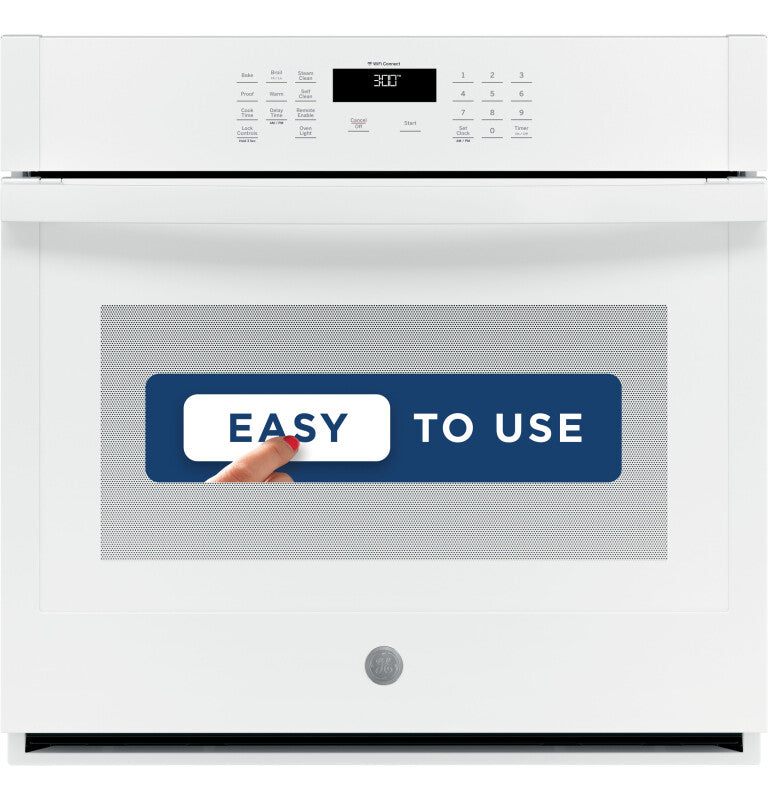

Easy Clean controls

Simple controls that wipe clean with little effort

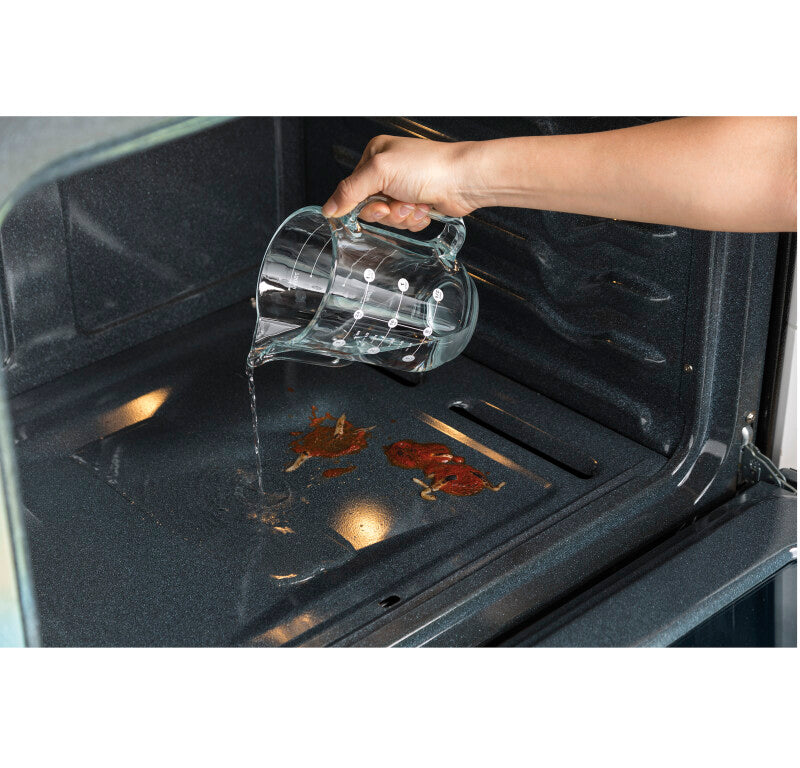

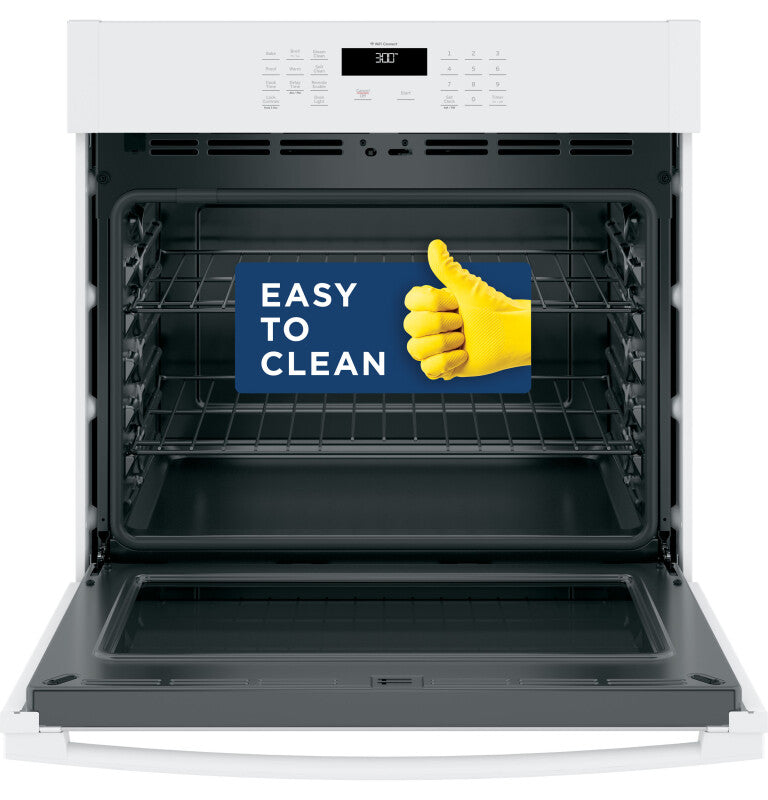

Self-Clean with optional Steam Clean

Cleaning the oven interior has never been easier, with two cleaning options to fit your lifestyle

Anywhere control with remote notifications

Save time by conveniently preheating and monitoring your oven from anywhere using the SmartHQ App

Scan to Cook

Easily prepare your frozen favorites by opening the SmartHQ app and scanning the package’s barcode with your smartphone. Your oven will automatically optimize temperature and time settings based on the food’s instructions

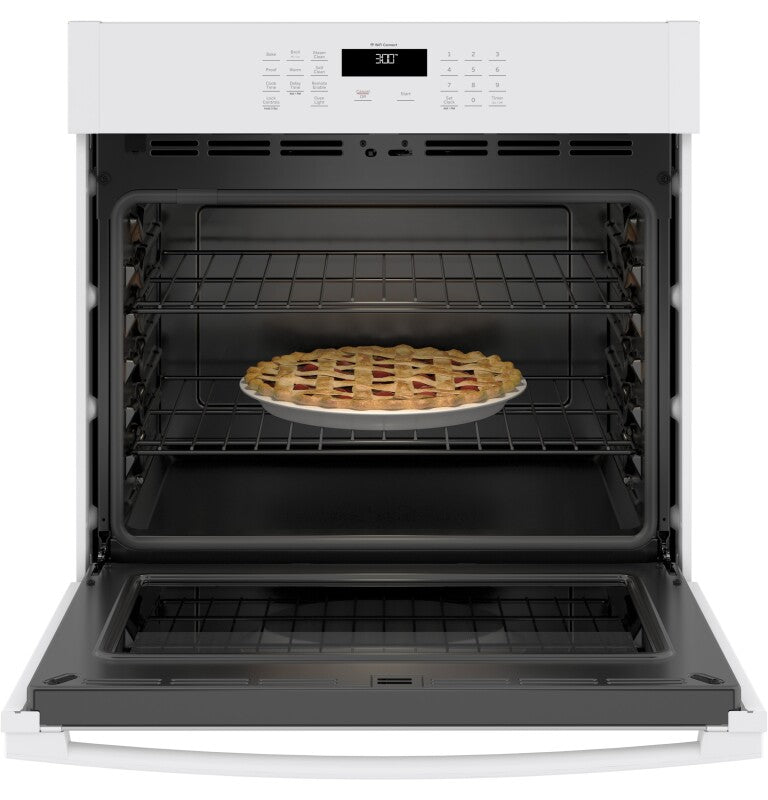

10-pass hidden bake element

Even baking and quick cleanup are assured, with 10-pass element that heats a large cooking area and is hidden for an easy-to-wipe surface

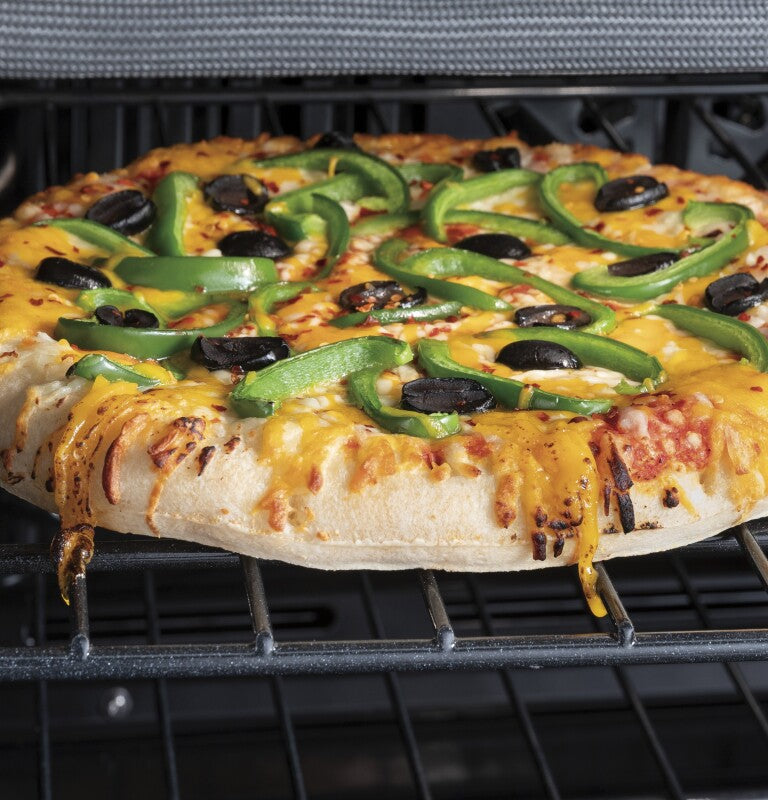

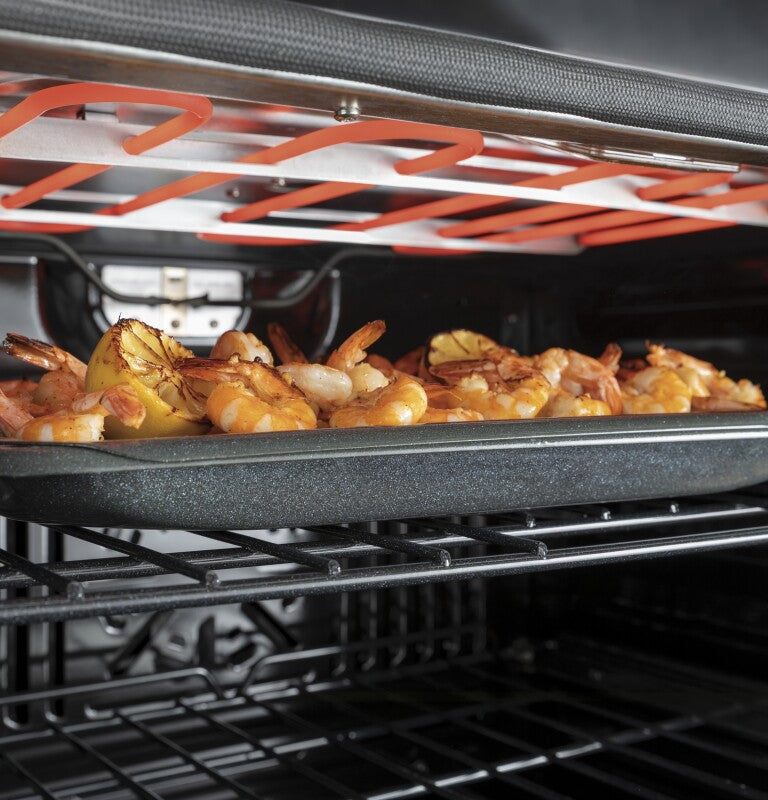

8-pass broil element

Get full broil coverage and even browning from edge to edge

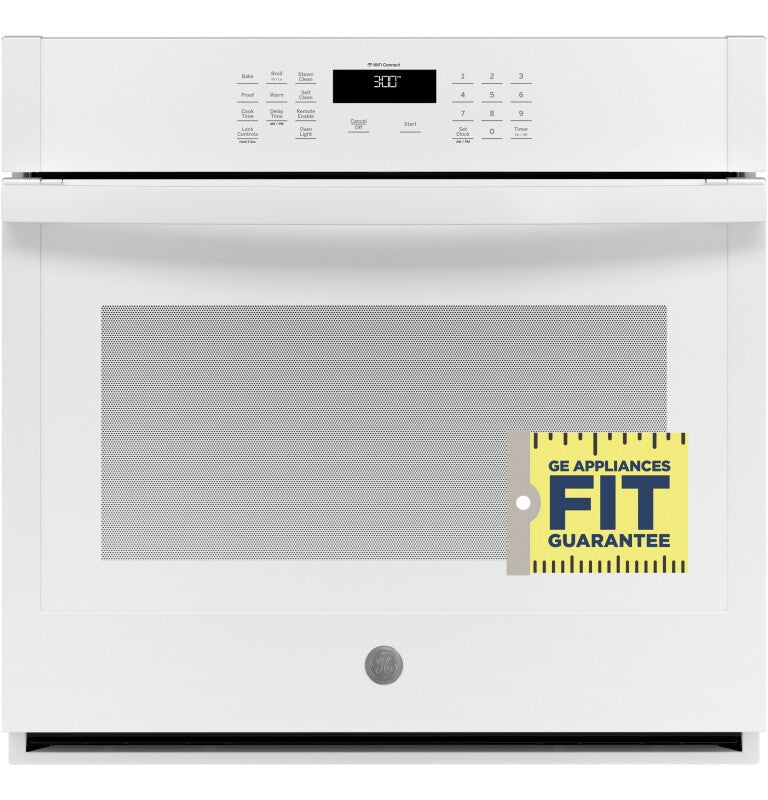

Fit Guarantee

Replacing a similar wall oven from GE Appliances or another brand? GE wall ovens are guaranteed for an exact fit or GE Appliances will pay up to $300 toward modifications. See offer criteria and details
