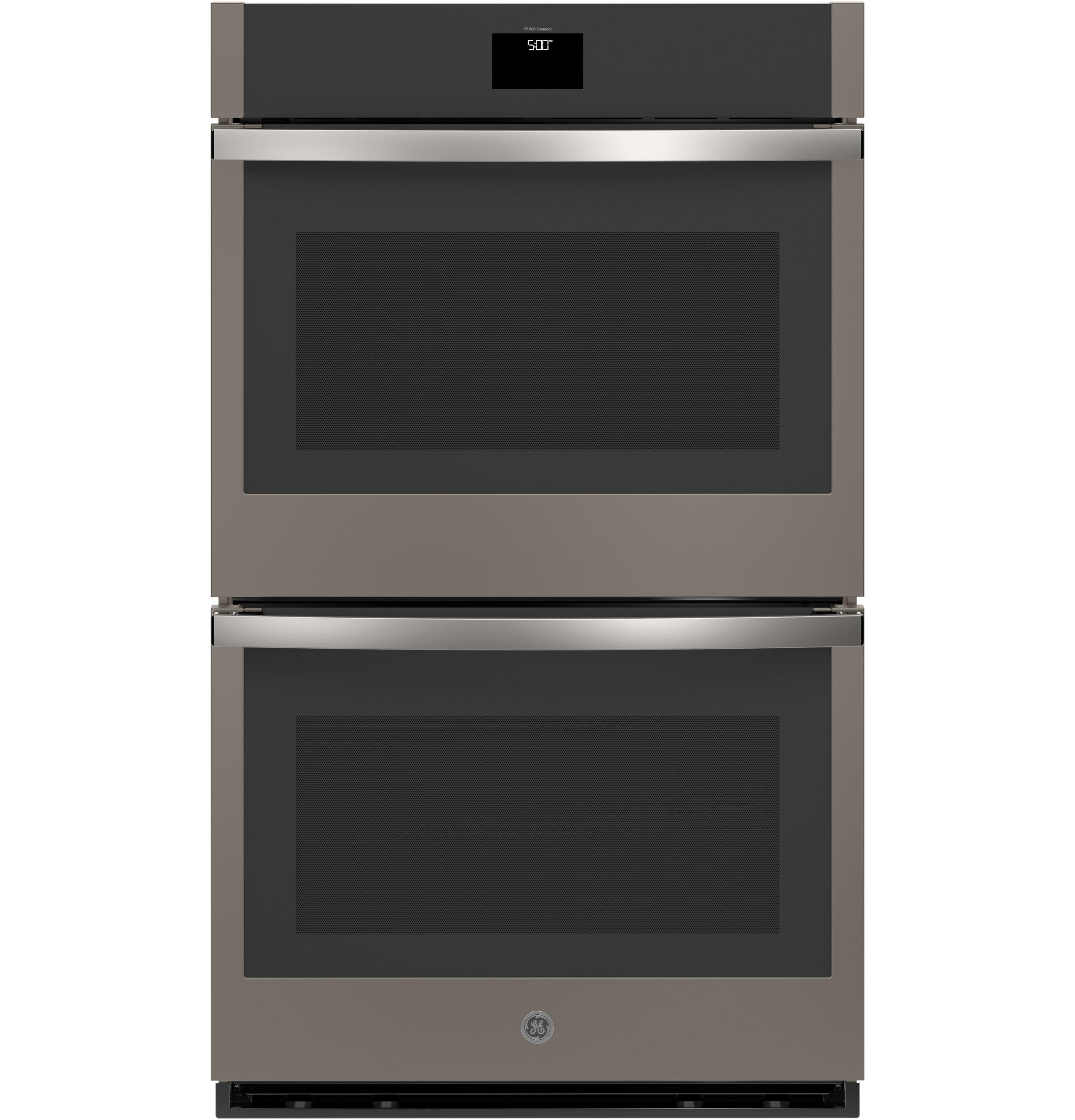

Product Details for GE JTD5000ENES

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Weights & dimensions

Overall Depth 26.75 in
Overall Width 29.75 in
Overall Height 53 in
Cabinet Width 30 in
Oven Interior Dimensions (lower) 25 x 17-3/8 x 20-1/4
Oven Interior Dimensions (upper) 25 x 17-3/8 x 20-1/4
Net Weight 237 lb
Approximate Shipping Weight 263 lb

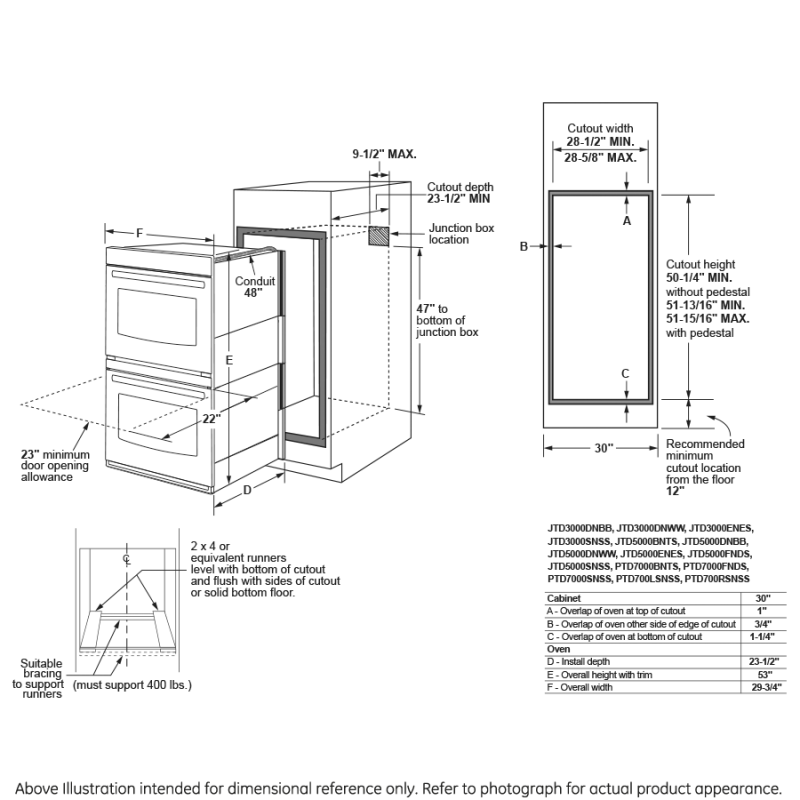

Cutout Dimensions (w x h x d) (in.) 28-1/2 x 51-13/16 x 23-1/2

Other

Oven Interior Dimensions (upper) 25 x 17-3/8 x 20-1/4
Cutout Dimensions (w x h x d) (in.) 28-1/2 x 51-13/16 x 23-1/2

Dimensions & weight

Width 29.75 in.
Height 53 in.
Length 26.75 in.
Weight 237 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 34.75 in.
Shipping Height 58 in.
Shipping Length 31.75 in.
Shipping Weight 277 lbs.
Total of Shipping Weight 277 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 24.41 ft³
Dimensional Weight 303.44 lbs.
Total of Cubes 24.41 ft³
Total of Dimensional Weight 303.44 lbs.

Power / ratings

Bake Wattage 2850W
Electrical Requirements 208/240V
Amp Rating at 208V 40
Hertz 60
Broiler Wattage 4000W
Convection Wattage 2400W
KW Rating at 240V 8.4
Amp Rating at 240V 40
KW Rating at 208V 6.3

Features

Fuel Type Electric

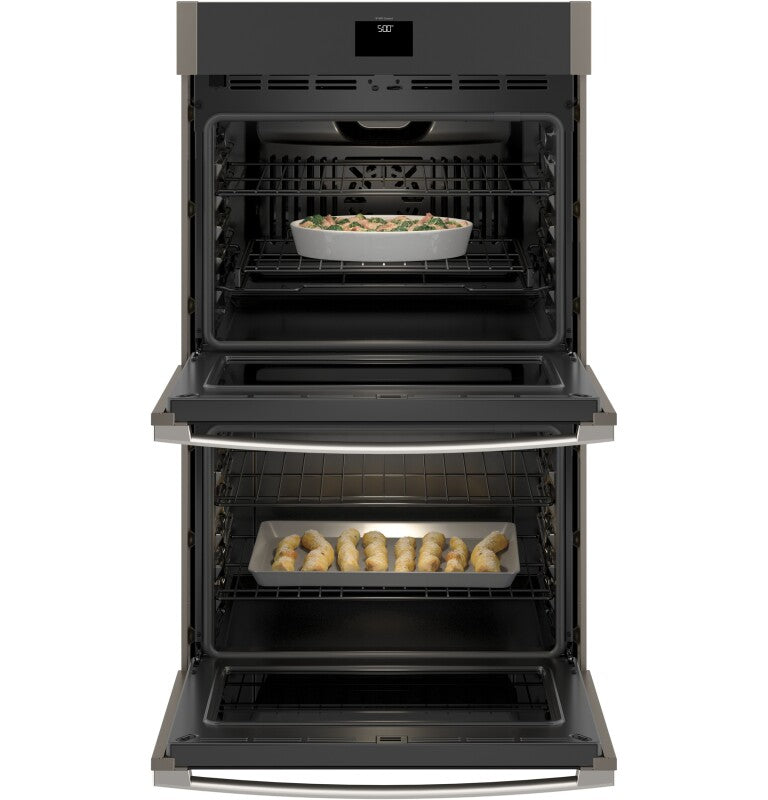

Configuration Double Oven
Product Type Double Oven
Cooking Technology Convection Upper; Traditional Lower
Self-Clean Oven Door Lock Automatic
Cooking System True European Convection (Upper)
Sabbath Mode Yes
OU Certified No
Oven Cleaning Type Self-Clean with Steam Clean Option
WiFi Connect Built-In
Cleaning Time Variable with Delay Clean Option
Oven Rack Positions (Single or Upper/Lower) 6 / 6
Connected Capabilities Fresco
Control Type Electronic
Oven Control Features Audible Preheat Signal
Oven Cooking Modes Convection Bake
Oven Features 8-Pass Broil Element
Oven Interior Black Gloss Finish
Oven Rack Features 3 Heavy-Duty Flat Oven Racks
Oven Interior Hidden Bake
Oven Features Closed Door Broiling
Oven Rack Features Embossed Rack Positions (Both Ovens)
Control Type White LCD Display
Connected Capabilities The Google Assistant
Oven Cooking Modes Thermal Broil Hi/Lo
Oven Control Features Warm Mode
Connected Capabilities Amazon Alexa
Connected Capabilities IFTTT
Connected Capabilities Innit
Connected Capabilities Sonos
Control Type Backlit
Control Type Glass Touch
Cooking System Traditional (Lower)
Oven Control Features 12-Hour Shut-Off Capability
Oven Control Features Auto Recipe Conversion (Upper)
Oven Control Features C° or F° Programmable
Oven Control Features Sabbath Mode
Oven Control Features Control Lock Capability
Oven Control Features Cook Time
Oven Control Features Delay Time
Oven Control Features Electronic Clock & Kitchen Timer
Oven Control Features Mis-Wire Detection
Oven Control Features Proof Mode
Oven Control Features Remote Enabled
Oven Control Features Temperature Probe
Oven Cooking Modes Convection Bake Multi-Rack
Oven Cooking Modes Convection Roast
Oven Cooking Modes Thermal Bake
Oven Features 10-Pass Bake Element
Oven Interior 2 Halogen Interior Oven Lights (Both Ovens)
Oven Cooking Modes Air Fry available
Connected Capabilities Google Home
Oven Rack Features 1 Heavy-Duty Roller Rack
Oven Control Features Certified Oven Kosher Separation

Warranty

Labor Warranty Limited 1-year entire appliance
Parts Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details

Appearance

Handle Color Brushed Stainless
Installation Side-by-Side
Handle Designer Style
Oven Door Features Big View Oven Window
Color Appearance Fingerprint Resistant Slate
Installation Above Warming Drawer

Accessories

Air Fry Basket Optional- JXAFTRAY1VSS
Optional Accessories UXWORXR30 - 30" Never Scrub Roller Rack

Capacity

Capacity (Cu. Ft.) 5.0 Upper / 5.0 Lower
Total Capacity (cubic feet) 10.00 cu ft

Description

Save time by conveniently preheating and monitoring your oven from anywhere using the SmartHQ App.Know exactly when your dish has reached the perfect internal temperature with temperature readings that you can view using the SmartHQ App.53 H x 29 3/4 W x 26 3/4 D


Product Features

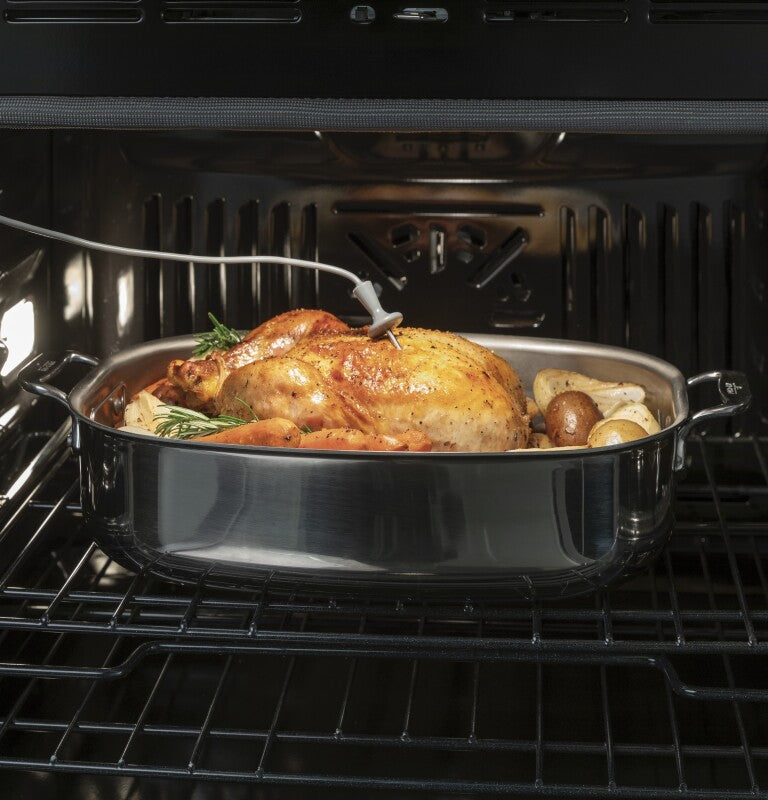

  • Remote Temperature Probe
    Know exactly when your dish has reached the perfect internal temperature with temperature readings that you can view using the SmartHQ App

Key Features

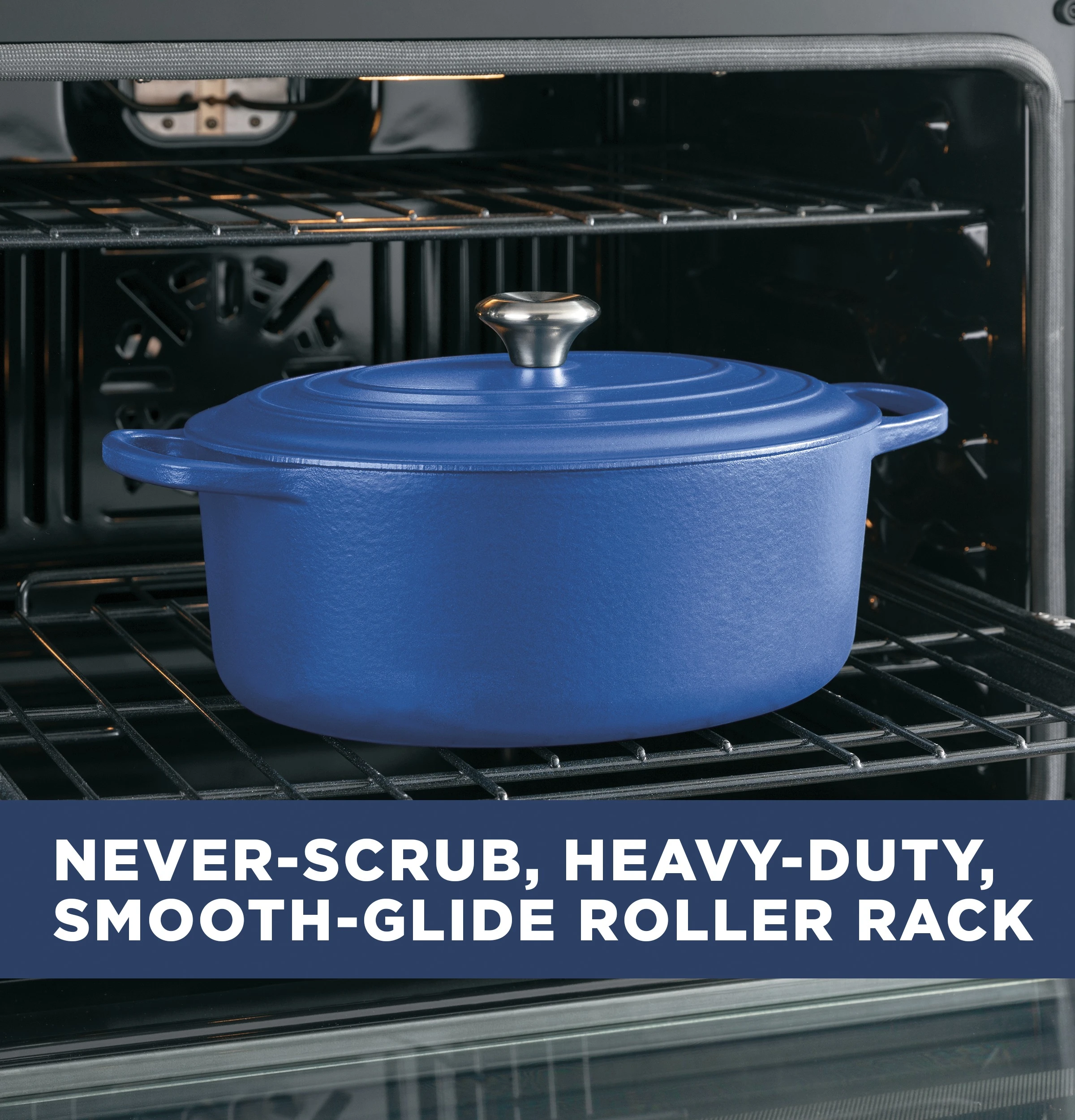

Heavy-duty smooth glide roller racks

Easily remove even the heaviest dishes with a roller rack that’s engineered to glide seamlessly out of the oven

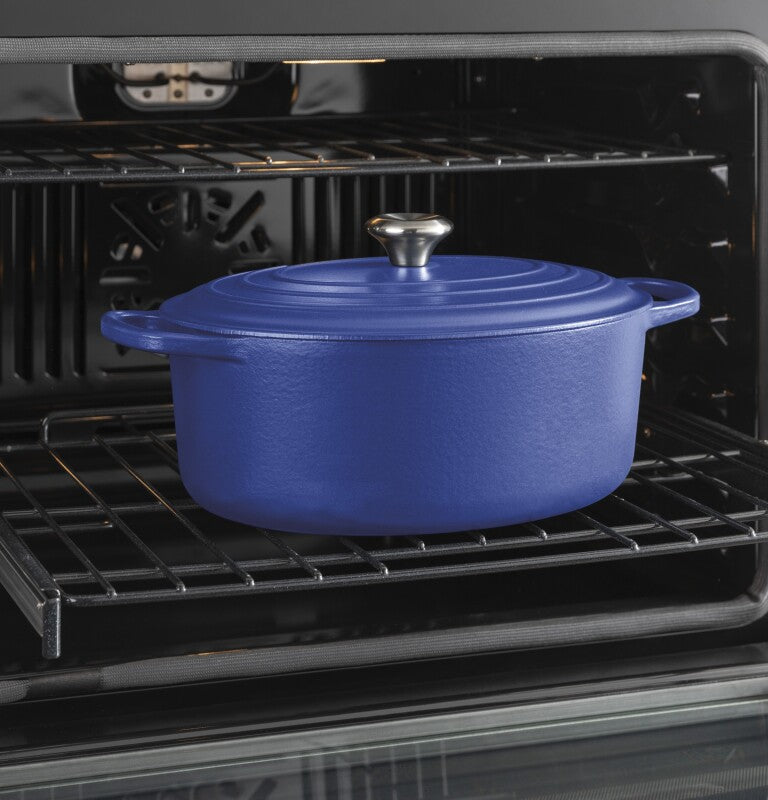

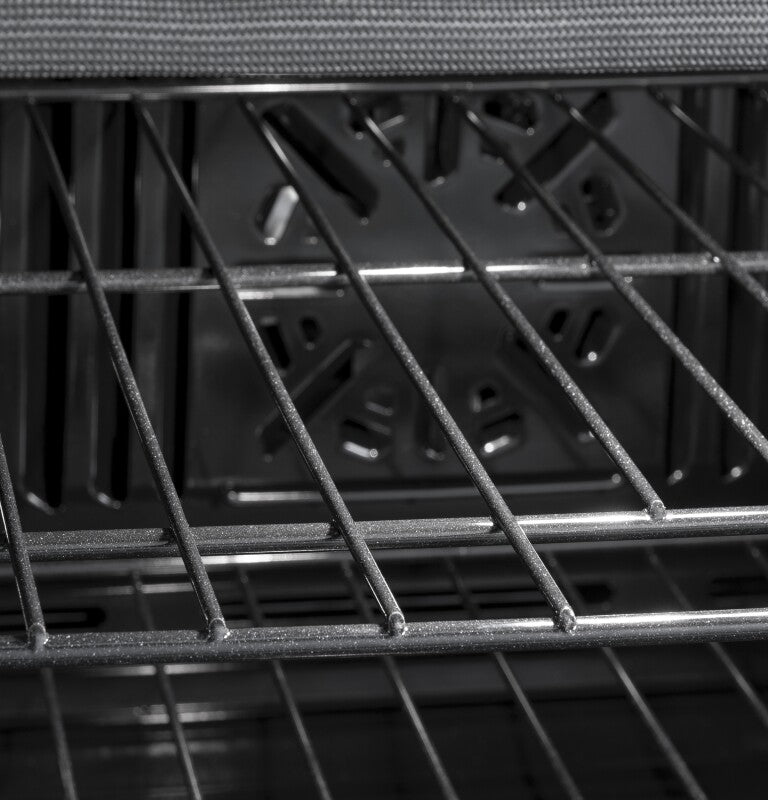

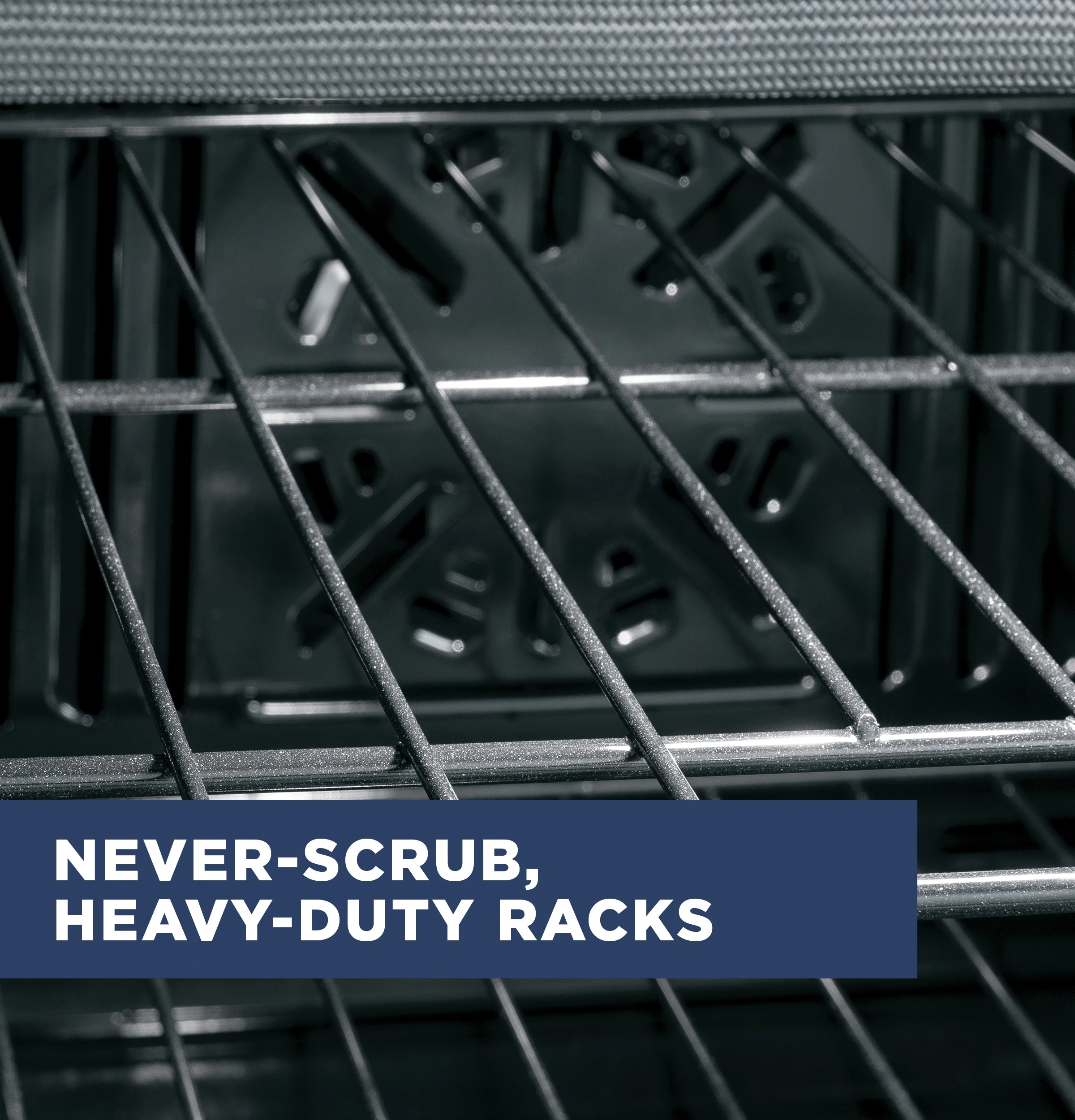

Heavy-duty racks

Durable design that handles heavy baking dishes with ease

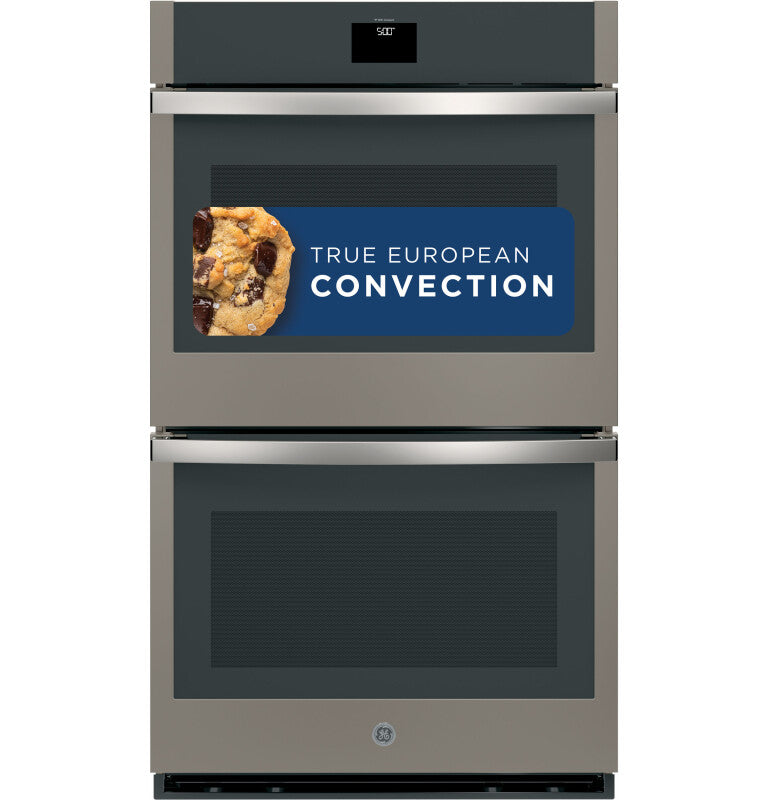

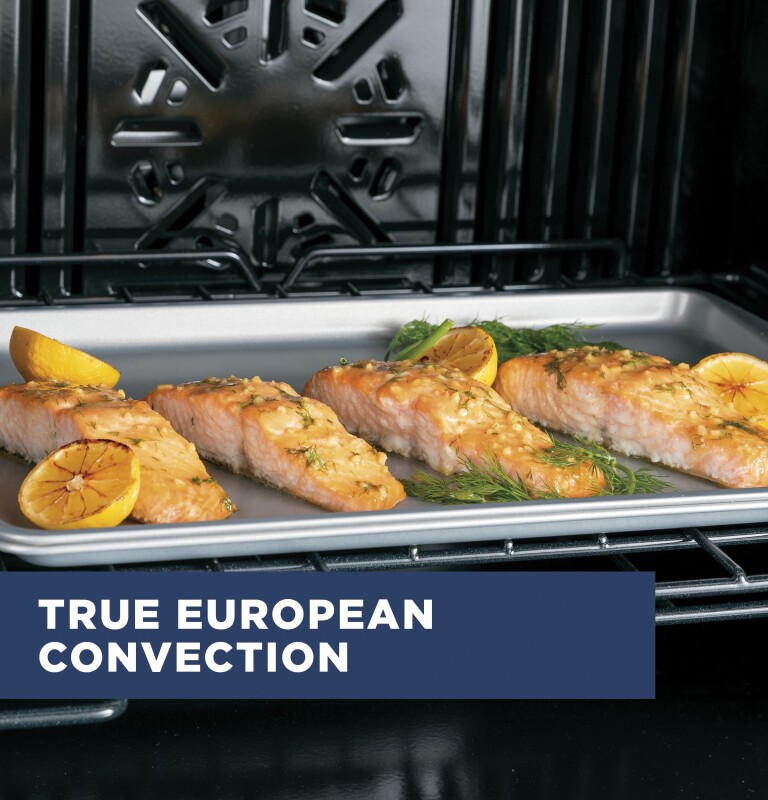

True European Convection

Achieve faster and more even results with a convection fan and third heating element that circulates air for more efficient cooking

Anywhere control with remote notifications

Save time by conveniently preheating and monitoring your oven from anywhere using the SmartHQ App

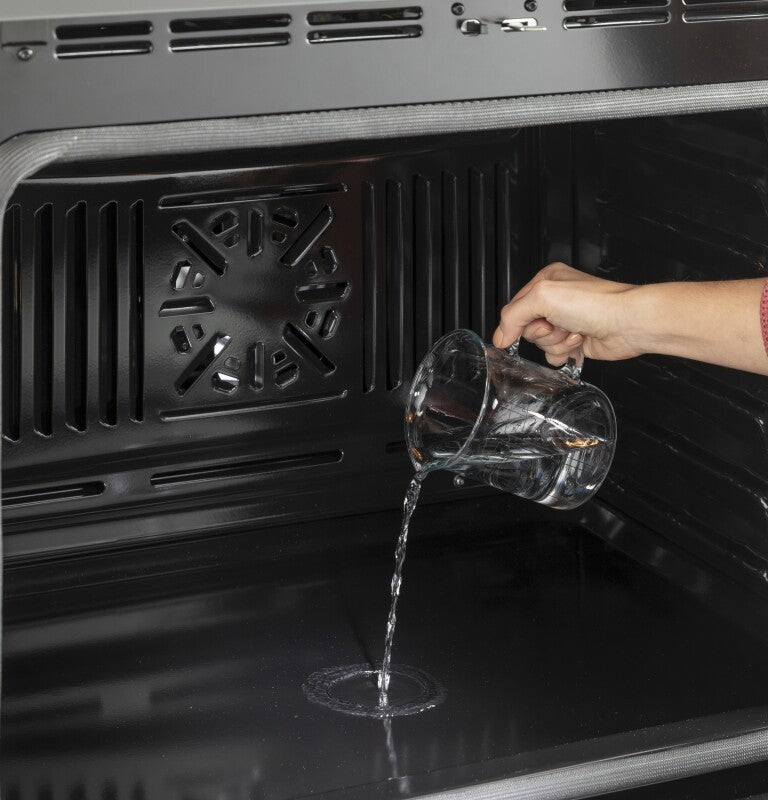

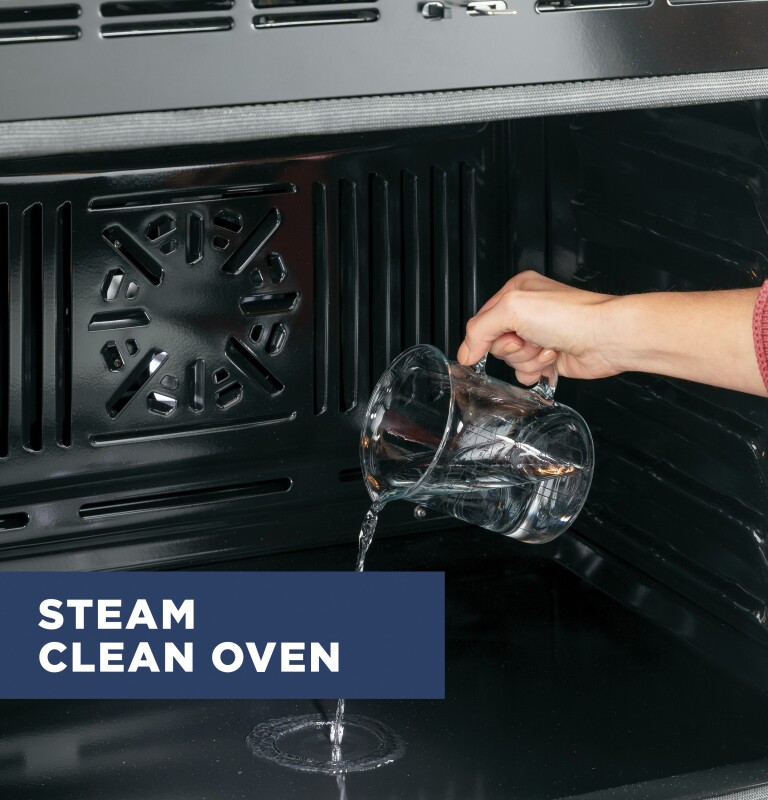

Self-Clean with optional Steam Clean

Cleaning the oven interior has never been easier, with two cleaning options to fit your lifestyle

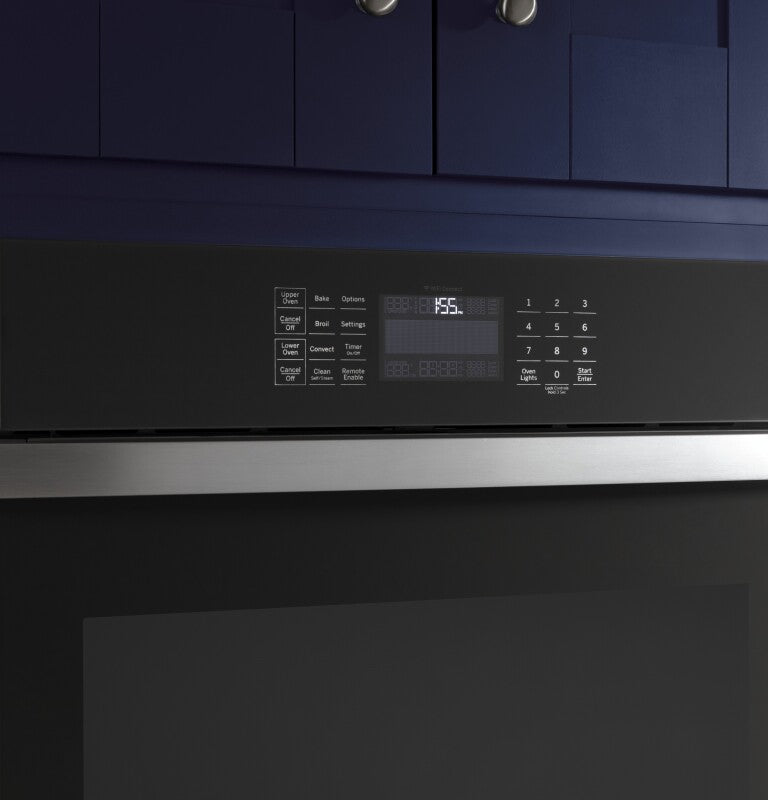

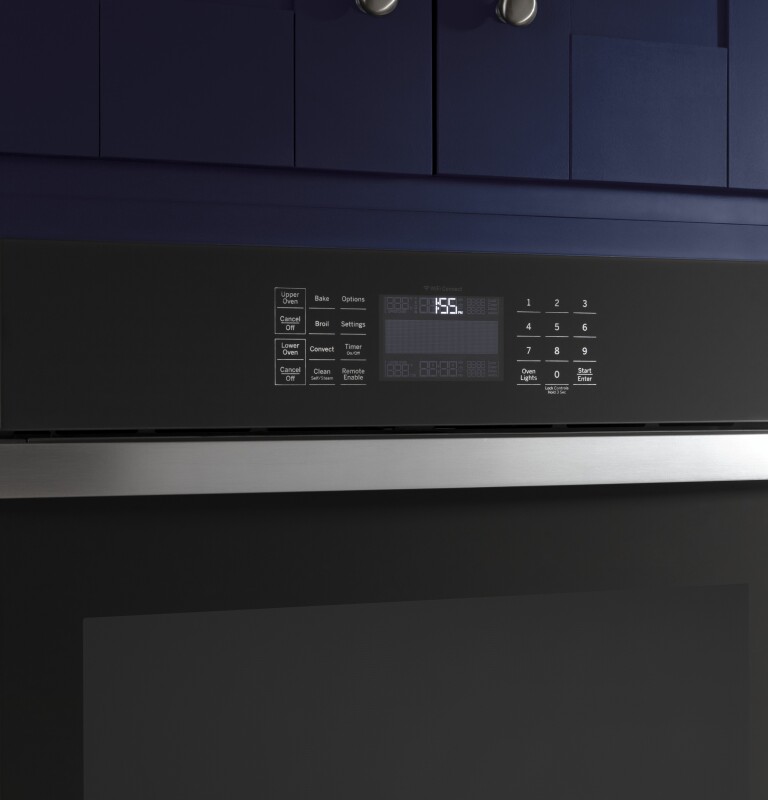

Hidden backlit LCD control

Easy to use display that illuminates controls when you’re ready to cook

10-pass hidden bake element

Even baking and quick cleanup are assured, with 10-pass element that heats a large cooking area and is hidden for an easy-to-wipe surface

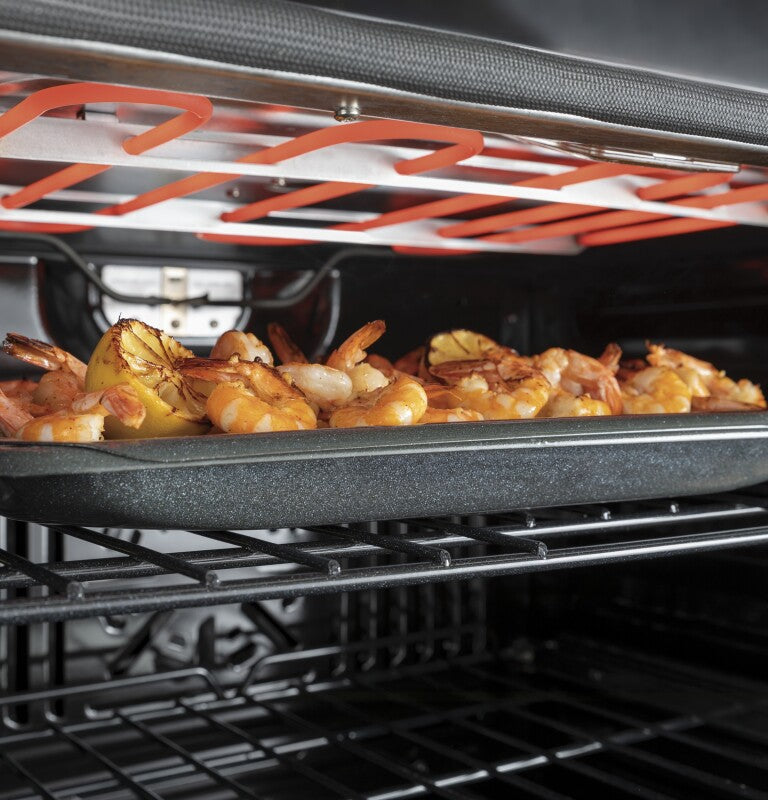

8-pass broil element

Get full broil coverage and even browning from edge to edge

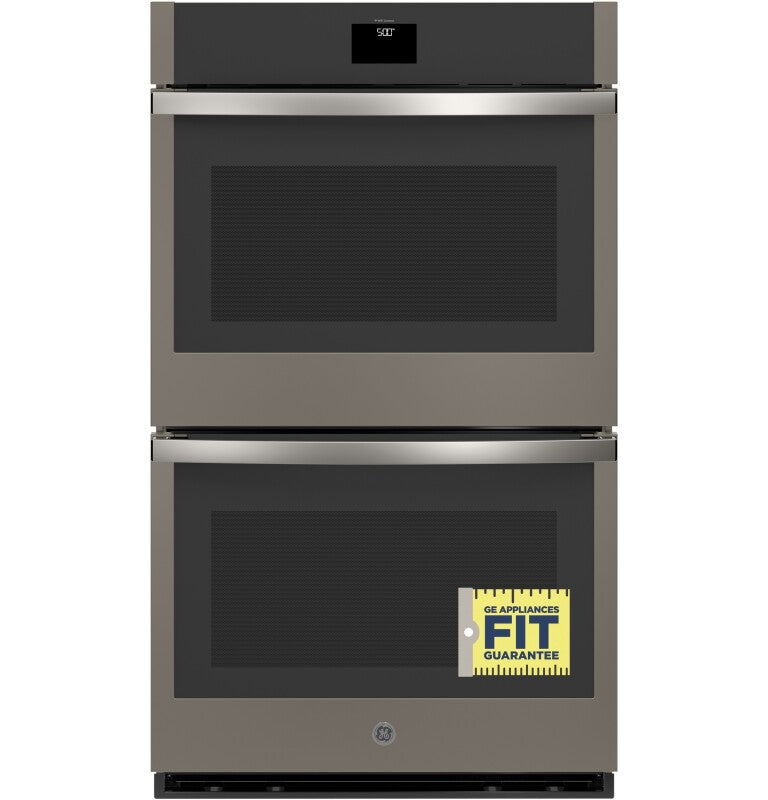

Fit Guarantee

Replacing a similar wall oven from GE Appliances or another brand? GE wall ovens are guaranteed for an exact fit or GE Appliances will pay up to $300 toward modifications. See offer criteria and details
