Sale price $1,709.10 Regular price $1,898.97 Save $189.87 / 9% OFF

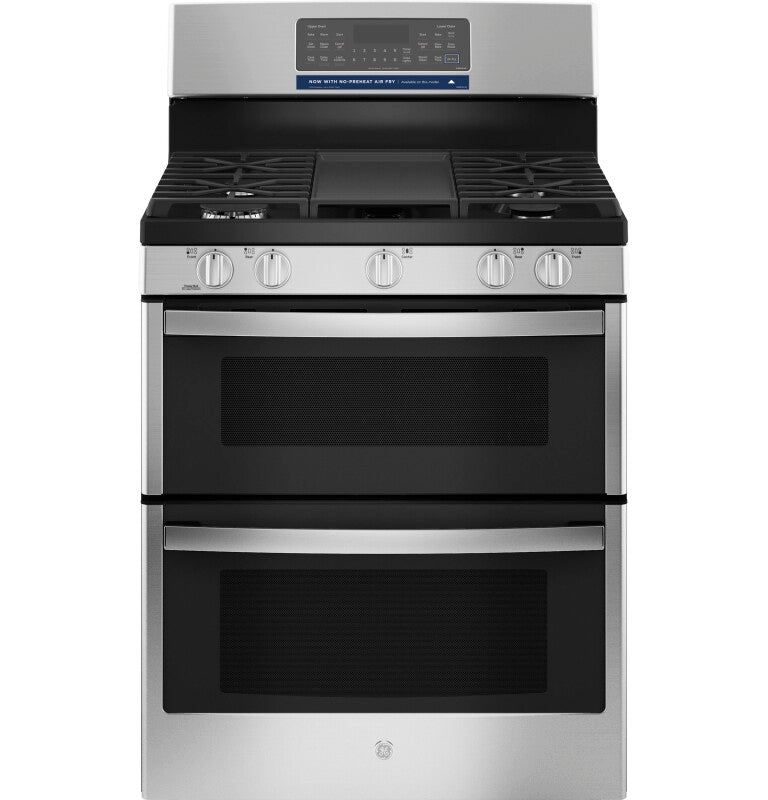

Product Details for GE JGBS86SPSS

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Filter

App Filter - Cleaning Type Steam and Self-Clean

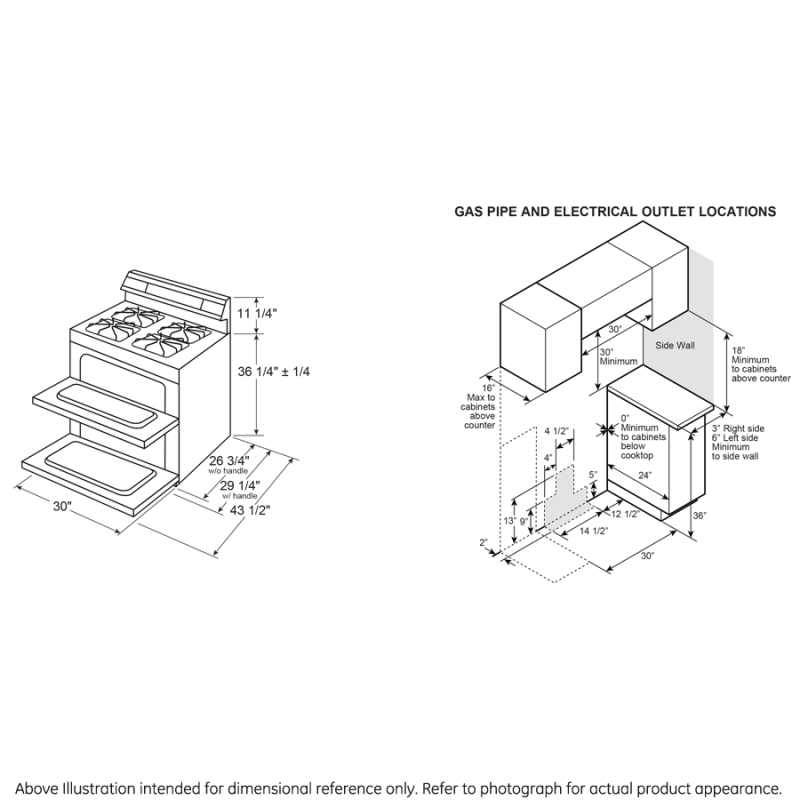

Weights & dimensions

Overall Width 30 in
Overall Height 47.25 in
Overall Depth 29.25 in
Net Weight 205 lb
Depth Without Handle 26.75 in
Cabinet Width 30 in
Approximate Shipping Weight 225 lb
Depth with Door Open 43.5 in
Oven Interior Dimensions (W x H x D) (in.) 24 x 9-1/2 x 19-1/8 - Upper; 24 x 15 x 20-5/8 - Lower
Height to Cooking Surface (in.) 36 - 36.5

Appearance

Cooktop Burner Grate Color Matte Black
Oven Door Features Big View Oven Window
Handle Design Designer Style
Handle Color Stainless Steel
Control Knobs Weighted
Color Appearance Stainless Steel
Control Knobs Stainless Steel Appearance

Features

Ignition System Electronic
Burner - Right Rear 12,000 BTU
Oven Control Features Control Lock Capability
Oven Rack Features 3 Oven Racks
Burner - Left Rear 5,000 BTU Precise Simmer
Oven Cleaning Type Steam Clean
Griddle Integrated (Included)
Product Type Free-Standing Double Oven
Cooktop Type Continuous Grates with Griddle
Fuel Type Natural Gas
Cooktop Burner Grate Material Heavy Cast Iron
Burner - Center 10,000 BTU Oval
Interior Oven Light 1 Auto Incandescent (Both Ovens)
Control Location Front
Cooktop Burner Grate Features Dishwasher Safe
Control Type Electronic Touch
Burner - Left Front 15,000 BTU
Sabbath Mode Yes
Configuration Double Oven Range
OU Certified No
Oven Cooking Modes No Preheat Air Fry
Cooktop Burner Type Sealed
Burner - Right Front 9,500 BTU
Cooktop Surface Porcelain-Enamel
Oven Rack Positions (Single or Upper/Lower) 2 / 5
Oven Control Features Sabbath Mode
Cooktop Surface Edge-to-Edge
Cooktop Surface One-Piece Upswept
Cooktop Surface Gray
Oven Control Features Audible Preheat Signal
Oven Cooking Modes Convection Bake
Oven Cooking Modes Convection Roast
Oven Control Features Certified Oven Kosher Separation
Cooking Technology Traditional Upper; True Convection Lower
Cooking System True Convection

Accessories

Air Fry Basket Optional- JXAFTRAY1VSS
Center Grate Optional - JXGRATE1
Griddle Accessory Integrated Griddle (Included)
LP Conversion Kit Included

Power / ratings

Top Burner BTU Rating - Nat. Gas (000's BTU's) (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0; (1) 10.0
Volts/Hertz/Amps 120v; 60Hz; 15A
Top Burner BTU Rating - LP (000's BTU's) (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0; (1) 8.0
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) 7.0 / 120V Bake Assist Element (Upper); 16.5 / 14.0 (Lower)
Bake/Broiler BTU Rating - LP (000's BTU's) 7.0 / 120V Bake Assist Element (Upper); 13.5 / 13.5 (Lower)
Electrical Requirements 120V
Hertz 60

Capacity

Capacity (Cu. Ft.) 2.5 Upper / 4.3 Lower
Total Capacity (cubic feet) 6.80 cu ft

Warranty

Parts Warranty Limited 1-year entire appliance
Labor Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details

Other

Oven Interior Dimensions (W x H x D) (in.) 24 x 9-1/2 x 19-1/8 - Upper; 24 x 15 x 20-5/8 - Lower

Dimensions & weight

Width 30 in.
Height 47.25 in.
Length 29.25 in.
Weight 205 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 35 in.
Shipping Height 52.25 in.
Shipping Length 34.25 in.
Shipping Weight 245 lbs.
Total of Shipping Weight 245 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 23.99 ft³
Dimensional Weight 298.29 lbs.
Total of Cubes 23.99 ft³
Total of Dimensional Weight 298.29 lbs.

Description

Continuous, edge-to-edge cooktop give you a large cooking space and can handle any cookware.This integrated griddle leads the industry in size and quality, so you can cook a lot of food at once.47 1/4 H x 30 W x 29 1/4 D

Key Features

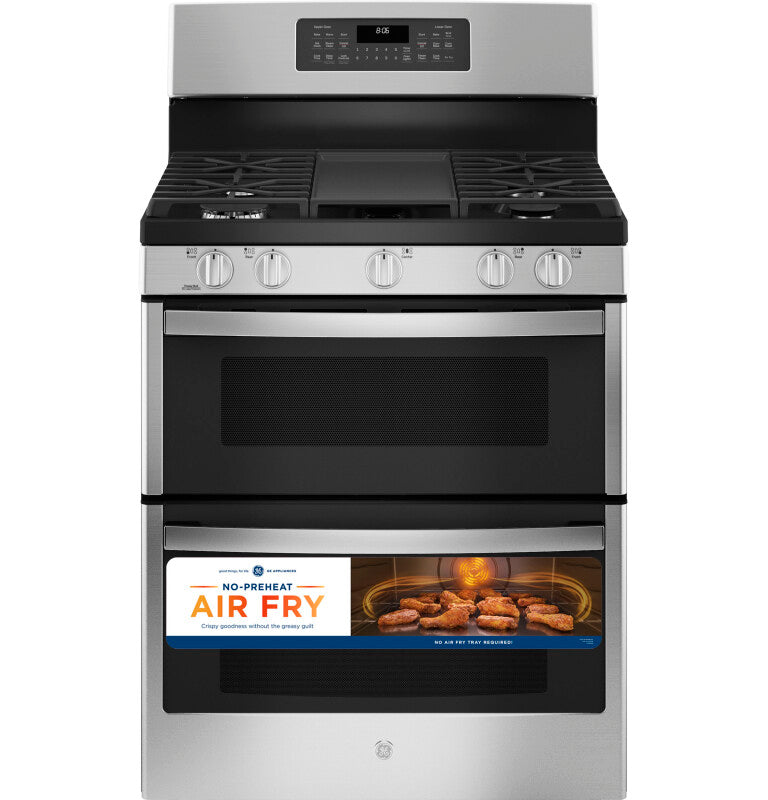

No-Preheat Air Fry

Cook healthier, crispier versions of your favorite foods in less time, thanks to an air fryer right in your oven that doesn’t require preheating, a basket or a special tray

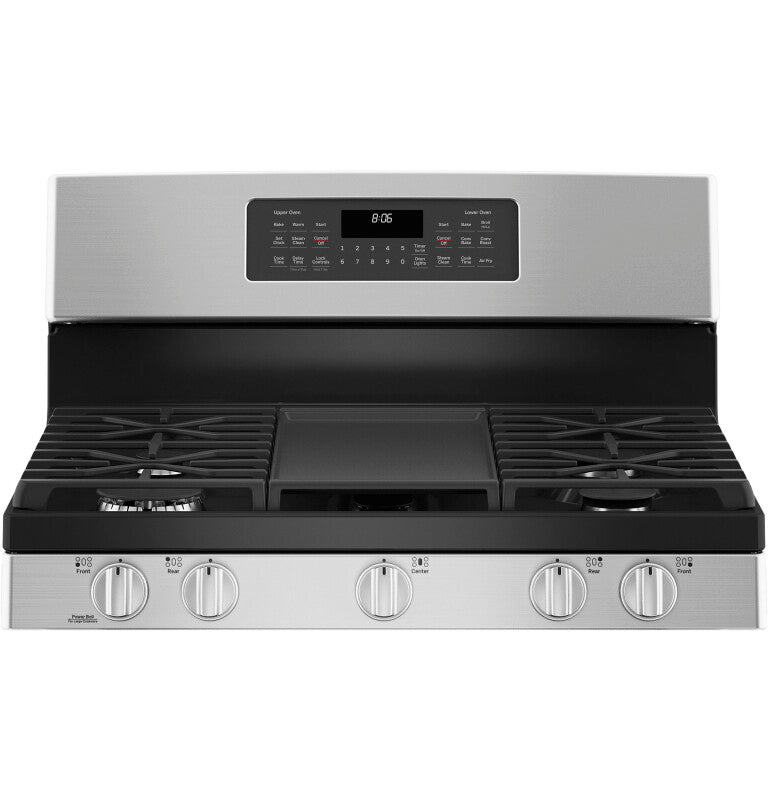

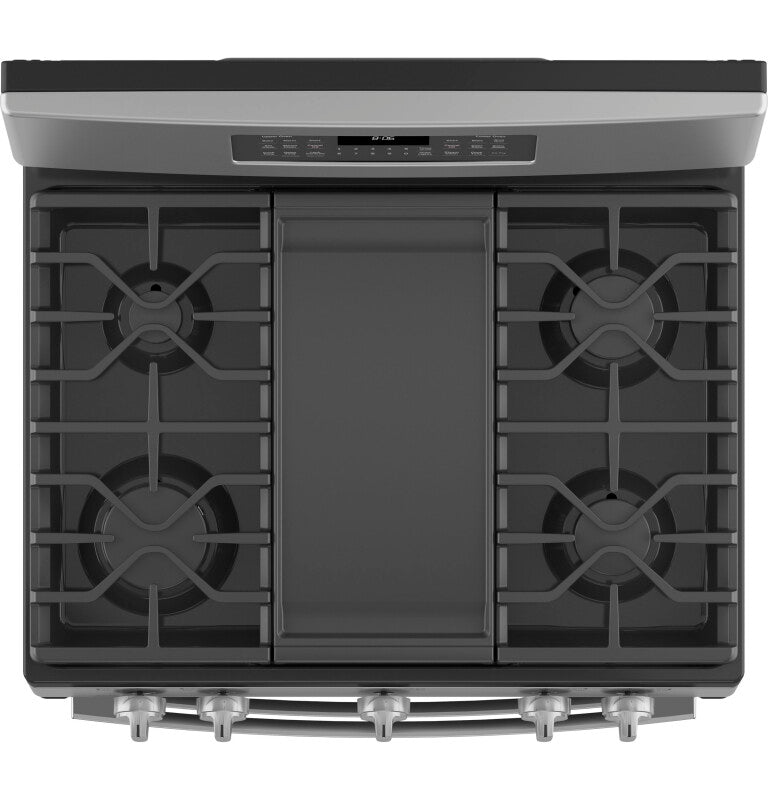

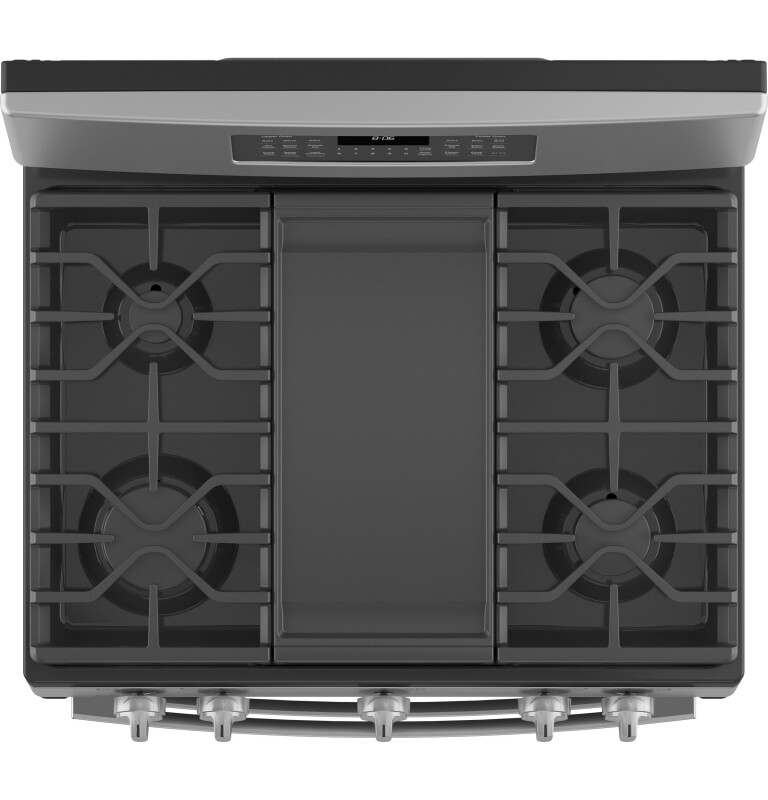

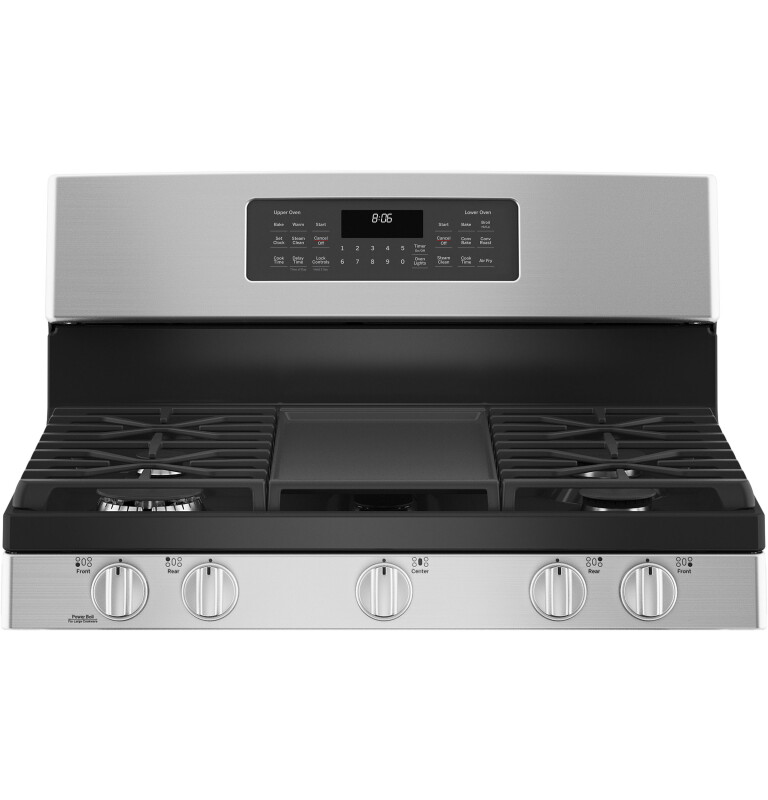

Edge-to-edge cooktop

Continuous, edge-to-edge cooktop give you a large cooking space and can handle any cookware

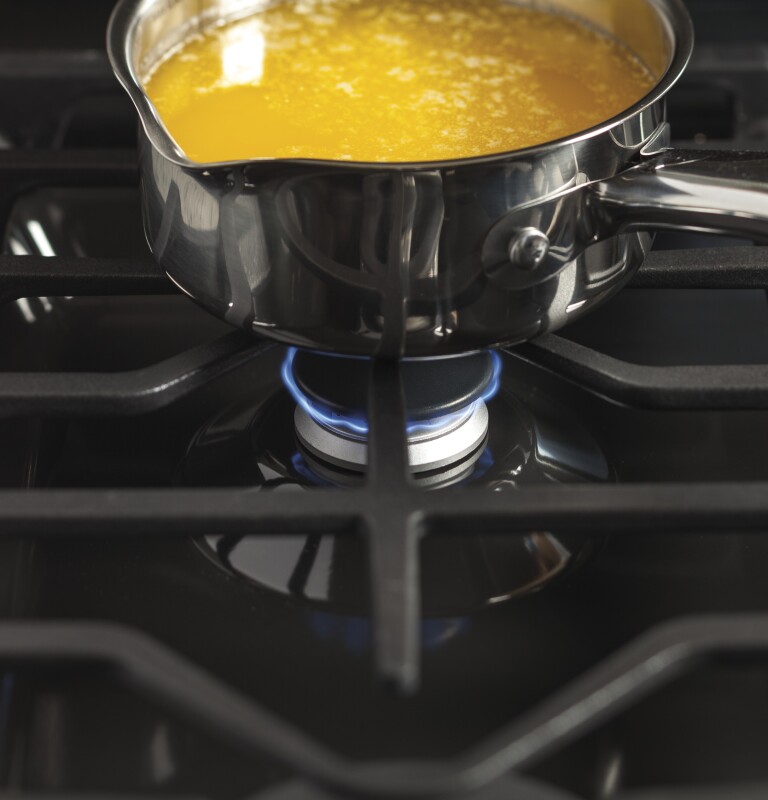

Precise simmer burner

This burner setting provides low, even heat so delicate dishes don't burn

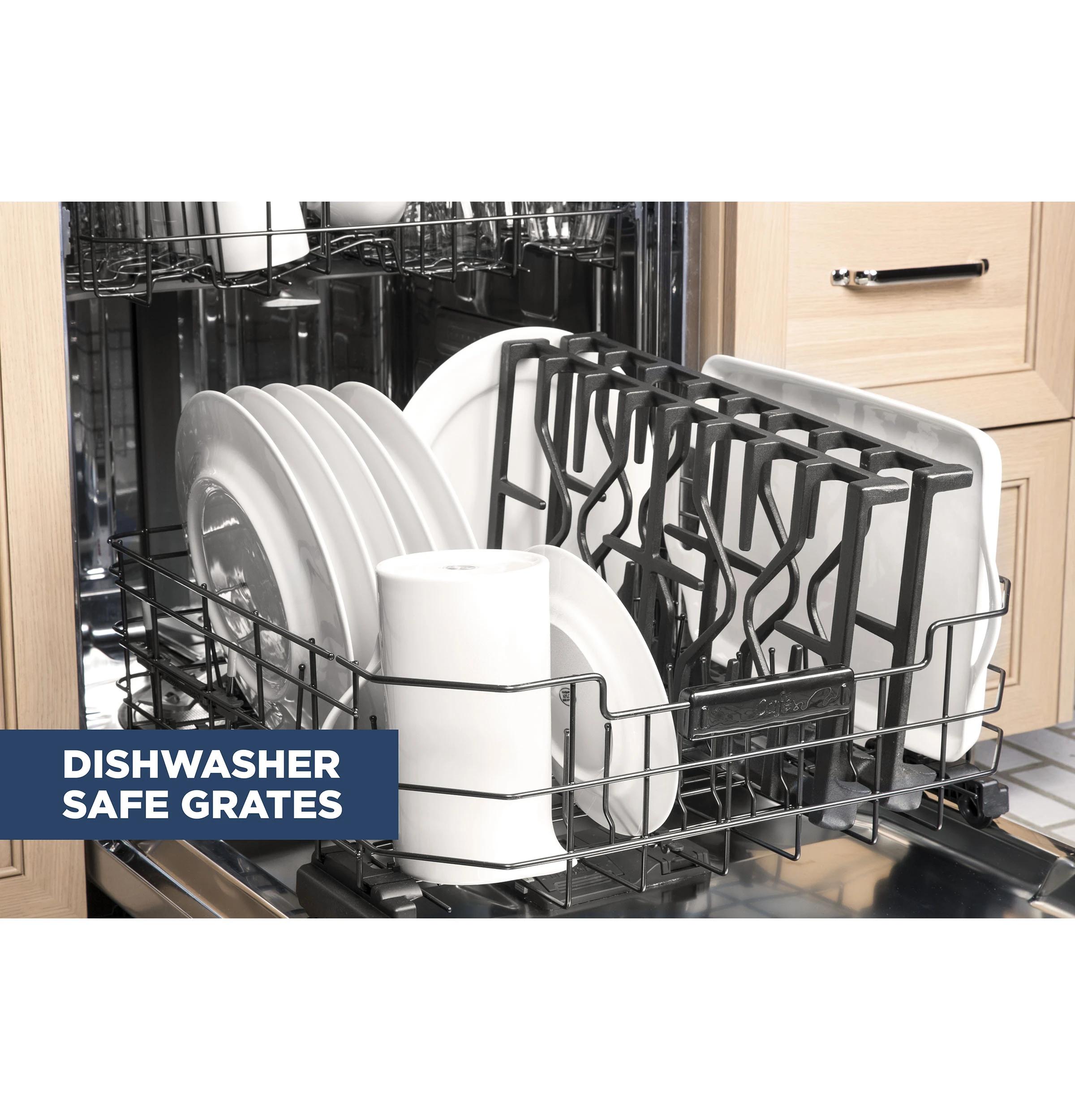

Heavy duty, dishwasher-safe grates

These cooktop grates can be cleaned one of two ways – either in the dishwasher, or on the bottom of a self-clean oven

Sealed cooktop burners

Sealed cooktop burners contain cooking spills so cleanup is quick and easy

Deep-recessed cooktop

This deep-recessed gas cooktop contains cooking spills and makes it easier to clean up

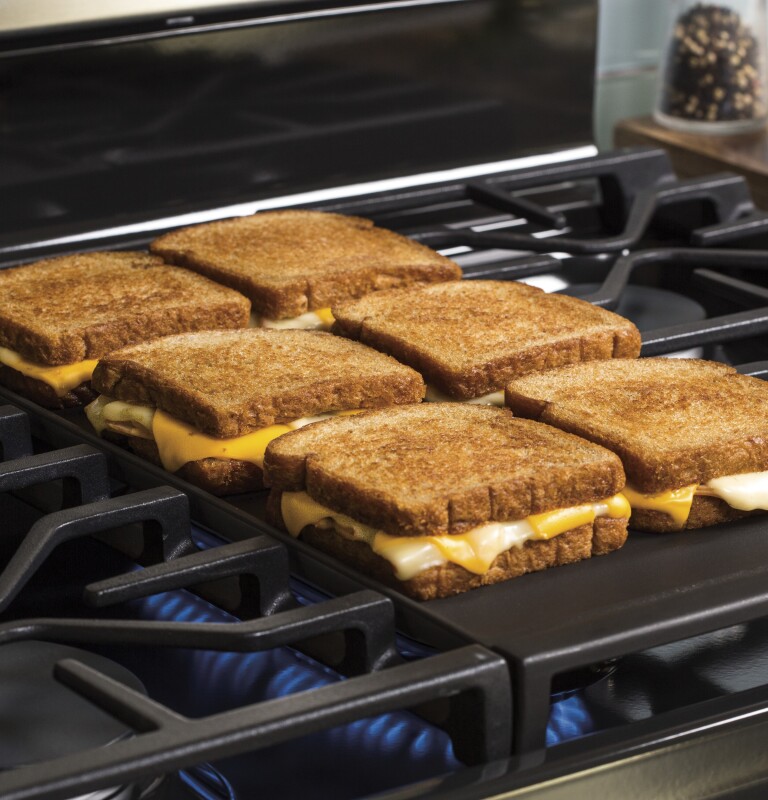

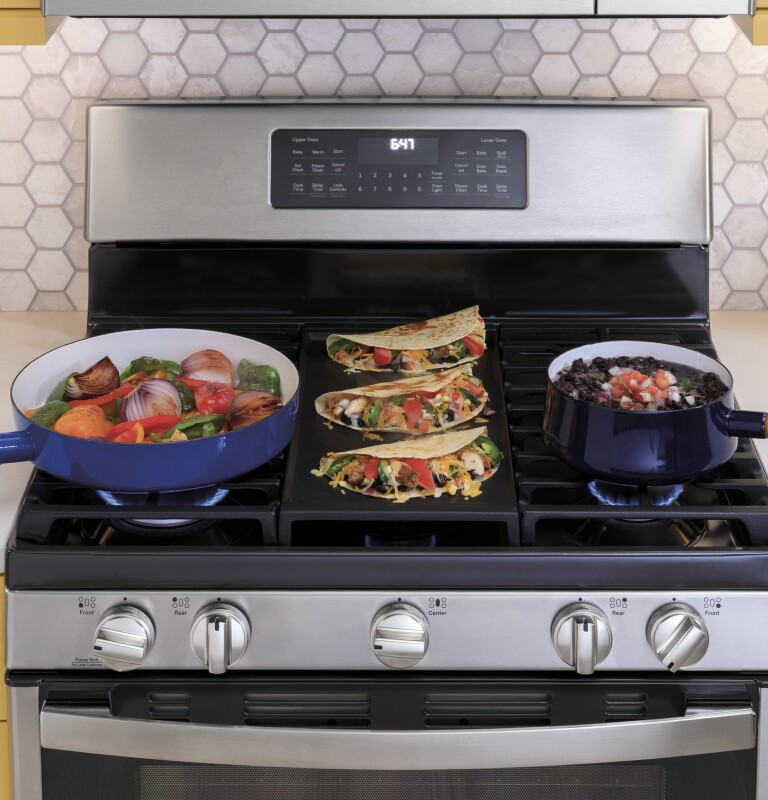

Integrated griddle

This integrated griddle leads the industry in size and quality, so you can cook a lot of food at once

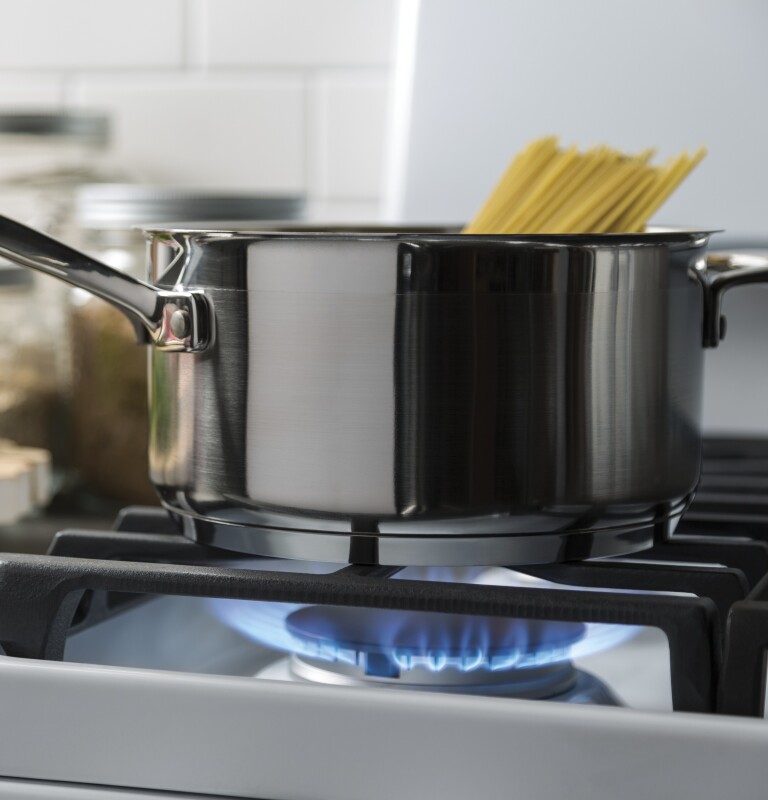

Power boil burner

This 15,000-BTU power boil element produces intense heat to boil water fast

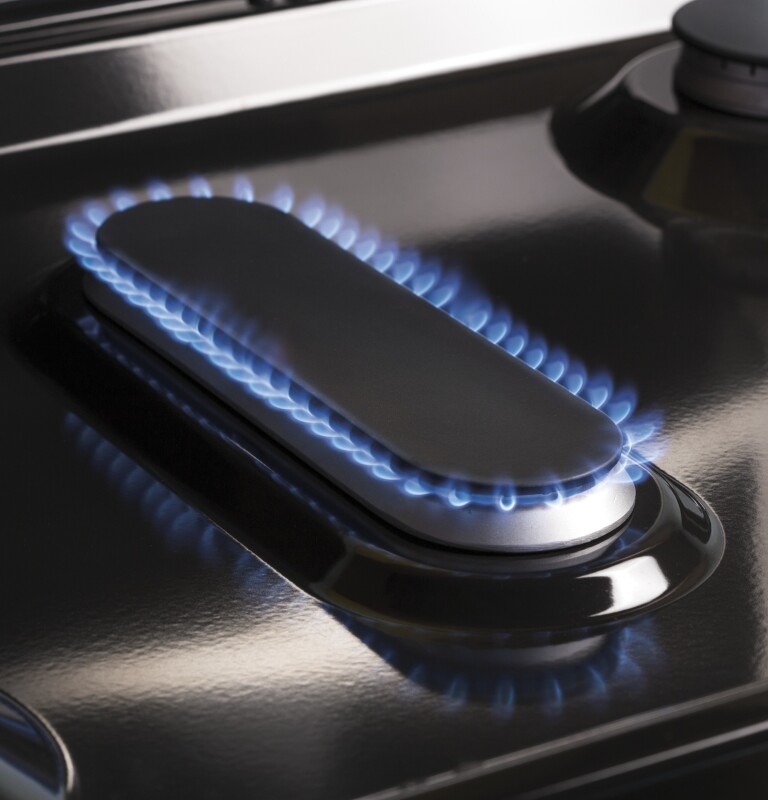

Center oval burner

This center oval burner gives you a fifth burner and the perfect place to use griddles or odd-size cookware

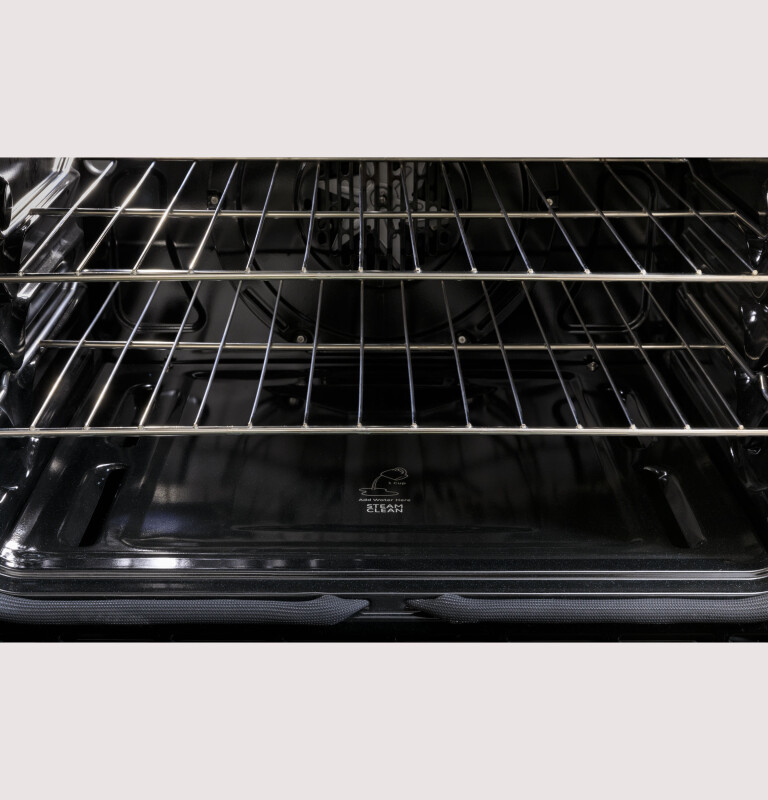

Steam clean

A steam cleaning option cleans the oven cavity in a 30-minute cycle with less odor and heat

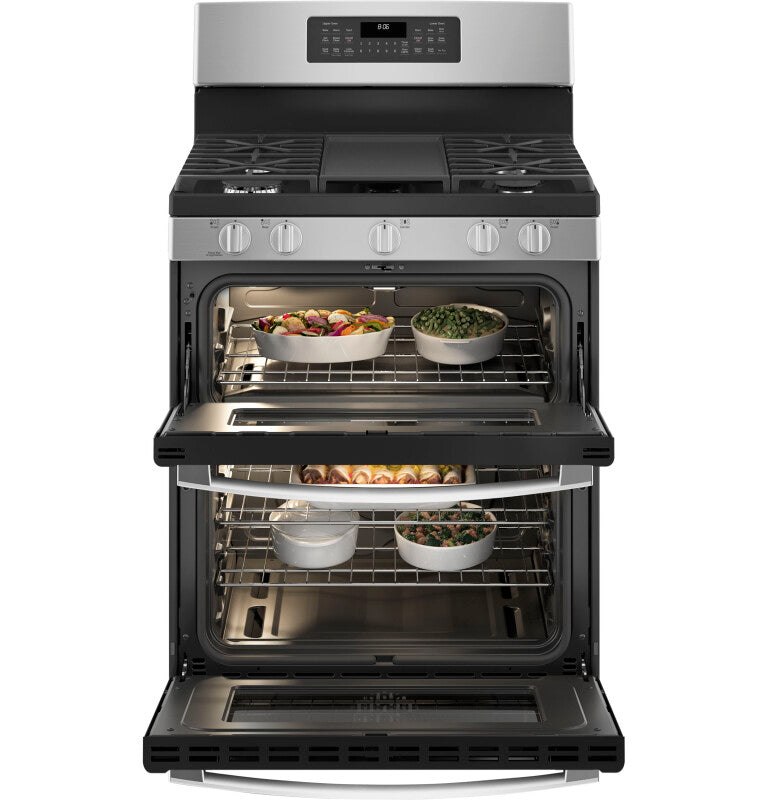

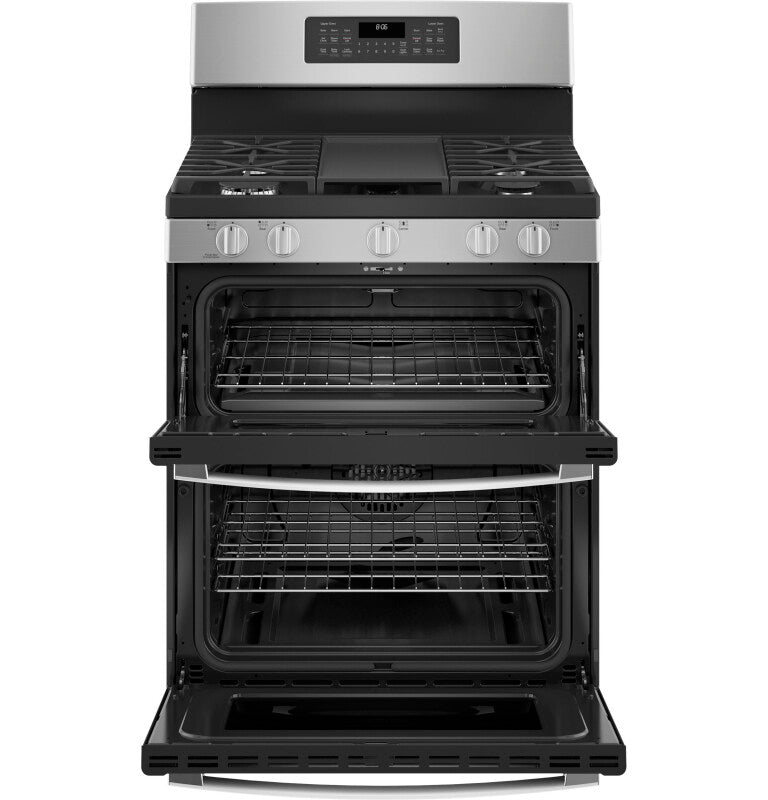

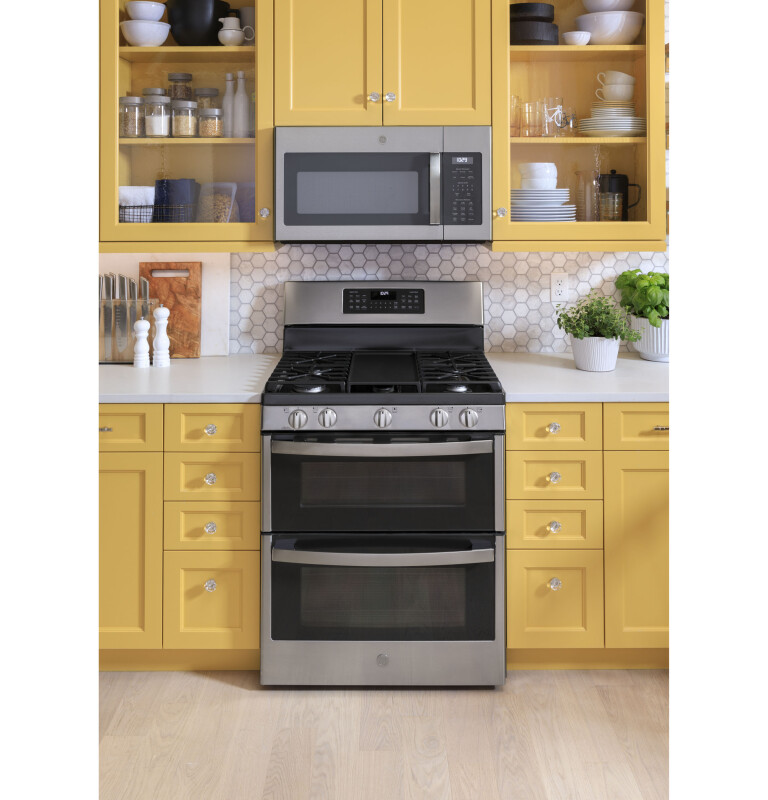

Large capacity double oven

Cook an entire meal at once with a 6.8 cubic foot total capacity double oven which provides enough room for multiple dishes
