Sale price $868.30 Regular price $1,285.97 Save $417.67 / 32% OFF

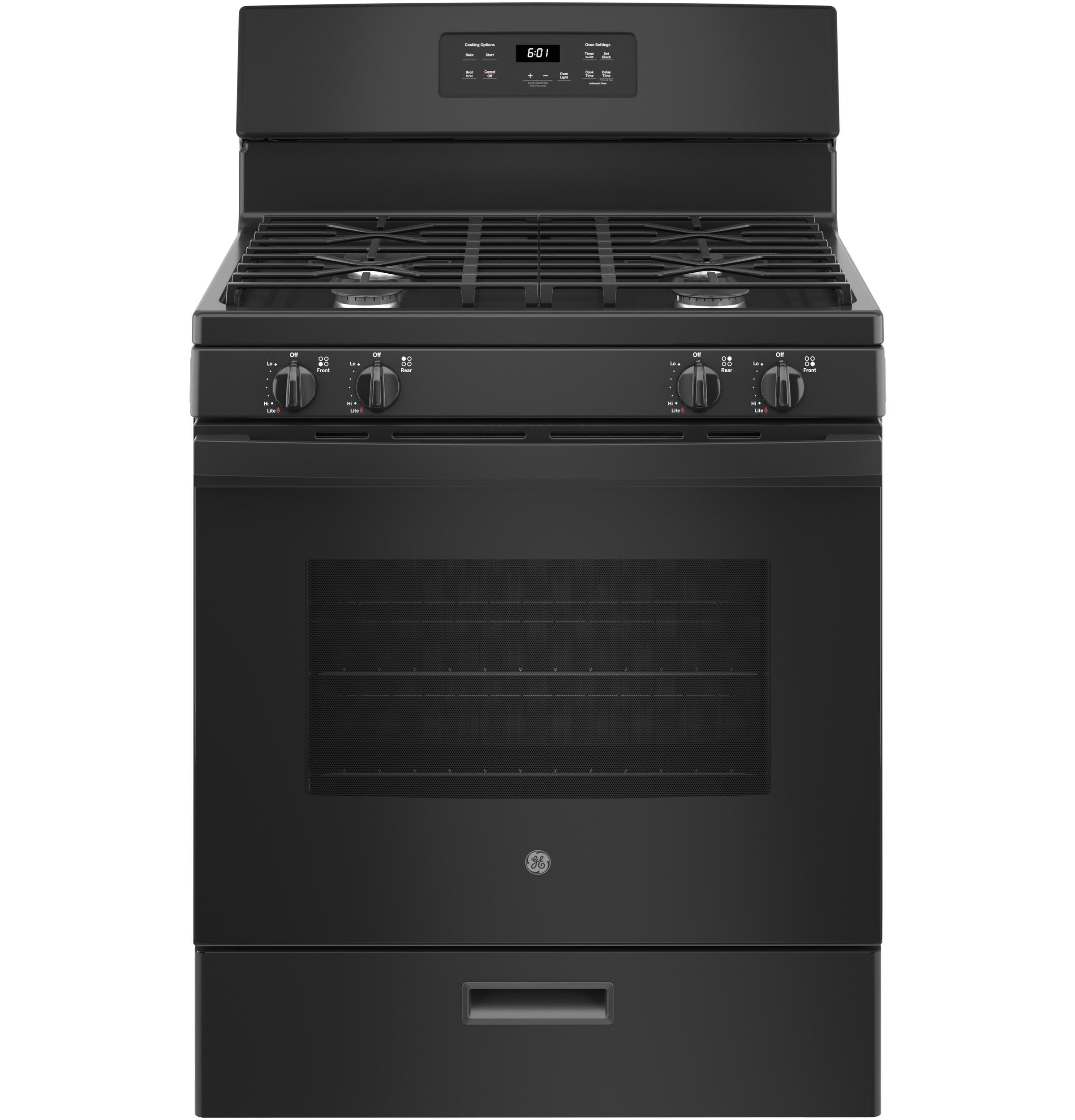

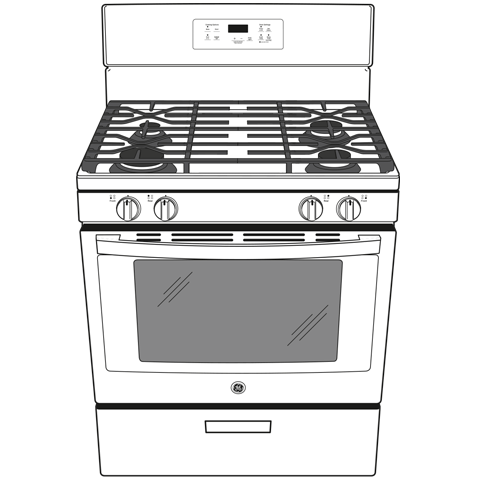

Product Details for GE JGBS61DPBB

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

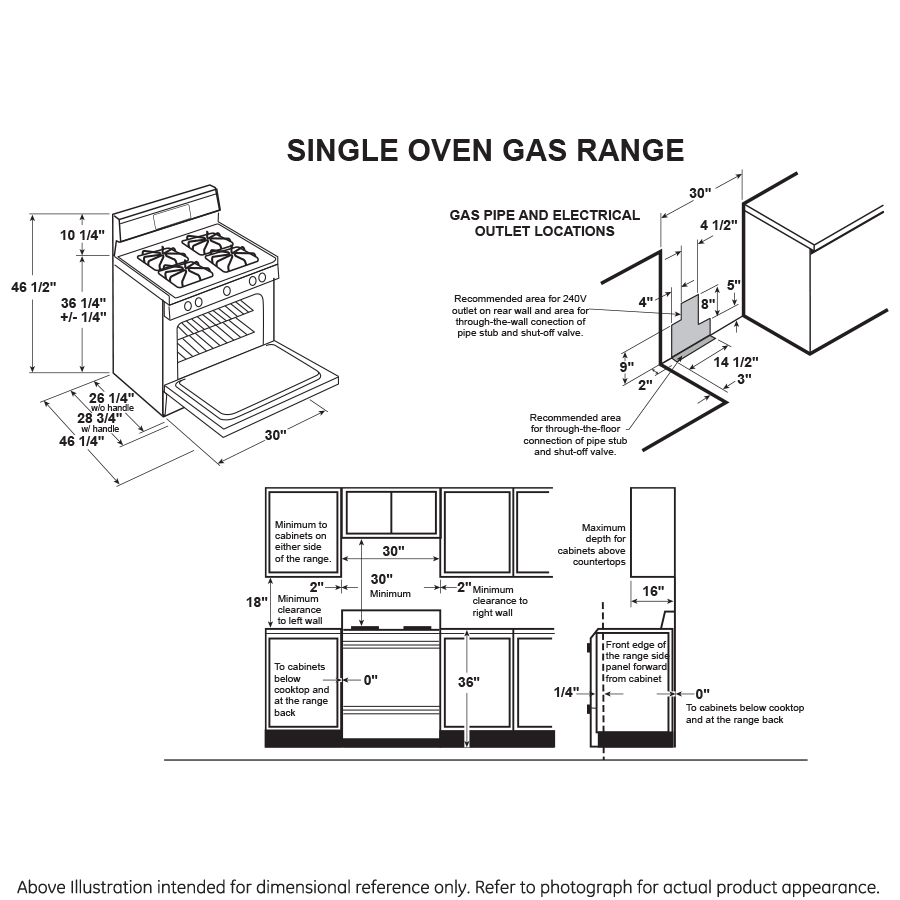

Weights & dimensions

Overall Width 30 in
Overall Height 46.25 in
Overall Depth 28.75 in
Net Weight 150 lb
Depth Without Handle 26.25 in
Cabinet Width 30 in
Approximate Shipping Weight 172 lb
Depth with Door Open 46.25 in
Oven Interior Dimensions (W x H x D) (in.) 24 x 18-1/2 x 19
Height to Cooking Surface (in.) 36 - 36.25

Other

Oven Interior Dimensions (W x H x D) (in.) 24 x 18-1/2 x 19

Dimensions & weight

Width 30 in.
Height 46.25 in.
Length 28.75 in.
Weight 150 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 35 in.
Shipping Height 51.25 in.
Shipping Length 33.75 in.
Shipping Weight 190 lbs.
Total of Shipping Weight 190 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 23.08 ft³
Dimensional Weight 286.98 lbs.
Total of Cubes 23.08 ft³
Total of Dimensional Weight 286.98 lbs.

Appearance

Cooktop Burner Grate Color Matte Black
Handle Designer Style
Oven Door Features Big View Oven Window
Control Knobs Gloss Black
Color Appearance Black

Features

Ignition System Electronic
Burner - Right Rear 5,000 BTU Precise Simmer
Oven Rack Features 2 Flat Nickel Racks
Burner - Left Rear 9,500 BTU
Oven Cleaning Type Standard Clean
Product Type Free-Standing Single Oven
Cooktop Type Standard Grates
Cooktop Burner Grate Material Heavy Steel
Fuel Type Natural Gas
Interior Oven Light 1 Incandescent
Control Location Front
Cooktop Burner Grate Features Continuous Grates
Control Type Electronic Touch
Burner - Left Front 9,500 BTU
Drawer Type Broiler
Sabbath Mode Yes
Cooking Technology Traditional
Configuration Range with Broiler Drawer
OU Certified Embedded OU/CRC Enhanced Shabbos Mode
Cooktop Burner Type Sealed
Burner - Right Front 13,000 BTU
Oven Rack Positions (Single or Upper/Lower) 6
Cooktop Surface One-Piece Upswept
Oven Control Features Auto Oven Shut-Off
Oven Control Features Sabbath Mode
Cooktop Surface Porcelain-Enamel
Cooktop Surface Black
Oven Control Features Audible Preheat Signal
Oven Control Features Delay Bake Option
Oven Control Features Electronic Clock and Timer
Oven Control Features Hi / Low Broil
Oven Control Features Oven Control Lock Capability

Power / ratings

Top Burner BTU Rating - Nat. Gas (000's BTU's) (1) 13.0; (2) 9.5; (1) 5.0
Volts/Hertz/Amps 120v; 60Hz; 15A
Top Burner BTU Rating - LP (000's BTU's) (1) 12.0; (2) 9.5; (1) 5.0
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) 18.0 Bake / 18.0 Broiler
Bake/Broiler BTU Rating - LP (000's BTU's) 16.0 Bake / 16.0 Broiler

Warranty

Parts Warranty Limited 1-year entire appliance
Labor Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details

Accessories

LP Conversion Kit Included

Capacity

Total Capacity (cubic feet) 4.80 cu ft

Description

A powerful cooktop burner offers a wide range of temperature options for any cooking need.This burner setting provides low, even heat so delicate dishes don't burn.46 1/4 H x 30 W x 28 3/4 D


Product Features

  • Flexible broiling
    Broil in any size cookware with a flexible broiling element that can be set to hi or low based on your broiling needs
  • Broiler drawer
    A convenient broiler drawer provides hassle-free broiling while freeing up space in the oven
  • Delay bake
    Delay bake technology allows you to set up the oven to start preheating and baking at a later time

Key Features

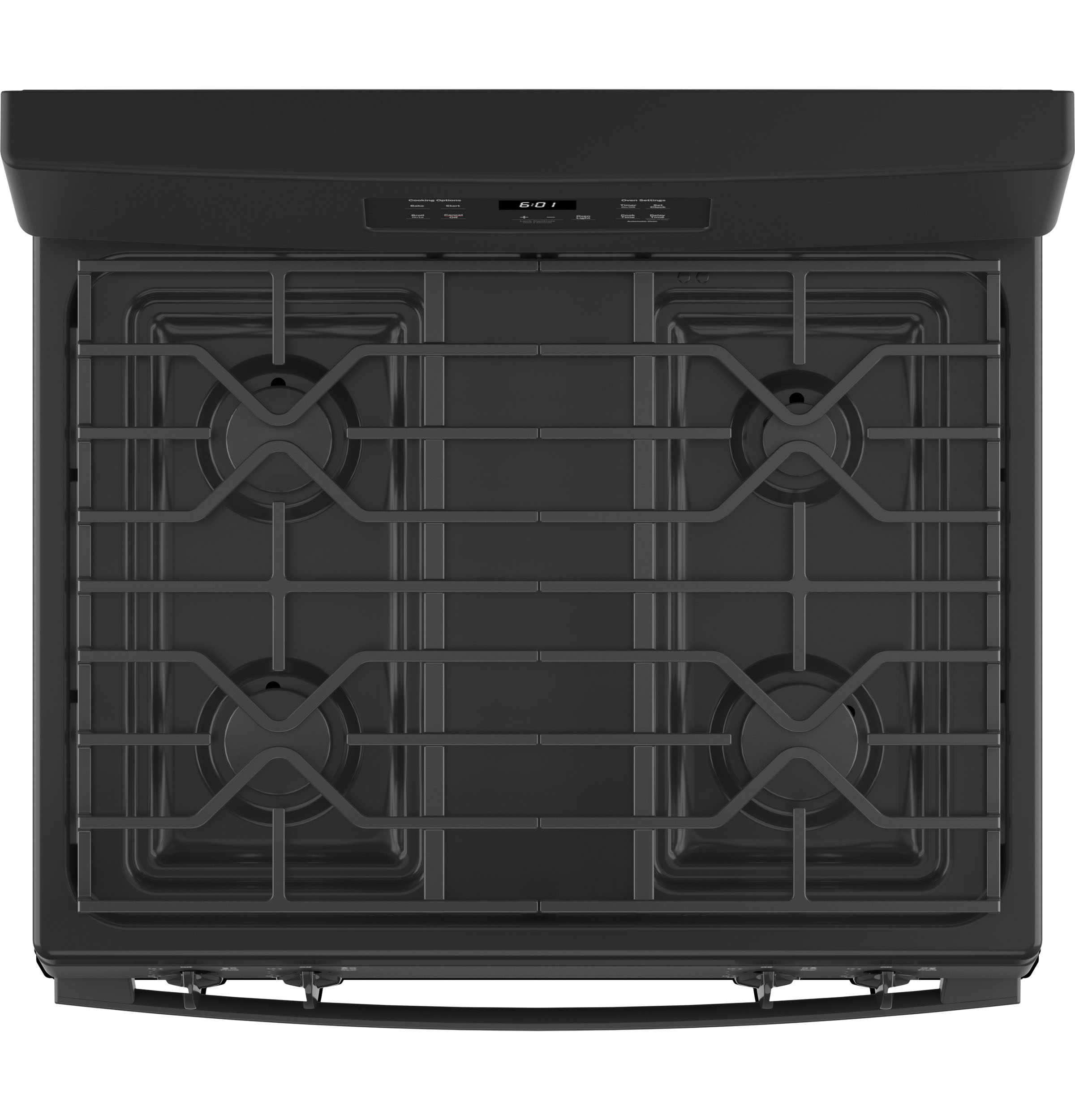

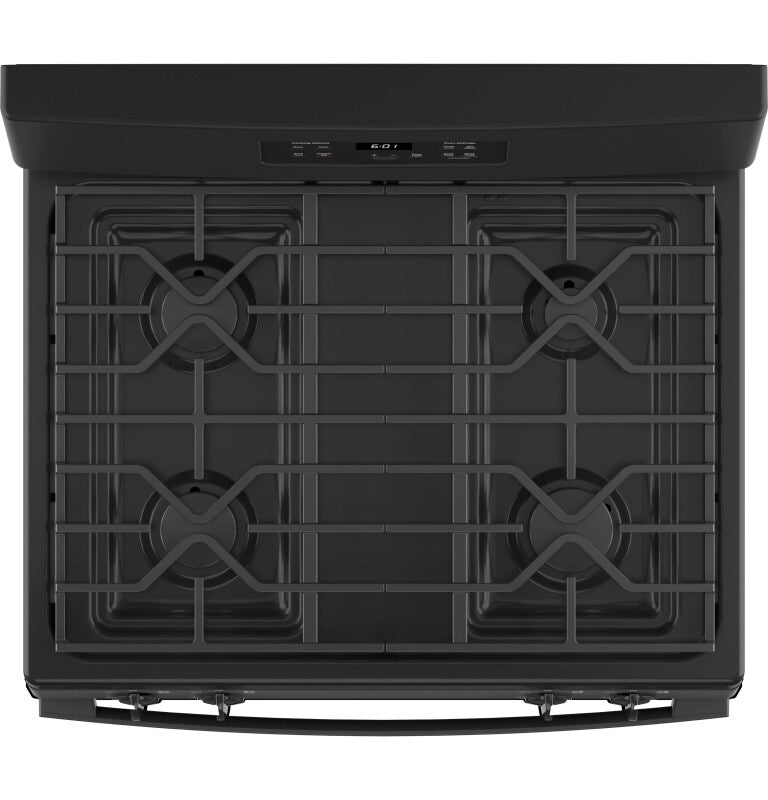

Continuous grates

Continuous grates give you a large cooking space and can handle any cookware

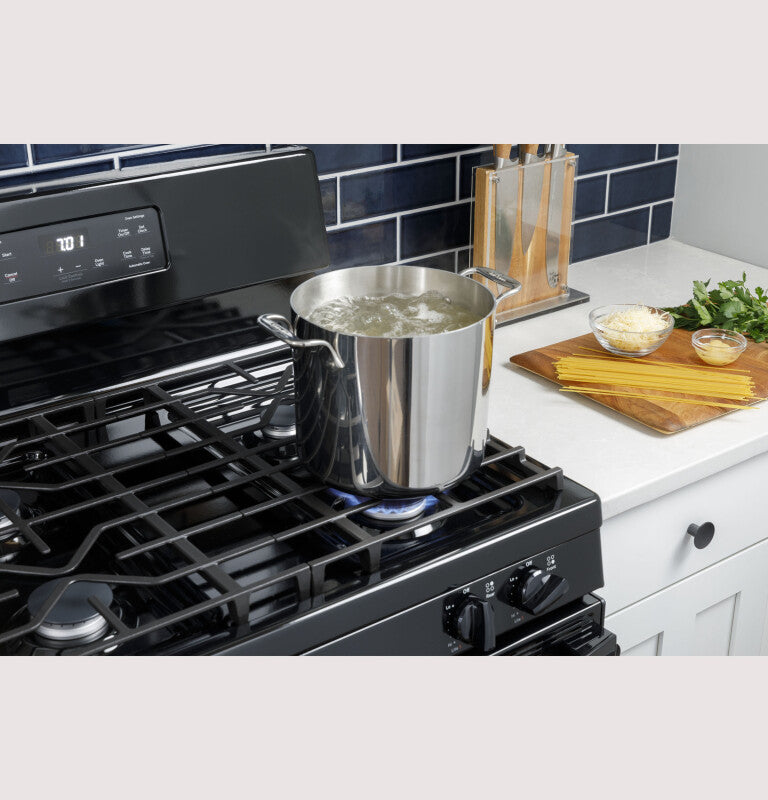

13,000-BTU burner

A powerful cooktop burner offers a wide range of temperature options for any cooking need

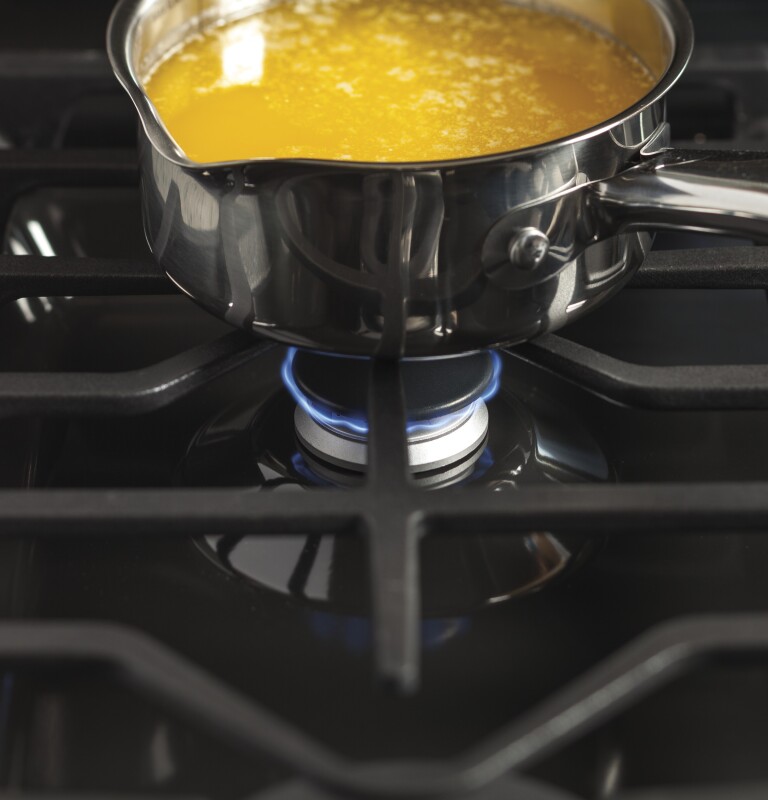

Precise simmer burner

This burner setting provides low, even heat so delicate dishes don't burn

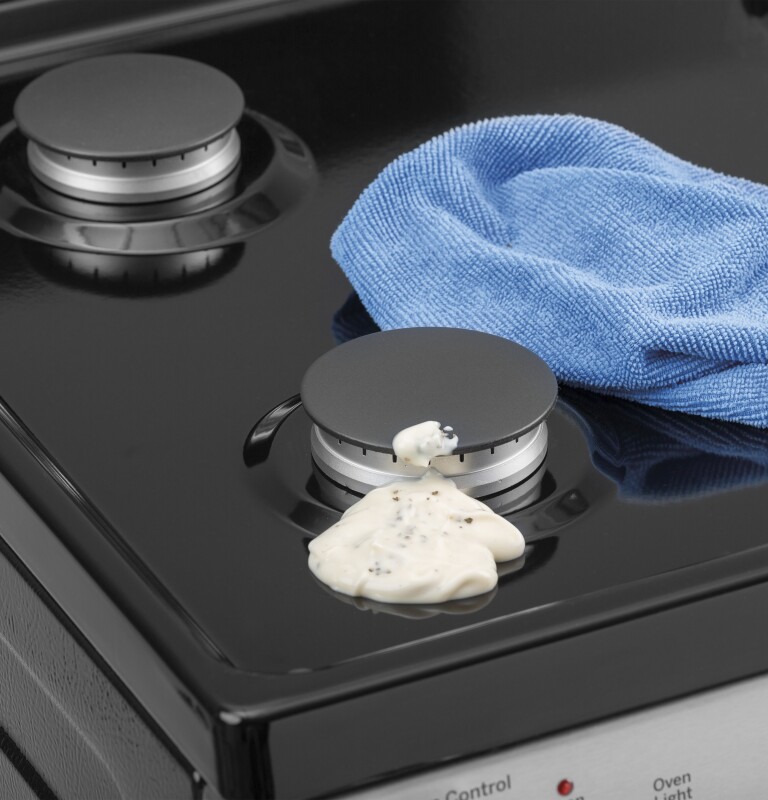

Sealed cooktop burners

Sealed cooktop burners contain cooking spills so cleanup is quick and easy

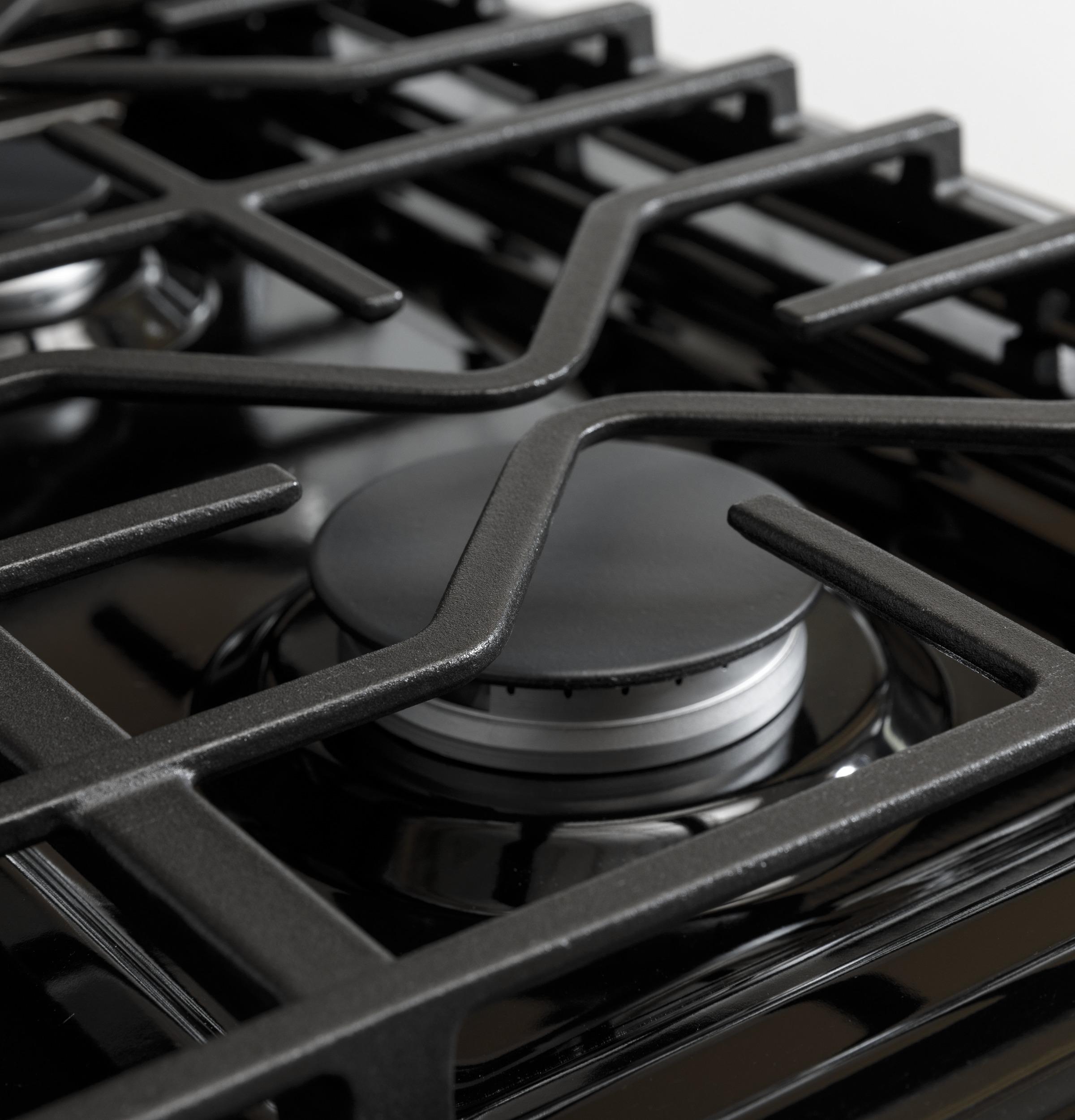

Black matte steel grates

The steel grates are coated with a durable, matte finish for a long-lasting and high end look

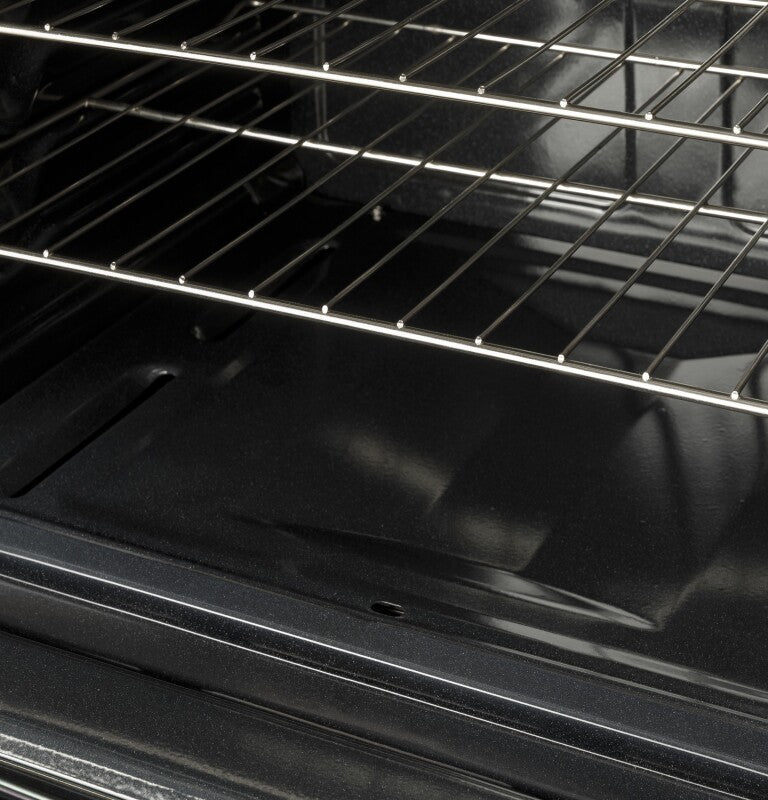

Standard clean oven

This oven features a smooth surface cavity that makes cleaning by hand quick and easy

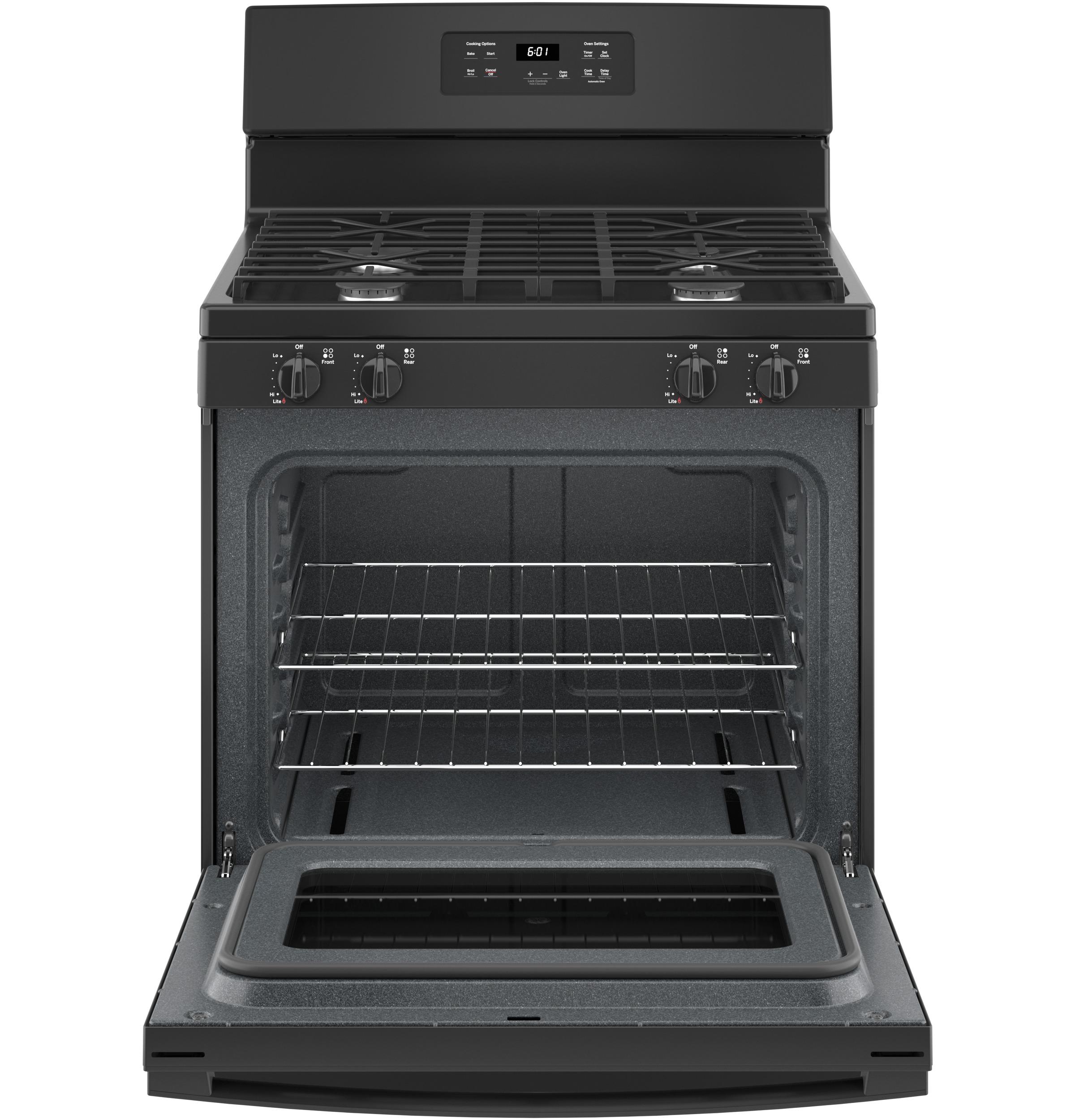

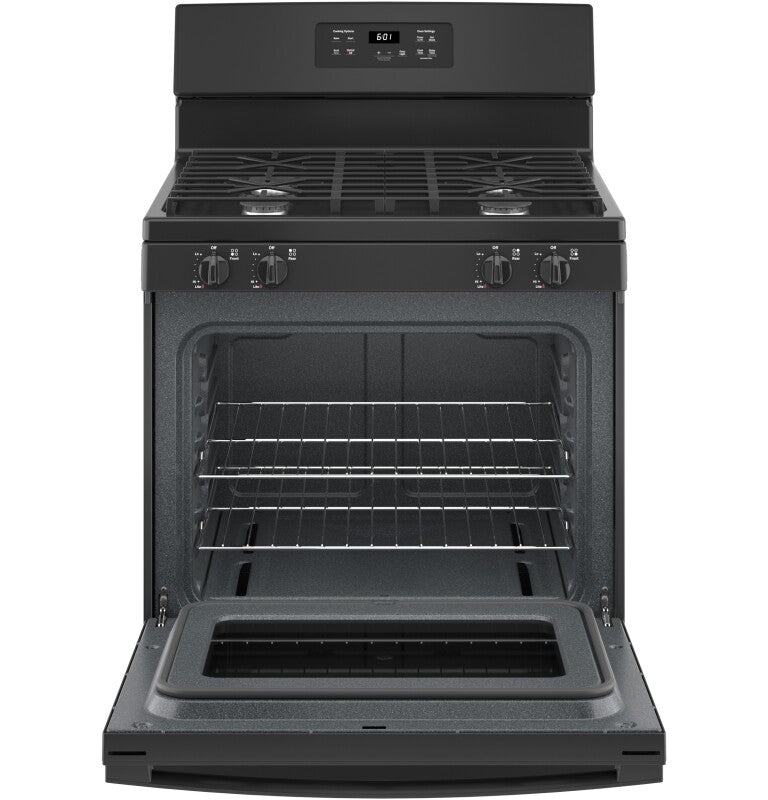

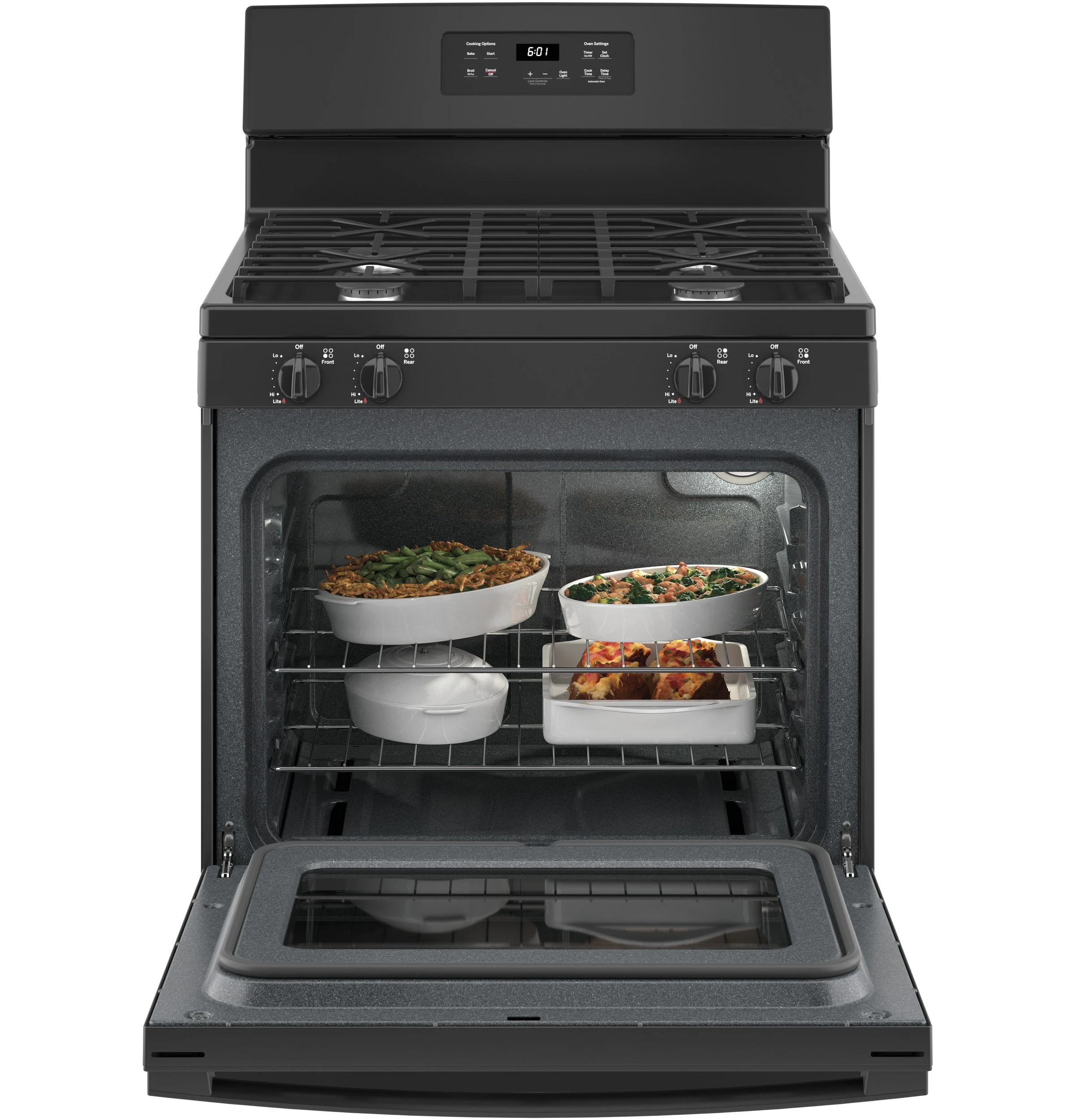

Large capacity oven

Cook an entire meal at once with a 4.8 cubic foot oven which provides enough room for multiple dishes
