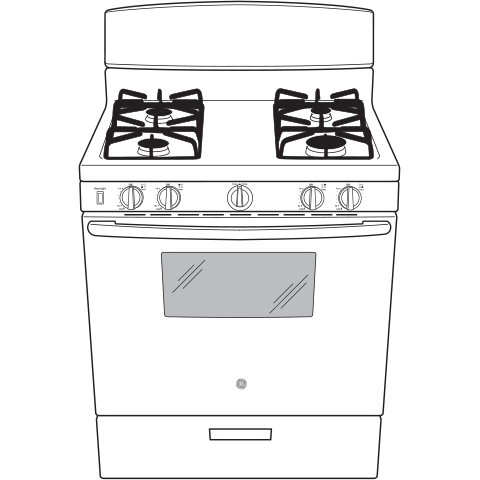

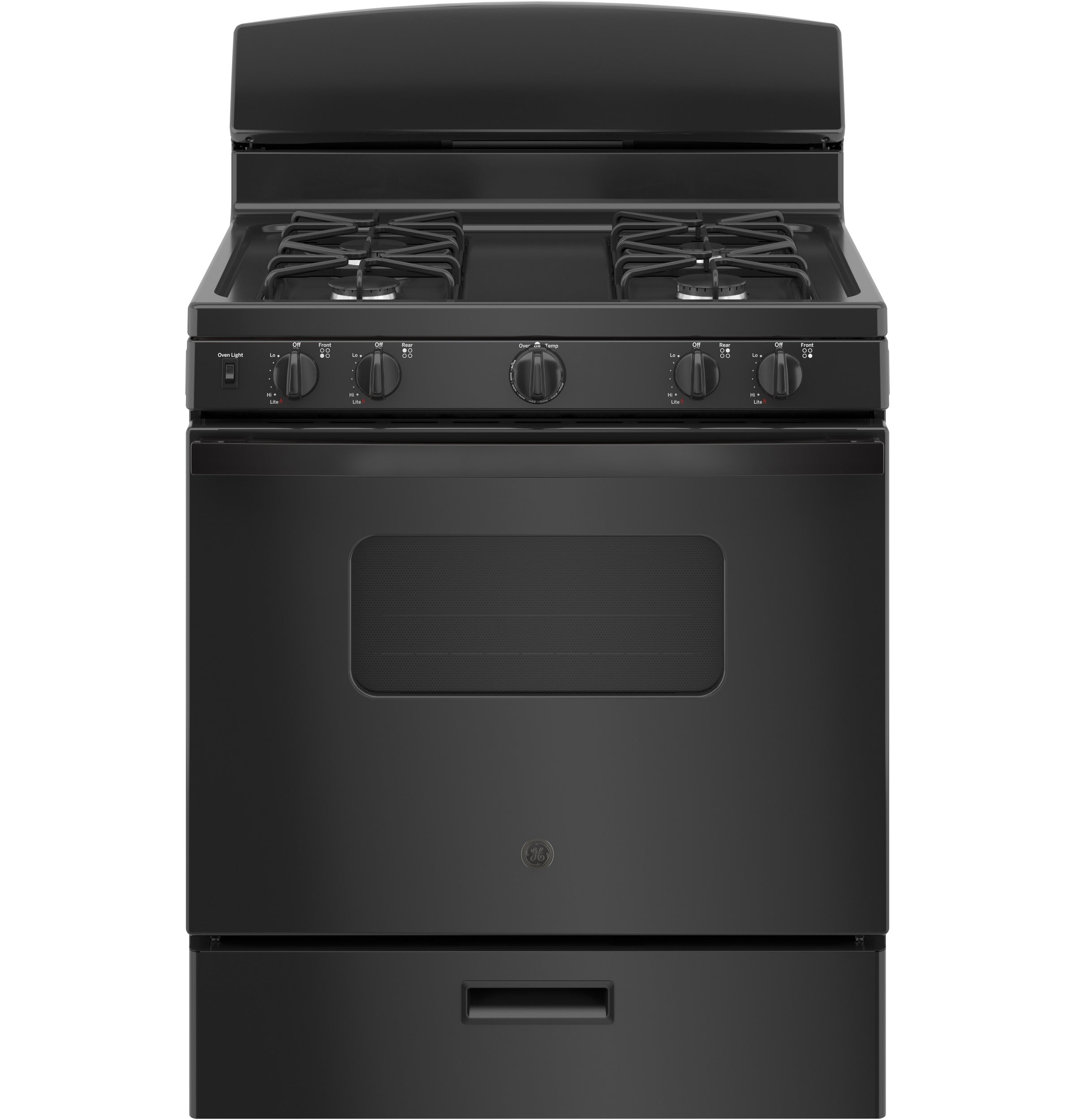

GE APPLIANCES JGBS10DEMBB GE® 30" Free-Standing Front Control Gas Range
- SKU: JGBS10DEMBB
- Height:46.25 Inch
- Length:28.75 Inch
- Width: 30 Inch
More on the way
Extend your appliance's warranty beyond the manufacturer's terms with our Extended Protection Plan.
Enjoy added peace of mind long after the original warranty expires.
This Protection Plan includes:
CAPACITY | |
Total Capacity (cubic feet) | 4.8 |
FILTER | |
App Filter - Cleaning Type | Manual |
App Filter - Control Type | Rotary knobs |
App Filter - Drawer Type | Broiler |
App Filter - Cooktop Type | Standard Grates |
App Filter - Voltage | 120V |
App Filter - Cooking Technology | Traditional |
App Filter - Cabinet Width | Cooking 30 in. (Standard) |
App Filter - Product Type | Ranges Free-Standing Single Oven |
App Filter - Convection | No |
App Filter - Fuel Type | Gas |
APPEARANCE | |
Control Knobs | Gloss Black |
Handle | Designer Style |
Cooktop Burner Grate Color | Black Gloss |
Oven Door Features | Oven Window |
Color Appearance | Black |
POWER / RATINGS | |
Top Burner BTU Rating - LP (000's BTU's) | (2) 9.5; (1) 12.0; (1) 5.0 |
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 Bake / 18.0 Broiler |
Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 12.5; (2) 9.5, (1) 5.0 |
Volts/Hertz/Amps | 120v; 60Hz; 15A |
Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 16.0 Broiler |
WARRANTY | |
Warranty Notes | See written warranty for full details |
Parts Warranty | Limited 1-year entire appliance |
Labor Warranty | Limited 1-year entire appliance |
ACCESSORIES | |
LP Conversion Kit | Included |

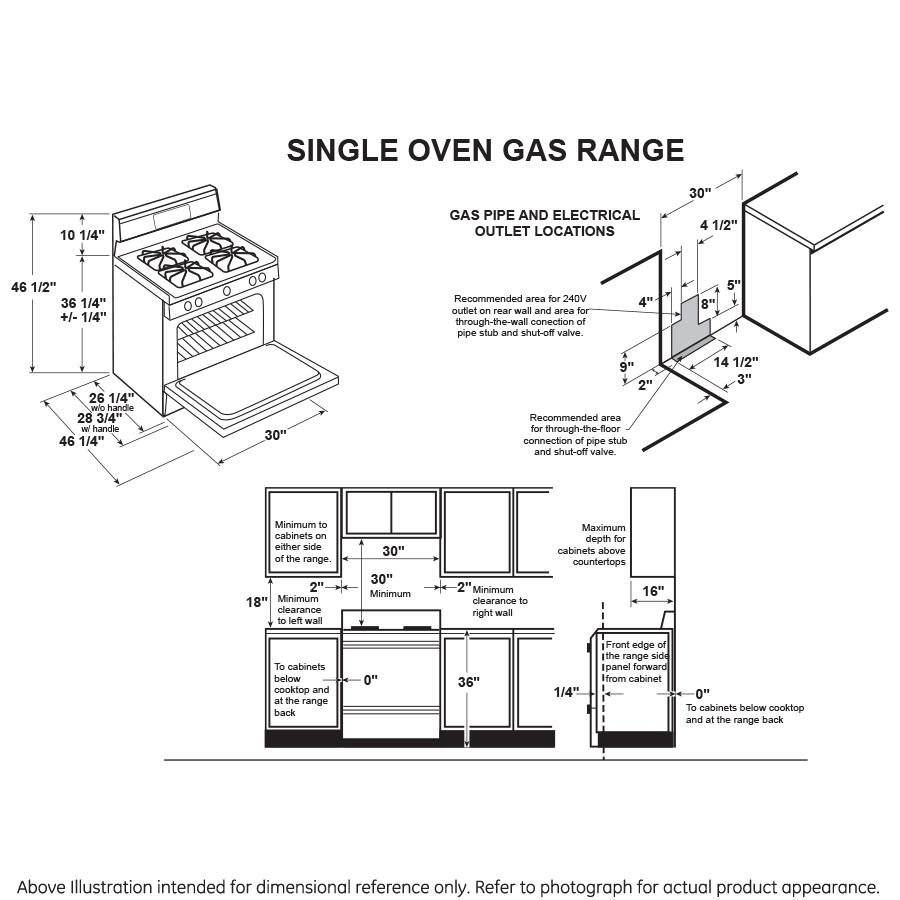

WEIGHTS & DIMENSIONS | |
Net Weight | 145.0 |
Height to Cooking Surface (in.) | 36 - 36 1/2 |
Depth Without Handle | 26.25 |
Overall Depth | 28.75 |
Depth with Door Open | 46.25 |
Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
Overall Width | 30.0 |
Overall Height | 46.25 |
Approximate Shipping Weight | 165.0 |
Cabinet Width | 30.0 |
FEATURES | |
Burner - Right Front | 13,000 BTU |
Burner - Left Rear | 9,500 BTU |
Oven Cleaning Type | Standard Clean |
Cooktop Burner Type | Sealed |
Slide - Out Broiler Drawer | Drop Down Door |
Burner - Right Rear | 5,000 BTU Precise Simmer |
Valves (Degree of Turn) | 140 |
Oven Interior | 1 Incandescent Light |

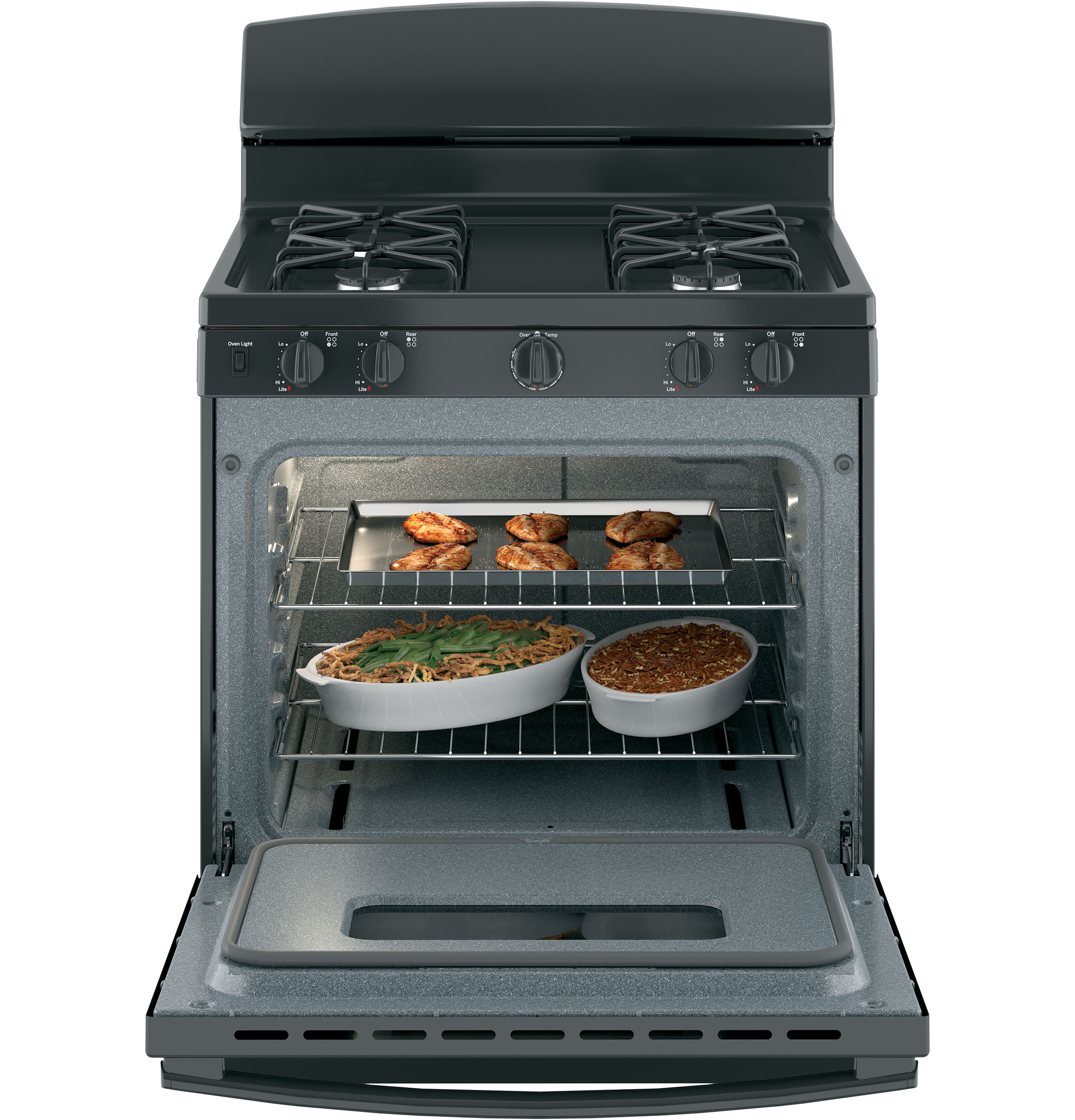

Oven Rack Features | 2 Flat Nickel Racks 6 Rack Positions |
Fuel Type | Natural Gas (factory set) |
Cooking Technology | Traditional |
Cooktop Surface | Lift-Up Porcelain-Enamel |
Configuration | Range with Broiler Drawer |
One-Piece Drip Pans | Optional Accessory |
Burner - Left Front | 9,500 BTU |
Cooktop Burner Grate Material | Heavy Steel |
Ignition System | Electronic |
Product Type | Free-Standing Single Oven |
Drawer Type | Broiler |
Cooktop Type | Standard Grates |
Control Location | Front |

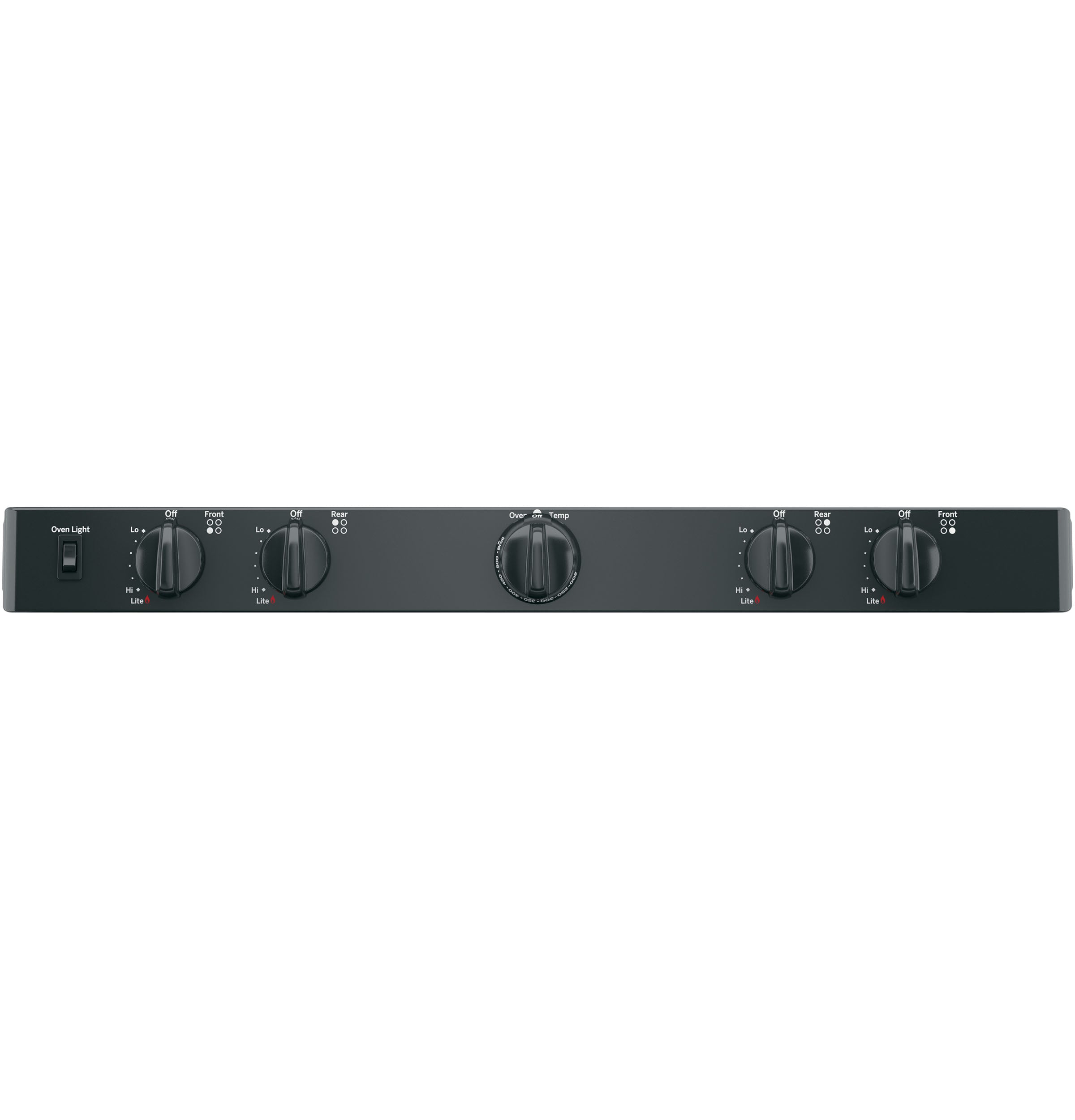

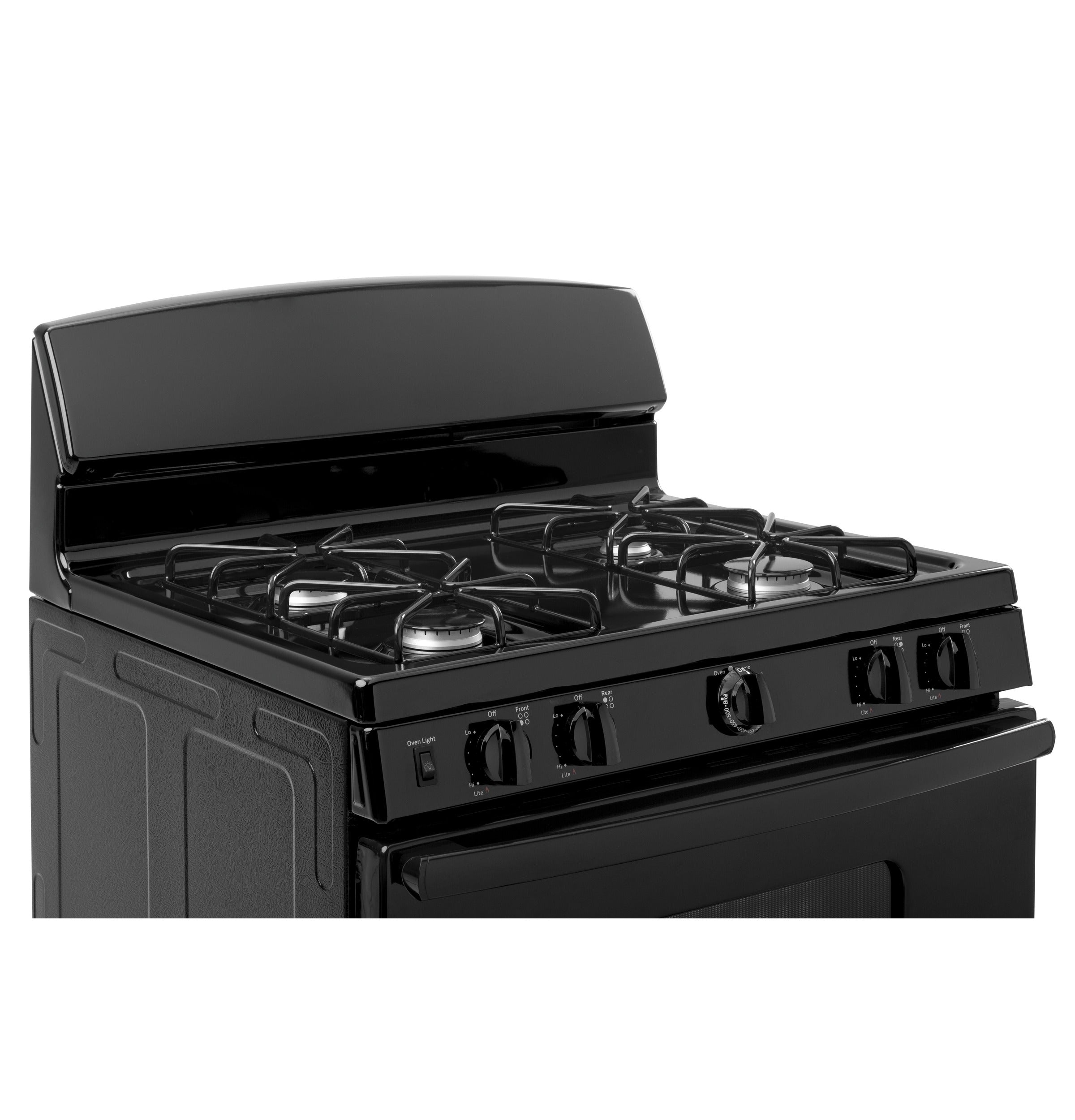

Easily-assessable controls make it simple to control the stovetop and oven

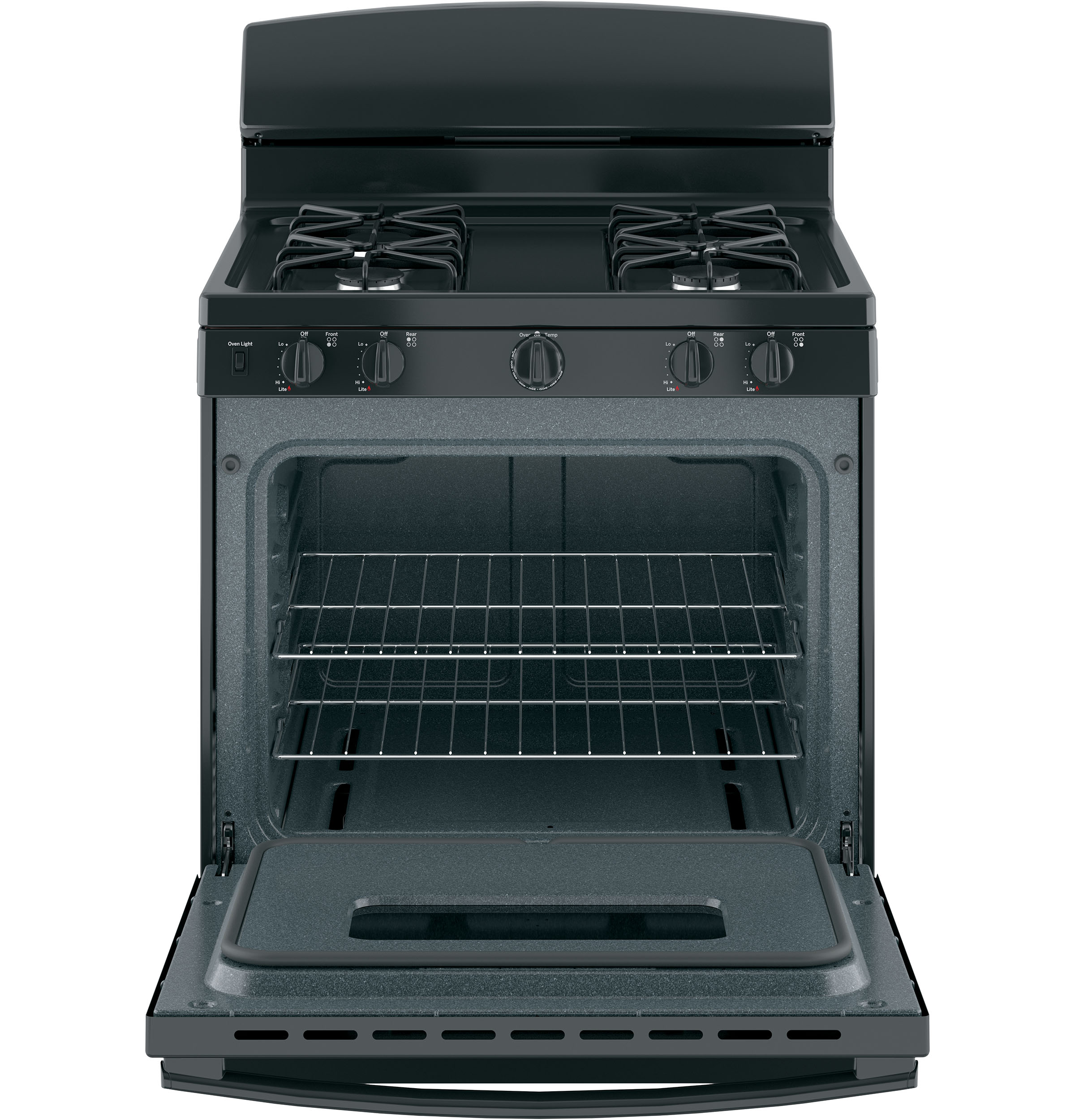

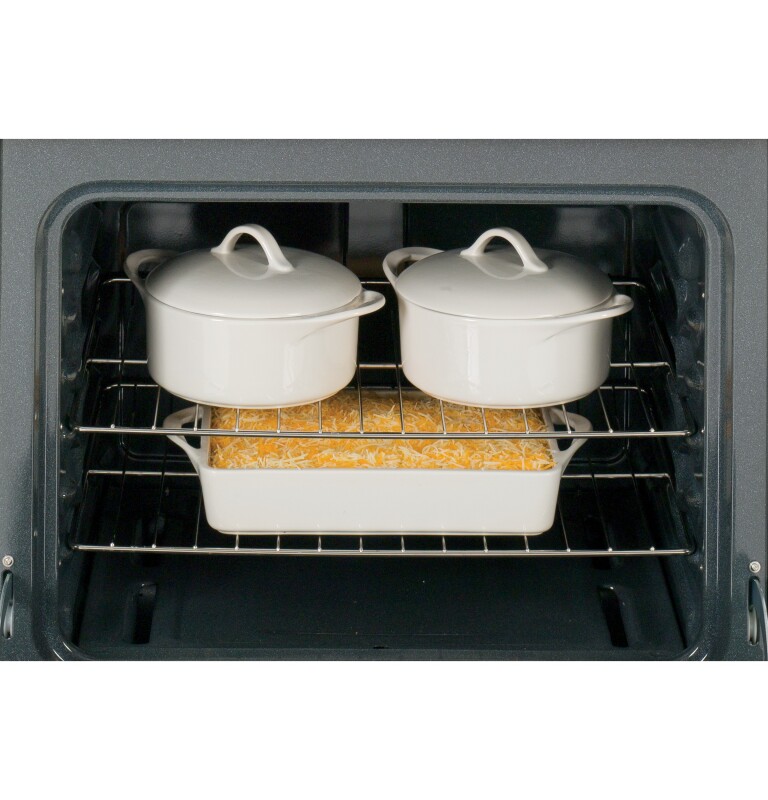

Enough room to cook an entire meal at once

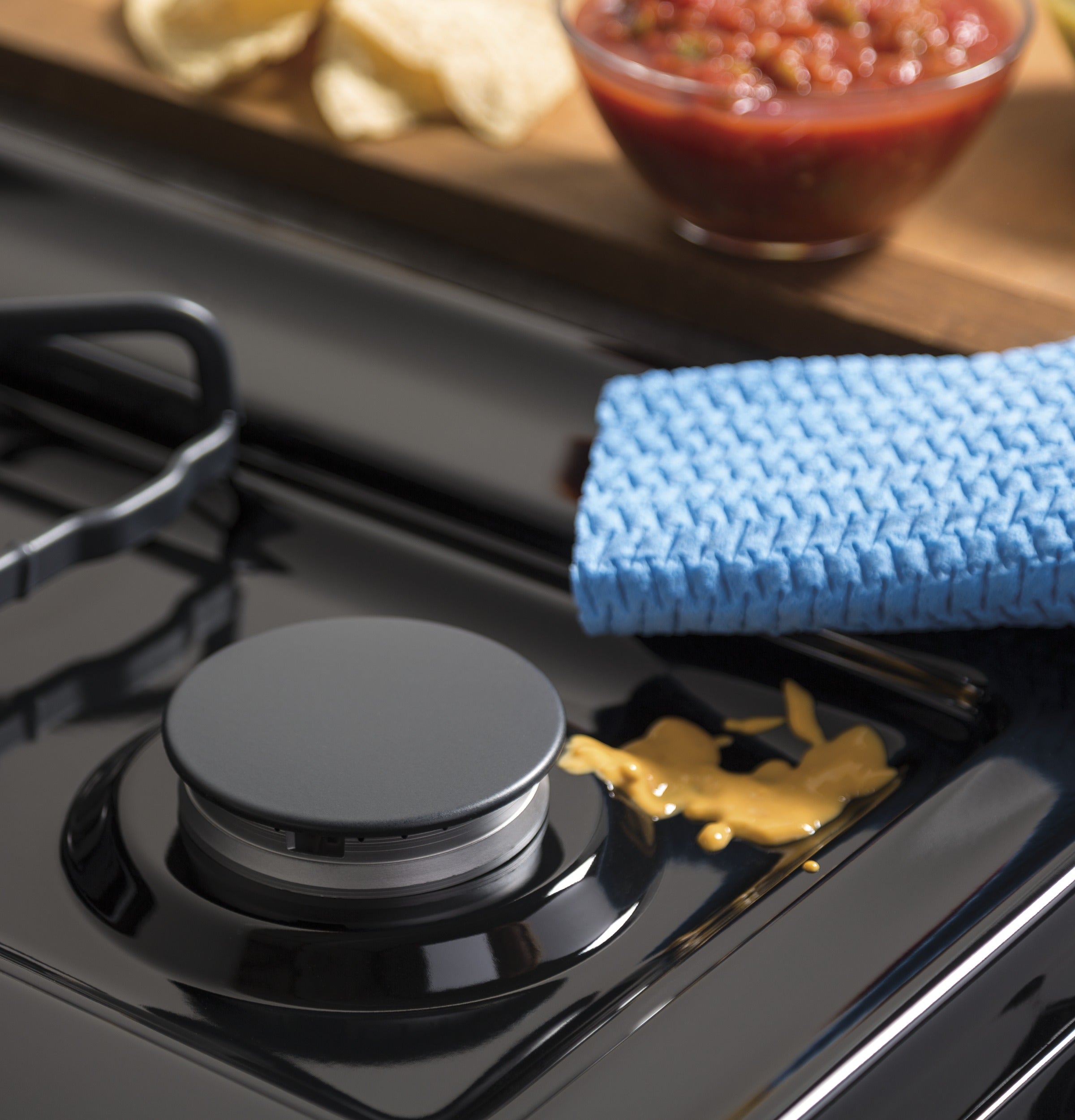

Contains spills and make cleaning quick and easy

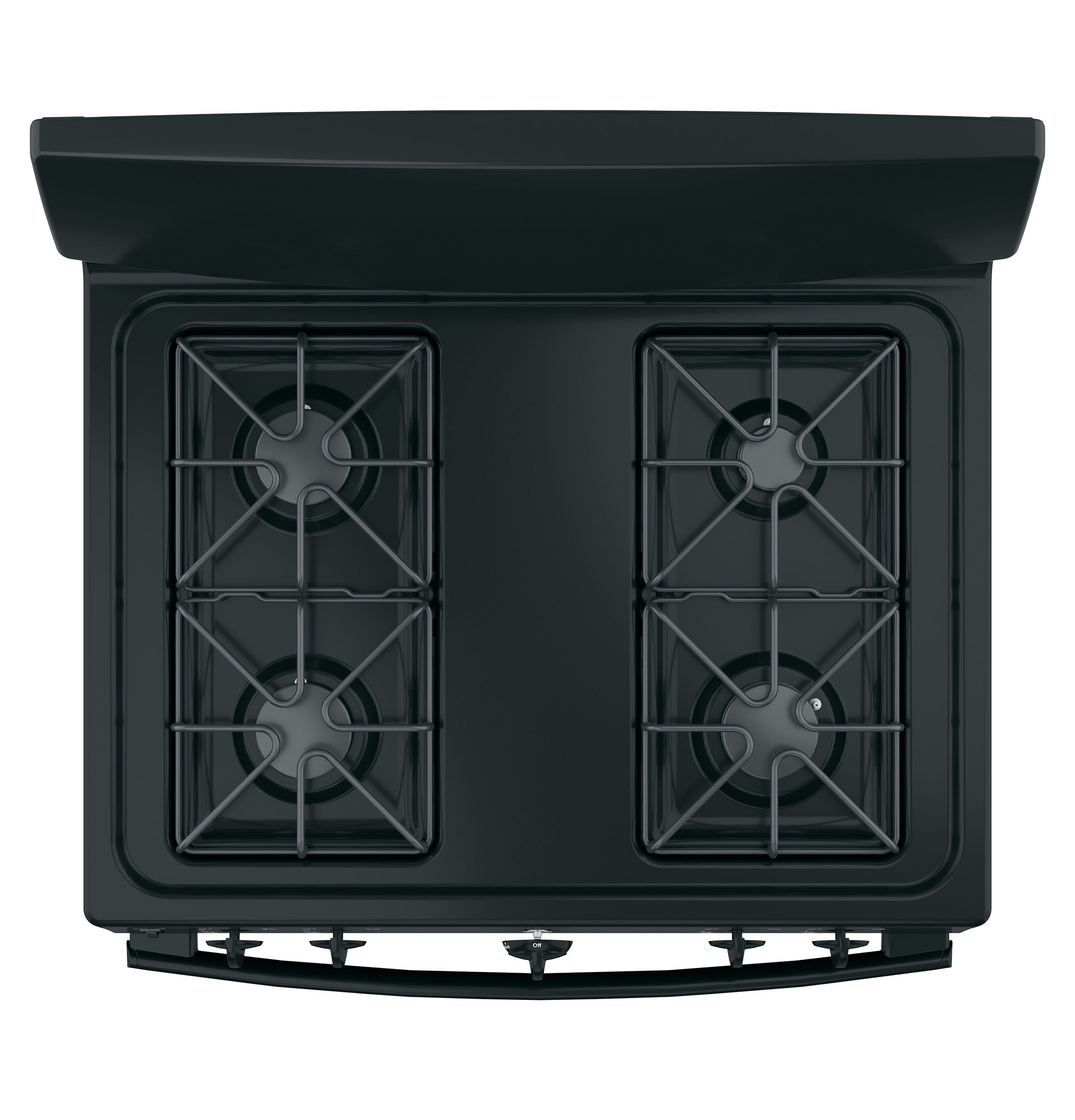

Durable grates are easy to clean and can hold a wide variety of cookware on the stove

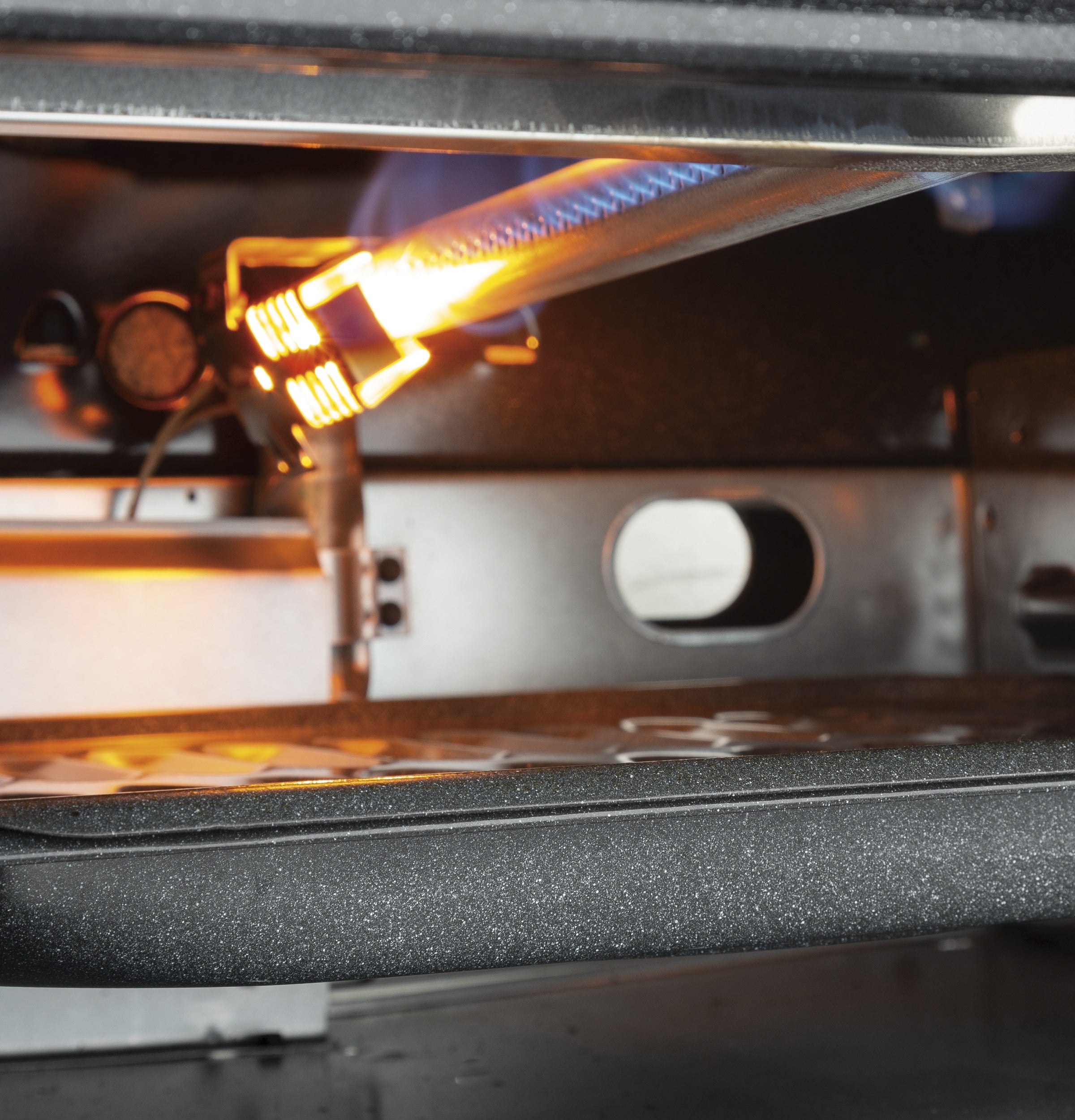

A versatile heating element allows for more cooking options in the oven

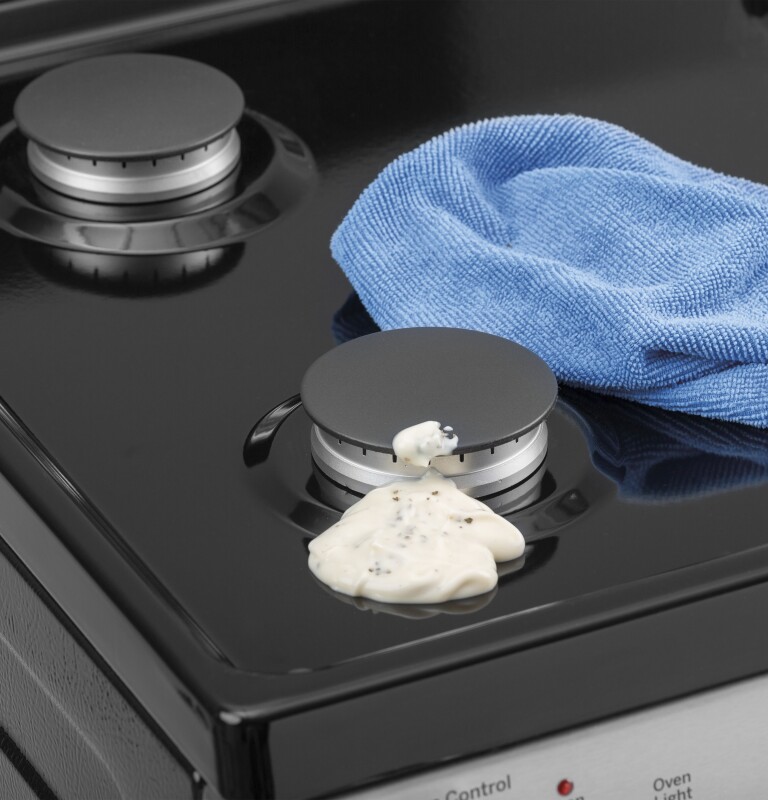

Smooth surface makes cleaning by hand easier
