Sale price $899.00 Regular price $1,598.97 Save $699.97 / 43% OFF

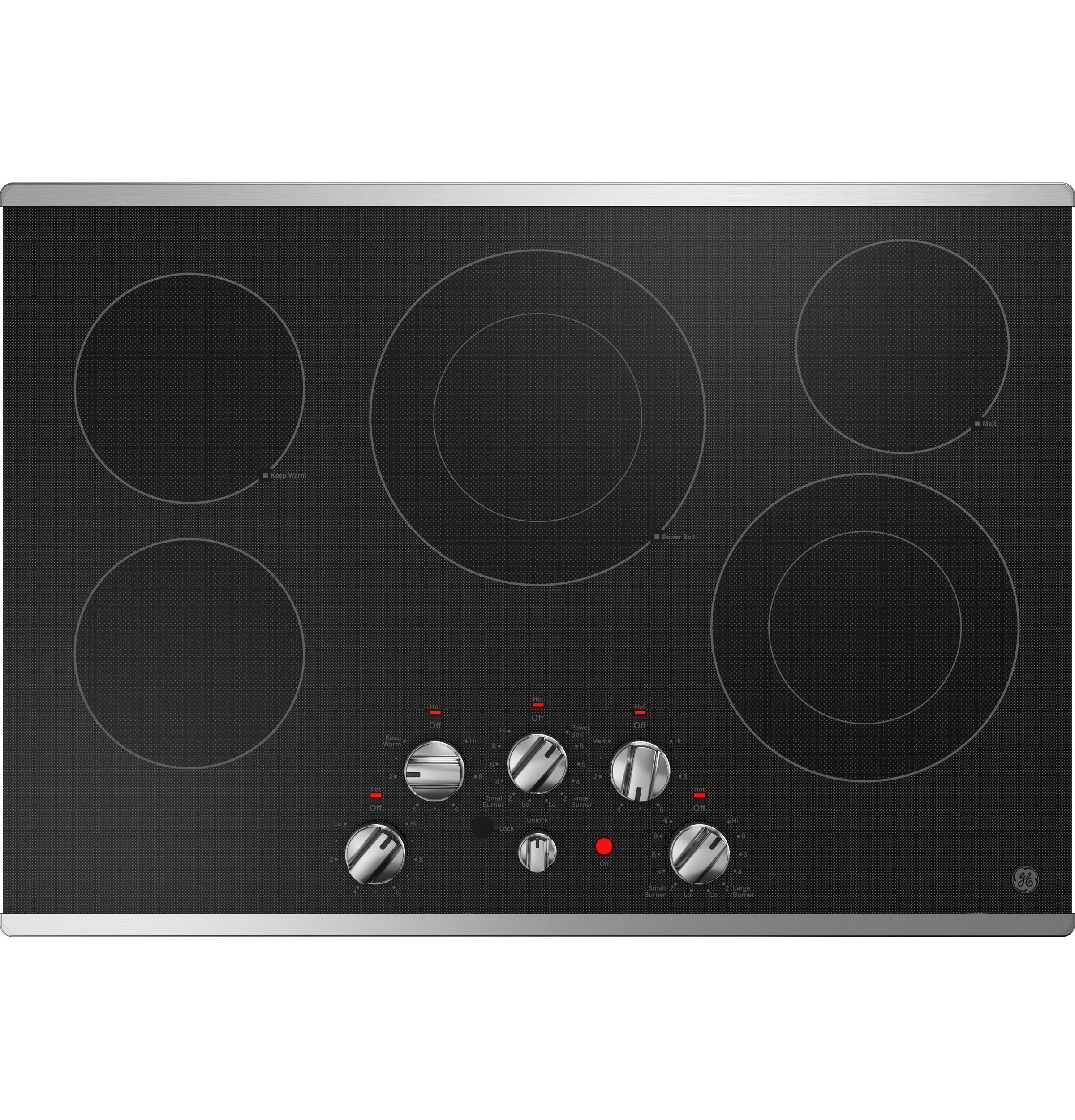

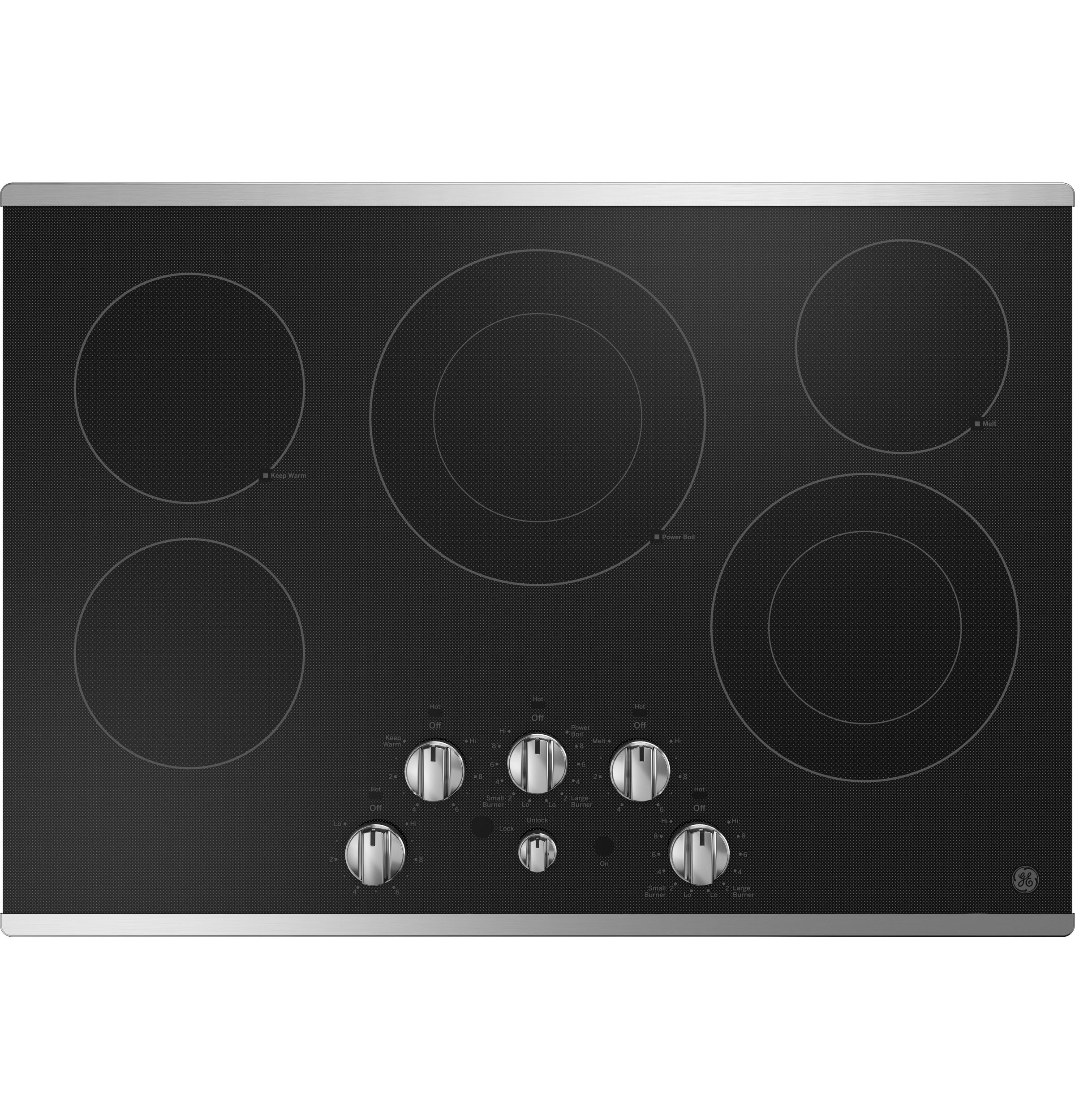

Product Details for GE JEP5030STSS

Technical Details

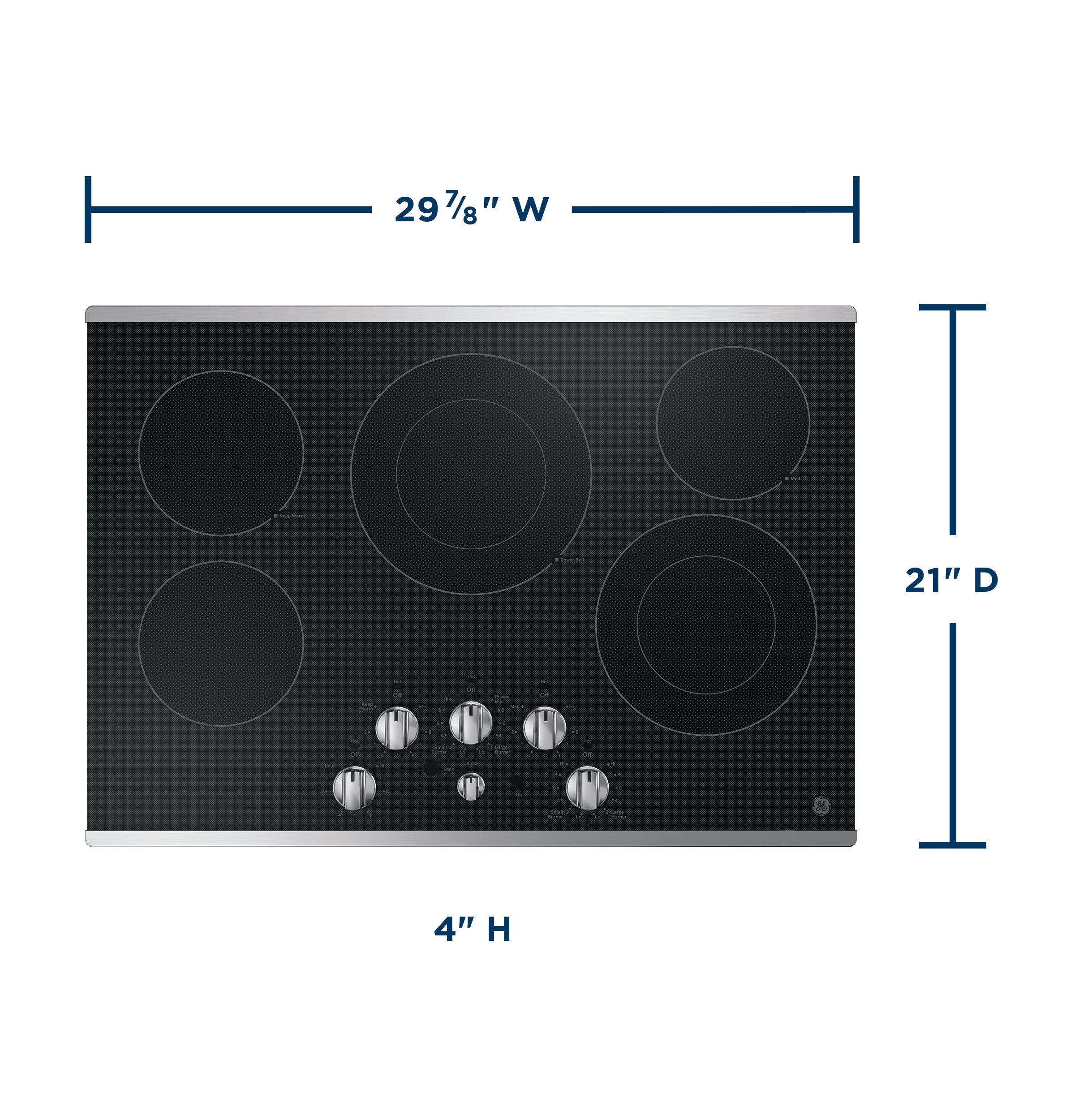

Weights & dimensions

Cutout Height (in) 4
Cooktop Size 30 in
Overall Height 3.25 in
Cabinet Width 30 in
Approximate Shipping Weight 40 lb
Overall Width 29.875 in
Net Weight 35 lb
Cutout Width (in) 28.5
Overall Depth 21.5 in
Cutout Depth (in) 19.625

Features

Filler trim kit JXTR32B (not included)
Cooktop Burner Type Smoothtop
Melt Setting Yes
Fuel Type Electric
Power Boil Burner Yes
Element - Left Front 7" 1500W
Indicator Lights Red
Dual Ring Burners Yes
Element - Right Front 8"/5" 2200W Dual-ring

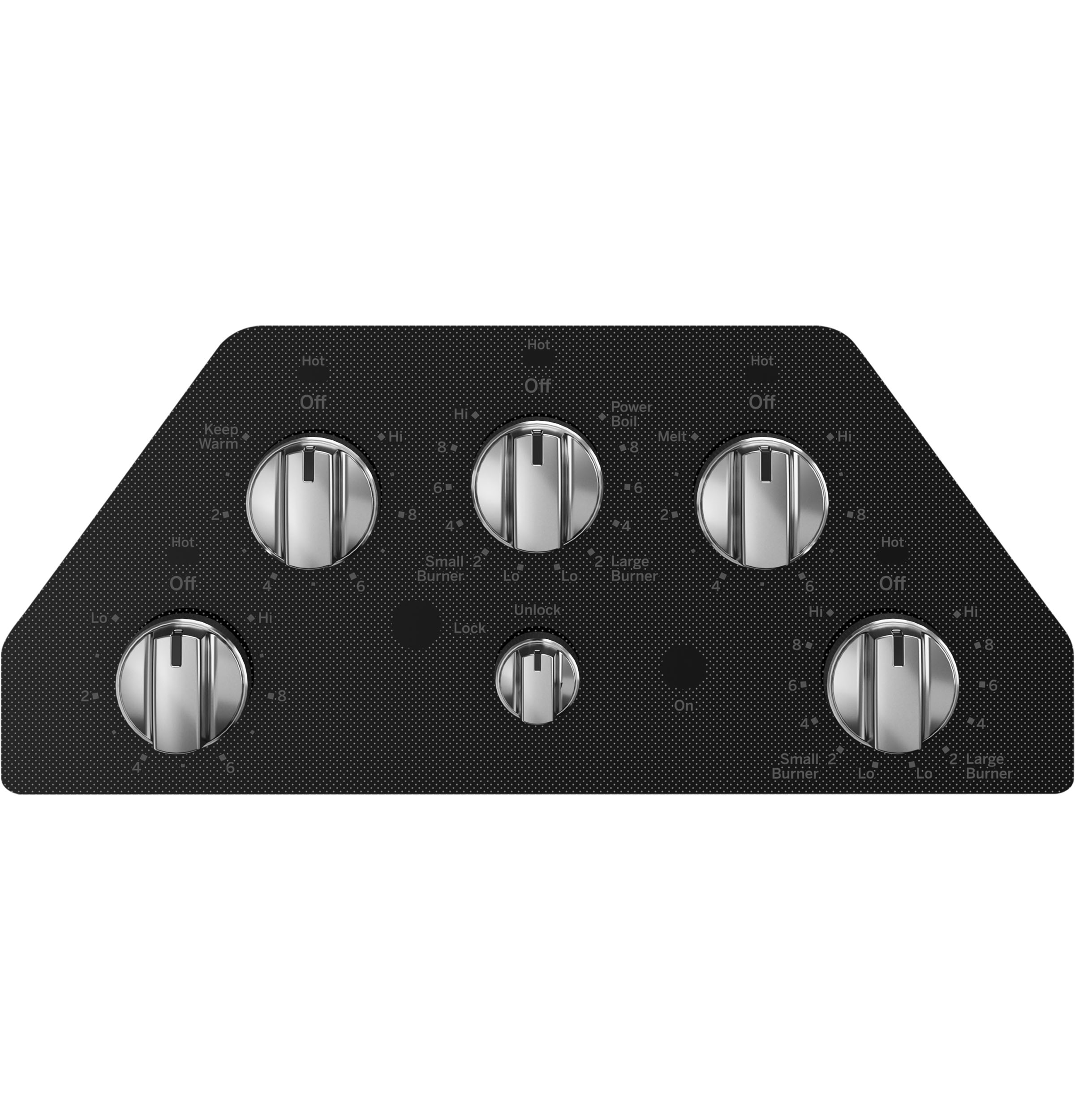

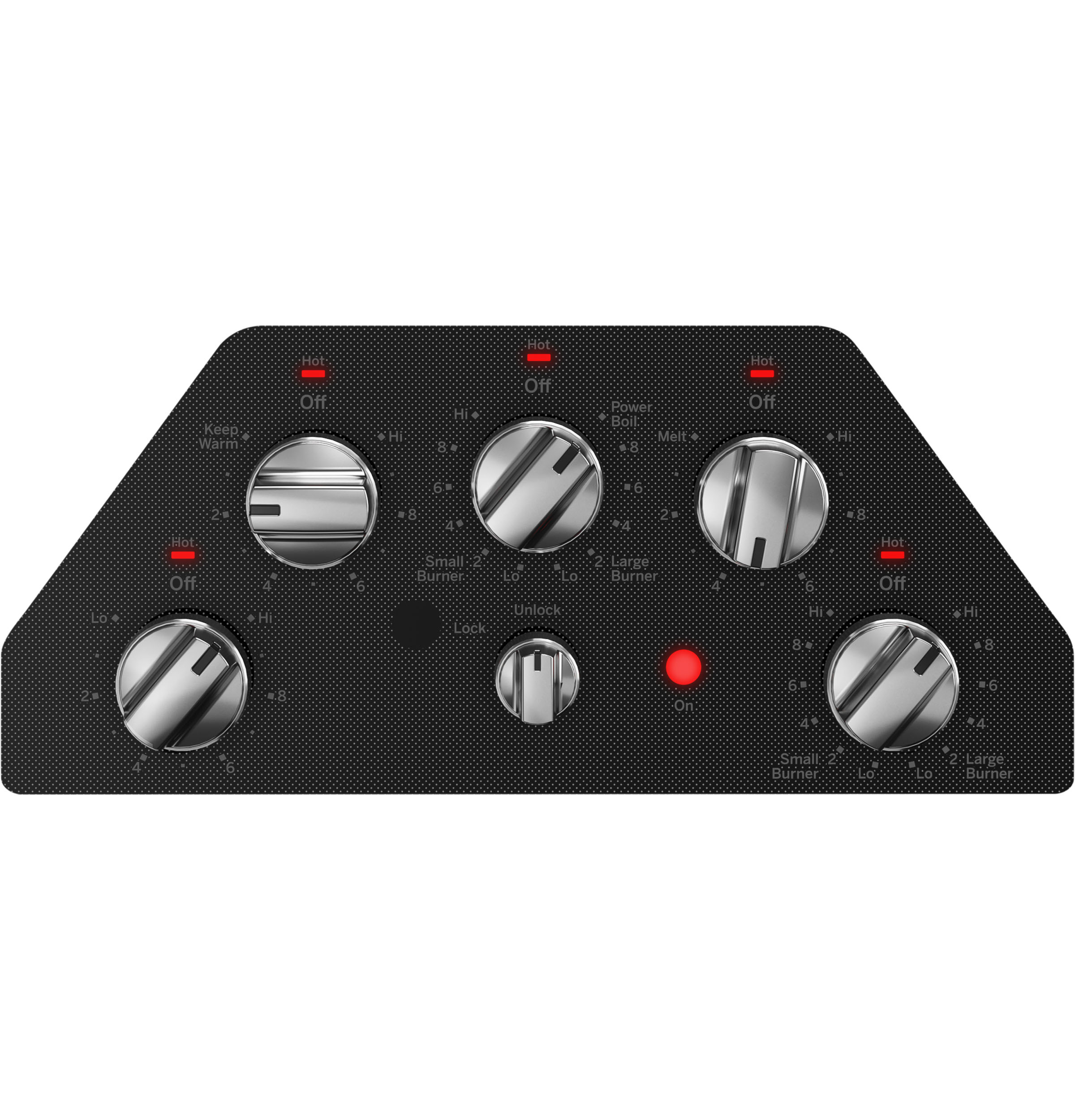

Control Location Front Center
Cooktop Type Radiant Smoothtop
Cooktop Control Features Melt Setting
Timer Yes
Element - Left Rear 7" 1500W (Keep Warm)
Control Type Knob (Infinite switch)
Element - Center 9"/6" 3100W Dual Ring Power Boil
Element - Right Rear 6" 1200W (Melt)
Product Type Cooktop
Cooktop Burner Type 5 Ribbon
Cooktop Control Features Keep-Warm Setting
Indicator Lights 5 Hot Surface
Indicator Lights Surface Element "ON"

Appearance

Frame Color / Material Stainless Steel
Color Appearance Stainless Steel
Control Knobs Stainless Steel Appearance

Power / ratings

Recommended Circuit Breaker (Amps) at 240V 40
Max. Connected Load (kW) at 240V 9.6
Hertz 60
Max. Current Draw (Amps) at 240V 40.0
Max. Connected Load (kW) at 208V 7.2
Electrical Requirements 208/240V ; 60Hz ; 40A
Recommended Circuit Breaker (Amps) at 208V 40
Max. Current Draw (Amps) at 208V 34.6

Warranty

Parts Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details
Labor Warranty Limited 1-year entire appliance

Description

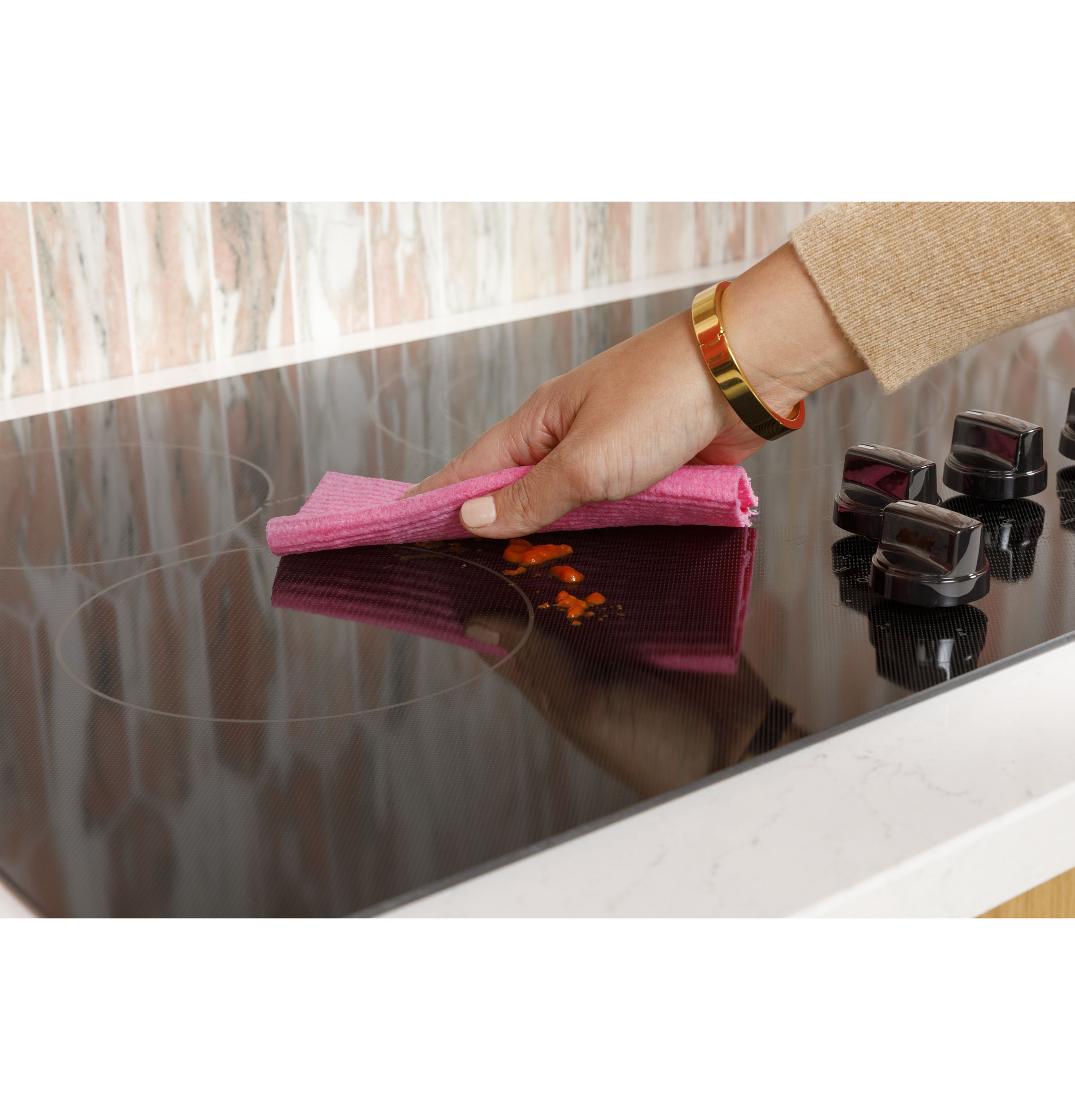

Easy Clean Surface
A smooth glass surface makes cleaning up messes simpler than ever on this easy clean electric cooktop

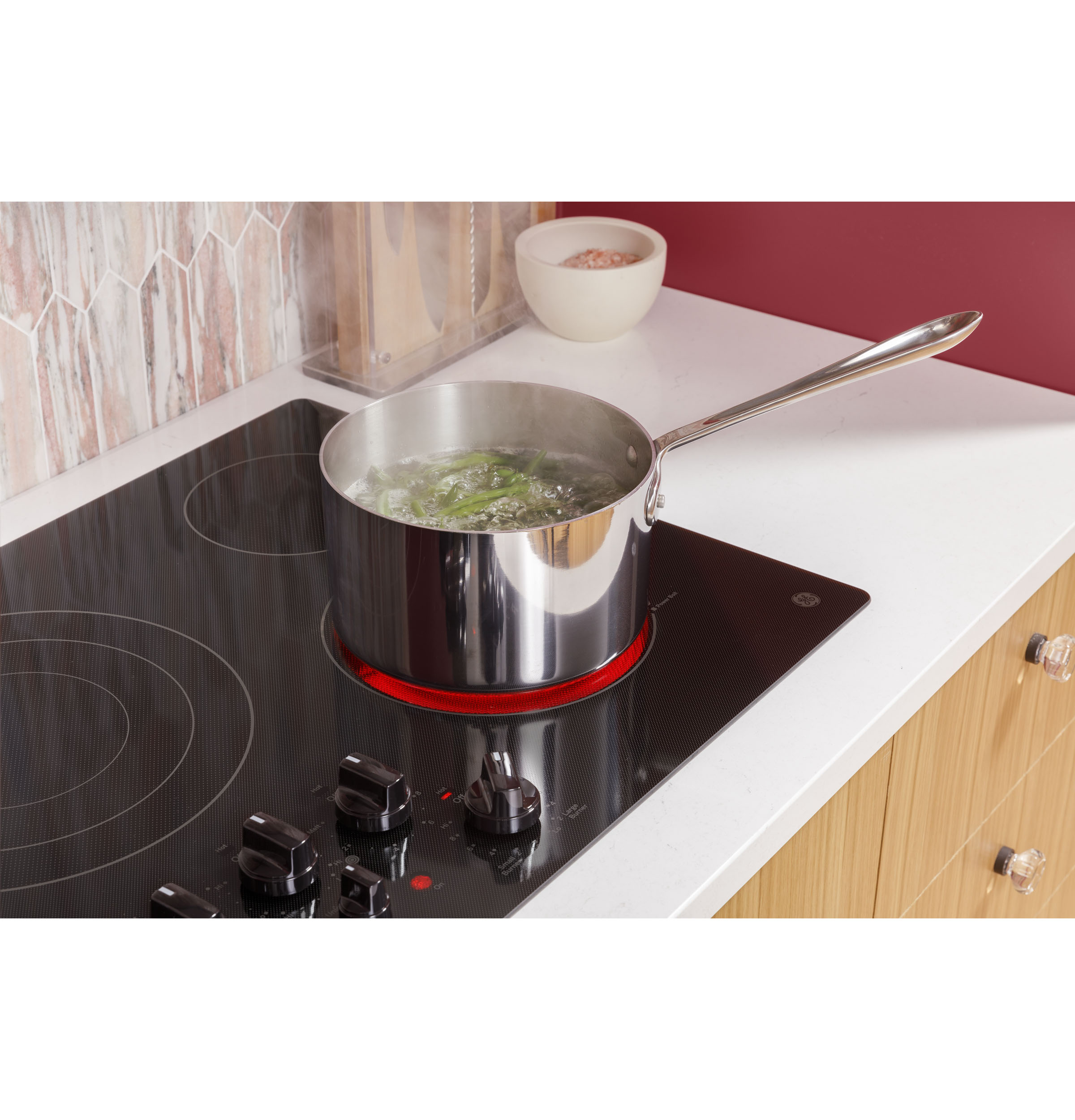

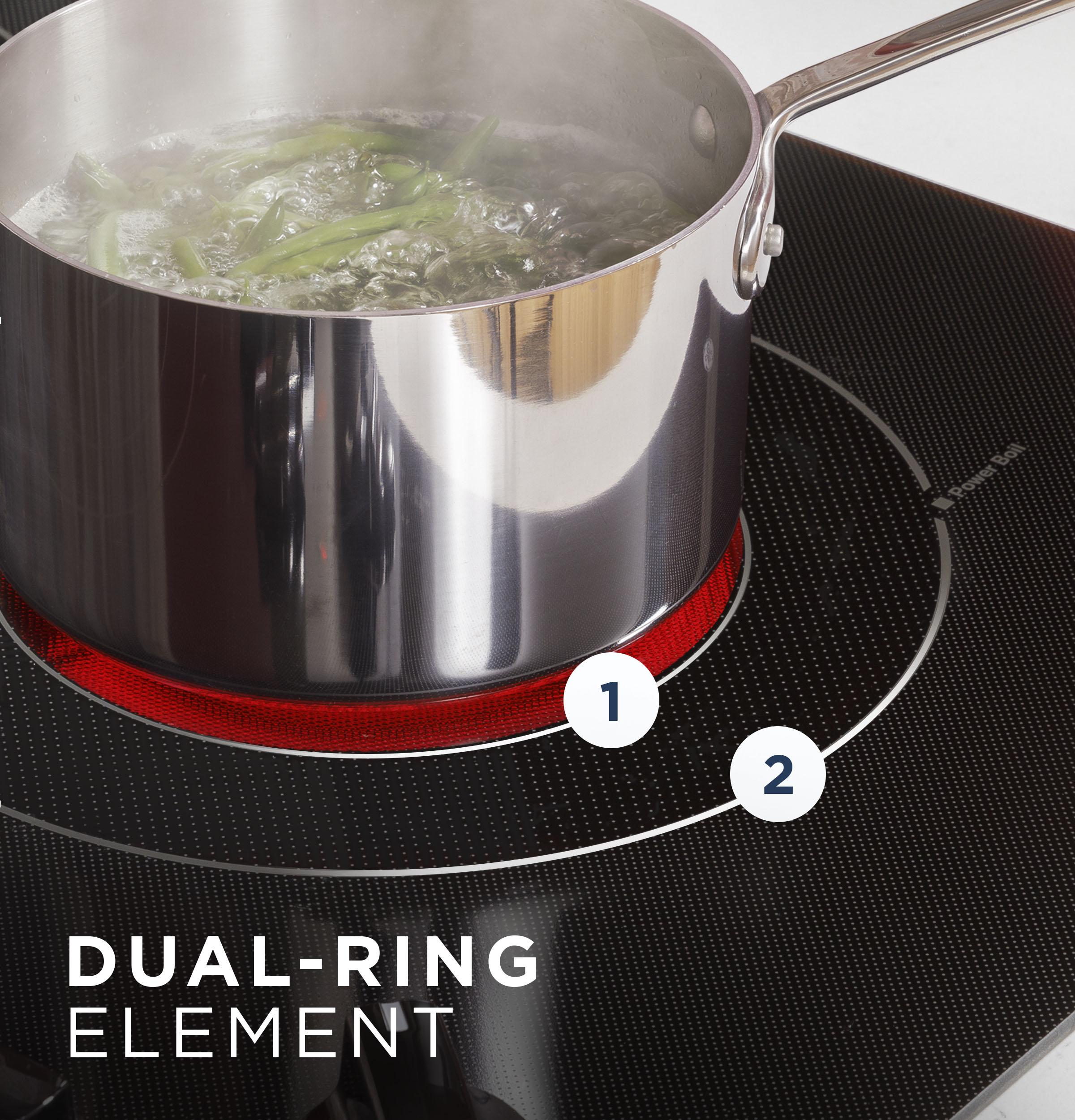

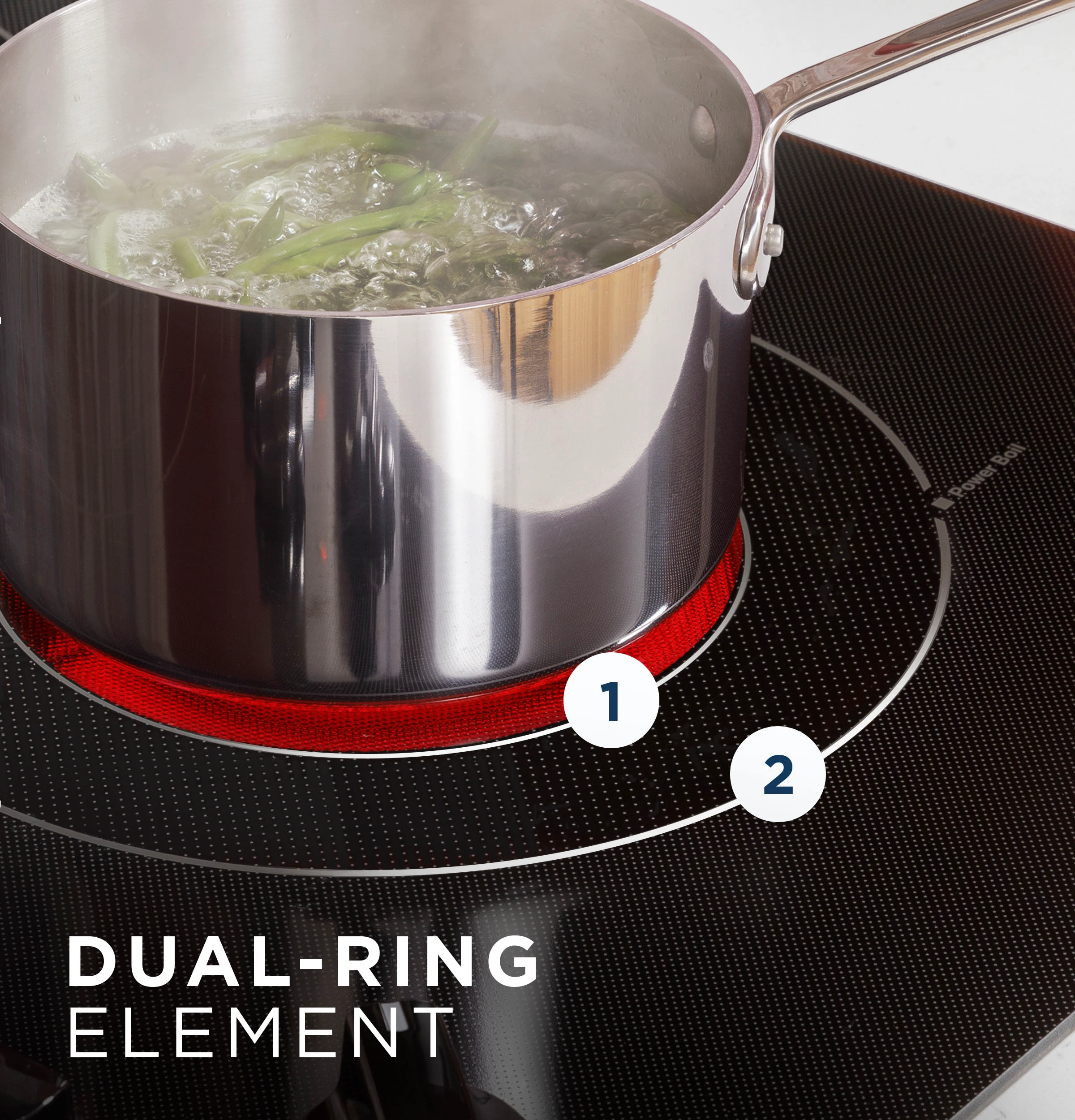

Power Boil on Dual-Ring Element (3,100W)
Cook faster with a variety of different pan sizes on this powerful rapid boil electric cooktop with a 3,100-watt flexible element

Additional Power Boil Dual-Ring Element (2,200W)
Cook more dishes quickly with an additional 2,200-watt flexible cooking element that rapidly boils water in different pan sizes

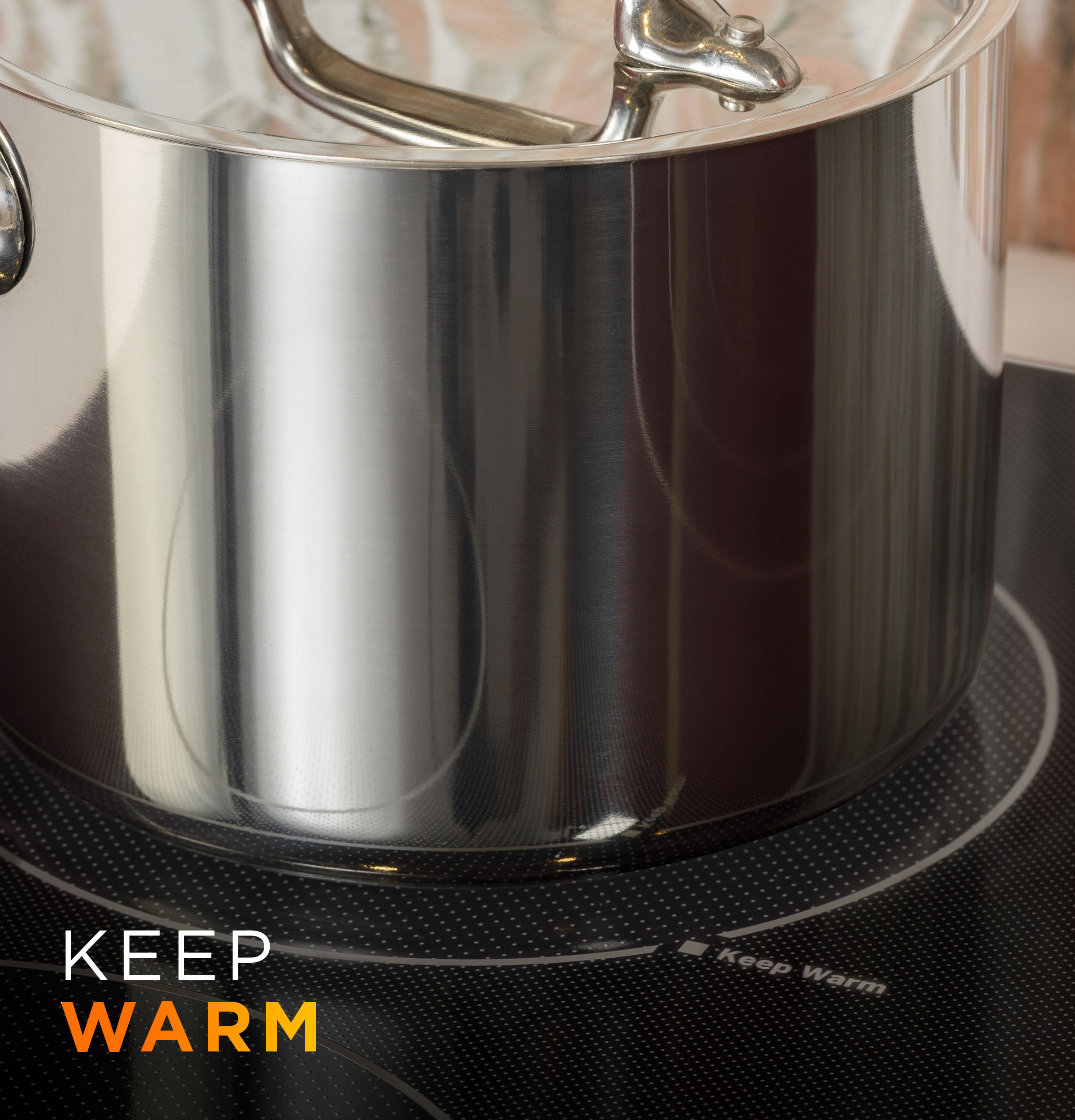

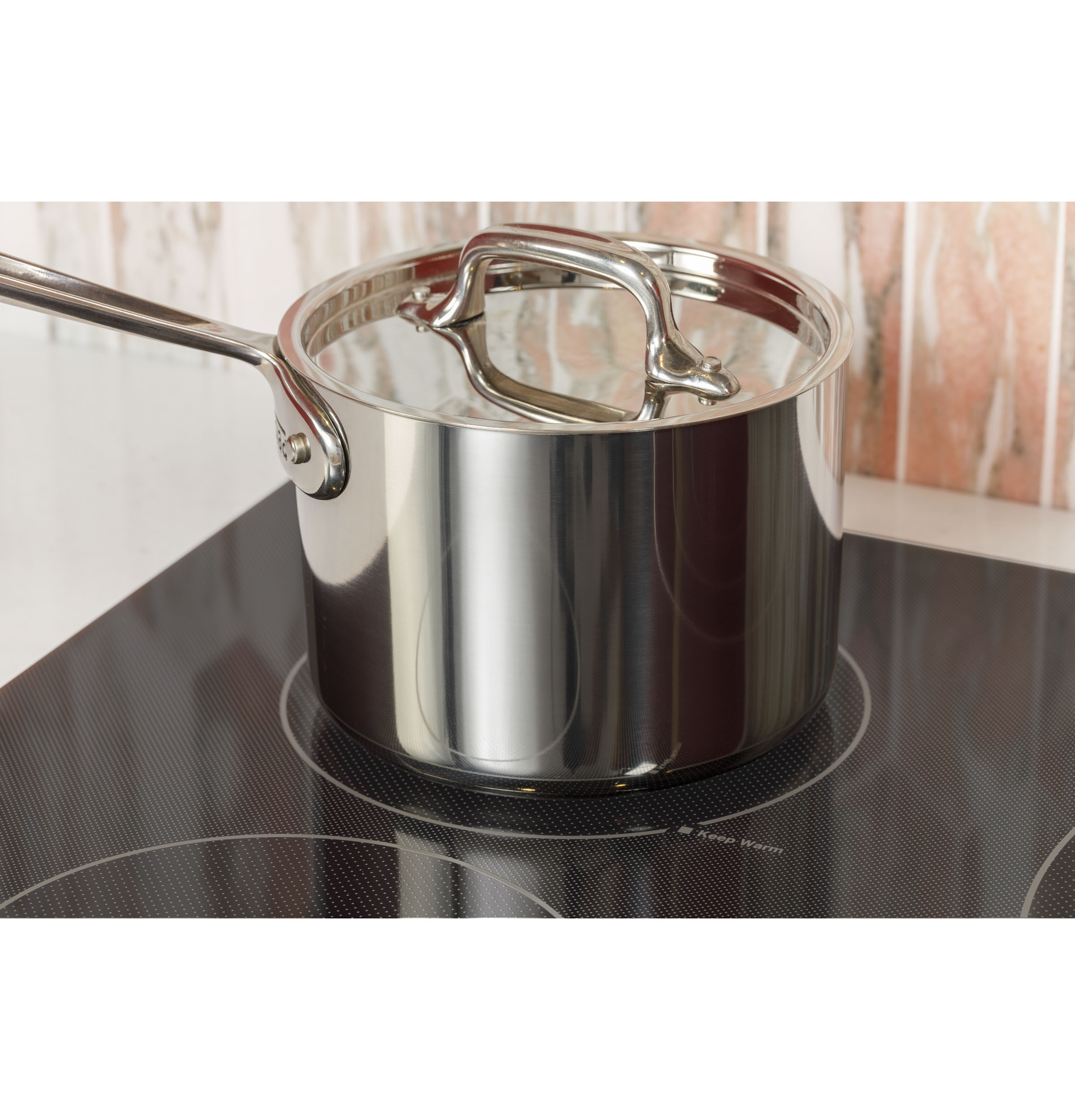

Keep Warm Setting
This electric cooktop's 7" element features a range of heat - from a dedicated "Keep Warm" setting to the power to boil water

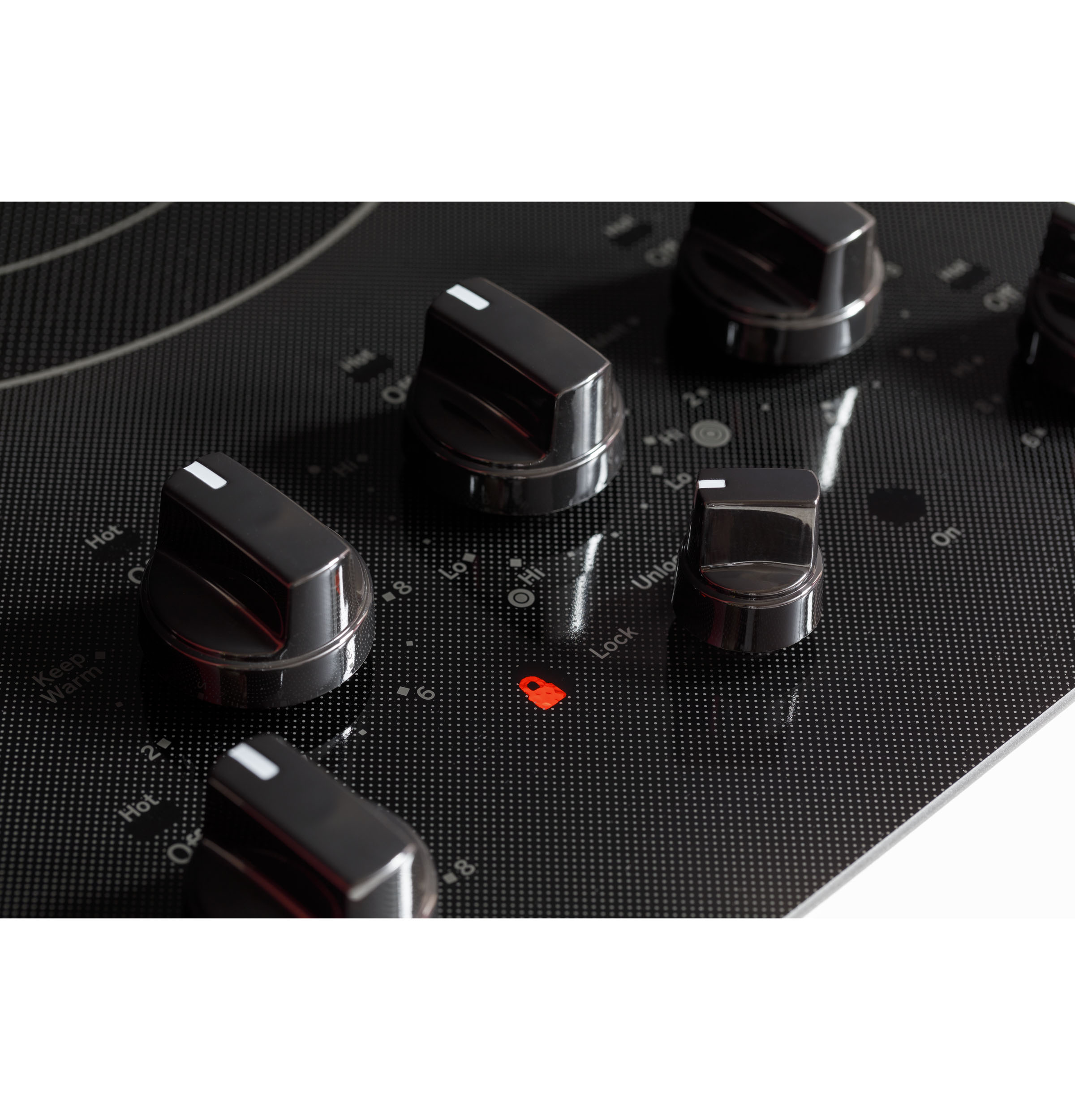

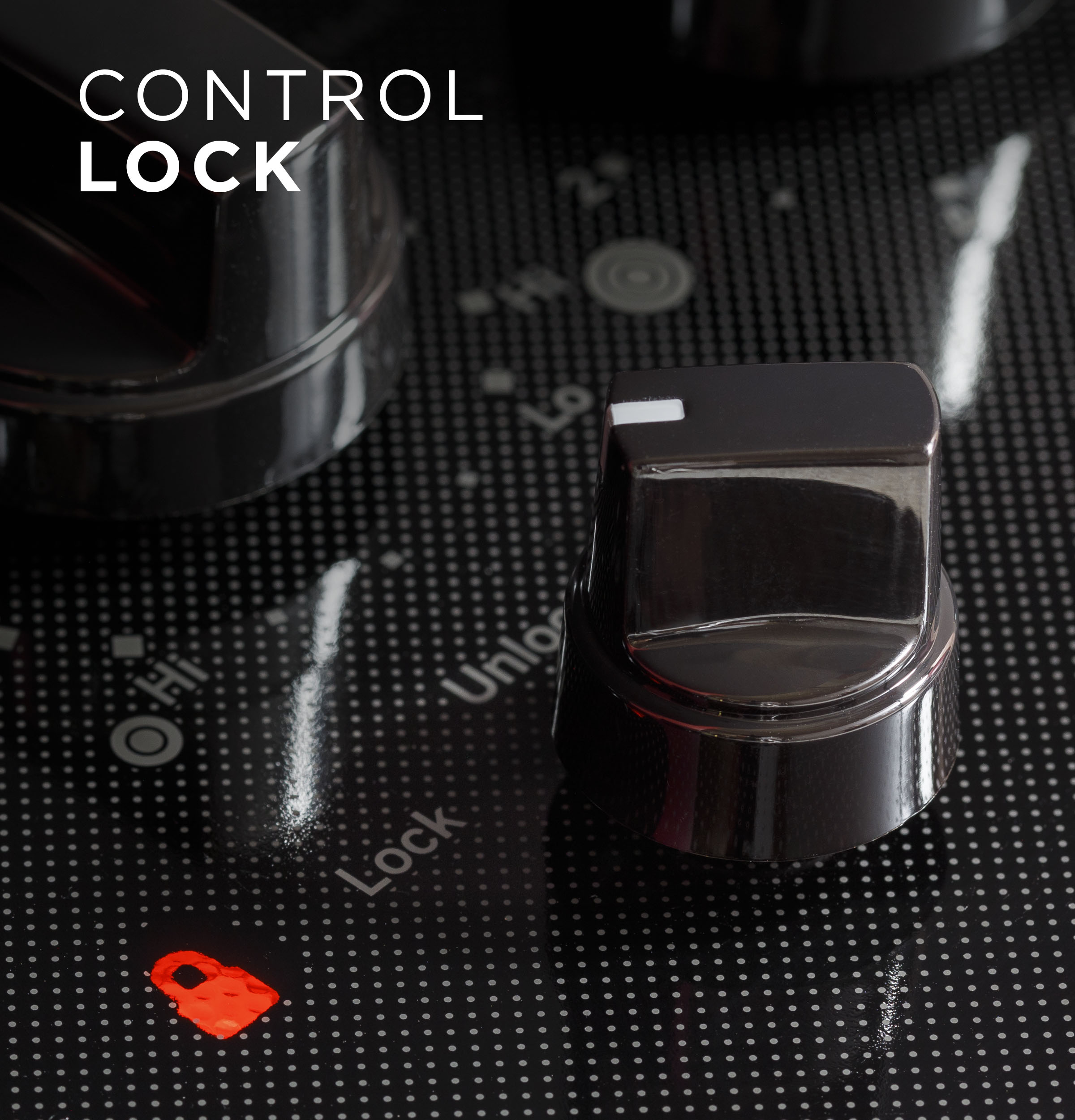

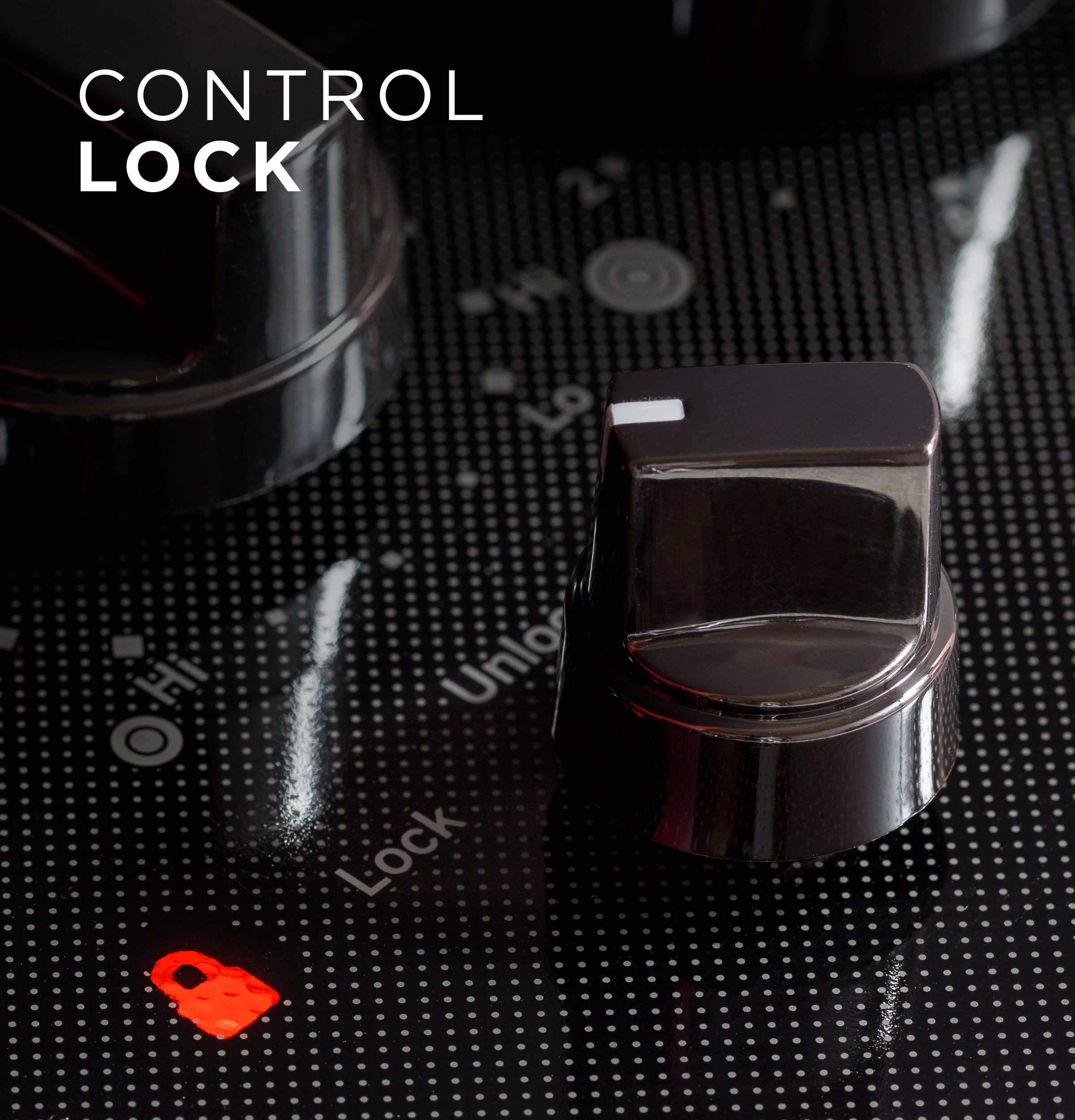

Control Lock
Protect against unintentionally turning your cooktop on with a safety control lock setting

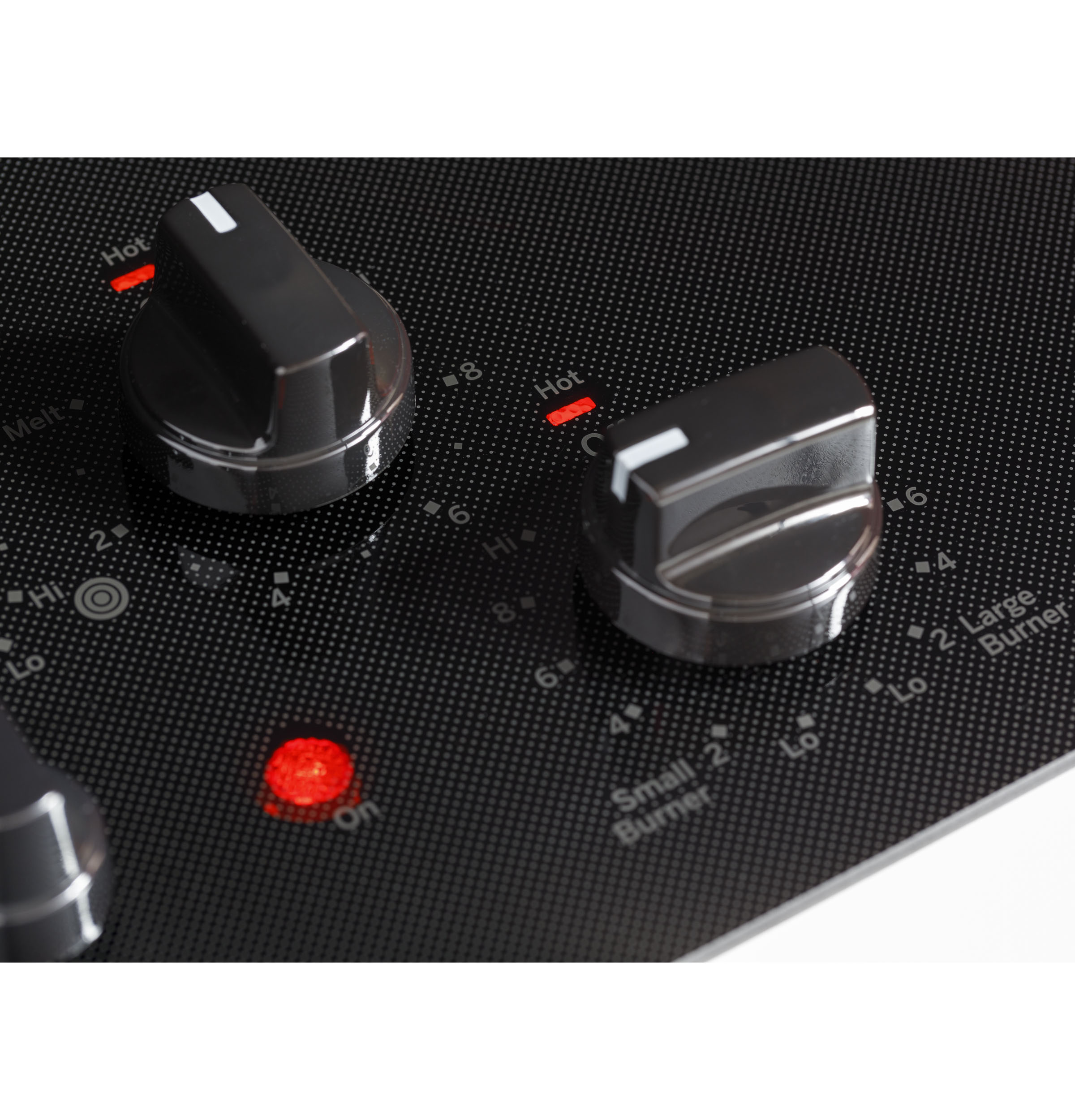

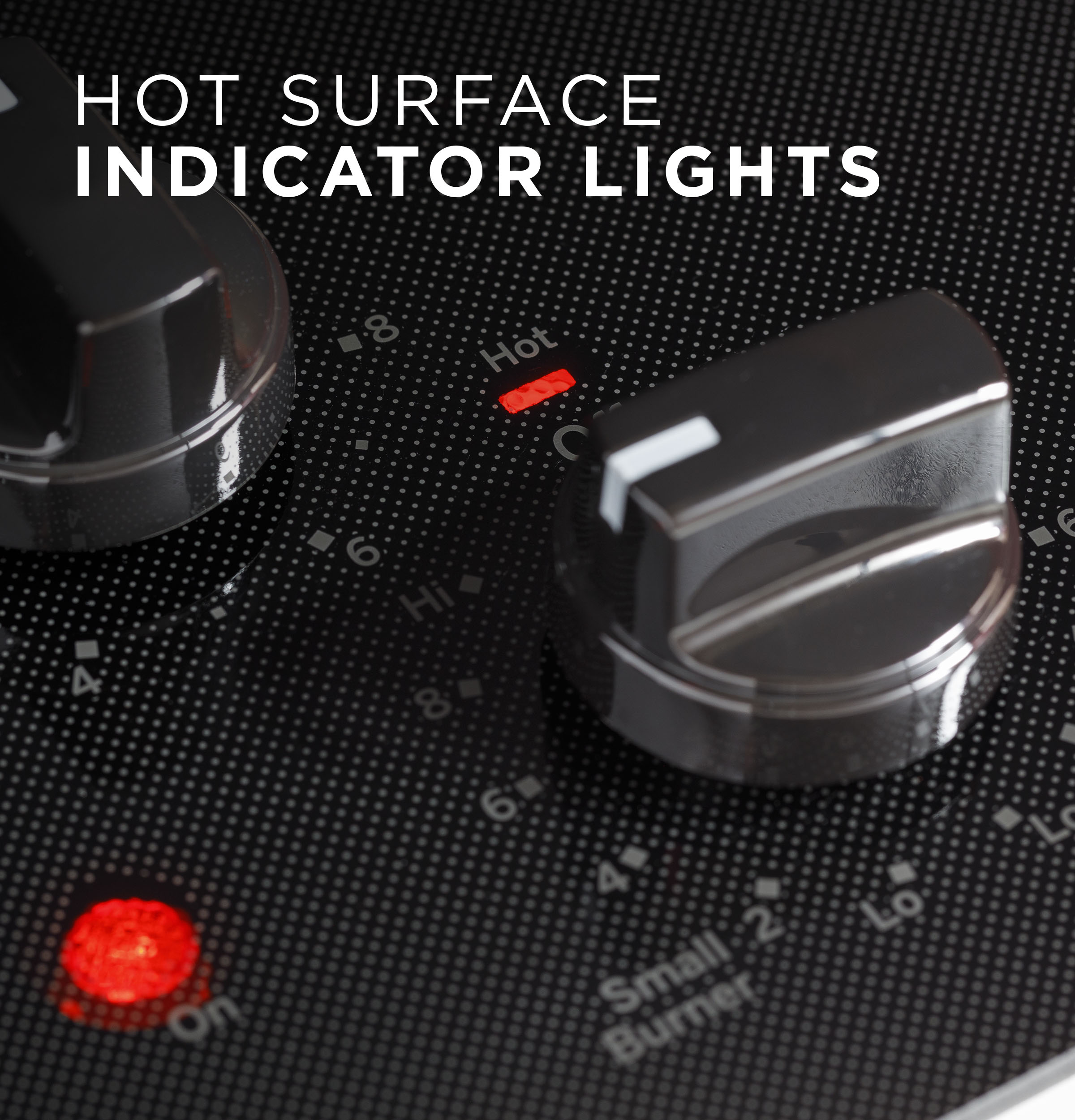

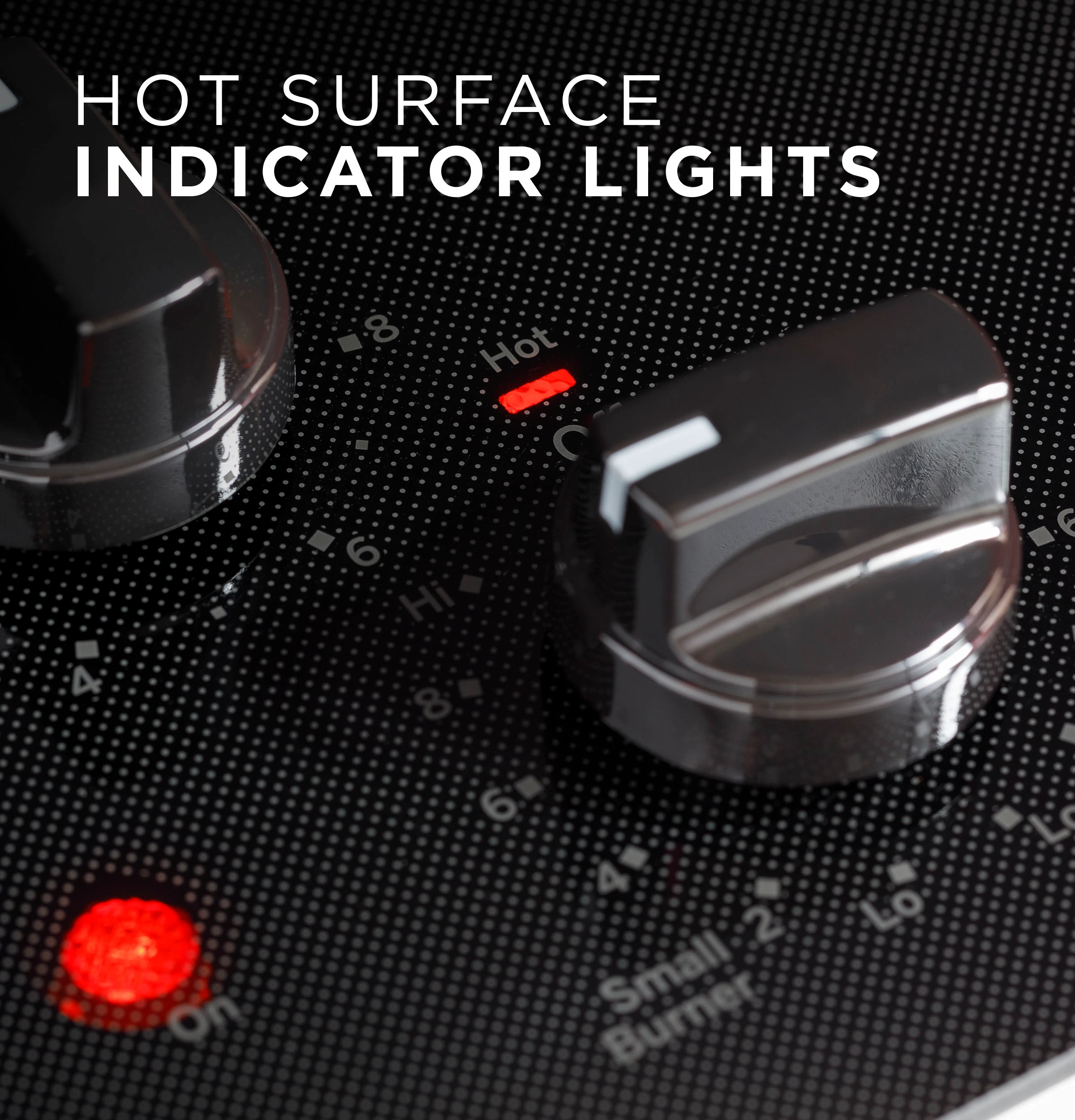

Hot Surface Indicator Lights
A quick glance is all it takes to know when elements are warm on this electric cooktop with hot surface indicator lights

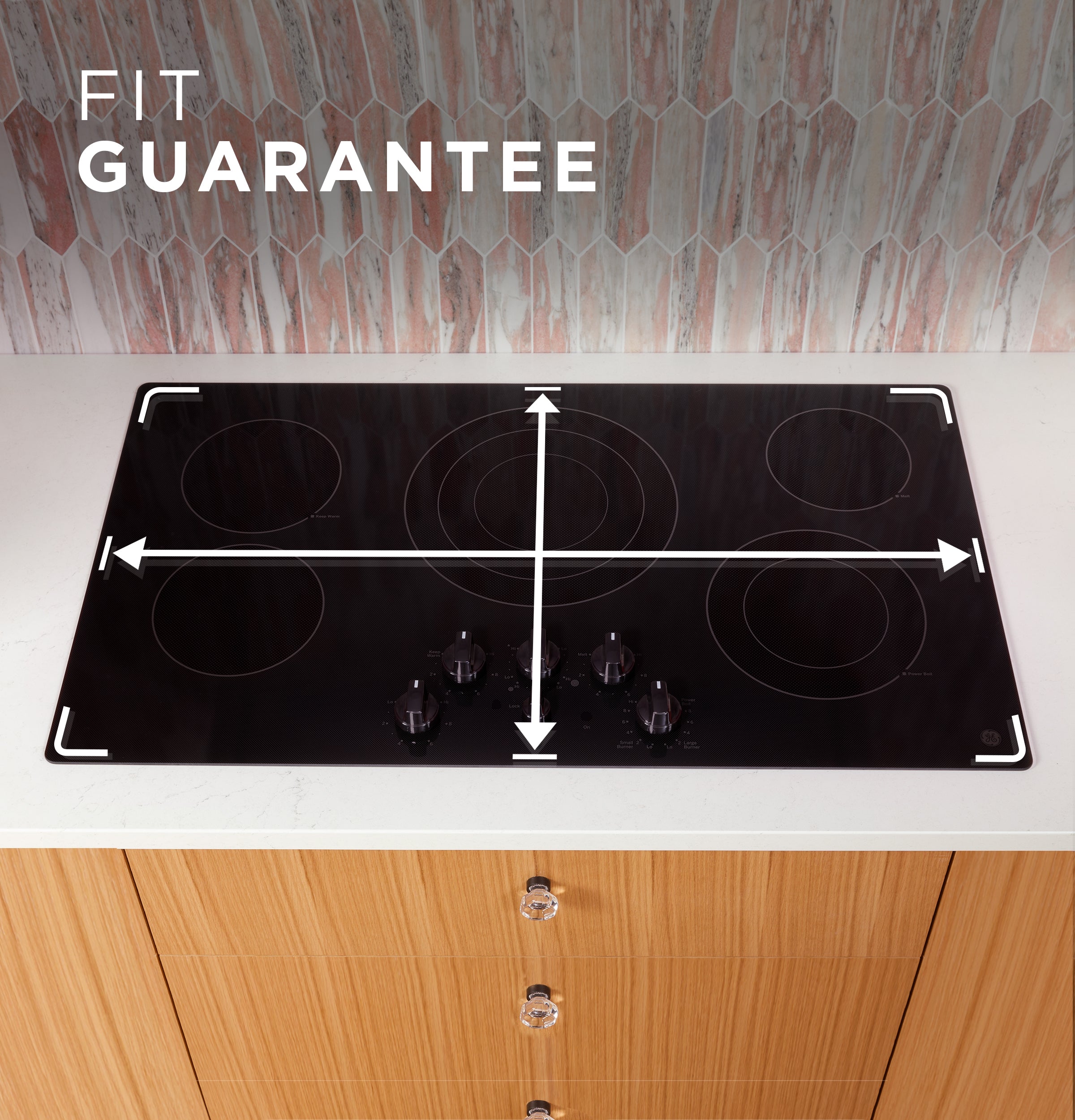

Fit Guarantee
This cooktop will fit your existing 30" cut-out or GE Appliances will help pay for modifications up to $100 See offer criteria and details

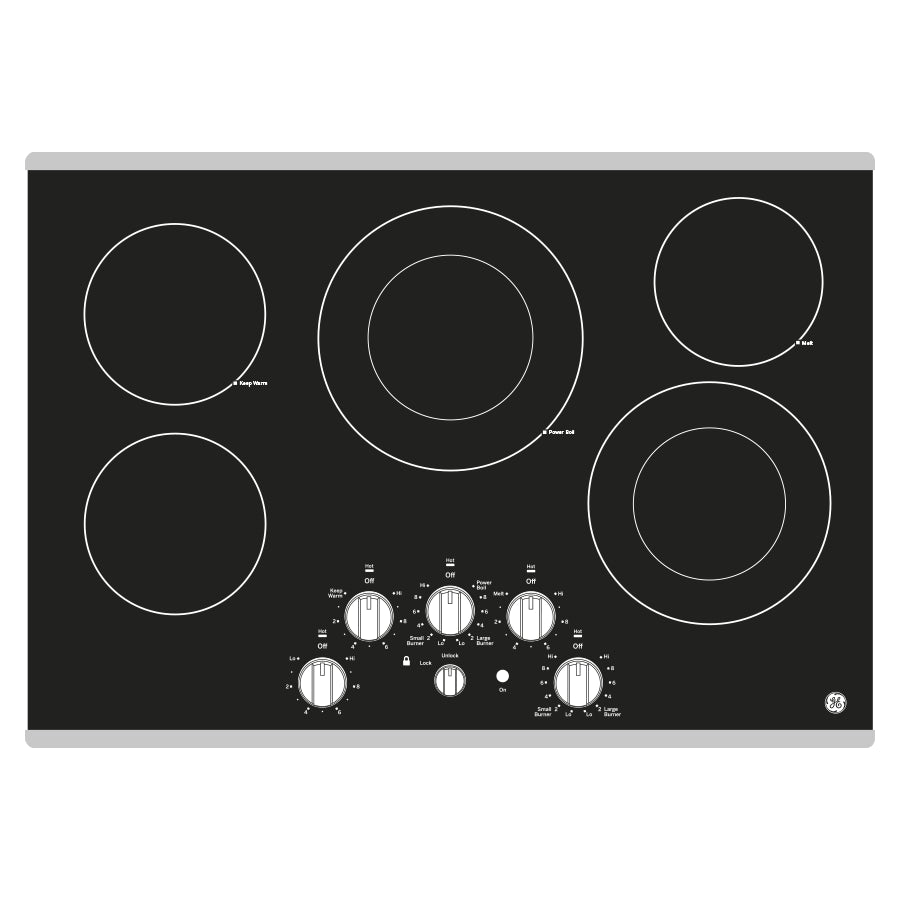

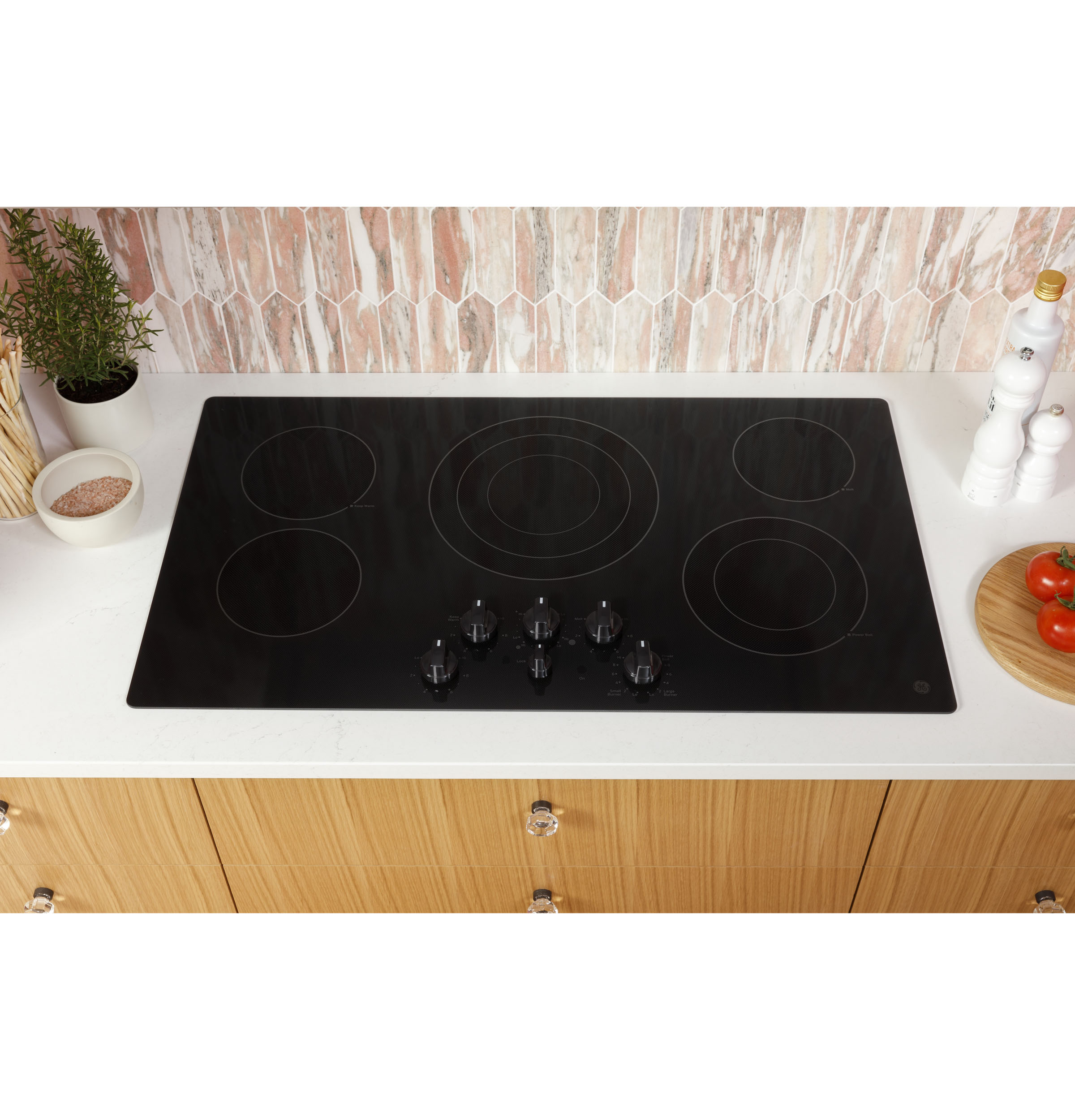

Flexible Cooktop
5 variously sized cooking burners on this flexible electric cooktop let you find the perfect fit for your pans and pots

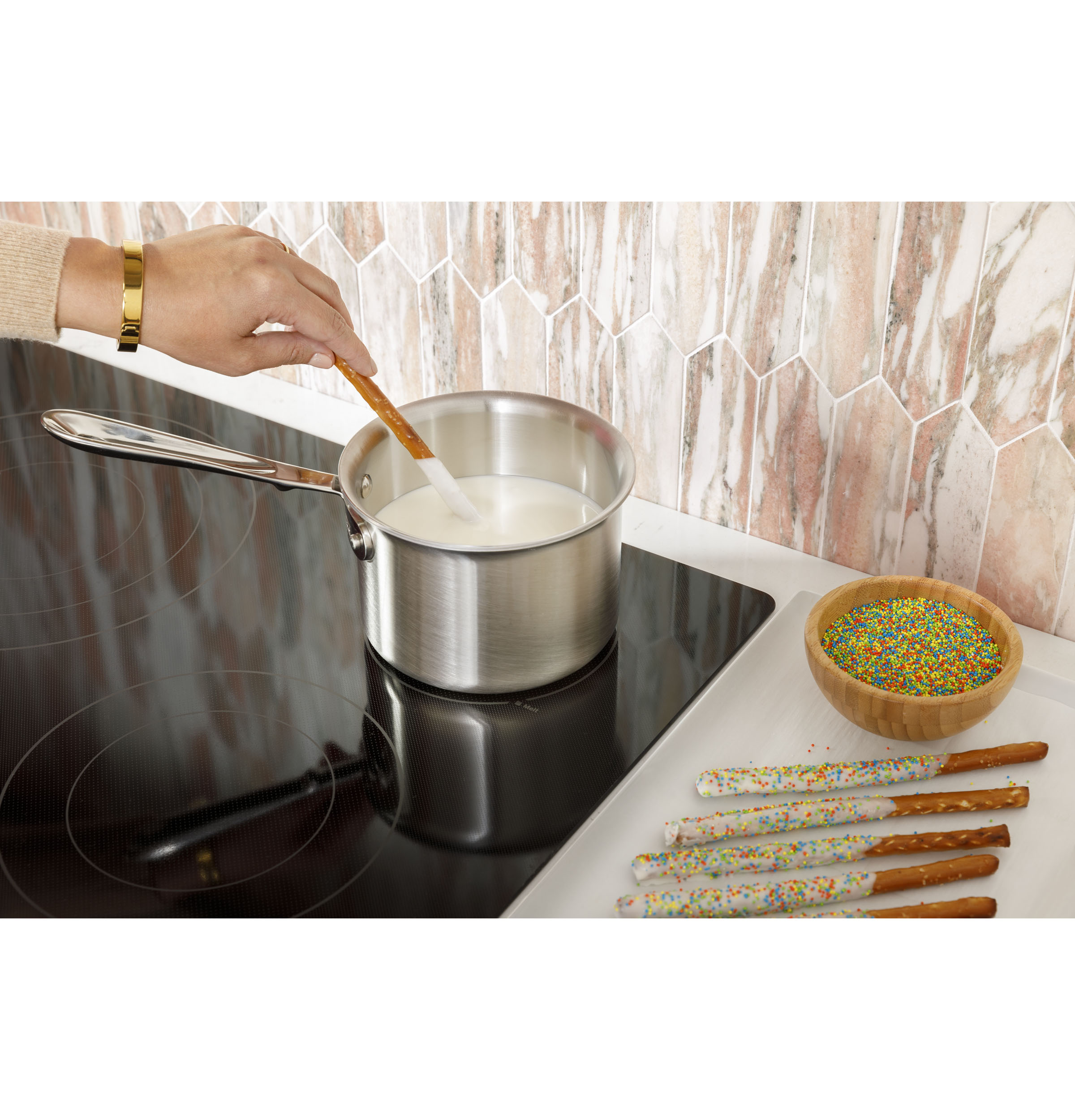

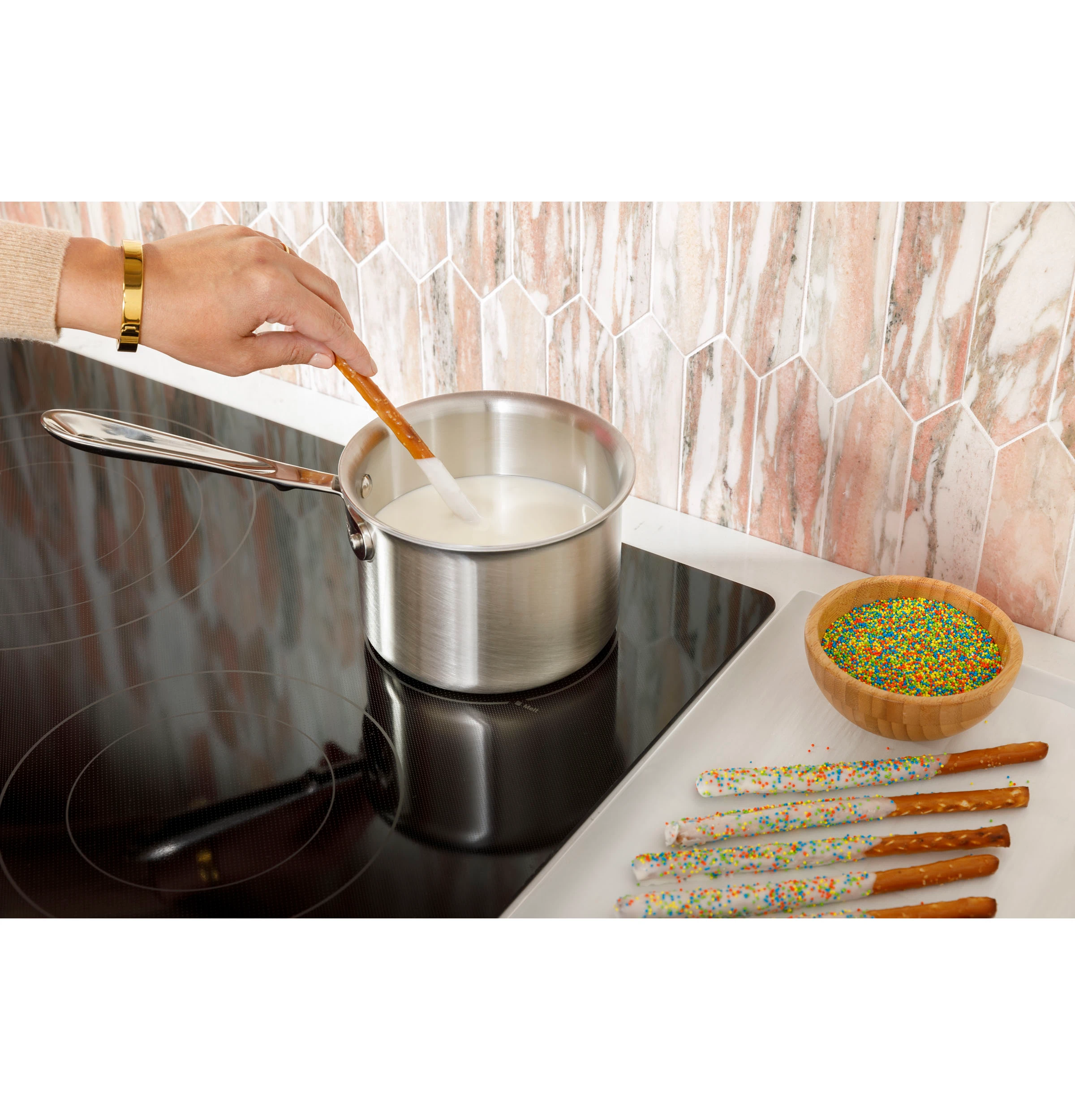

Melt Setting
Gently melt delicate foods without scorching thanks to this optimal melt option cooktop

Key Features

Easy Clean Surface

A smooth glass surface makes cleaning up messes simpler than ever on this easy clean electric cooktop

Power Boil on Dual-Ring Element (3,100W)

Cook faster with a variety of different pan sizes on this powerful rapid boil electric cooktop with a 3,100-watt flexible element

Additional Power Boil Dual-Ring Element (2,200W)

Cook more dishes quickly with an additional 2,200-watt flexible cooking element that rapidly boils water in different pan sizes

Keep Warm Setting

This electric cooktop's 7" element features a range of heat - from a dedicated "Keep Warm" setting to the power to boil water

Control Lock

Protect against unintentionally turning your cooktop on with a safety control lock setting

Hot Surface Indicator Lights

A quick glance is all it takes to know when elements are warm on this electric cooktop with hot surface indicator lights

Fit Guarantee

This cooktop will fit your existing 30" cut-out or GE Appliances will help pay for modifications up to $100 See offer criteria and details

Flexible Cooktop

5 variously sized cooking burners on this flexible electric cooktop let you find the perfect fit for your pans and pots

Melt Setting

Gently melt delicate foods without scorching thanks to this optimal melt option cooktop

From The Manufacturer

Videos

Rebates

GE Appliance Fit Guarantee Rebate 2026 – Perfect Fit or We Make It Right

Offer valid regardless of previously purchased brand.
Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products
