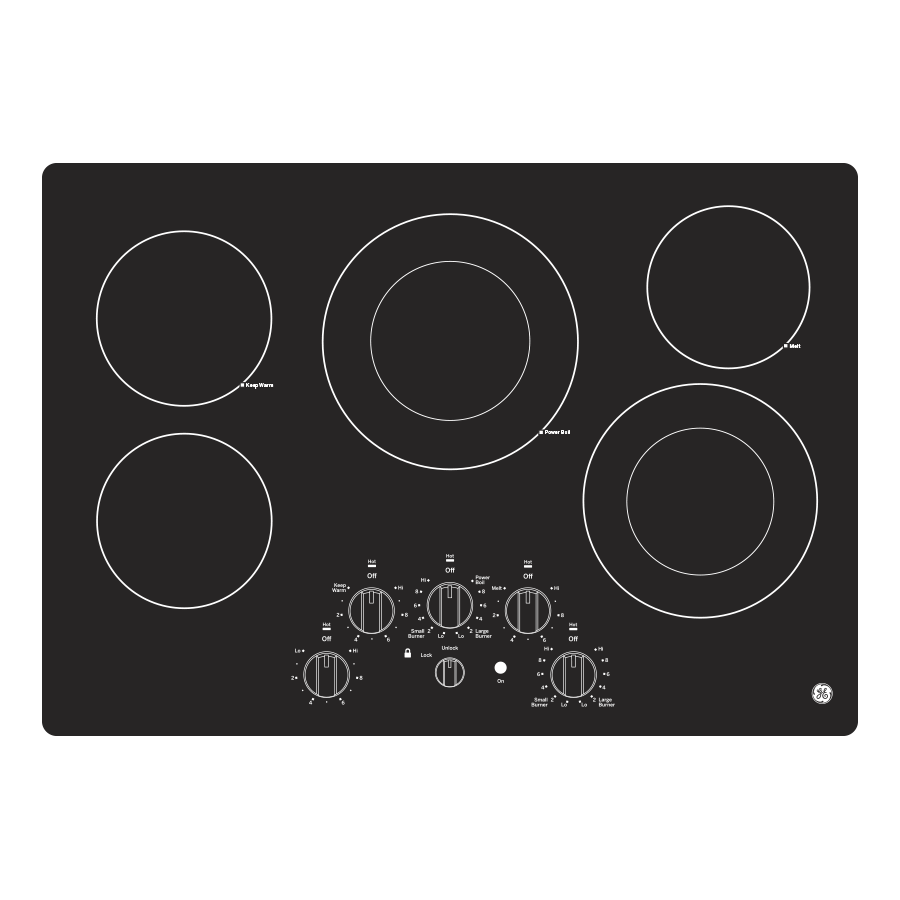

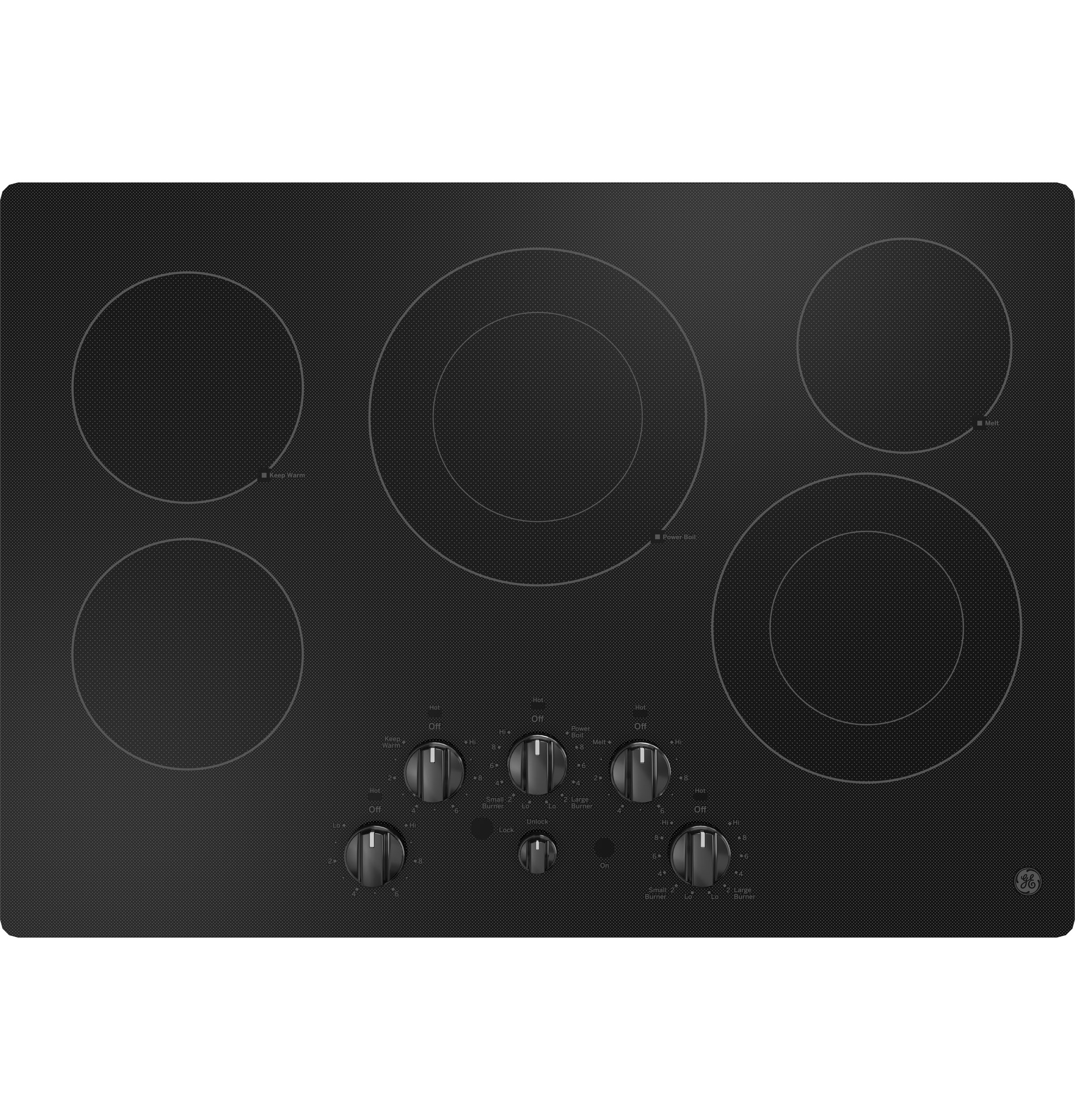

GE JEP5030DTBB 30" Built-In knob Control Electric Cooktop Black
Sale price
$749.00
Regular price
$1,498.97
Save
$749.97
/ 50% OFF
Quickship
Active Rebates
GE Appliance Fit Guarantee Rebate 2026 – Perfect Fit or We Make It Right Expires on 06/30/2026
Extended Protection
?
Extend your appliance's warranty beyond the manufacturer's terms with our Extended Protection Plan.
Enjoy added peace of mind long after the original warranty expires.
This Protection Plan includes:
- Full parts and labor coverage during the whole period of the extension plan.
- Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty
- Food loss protection
- 24/7 toll-free number for support
-
$43.49
-
$75.99
-
$115.99
-
$163.99
-
Delivery services
?
Delivery Services:
We offer a range of delivery services to meet your needs. Please note that these services are not available in certain locations.
For more details, please visit our Delivery and Installation Services page.
-
$180.00
-
$40.00
Electrical Requirement Notice: This appliance may require a dedicated electrical circuit or special voltage (e.g., 120V or 240V). Please verify your home’s electrical setup or consult a licensed electrician before installation. If you have any questions, please contact us.
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Related Products
Sale price
$749.00
Regular price
$1,498.97
Save
$749.97
/ 50% OFF
Product Details for GE JEP5030DTBB
Technical Details
Warranty
| Parts | 1 Year |
| Labor | 1 Year |

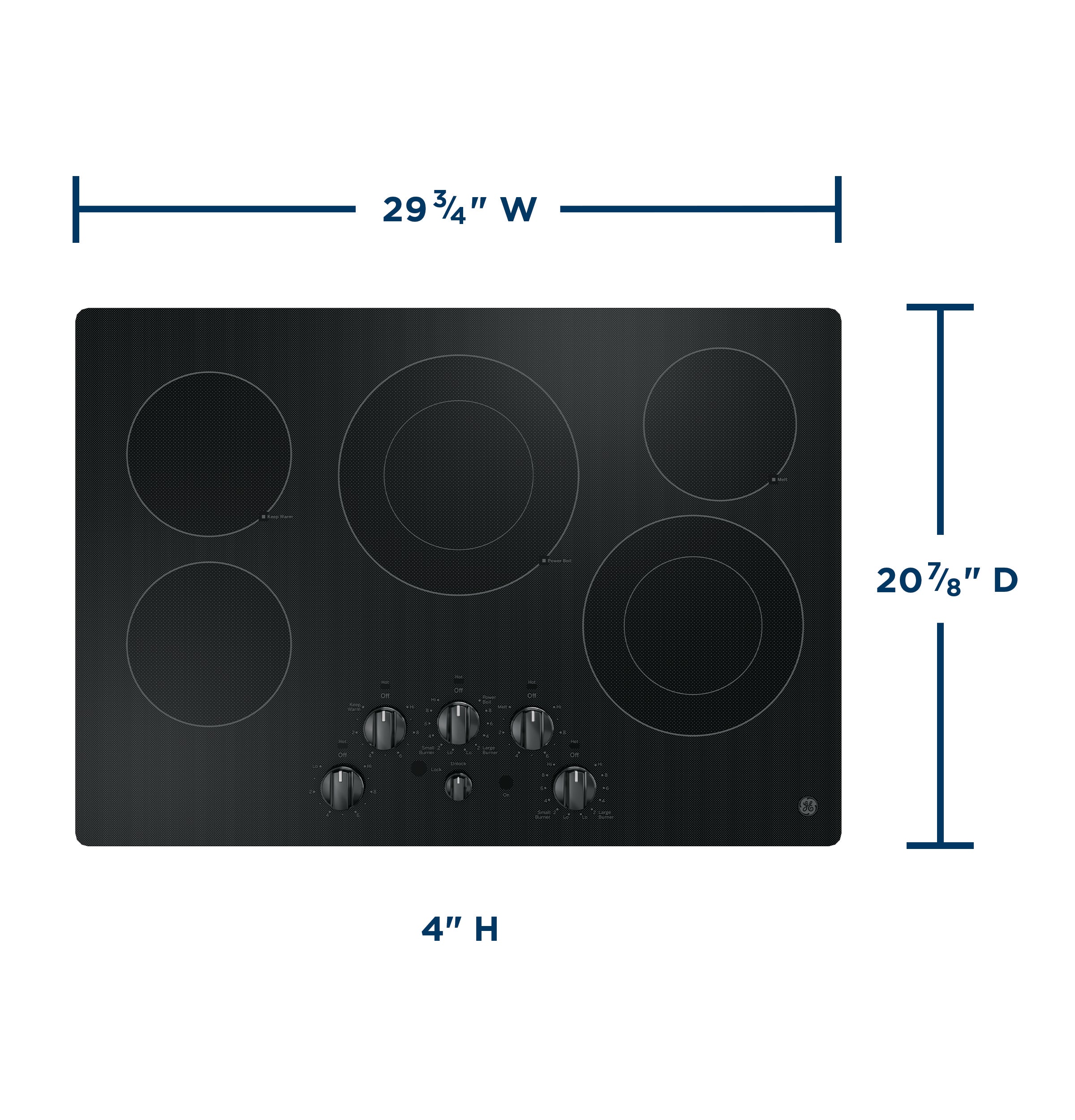

Weights & dimensions
| Overall Height | 3.25 in |
| Overall Width | 29.75 in |
| Overall Depth | 21.375 in |
| Cooktop Size | 30 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 40 lb |
| Net Weight | 35 lb |
| Cutout Width (in) | 28.5 |
| Cutout Height (in) | 4 |
| Cutout Depth (in) | 19.625 |
Features
| Filler trim kit | JXTR32B (not included) |
| Cooktop Burner Type | Smoothtop |
| Melt Setting | Yes |
| Fuel Type | Electric |
| Power Boil Burner | Yes |
| Element - Left Front | 7" 1500W |
| Indicator Lights | Surface Element "ON" |
| Dual Ring Burners | Yes |
| Element - Right Front | 8"/5" 2200W Dual-ring |
| Control Location | Front Center |
| Cooktop Type | Radiant Smoothtop |
| Cooktop Control Features | Melt Setting |
| Timer | Yes |
| Element - Left Rear | 7" 1500W (Keep Warm) |

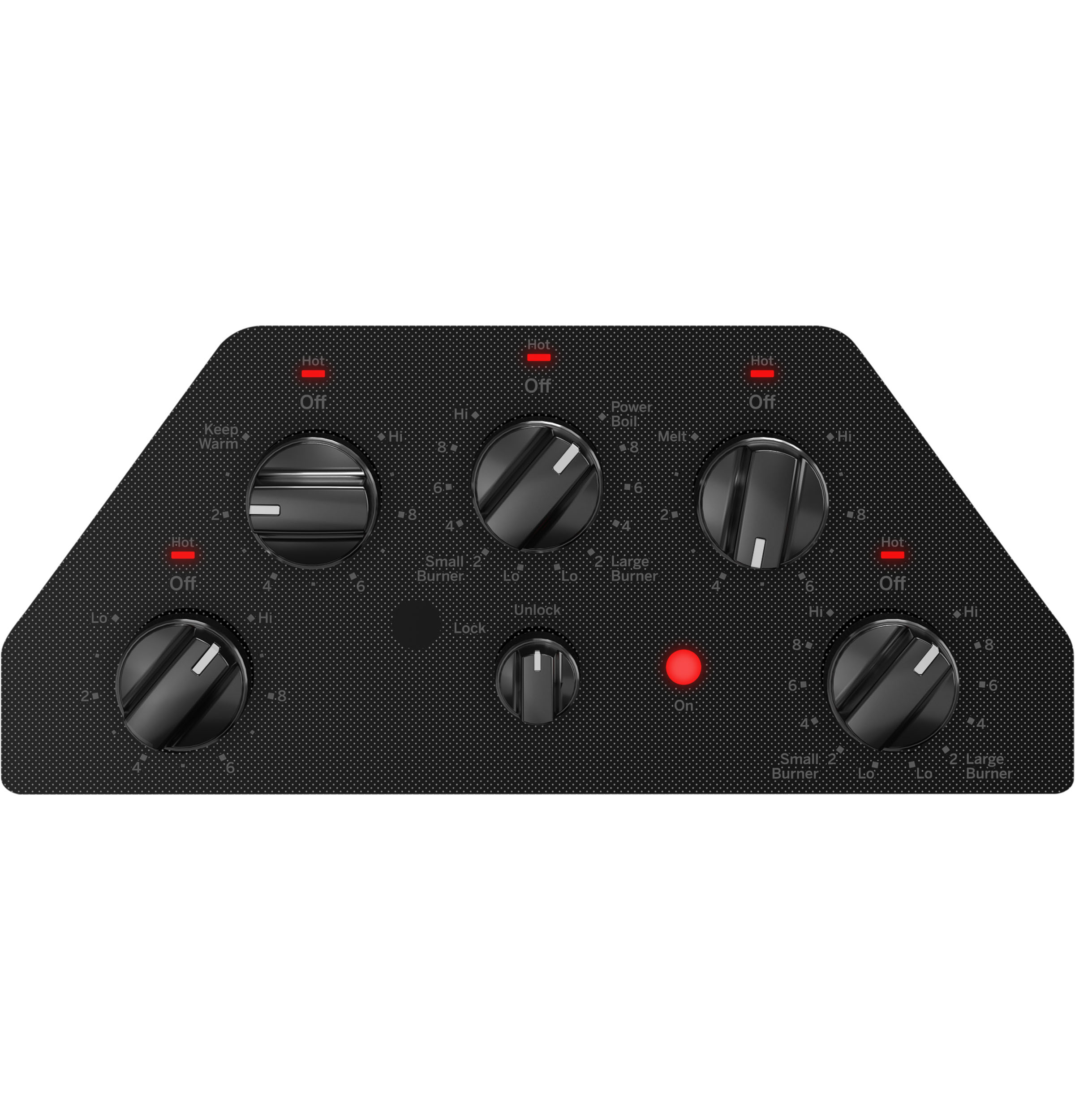

| Control Type | Knob (Infinite switch) |
| Element - Center | 9"/6" 3100W Dual Ring Power Boil |
| Element - Right Rear | 6" 1200W (Melt) |
| Product Type | Cooktop |
| Cooktop Burner Type | 5 Ribbon |
| Cooktop Control Features | Keep-Warm Setting |
| Indicator Lights | 5 Hot Surface |
| Indicator Lights | Red |
Power / ratings
| Recommended Circuit Breaker (Amps) at 240V | 40 |
| Max. Connected Load (kW) at 240V | 9.6 |
| Max. Current Draw (Amps) at 240V | 40.0 |
| Max. Connected Load (kW) at 208V | 7.2 |
| Electrical Requirements | 208/240V ; 60Hz ; 40A |
| Recommended Circuit Breaker (Amps) at 208V | 40 |
| Max. Current Draw (Amps) at 208V | 34.6 |
| Hertz | 60 |
Warranty
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
Appearance
| Color Appearance | Black |
| Frameless | Yes |
| Control Knobs | Gloss Black |
Other
| Cooktop Size | 30 in |
Dimensions & weight
| Width | 29.75 in. |
| Height | 3.25 in. |
| Length | 21.38 in. |
| Weight | 35 lbs. |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Width | 34.75 in. |
| Shipping Height | 8.25 in. |
| Shipping Length | 26.38 in. |
| Shipping Weight | 75 lbs. |
| Total of Shipping Weight | 75 lbs. |
| Source | Calculation |
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 1.2 ft³ |
| Dimensional Weight | 14.87 lbs. |
| Total of Cubes | 1.2 ft³ |
| Total of Dimensional Weight | 14.87 lbs. |
Description
Cook faster with a variety of different pan sizes on this powerful rapid boil electric cooktop with a 3,100-watt flexible element.Cook more dishes quickly with an additional 2,200-watt flexible cooking element that rapidly boils water in different pan sizes.3 1/4 H x 29 3/4 W x 21 3/8 D
Manuals & Guides
Key Features

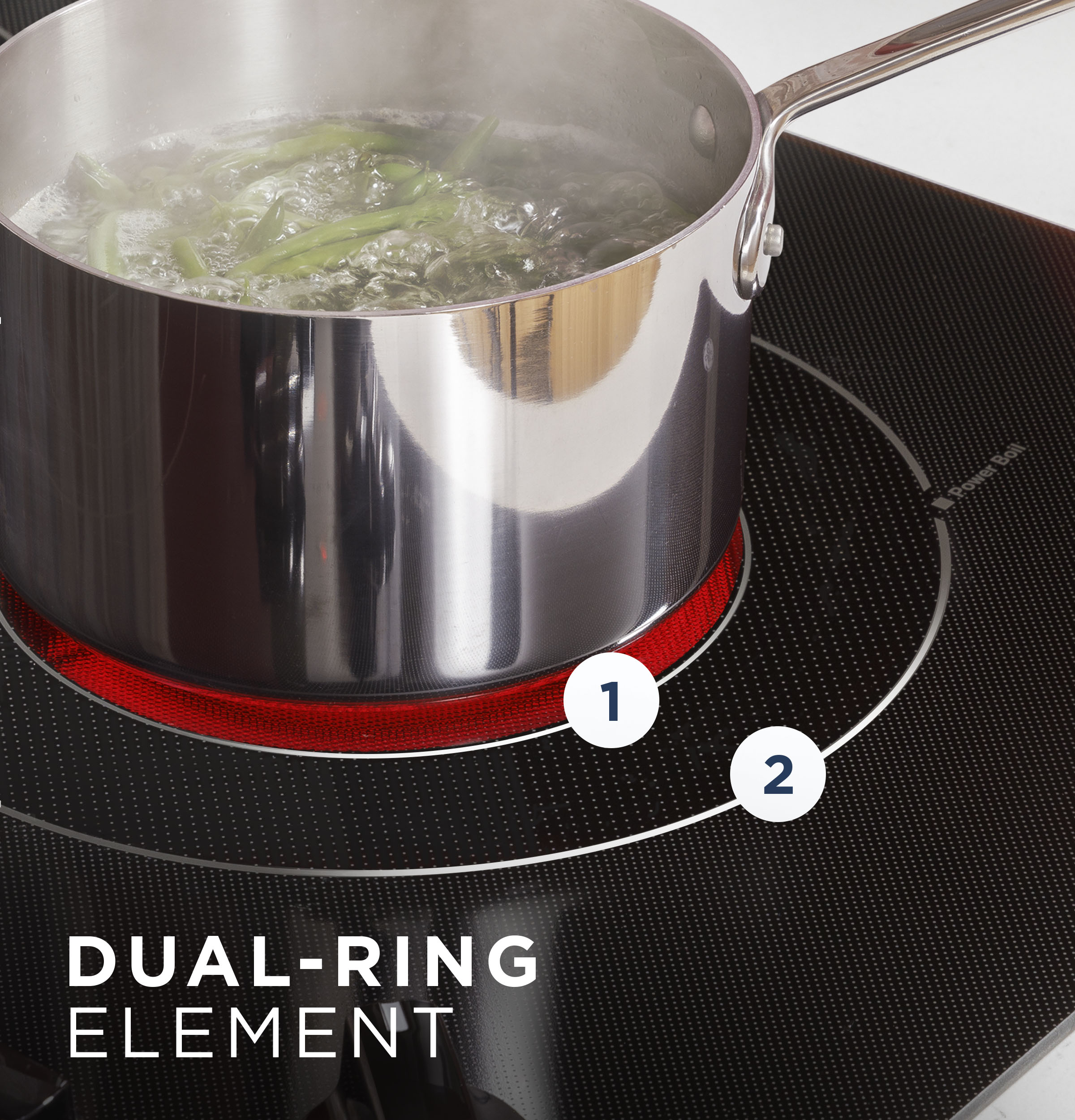

Additional Power Boil Dual-Ring Element (2,200W)
Cook more dishes quickly with an additional 2,200-watt flexible cooking element that rapidly boils water in different pan sizes

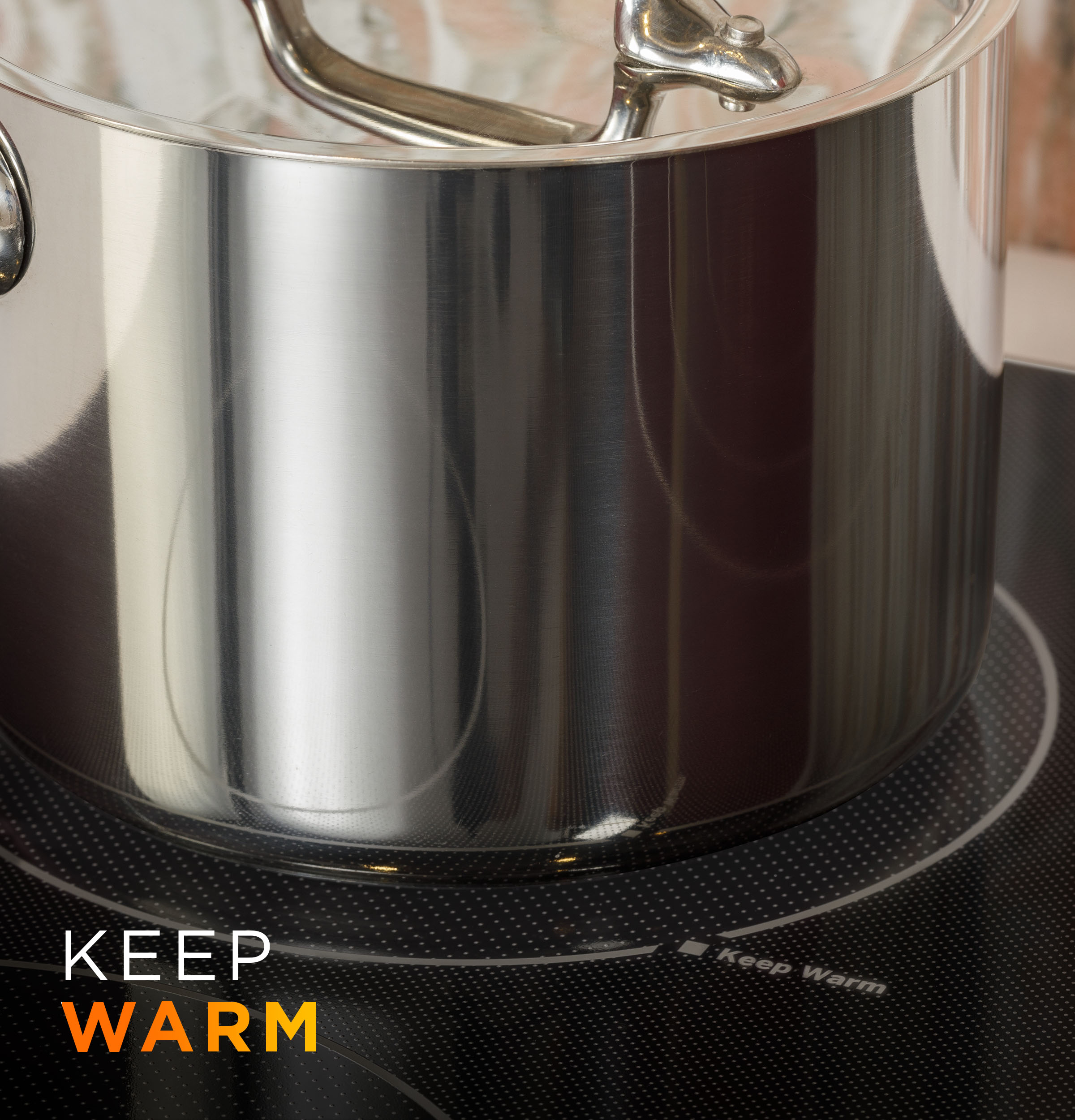

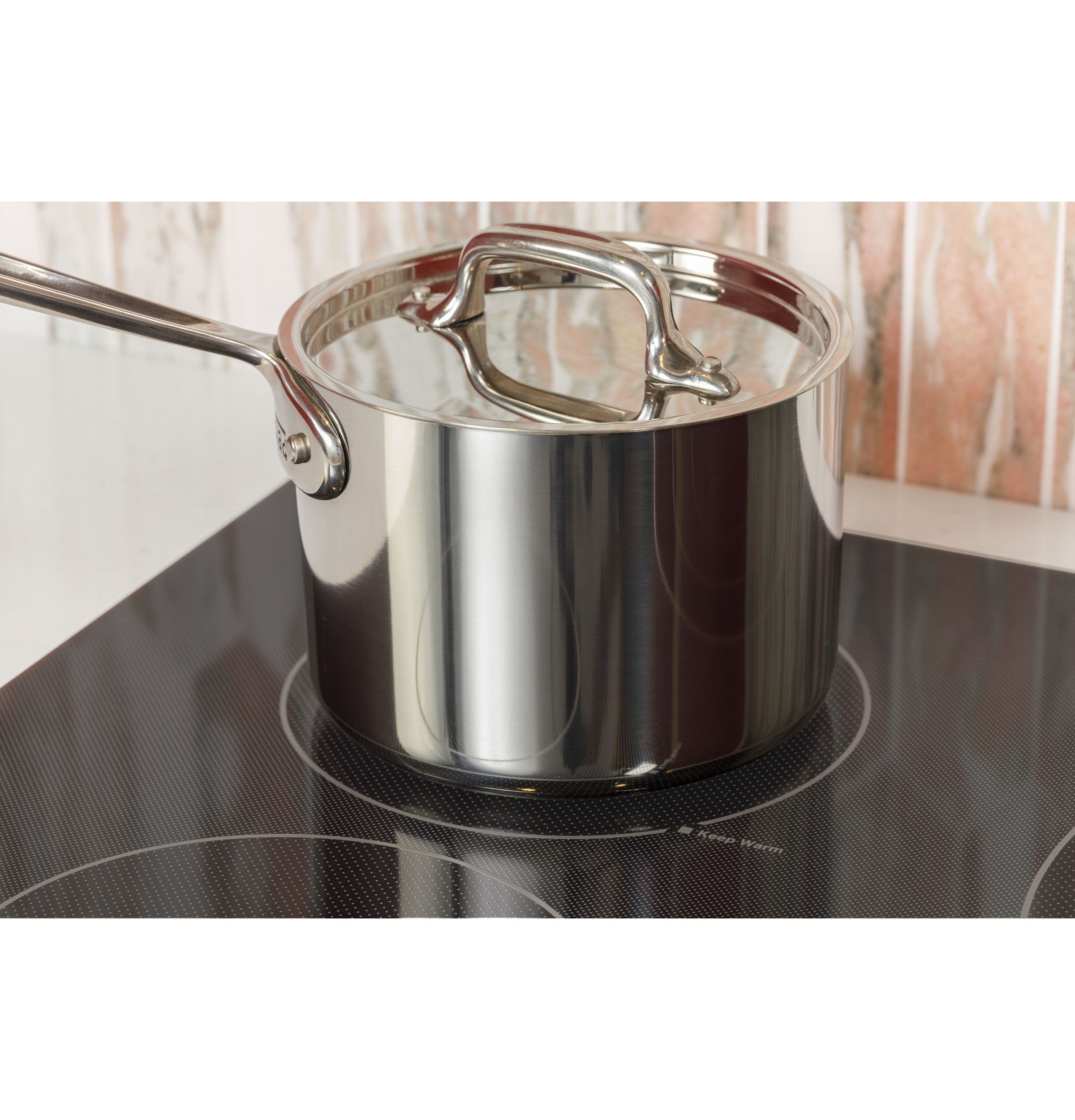

Keep Warm Setting
This electric cooktop's 7" element features a range of heat - from a dedicated "Keep Warm" setting to the power to boil water

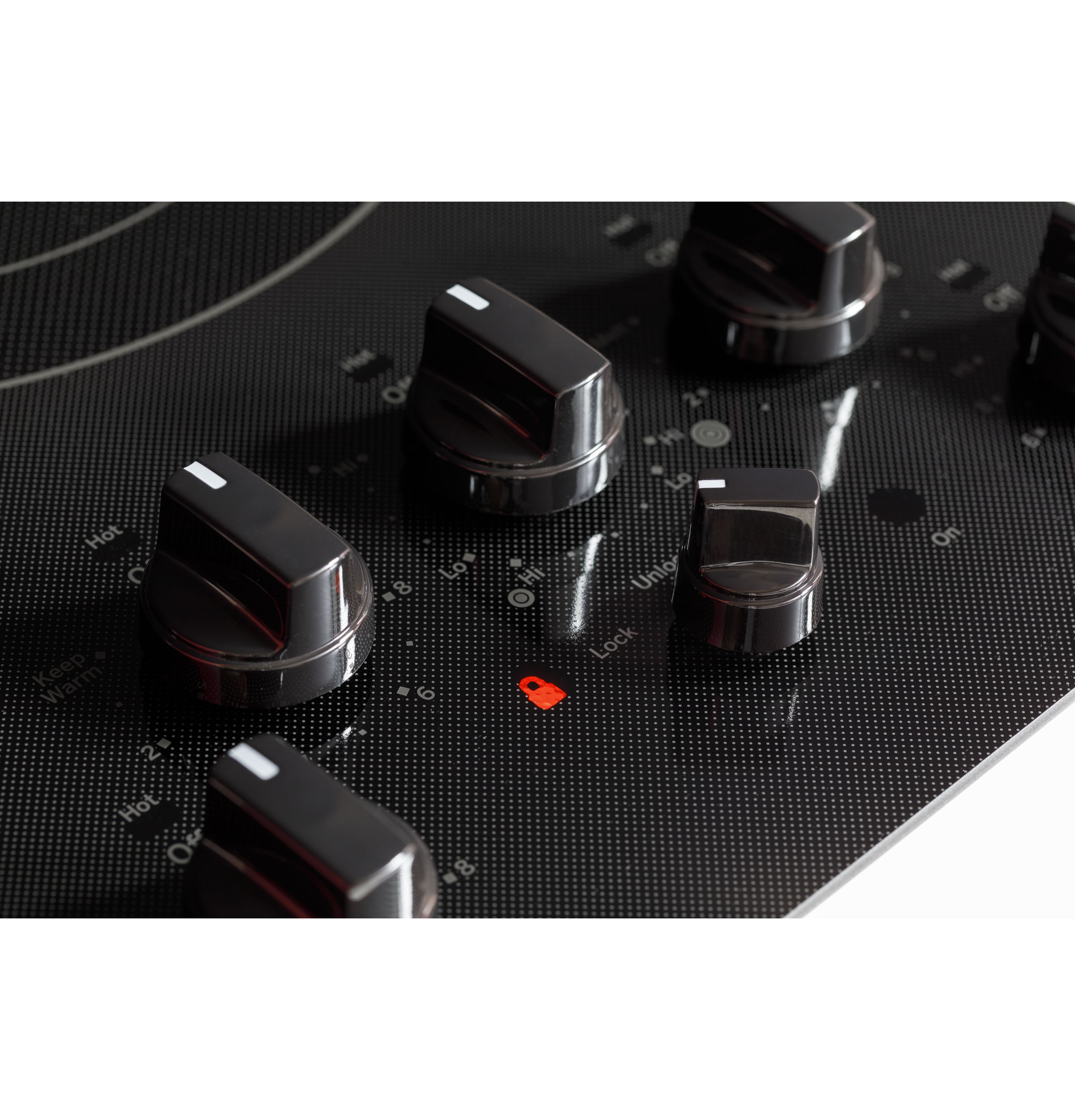

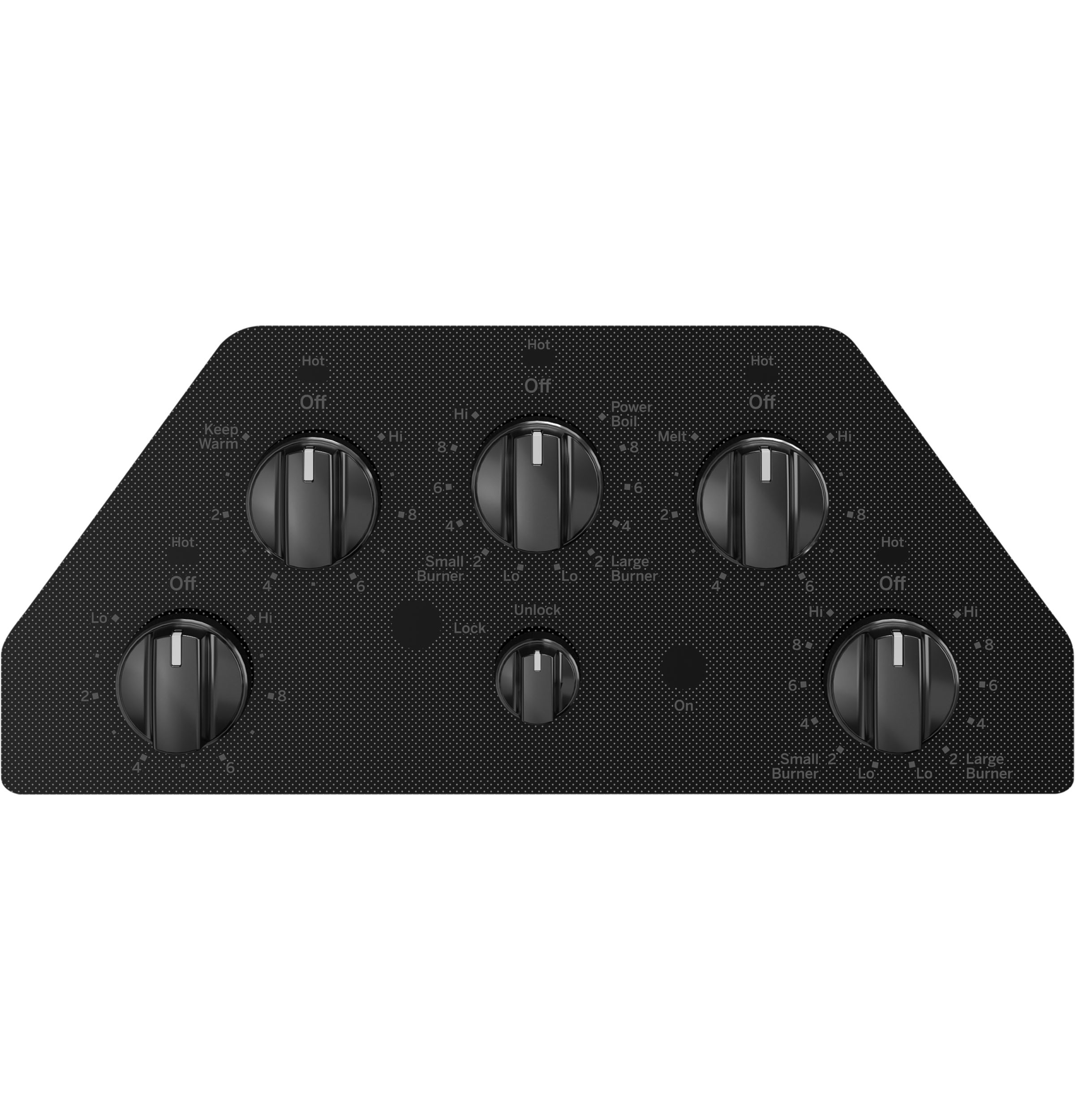

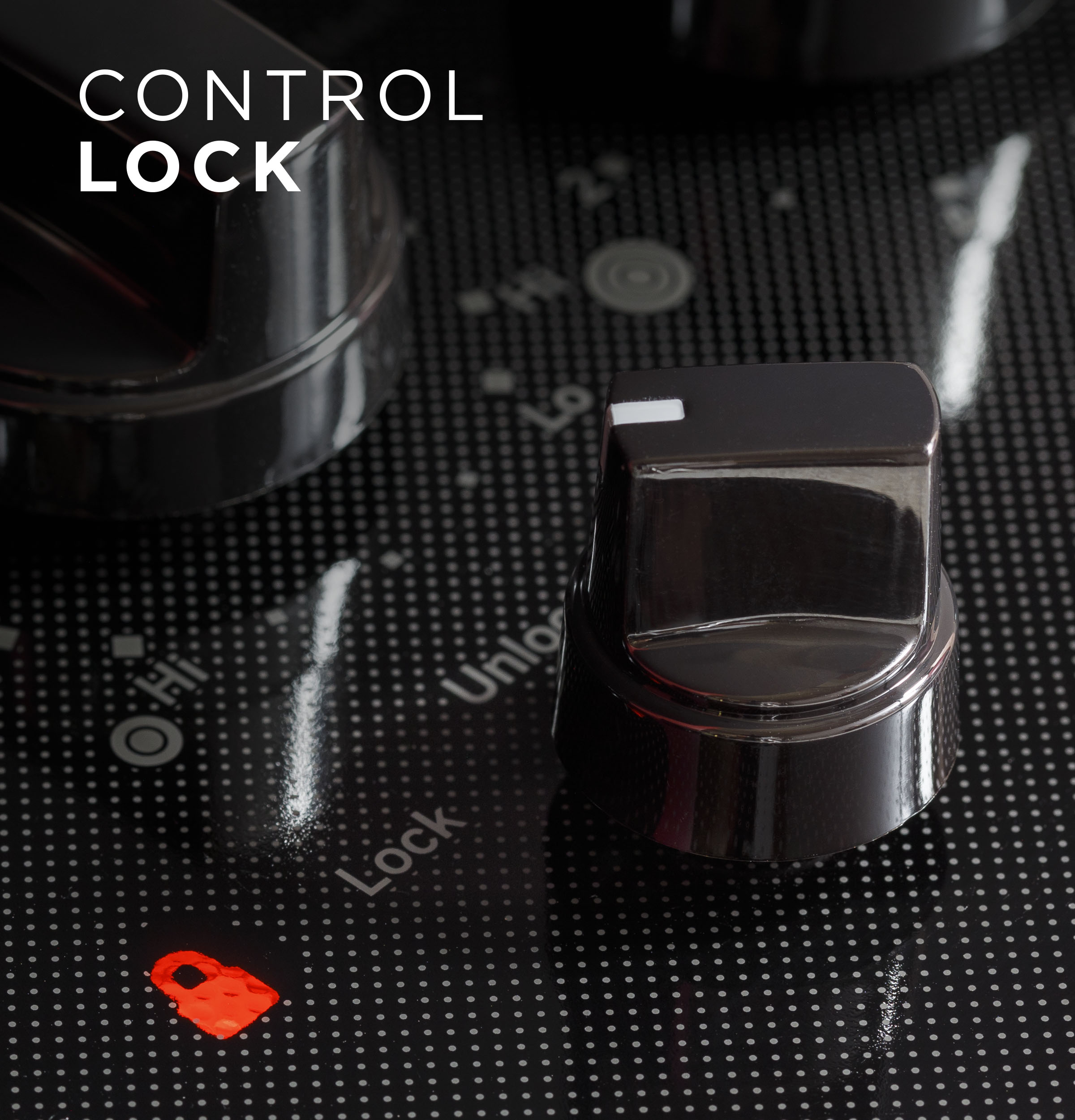

Control Lock
Protect against unintentionally turning your cooktop on with a safety control lock setting

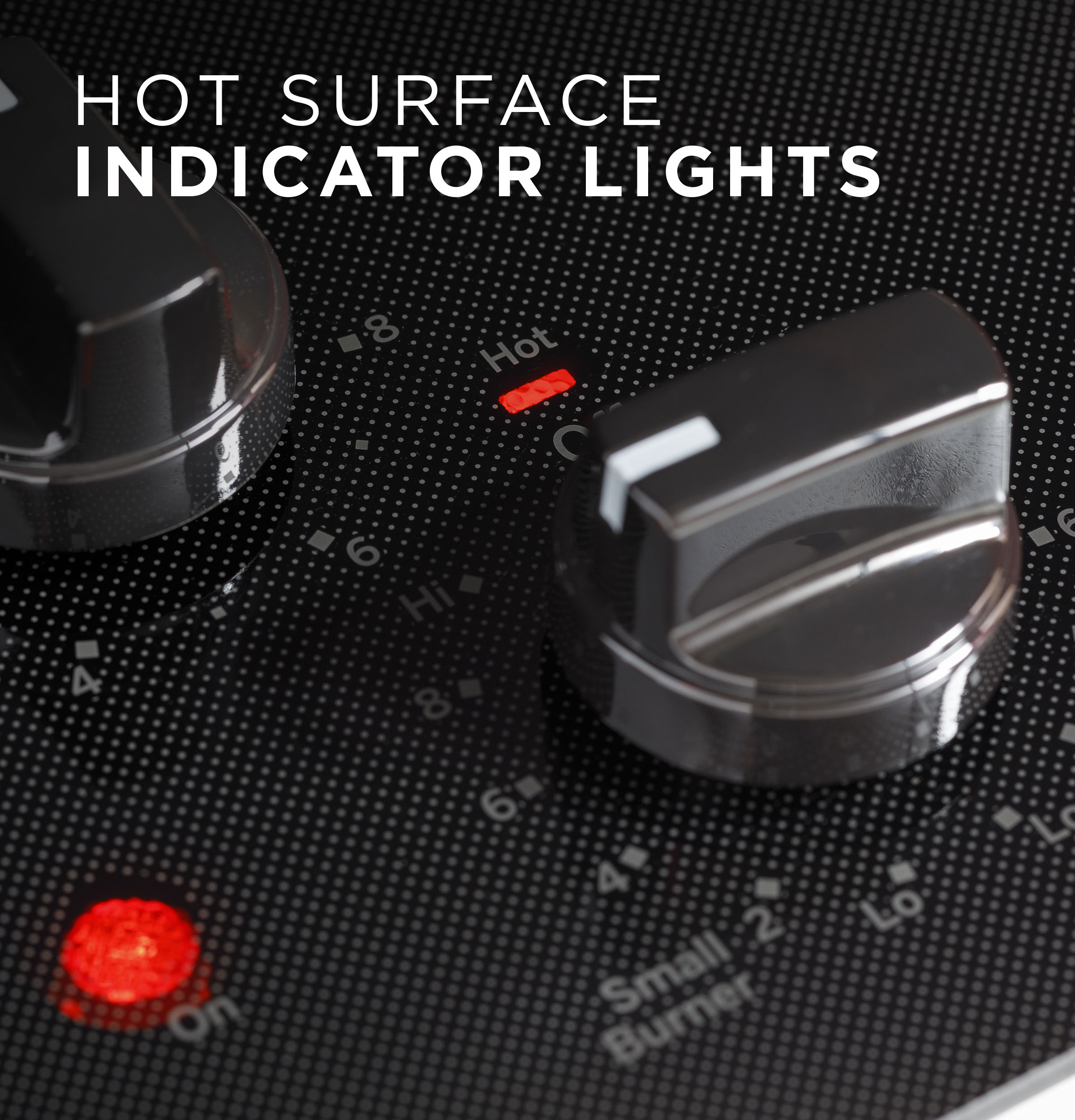

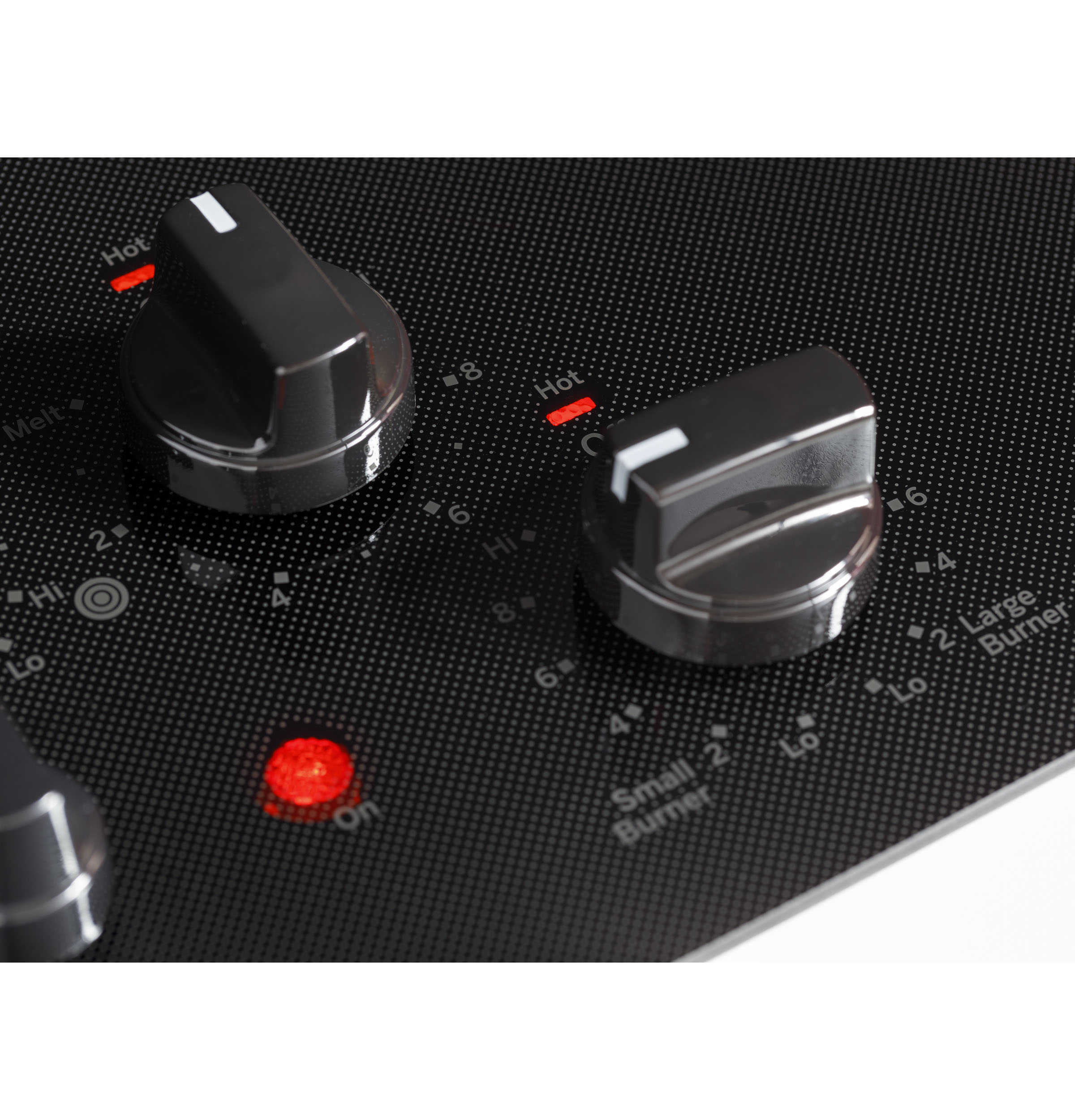

Hot Surface Indicator Lights
A quick glance is all it takes to know when elements are warm on this electric cooktop with hot surface indicator lights

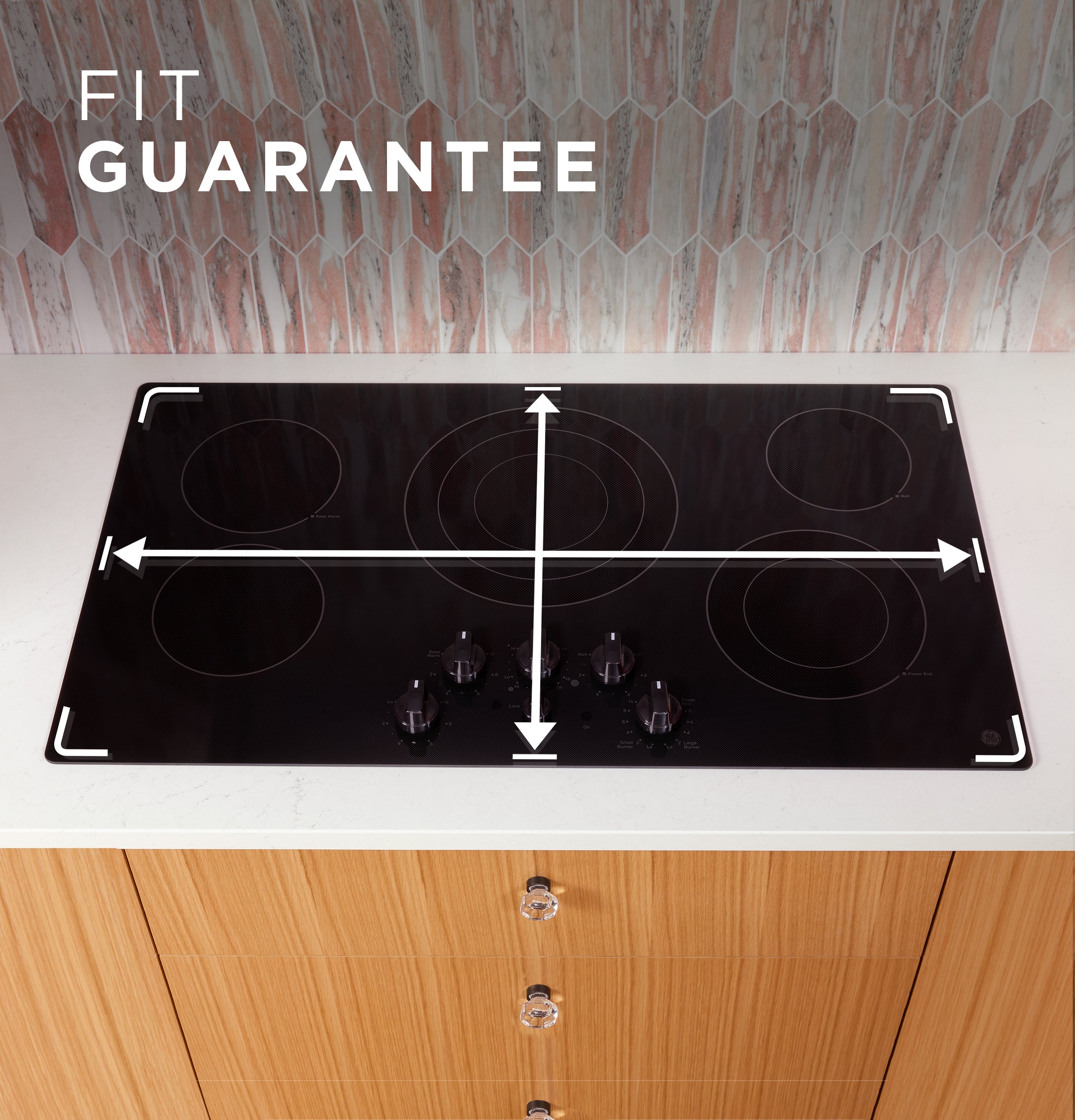

Fit Guarantee
This cooktop will fit your existing 30" cut-out or GE Appliances will help pay for modifications up to $100 See offer criteria and details

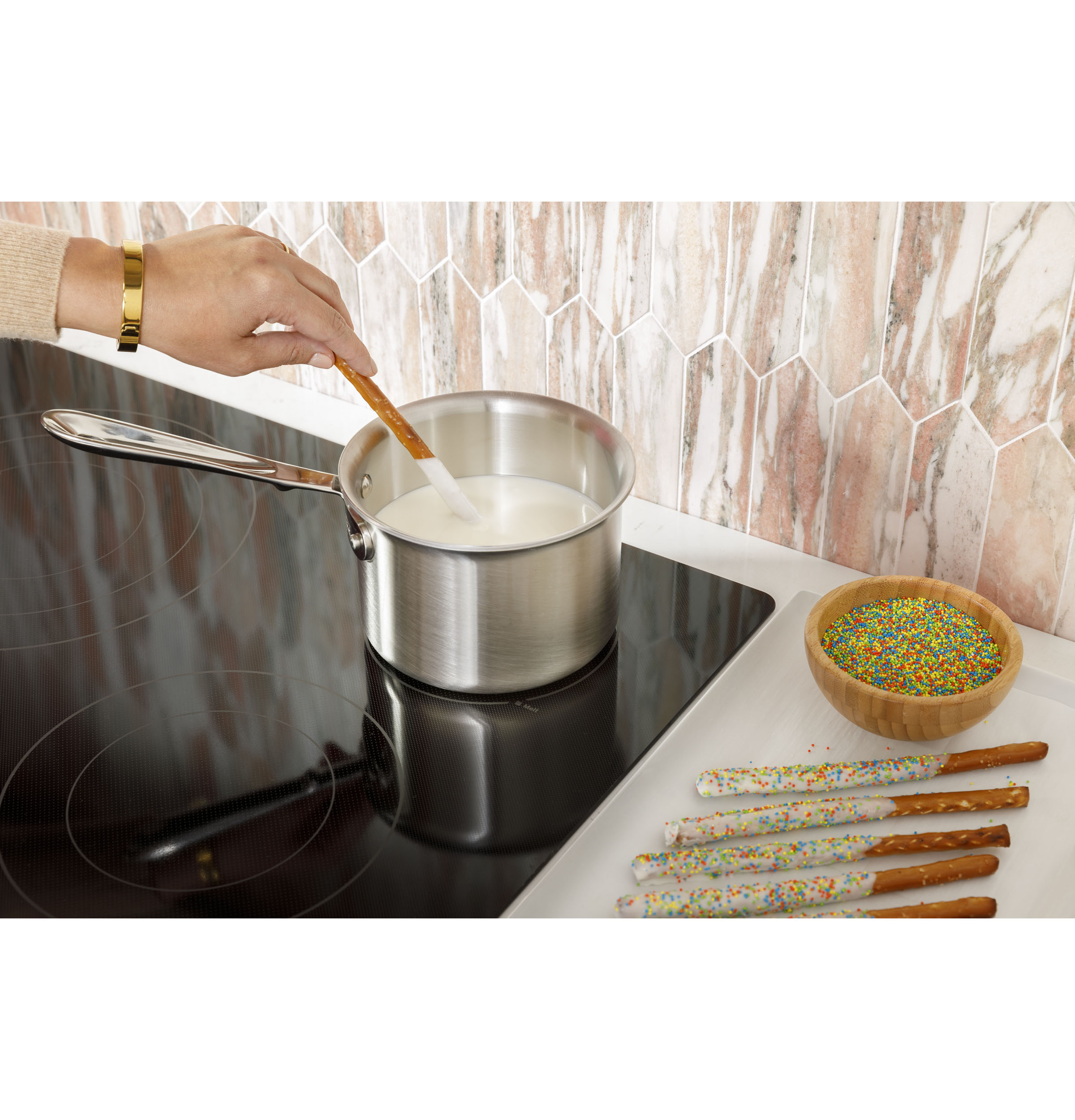

Melt Setting
Gently melt delicate foods without scorching thanks to this optimal melt option cooktop

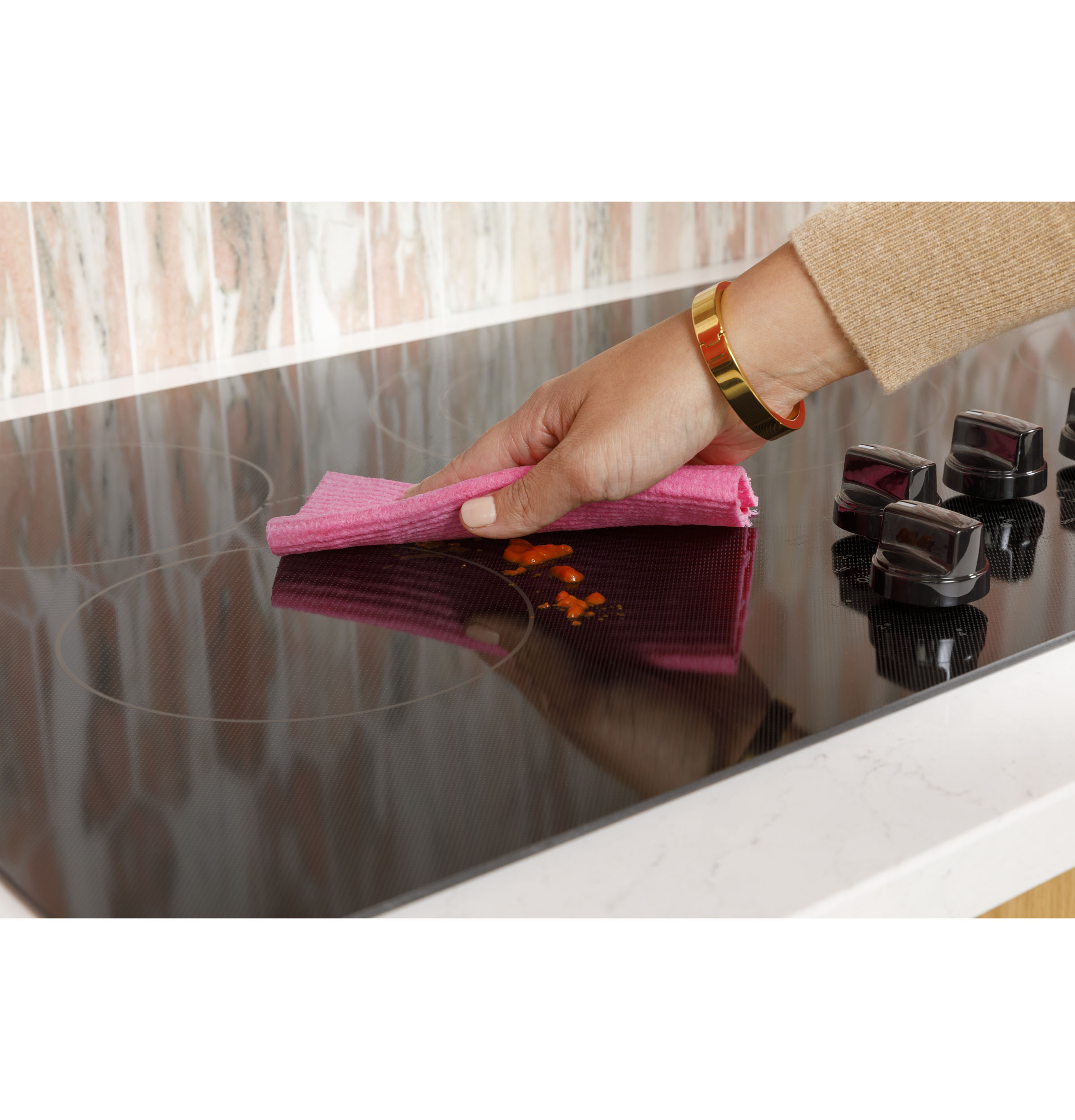

Easy Clean Surface
A smooth glass surface makes cleaning up messes simpler than ever on this easy clean electric cooktop

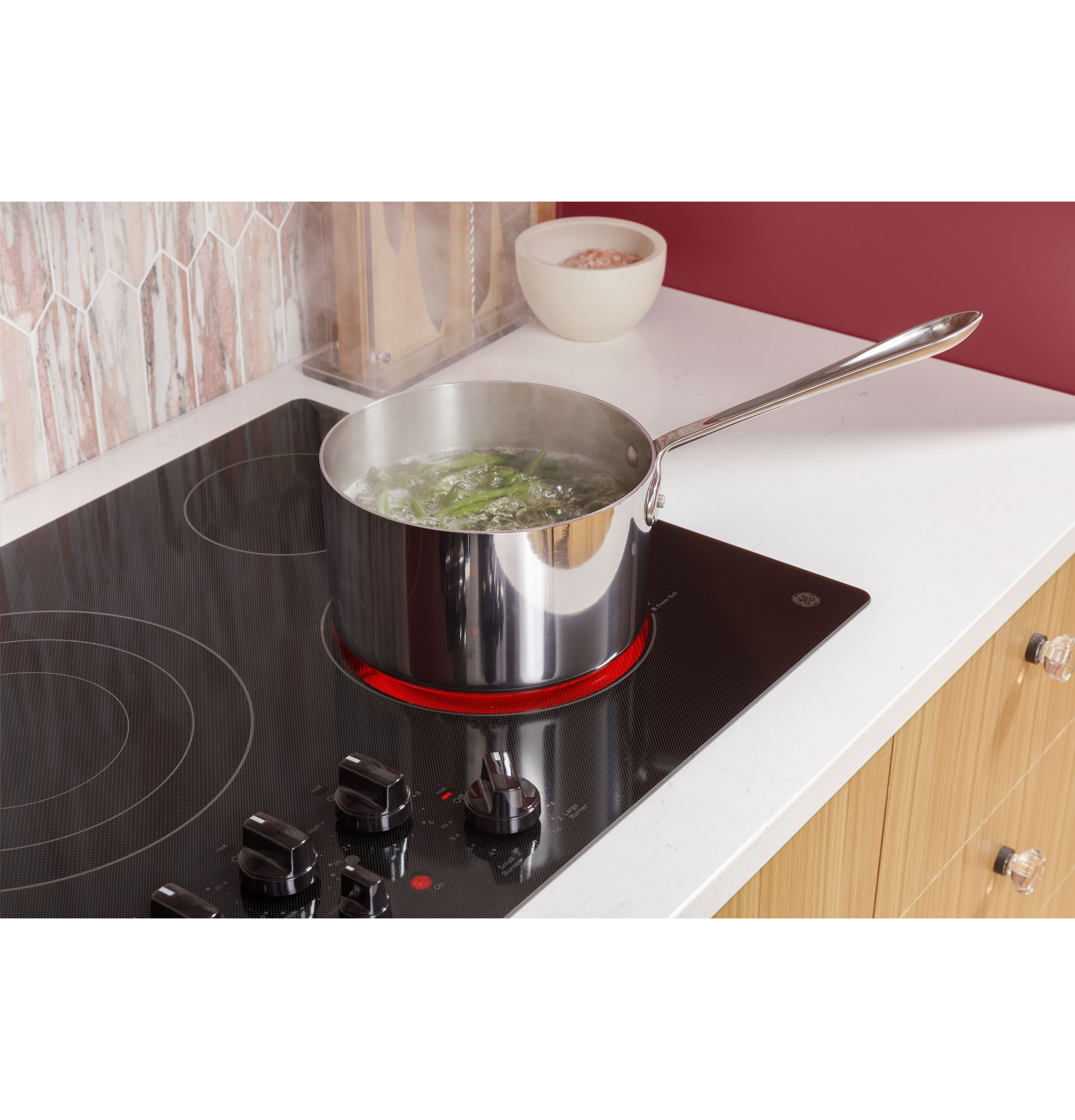

Power Boil on Dual-Ring Element (3,100W)
Cook faster with a variety of different pan sizes on this powerful rapid boil electric cooktop with a 3,100-watt flexible element

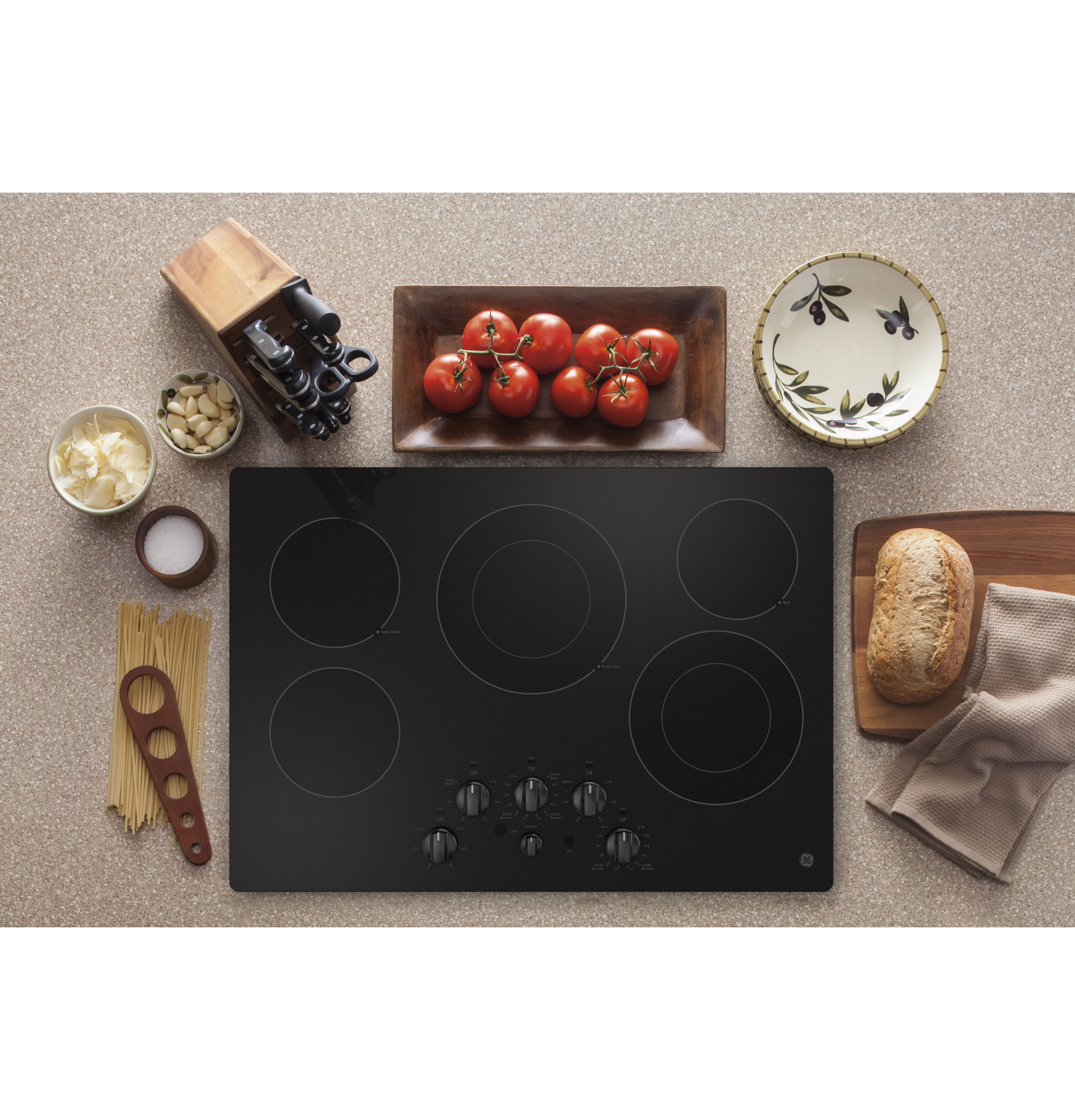

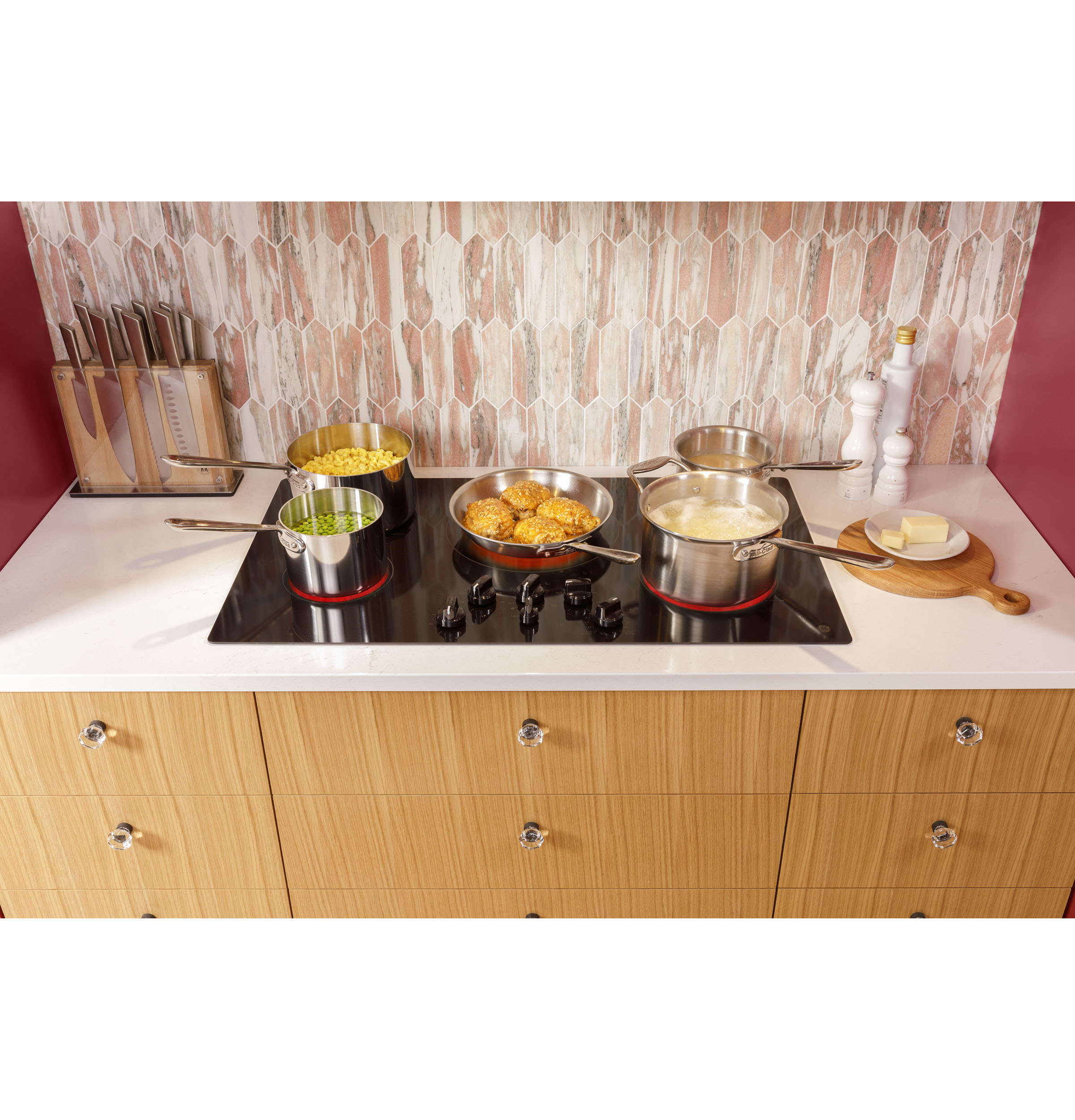

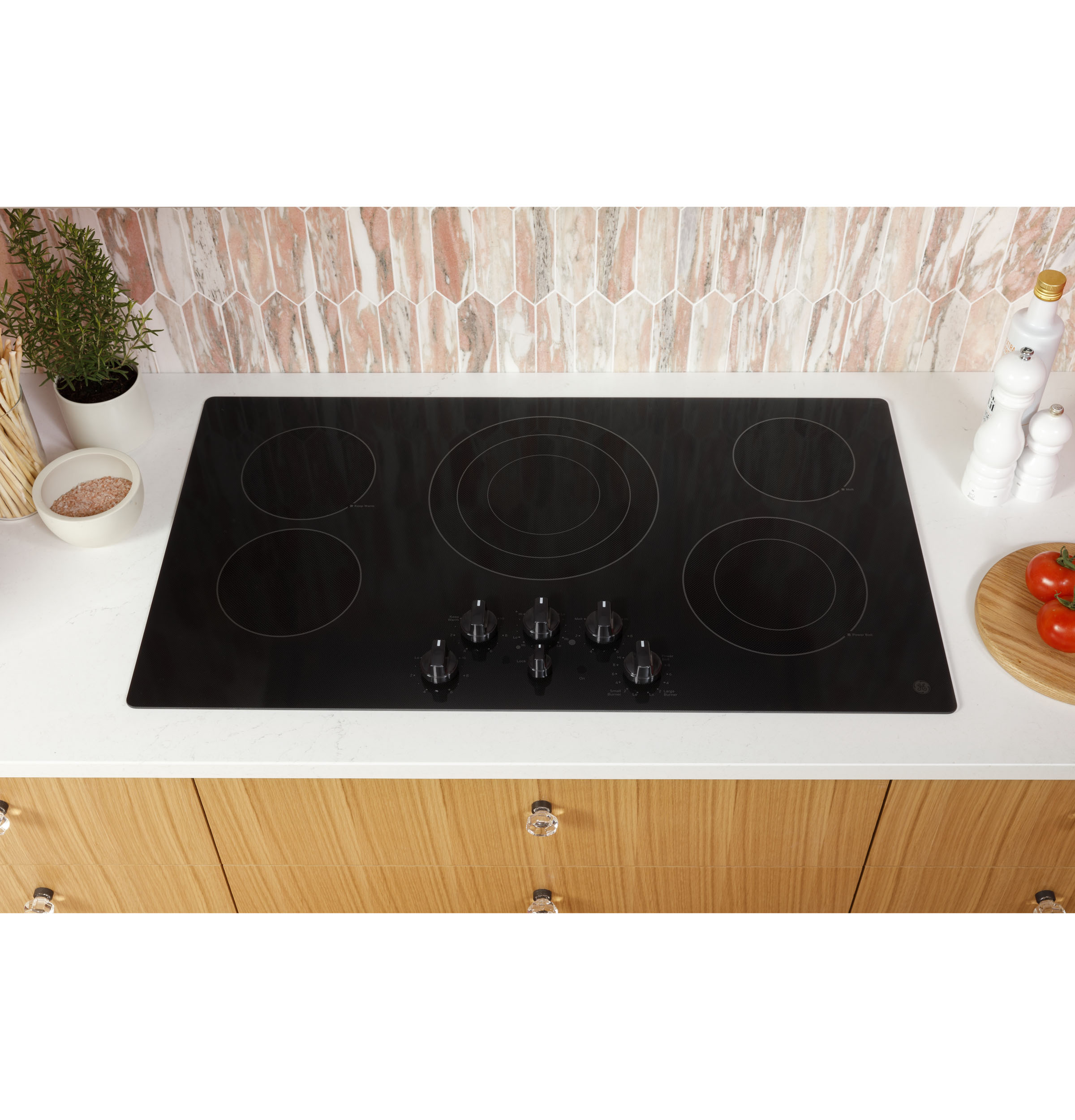

Flexible Cooktop
5 variously sized cooking burners on this flexible electric cooktop let you find the perfect fit for your pans and pots
