Product Details for GE APPLIANCES JBS86SPSS

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

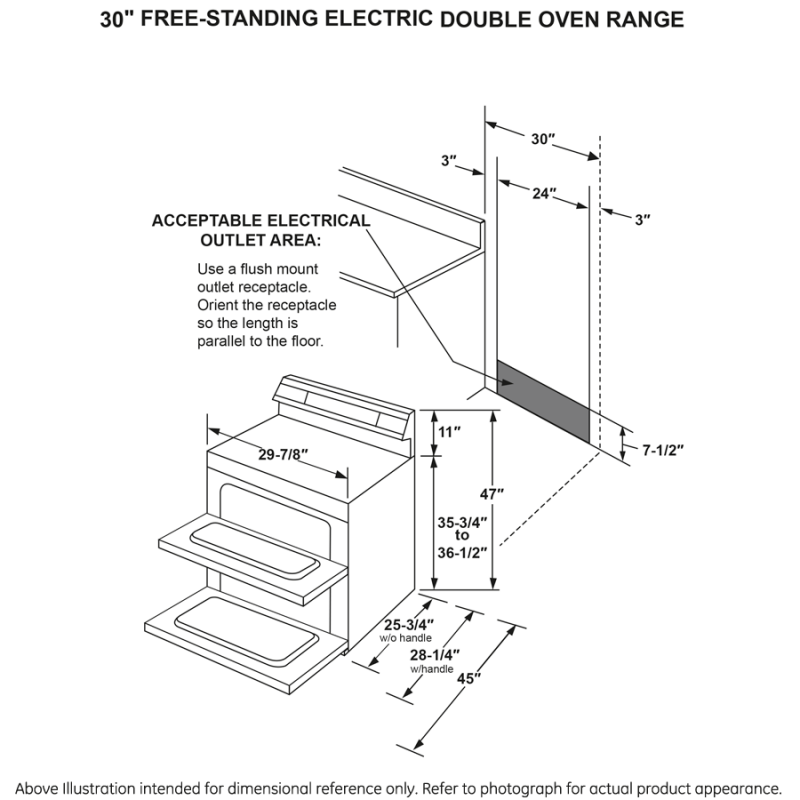

Weights & dimensions

Overall Width 29.875 in
Overall Height 47.5 in
Overall Depth 28.25 in
Net Weight 204 lb
Depth Without Handle 25.75 in
Oven Interior Dimensions (upper) 24 x 8-7/8 x 18-1/4
Cabinet Width 30 in
Approximate Shipping Weight 226 lb
Depth with Door Open 45 in
Oven Interior Dimensions (lower) 24 x 17 1/2 x 18 1/4
Height to Cooking Surface (in.) 35.75 - 36.5

Accessories

Air Fry Basket Optional- JXAFTRAY1VSS

Features

Element - Center 6" 80W Warming Zone
Oven Control Features Sabbath Mode

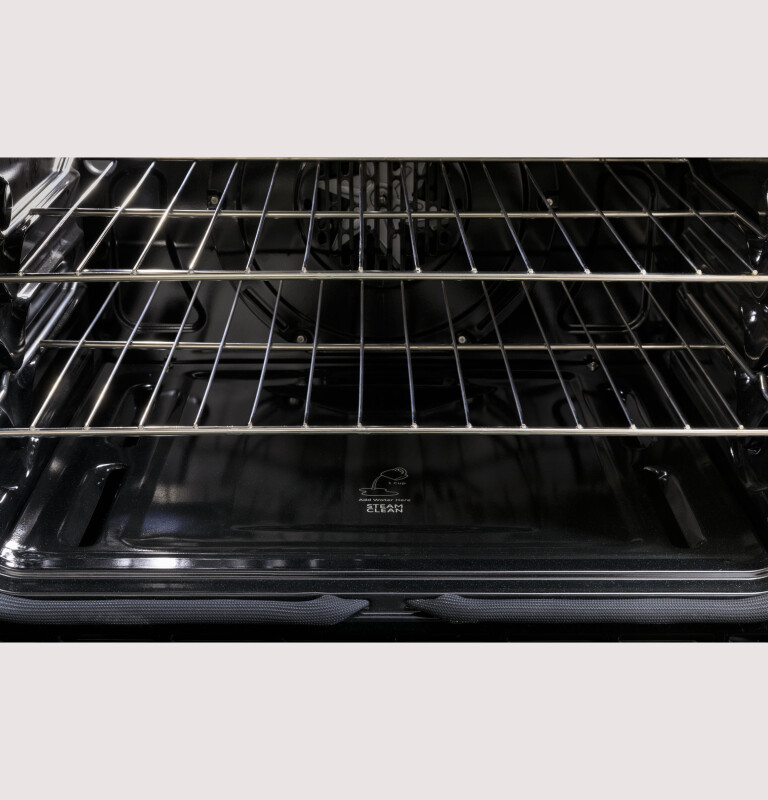

Oven Rack Features 3 Heavy-Duty Oven Racks
Element - Left Front 9"/6" 3100W Power Boil
Power Boil Burner Yes
Oven Cleaning Type Steam Clean (Both Ovens)
Product Type Free-Standing Double Oven
Heating Element "ON" Indicator Light 1

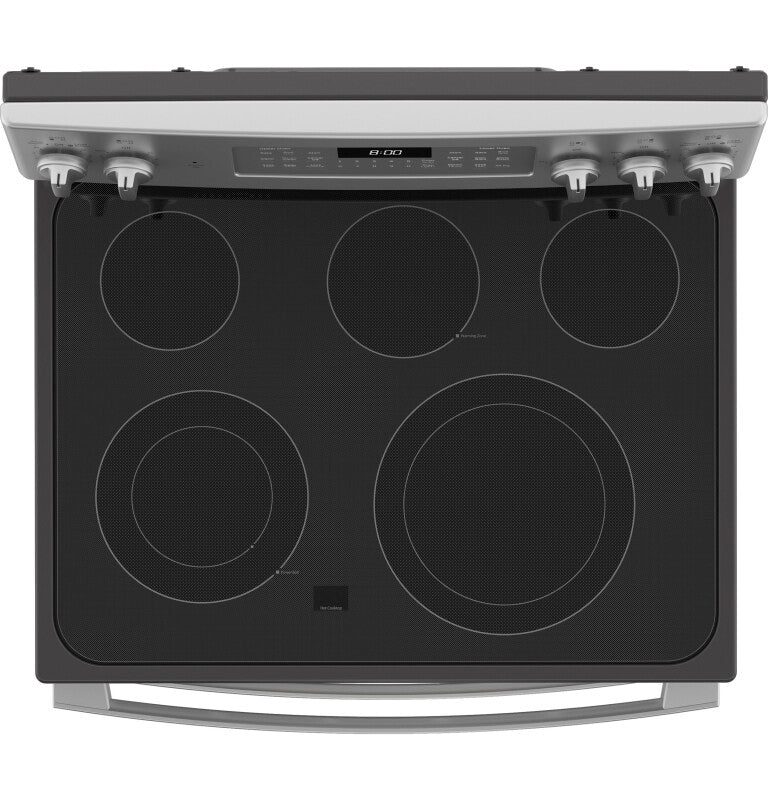

Cooktop Type Radiant Smoothtop
Fuel Type Electric
Element - Right Front 12"/9" 3000W
Interior Oven Light Preheat Notification (Both Ovens)

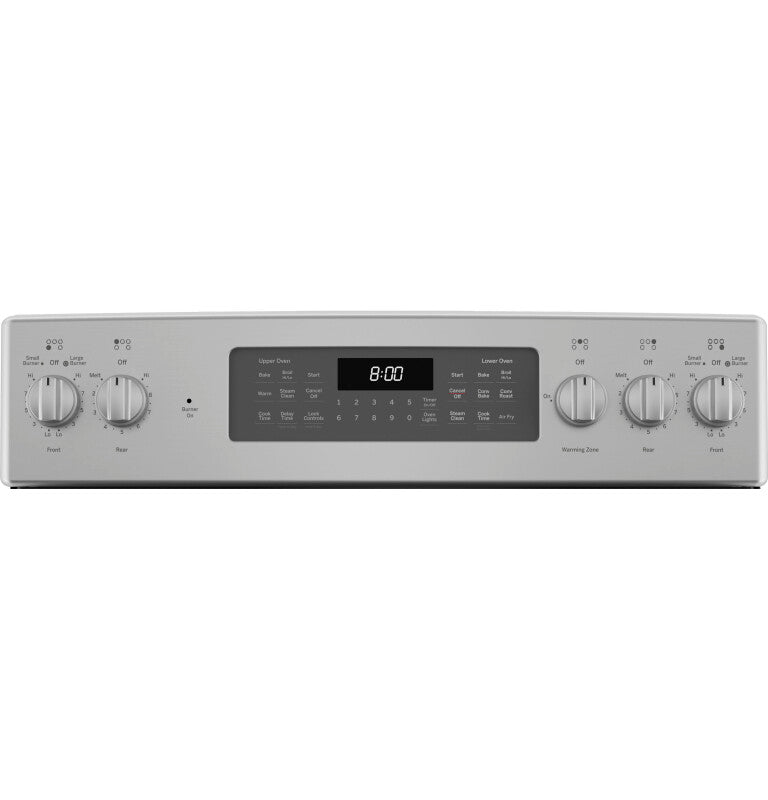

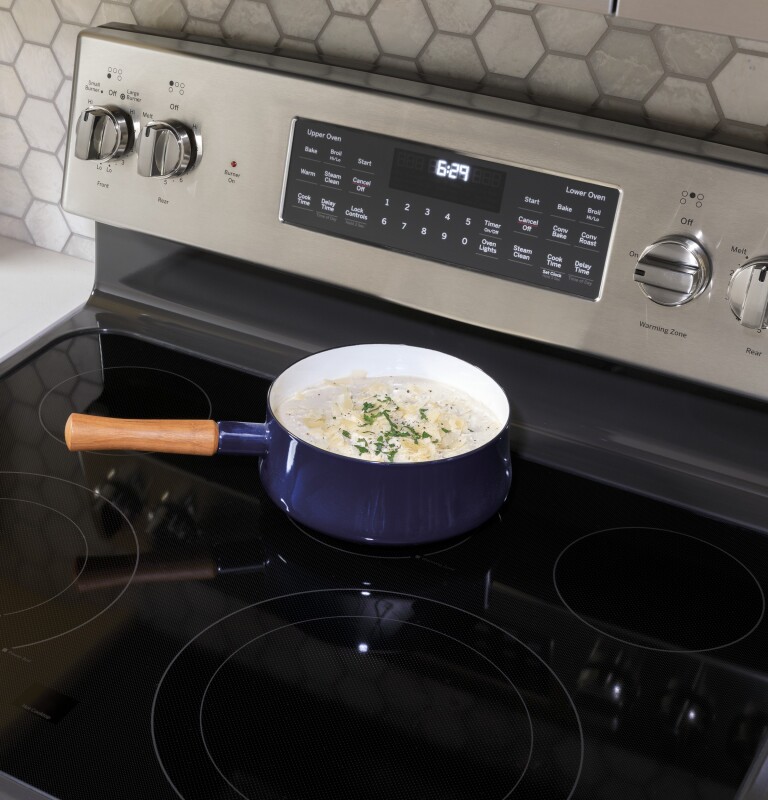

Control Location Backsplash
Control Type Touchpads
Hot Surface Indicator Lights 1
Sabbath Mode Yes
Element - Left Rear 6" 1200W
Cooking Technology Traditional Upper; Convection Lower
Configuration Double Oven Range
Oven Features 8-Pass Bake Element (Upper)
Melt Setting Yes
OU Certified No
Oven Cooking Modes Warming
Cooktop Burner Type Smoothtop
Element - Right Rear 6" 1200W
Cooktop Surface One-Piece Upswept
Oven Rack Positions (Single or Upper/Lower) 2 / 7
Control Type Digital Temperature Display
Control Type Electronic
Cooktop Burner Type Radiant
Cooktop Surface Gray Patterned Ceramic Glass
Interior Oven Light 2 Incandescent (1 Upper and 1 Lower)
Oven Control Features Audible Preheat Signal
Oven Control Features Auto Oven Shut-Off with Override
Oven Control Features C° or F° Programmable
Oven Control Features Control Lock Capability
Oven Control Features Delay Bake Option (Time Cook)
Oven Control Features Delay Clean Option
Oven Control Features Electronic Clock & Kitchen Timer
Oven Control Features Hi / Low Broil
Oven Control Features Oven "ON" Light
Oven Control Features Convection Bake
Oven Control Features Convection Roast
Oven Cooking Modes No Preheat Air Fry
Oven Features 6-Pass Bake Element (Lower)
Oven Features 6-Pass Broil Element (Both Ovens)
Oven Control Features Certified Oven Kosher Separation
Cooking System Convection

Appearance

Textured Steel Side Panels Yes
Oven Door Features Big View Oven Window
Handle Design Designer Style
Handle Color Stainless Steel
Control Knobs Stainless Steel Appearance
Color Appearance Stainless Steel/Gray
Oven Door Features 2-Piece Stainless/Glass

Power / ratings

Electrical Requirements 208/240V ; 60Hz ; 40A
Amp Rating at 208V 40
Broiler Wattage 2500W Upper / 3600W Lower
Amp Rating at 240V 40
KW Rating at 240V 15.6
Bake Wattage 2500W Upper / 2650 Lower
KW Rating at 208V 11.7
Hertz 60

Capacity

Capacity (Cu. Ft.) 2.2 Upper / 4.4 Lower
Total Capacity (cubic feet) 6.60 cu ft

Warranty

Parts Warranty Limited 1-year entire appliance
Labor Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details

Other

Oven Interior Dimensions (upper) 24 x 8-7/8 x 18-1/4
Oven Interior Dimensions (lower) 24 x 17 1/2 x 18 1/4

Dimensions & weight

Width 29.88 in.
Height 47.5 in.
Length 28.25 in.
Weight 204 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 34.88 in.
Shipping Height 52.5 in.
Shipping Length 33.25 in.
Shipping Weight 244 lbs.
Total of Shipping Weight 244 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 23.2 ft³
Dimensional Weight 288.41 lbs.
Total of Cubes 23.2 ft³
Total of Dimensional Weight 288.41 lbs.

Description

This convection oven cooks and browns more evenly, using a rear fan to circulate hot air.A power boiler produces concentrated heat for rapid boiling in a flexible 12-inch/9-inch burner size, so you spend less time waiting and more time cooking.47 1/2 H x 29 7/8 W x 28 1/4 D


Product Features

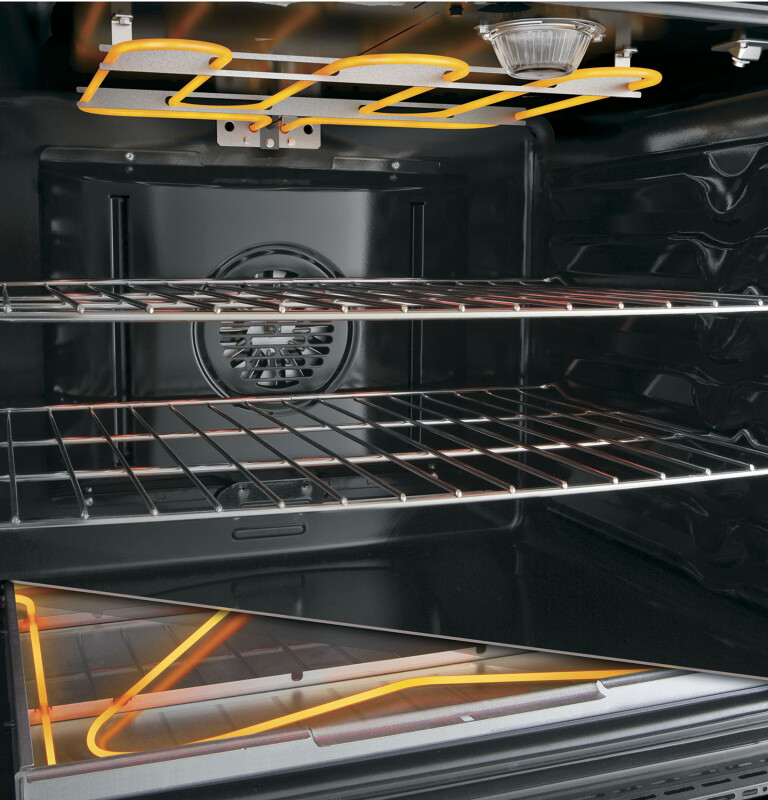

  • Wall-to-wall bake element
    An 8-pass bake element in the upper oven heats a large cooking area evenly

Key Features

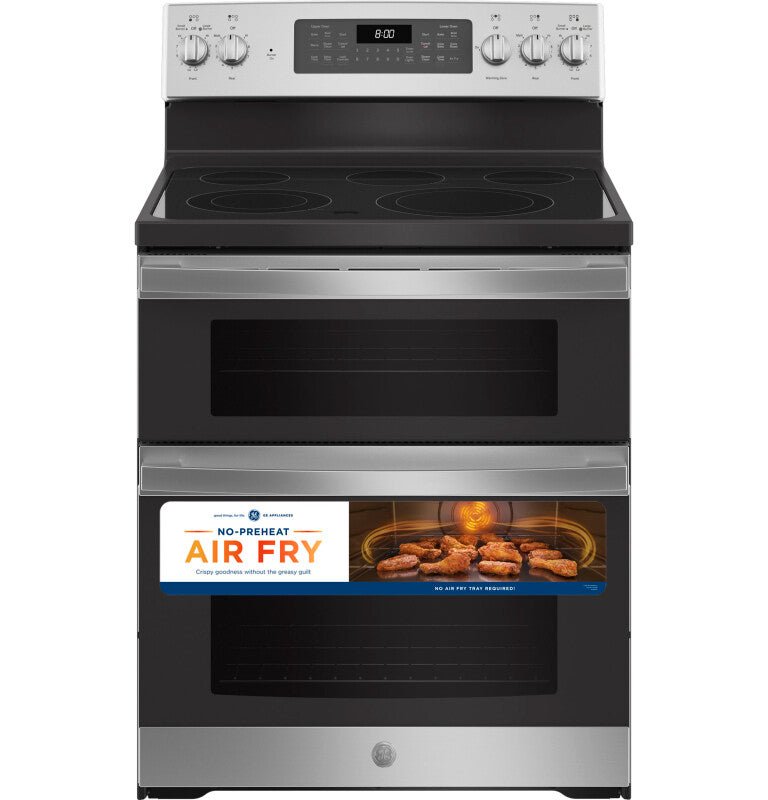

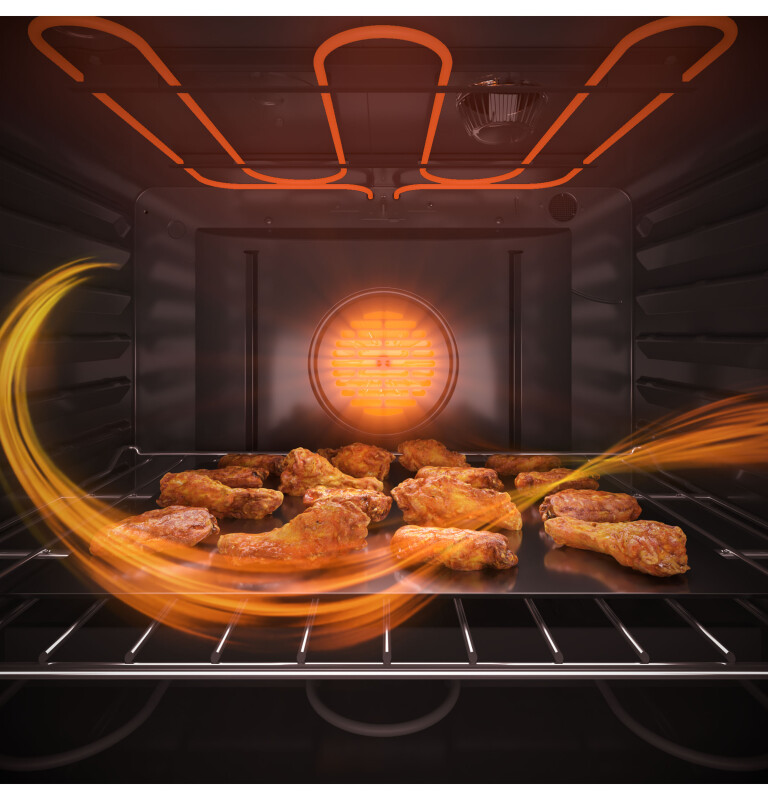

No-Preheat Air Fry

Cook healthier, crispier versions of your favorite foods in less time, thanks to an air fryer right in your oven that doesn’t require preheating, a basket or a special tray

Warming mode

A warming mode that lets you to serve dishes at the right time and temperature

Steam clean

A steam cleaning option cleans the oven cavity in a 30-minute cycle with less odor and heat

Fast preheat

The upper oven preheats quickly and evenly with a speedy preheat feature

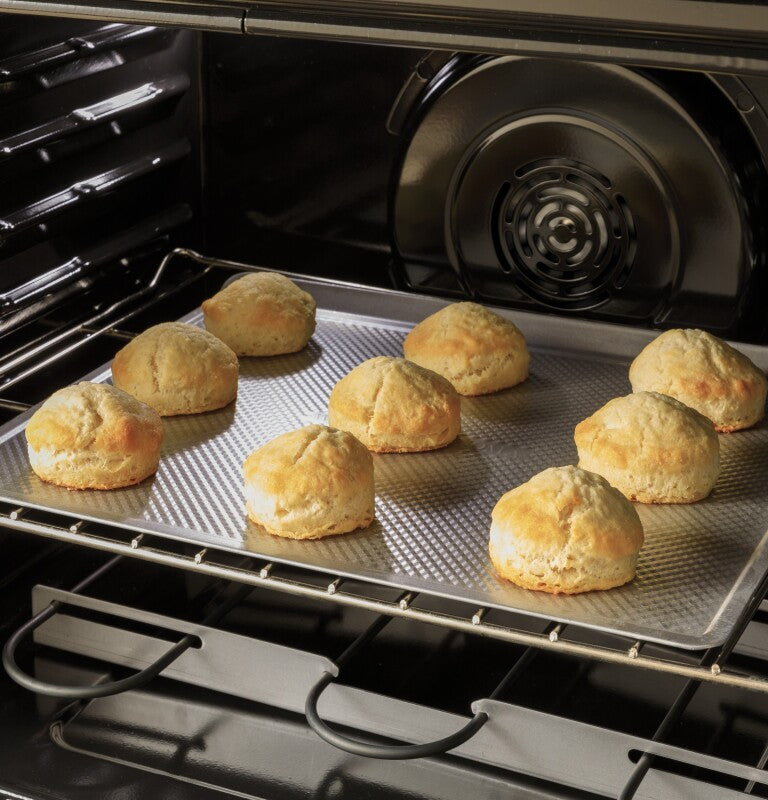

Convection

This convection oven cooks and browns more evenly, using a rear fan to circulate hot air

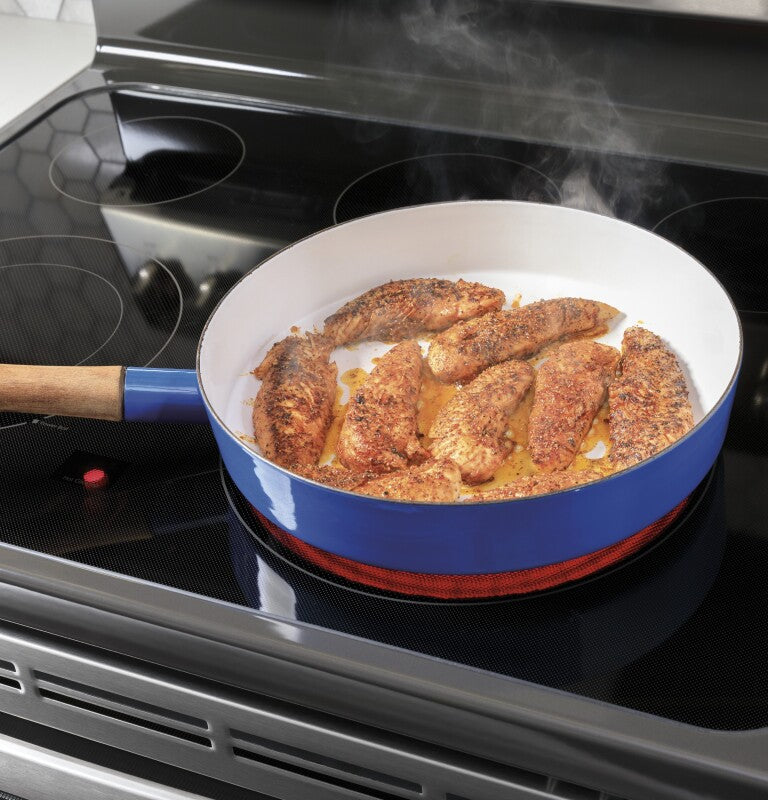

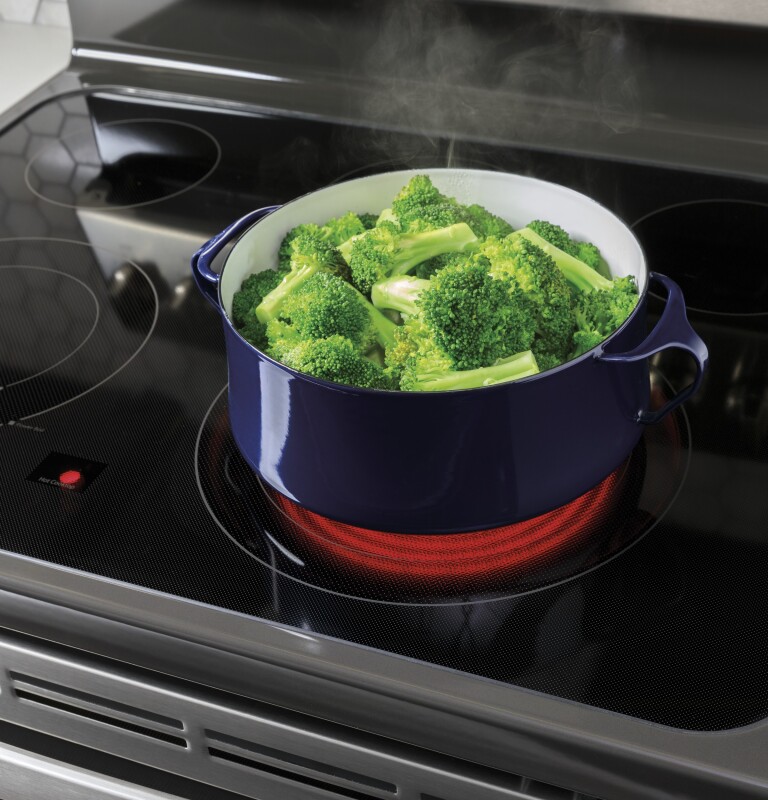

12"/9" Power boil element

A power boiler produces concentrated heat for rapid boiling in a flexible 12-inch/9-inch burner size, so you spend less time waiting and more time cooking

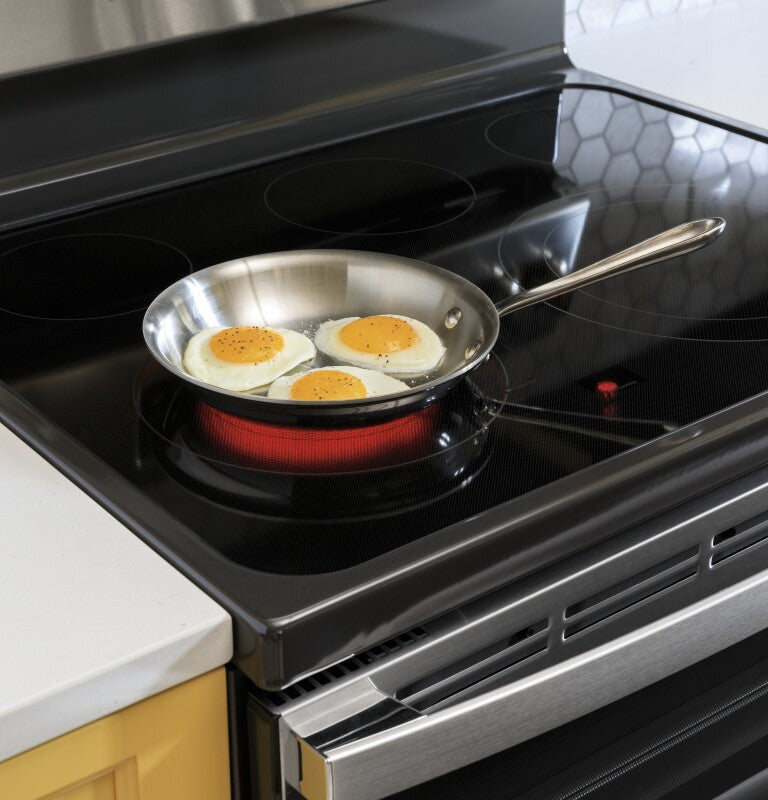

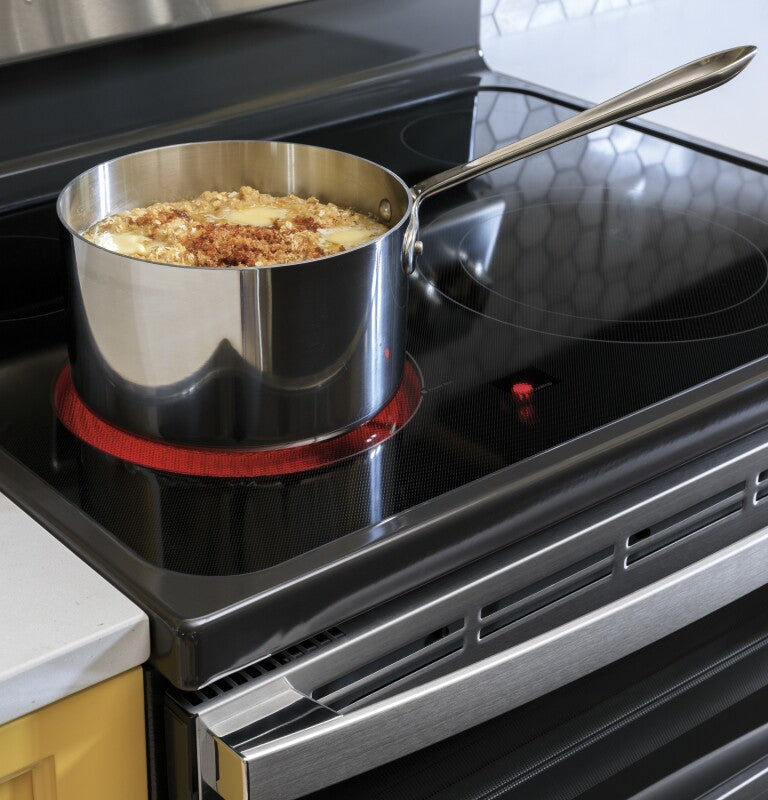

9"/6" Power boil element

A power boiler produces concentrated heat for rapid boiling in a flexible 9-inch/6-inch burner size, so you spend less time waiting and more time cooking

Fifth element warming zone

A convenient low-heat warming zone provides even temperature control for foods on the cooktop

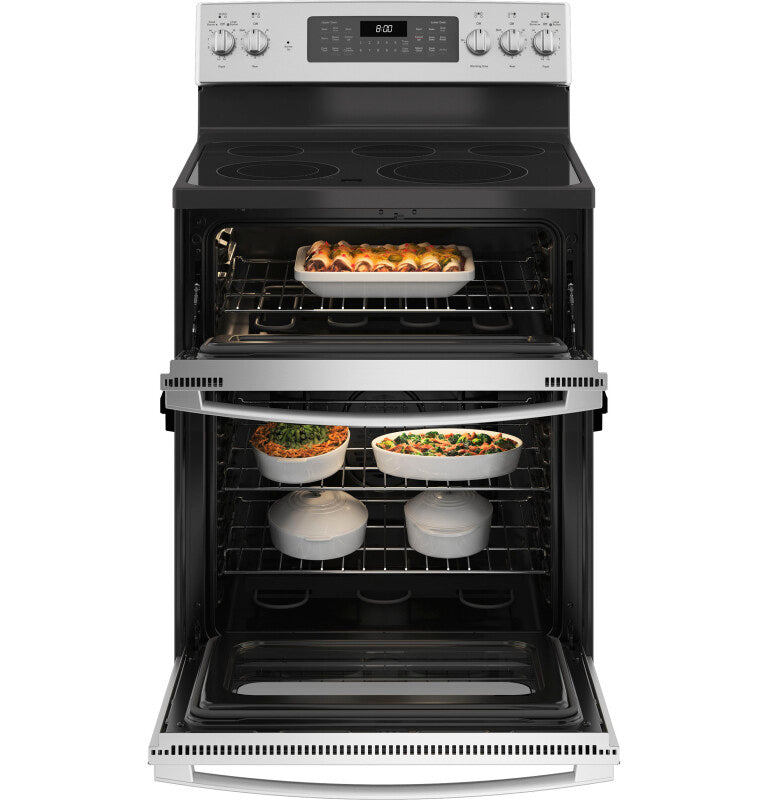

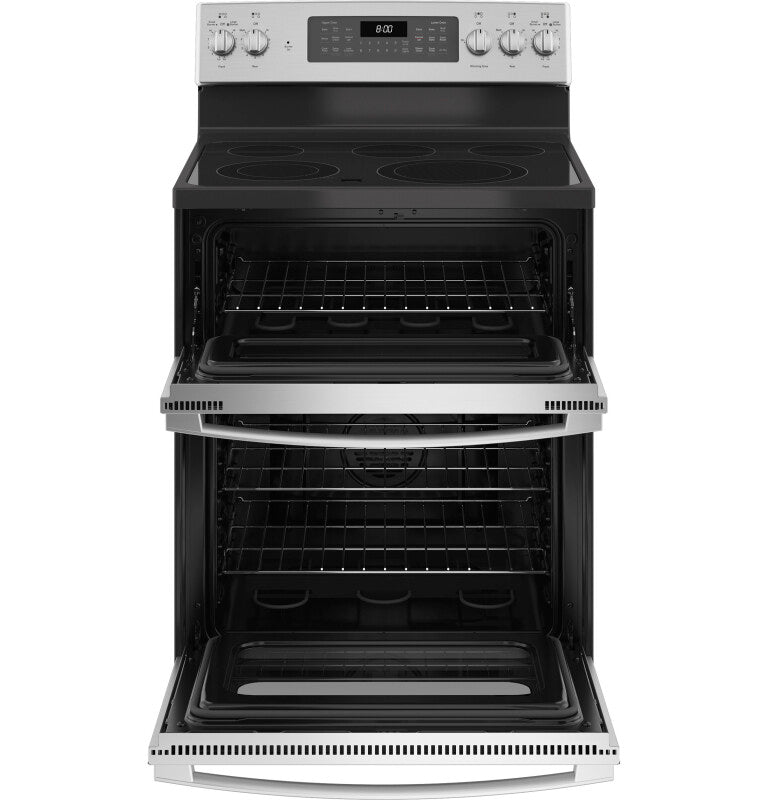

Large capacity double oven

This large double-oven lets you cook multiple items at the same time thanks to its 6.6 cubic foot total capacity
