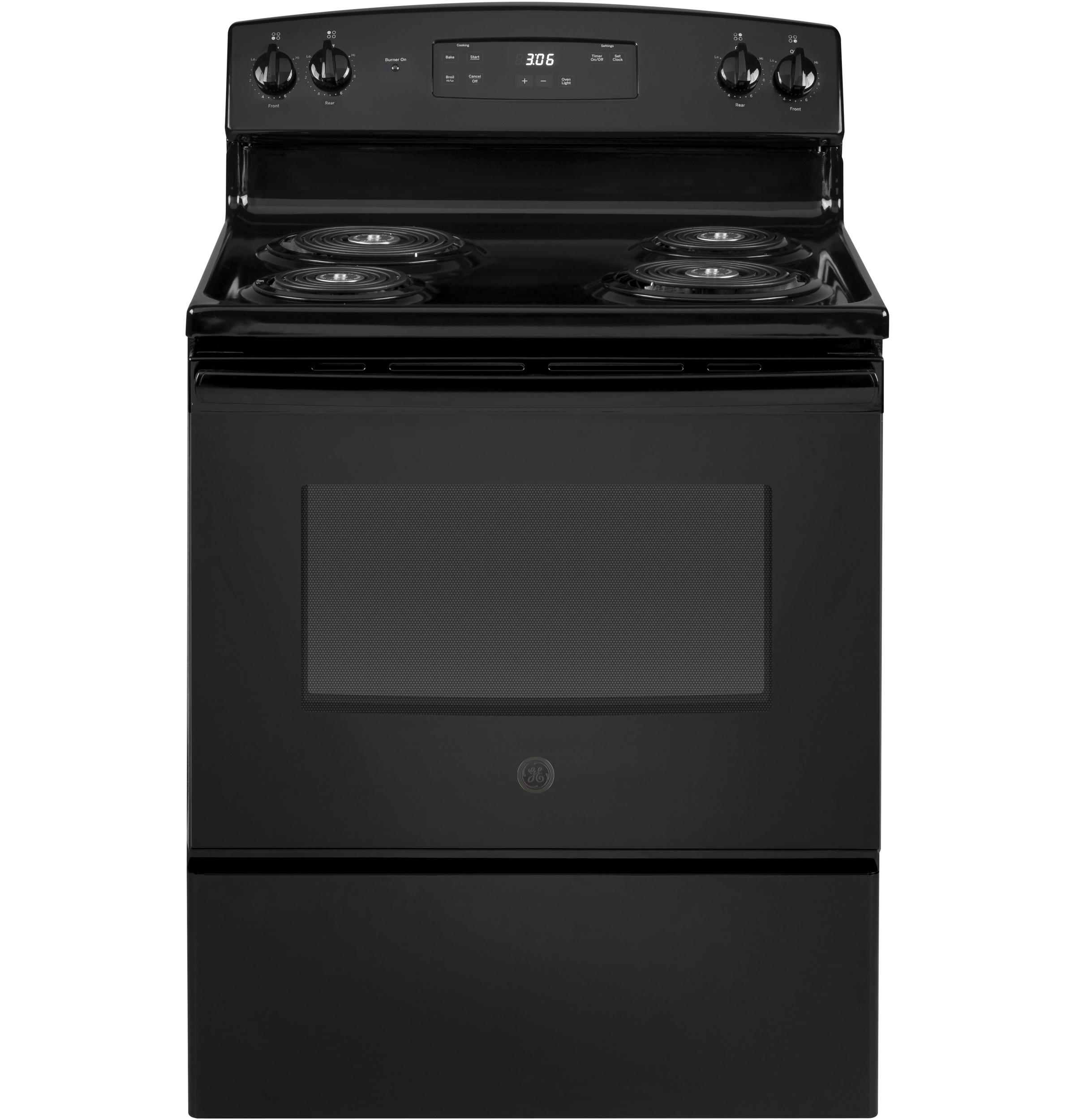

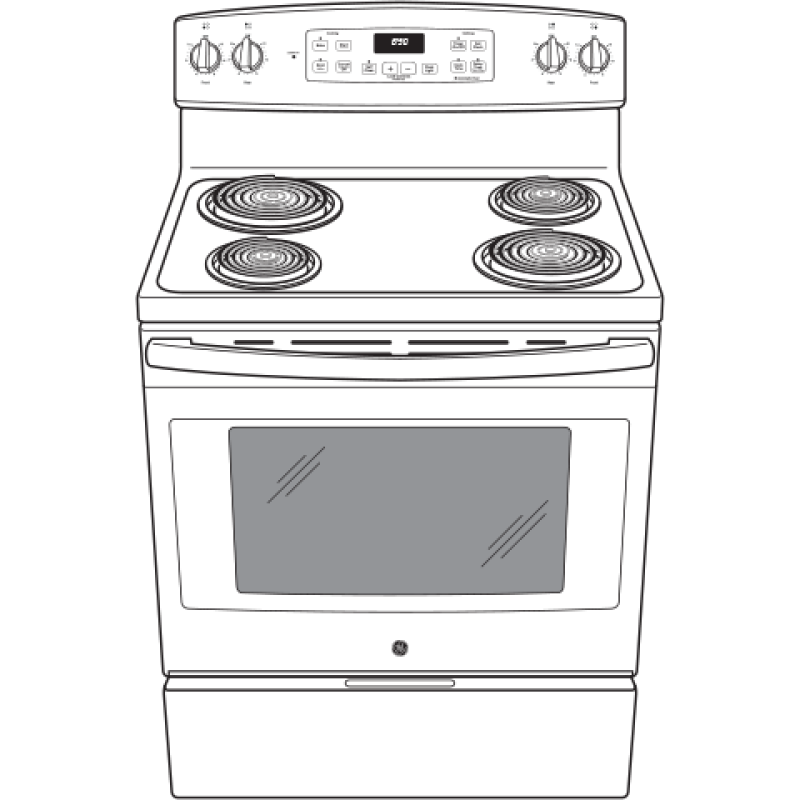

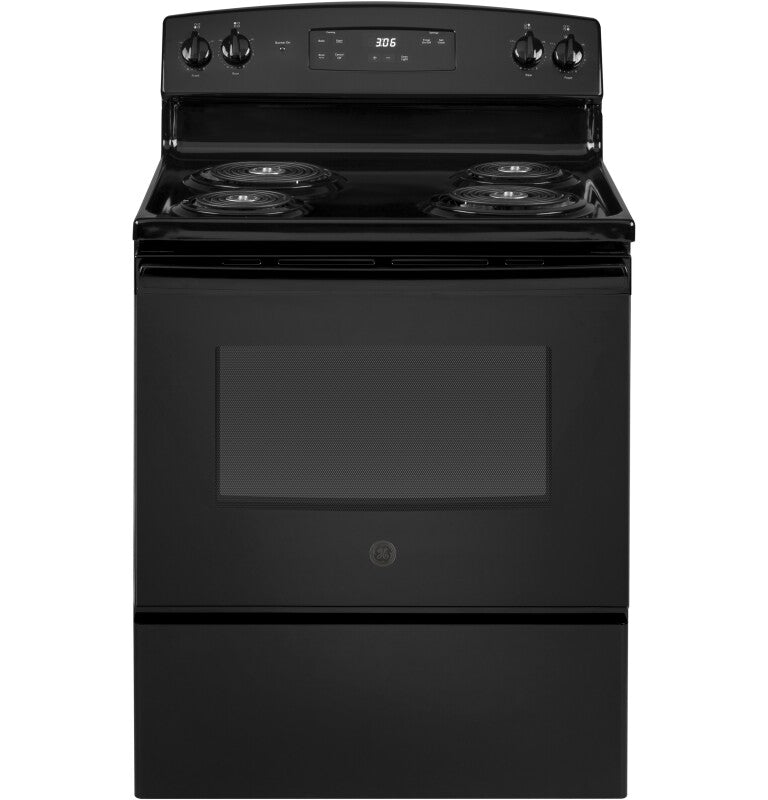

JBS360DMBB 30" Free-Standing Electric Range Black

Product Details for GE JBS360DMBB

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

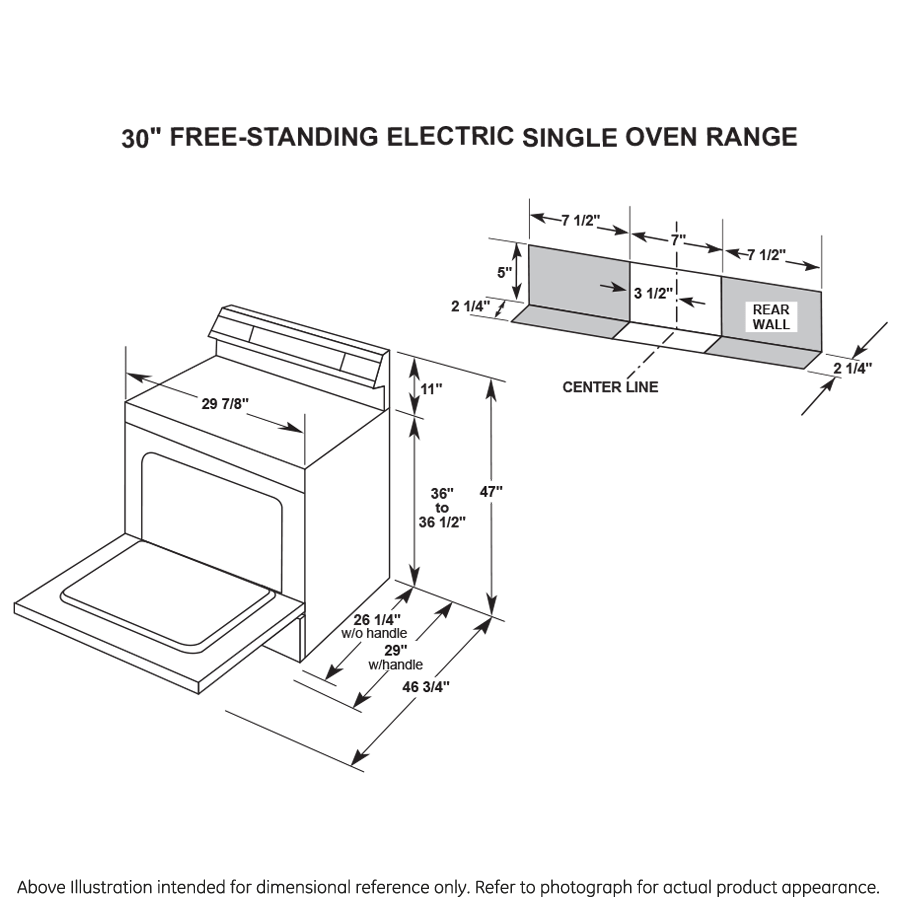

Weights & dimensions

Overall Width	30 in
Overall Height	47 in
Overall Depth	28.75 in
Net Weight	142 lb
Depth Without Handle	26.25 in
Cabinet Width	30 in
Approximate Shipping Weight	162 lb
Depth with Door Open	46.25 in
Oven Interior Dimensions (W x H x D) (in.)	23-3/4 x 19 x 18-1/2
Height to Cooking Surface (in.)	36 - 36.5

Other

Oven Interior Dimensions (W x H x D) (in.)

23-3/4 x 19 x 18-1/2

Dimensions & weight

Width	30 in.
Height	47 in.
Length	28.75 in.
Weight	142 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	35 in.
Shipping Height	52 in.
Shipping Length	33.75 in.
Shipping Weight	182 lbs.
Total of Shipping Weight	182 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	23.46 ft³
Dimensional Weight	291.64 lbs.
Total of Cubes	23.46 ft³
Total of Dimensional Weight	291.64 lbs.

Features

Cooking System	Traditional
Storage Drawer Features	Removable Full-Width
Oven Interior	1 Incandescent Light
Lift-Up Cooktop With Support Rods	Yes

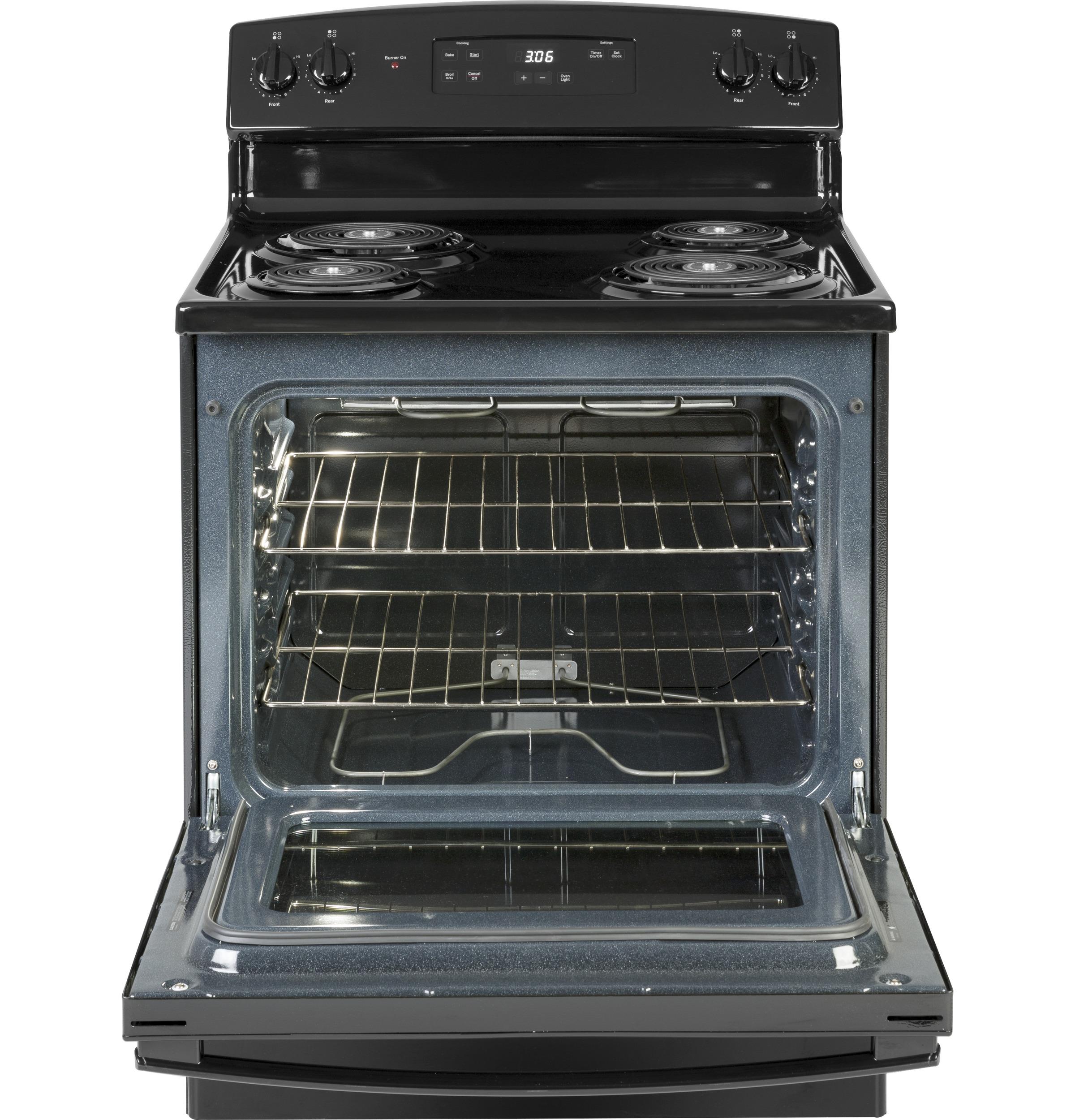

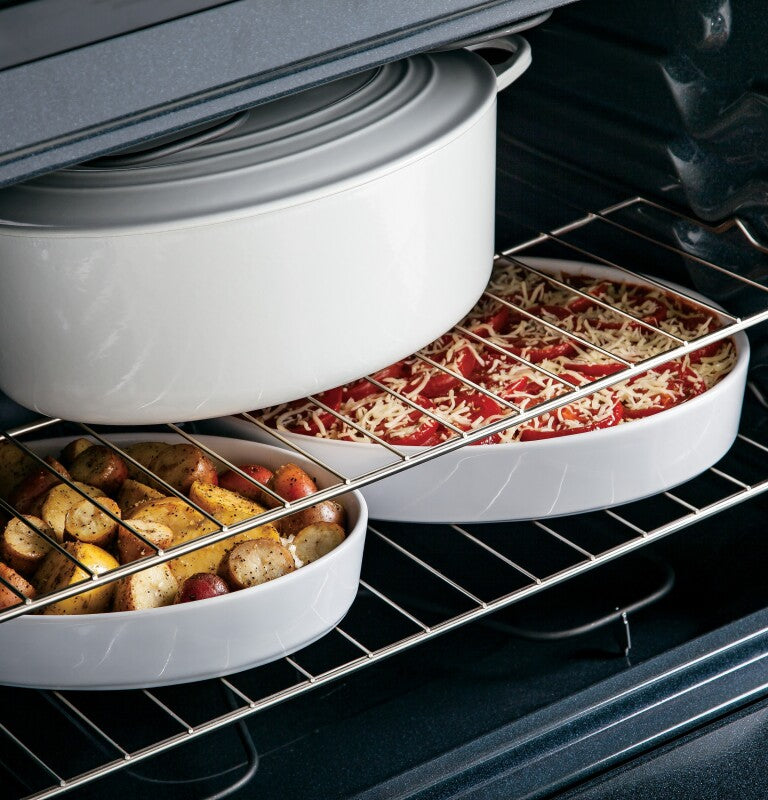

Oven Rack Features	2 Oven Racks

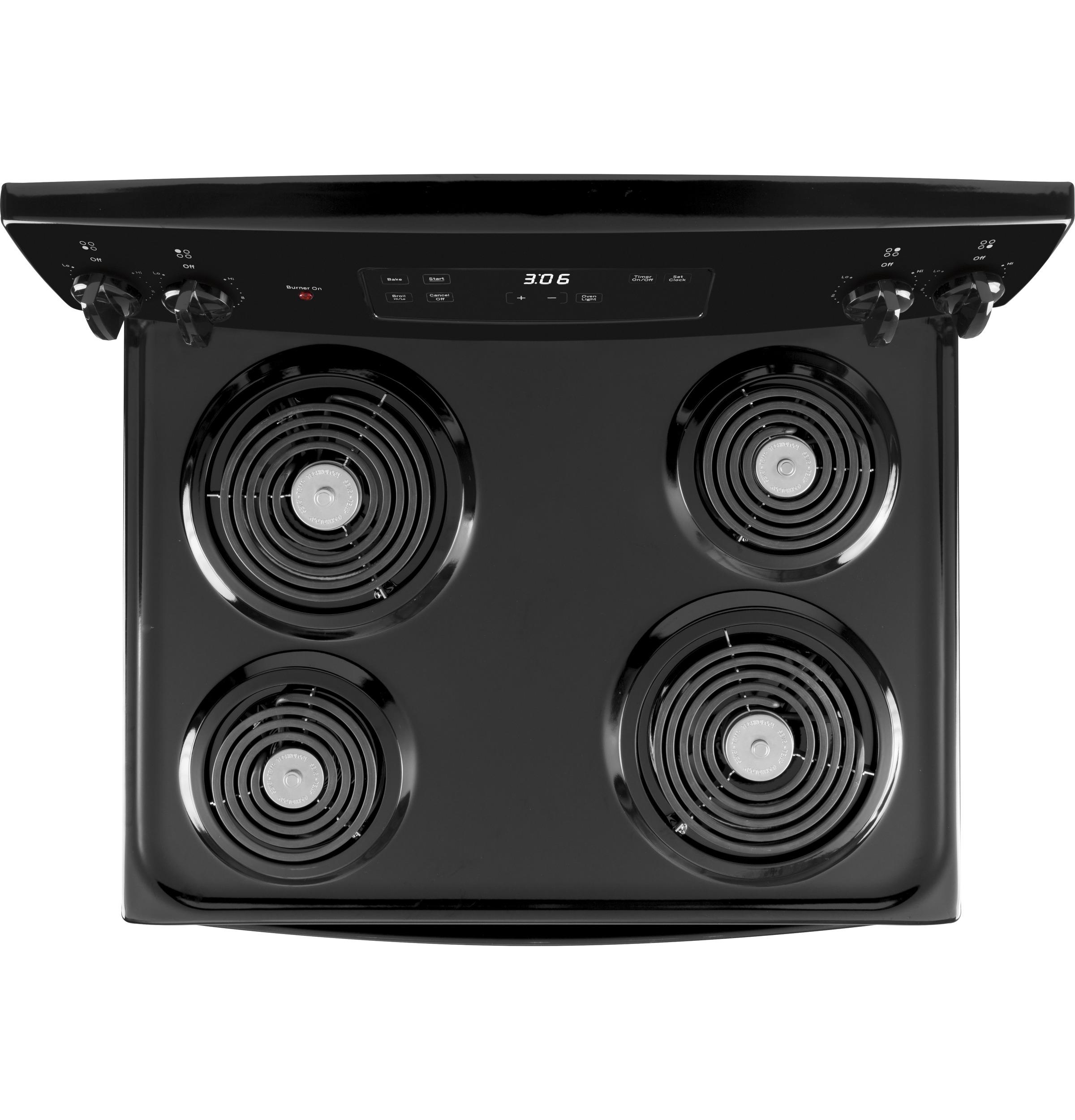

Element - Left Front	6" 1250W Temp Limiting Coil
Oven Cleaning Type	Standard Clean
Product Type	Free-Standing Single Oven
Heating Element "ON" Indicator Light	Yes
Cooktop Type	Coil
Fuel Type	Electric
Element - Right Front	8" 2400W Temp Limiting Coil

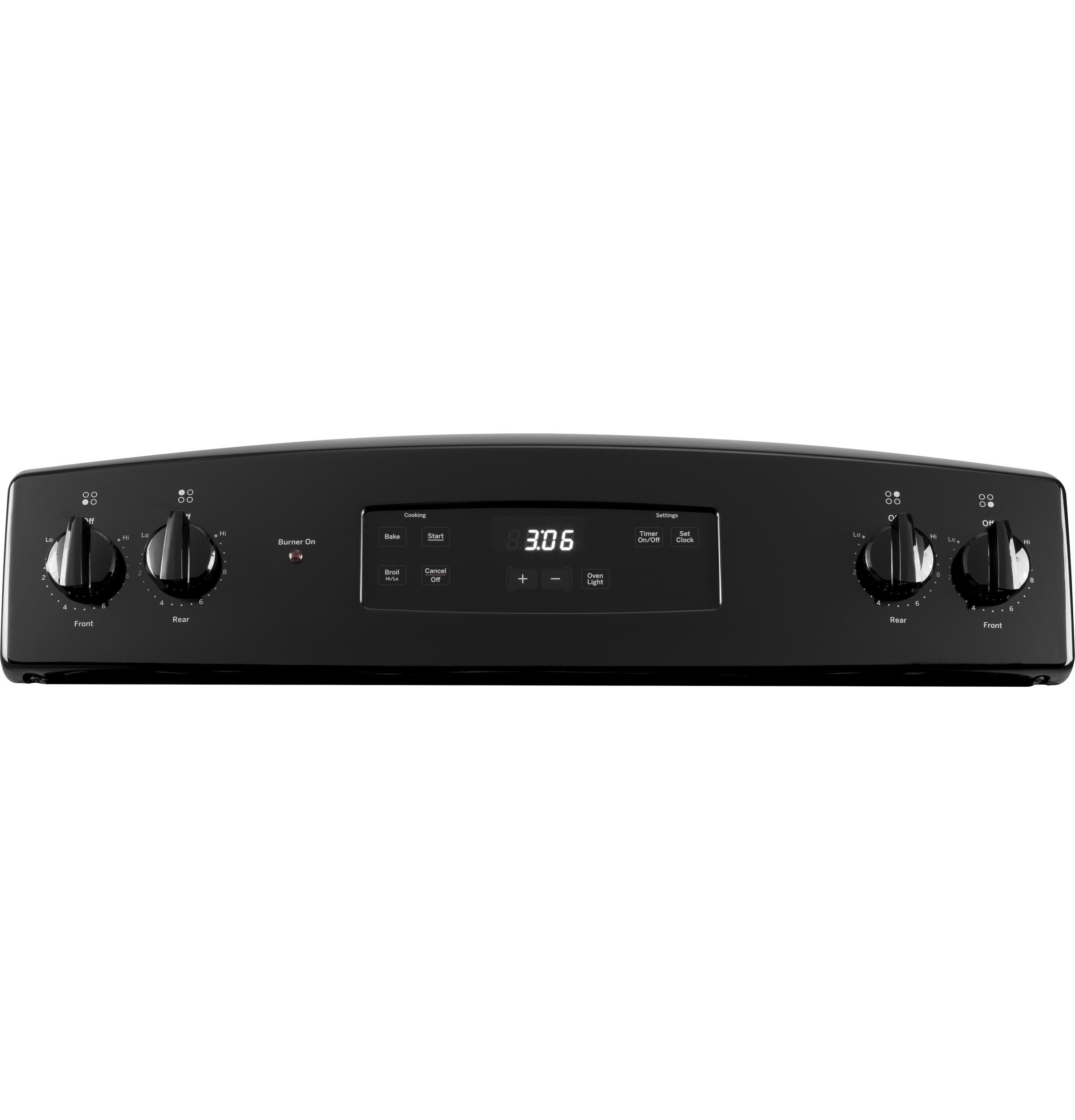

Control Location	Backsplash
Drawer Type	Storage
Sabbath Mode	Yes
Element - Left Rear	8" 2400W Temp Limiting Coil
Cooking Technology	Traditional
Configuration	Range with Storage Drawer
Oven Features	4-Pass Broil Element
Removable One-Piece Drip Bowls	Black Porcelain Enameled
OU Certified	No
Cooktop Burner Type	Coil
Element - Right Rear	6" 1250W Temp Limiting Coil
Cooktop Surface	Porcelain-Enamel
Oven Rack Positions (Single or Upper/Lower)	6
Control Type	Electronic
Oven Control Features	Auto Oven Shut-Off with Override
Oven Control Features	Oven "ON" Light
Control Type	Touchpads
Control Type	Digital Temperature Display
Cooktop Surface	One-Piece Upswept
Oven Control Features	Audible Preheat Signal
Oven Control Features	Control Lock Capability
Oven Control Features	Electronic Clock & Kitchen Timer
Oven Control Features	Hi / Low Broil
Oven Features	4-Pass Bake Element

Appearance

Handle	Designer Style
Textured Steel Side Panels	Yes
Oven Door Features	Glass Door
Handle Color	Black
Control Knobs	Black
Color Appearance	Black
Oven Door Features	Big View Oven Window

Power / ratings

Electrical Requirements	208/240V ; 60Hz ; 40A
Amp Rating at 208V	40
Broiler Wattage	3410W
Amp Rating at 240V	40
KW Rating at 240V	10.2
Bake Wattage	2585W
Hertz	60
KW Rating at 208V	7.6

Warranty

Parts Warranty	Limited 1-year entire appliance
Labor Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details

Capacity

Total Capacity (cubic feet)

5.00 cu ft

Description

Smooth surface and rounded corners make clean-up quick and easy.Enjoy the same cooking power as a traditional coil with an added safety feature that meets the new UL858 Household Electric Ranges Standard for Safety.47 H x 30 W x 28 3/4 D

Key Features

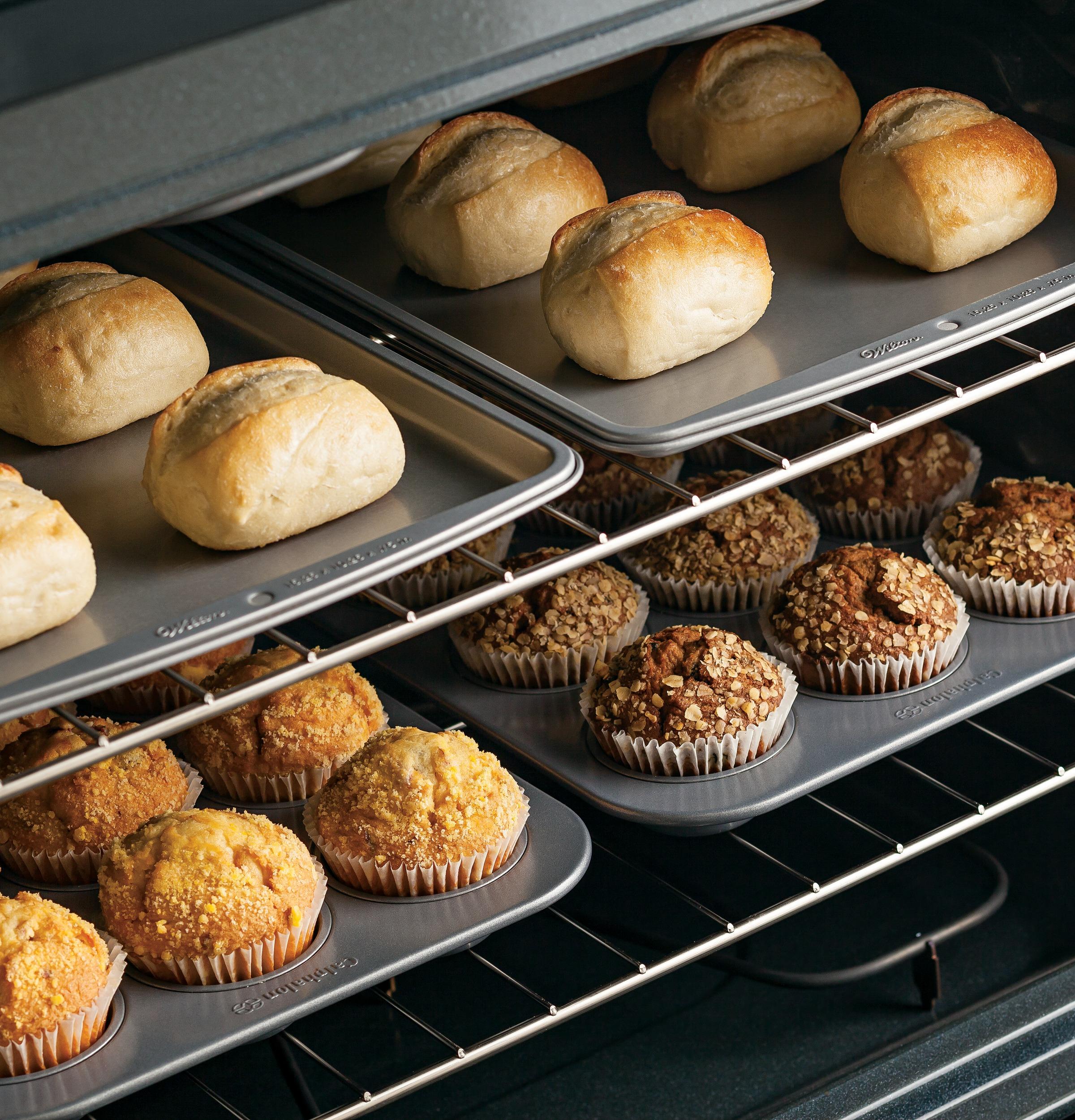

5.0 cu. ft. oven capacity

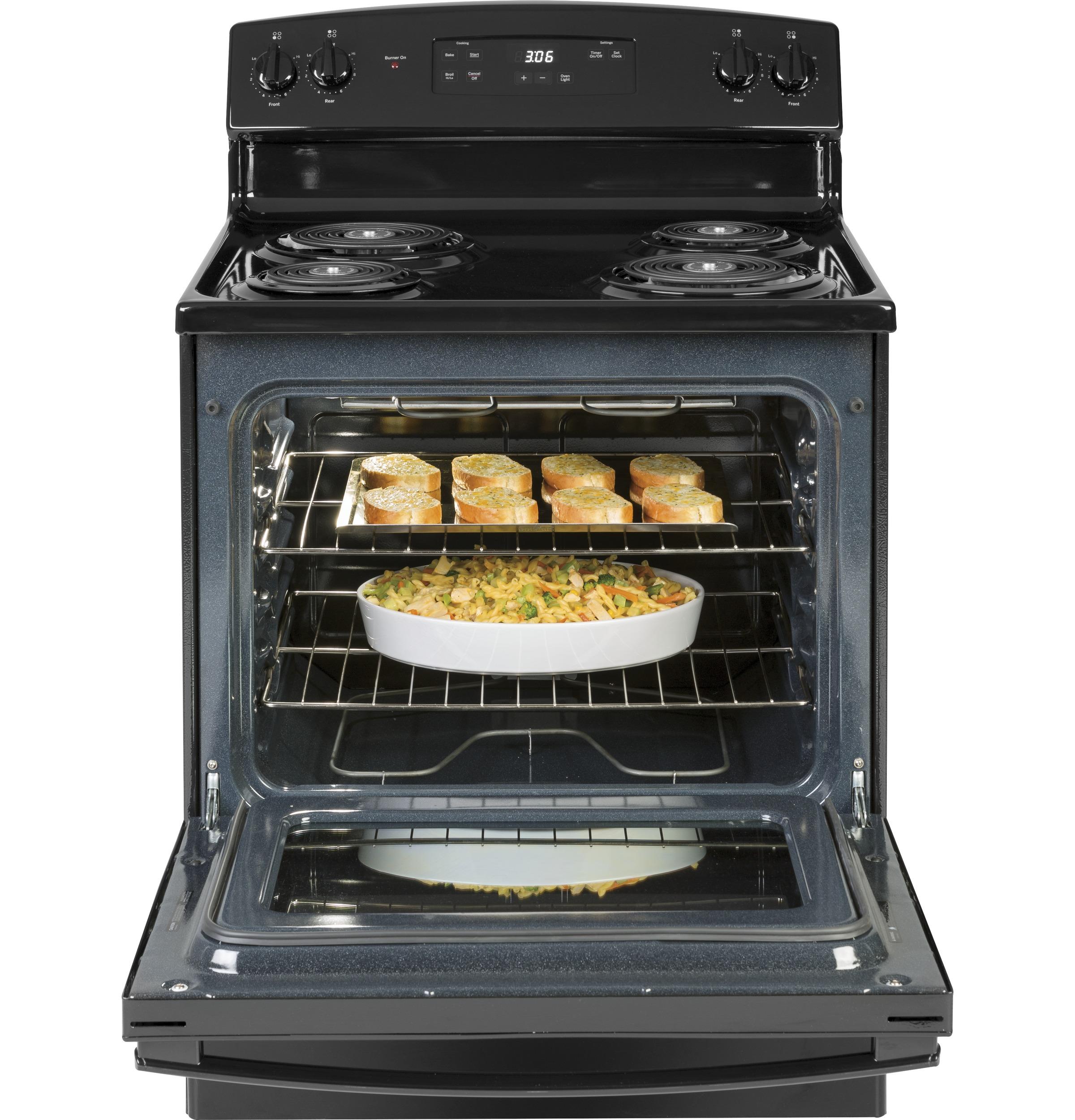

Cook more dishes at once

Standard clean oven

Smooth surface and rounded corners make clean-up quick and easy

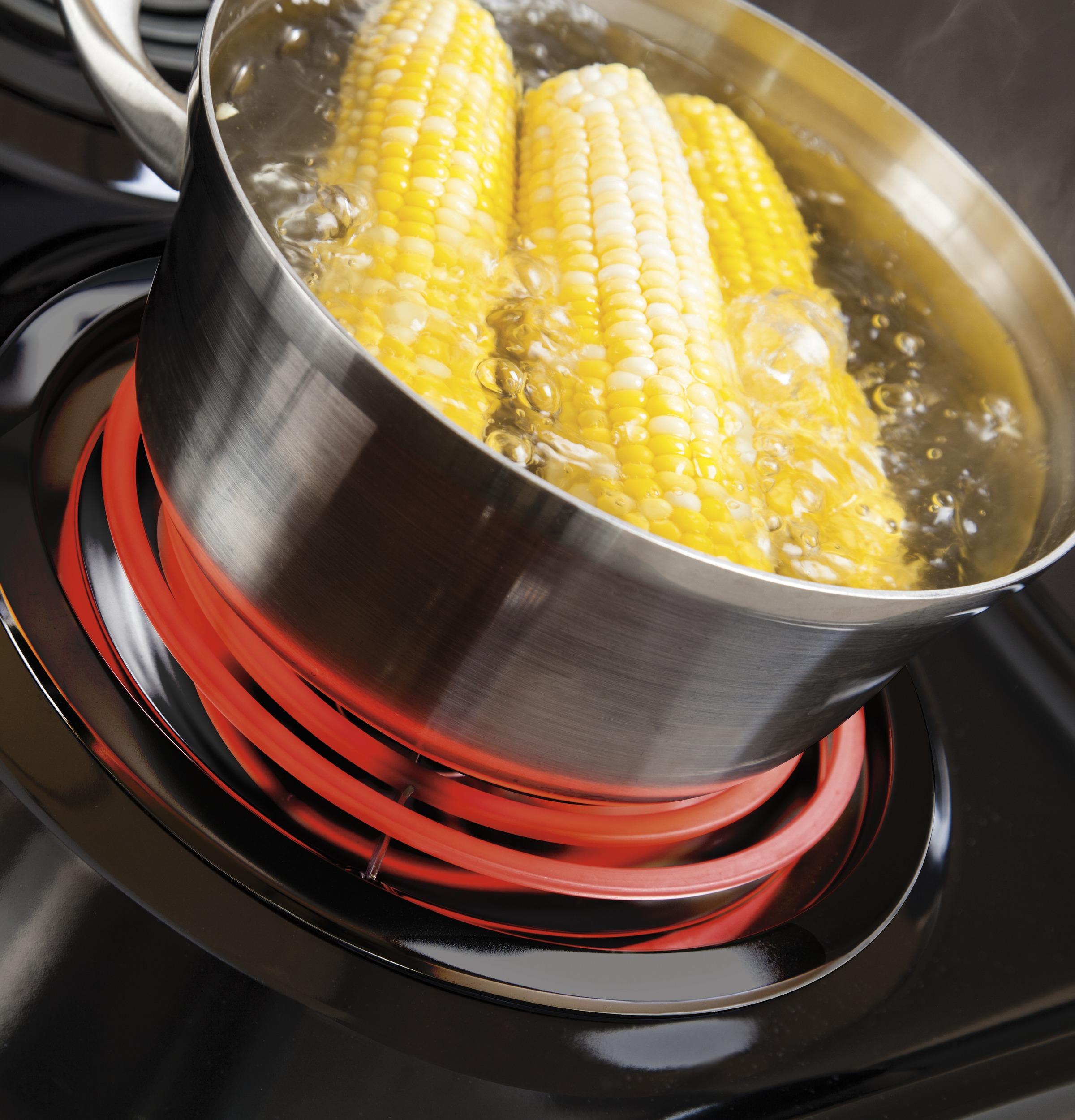

Sensi-temp technology

Enjoy the same cooking power as a traditional coil with an added safety feature that meets the new UL858 Household Electric Ranges Standard for Safety
