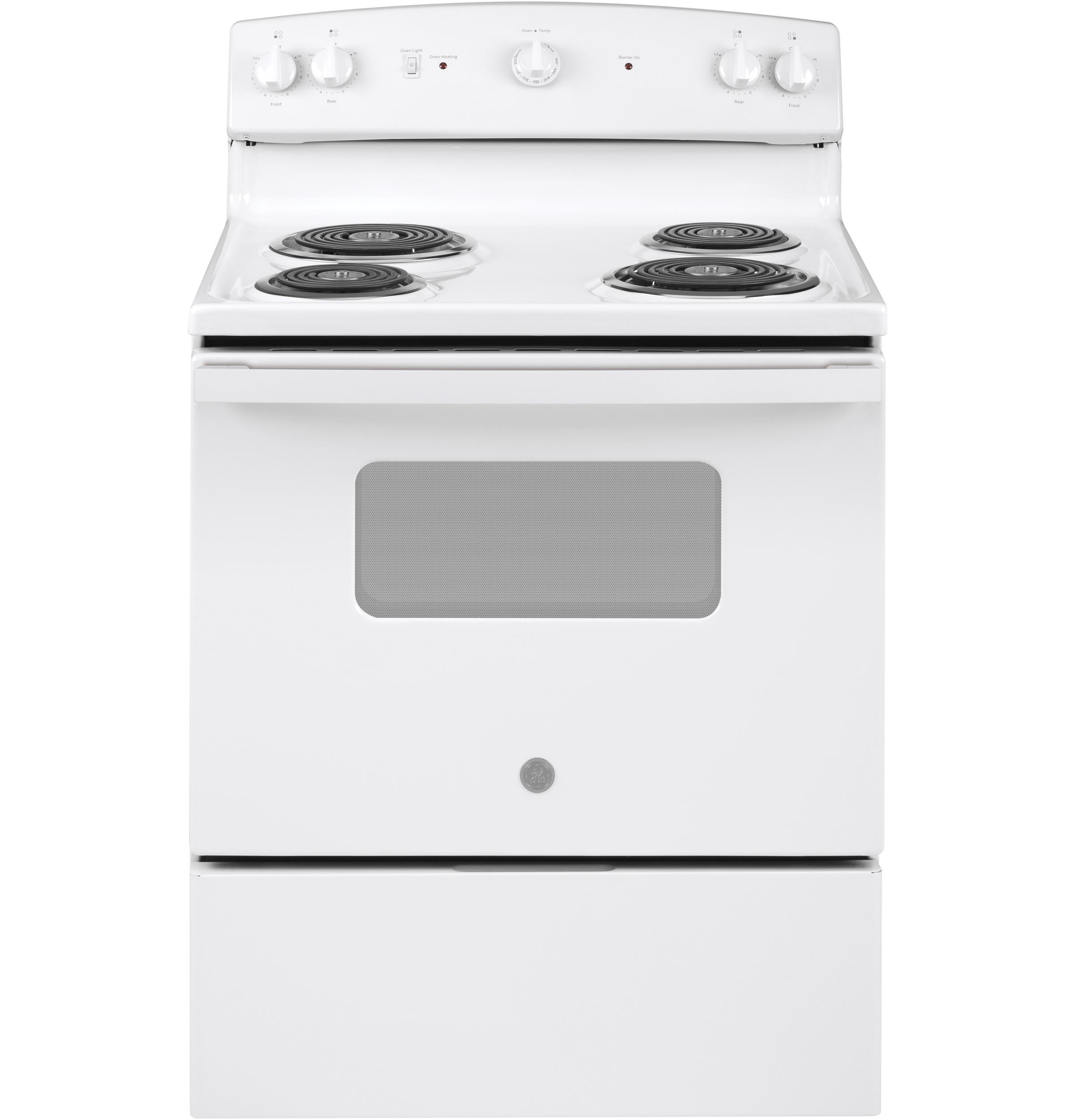

Product Details for GE Appliances JBS160DMWW
Technical Details
Filter
| App Filter - Cabinet Width | 30.0 |
| App Filter - Control Type | Rotary knobs |
| App Filter - Product Type | Ranges Free-Standing Single Oven |
| App Filter - Fuel Type | Electric |
| App Filter - Cooking Technology | Traditional |
| App Filter - Convection | No |
| App Filter - Drawer Type | Storage |
| App Filter - Cleaning Type | Manual |
| App Filter - Cooktop Type | Coil |
Appearance
| Handle | Designer Style |
| Textured Steel Side Panels | Yes |
| Oven Door Features | Metal Door Small Window |
| Handle Color | White |
| Control Knobs | White |
| Color Appearance | White |
Power / ratings
| Electrical Requirements | 208 |
| Amp Rating at 208V | 40 |
| Broiler Wattage | 3410 |
| Amp Rating at 240V | 40 |
| KW Rating at 240V | 11.5 |
| Bake Wattage | 2585 |
| Hertz | 60 |
| KW Rating at 208V | 8.8 |
Warranty
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |

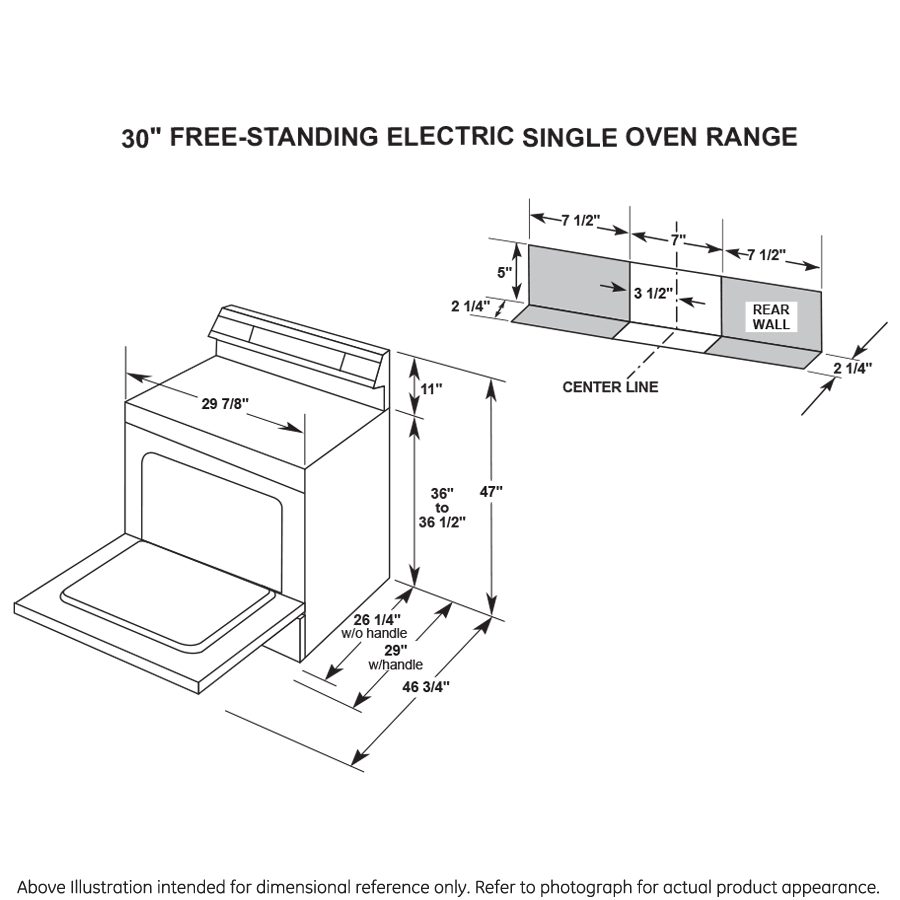

Weights & dimensions
| Net Weight | 130 |
| Depth Without Handle | 26.25 |
| Height to Cooking Surface (in.) | 36 |
| Cabinet Width | 30.0 |
| Approximate Shipping Weight | 150 |
| Overall Width | 30.0 |
| Overall Height | 47.0 |
| Overall Depth | 29.0 |
| Depth with Door Open | 46.25 |
| Oven Interior Dimensions (W x H x D) (in.) | 23 |
Features
| Cooking System | Traditional |
| Storage Drawer Features | Removable Full-Width |
| Oven Interior | 1 |
| Oven Control Features | Oven "ON" Light |
| Lift-Up Cooktop With Support Rods | Yes |

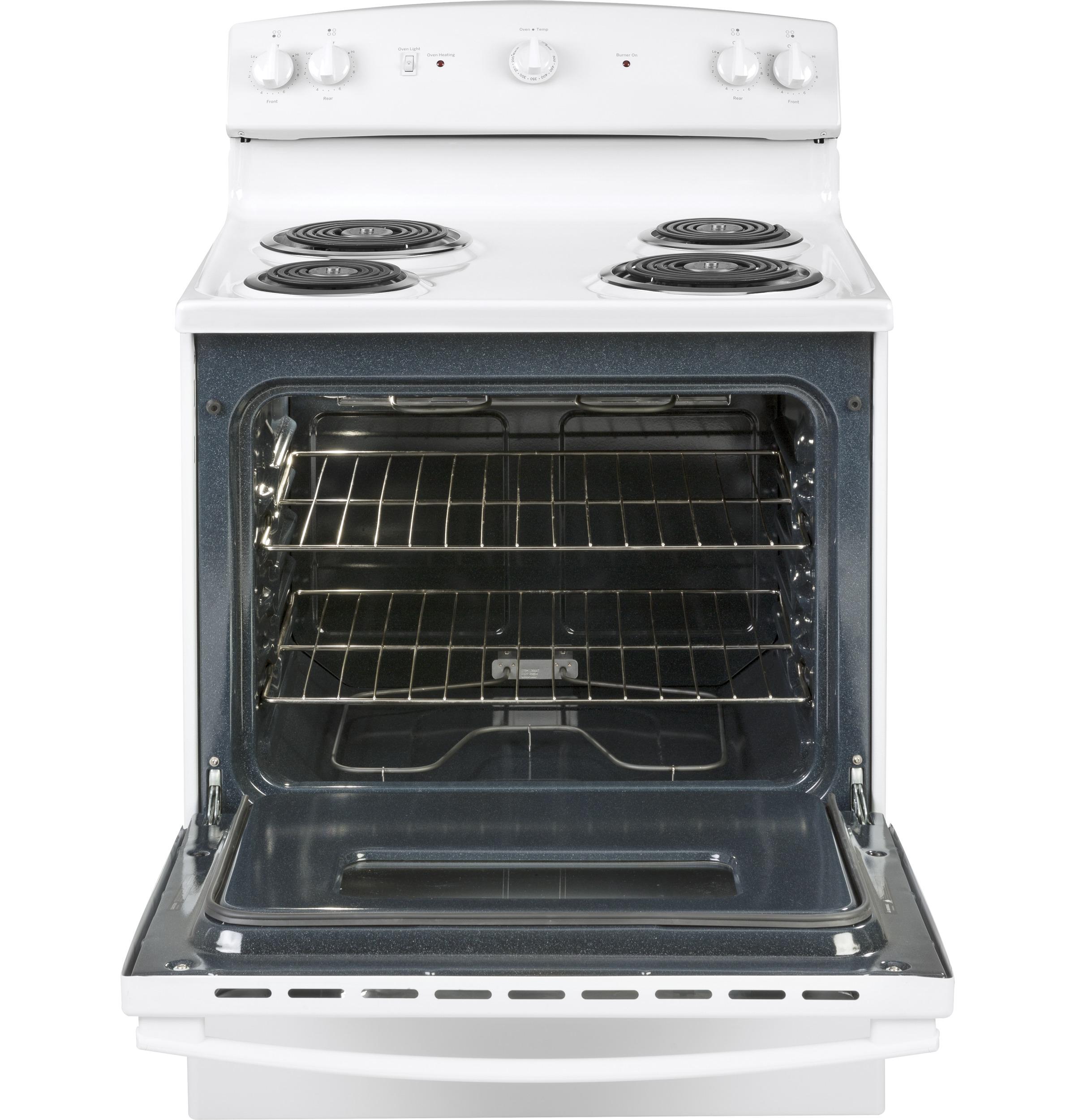

| Oven Rack Features | 2 |
| Element - Left Front | 6.0 |
| Oven Cleaning Type | Standard Clean |
| Product Type | Free-Standing Single Oven |
| Heating Element "ON" Indicator Light | Yes |

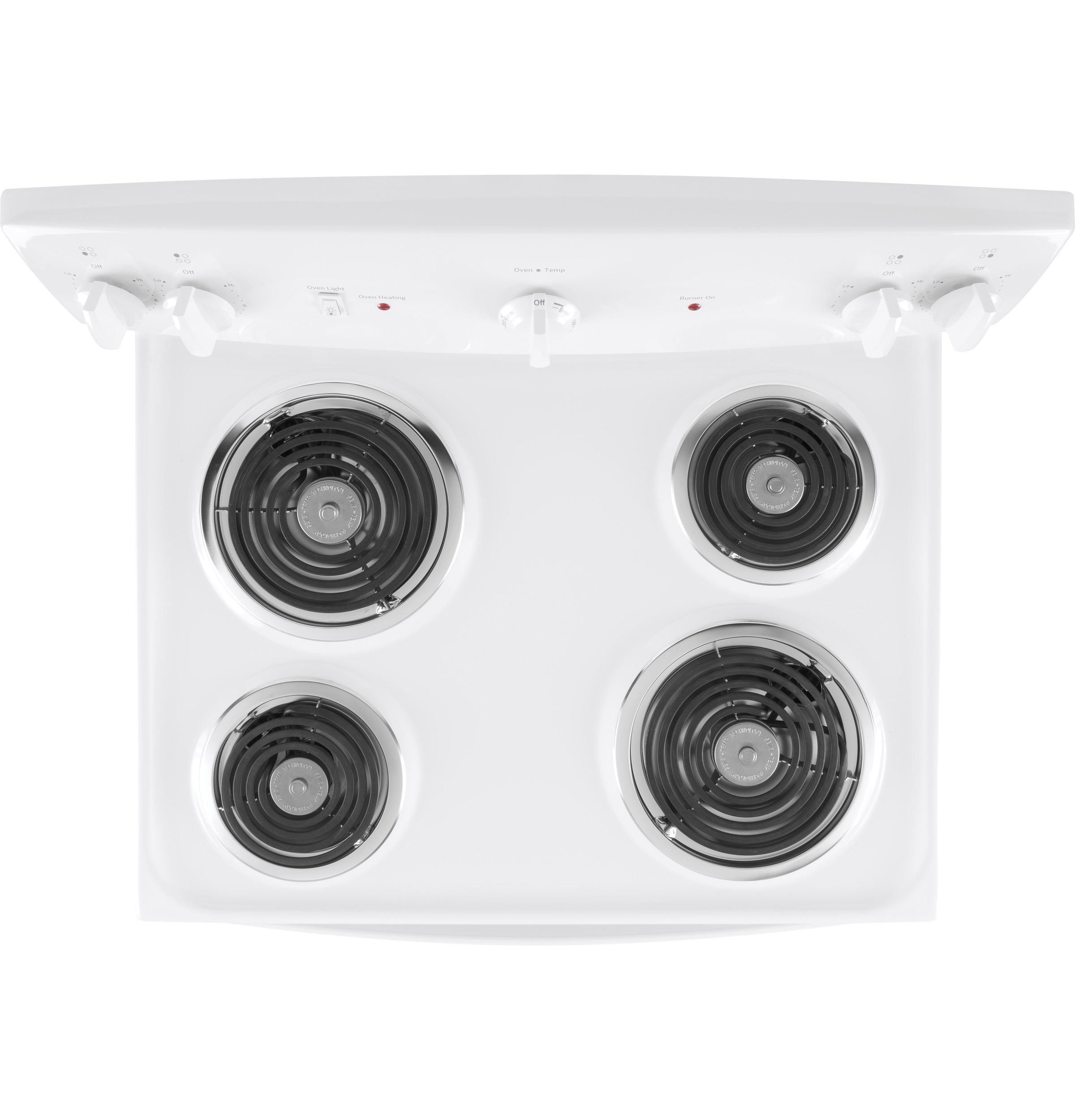

| Cooktop Type | Coil |
| Fuel Type | Electric |
| Element - Right Front | 8.0 |

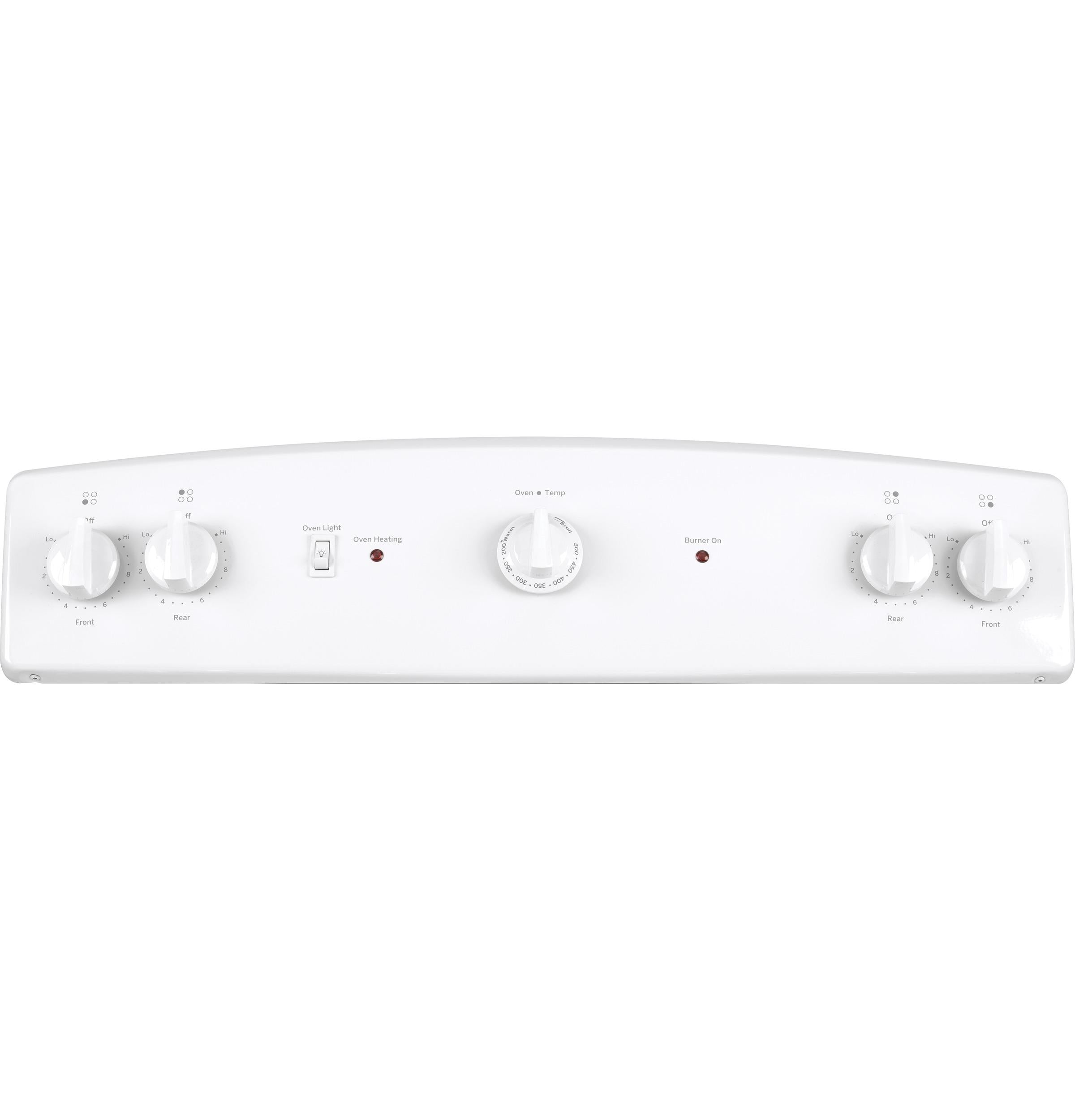

| Control Location | Backsplash |
| Control Type | Rotary knobs |
| Drawer Type | Storage |
| Sabbath Mode | Yes |
| Element - Left Rear | 8.0 |
| Cooking Technology | Traditional |
| Configuration | Range with Storage Drawer |
| Oven Features | 4 |
| Removable One-Piece Drip Bowls | Chrome |
| OU Certified | No |
| Cooktop Burner Type | Coil |
| Element - Right Rear | 6.0 |
| Cooktop Surface | One-Piece Upswept Porcelain-Enamel |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
Features

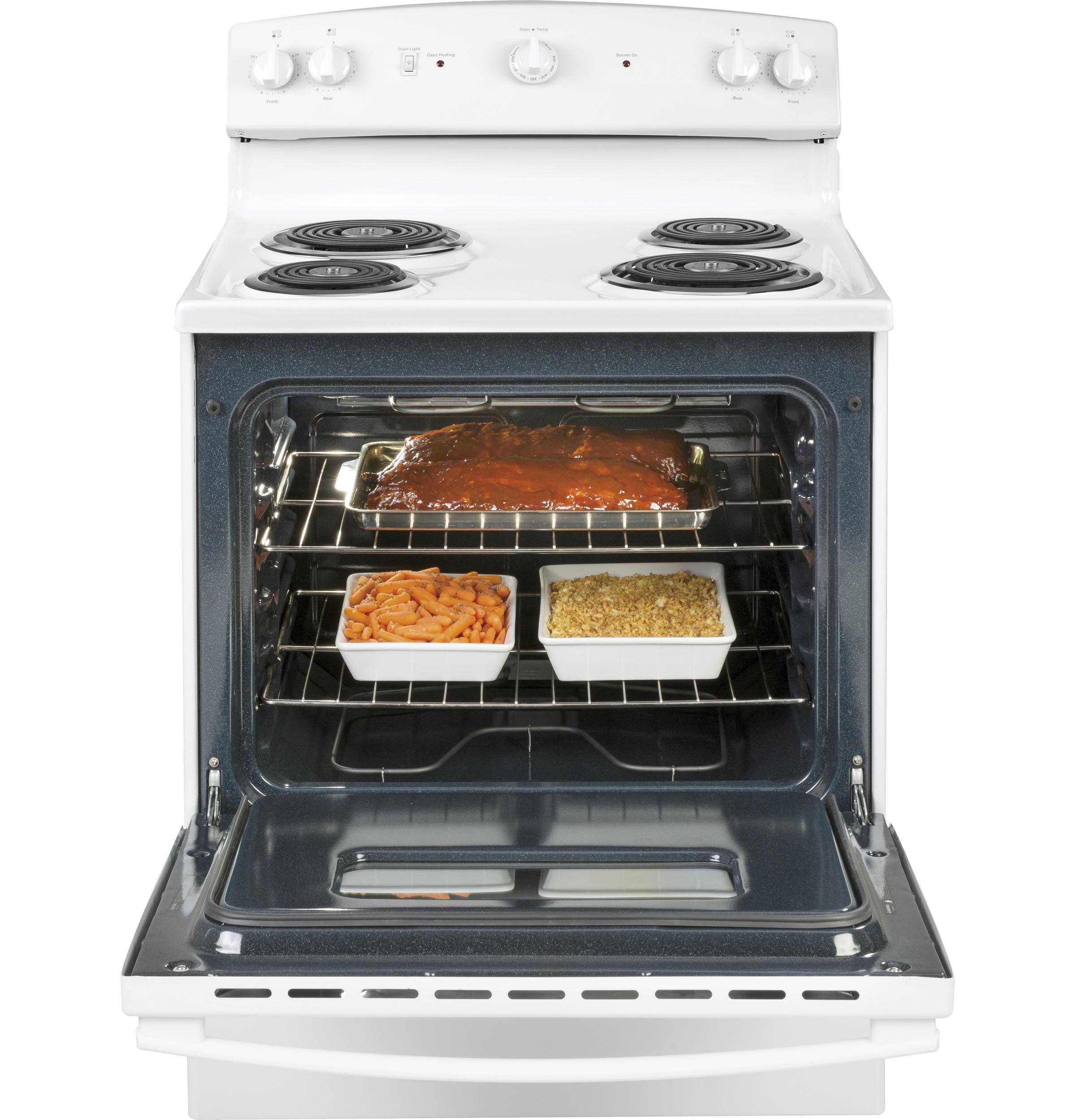

- 5.0 cu. ft. oven capacity
Cook more dishes at once - Standard clean oven
Smooth surface and rounded corners make clean-up quick and easy - Sensi-temp technology
Enjoy the same cooking power as a traditional coil with an added safety feature that meets the new UL858 Household Electric Ranges Standard for Safety - Dual-element Bake
Upper and lower elements produce even heat and great results - Removable full-width storage drawer
Large trays and other cookware can be conveniently stored for quick access
Description
Cook more dishes at once
Standard clean oven
Smooth surface and rounded corners make clean-up quick and easy
Sensi-temp technology
Enjoy the same cooking power as a traditional coil with an added safety feature that meets the new UL858 Household Electric Ranges Standard for Safety
Dual-element Bake
Upper and lower elements produce even heat and great results
Removable full-width storage drawer
Large trays and other cookware can be conveniently stored for quick access
Manuals & Guides
Key Features
Standard clean oven
Smooth surface and rounded corners make clean-up quick and easy
Sensi-temp technology
Enjoy the same cooking power as a traditional coil with an added safety feature that meets the new UL858 Household Electric Ranges Standard for Safety
Removable full-width storage drawer
Large trays and other cookware can be conveniently stored for quick access
