Sale price $816.41 Regular price $1,274.97 Save $458.56 / 35% OFF

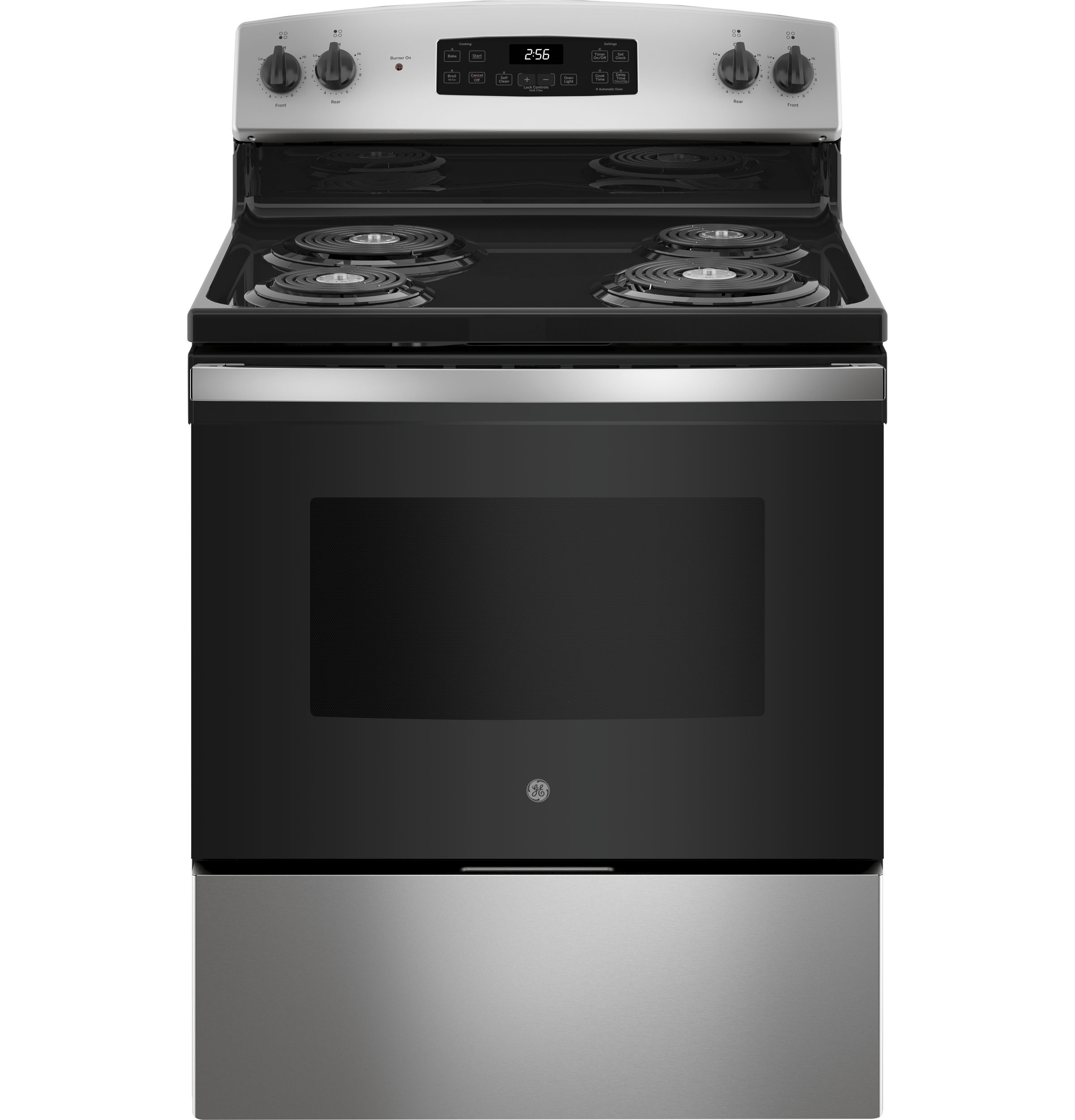

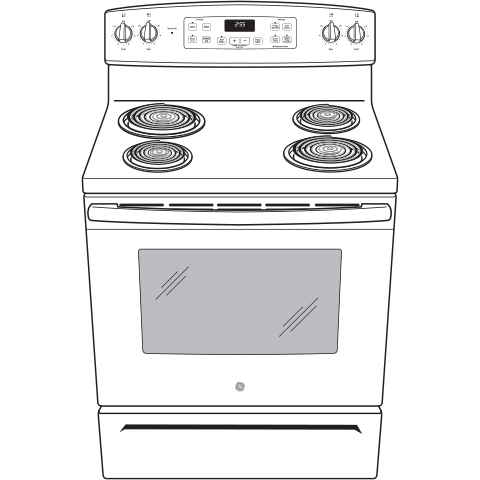

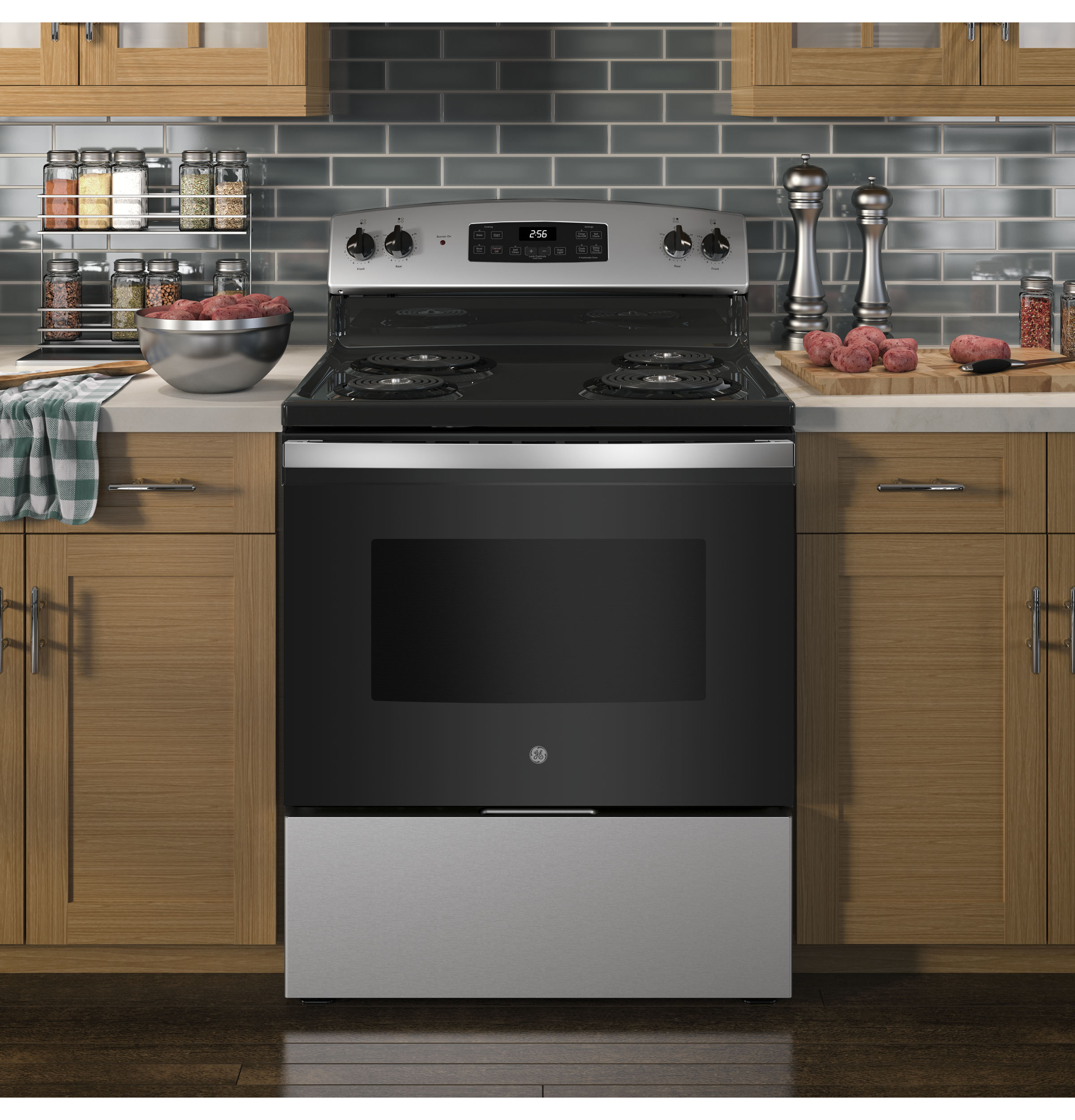

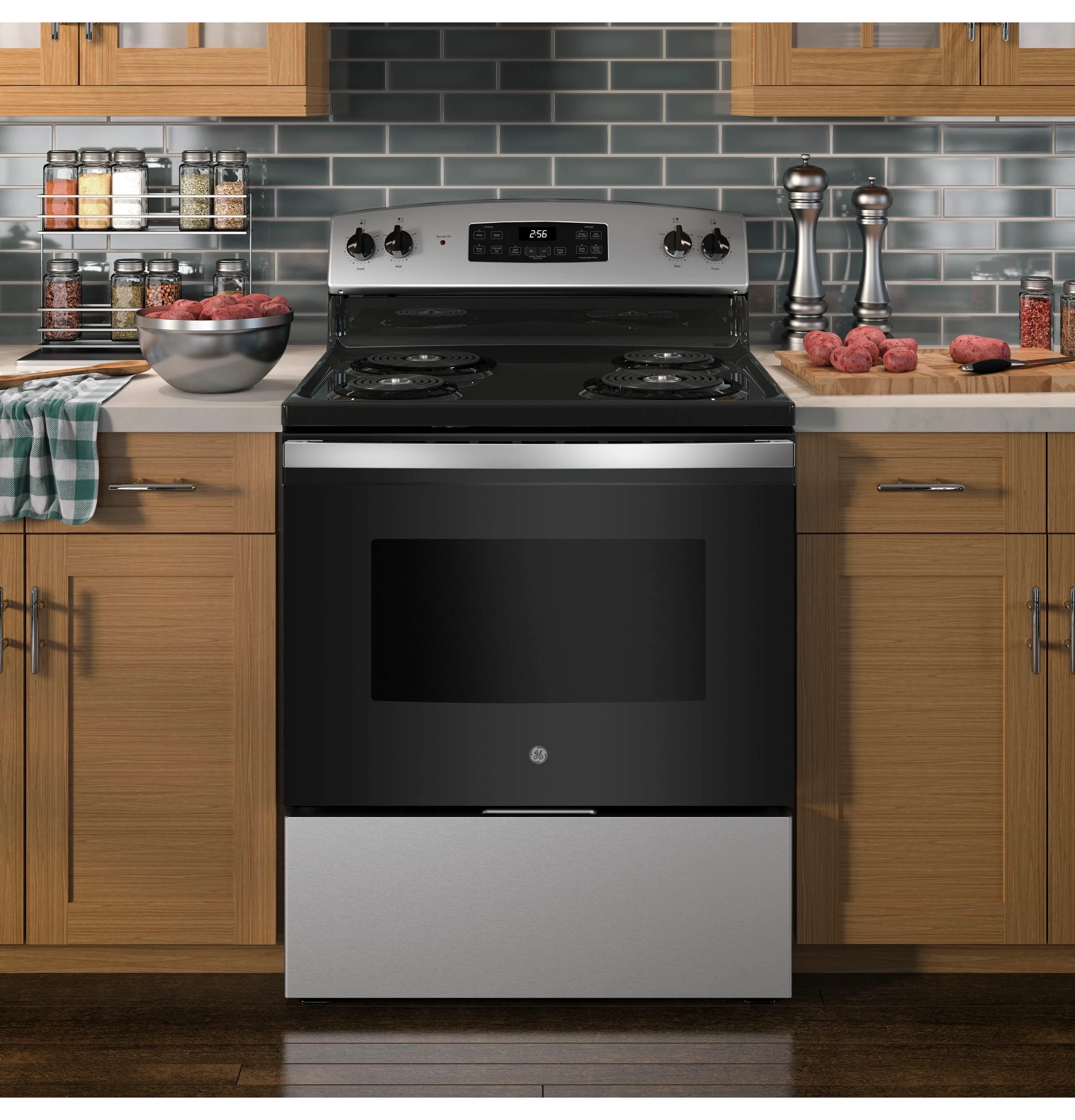

Product Details for GE JB256RTSS

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

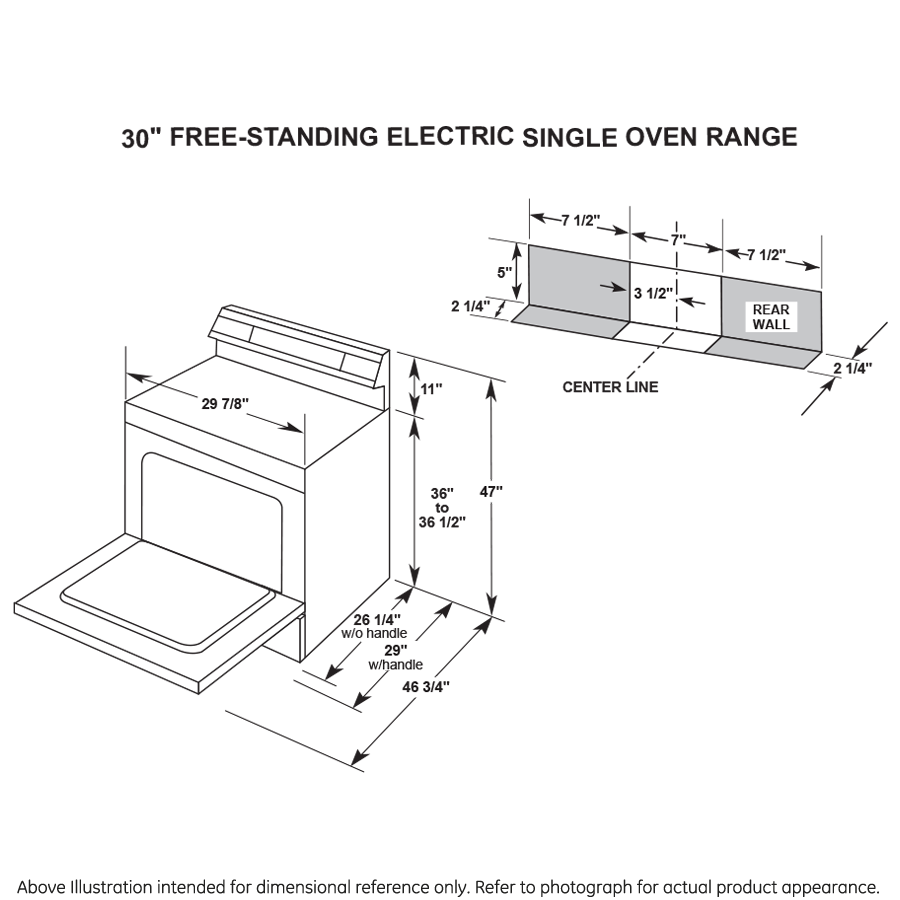

Weights & dimensions

Overall Width 30 in
Overall Depth 28.75 in
Overall Height 47 in
Net Weight 150 lb
Depth Without Handle 26.25 in
Oven Interior Dimensions (W x H x D) (in.) 23-3/4 x 19 x 18-1/2
Depth with Door Open 46.25 in
Cabinet Width 30 in
Approximate Shipping Weight 170 lb
Height to Cooking Surface (in.) 36 - 36.5

Features

Configuration Range with Storage Drawer
Element - Right Front 8" 2400W Temp Limiting Coil
Oven Features 4-Pass Broil Element
Removable One-Piece Drip Bowls Black Porcelain Enameled
Lift-Up Cooktop With Support Rods Yes
Storage Drawer Features Removable Full-Width
Fuel Type Electric
Oven Interior 1 Incandescent Light
OU Certified No
Oven Control Features Self-Cleaning Cycling Light

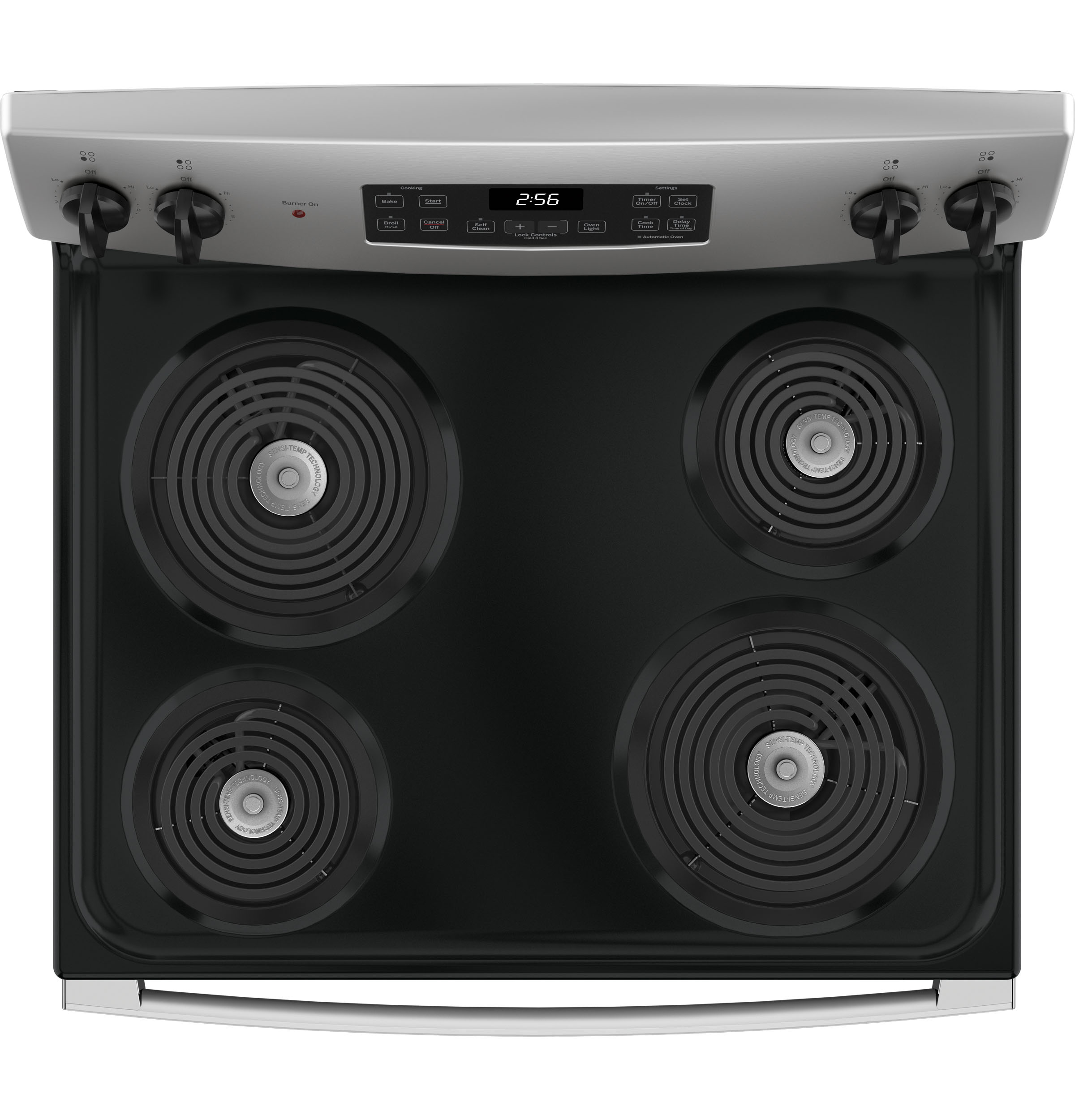

Cooktop Burner Type Coil

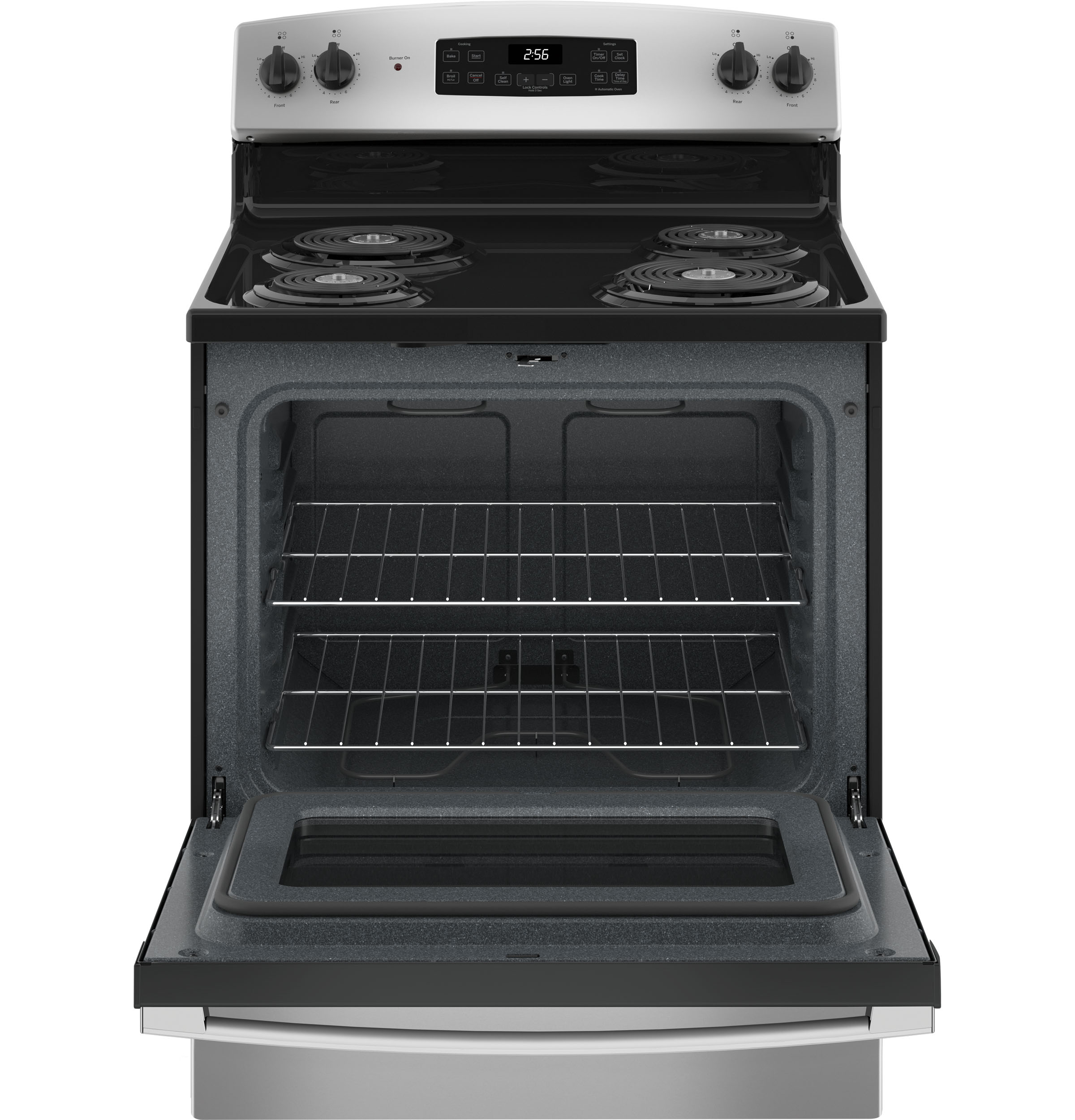

Oven Rack Features 2 Oven Racks
Element - Left Front 6" 1250W Temp Limiting Coil
Oven Cleaning Type Self-Clean
Product Type Free-Standing Single Oven
Cooktop Type Coil
Heating Element "ON" Indicator Light Yes
Element - Left Rear 8" 2400W Temp Limiting Coil
Sabbath Mode Yes
Element - Right Rear 6" 1250W Temp Limiting Coil
Cooktop Surface Porcelain-Enamel
Control Location Backsplash
Drawer Type Storage
Oven Rack Positions (Single or Upper/Lower) 6
Control Type Touchpads
Cooking Technology Traditional
Control Type Digital Temperature Display
Control Type Electronic
Cooktop Surface One-Piece Upswept
Oven Control Features Audible Preheat Signal
Oven Control Features Auto Oven Shut-Off with Override
Oven Control Features Auto Self Clean
Oven Control Features Control Lock Capability
Oven Control Features Delay Bake Option (Time Bake)
Oven Control Features Delay Clean Option
Oven Control Features Electronic Clock & Kitchen Timer
Oven Control Features Hi / Low Broil
Oven Control Features Oven "ON" Light
Oven Control Features Self-Clean Cool Down Time Display
Oven Features 4-Pass Bake Element

Power / ratings

KW Rating at 240V 11.7
Bake Wattage 2585W
Electrical Requirements 208/240V ; 60Hz ; 40A
Amp Rating at 208V 40
Broiler Wattage 3410W
KW Rating at 208V 8.8
Amp Rating at 240V 40
Hertz 60

Appearance

Oven Door Features Glass Door
Handle Designer Style
Textured Steel Side Panels Yes
Control Knobs Gloss Black
Handle Color Stainless Steel
Color Appearance Stainless Steel/Black
Oven Door Features Big View Oven Window

Warranty

Labor Warranty Limited 1-year entire appliance
Parts Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details

Other

Oven Interior Dimensions (W x H x D) (in.) 23-3/4 x 19 x 18-1/2

Dimensions & weight

Width 30 in.
Height 47 in.
Length 28.75 in.
Weight 150 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 35 in.
Shipping Height 52 in.
Shipping Length 33.75 in.
Shipping Weight 190 lbs.
Total of Shipping Weight 190 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 23.46 ft³
Dimensional Weight 291.64 lbs.
Total of Cubes 23.46 ft³
Total of Dimensional Weight 291.64 lbs.

Capacity

Total Capacity (cubic feet) 5.00 cu ft

Description

Cleans the oven cavity without the need for scrubbing.Enjoy the same cooking power as a traditional coil with an added safety feature that meets the new UL858 Household Electric Ranges Standard for Safety.47 H x 30 W x 28 3/4 D

Key Features

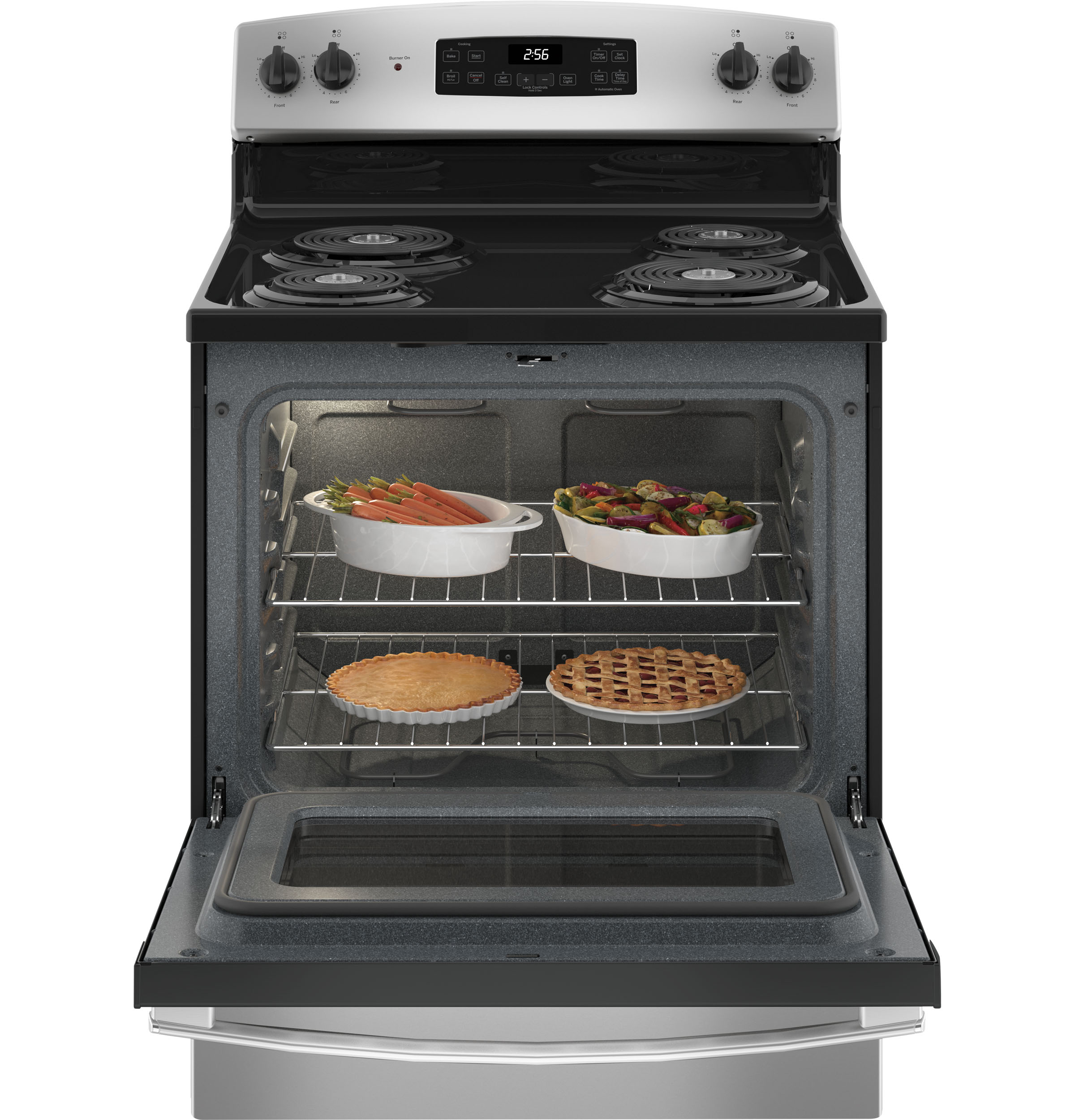

5.0 cu. ft. oven capacity

Enough room to cook an entire meal at once

Self-clean oven

Cleans the oven cavity without the need for scrubbing

Dual-element Bake

Upper and lower elements produce even heat and great results

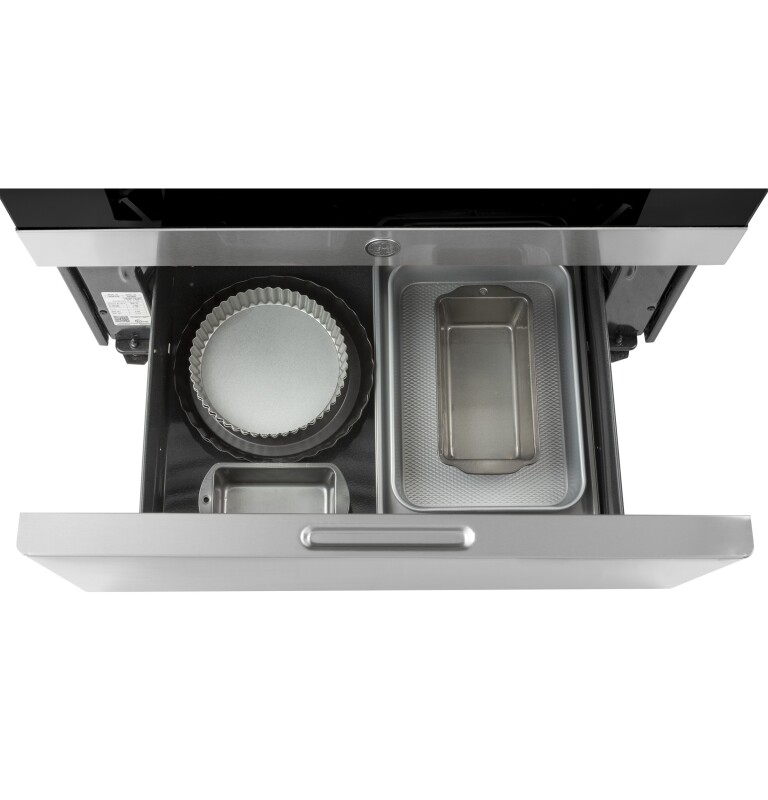

Removable full-width storage drawer

Large trays and other cookware can be conveniently stored for quick access

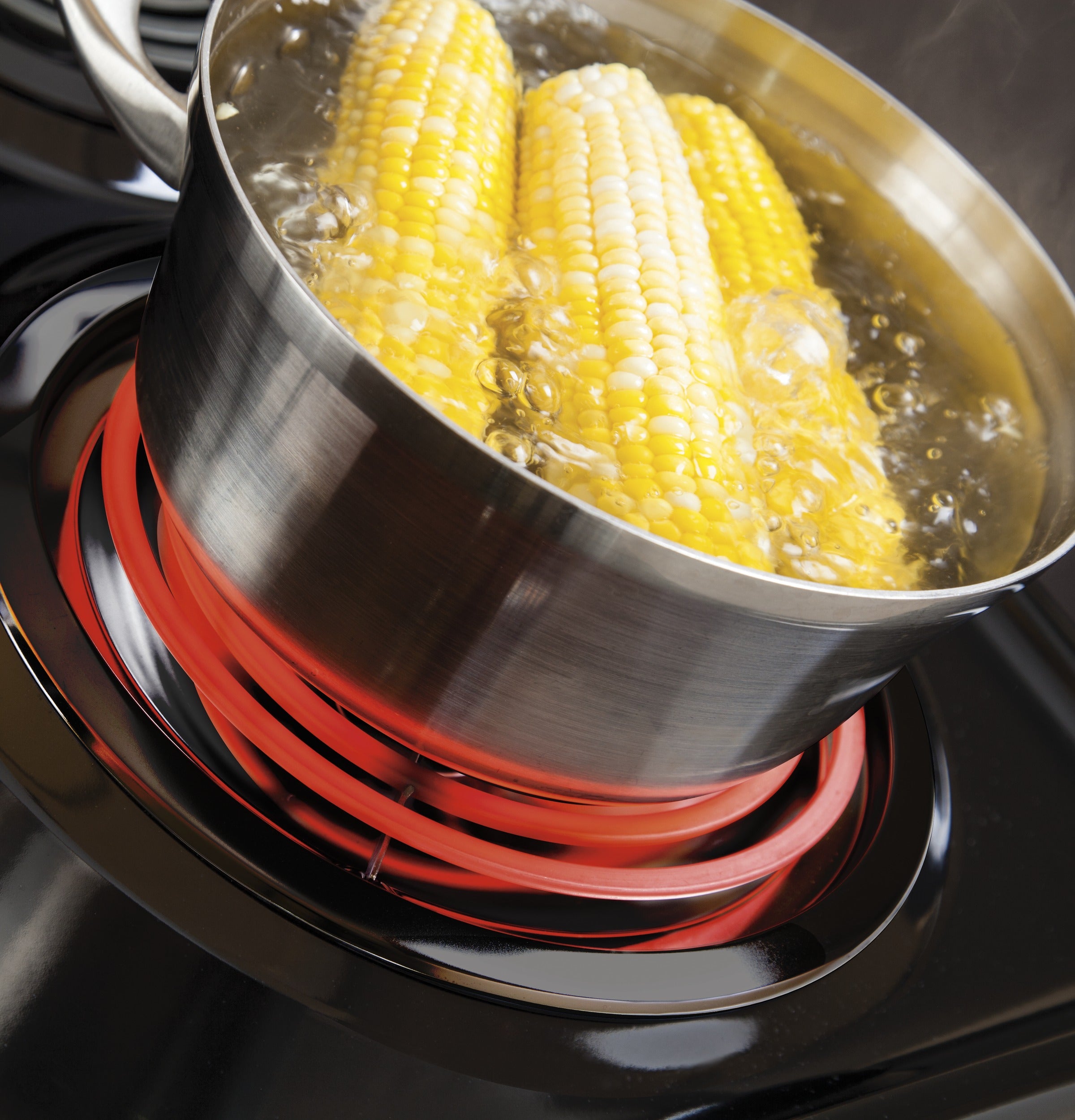

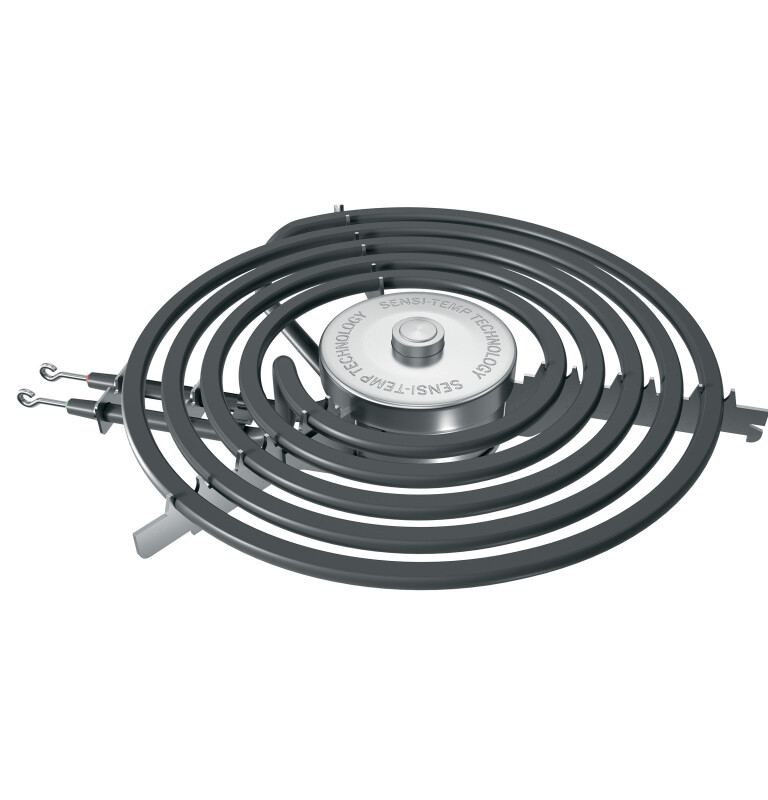

Sensi-temp technology

Enjoy the same cooking power as a traditional coil with an added safety feature that meets the new UL858 Household Electric Ranges Standard for Safety
