| Overall Width | 22 in |
| Overall Height | 52.25 in |
| Product Height (to top of unit) | 48.875 in |
| Overall Depth | 22 in |
| Product Height (to top of water inlet/outlet connections) | 50.375 in |
| Height to Gas Control | 11.25 in |
| Approximate Shipping Weight | 140 lb |
| Net Weight | 133 lb |
| Product Diameter | 22 in |
| Connection Sizes - Water Inlet (MNPT) | 3/4" |
| Connection Sizes - Hot Water Outlet (MNPT) | 3/4" |
| Vent Size | 2" or 3" Type B Vent |
| Vent | Atmospheric |
| Controls | LED Indicator |
| Temp & Pressure Relief Valve | Yes |
| Height Description | Short |
| Fuel Type | Liquid Propane Gas |
| Pilot Light Window / Button | Yes |
| Configuration | Short |
| Product Type | Atmospheric Gas |
| Family Size | 2-5 People |
| Bin Testing | High |
| Water Connection Location | Top |
| Gas Valve | Self Powered |
| Anode Rod | Magnesium |
| Temperature Setting | 45-160° F Range |
| UEF | .58 |
| Altitude Rating | 10,100 ft |
| Drain Valve Type | Brass |
| FVIR Safety System | Yes |
| Overheat Protection | Yes |
| Burner BTU Size (k) | 34.5 |
| Hertz | 60 |
| First Hour Rate (FHR) | 66 Gallons |

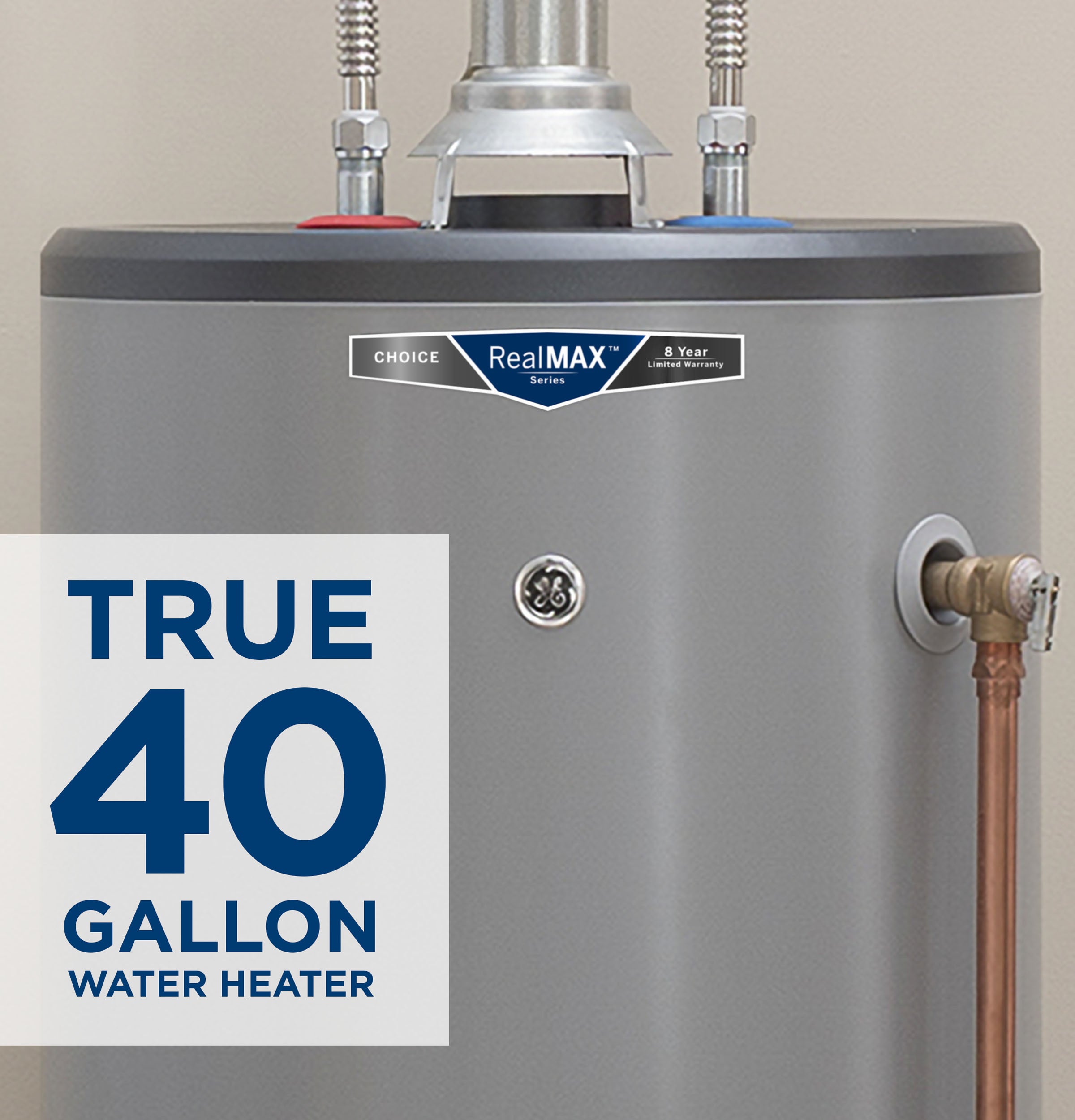

| Unit Capacity | 40 Gallons |
| Color Appearance | Gray |
| Labor | 1 Year |
| Parts (Tank) | 8 Year |
| Labor (Entire Appliance) | 1 Year |
| Product Diameter | 22 in |
| Vent Size | 3" Type B Vent |
| Connection Sizes - Water Inlet (MNPT) | 3/4" |
| Width | 22 in. |
| Height | 52.25 in. |
| Length | 22 in. |
| Weight | 133 lbs. |
| Number of Boxes | 1 |
| Shipping Width | 27 in. |
| Shipping Height | 57.25 in. |
| Shipping Length | 27 in. |
| Shipping Weight | 173 lbs. |
| Total of Shipping Weight | 173 lbs. |
| Source | Calculation |
| Cubic Feet Measurement | 14.63 ft³ |
| Dimensional Weight | 181.94 lbs. |
| Total of Cubes | 14.63 ft³ |
| Total of Dimensional Weight | 181.94 lbs. |
Provide hot water for the whole family of 2 to 4 persons

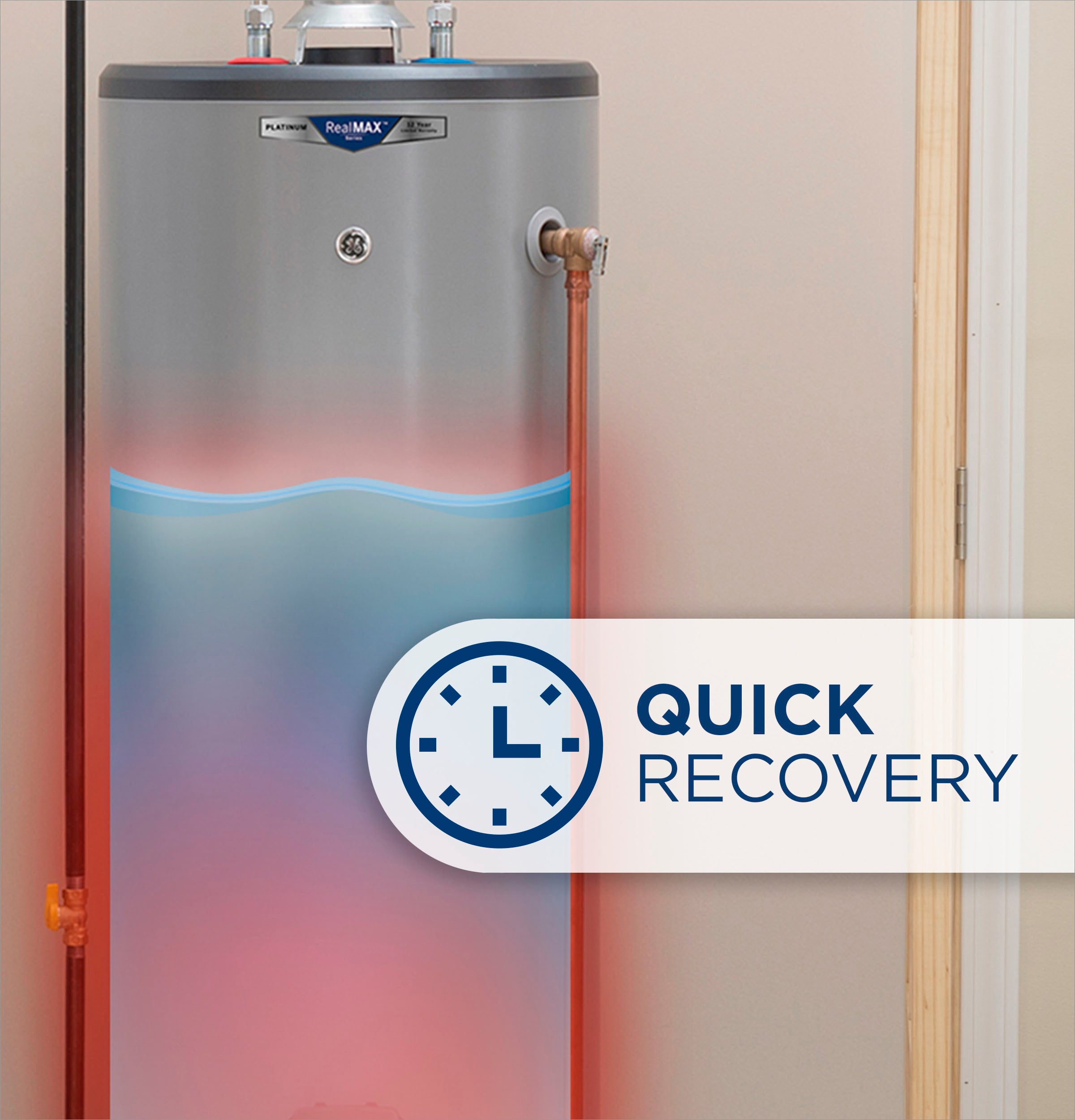

Quickly replenish hot water with a max-performance 38K burner

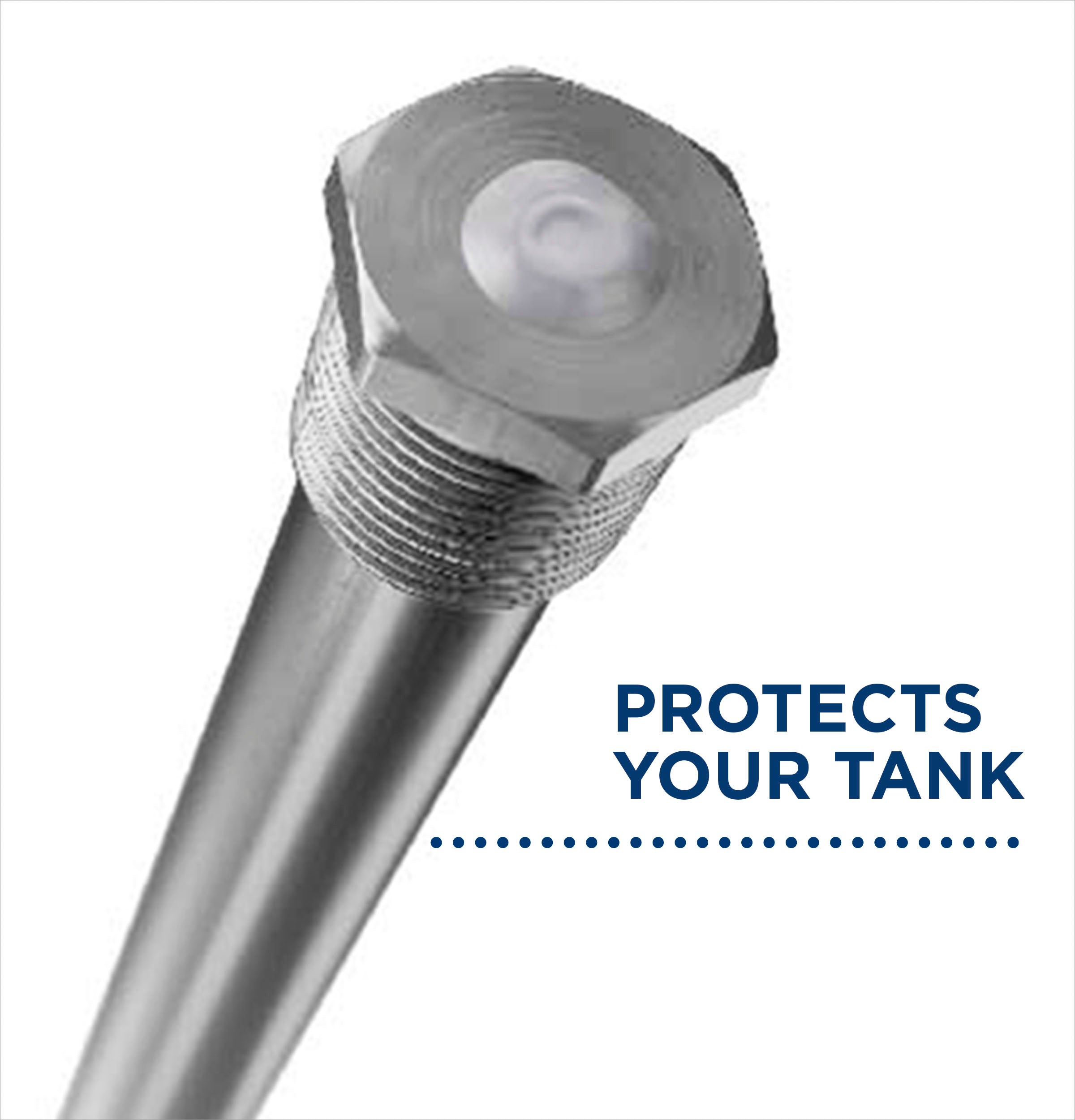

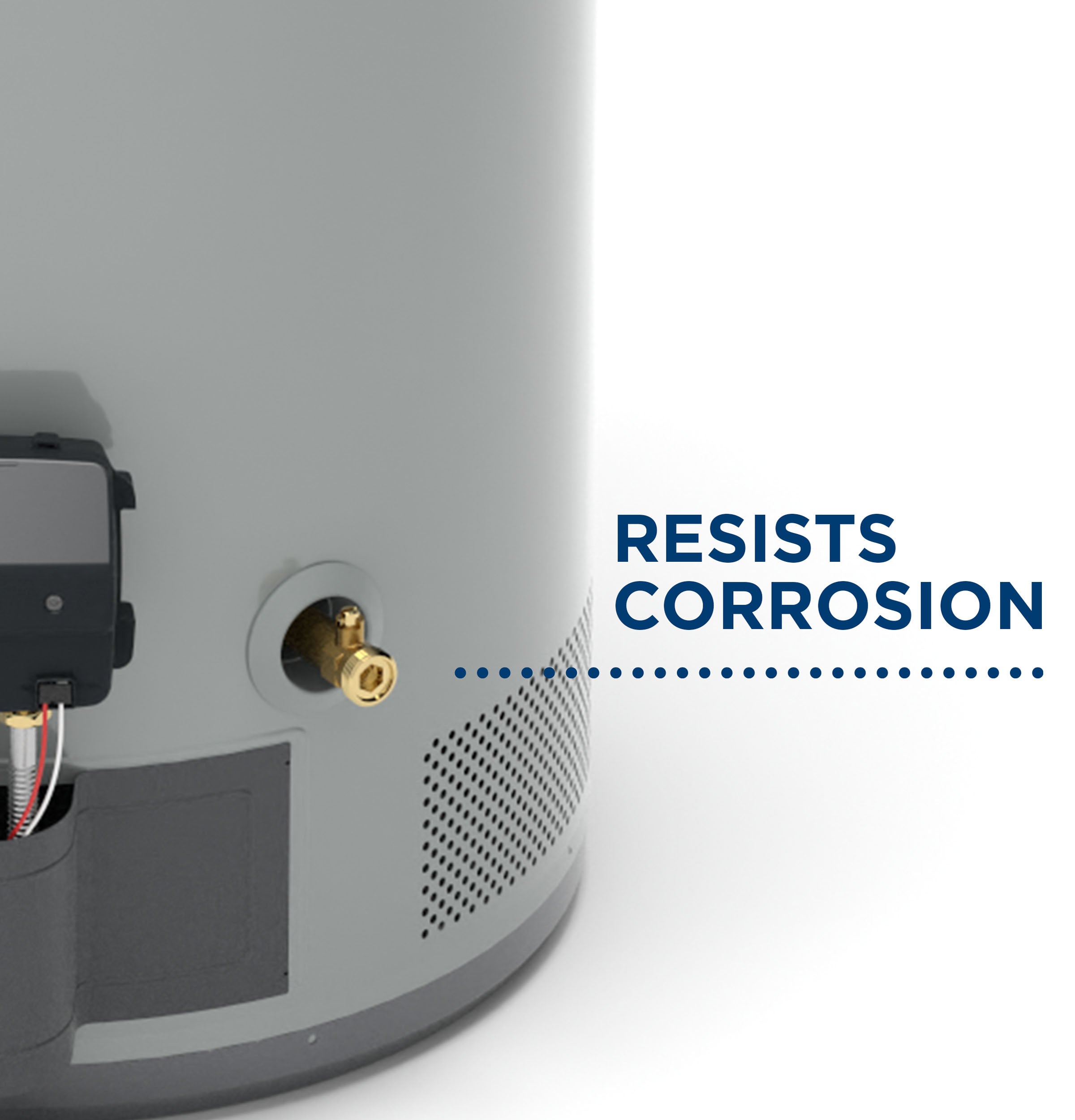

Durable design offers long-lasting protection against corrosion to extend the life of your water heater tank

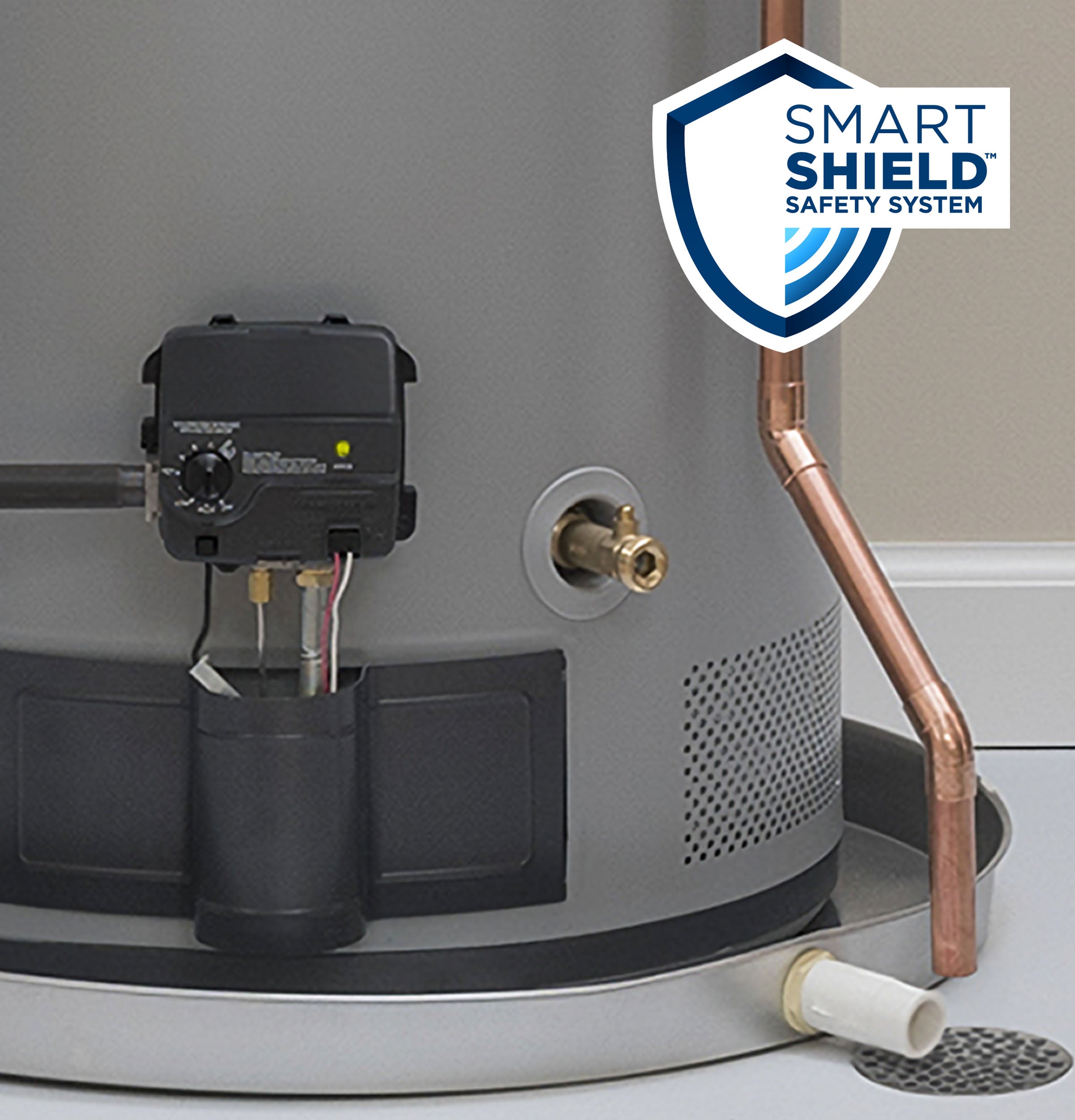

Monitors the surrounding air and automatically shuts off the unit if abnormal temperatures are detected

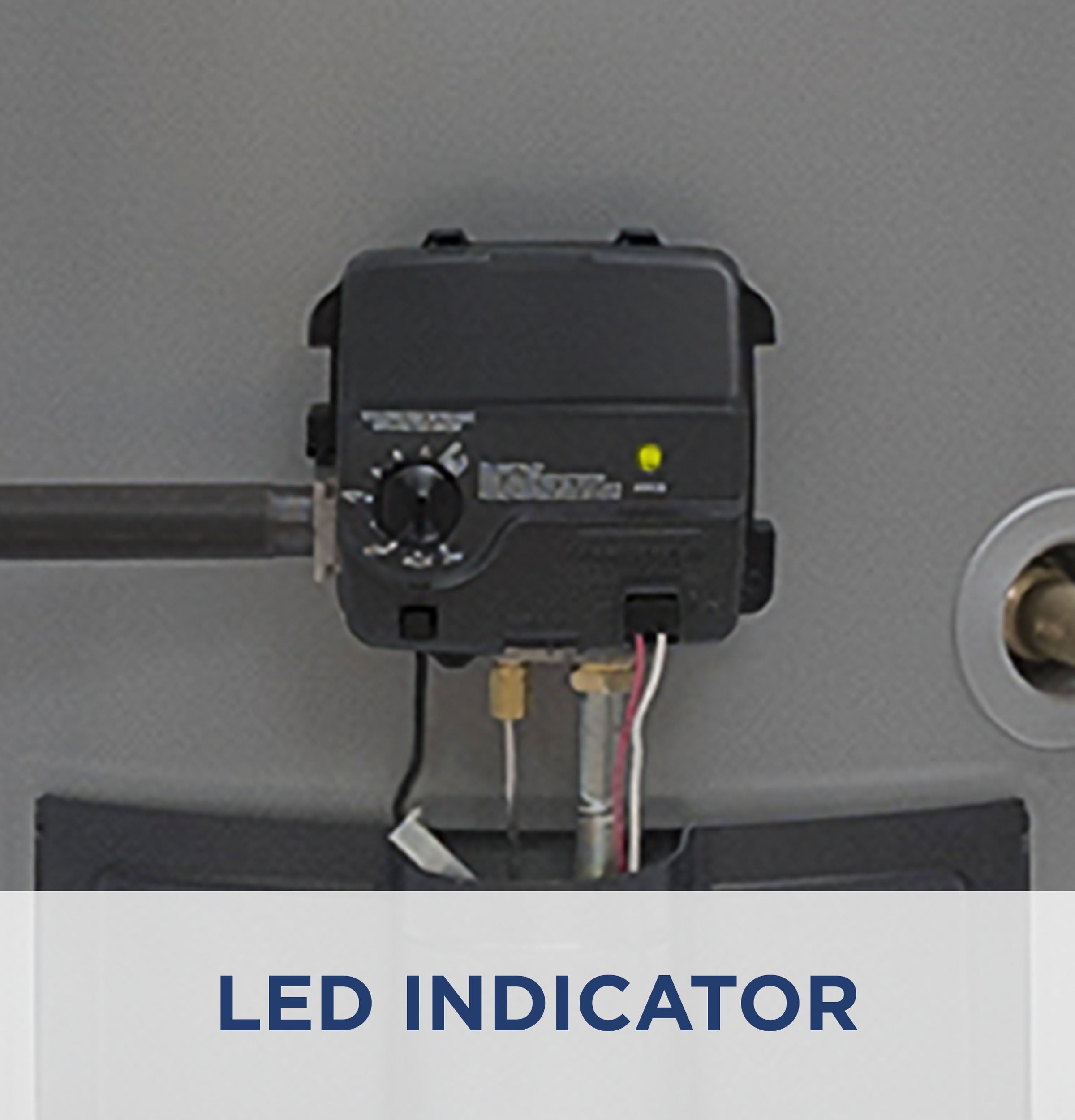

Monitors and reports on gas system status via LED status indicator
Rust-proof construction can be counted on to provide long-lasting service

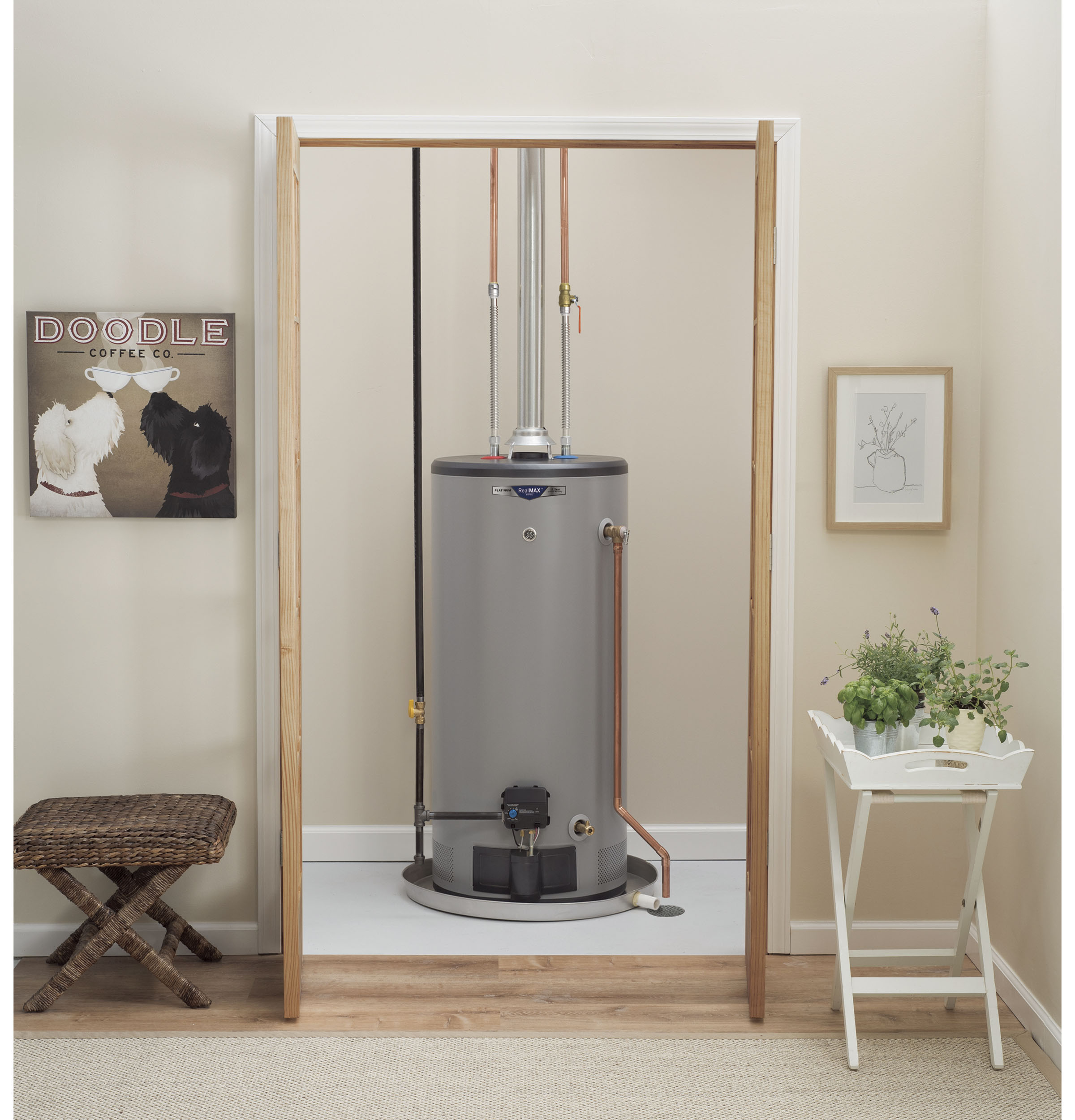

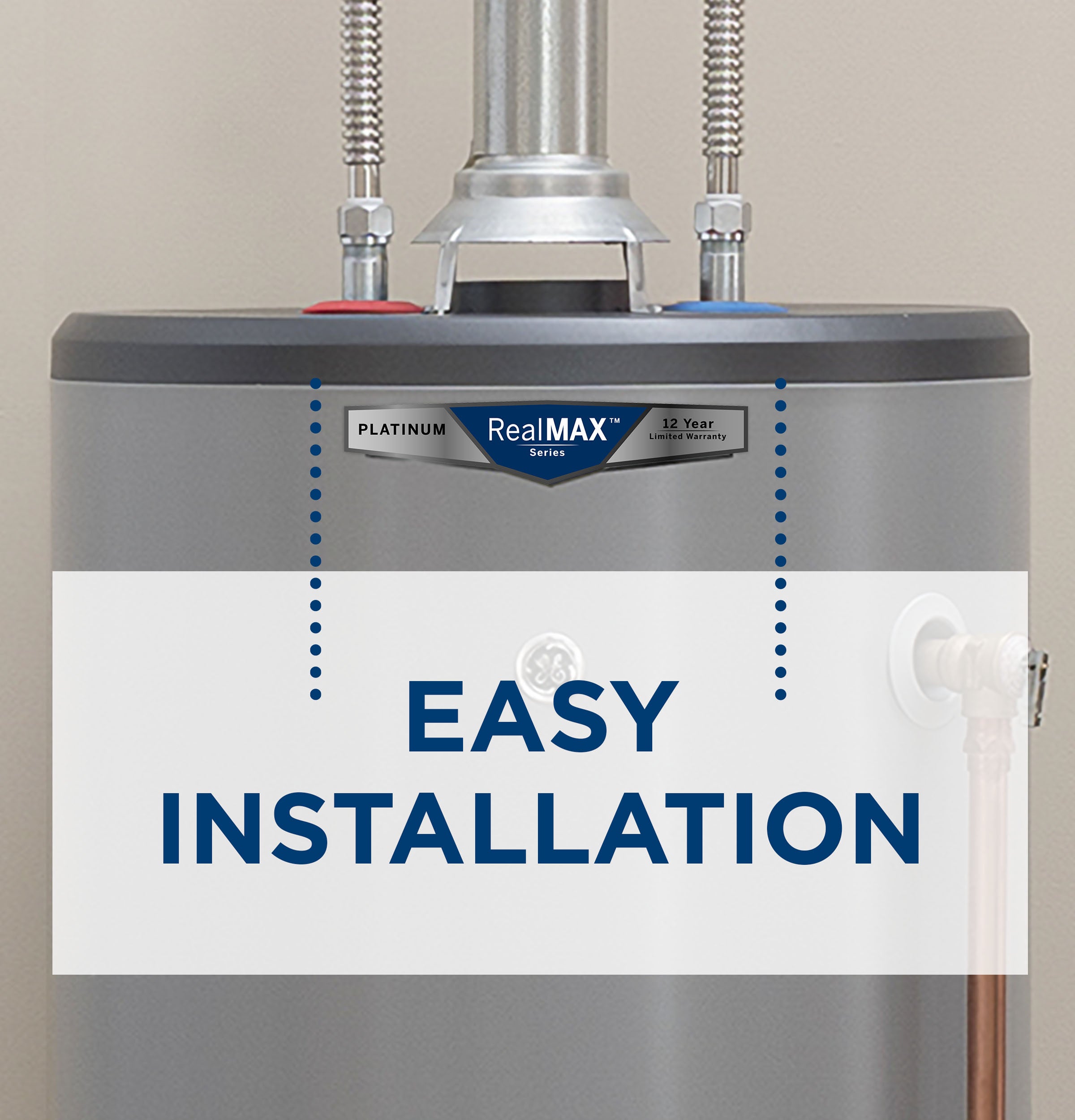

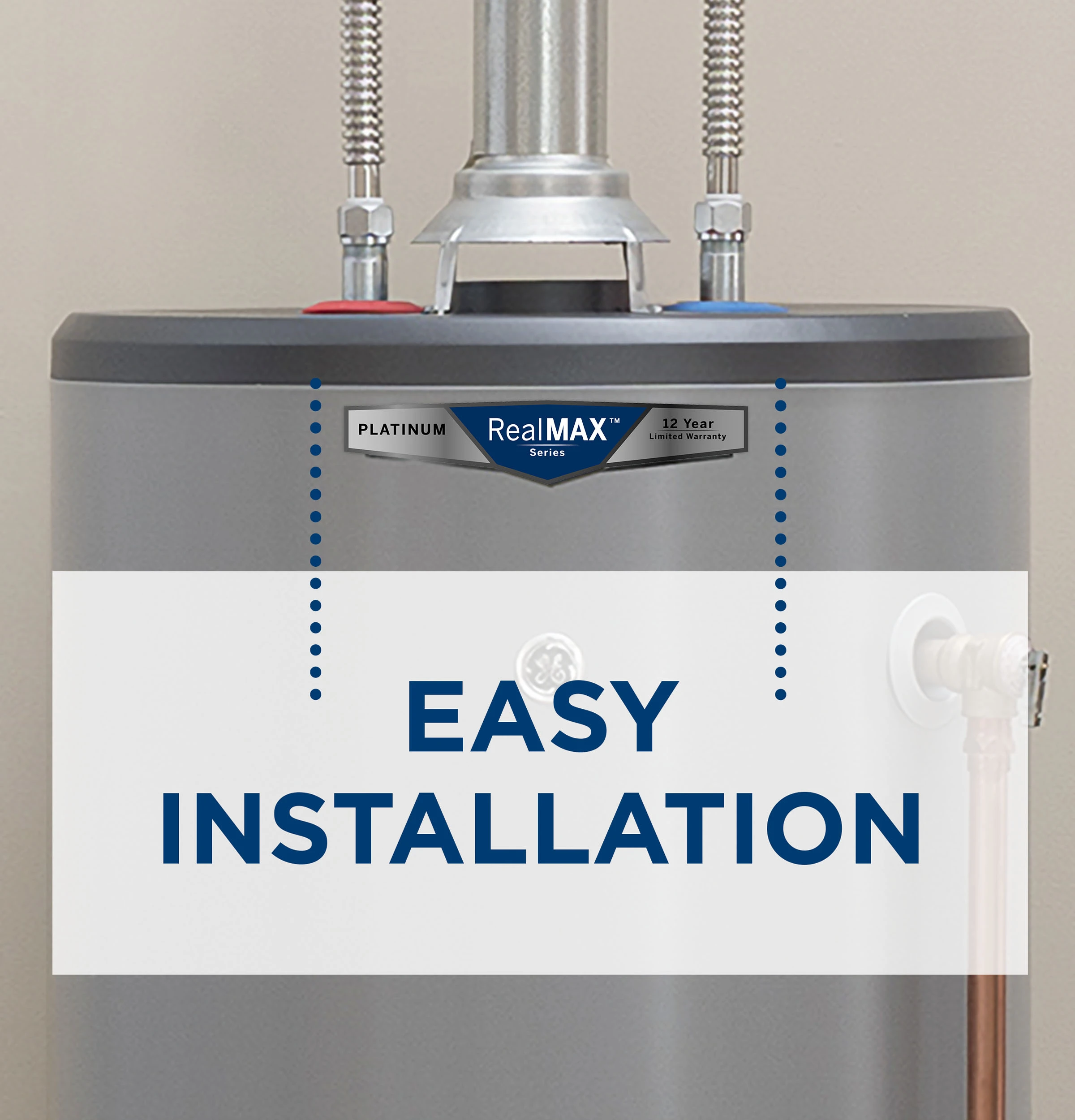

Replace your old water heater quickly and easily using standard water and gas connections

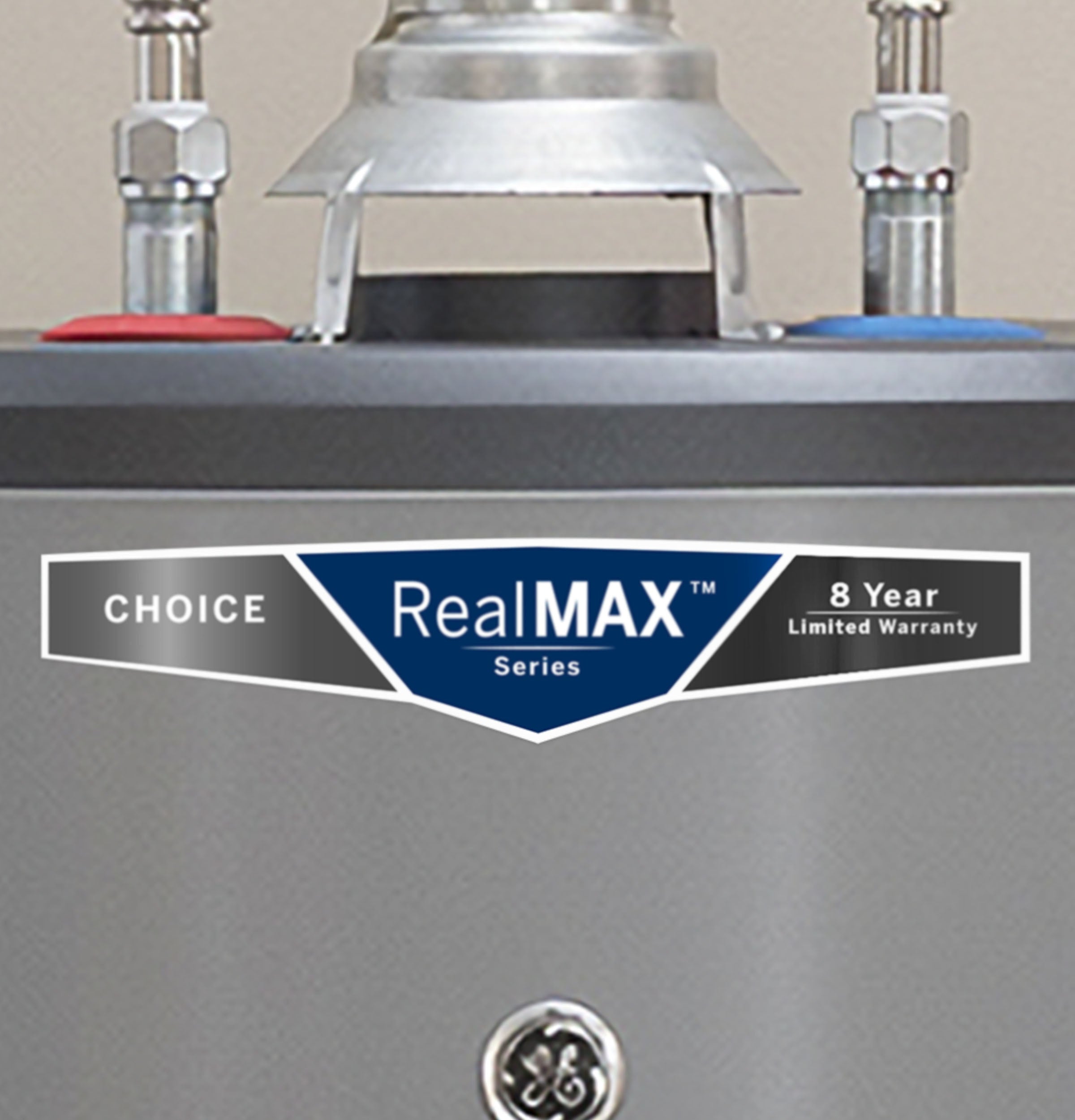

RealMAX Choice water heaters carry an 8-year tank and parts limited warranty
