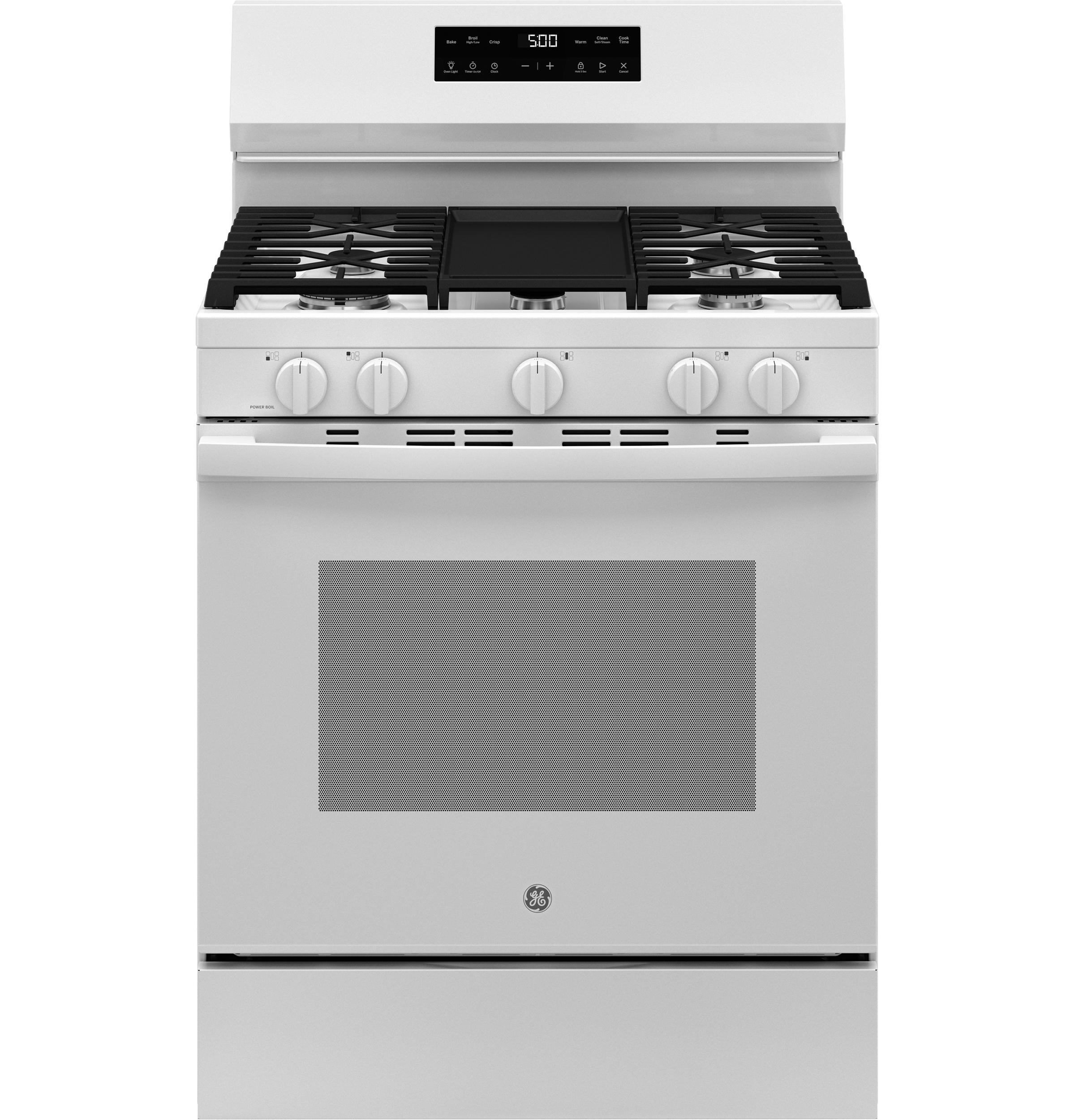

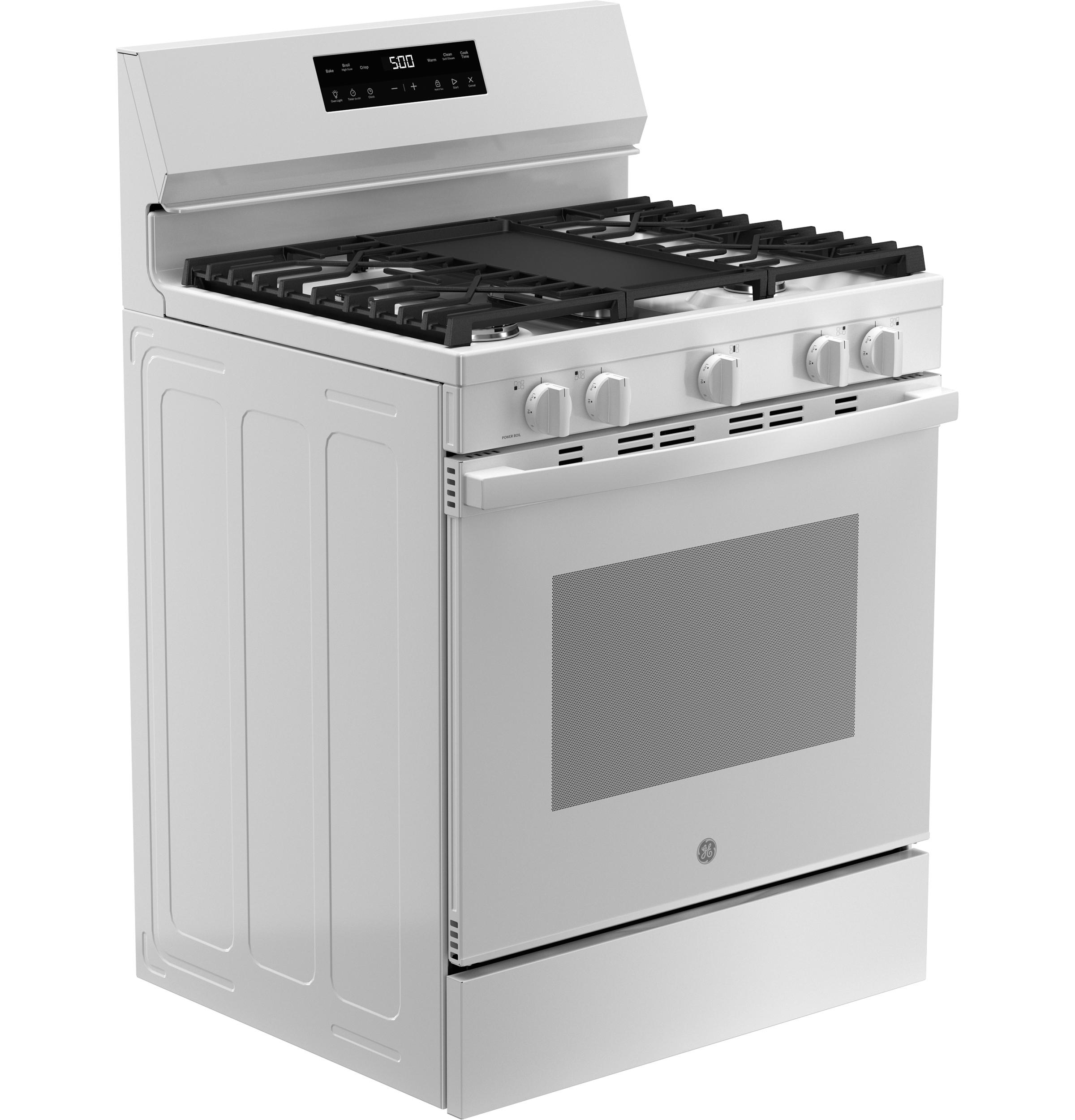

Product Details for GE Appliances GGF500PVWW
Technical Details
Appearance
| Cooktop Burner Grate Color | Matte Black |
| Oven Door Features | Big View Oven Window |
| Handle Color | White |
| Control Knobs | White |
| Color Appearance | White |
Power / ratings
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (2) 9.5; (1) 15.0; (1) 5.0; (1) 8.0 |
| Electrical Requirements | 120 |
| Volts/Hertz/Amps | 120 |
| Top Burner BTU Rating - LP (000's BTU's) | (2) 9.5; (1) 15.0; (1) 5.0; (1) 8.0 |
| Broiler Wattage | 1175 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 14.0 |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 12.0 |
| Hertz | 60 |
Warranty
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
Accessories
| Center Grate | Optional - JXGRATE2 |
| Griddle Accessory | Integrated Griddle (Included) |
| Reversible Griddle/Grill Accessory | Optional - JXGRILL2 |
| Extension Rack | Optional - JXXTNRCK2 |
| LP Conversion Kit | Included |

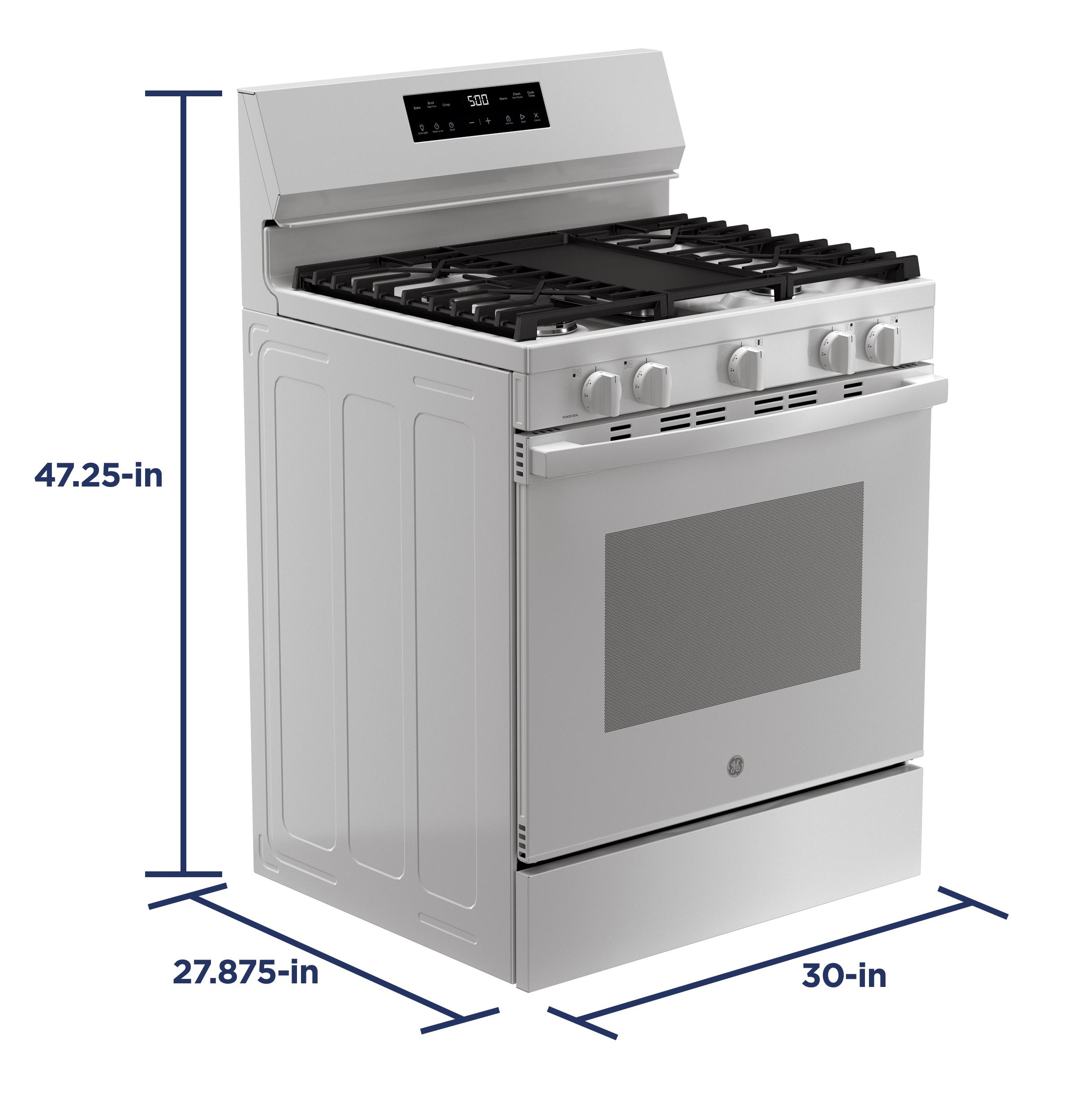

Weights & dimensions
| Net Weight | 138 |
| Depth Without Handle | 25.5 |
| Height to Cooking Surface (in.) | 36 |
| Cabinet Width | 30.0 |
| Approximate Shipping Weight | 151 |
| Overall Width | 30.0 |
| Overall Height | 47.25 |
| Overall Depth | 27.88 |
| Depth with Door Open | 47.5 |
| Oven Interior Dimensions (W x H x D) (in.) | 24 |
Features
| Cooking System | Traditional |
| Ignition System | Electronic |
| Burner - Right Rear | 9 |
| Oven Interior | Black Enamel |
| Oven Control Features | Auto Self Clean Cook Time In-Oven Broiling Sabbath Mode Timer Warm Mode |
| Oven Rack Features | 2 |
| Power Boil Burner | Yes |
| Burner - Left Rear | 5 |
| Oven Cleaning Type | Self-Clean Steam Clean |
| Griddle | Integrated (Included) |

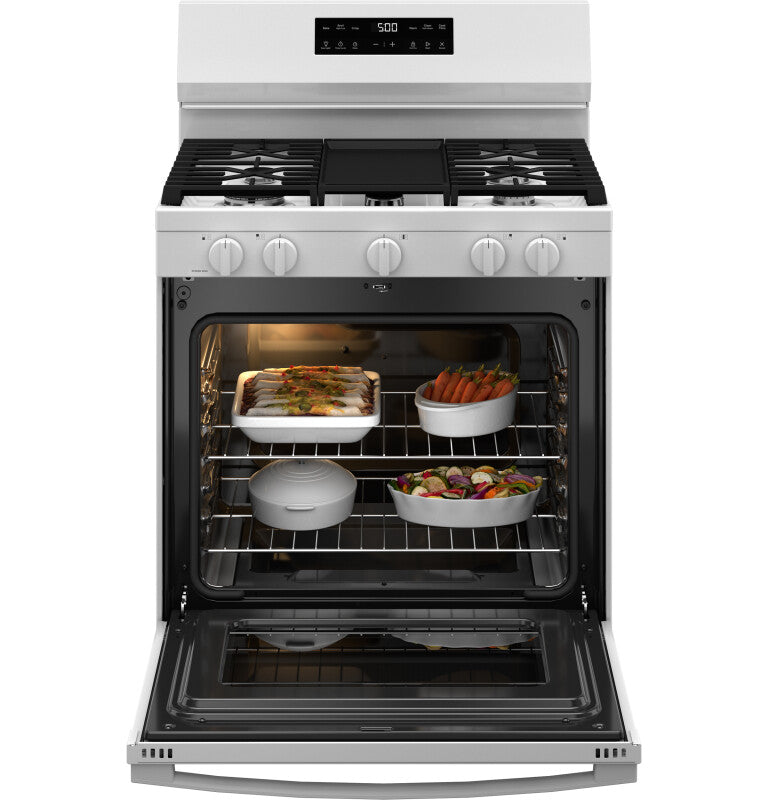

| Product Type | Free-Standing Single Oven |
| Heating Element "ON" Indicator Light | Yes |

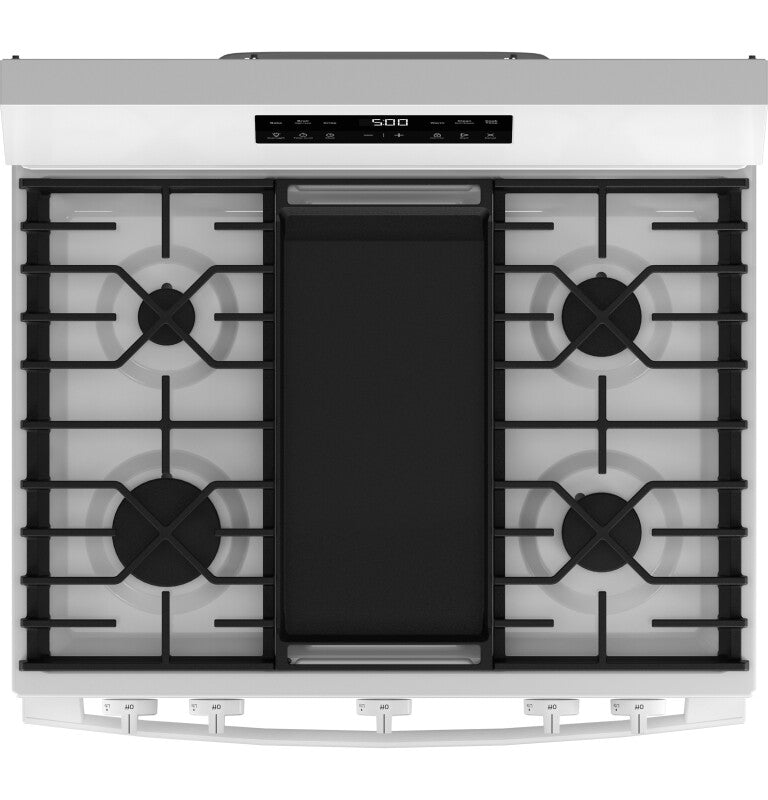

| Cooktop Type | Continuous Grates with Griddle |
| Cooktop Burner Grate Material | Standard Cast |
| Fuel Type | Natural Gas |
| Burner - Center | 8 |
| Interior Oven Light | 1 |
| Control Location | Backsplash |
| Express Preheat | Yes |
| Control Type | Digital Temperature Display Electronic Oven Controls Electronic Touch |
| Burner - Left Front | 15 |
| Drawer Type | Storage |
| Hot Surface Indicator Lights | Yes |
| Sabbath Mode | Yes |
| Cooking Technology | Traditional |
| Configuration | Range with Storage Drawer |
| OU Certified | OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately |
| Oven Cooking Modes | Bake Crisp Mode High Broil Low Broil |
| Cooktop Burner Type | Sealed |
| Valves (Degree of Turn) | 270 |
| Burner - Right Front | 9 |
| Cooktop Surface | Deep Recessed Edge-to-Edge Porcelain-Enamel White |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
Features

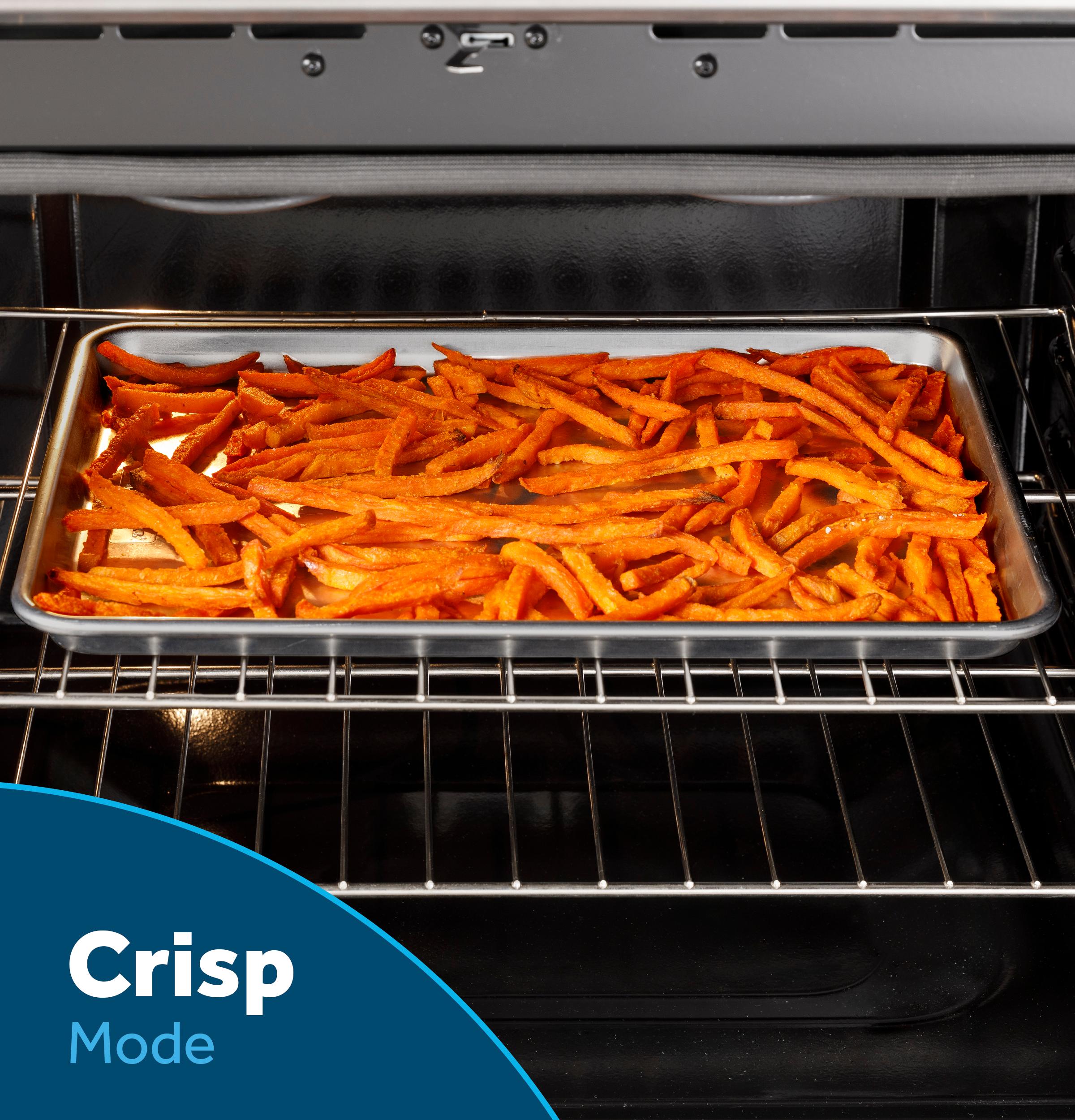

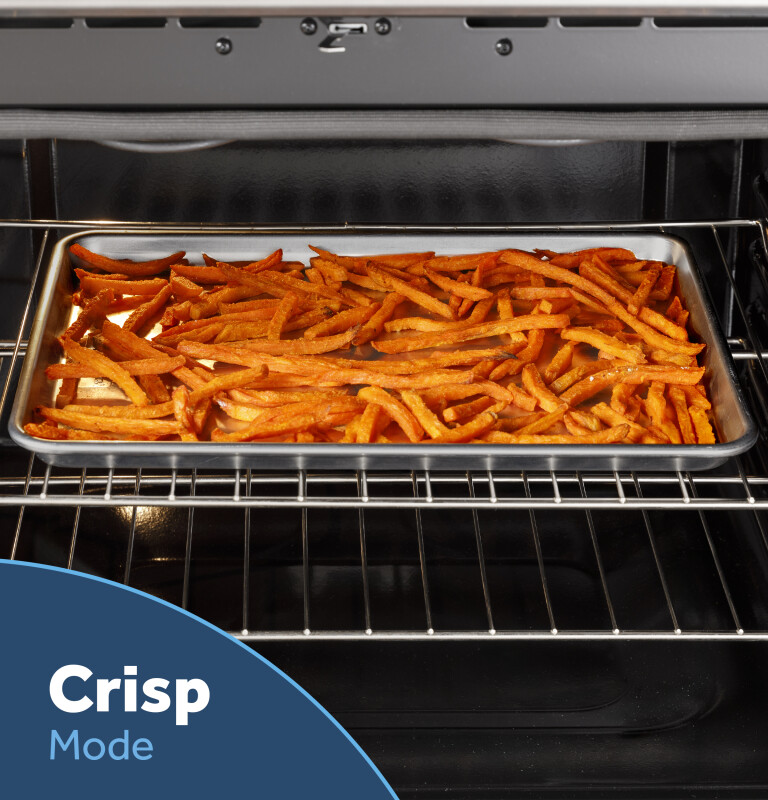

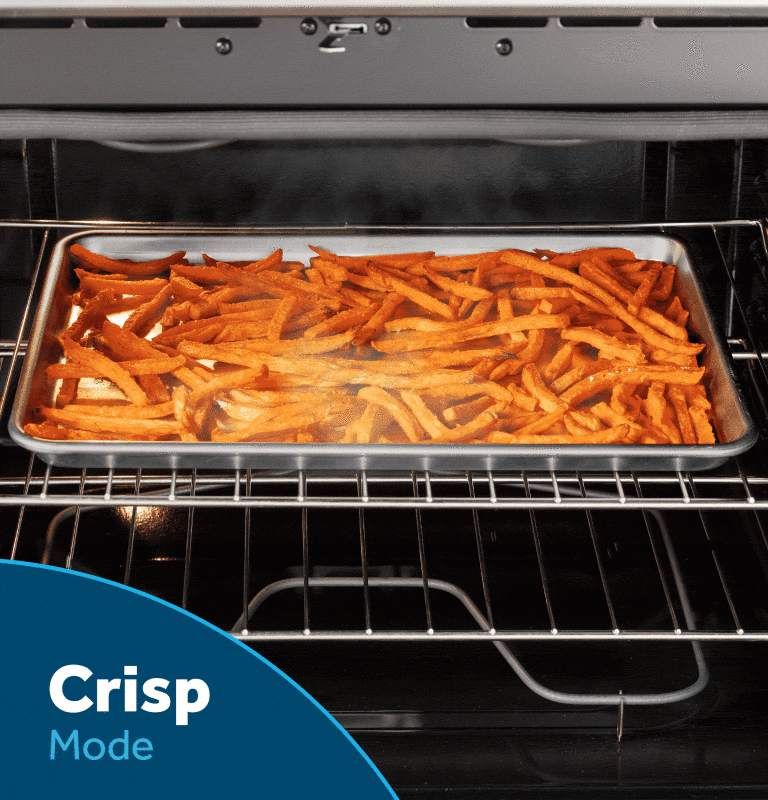

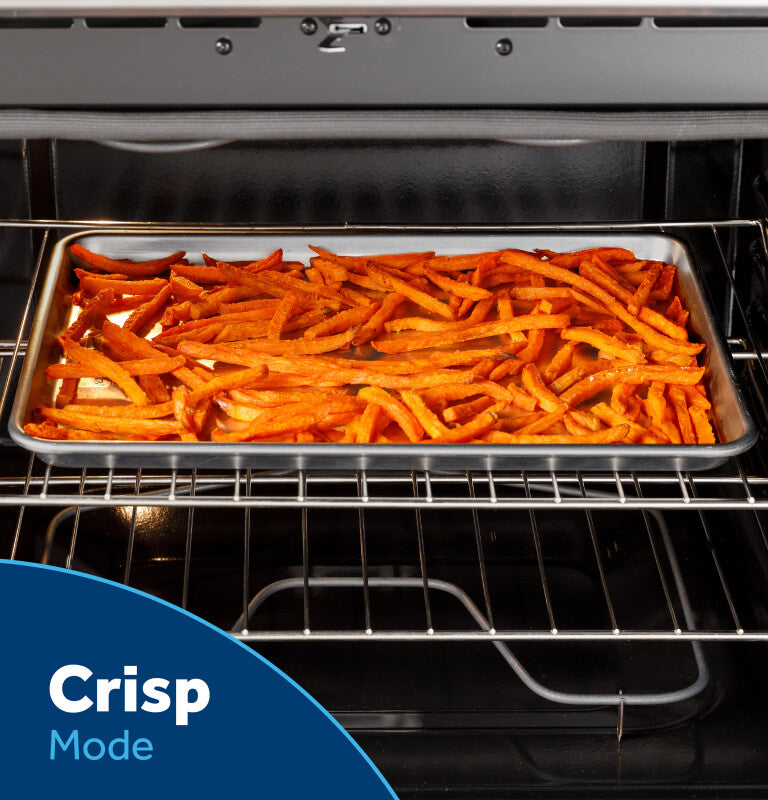

- Crisp Mode

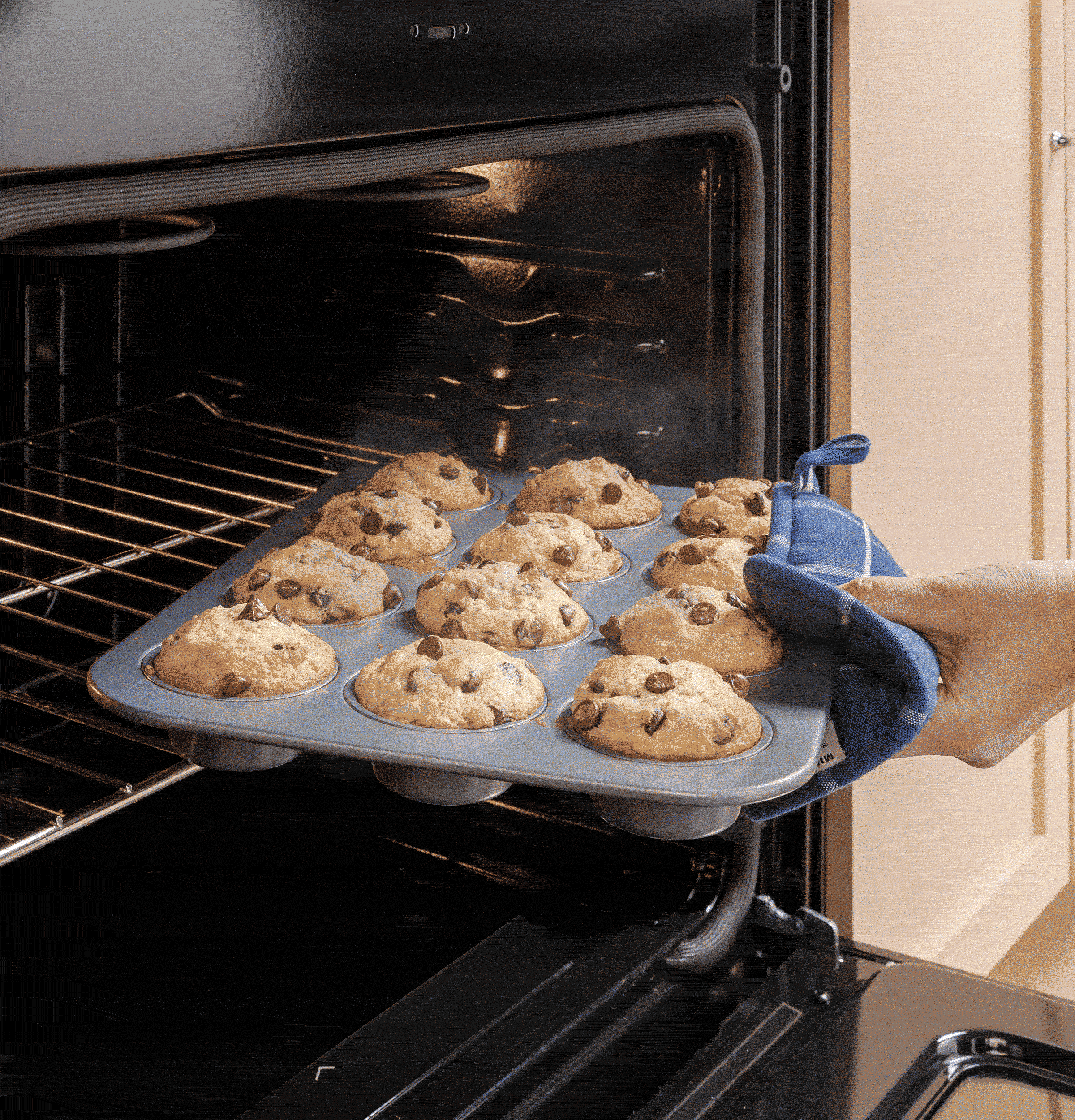

Crisp mode uses the bake and broil elements to deliver air-fry like results. Perfect for your favorite fried foods, this mode uses a 2-minute preheat to get to temperature, then delivers fantastic crispy results. - Express Preheat
Get food on the table quicker thanks to a fast preheat oven. In just 7 minutes*, you have a perfectly preheated oven. *Preheats oven in just 7 minutes, bake mode to preheat beep, 350 degrees, one standard rack. - 5 Burner Gas

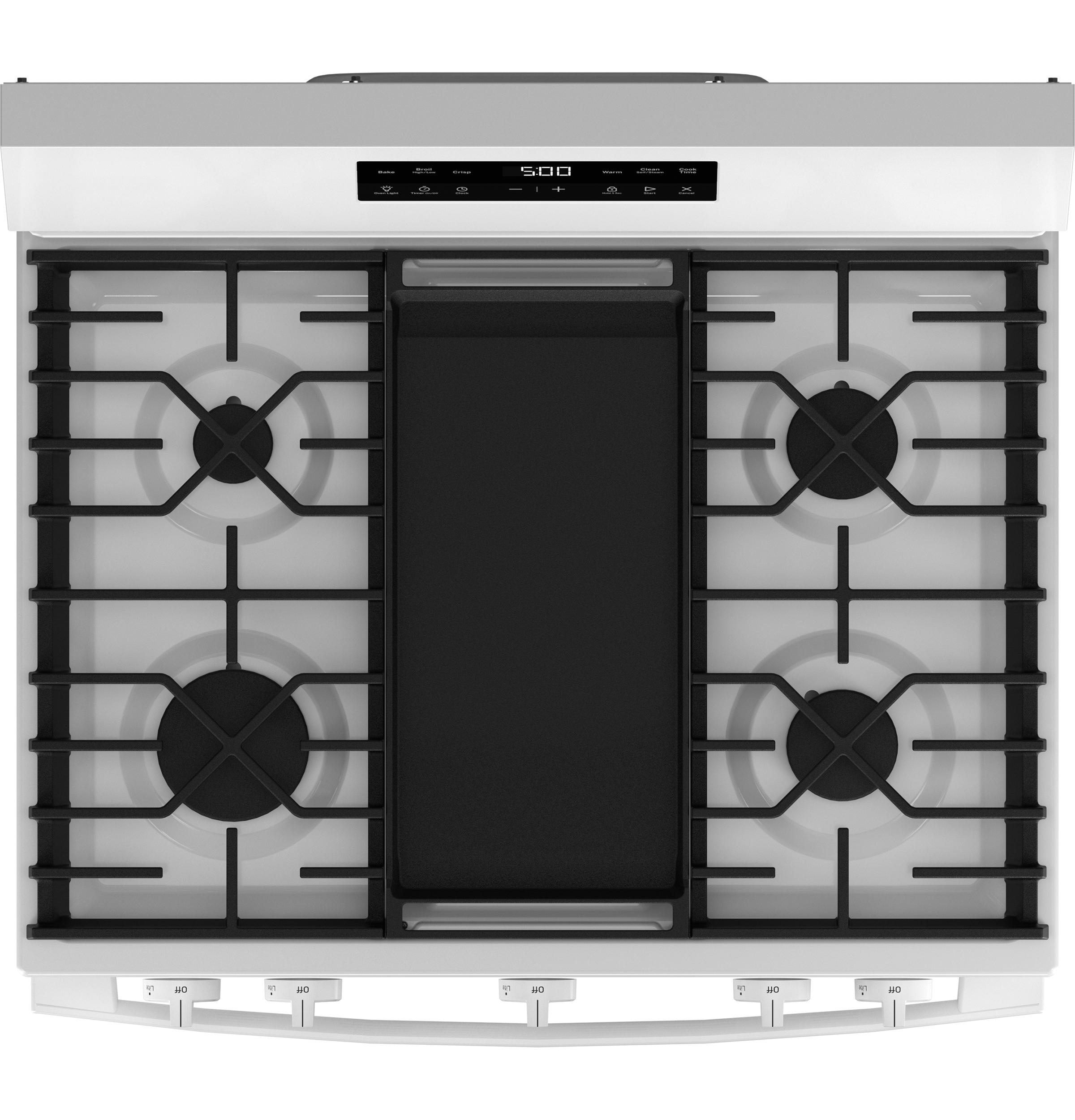

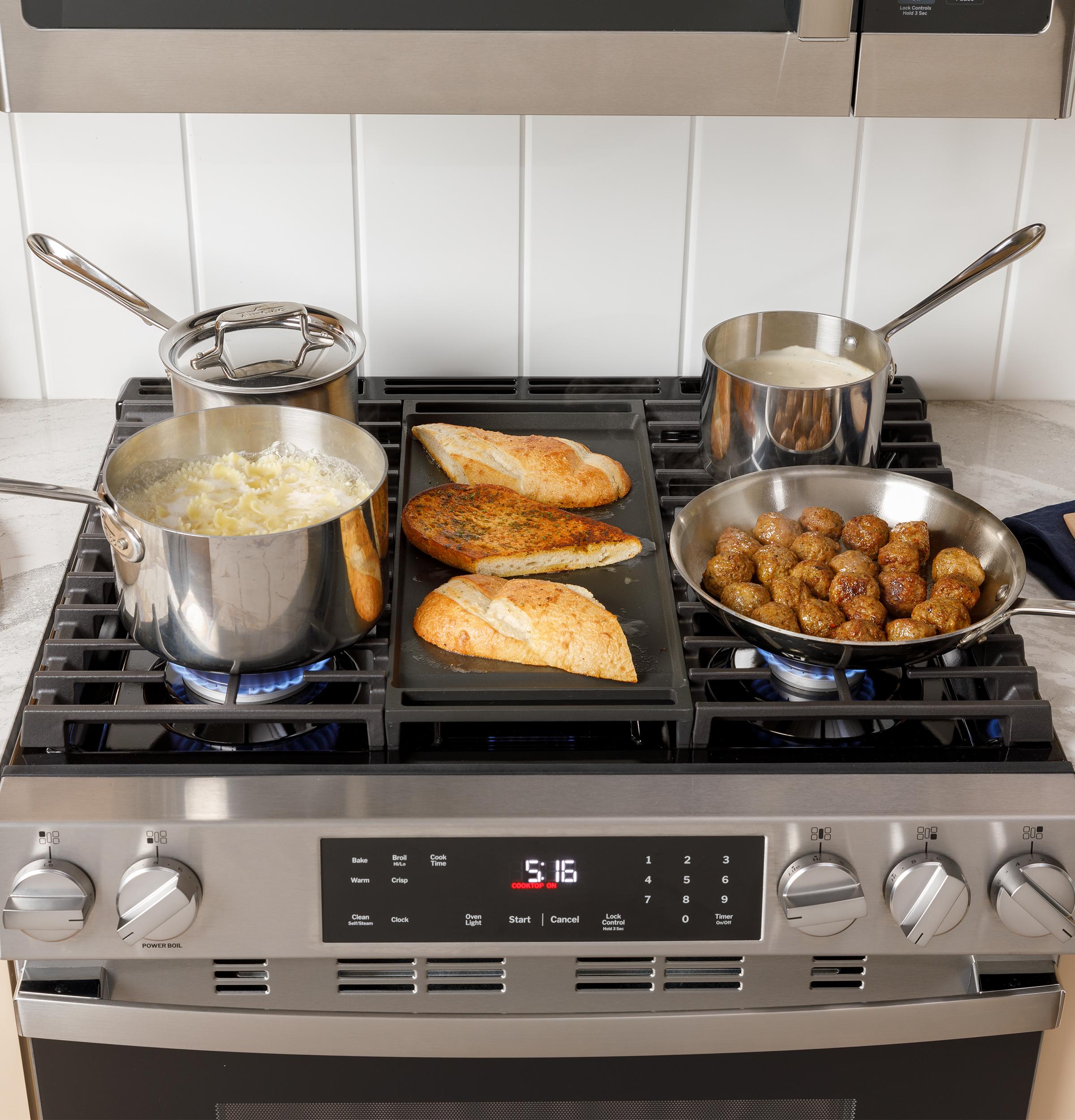

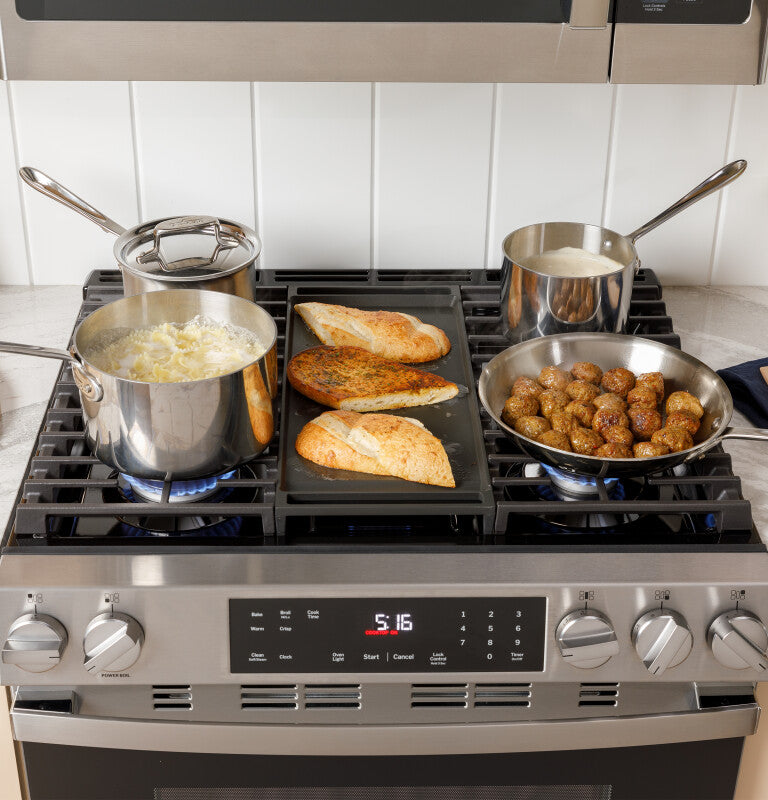

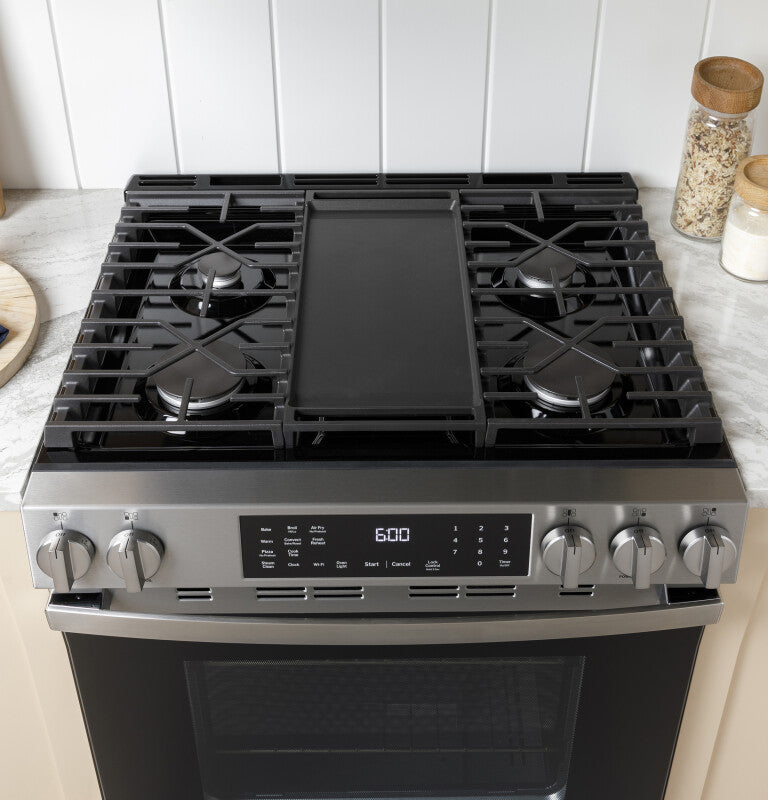

Five powerful gas burners make for an efficient cooking experience on this expansive and flexible cooktop. - Extra-Large Integrated Griddle

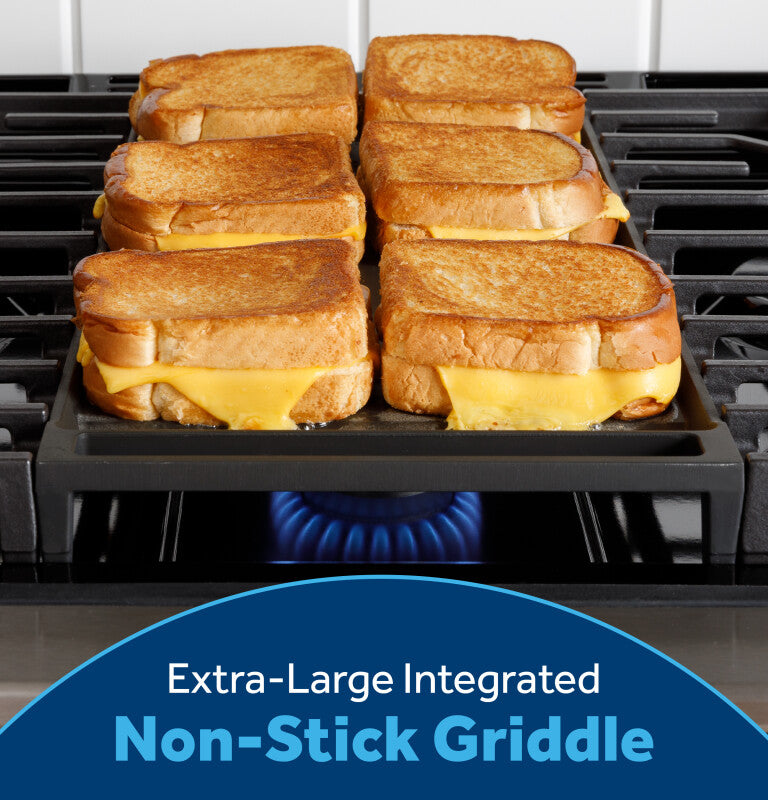

With an integrated griddle that is 20% larger than leading competition, you can cook up to six grilled cheeses at once. - 15,000 BTU Power Boil Burner

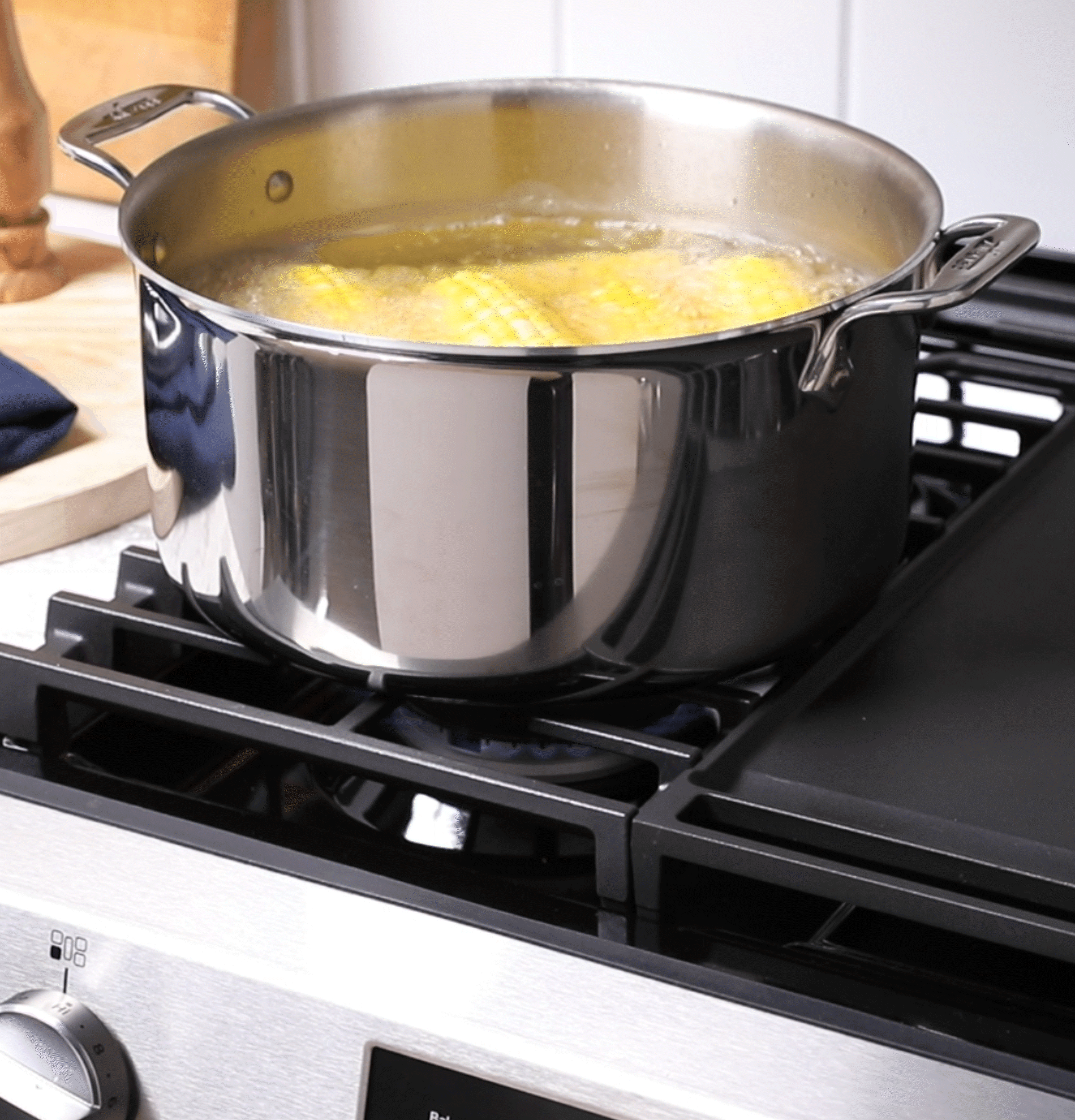

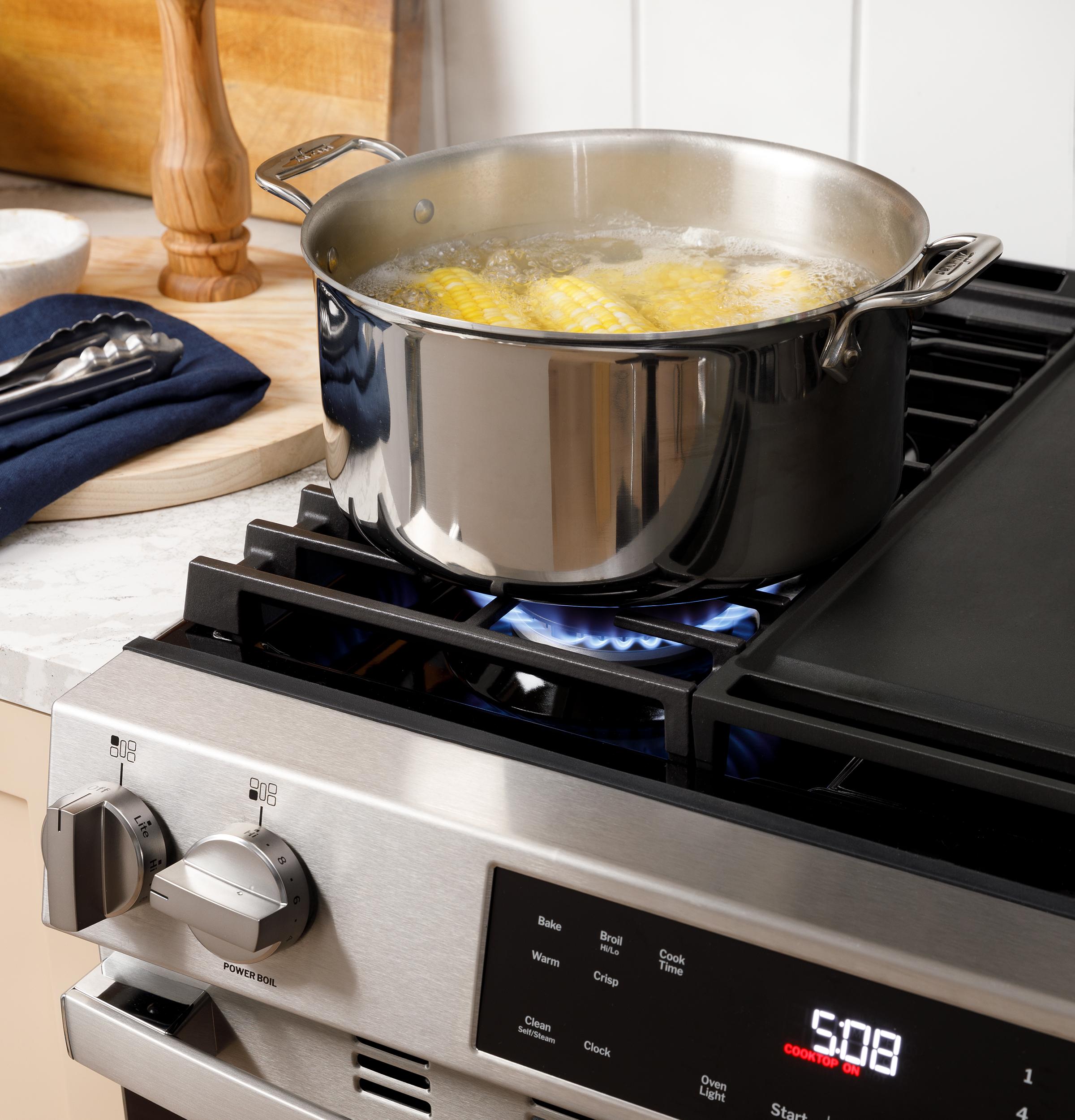

Boil water faster with a 15,000 BTU Power Boil element that delivers high heat for quick boiling. - Edge-to-Edge Cooktop

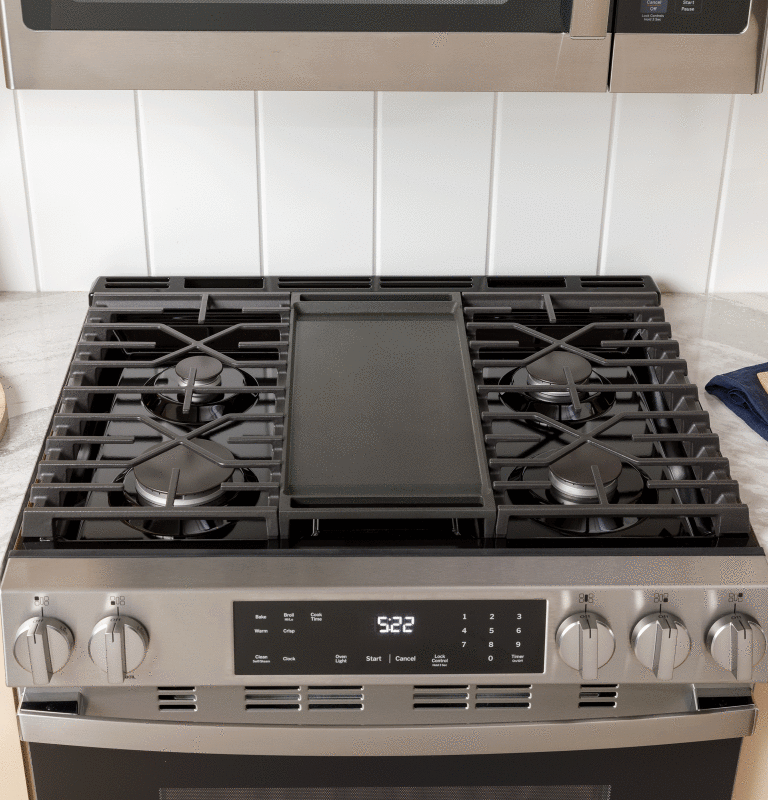

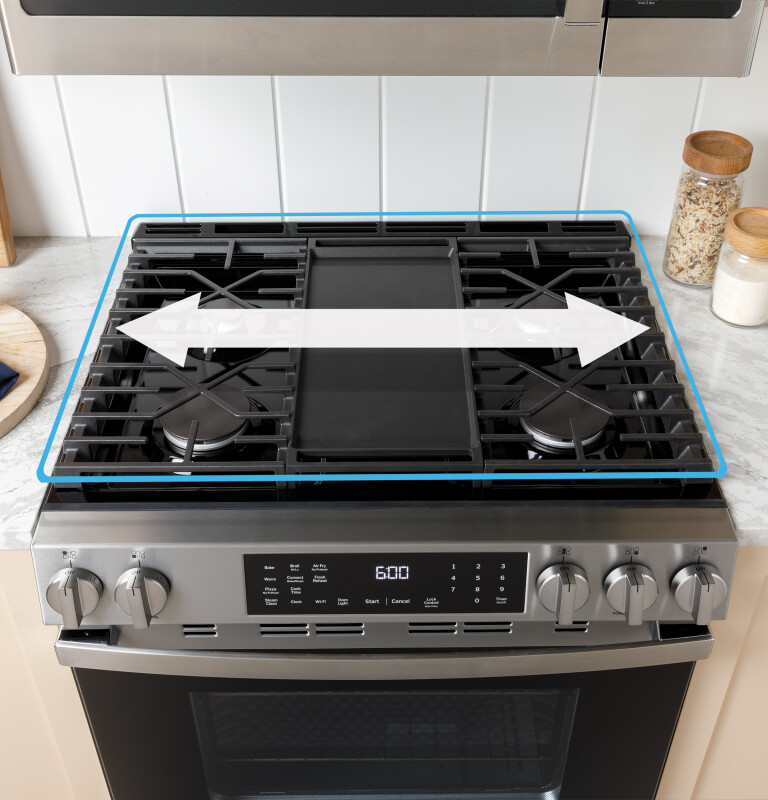

A large cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner. - Center Oval Burner

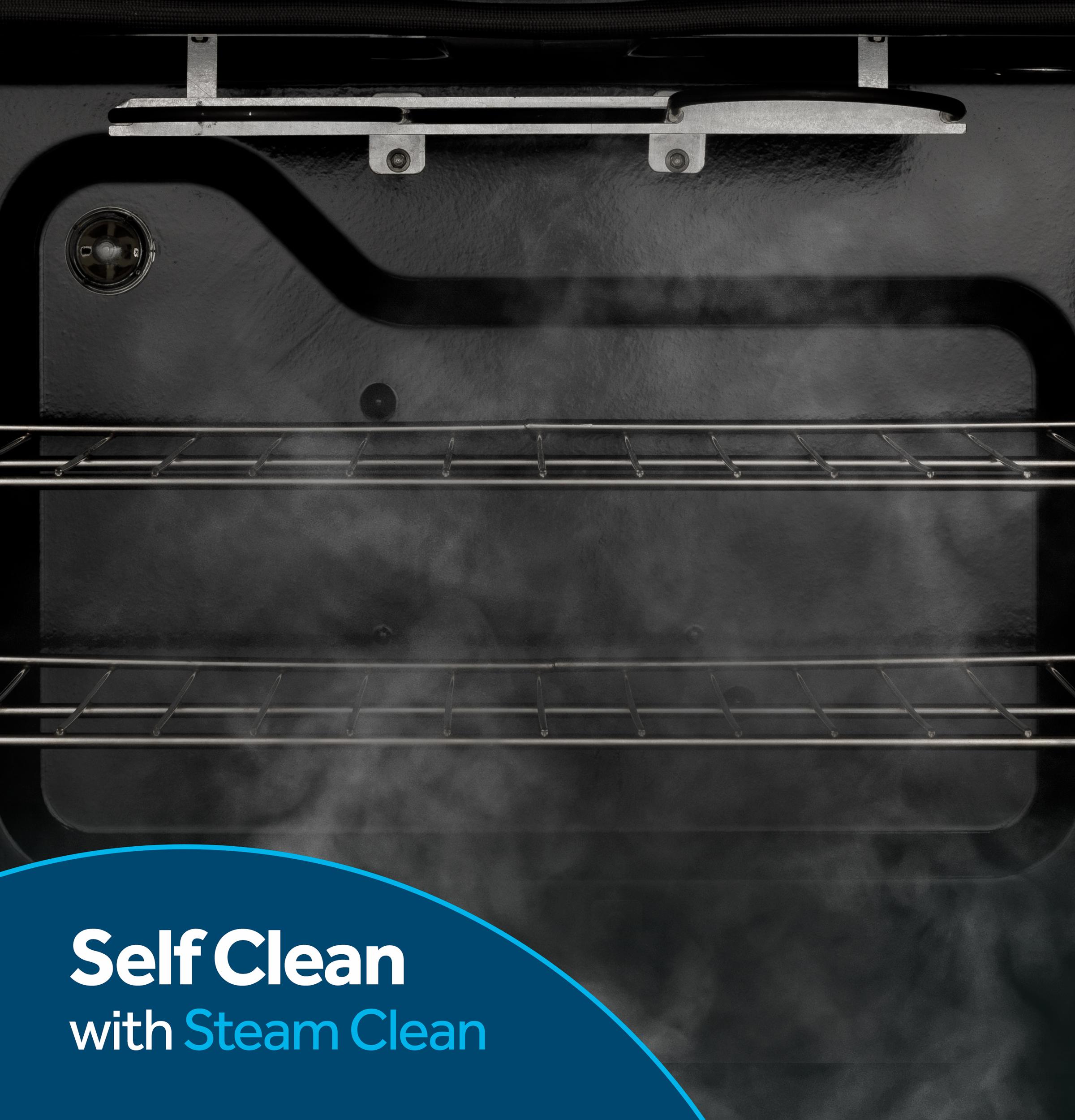

Custom cookware and griddles easily fit on this powerful fifth central oval burner that offers a flexible cooking solution. - Self-Clean with Steam Clean
Save time and effort by using the self-cleaning function for deep clean situations, or enjoy frequent cleanings without the need for kits or extra steps thanks to the steam clean oven function. - Heavy Duty, Dishwasher-Safe Grates

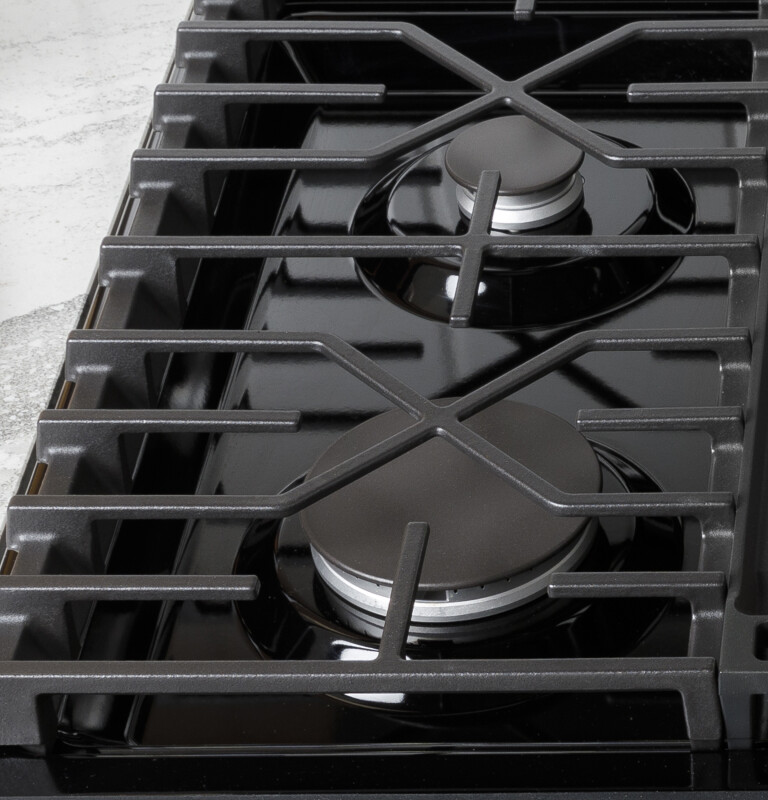

Enjoy a safe and easy-to-clean solution thanks to these heavy duty, dishwasher-safe grates. - Oven Storage Drawer

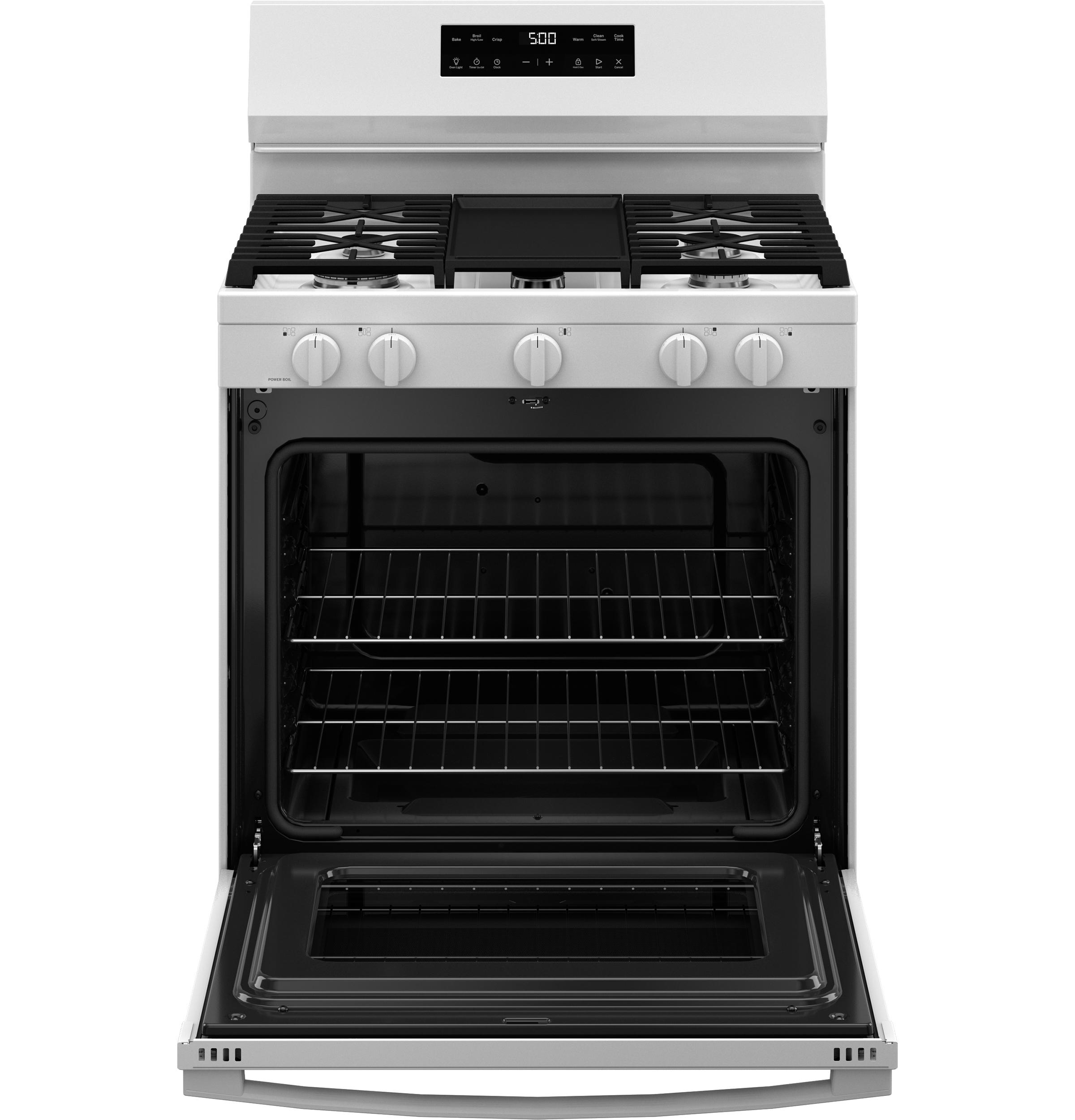

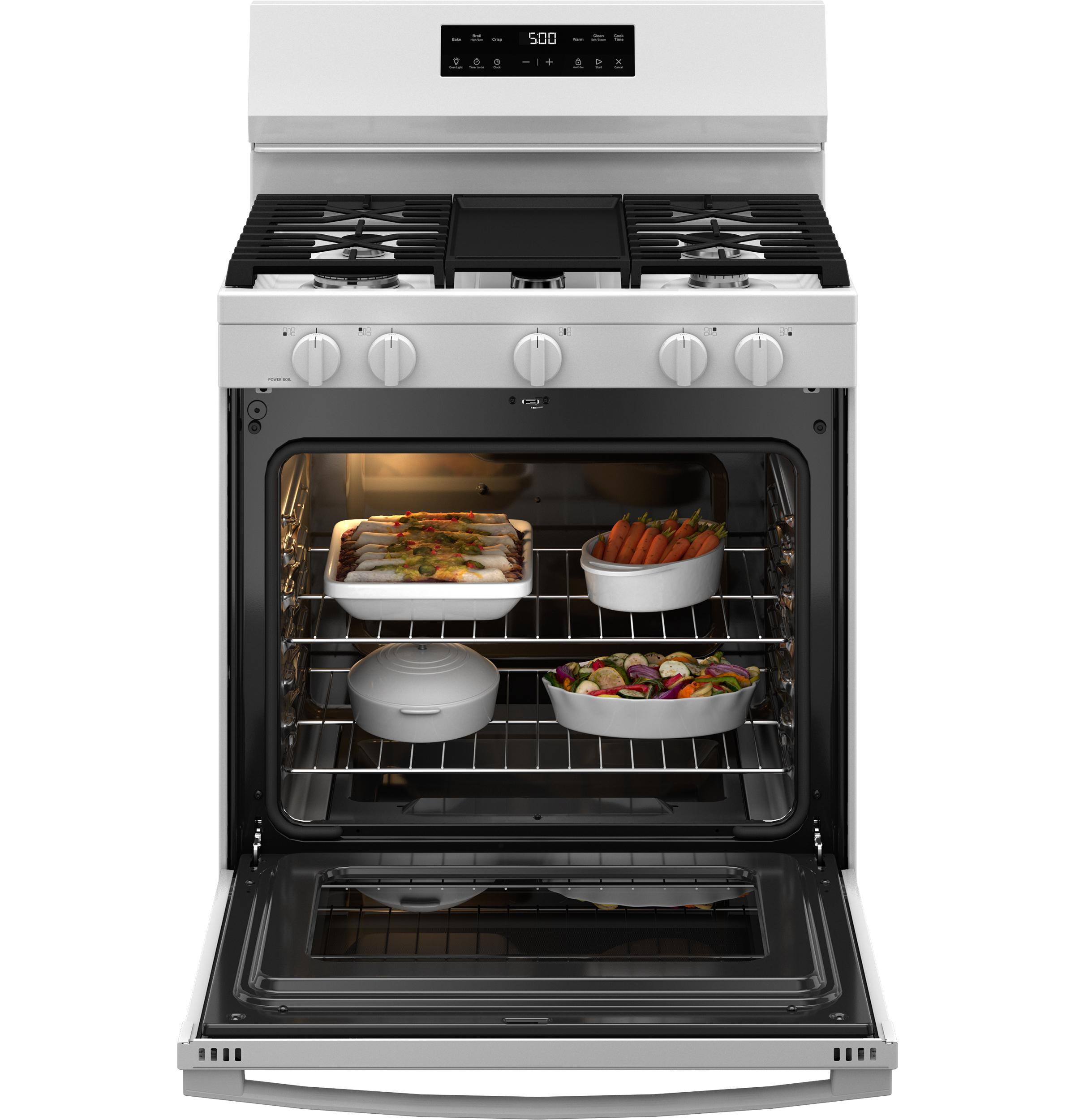

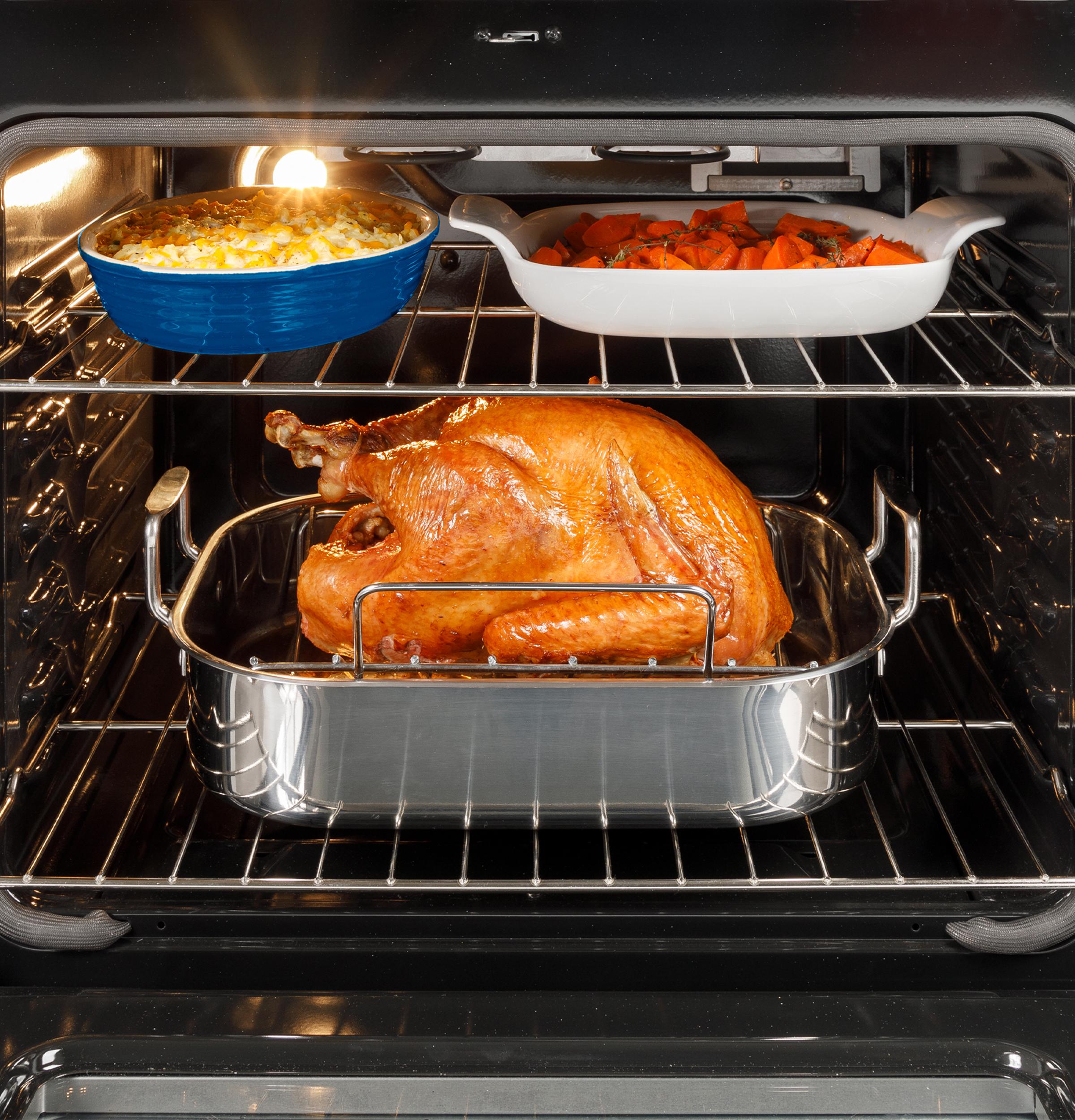

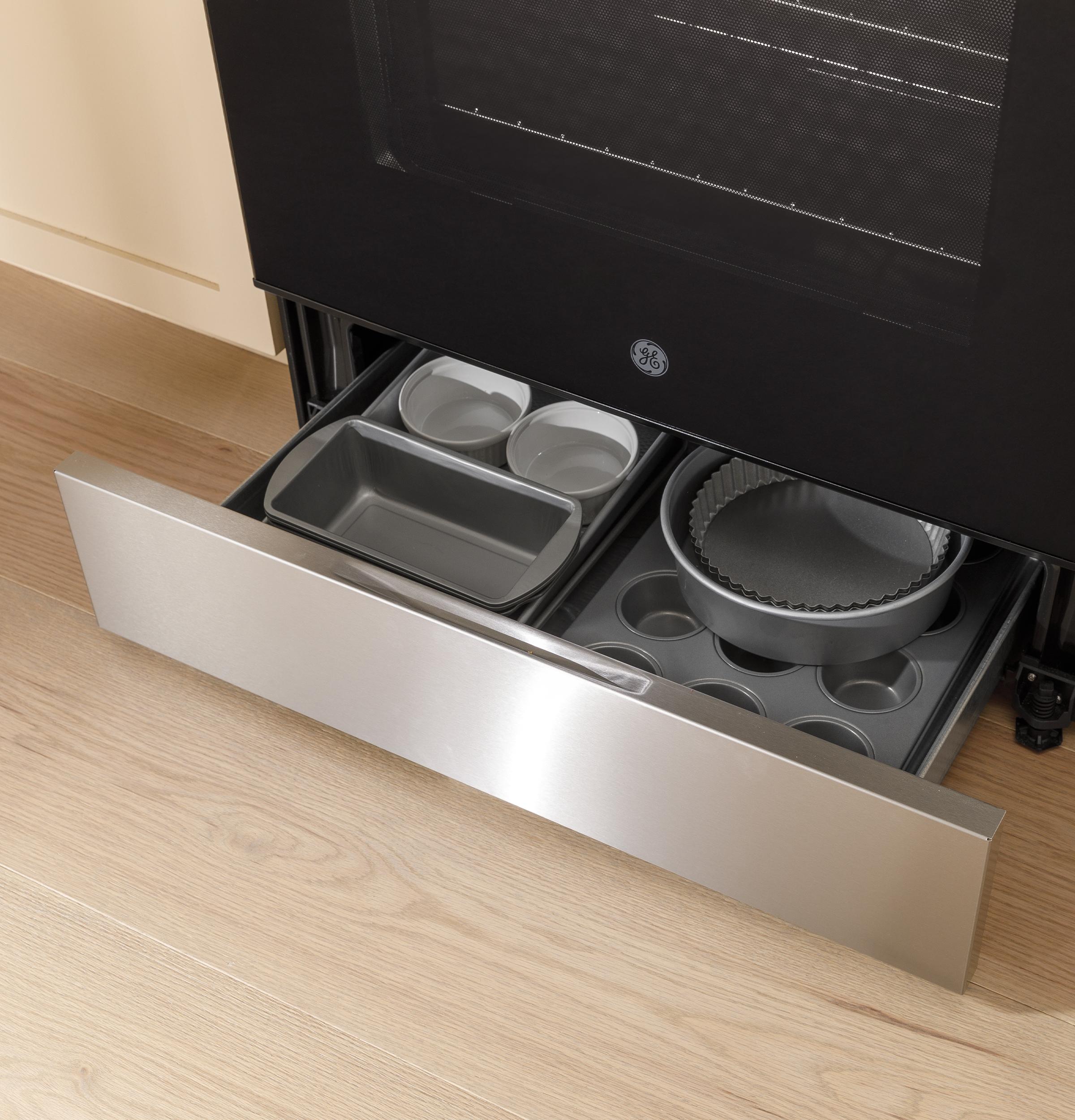

This model features a removable oven storage drawer that offers the perfect place to store cookware and other kitchen accessories. - Large Capacity Oven

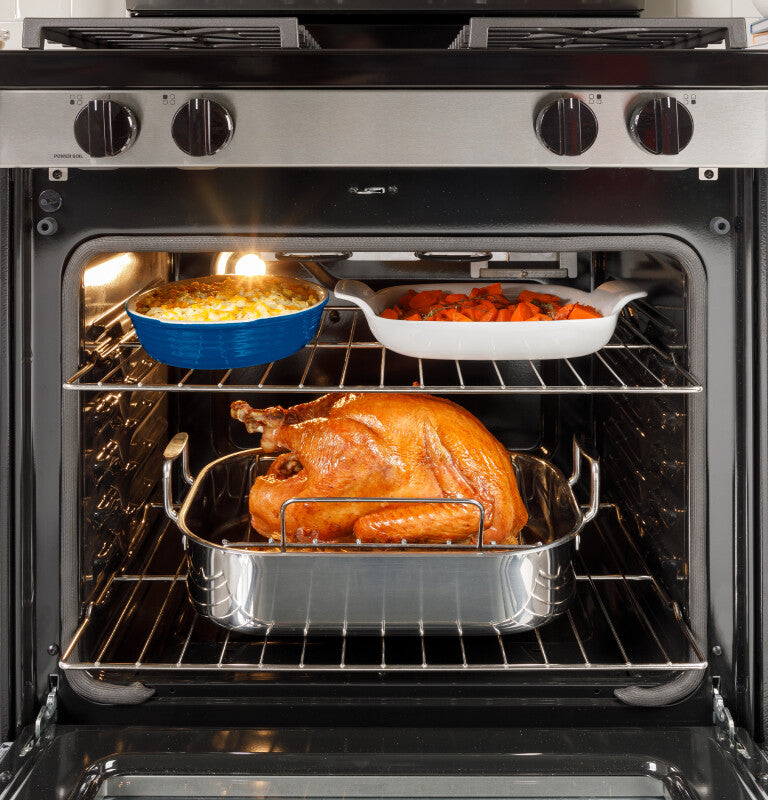

Cook an entire meal at once with room to spare in this oven with 5.3 cubic foot capacity. - Nickel Racks

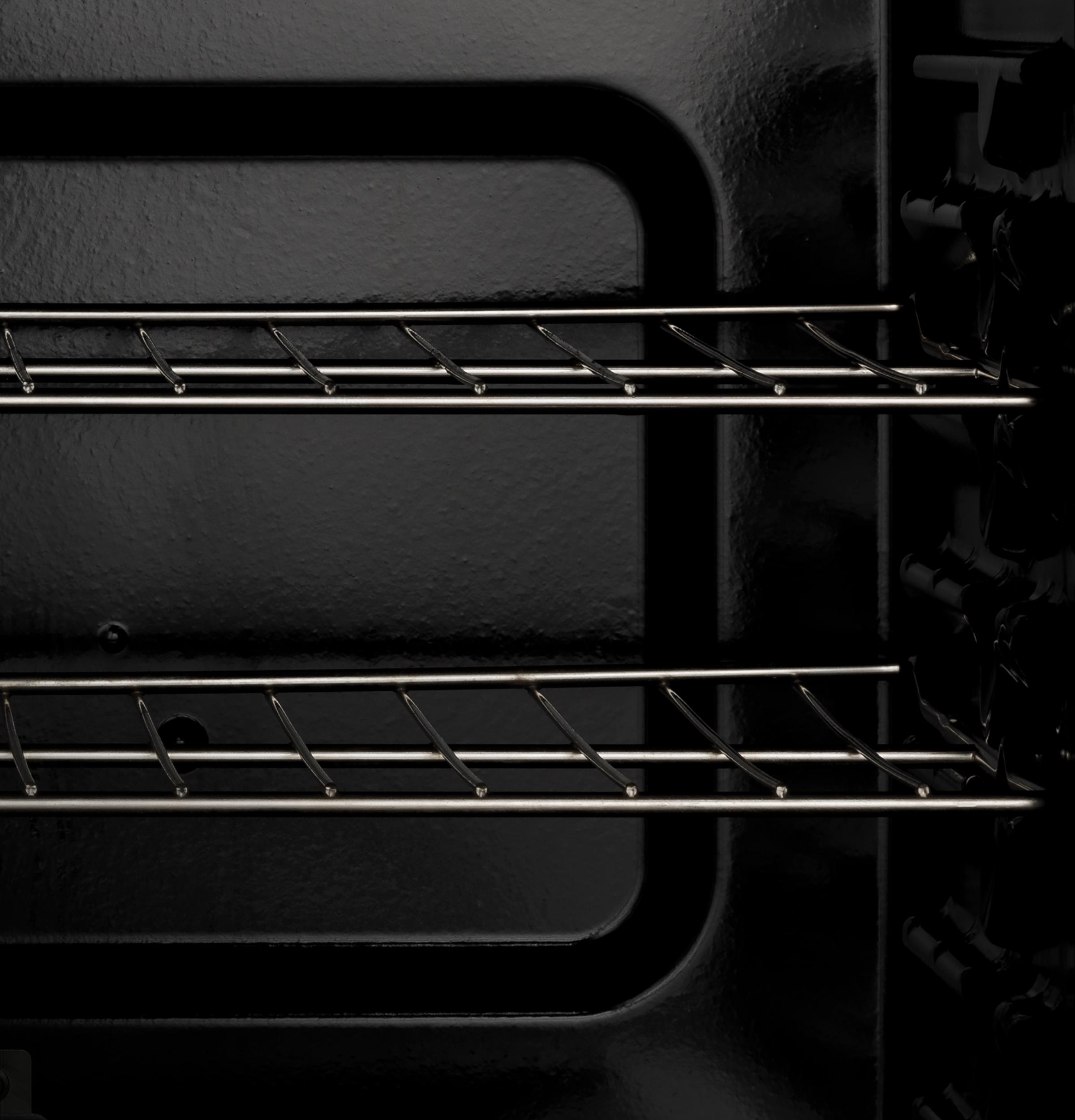

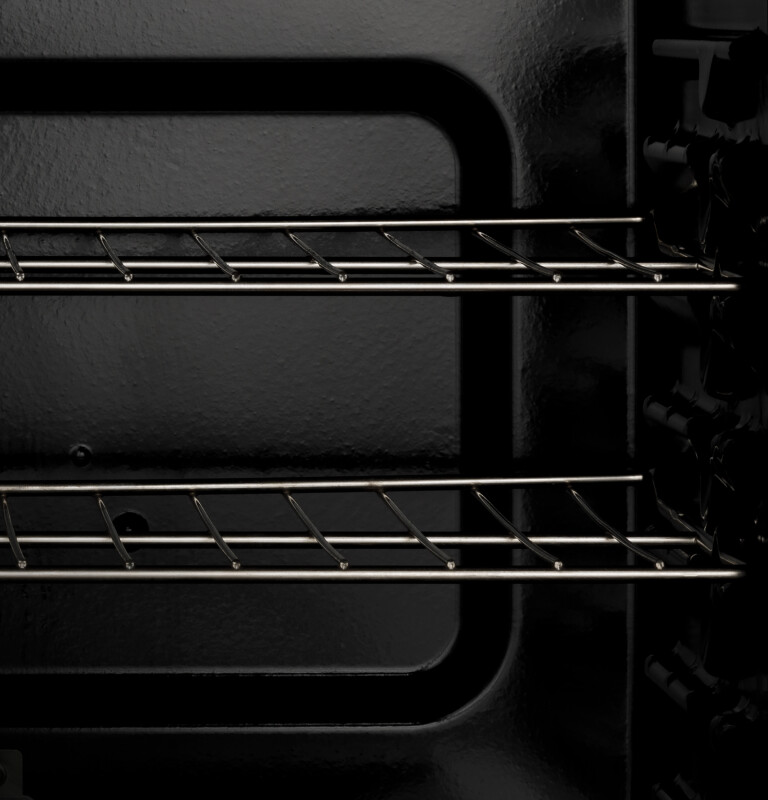

This gas range with nickel racks provides a durable design that handles heavy baking dishes with ease. - Precise Simmer Burner
- In-Oven Broil
- New Easy-to-Use Controls
Description
The brand GE GGF500PVWW combines style, convenience, and performance in this 30″ free‑standing gas range. Featuring five sealed burners—including a high-output burner for rapid heating and a low-simmer burner for delicate tasks—it offers flexible stovetop cooking. The spacious oven includes Crisp Mode for air-frying without needing a separate appliance, using fan-assisted convection for even results. Continuous cast-iron grates provide stable support and easy cleanup, while the self-cleaning cycle and electronic ignition add practical convenience. The crisp white exterior enhances modern kitchen aesthetics, and removable oven racks allow customization for roasts, bakeware, and sheet trays.
Manuals & Guides
Key Features

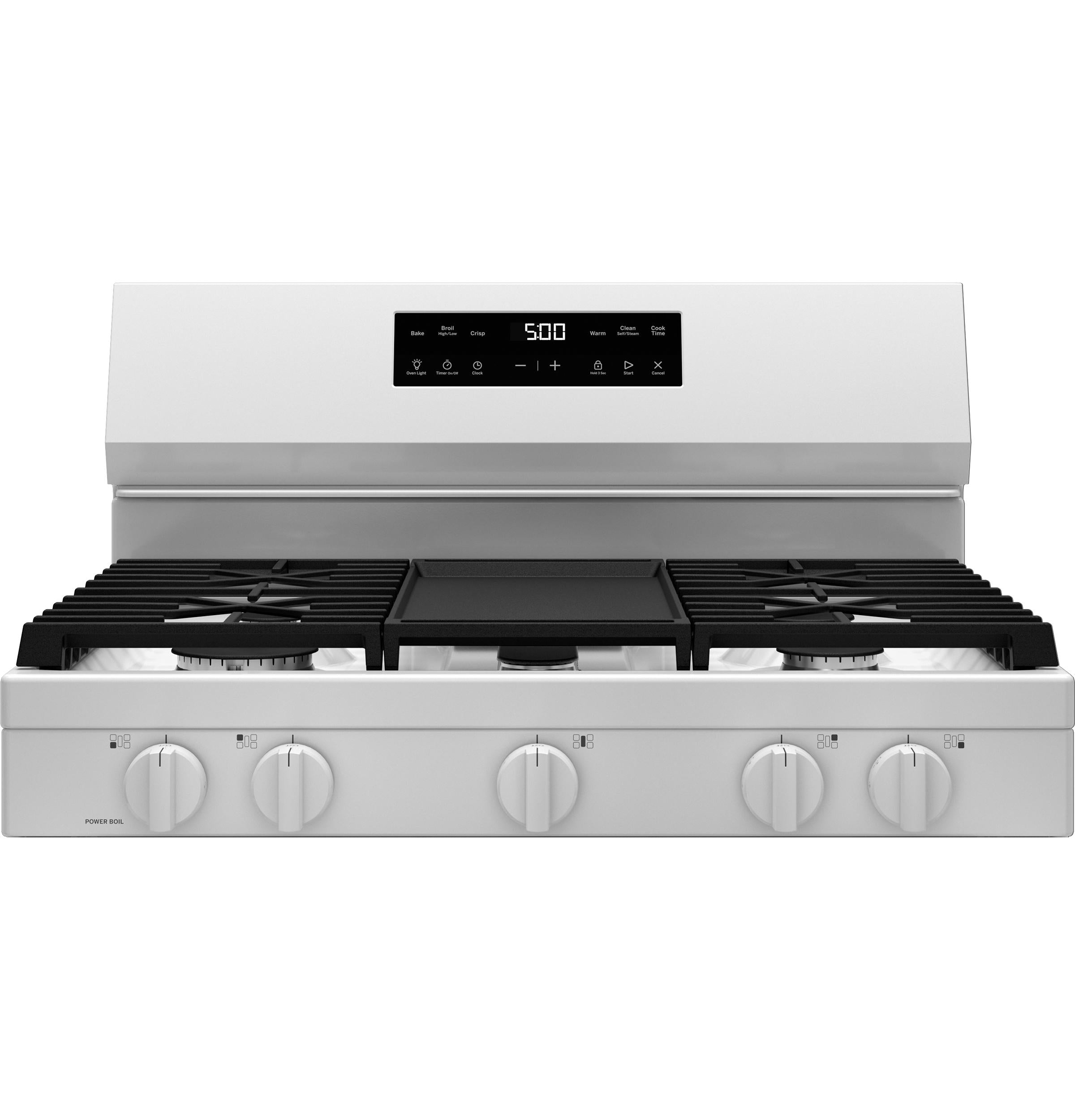

Edge-to-Edge Cooktop
A large cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner.

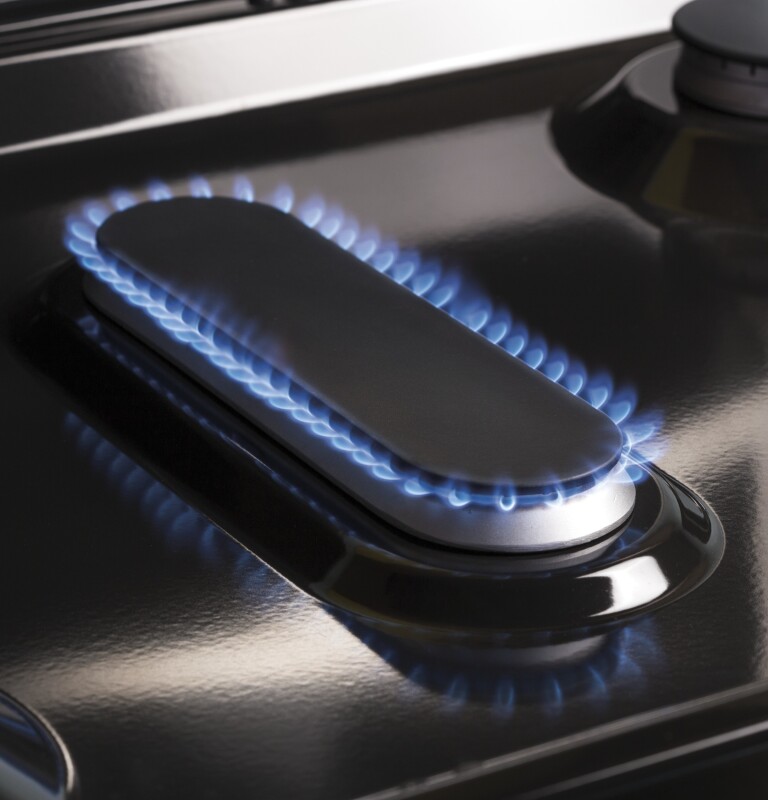

Center Oval Burner
Custom cookware and griddles easily fit on this powerful fifth central oval burner that offers a flexible cooking solution.
Heavy Duty, Dishwasher-Safe Grates
Enjoy a safe and easy-to-clean solution thanks to these heavy duty, dishwasher-safe grates.
