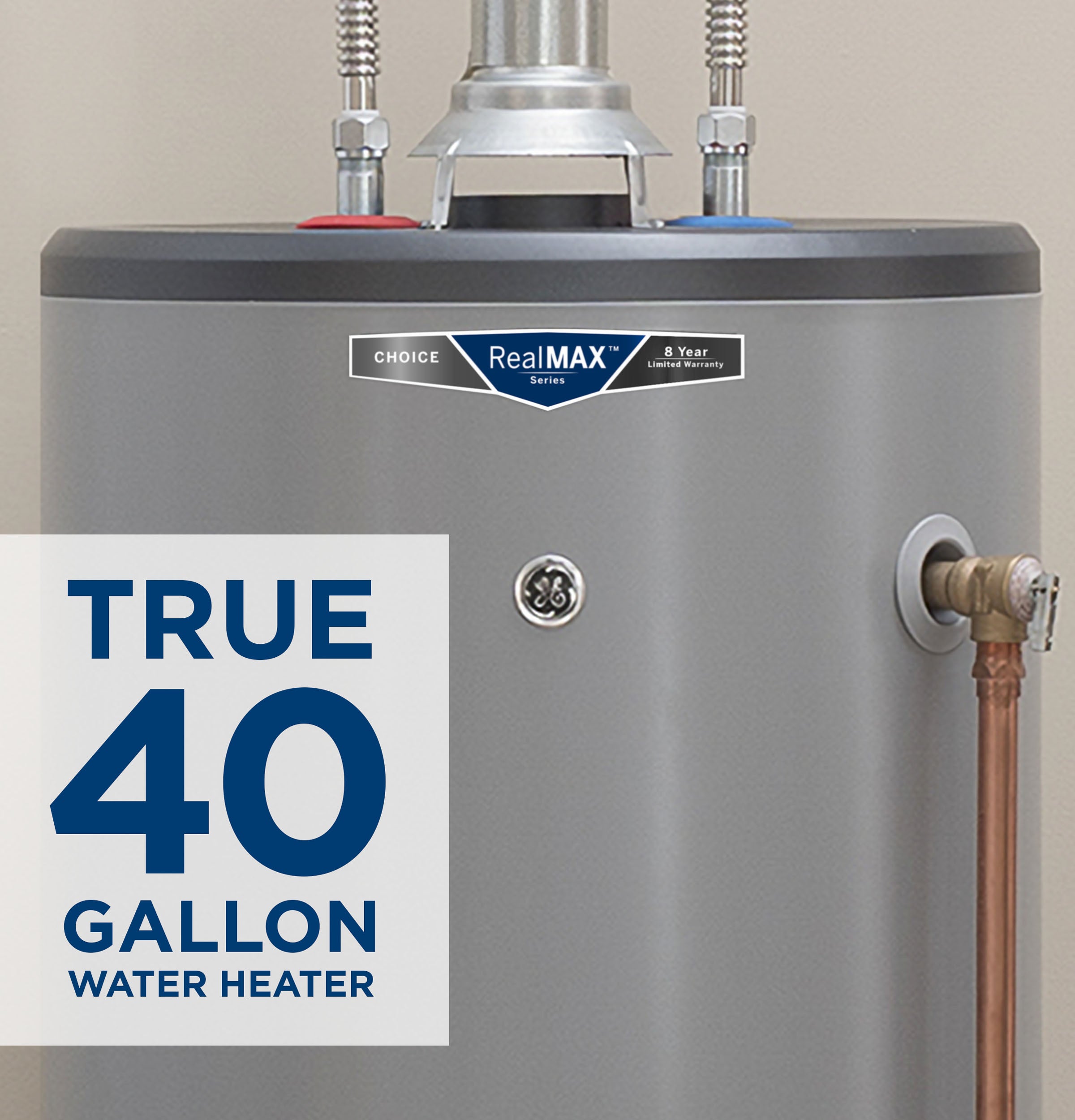

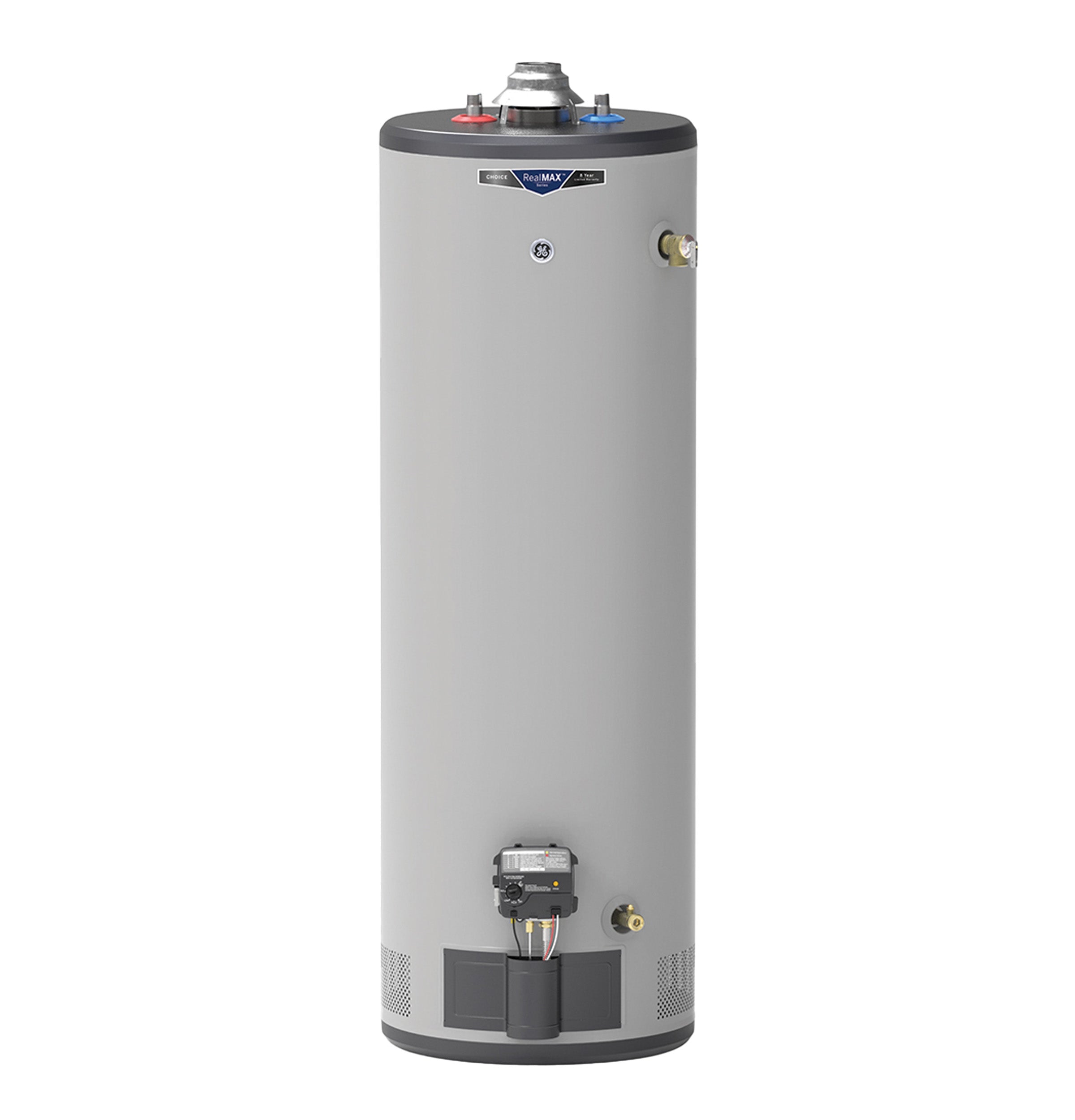

GE GG40T08BXR RealMAX Choice 40-Gallon Tall Natural Gas Atmospheric Water Heater Gray
Sale price
$962.56
Regular price
$1,727.97
Save
$765.41
/ 44% OFF
More on the way
Active Rebates
Extended Protection
?
Extend your appliance's warranty beyond the manufacturer's terms with our Extended Protection Plan.
Enjoy added peace of mind long after the original warranty expires.
This Protection Plan includes:
- Full parts and labor coverage during the whole period of the extension plan.
- Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty
- Food loss protection
- 24/7 toll-free number for support
-
$43.49
-
$75.99
-
$115.99
-
$163.99
-
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Sale price
$962.56
Regular price
$1,727.97
Save
$765.41
/ 44% OFF
Product Details for GE GG40T08BXR
Technical Details
Weights & dimensions
| Overall Width | 20 in |
| Overall Height | 61.875 in |
| Product Height (to top of unit) | 58.5 in |
| Overall Depth | 20 in |
| Product Height (to top of water inlet/outlet connections) | 60 in |
| Height to Gas Control | 11.25 in |
| Approximate Shipping Weight | 147 lb |
| Net Weight | 140 lb |
| Product Diameter | 20 in |
| Connection Sizes - Water Inlet (MNPT) | 3/4" |
| Connection Sizes - Hot Water Outlet (MNPT) | 3/4" |
| Vent Size | 2" or 3" Type B Vent |
Features
| Vent | Atmospheric |
| Controls | LED Indicator |
| UEF | .64 |
| Temp & Pressure Relief Valve | Yes |
| Height Description | Tall |
| Fuel Type | Natural Gas |
| Pilot Light Window / Button | Yes |
| Configuration | Tall |
| Product Type | Atmospheric Gas |
| Family Size | 2-5 People |
| Bin Testing | High |
| Water Connection Location | Top |
| Gas Valve | Self Powered |
| Anode Rod | Magnesium |
| Temperature Setting | 45-160° F Range |
| Altitude Rating | 10,100 ft |
| Drain Valve Type | Brass |
| FVIR Safety System | Yes |
| Overheat Protection | Yes |
Power / ratings
| Burner BTU Size (k) | 40 |
| Hertz | 60 |
| First Hour Rate (FHR) | 83 Gallons |
Capacity
| Unit Capacity | 40 Gallons |
Appearance
| Color Appearance | Gray |
Warranty
| Labor | 1 Year |
| Parts (Tank) | 8 Year |
| Labor (Entire Appliance) | 1 Year |
Other
| Product Diameter | 20 in |
| Vent Size | 3" Type B Vent |
| Connection Sizes - Water Inlet (MNPT) | 3/4" |
Dimensions & weight
| Width | 20 in. |
| Height | 61.88 in. |
| Length | 20 in. |
| Weight | 140 lbs. |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Width | 25 in. |
| Shipping Height | 66.88 in. |
| Shipping Length | 25 in. |
| Shipping Weight | 180 lbs. |
| Total of Shipping Weight | 180 lbs. |
| Source | Calculation |
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 14.32 ft³ |
| Dimensional Weight | 178.06 lbs. |
| Total of Cubes | 14.32 ft³ |
| Total of Dimensional Weight | 178.06 lbs. |
Description
Household Size
Provide hot water for the whole family of 2 to 4 persons

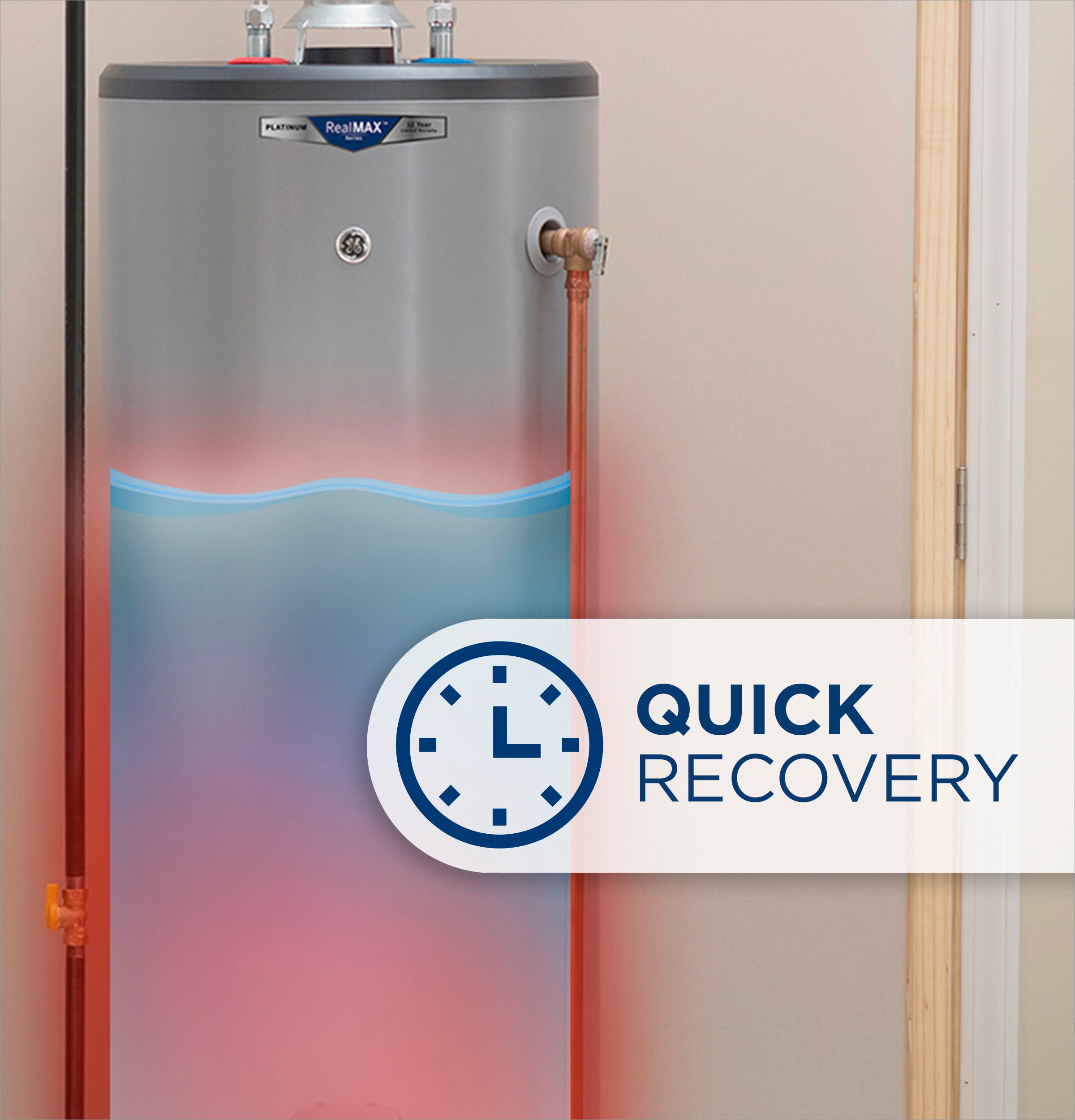

Quick Recovery
Quickly replenish hot water with a max-performance 40K burner

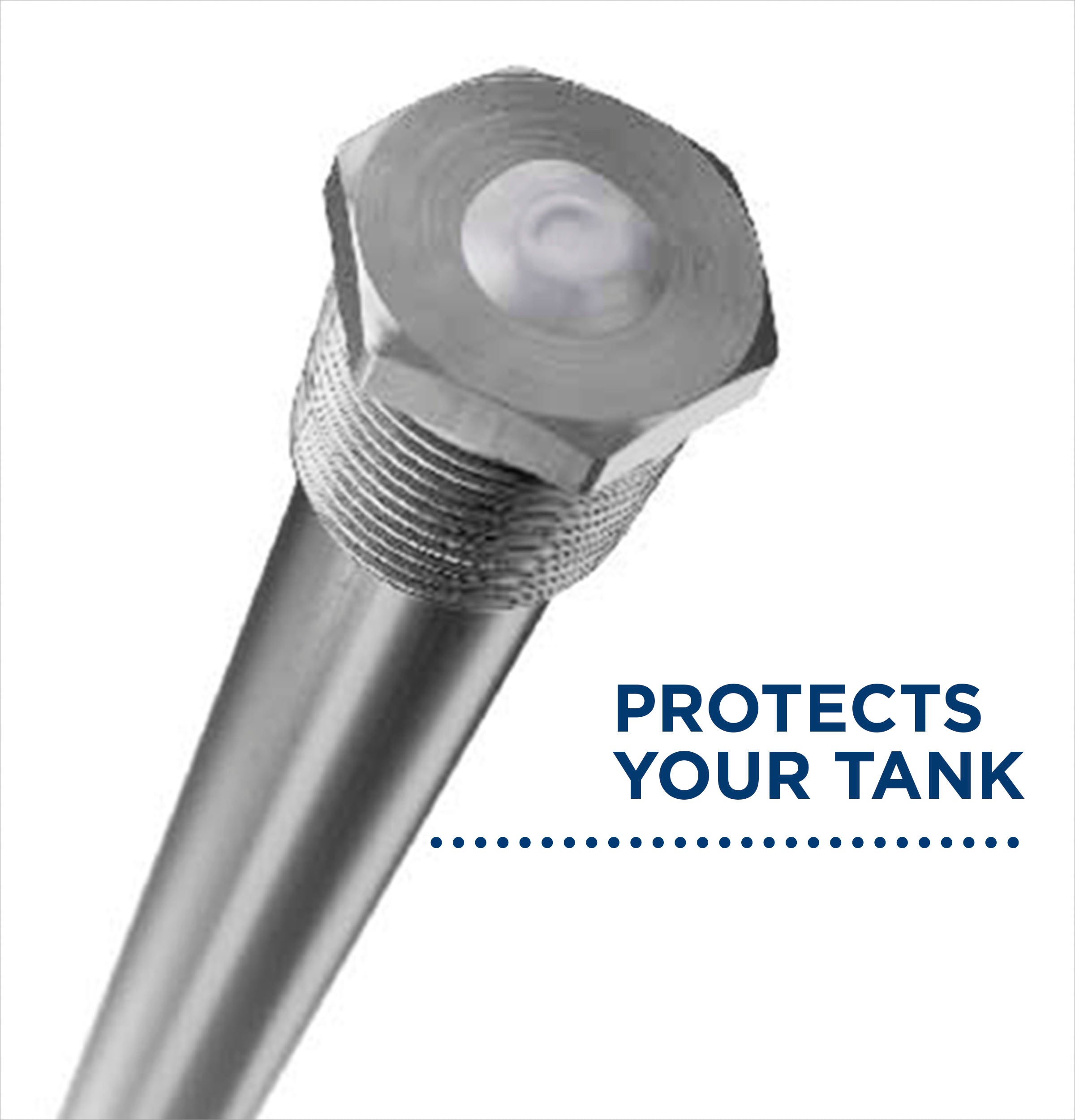

Anode Rod
Durable design offers long-lasting protection against corrosion to extend the life of your water heater tank

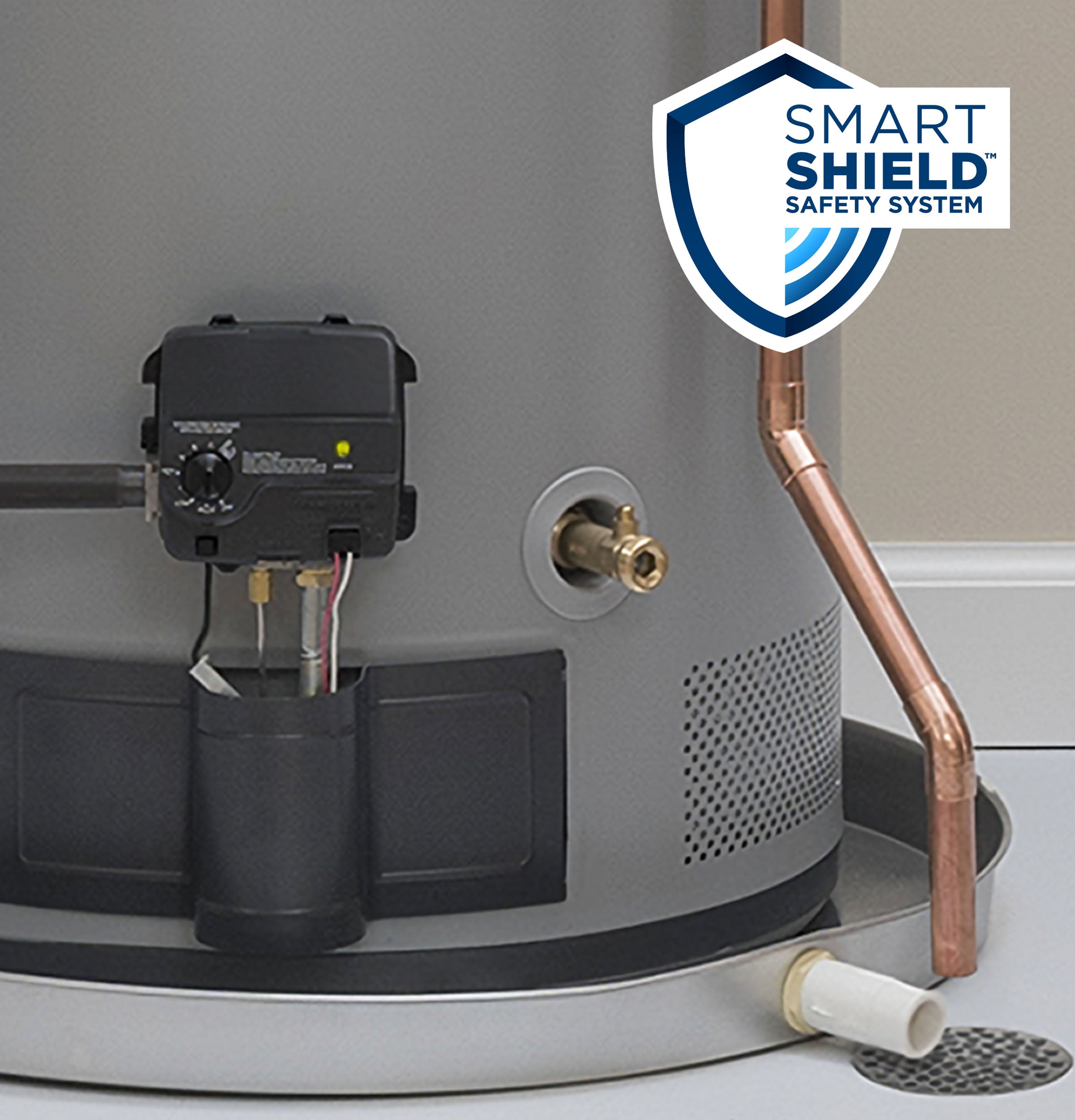

SmartShield (TM) Safety System
Monitors the surrounding air and automatically shuts off the unit if abnormal temperatures are detected

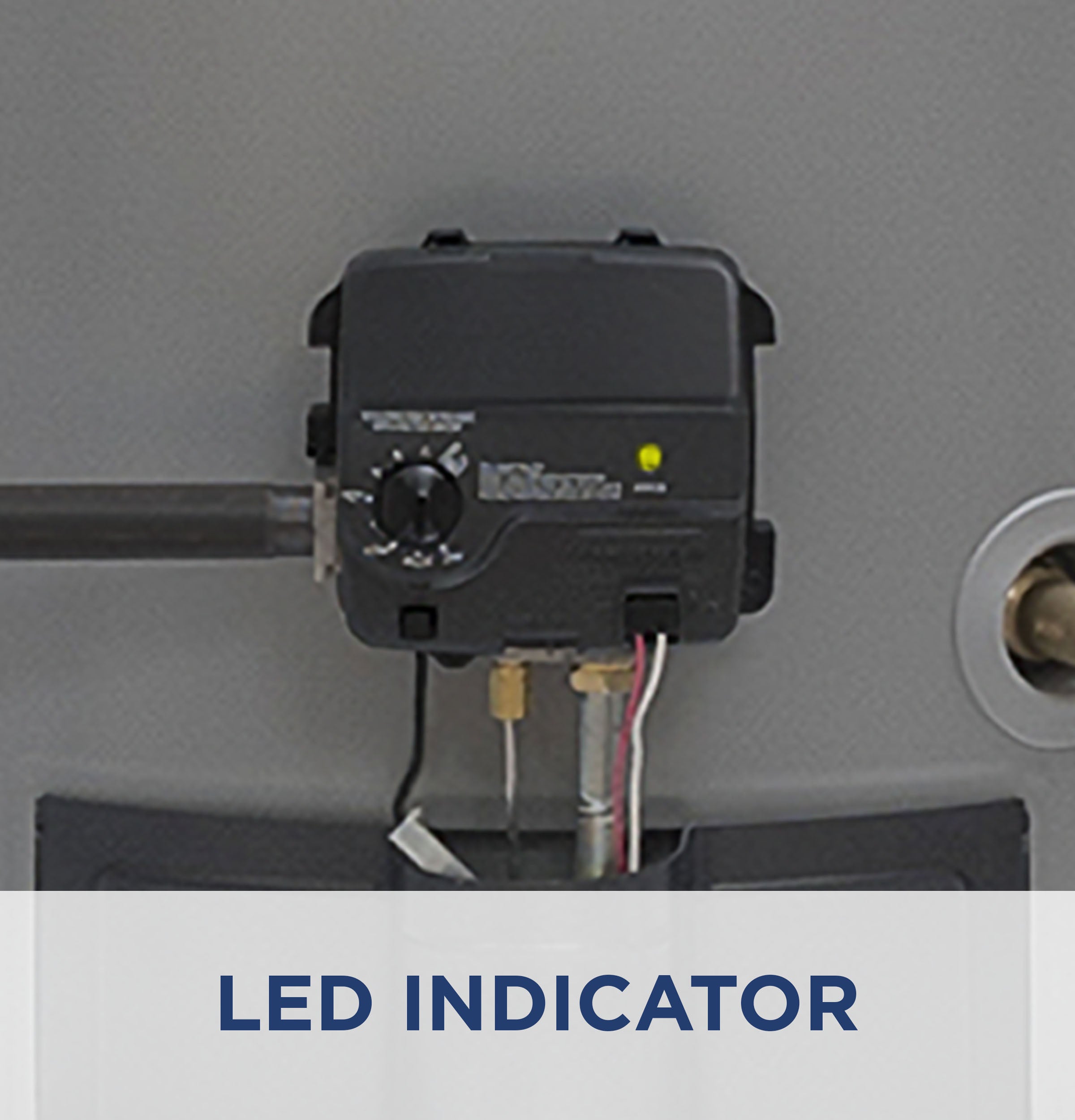

Self-Diagnostic
Monitors and reports on gas system status via LED status indicator

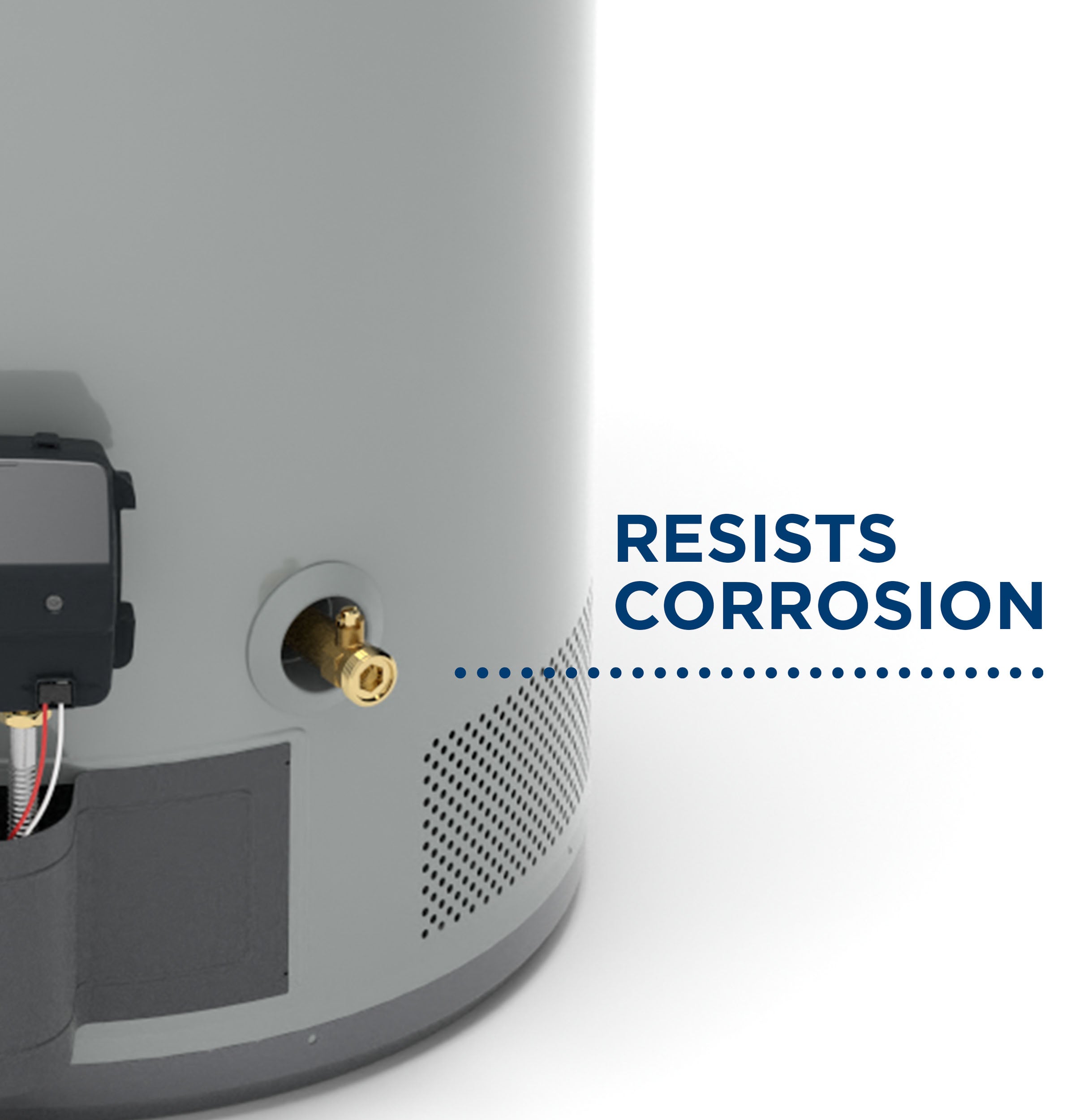

Brass Drain Valve
Rust-proof construction can be counted on to provide long-lasting service
Easy Installation
Replace your old water heater quickly and easily using standard water and gas connections

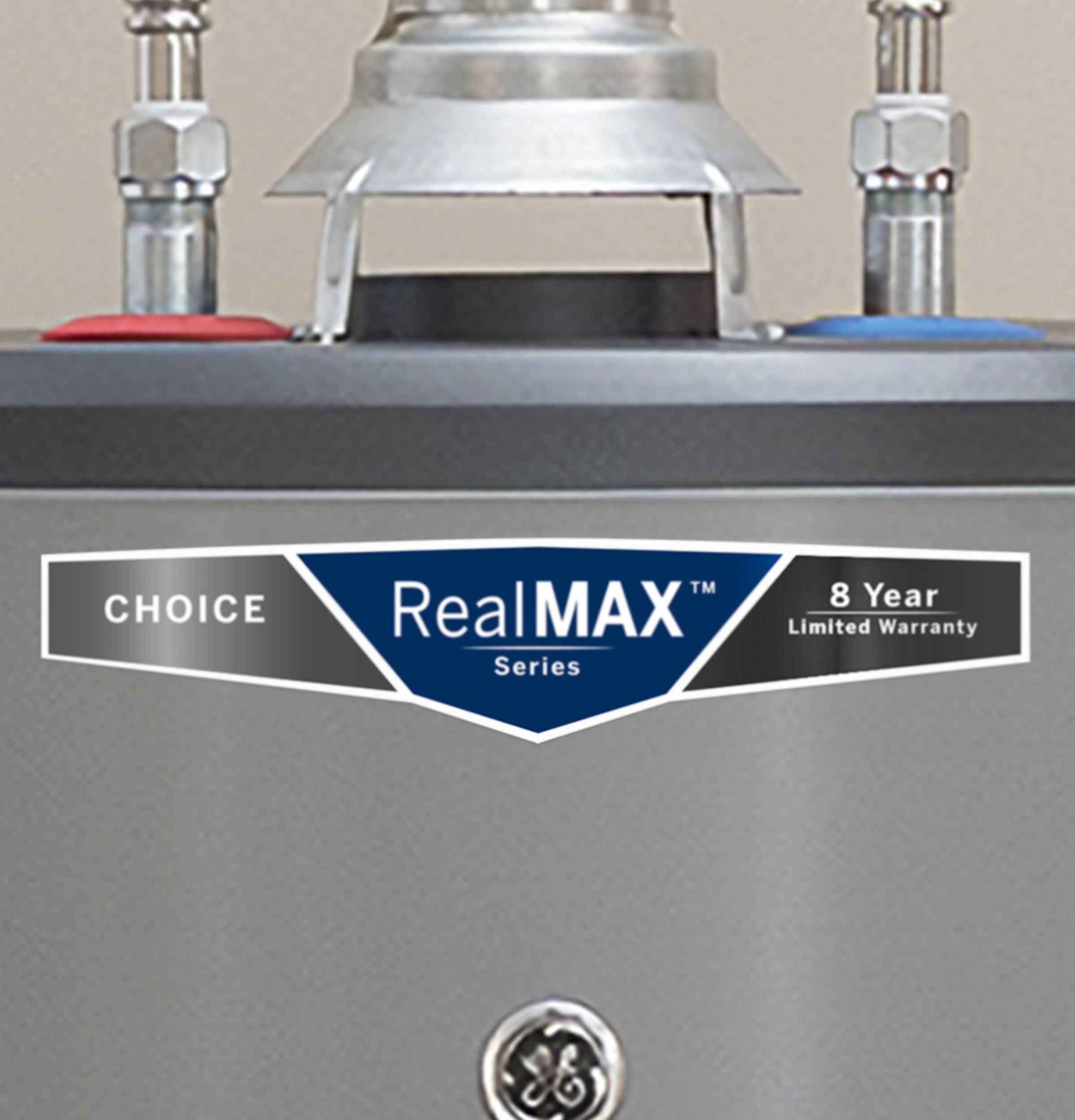

Built-To-Last Warranty
RealMAX Choice water heaters carry an 8-year tank and parts limited warranty
Provide hot water for the whole family of 2 to 4 persons
Quick Recovery
Quickly replenish hot water with a max-performance 40K burner
Anode Rod
Durable design offers long-lasting protection against corrosion to extend the life of your water heater tank
SmartShield (TM) Safety System
Monitors the surrounding air and automatically shuts off the unit if abnormal temperatures are detected
Self-Diagnostic
Monitors and reports on gas system status via LED status indicator
Brass Drain Valve
Rust-proof construction can be counted on to provide long-lasting service
Easy Installation
Replace your old water heater quickly and easily using standard water and gas connections
Built-To-Last Warranty
RealMAX Choice water heaters carry an 8-year tank and parts limited warranty
Manuals & Guides
Key Features
Household Size
Provide hot water for the whole family of 2 to 4 persons
Quick Recovery
Quickly replenish hot water with a max-performance 40K burner
Anode Rod
Durable design offers long-lasting protection against corrosion to extend the life of your water heater tank
SmartShield ™ Safety System
Monitors the surrounding air and automatically shuts off the unit if abnormal temperatures are detected
Self-Diagnostic
Monitors and reports on gas system status via LED status indicator
Brass Drain Valve
Rust-proof construction can be counted on to provide long-lasting service
Easy Installation
Replace your old water heater quickly and easily using standard water and gas connections
Built-To-Last Warranty
RealMAX Choice water heaters carry an 8-year tank and parts limited warranty
