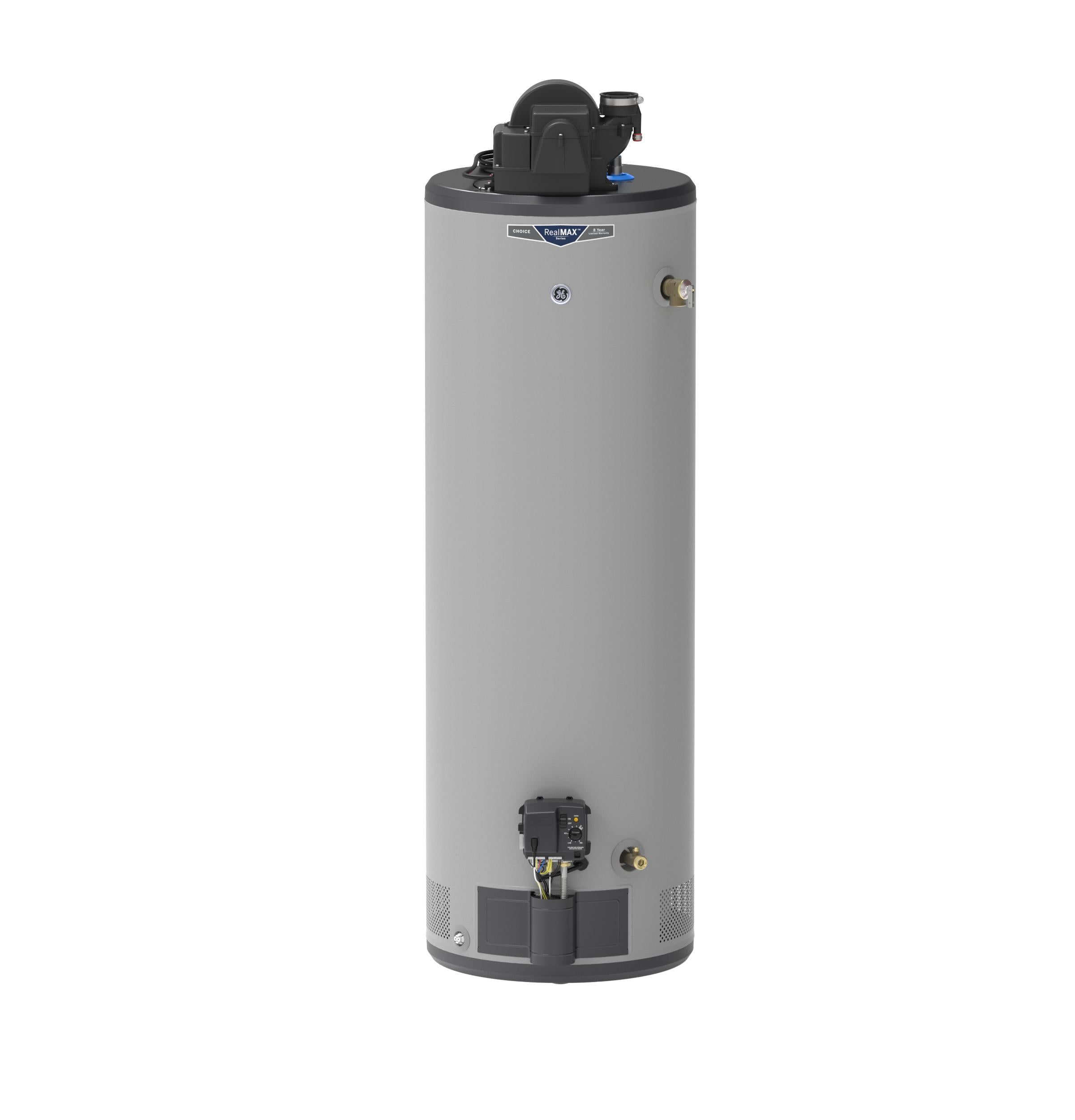

GE GG40T08AYV RealMAX Choice 40-Gallon Tall Natural Gas Power Vent Water Heater Gray
Sale price
$1,322.10
Regular price
$1,468.97
Save
$146.87
/ 9% OFF
More on the way
Active Rebates
Extended Protection
?
Extend your appliance's warranty beyond the manufacturer's terms with our Extended Protection Plan.
Enjoy added peace of mind long after the original warranty expires.
This Protection Plan includes:
- Full parts and labor coverage during the whole period of the extension plan.
- Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty
- Food loss protection
- 24/7 toll-free number for support
-
$43.49
-
$75.99
-
$115.99
-
$163.99
-
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Sale price
$1,322.10
Regular price
$1,468.97
Save
$146.87
/ 9% OFF
Product Details for GE GG40T08AYV
Technical Details
Other
| Product Diameter | 20 in |
| Vent Size | 3" Type B Vent |
| Connection Sizes - Water Inlet (MNPT) | 3/4" |
Dimensions & weight
| Width | 20 in. |
| Height | 66.33 in. |
| Length | 20 in. |
| Weight | 142 lbs. |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Width | 25 in. |
| Shipping Height | 71.33 in. |
| Shipping Length | 25 in. |
| Shipping Weight | 182 lbs. |
| Total of Shipping Weight | 182 lbs. |
| Source | Calculation |
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 15.35 ft³ |
| Dimensional Weight | 190.89 lbs. |
| Total of Cubes | 15.35 ft³ |
| Total of Dimensional Weight | 190.89 lbs. |
Weights & dimensions
| Overall Width | 20 in |
| Product Height (to top of unit) | 58.75 in |
| Overall Depth | 20 in |
| Product Height (to top of water inlet/outlet connections) | 60.25 in |
| Height to Gas Control | 11.5 in |
| Approximate Shipping Weight | 154 lb |
| Net Weight | 142 lb |
| Product Diameter | 20 in |
| Vent Size | 3" Type B Vent |
| Connection Sizes - Water Inlet (MNPT) | 3/4" |
| Connection Sizes - Hot Water Outlet (MNPT) | 3/4" |
| Overall Height | 66.33 in |
Features
| FVIR Safety System | Prevents accidental ignition of flammable vapors |
| Vent | Power Vent |
| Controls | LED Indicator |
| UEF | 0.68 |
| Temp & Pressure Relief Valve | Yes |
| Height Description | Tall |
| Fuel Type | Natural Gas |
| Pilot Light Window / Button | Yes |
| Configuration | Tall |
| Drain Valve Type | Brass |
| Product Type | Power Vent Gas |
| Family Size | 2-5 People |
| Bin Testing | High |
| Water Connection Location | Top |
| Overheat Protection | Dry Burning Protection |
| Gas Valve | Self Powered |
| Anode Rod | Magnesium |
| Temperature Setting | 45-160° F Range |
| Altitude Rating | 10,100 ft |
Warranty
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 8-year tank and parts |
| Labor Warranty | Limited 1-year entire appliance |
Power / ratings
| Burner BTU Size (k) | 42 |
| First Hour Delivery GPH | 82 gal/h |
Capacity
| Unit Capacity | 40 Gallons |
Appearance
| Color Appearance | Gray |
Description

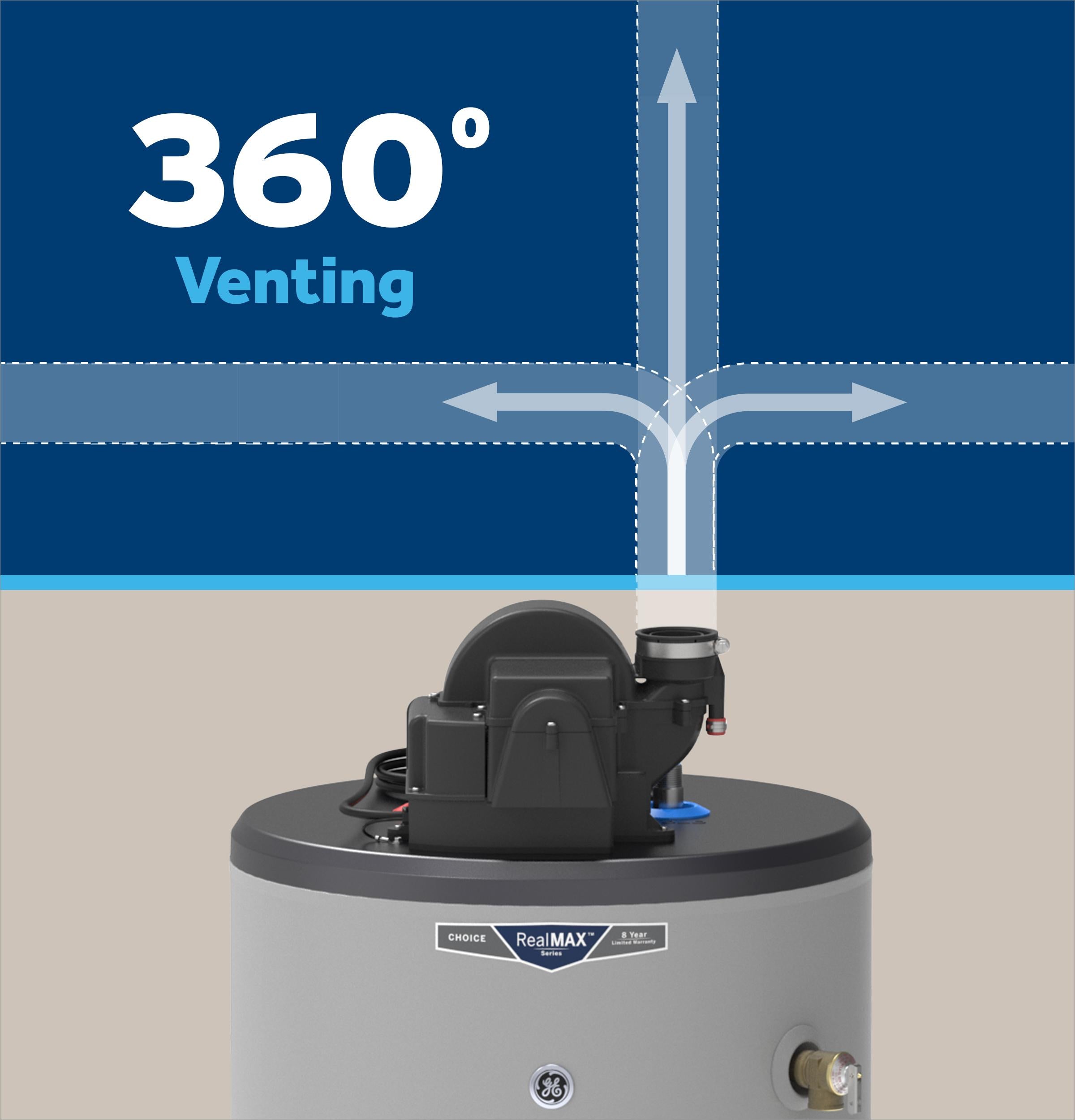

Power Vent
Get easy, anywhere venting. Gas power vent water heaters offer flexible venting options with lengths up to 150 feet and either vertical or horizontal termination.
Household Size
With its 40-gallon water tank, this unit provides plenty of hot water for a family of up to four people.

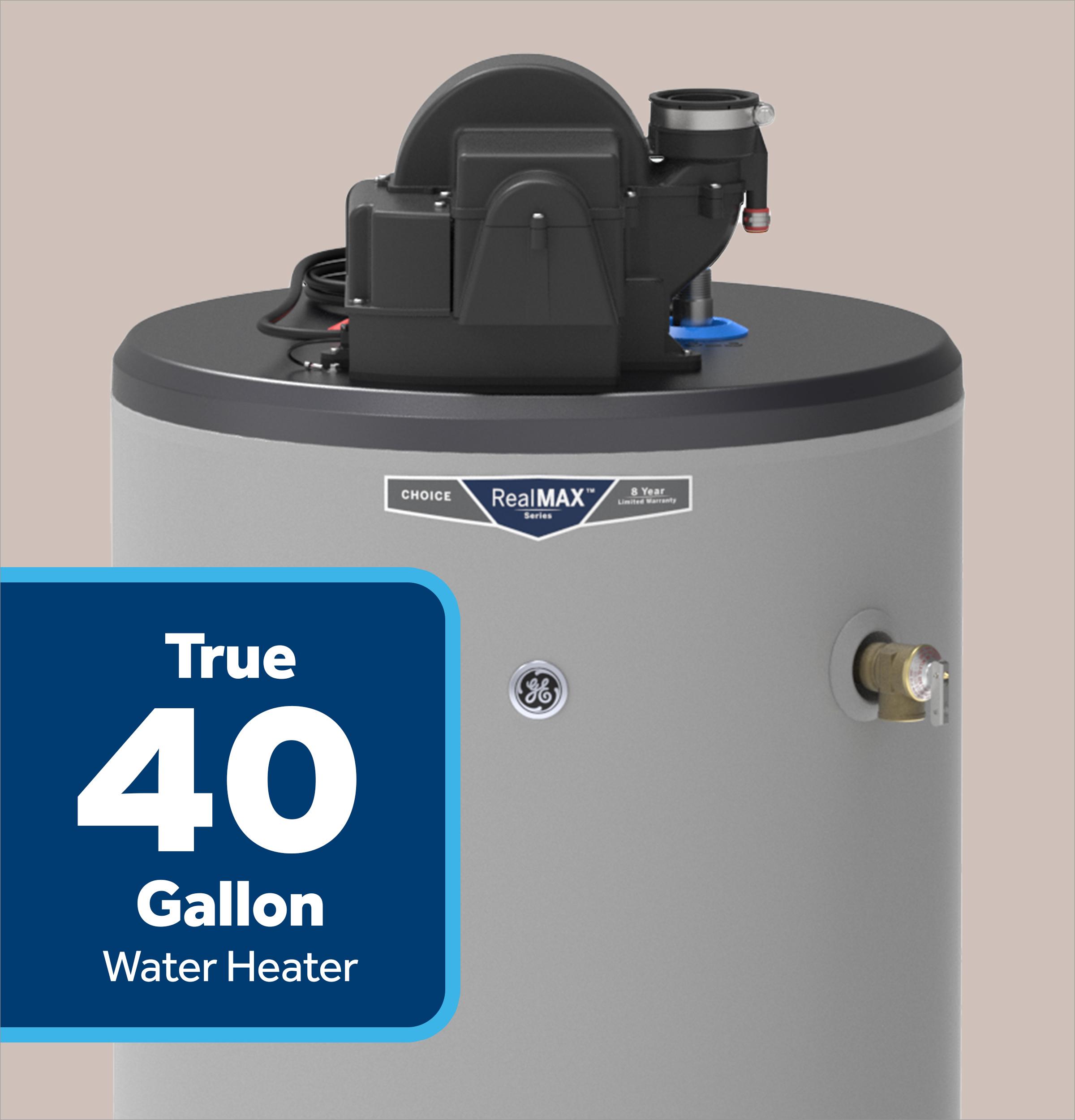

Real Capacity
Get the most hot showers from the only water heater that holds a true 40 gallons of water. (Compared to steel tank water heaters per DOE -rated gallon capacity.)
Maximum Performance
Live comfortably with this best-in-class gas water heater with a first-hour delivery of 82 gallons of hot water usage. (40-gallon model as measured through DOE first-hour rating.)

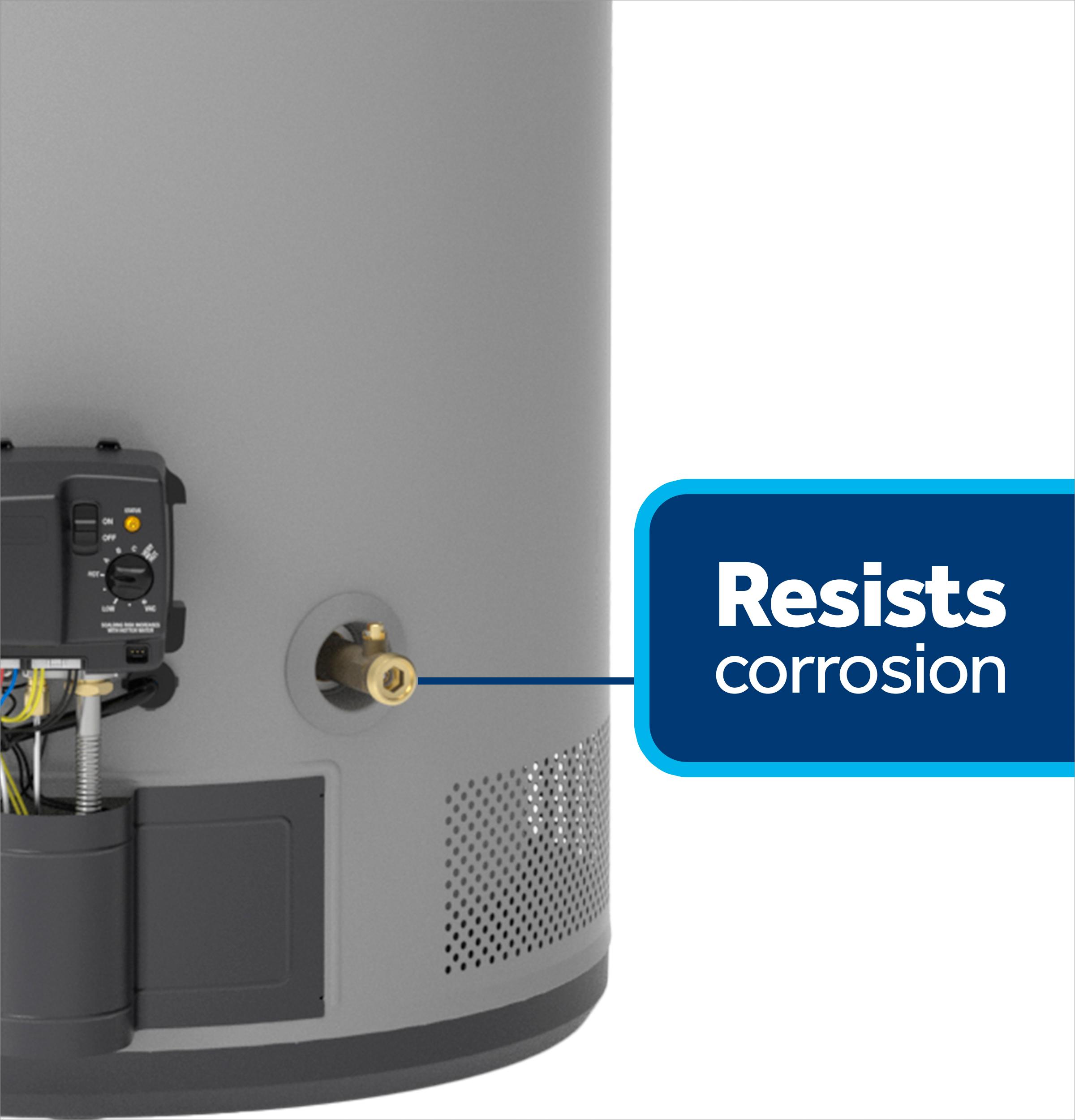

Brass Drain Valve
Get the lasting durability of a corrosion-resistant, rust-proof full port brass drain valve.

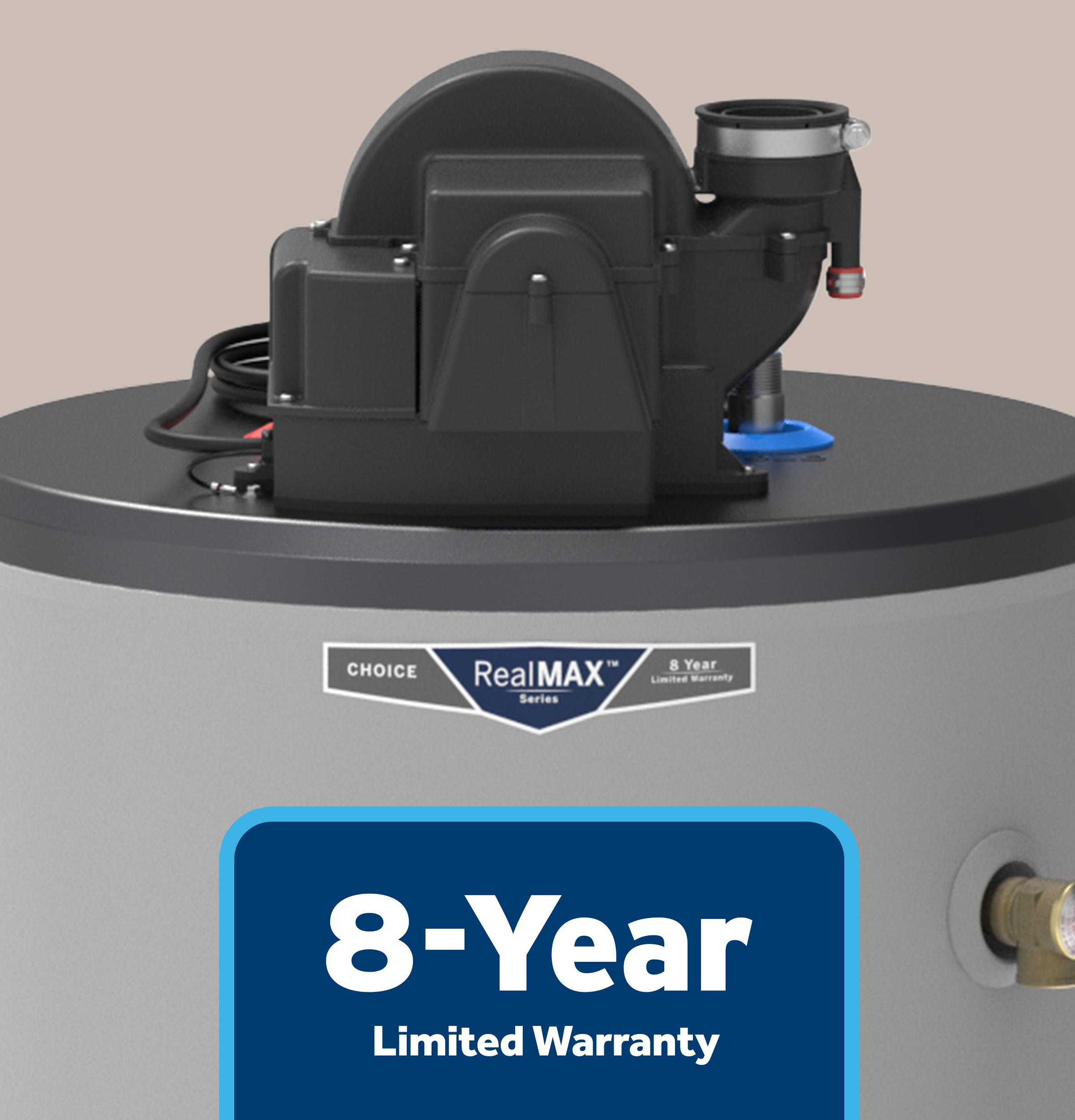

Leading Warranty
RealMAX(TM) Choice water heaters carry an 8-year tank and parts limited warranty

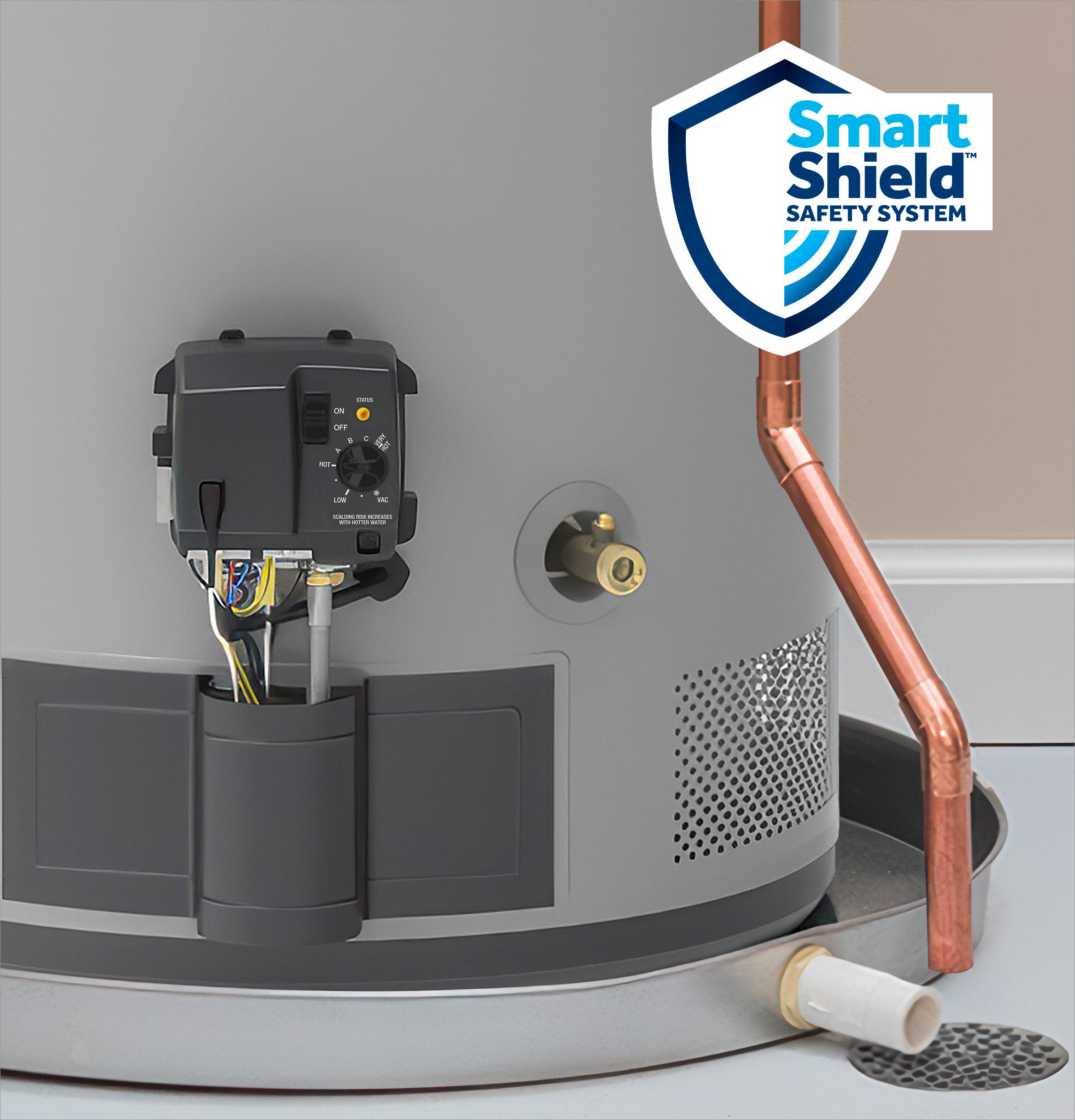

SmartShield(TM) Safety System
For added safety, the SmartShield(TM) Safety System monitors the surrounding air and automatically shuts off the unit if abnormal temperatures or the presence of flammable vapors are detected.

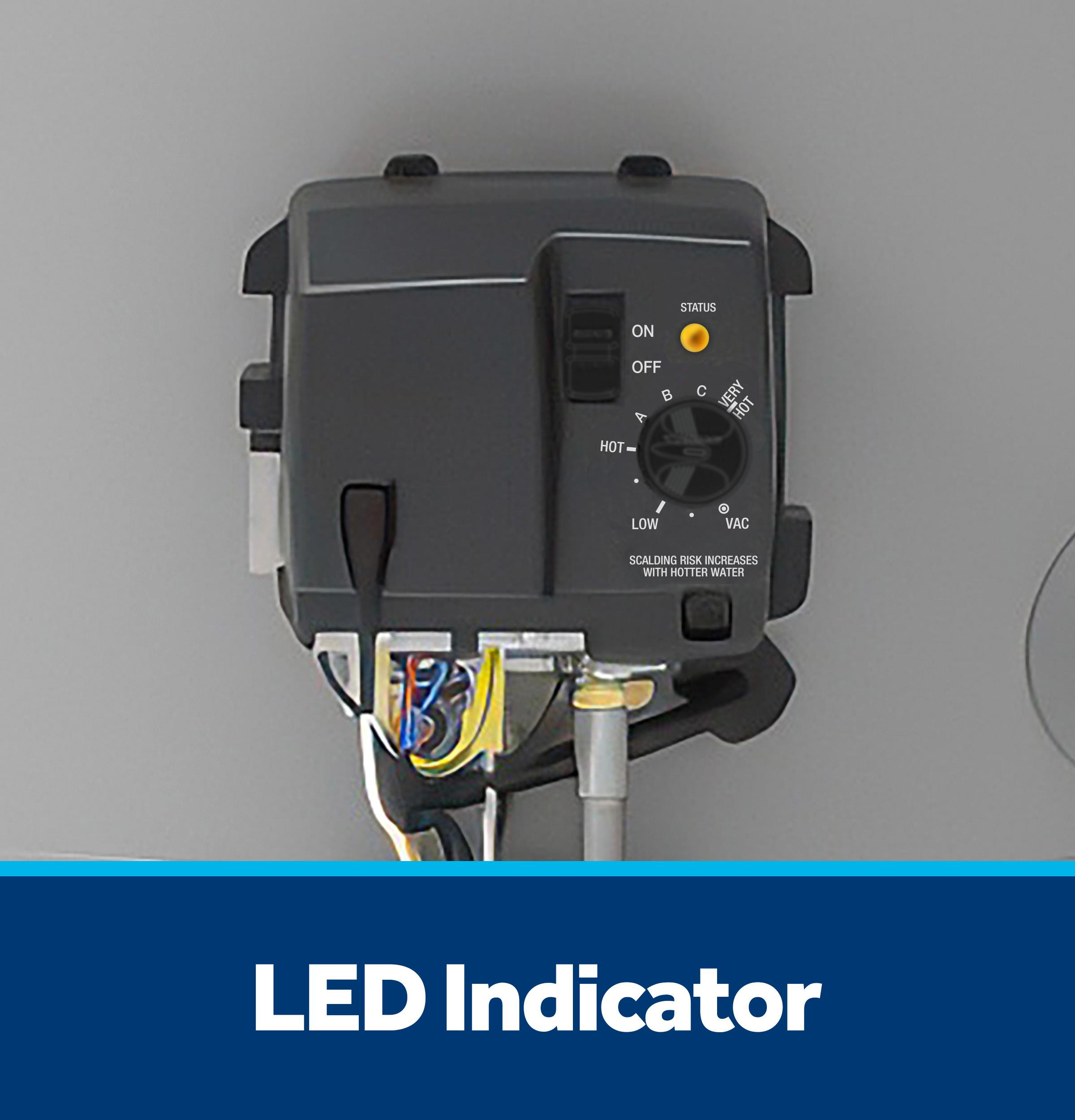

Self-Diagnostic
Monitors and reports on gas system status via LED status indicator.

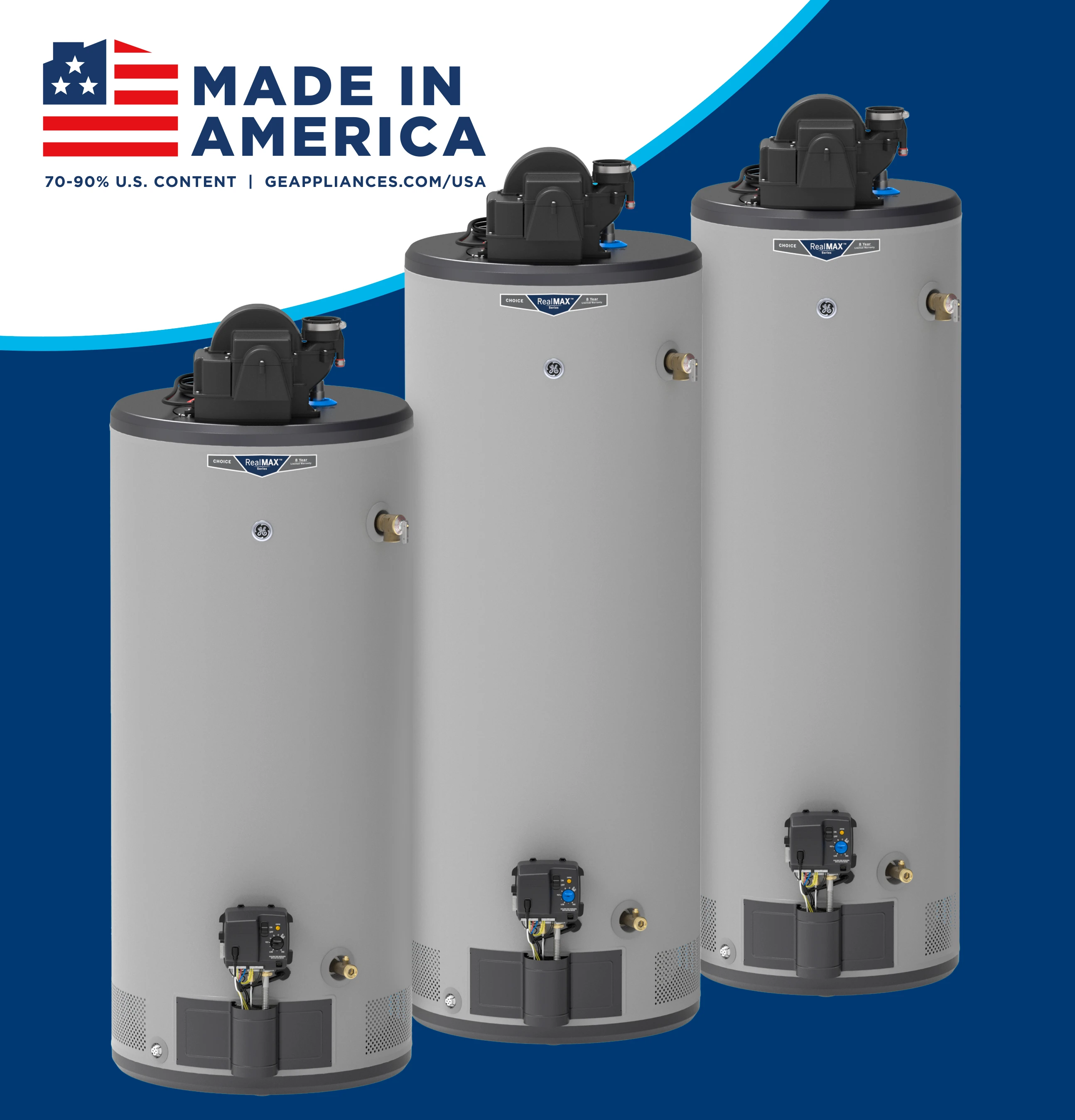

Made in America
Get the added confidence of an American-made water heater.
Get easy, anywhere venting. Gas power vent water heaters offer flexible venting options with lengths up to 150 feet and either vertical or horizontal termination.
Household Size
With its 40-gallon water tank, this unit provides plenty of hot water for a family of up to four people.
Real Capacity
Get the most hot showers from the only water heater that holds a true 40 gallons of water. (Compared to steel tank water heaters per DOE -rated gallon capacity.)
Maximum Performance
Live comfortably with this best-in-class gas water heater with a first-hour delivery of 82 gallons of hot water usage. (40-gallon model as measured through DOE first-hour rating.)
Brass Drain Valve
Get the lasting durability of a corrosion-resistant, rust-proof full port brass drain valve.
Leading Warranty
RealMAX(TM) Choice water heaters carry an 8-year tank and parts limited warranty
SmartShield(TM) Safety System
For added safety, the SmartShield(TM) Safety System monitors the surrounding air and automatically shuts off the unit if abnormal temperatures or the presence of flammable vapors are detected.
Self-Diagnostic
Monitors and reports on gas system status via LED status indicator.
Made in America
Get the added confidence of an American-made water heater.
Manuals & Guides
Key Features
Power Vent
Get easy, anywhere venting. Gas power vent water heaters offer flexible venting options with lengths up to 150 feet and either vertical or horizontal termination.
Household Size
With its 40-gallon water tank, this unit provides plenty of hot water for a family of up to four people.
Real Capacity
Get the most hot showers from the only water heater that holds a true 40 gallons of water. (Compared to steel tank water heaters per DOE -rated gallon capacity.)
Maximum Performance
Live comfortably with this best-in-class gas water heater with a first-hour delivery of 82 gallons of hot water usage. (40-gallon model as measured through DOE first-hour rating.)
Brass Drain Valve
Get the lasting durability of a corrosion-resistant, rust-proof full port brass drain valve.
Leading Warranty
RealMAX™ Choice water heaters carry an 8-year tank and parts limited warranty
SmartShield™ Safety System
For added safety, the SmartShield™ Safety System monitors the surrounding air and automatically shuts off the unit if abnormal temperatures or the presence of flammable vapors are detected.
Self-Diagnostic
Monitors and reports on gas system status via LED status indicator.
Made in America
Get the added confidence of an American-made water heater.
